Norac Rogator 1286C User manual

Rogator 1286C
(JIC & Flat Faced O-Ring)
Installation Manual
RG5 & RG7

Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-BC-RG5-INST Rev D (Rogator 1286C (JIC & Flat Faced O-Ring))
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents
1Introduction................................................................................................................ 1
2General UC4.5 System Layout................................................................................. 2
3Kit Parts ...................................................................................................................... 3
4Pre-Install Checklist................................................................................................... 8
5Ultrasonic Sensor Installation .................................................................................. 9
6Roll Sensor Installation............................................................................................ 13
7Electrical Installation ............................................................................................... 16
8Hydraulic Installation .............................................................................................. 20
9Software Setup......................................................................................................... 24
10Cable Drawings ........................................................................................................ 25
11Appendix A – Optional Main Lift Sensor Installation .......................................... 31

1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Controller. This system
is manufactured with top quality components and is engineered using the latest technology to
provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.

2
2General UC4.5 System Layout
Figure 1 illustrates the general layout of the UC4.5 system components:

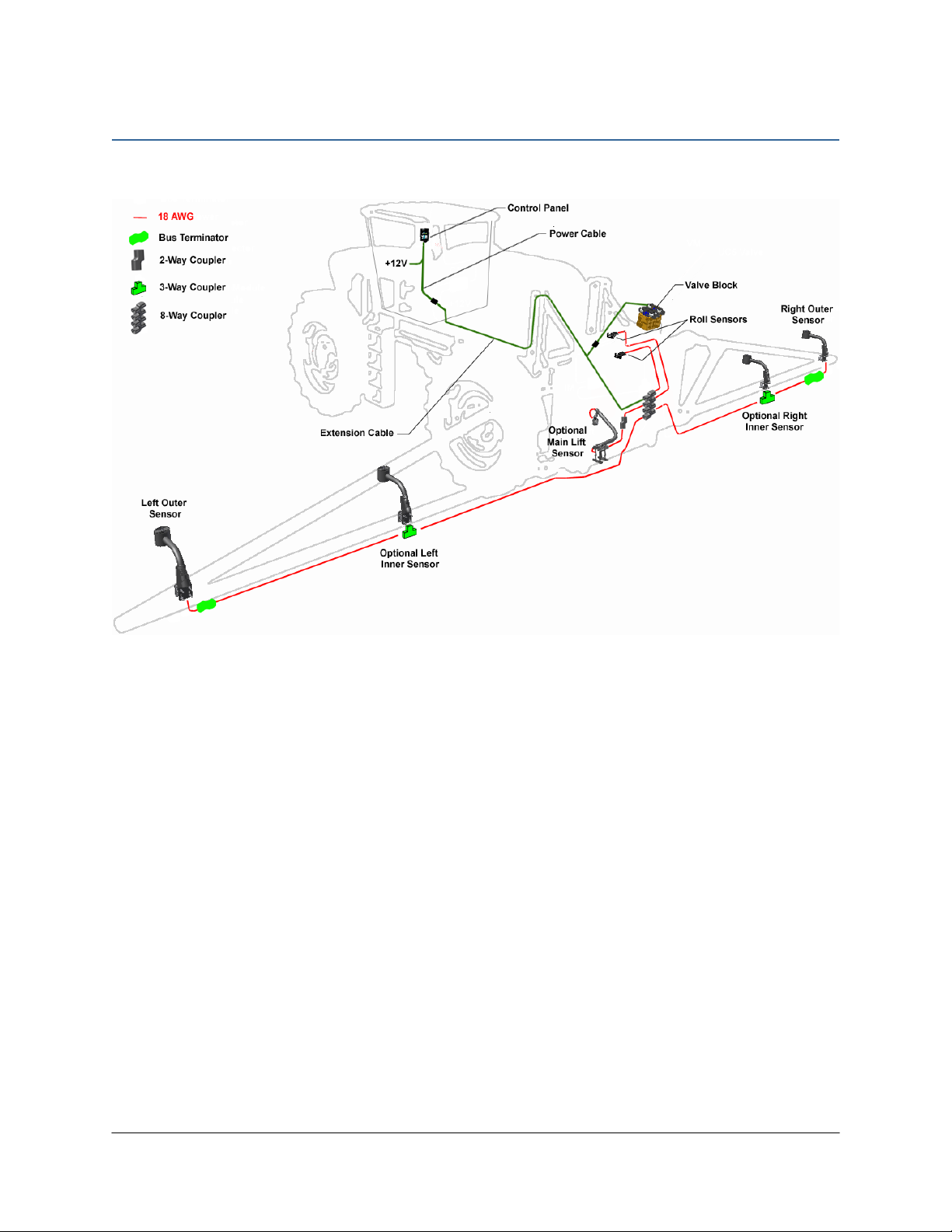

Figure 1: General UC4.5 System Layout

3
3Kit Parts
3.1 Kit Overview
Figure 2: RG5/RG7 System Parts

4
3.2 Hydraulic Plumbing
Figure 3: RG5/RG7 Hydraulic Plumbing

5
3.3 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2
C03 44656D CABLE VALVE VARIABLE RATE DT 1
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
C08 43220-03 CABLE UC5 NETWORK 14 AWG 3M 2
C10 44650-50 CABLE UC4.5 POWER GENERIC SELF-PROPELLED 1
C11 44651-50 CABLE UC4.5 EXTENSION VALVE GENERIC 1
C12 44658-24 CABLE UC4 INTERFACE DT06-2X GND2 1
C30 43250-04 CABLE UC5 BATTERY AMP FUSED 1
E01 45100 UC4.5 BOOM CONTROL PANEL 1
E03 43742 UC5 ROLL SENSOR W TEMPERATURE PROBE 1
E04 43741 UC5 ROLL SENSOR VER. 2 1
E05 43750 UC5 ULTRASONIC SENSOR 2
E11 43765 UC5 NETWORK COUPLER 8-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 3
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
M01
UC4.5-BC-MANUAL-
OPERATOR
OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1
M02 UC4.5-BC-RG5-INST MANUAL INSTALLATION UC4.5 ROGATOR 1286C (JIC & FLAT FACED O-RING) 1
P03 106162 UC5 NETWORK 6 PIN PLUG 3
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
3.4 Optional Main Lift Kit
An optional main lift sensor kit is available for purchase from NORAC.
Part Number Name
4570BC UC4.5 MAIN LIFT OPTION - 44743

6
3.5 Hydraulic Parts - Flat Faced O-Ring Fittings (RG5)
Item Part Number Name Quantity
H01 44863-46 HOSE ASSEMBLY 122R2-06 40IN L 6FORX90 8FORX 4
H10 44865-47 HYDRAULICS FITTING KIT - RG5 1
3.6 Hydraulic Fitting Kit Details (P/N: 44865-47)
Item Part Number Name Quantity Picture
F01 44928 ORIFICE INSERT .047 IN ONE WAY 2
F02 44917 MALE ADAPTER - 6MB 6MOR MACHINED 4
F03 104369 PLUG - 6MBP 2
F04 104885 TEE ADAPTER - 8FORXR 8MORT 4
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:

7
3.7 Hydraulic Parts - JIC Fittings (RG7)
Item Part Number Name Quantity
H01 44863-49 HOSE ASSEMBLY 122R2-06 40 IN L 6FJX90 8FJX 4
H10 44865-55 HYDRAULICS FITTING KIT - RG7 1

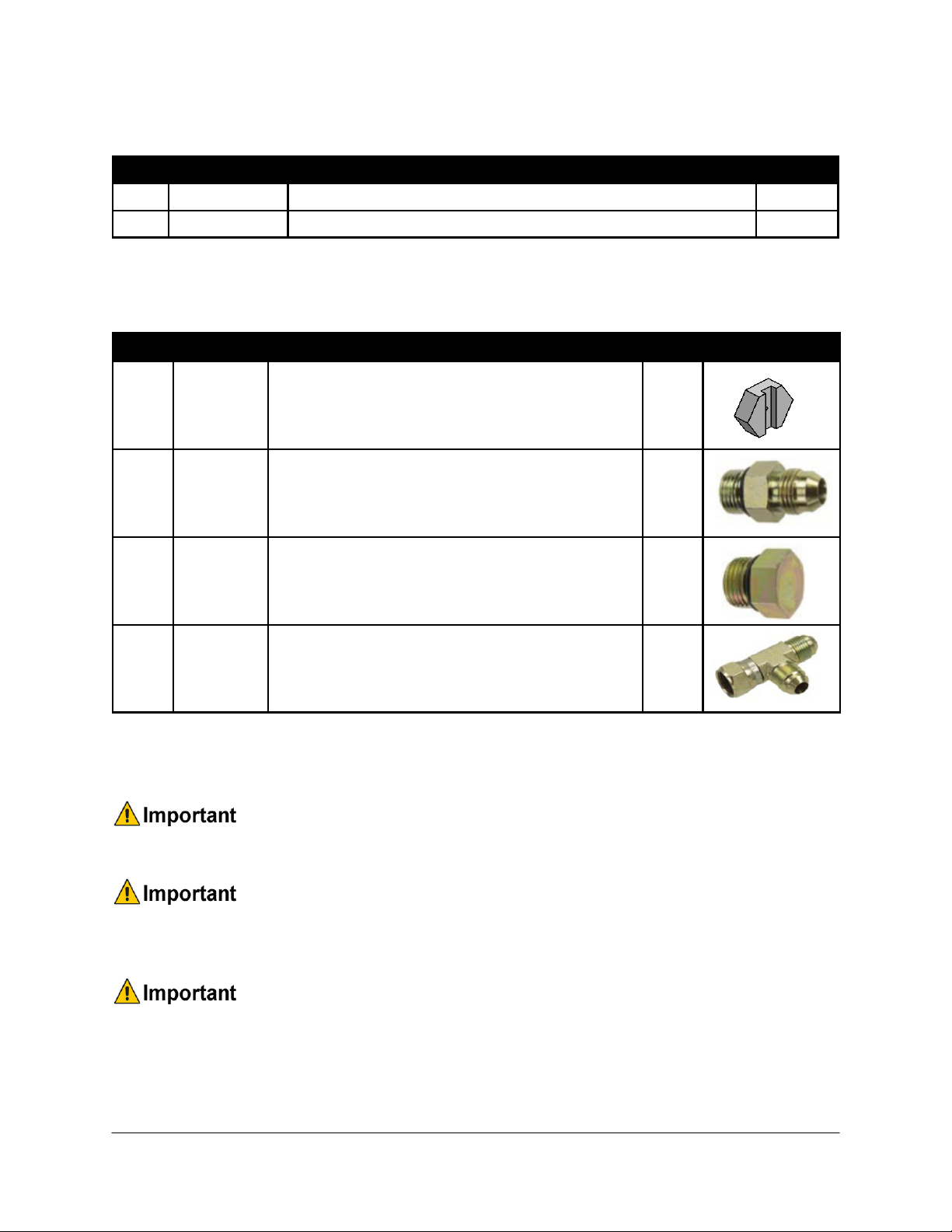

3.8 Hydraulic Fitting Kit Details (P/N: 44865-55)
Item Part Number Name Quantity Picture
F01 44928 ORIFICE INSERT .047 IN ONE WAY 2
F02 103312 MALE ADAPTER - 6MB 6MJ 4
F03 104369 PLUG - 6MBP 2
F04 104632 TEE ADAPTER 8FJXR 8MJT 4
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.

8
4Pre-Install Checklist
The pre-install checklist is necessary to check the existing sprayer functionality before the
installation.
1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).
2. Ensure all boom-fold operations are functional (place a check mark in boxes below).
3. Bring engine to field-operational RPM and record below.
4. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure
repeatable measurements, take the average of 3 trials.
5. Not all sprayers will have the functions listed below in Figure 4.
Ensure the boom has sufficient travel so it does not contact the ground during
these tests.

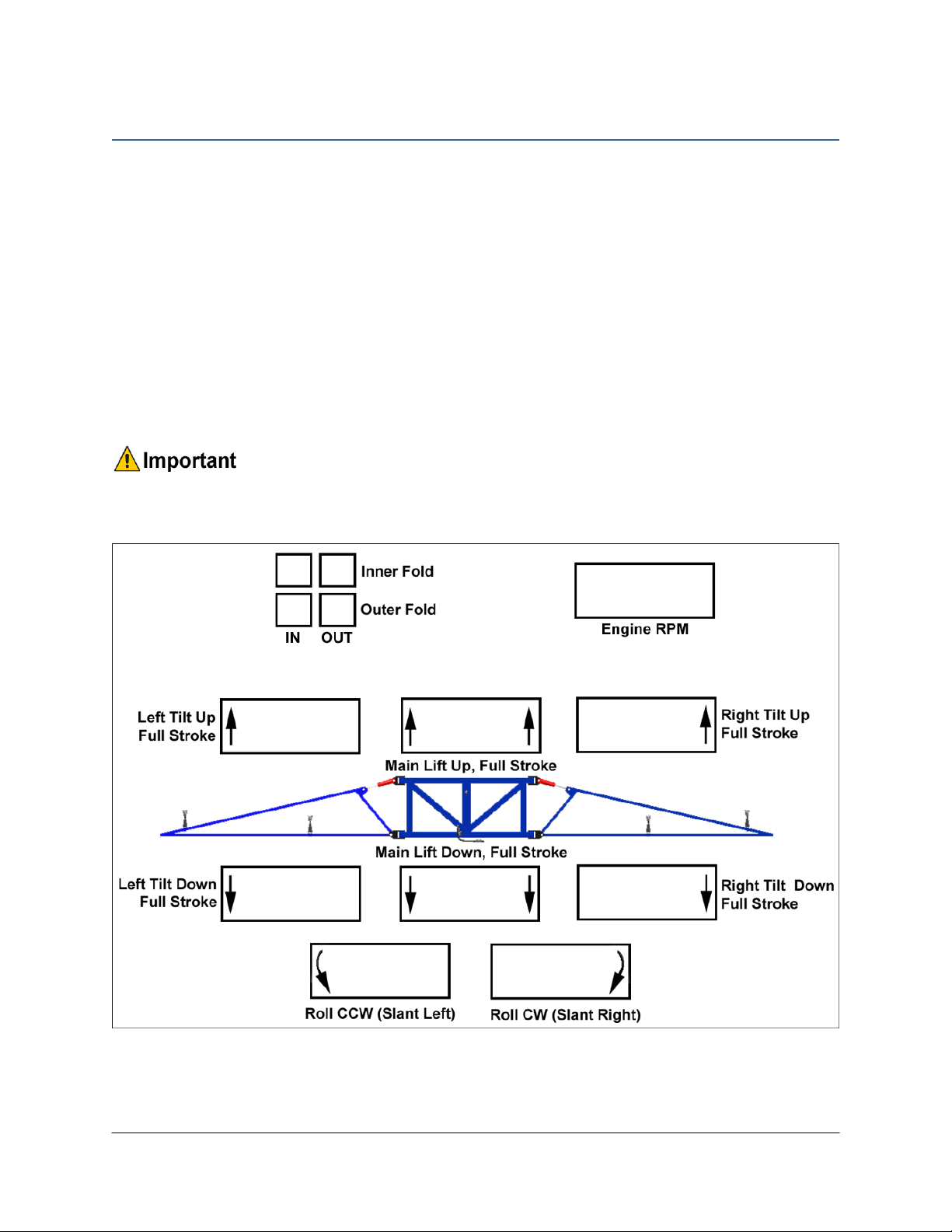

Figure 4: Pre-Install Boom Speeds

9

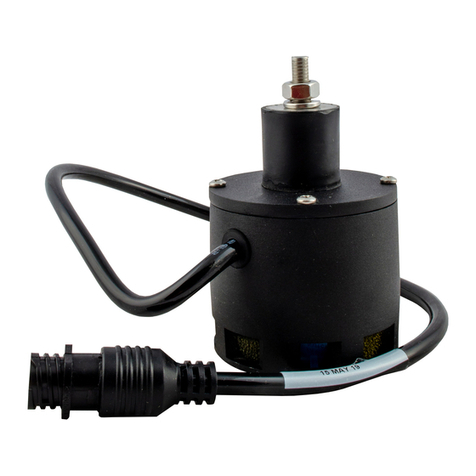

5Ultrasonic Sensor Installation
5.1 Bracket Assembly
Assemble the breakaway sensor bracket as illustrated in Figure 5, following the instructions
below.

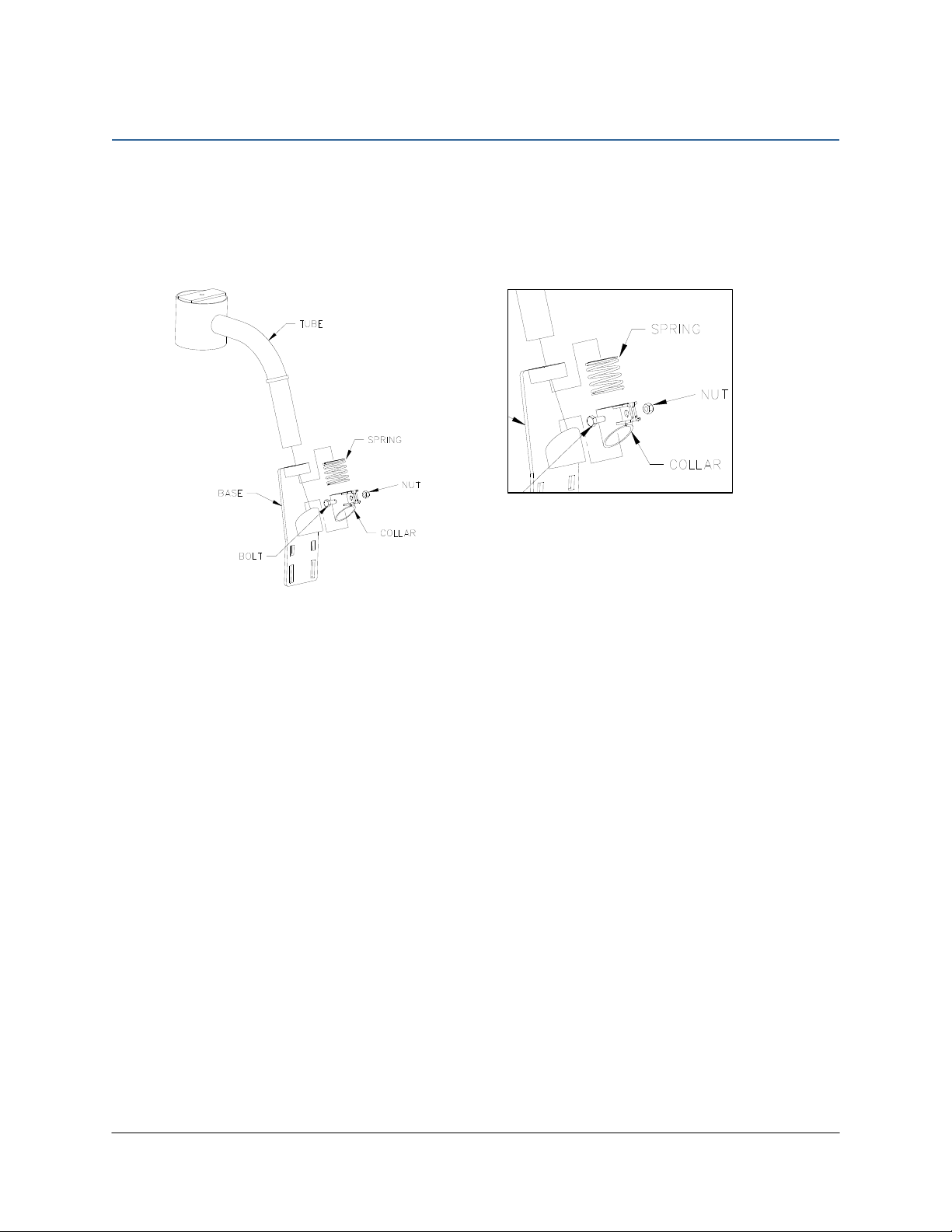

Figure 5: Breakaway Bracket Assembly
1. Compress the spring and insert it together with the collar into the base.
2. Slide the tube through the assembled part.
3. Using the bolt and nut, tighten the collar to the tube with the sensor tube centered.
4. Apply a small amount of grease to the rotating surfaces of the bracket.

10
5.2 Ultrasonic Sensor Serial Number Arrangement
When installing the sensors, start with the smallest serial number on the left-hand side, and
proceed to the largest serial number on the right hand side. Each sensor has a serial number
stamped on the sensor housing.
Apply a light coating of the supplied Permatex Anti-seize grease to all threaded
parts upon installation.
Figure 6: Sensor Serial Number Arrangement

11
5.3 Ultrasonic Sensor Mounting Guidelines
The following guidelines will ensure optimal sensor performance and prevent sensor
measurement error. These rules should be followed for both the wing sensors and the main
lift (middle) sensor.
1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A).
2. The centerline of the acoustic cone should be approximately vertical at normal operating
heights (A).
3. The bottom of the sensor must be at least 9 inches in front of the spray nozzles and boom
structure (B). (This does not apply for the main lift sensor)
4. The bottom of the sensor must be at least 9 inches above the spray nozzles (C).
5. Ensure there are no other obstructions with a 12 inch (23 cm) diameter circle projected
directly below the sensor (D).

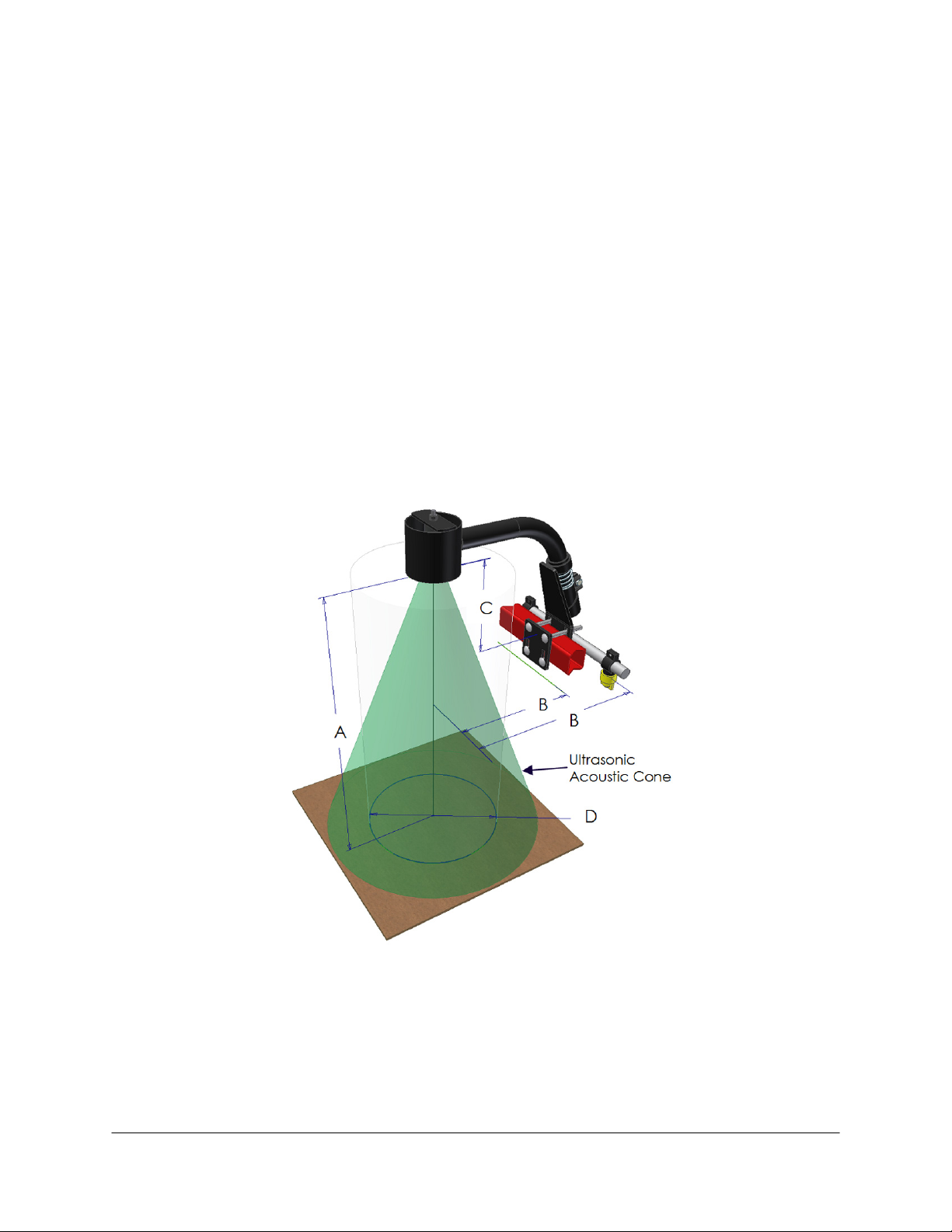

Figure 7: Sensor Mounting Guidelines

12
5.4 Wing Sensor Installation
1. The sensor bracket should be oriented forward (ahead of the boom).
2. Typically the best mounting location for the wing sensor brackets will be near the end of
the boom tips, approximately two feet (60cm) from the end.
3. Depending on the boom design, some breakaway sections will lift upwards as they break
back. If the sensor is mounted to this portion of the boom, the system will force the boom
downwards towards the ground as the boom folds backwards.
4. Mount the NORAC ultrasonic sensor into the sensor bracket and run the sensor cable
through the sensor tube.
A problem can arise if a sensor is not mounted correctly. It is possible for the
sensor to read off of the boom instead of the ground. This may only become
apparent once the controller is switched from soil to crop mode.
Also be careful that the sensor bracket does not collide with any other part of the
boom when the boom is folded to transport position. If possible, mount the sensor
brackets while the booms are folded to ensure they will not cause interference.

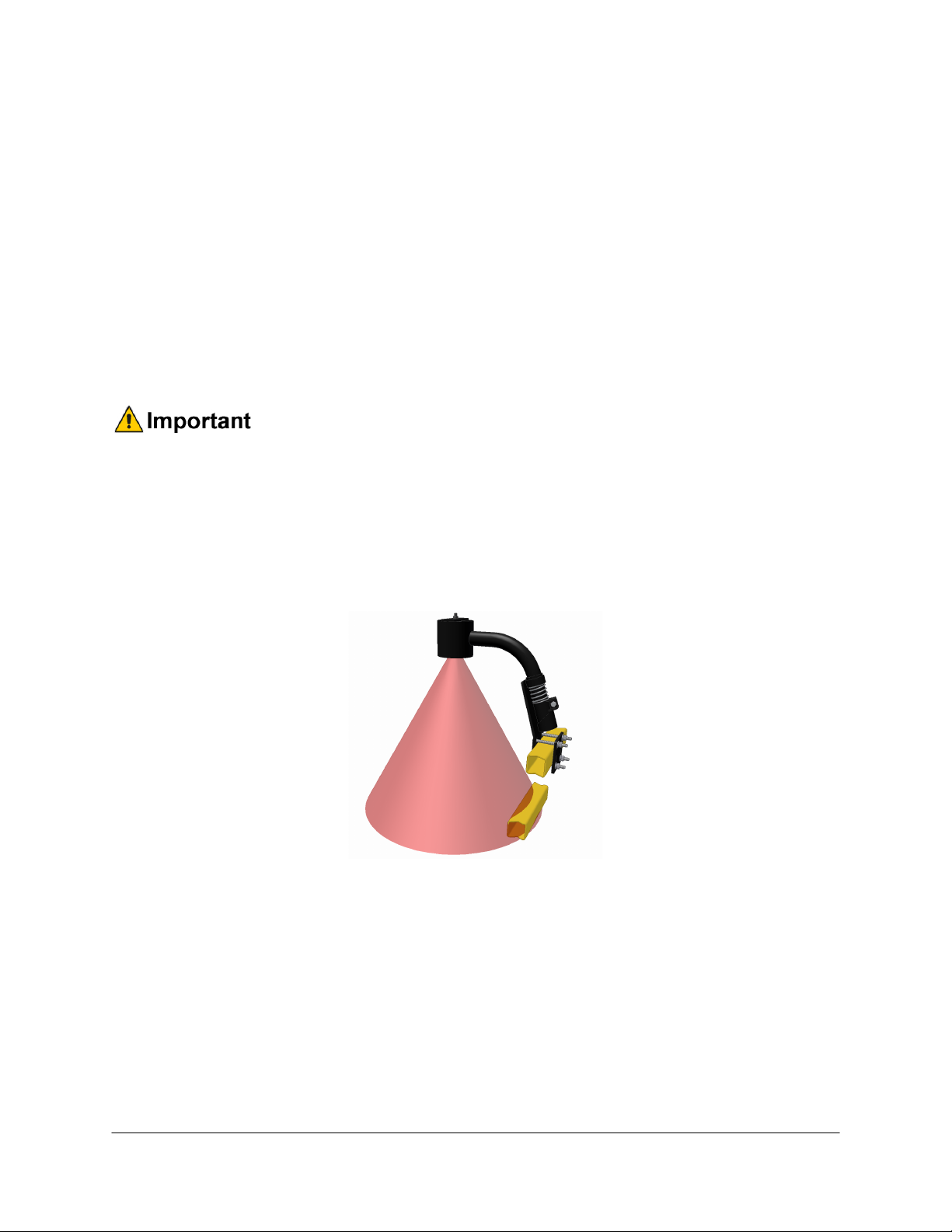

Figure 8: Sensor Reading Off Boom

13
6Roll Sensor Installation
6.1 Bracket Assembly
1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine
screws. Tighten screws to 10 in-lbs (1.1 Nm).
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CANbus connector must be pointing towards the right
side of the sprayer (when looking from the rear of the sprayer).

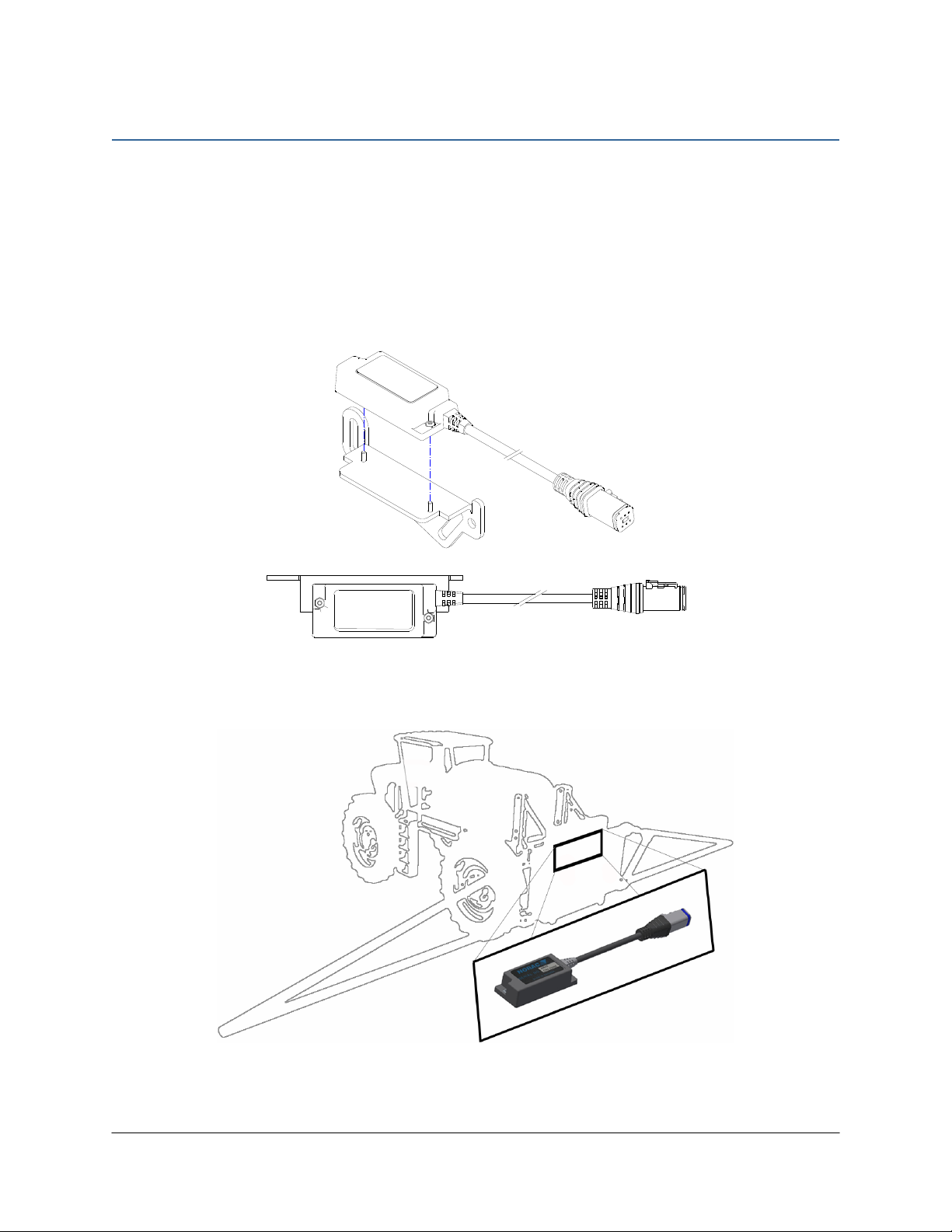

Figure 9: Mounting Roll Sensor to Bracket
Figure 10: Roll Sensor Orientation - Connector Facing Right Wing

14
6.2 Roll Sensor Mounting Guidelines
1. When mounting the roll sensors, mount the roll sensor without the temperature probe on
the boom frame and the roll sensor with the temperature probe on the chassis (non-
pivoting portion of the sprayer).
2. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
3. Ensure both roll sensor cables provide enough slack to allow sufficient boom roll.
Figure 11: Roll Sensor Mounting (Viewed from the rear of sprayer)
Boom Frame
Chassis

15
6.3 Temperature Probe
Once the block is mounted, fasten the temperature probe from E03 to the NORAC valve
block using the included 3/8x1/2” bolt as illustrated in Figure 12.
Figure 12: NORAC Valve Block with Temperature Probe Installed

16
7Electrical Installation
1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it
will be clearly visible and within easy reach of the operator.
A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the
Roll Over Protection Bar. Four pilot holes for the screws provided need to be drilled to
facilitate the control panel mounting.
Another option is to purchase an adapter for the flexible panel mount that has a 3/8" NC
threaded stud on the end to bolt through an existing mount. These are available at your
local outdoor store as a RAM mount part number RAM-B-236. (See http://www.ram-
mount.com/)
Figure 13: Cable Configurations: C10, C11 and C30
2. Connect the UC4.5 power cable (C10) to the UC4.5 Control Panel in the cab. Ensure that
both plugs (P16 and P4) are connected to the panel. Cable tie C10 to the RAM mount to
help provide strain relief.
3. Connect P6 on C30 to P6A of C10 using a 2-way coupler (E12). Connect the 3-pin AMP
connector C30 to an auxiliary power connection in the sprayer cab. If an appropriate
connector cannot be found, it may be necessary to cut off the connector and splice into the
existing wiring.
Ensure the UC4.5 Control Panel’s power is OFF for the remaining installation.
(Bottom of switch pressed IN).
4. There is an access hole to the sprayer electrical panel on the front right corner. Route the
free end of C30 to the electrical panel through this hole if splicing into the existing wiring.

17
5. In the electrical panel towards the front of the sprayer, wire the white wire on C30 to
+12V and the black wire to Ground. Refer to Figure 14 for recommended +12V and
Ground connections inside of the electrical panel.
Figure 14: Power and Ground Connections
5. Route P12/P6 of C10 out of the cab. Connect R12/R6 of C11 to P12/P6 of C10 outside of
the cab.
Figure 15: Cable Configurations: C03, C12 and C11
Connect Ground
Wire Here
Connect +12V
Wire Here
