NordicTrack E9.5 23949.0 User manual

www.nordictrack.com
Model No. 23949.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.-Fri., 6 a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
®
USER'S MANUAL
FRE E ,_
lirn ®v",°s:°I
'_- www.iFit.com J

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 4
PART IDENTIFICATION CHART ................................................................ 5
ASSEMBLY ................................................................................ 6

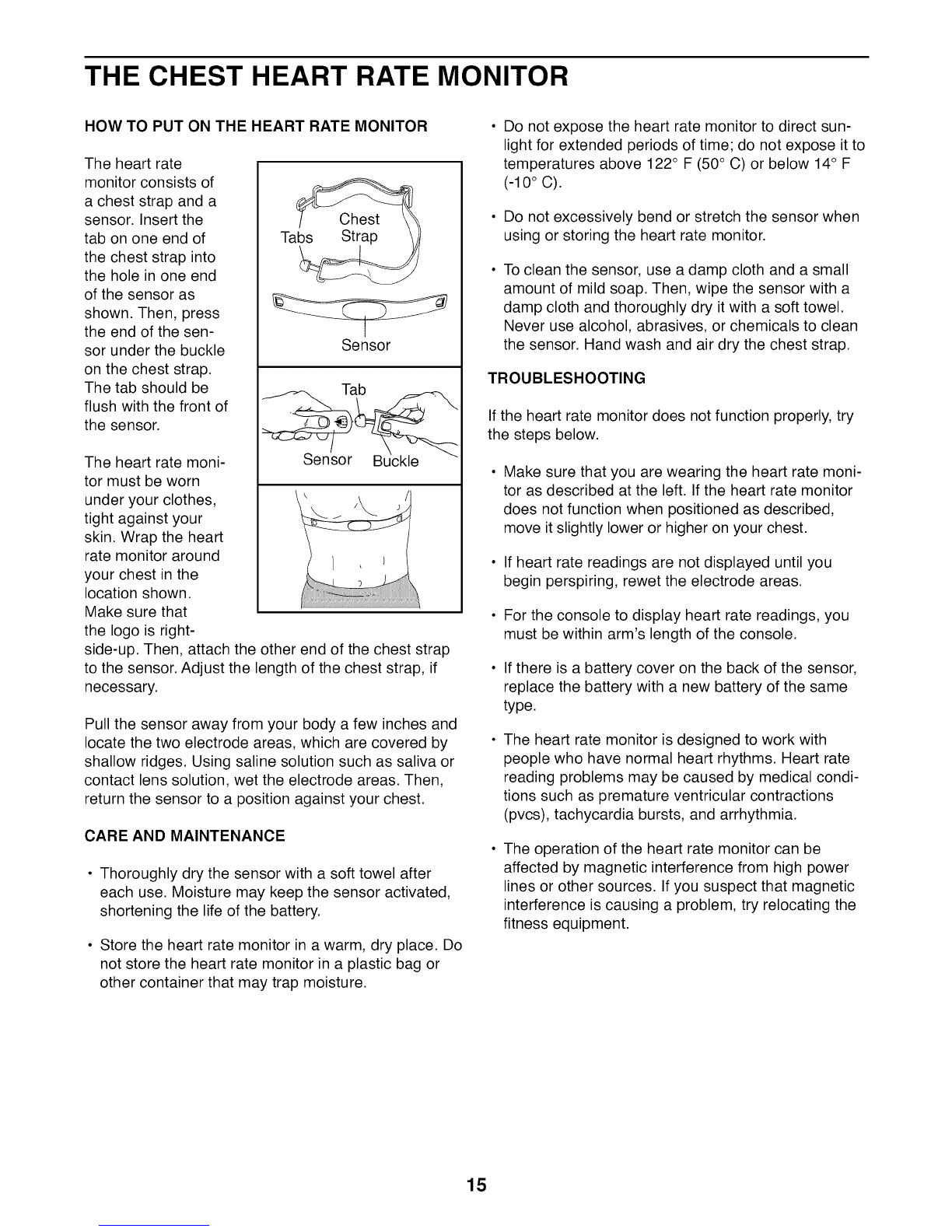

THE CHEST HEART RATE MONITOR .......................................................... 15
HOW TO USE THE ELLIPTICAL .............................................................. 16
FCC INFORMATION ........................................................................ 27
MAINTENANCE AND TROUBLESHOOTING ..................................................... 28
EXERCISE GUIDELINES .................................................................... 29
PART LIST ................................................................................ 31
EXPLODED DRAWING ...................................................................... 33
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s)
of the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request
a free replacement decal• Apply
the decal in the location shown•
Note: The decal(s) may not be
shown at actual size.
•Misuse of this machine
may result in serious
Injury.
•Read user's manual
)riot to use and follow
all warnings and
instructions.
•Do not allow children
on or around machine.
•Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
•Reduce pedal speed in
a controlled manner.
•User weight must not
exceed 350 Ibs /
159 kgs.
•This product should
always be used on a
level surface.
,This product is not
intended for
therapeutic use.
•Replace label if
damaged, illegible,
NORDICTRACK is a registered trademark of ICON IP, Inc.
2

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. It is the responsibility of the owner to ensure 9.
that all users of the elliptical are adequately
informed of all precautions.
.
.
Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
Use the elliptical only as described in this
manual.
10.
11.
The elliptical should not be used by persons
weighing more than 350 Ibs. (159 kg).
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
.
.
.
The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
12.
13.
14.
The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
Keep your back straight while using the ellip-
tical; do not arch your back.
.
.
Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3

BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK _"E 9.5 elliptical. The E 9.5 elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. Ifyou have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Upper Body Arm
Ramp Control
Handlebar
Speakel
Accessory Tray
Console
Resistance Control
Heart Rate Monitor
Fan Power Switch/
Power Cord
Pedal Wheel
Pedal Handle Roller
Ramp
Handle
Leveling Foot
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 2 in. (66 cm)
4

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M5 Washer
(94)-2
M4 x 16mm
Screw (101)-16
M10 x 25mm
Screw (99)-4
M8 Washer
(97)-8
M8 x 13mm
Screw (82)-8
M10 Split
Washer (105)-8
M8 x 38mm
Bolt (96)-4
16mm Wave
Washer (54)-2
M8 Locknut
(102)-4
M10 x 122mm
Screw (104)-4
5

ASSEMBLY
To watch an assembly •
video, go to
http://productvideo.co/
assembly/sears/nordic- •
track or use your mobile
phone or smartphone to
read the QR code at the
right.
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet _
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
,With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Remove the packing materials from under the
front of the Frame (1).
104
105
,With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Remove the packing materials from under the
rear of the Frame (1).
2
104
2
105
6

3. 3
Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2). 15
106
,Tip: Avoid pinching the wires. Avoid damag-
ing the indicated plastic tabs. Set the Upright
(4) on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (99) and four M10 Split Washers (105).
Do not fully tighten the Screws yet.
4
99
105
Avoid pinching the
wires and avoid
damaging the tabs
99
o105
7

,See the inset drawing. Locate the wire tie in the
lower end of the Upright (4). Tie the wire tie to
the Upper Wire (110) and to the Fan Extension
Wire (146). Then, pull the upper end of the wire
tie until the Upper Wire and the Fan Extension
Wire are routed through the Upright.
Tip: To prevent the wires from falling into the
Upright (4), secure the wires with the wire tie.
5
146\
,Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Identify the Right Upper Body Leg (60) and
orient it as shown.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Tighten an M8 x 13mm Screw (82) and an M8
Washer (97) into each end of the Pivot Axle (35)
at the same time.
6
;5 Grease
54 60
8

Identify the Right Upper Body Arm (61) and ori-
ent it as shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Upper Body
Arm (47).
61 96
Hexagonal
Holes
60
,Untie and discard the wire tie on the Upper Wire
(110) and the Fan Extension Wire (146).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (110), to the Fan
Extension Wire (146), and to the Sensor Wires
(63, 144).
Insert the excess wire into the Upright (4) or into
the Console (7).
8
63
1
110
146
9

9. 9
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (101).
101
Avoid pinching
the wires
101
10. Orient the Right Pedal Arm (58) assembly as
shown.
Apply grease to the axle on the Right Pedal
Arm (58).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 13mm Screw
(82), a Small Axle Cover (55), and an M8
Washer (97). Tip: Avoid damaging the Small
Axle Cover when tightening the Screw.
Repeat this step for the Left Pedal Arm
assembly (not shown).
10
82 55 59
_rease 58
10

11. Apply grease to a Pedal Arm Axle (64).
Next, slide an M8 Washer (97) and an Axle
Spacer (77) onto an M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
Slide an M8 Washer (97) and an Axle Spacer
(77) onto another M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64). Then, tighten both Screws at the
same time.
Repeat this step on the other side of the
elliptical.
See assembly step 4. Tighten the M10 x 25mm
Screws (99).
11
60
Grease
64 77 97
12. Orient the Shield Cover (75) assembly as shown.
While a second person holds the Shield Cover
(75) assembly near the Upright (4), connect the
Fan Extension Wire (146) to the Fan Wire (136).
Tip: Avoid pinching the wires. Press the
Shield Cover (75) onto the Left and Right Shields
(73, 74).
12
75
Avoid pinching
the wires
73, 74
11

13. Orient the Shield Cover Cap (118) as shown.
Attach the Shield Cover Cap (118) around
the Upright (4) by pressing it into the Shield
Cover (75).
4118
14. Orient the Rear Console Cover (80) as shown.
Attach the Rear Console Cover (80) to the
Upright (4) with two M4 x 16mm Screws (101).
Orient the Front Console Cover (79) as shown.
Attach the Front Console Cover (79) around the
Upright (4) by pressing it into the Rear Console
Cover (80).
14
80
79
12

15. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101).
Orient the Front Upright Cover (117) as shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing it into the Rear Upright
Cover (81).
81
117
16. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
Identify the Right Upper Body Arm Rear Cover
(66) and orient it as shown.
Attach the Right Upper Body Arm Rear Cover
(66) around the Right Upper Body Leg (60) by
pressing into the Right Upper Body Arm Front
Cover (65).
Repeat this step on the other side of the
elliptical.
66
/
65
13

17. Identify the Right Upper Body Leg Inner Cover
(83) and orient it as shown.
Attach the Right Upper Body Leg Inner
Cover (83) to the Right Upper Body Leg (60)
with an M4 x 16mm Screw (101) and an M5
Washer (94).
Identify the Right Upper Body Leg Outer Cover
(69) and orient it as shown.
Attach the Right Upper Body Leg Outer Cover
(69) around the Right Upper Body Leg (60) by
pressing it into the Right Upper Body Leg Inner
Cover (83).
Repeat this step on the other side of the
elliptical.
60
69
18. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat beneath the elliptical to protect the floor.
14

THE CHEST HEART RATE MONITOR
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sen-
sor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
Tabs Strap
Sensor
The heart rate moni-
tor must be worn
under your clothes, j\
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is right-
side-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
Do not expose the heart rate monitor to direct sun-
light for extended periods of time; do not expose it to
temperatures above 122 ° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
Make sure that you are wearing the heart rate moni-
tor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
For the console to display heart rate readings, you
must be within arm's length of the console.
If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
15

HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock, The power cord has a plug with a
grounding pin.
Plug the
power cord Grounded Outlet
into an
appropriate Grounding Pin
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-volt
circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
Lug
Receptacle
Adapter
Metal Screw
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
16

HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the rear stabilizer until the elliptical will roll on the
wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, simply pull the pedal handle out-
ward, move the pedal to the desired position, and
release the pedal handle into an adjustment hole
beneath the pedal. Make sure to adjust both pedals
to the same position.
Lift
here
Pull on the
upright
Place
foot
here
Pedal
Pedal
Handle
17

HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
Upper
Body
Handlebars
Pedals
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step offthe higher pedal first. Then, step off the lower
pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor dur-
ing use, turn
one or both of
the leveling feet
beneath the rear
stabilizer until the
rocking motion is
eliminated. Leveling Feet
18

CONSOLE DIAGRAM
TIME _DIS_
IB.B3_qEB EB
DISPLAY HOME V A ENTER
iFIT
COMPATIBLE MAP TRAIN COMPETE TRACK SET A GOAL LOSE WT. ©
MP3 IN
IREESISTRNCEI_
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using the handgrip heart rate monitor or the chest
heart rate monitor.
In addition, the console offers thirty onboard workouts.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts you
to vary your pedaling pace as it guides you through an
effective workout. You can also set a calories, distance,
or time goal.
The console also features revolutionary iFit technol-
ogy that enables the console to communicate with your
wireless network through an optional iFit module. With
iFit, you can download personalized workouts, create
your own workouts, track your workout results, race
against other iFit users, and access many other fea-
tures. To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 20. To use the
manual mode, see page 20. To use an onboard
workout, see page 23. To use a set-a-goal work-
out, see page 24. To use an iFit workout, see page
25. To use the sound system, see page 26. To
change console settings, see page 26.
Note: If there is a sheet of plastic on the display,
remove the plastic.
19

HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
16). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
Reset
Position
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the first time,
the ramp may calibrate automatically. The ramp will
move upward and downward as it calibrates. When the
ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 28 and manually calibrate the ramp.
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual button on the console to select
the manual mode.
If a wireless iFit module is not inserted into the con-
sole and connected to iFit, the manual mode will be
selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons on the console or on the right handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered 1 Step Power Ramp
buttons on the console or press the 1 Step Power
Ramp increase and decrease buttons on the con-
sole or on the left handlebar.
Note: After you press a button, it will take a
moment for the ramp to reach the selected
incline level.
20
