USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL71615.1
Serial No.
Write the serial number in the space
above for reference.
www.nordictrack.com
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
Serial
Number
Decal

2
TABLE OF CONTENTS

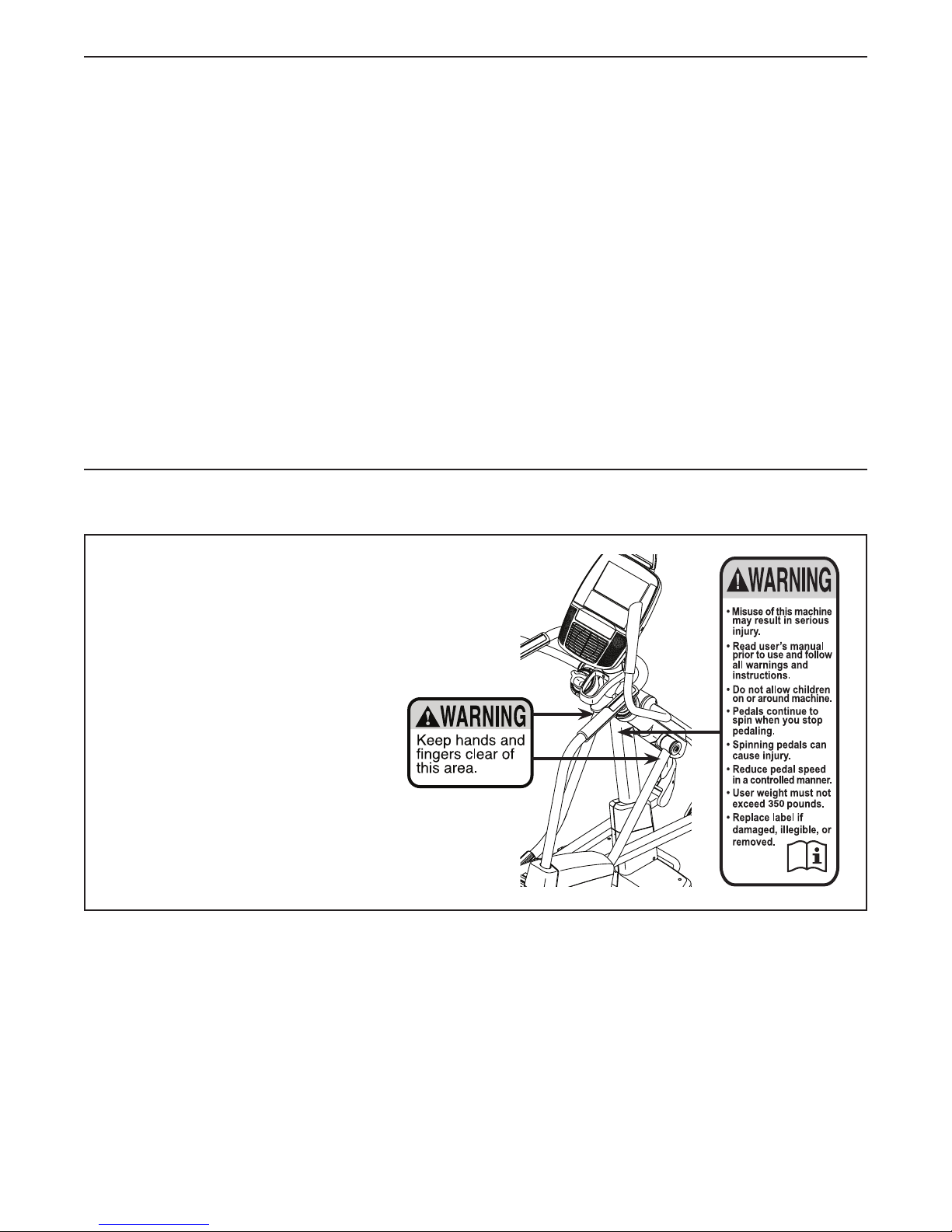

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON
Health & Fitness, Inc. The BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc.
and are used under license. Google Maps is a trademark of Google Inc. Wi-Fi is a registered trademark of Wi-Fi
Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the handrails
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the ellip-
tical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary
NORDICTRACK®ACT COMMERCIAL 10 elliptical.
The ACT COMMERCIAL 10 elliptical provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Handrail
Water Bottle Holder*
*Water bottle is not included
Handlebar/Grip
Stride Adjustment Knob
Pedal Handle
Handle
Pedal
Console
Tab l et Ho l d er
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 5 in. (165 cm)
Width: 2 ft. 8 in. (81 cm)

7
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 x 16mm
Screw (67)–18
M8 x 25mm Flat
Head Screw (68)–6
M10 Locknut
(105)–4
M10 x 50mm Bolt
(100)–4
M8 Locknut
(111)–4
#8 x 12mm
Screw (146)–4
M8 x 45mm Bolt
(130)–4
M8 x 20mm
Screw (61)–12

8

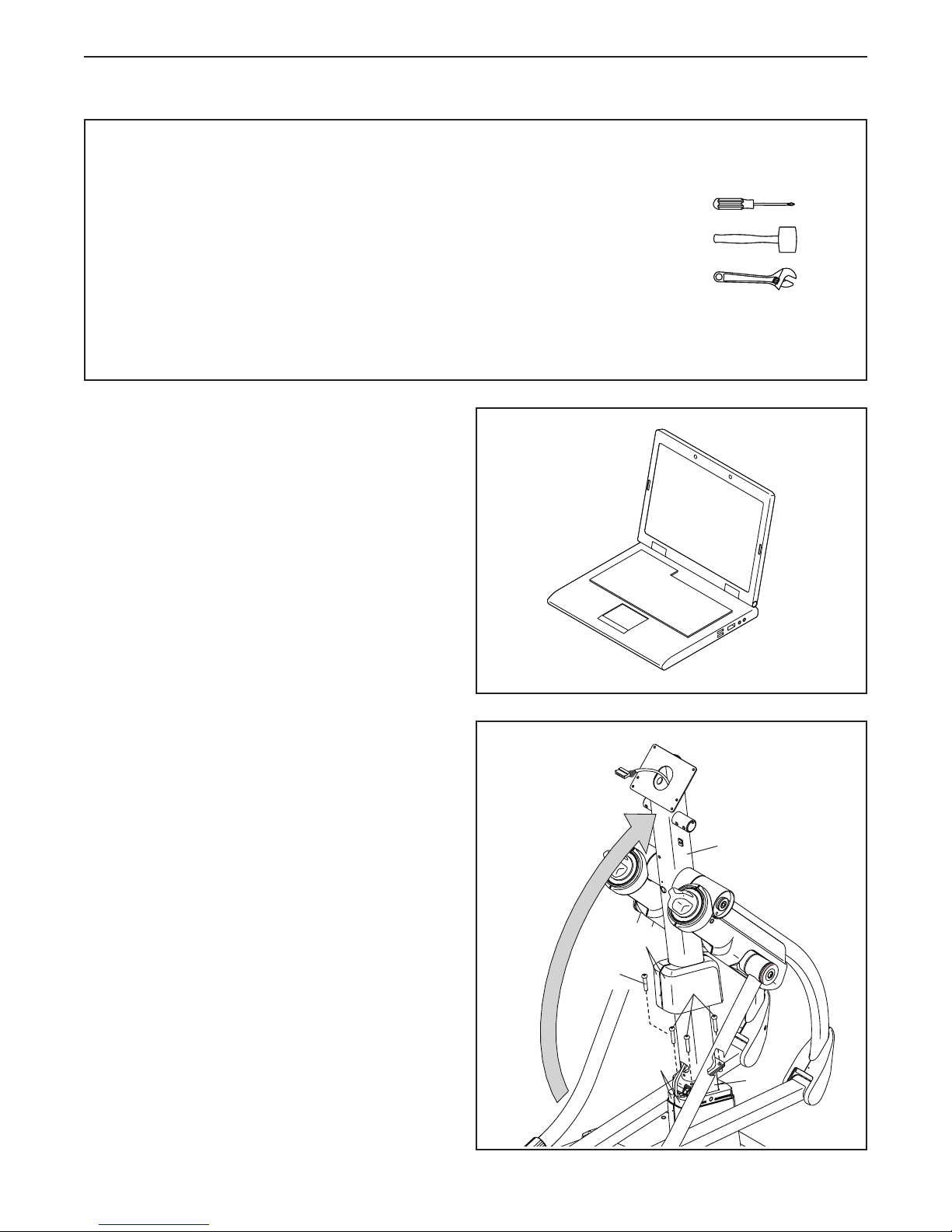

2. Have a second person raise the Upright (2) and
hold it in the position shown.
SlidetheRightandLeftUprightCovers(60,96)
upward as shown.
SecuretheUpright(2)totheFrame(1)withfour
M8 x 20mm Screws (61); do not tighten the
Screws yet.
2
2
1
61
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Go to www.nordictrackservice.com/
registration on your computer and register
your product.
•activates your warranty
•saves you time if you ever need to contact
Customer Care
•allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1
60, 96
73, 75
61
Avoid pinching
the wires

9
3. Have a second person lift the Right Pedal (9)
and the Right Pedal Arm (15).
Usingaplasticbagtokeepyourfingersclean,
apply some of the included grease to the right
Link Arm Bracket (43) in the location shown.
Tip: Avoid pinching your fingers. Slide the right
Link Arm (8) onto the right Link Arm Bracket (43).
Attach the right Link Arm with two M10 x 50mm
Bolts (100) and two M10 Locknuts (105).
Then,slidetherightLinkArmCover(116)
over the M10 x 50mm Bolts (100) and the M10
Locknuts (105).
Repeat this step on the left side of the
elliptical.
4. Remove the two screws (A) and the shipping
bracket (B) from the right side of the Frame (1).
Discard the screws and the shipping bracket.
Tip: Avoid pinching the wires. Slide the upper
end of the Right Handrail (5) onto the right side
of the Upright (2).
AttachtheRightHandrail(5)withtwoM8x
45mm Bolts (130) and two M8 Locknuts (111);
make sure that the Locknuts are inside the
hexagonal holes, but do not tighten the Bolts
yet.
Then,inserttheendoftheRightPulseWire(80)
into the hole in the right side of the Upright (2)
and route it out of the top of the Upright.
Repeat this step on the left side of the
elliptical.
3
4
105
Grease
130
Hexagonal
Holes
80
5
A
4
2
43
15
9
8
116
100
111
B
Avoid pinching
the wires
Avoid pinching
your fingers
1

10
5
5
4
7
1

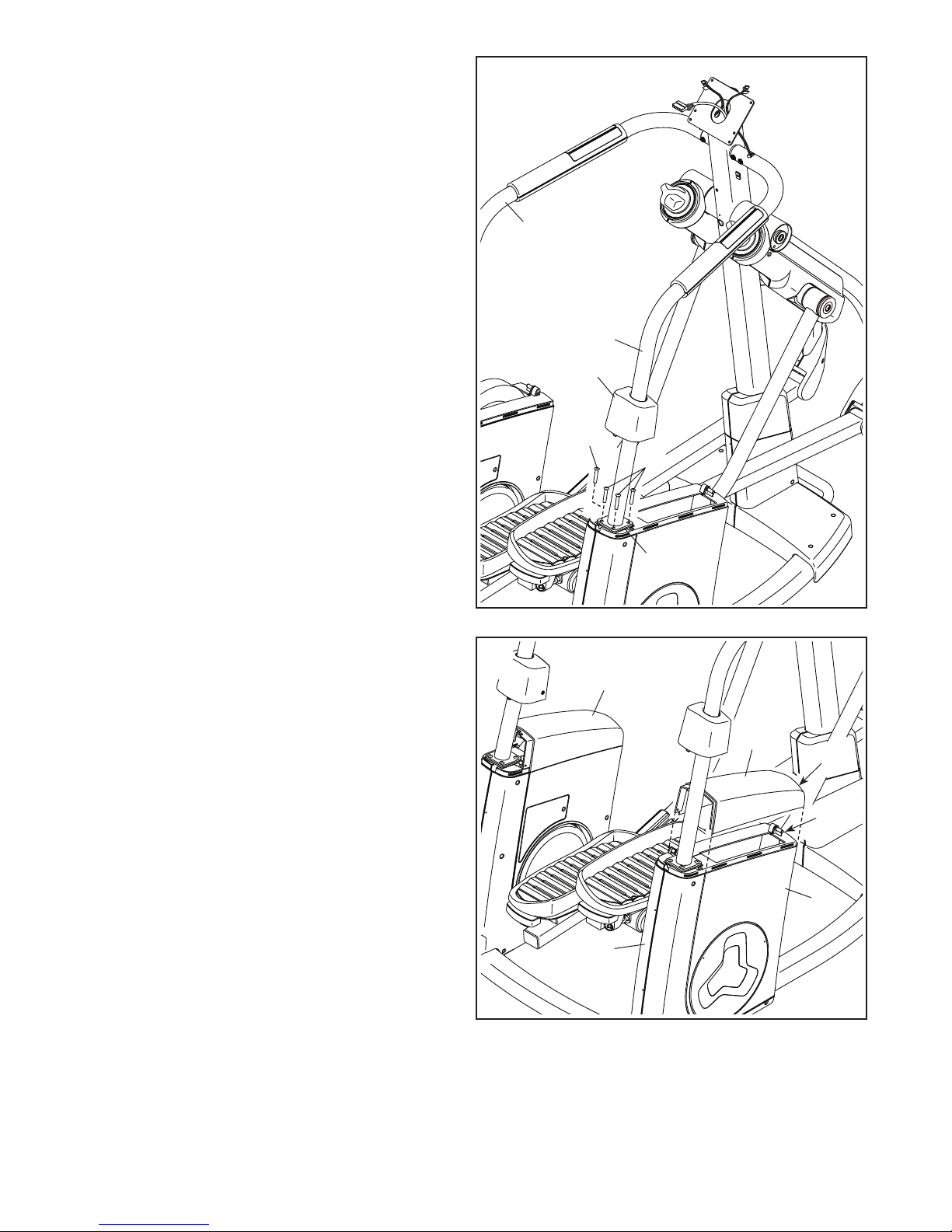

5. Attach the lower end of the Right Handrail (5) to
the Frame (1) with four M8 x 20mm Screws (61);
do not tighten the Screws yet.
Attach the lower end of the Left Handrail (4)
in the same way.
Seestep2.Tighten the four M8 x 20mm Screws
(61). Then, slide the Right and Left Upright
Covers (60, 96) downward and press them onto
the Right and Left Frame Post Covers (73, 75);
avoid pinching the wires.
Seestep4.Tighten the four M8 x 45mm
Bolts (130).
Then, tighten the eight M8 x 20mm
Screws (61).
Do not press the Right and Left Handrail
Covers (7, not shown) into place yet.
6. Align the tab on the Right Shield Cap (76) with
the indicated hole in the Right Outer and Inner
Shields (17, 19).
PresstheRightShieldCap(76)ontotheRight
Outer and Inner Shields (17, 19).
Attach the Left Shield Cap (102) in the same
way.
76
102
17
19
61
61
Hole
Tab
6

11
7
7. Align the plastic post inside the Right Handrail
Cover (7) with the indicated hole in the Right
Shield Cover (76).
PresstheRightHandrailCover(7)ontothe
Right Shield Cover (76) and onto the Right Outer
and Inner Shields (17, 19).
AttachtheRightHandrailCover(7)withan
M4 x 16mm Screw (67).
Attach the Left Handrail Cover (6) in the same
way.
67
17
7
6
19
76
Hole
Post

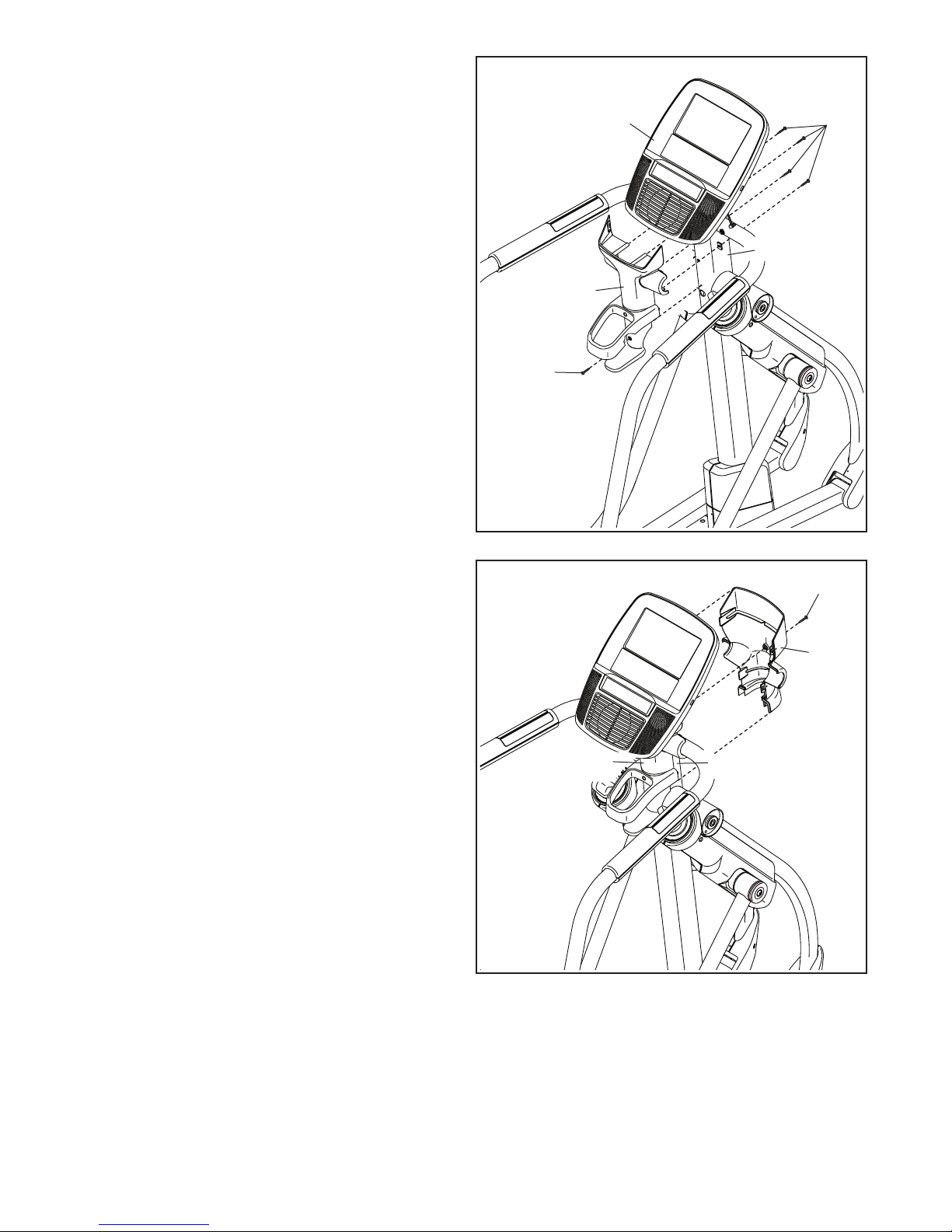

8. Have a second person hold the Console (3) near
the Upright (2).
PlugtheUpperWire(81)intothelargerecepta-
cle on the back of the Console (3). Next, plug the
Right and Left Pulse Wires (80, 85) into the right
and left receptacles. The connectors on the
Wires should slide easily into the receptacles
and snap into place. If a connector does not
slide easily, turn it and try again. If you do not
insert the connectors properly, the Console
may become damaged.
Next,inserttheexcesswireintotheUpright(2).
Tip: Avoid pinching the wires. Attach the
Console (3) to the Upright (2) with four M4 x
16mm Screws (67); start all the Screws, and
then tighten them.
3
2
67
80
85
Avoid pinching
the wires
81
8

12
10
10. Press the tabs on the Front Upright Cover (20)
into the Rear Upright Cover (21). Then, attach
the Front Upright Cover to the Upright (2) with an
M4 x 16mm Screw (67).
67
20
2
21
9
9. Hold the Rear Upright Cover (21) against the
Upright (2) and against the Console (3). Attach
the Rear Upright Cover to the Upright with five
M4 x 16mm Screws (67); start all the Screws,
and then tighten them.
67
67
21
2
3

13

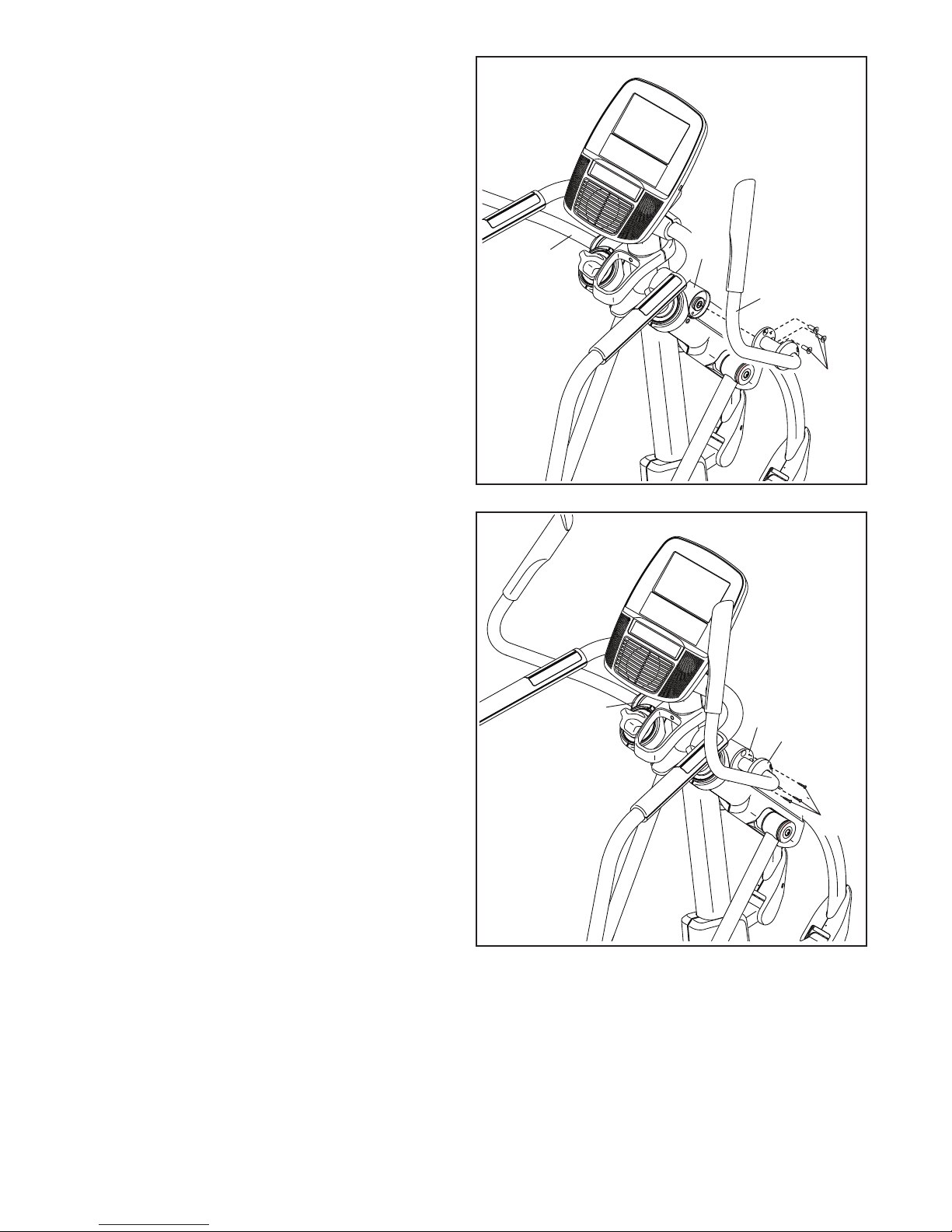

11. Identify the Right Handlebar (11).
AttachtheRightHandlebar(11)totheRight
Handlebar Arm (13) with three M8 x 25mm Flat
Head Screws (68).
Attach the Left Handlebar (10) in the same
way.
11
10
68
12. Attach the right Handlebar Cover (31) to the
Right Handlebar (11) with three M4 x 16mm
Screws (67).
Attach the left Handlebar Cover (31) in the
same way.
11 31
31
11
13
12
67

14
14
13
14. Plug the Power Adapter (84) into the receptacle
on the frame of the elliptical.
Note:ToplugthePowerAdapter(84)intoan
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 16.
15. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
84
13. Attach the Tablet Holder (145) to the Console (3)
with four #8 x 12mm Screws (146); start all the
Screws, and then tighten them. 145 146
3

15
HOW TO PUT ON THE HEART RATE MONITOR
If the heart rate monitor looks like the one shown
in drawing 1, press the transmitter (A) onto the snap
fasteners on the chest strap (B). If the heart rate
monitor looks like the one shown in drawing 2,
insert the tab (C) on one end of the chest strap (D) into
one end of the transmitter (E). Then, press the end of
the transmitter under the buckle (F) on the chest strap;
the tab should be flush with the transmitter.
Next, wrap the heart
rate monitor around
your chest in the loca-
tion shown; the heart
rate monitor must be
under your clothes,
tight against your skin.
Make sure that the logo
is right-side-up. Then, attach the other end of the chest
strap. Adjust the length of the chest strap, if necessary.
Next, pull the trans-
mitter and the chest
strap away from your
body a few inches
and locate the two
electrode areas (G).
Using saliva or con-
tact lens solution, wet the electrode areas. Then, return
the transmitter and the chest strap to a position against
your chest.
CARE AND MAINTENANCE
• Thoroughly dry the electrode areas with a soft towel
after each use. Moisture may keep the heart rate
monitor activated, shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct
sunlight for extended periods of time, and do not
expose it to temperatures above 122° F (50° C) or
below 14° F (-10° C).
• Do not excessively bend or stretch the heart rate
monitor when using or storing it.
• To clean the transmitter, use a damp cloth and a
small amount of mild soap. Then, wipe the transmit-
ter with a damp cloth and thoroughly dry it with a soft
towel. Never use alcohol, abrasives, or chemicals
to clean the transmitter. Hand wash and air dry the
chest strap.
TROUBLESHOOTING
• If the heart rate monitor does not function when
positioned as described at the left, move it slightly
lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, re-wet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the trans-
mitter, replace the battery with a new battery of the
same type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
12
A
B
EF
CD
THE CHEST HEART RATE MONITOR
G

16
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on the
frame of the ellipti-
cal. Then, plug
the power adapter
into an appropriate
outlet that is properly
installed in accor-
dance with all local codes and ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, mov-
ing it requires two persons. Have a second person
place one foot against one of the wheels. Grip the
handle and lift the frame until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both
of the leveling feet
beneath the front of
the frame until the
rocking motion is
eliminated.
HOW TO ADJUST THE STRIDE OF THE ELLIPTICAL
To ad j ust t h e s tri d e of th e e lli p tic a l , tur n t he ad j ust m ent
knobs clockwise or counterclockwise. Make sure that
both adjustment knobs are at the same setting.
Place your
foot here
Lift
here
Leveling
Foot
Adjustment
Knobs
HOW TO USE THE ELLIPTICAL

17
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, simply pull the pedal handle out-
ward, move the pedal to the desired position, and
then release the pedal handle into an adjustment hole
beneath the pedal. Make sure to adjust both pedals to
the same position.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder was designed for
use with most full-size tablets. Do not place any
other electronic device or object into the tablet
holder.
To in s ert a t a b -
let into the tablet
holder, set the
bottom edge of
the tablet in the
tray. Make sure
that the tablet is
firmly secured in
the tablet holder.
Reverse these
actions to remove
the tablet from the tablet holder.
HOW TO EXERCISE ON THE ELLIPTICAL
To mo u nt th e e l lip t ica l , hol d t he ha n d leb a rs an d s tep
onto the pedal that is in the lower position. Then, step
onto the other pedal. Push the pedals until they begin
to move with a continuous motion. Note: The pedals
can turn in either direction. It is recommended that
you turn the pedals in the direction shown by the
arrow; however, for variety, you can turn the pedals
in the opposite direction.
To di s mou n t t he el l ipt i cal , w ait u n t il th e p eda l s com e t o
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Pedal
Handle
Handlebars
Pedals

18
CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Choose and download sets of weight-loss
workouts
Go to iFit.com to learn more.
Watch high-definition videos with simulated
workouts.

19
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features revolutionary iFit technology that
enables the console to communicate with your wireless
network. With iFit technology, you can download per-
sonalized workouts, create your own workouts, track
your workout results, and access many other features.
See www.iFit.com for complete information.
In addition, the console features a selection of onboard
workouts and several iFit demo workouts. Each work-
out automatically controls the resistance of the pedals
and prompts you to vary your pedaling speed as it
guides you through an effective exercise session. You
can also set a customized workout goal with the set-a-
goal workout.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using the handgrip heart rate monitor or the chest
heart rate monitor.
You can also browse the internet or listen to your
favorite workout music or audio books with the console
sound system while you exercise.
To activate the console, see this page. To turn off
the console, see this page. To learn how to use the
touch screen, see page 20. To set up the console,
see page 20.
HOW TO ACTIVATE THE CONSOLE
The included power adapter must be used to operate
the elliptical. See HOW TO PLUG IN THE POWER
ADAPTER on page 16. When the power adapter is
plugged in, the display will turn on and the console will
be ready for use.
HOW TO TURN OFF THE CONSOLE
If the pedals do not move for several seconds, a tone
will sound and the console will pause.
If the pedals do not move for several minutes and the
buttons are not pressed, the console will turn off and
the display will be reset.
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the elliptical may wear
prematurely.
Note: The console features a display demo mode,
designed to be used if the elliptical is displayed in a
store. When the demo mode is turned on, the console
will show a preset presentation. To turn off the demo
mode, see step 7 on page 26.

20
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout. However, you cannot zoom in
and out by sliding your fingers on the screen.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch the ?123 button.
To vi e w mor e c h ara c ter s , tou c h the Alt b u t to n . Tou ch
the Alt button again to return to the number key-
board. To return to the letter keyboard, touch the
ABC button. To use a capital character, touch the
button with an upward-facing arrow. To use multiple
capital characters, touch the arrow button again. To
return to the lowercase keyboard, touch the arrow
button a third time. To clear the last character, touch
the button with a backward-facing arrow and an X.
• Use these buttons on
the console to navigate
the tablet. Press the
home button to return to
the main menu. Press
the center button to access the settings menu (see
page 26). Press the back button to return to the
previous screen.
• If it is difficult for you to touch the correct buttons
on the screen, the screen may not be properly
calibrated. To calibrate the screen, see step 4 on
page 28.
HOW TO SET UP THE CONSOLE
Before using the elliptical for the first time, set up the
console.
1. Connect to your wireless network.
Note: To access the internet, download iFit work-
outs, and use some other features of the console,
you must be connected to a wireless network. See
HOW TO USE THE WIRELESS NETWORK MODE
on page 29 to connect the console to your wire-
less network.
2. Check for firmware updates.
First, see step 1 on page 26 and step 2 on page
28 and select the maintenance mode. Then,
see step 3 on page 28 and check for firmware
updates.
3. Create an iFit account.
Tou c h the g l o be bu t ton a t t he bo t tom o f t h e scr e en
and then touch the iFit button.
Note: For information about navigating in the inter-
net browser, see page 30.
The internet browser will open to the iFit.com home
page. Follow the prompts on the website to sign up
for your iFit membership. If you have an activation
code, select the code activation option.
