Model No. 831.14895.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
iMPORTANT: You must note the
product mode[ number and
serial number (see the drawing
above) before contacting us:
CALL TOLL=FREE:
1-888-825-2588
Mon.-Fri. 6 a.m.-6 p.m. MST
Sat. 8 a.m.-4 p.m. MST
ON THE WEB:
www.nordictrackservice.com
<
"4
SE
\
L
AUAL
www.nordictrack.com
new products, prizes,
fitness tips, and much more[
TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
PART IDENTIFICATION CHART .............................................................. 5
ASSEMBLY .............................................................................. 6
ADJUSTMENT ........................................................................... 13
ROTATING ON THE INVERSION TABLE ...................................................... 15
DEVELOPING A PROGRAM ................................................................ 16
PART LIST .............................................................................. 18
EXPLODED DRAWING .................................................................... 19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
WARNING DECAL PLACEMENT
The decals shown here have been
applied in the locations shown. If a
decal is missing or illegible, call
the telephone number on the front
cover of this manual and request a
free replacement decal. Apply the
decal in the location shown. Note:
The decals may not be shown at
actual size,
,Misuse of this [ I_]
machine may
result in serious injury.
• Read user's manual
prior to use and follow
all warnings and
instructions.
•Do not allow children on
or around machine.
•Keep body, clothing,
and hair free and clear
of all moving parts.
= Replace label if
damaged, illegible, or
removed.
NordicTrack is a registered trademark of ICON IP, Inc.
2

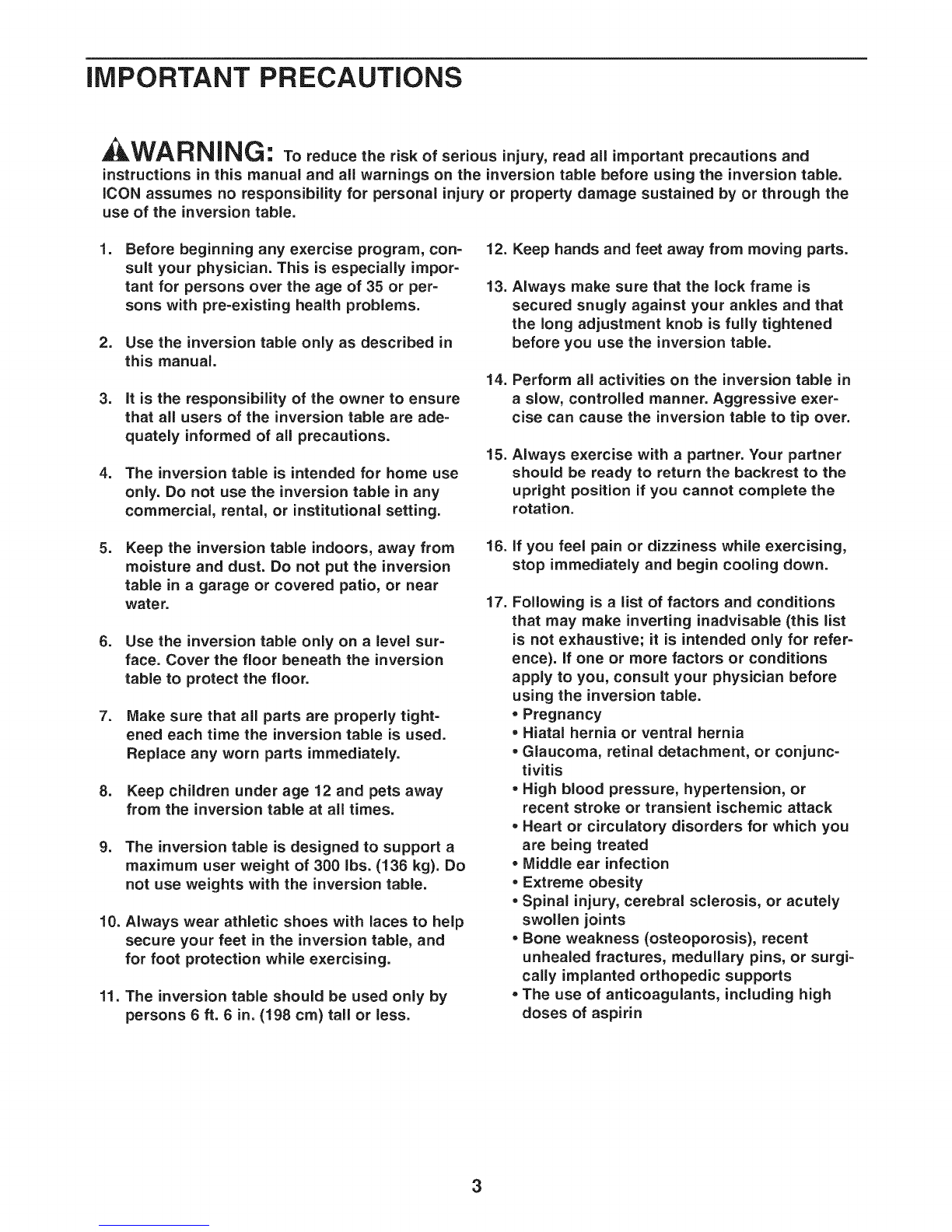

iMPORTANT PRECAUTIONS
Toreducetheriskofseriousinjury,reada.importantprecautionsand
instructions in this manual and all warnings on the inversion table before using the inversion table.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of the inversion table.
.
.
.
.
Before beginning any exercise program, con- 12.
suit your physician. This is especially impor-
tant for persons over the age of 35 or per- 13.
sons with pre-existing health problems.
Use the inversion table only as described in
this manual.
it is the responsibility of the owner to ensure
that all users of the inversion table are ade-
quately informed of all precautions.
The inversion table is intended for home use
only. Do not use the inversion table in any
commercial, rental, or institutional setting.
14.
15.
Keep hands and feet away from moving parts.
Always make sure that the lock frame is
secured snugly against your ankles and that
the long adjustment knob is fully tightened
before you use the inversion table.
Perform all activities on the inversion table in
aslow, controlled manner. Aggressive exer-
cise can cause the inversion table to tip over.
Always exercise with apartner. Your partner
should be ready to return the backrest to the
upright position if you cannot complete the
rotation.
.
.
.
.
.
10.
11.
Keep the inversion table indoors, away from
moisture and dust. Do not put the inversion
table in a garage or covered patio, or near
water.
Use the inversion table only on alevel sur-
face. Cover the floor beneath the inversion
table to protect the floor.
Make sure that all parts are properly tight-
ened each time the inversion table is used.
Replace any worn parts immediately.
Keep children under age 12 and pets away
from the inversion table at all times.
The inversion table is designed to support a
maximum user weight of 300 Ibs. (136 kg). Do
not use weights with the inversion table.
Always wear athletic shoes with laces to help
secure your feet in the inversion table, and
for foot protection while exercising.
The inversion table should be used only by
persons 6 ft. 6 in. (198 cm) tall or less.
16.
17.
if you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
Following is a list of factors and conditions
that may make inverting inadvisable (this list
is not exhaustive; it is intended only for refer-
ence), if one or more factors or conditions
apply to you, consult your physician before
using the inversion table.
-Pregnancy
•Hiatai hernia or ventra! hernia
=Glaucoma, retinal detachment, or conjunc-
tivitis
• High blood pressure, hypertension, or
recent stroke or transient ischemic attack
•Heart or circulatory disorders for which you
are being treated
• Middle ear infection
=Extreme obesity
=Spinal injury, cerebral sclerosis, or acutely
swollen joints
• Bone weakness (osteoporosis), recent
unhealed fractures, medullary pins, or surgi-
cally implanted orthopedic supports
•The use of anticoagulants, including high
doses of aspirin
BEFORE YOU BEGIN
Thank you for selecting the NordicTrack _ REVITALIZE TM
INVERSION SYSTEM 2.0 inversion table. The inver-
sion table will increase your intervertebral dimension,
decrease pressure on intervertebral discs, stretch and
relax your muscles, and temporarily relieve back pain
associated with the listed conditions.
For your benefit, read this manual carefully before
using the inversion table. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIMENSIONS:
Height: 5 ft. 2 in. (157 cm)
Width: 3 ft. (91 cm)
Depth: 6 ft. 6 in. (168 cm) Headrest
Handle Backrest
Right Frame
Short Adjustment Knob
Short Adjustment Knob
Index Handle
Long Adjustment Knob
Lock Frame
Foot Frame
Left Frame
4
PART iDENTiFiCATiON CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts may
have been preassembled, if a part is not in the hardware kit, check to see if it has been preassembled.
M6 Washer (62)
MIO Curved Washer (50)
M10 Large Washer (64)
M10x 16mm
Button Screw (54)
M4 x 15mm
Screw (58)
M8 x 16mm
Button Bolt (61)
M6 x 18mm
Button Screw (55)
M6 x 37ram Bolt (33)
M10 x 40mm Button Bolt (69)
M10 x 53mm Button Bolt (49)
M6 x 55mm Button Screw (56)
M6 Nut (43)
M8 Locknut (57)
M4 x 20mm
Screw (59)
c_
M4 x 30mm
Screw (63)
M10 x 80mm Button Bolt (52)
M10 x 85mm Button Bolt (51)
M10 x 95mm Button Bolt (53)
M10 Locknut (65)
5
ASSEMBLY
Make Assembly Easier
This manual is designed to ensure that the
inversion table can be assembled successfully
by almost anyone. However, the inversion table
has many parts, and the assembly process will
take time. Most people find that if they set aside
plenty of time, assembly goes smoothly.
Before beginning assembly, carefully read the
following information and instructions:
- Assembly requires two persons.
Because of its weight and size, the inversion
table should be assembled in the location where
it will be used. Make sure that there isenough
clearance to walk around the inversion table as
you assemble it.
,Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
o For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
As you assemble the inversion table, make sure
that all parts are oriented as shown in the draw-
ings.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
The included grease and the following tools (not
included) may be required for assembly:
Two adjustable wrenches
One rubber mallet
One standard screwdriver
One Phillips screwdriver __
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
.Before beginning assembly, make sure
that you understand the information in
the box above. For help identifying
small parts, see page 5.
Press a 63mm Round Cap (40) onto the Left
Base (1). Next, tighten a Leveling Foot (41)
into the Left Base.
Attach a Foot (42) to the Left Base (1) with an
M4 x 20mm Screw (59).
Repeat this step for the Right Base (2).
12
J
42
40.. d_. 59
J41
6
2. 2
Attach the Left Base (1) to the Right Base (2)
with two M10 x 80mm Button Bolts (52), four
M10 Curved Washers (50), and two M10
Locknuts (65). Do not tighten the Locknuts
yet.
Attach another Foot (42) to the Right Base (2)
with an M4 x 20mm Screw (59).
250 65
,Attach the Support Bracket (15) to the Center
Base (3) with two M4 x 15ram Screws (58). 3
,Attach the Center Base (3) to the Left and
Right Bases (1,2) with four M10 x 80mm
Button Bolts (52), four M10 Curved Washers
(50), and four M10 Locknuts (65). Do not
tighten the Locknuts yet.
4
\65
7
5. 5
See the inset drawing. Identify the Center
Frame (7).
Apply some of the included grease to both
sides of the Left Large Spacer (31).
Attach the Left Large Spacer (31) and the Left
Frame (4) to the Center Frame (7) with an
M10 Locknut (65), an M10 Large Washer (64),
and a 29mm Spacer (48). Then, press an
89mm Cap (32) into the Center Frame.
Repeat this step with the Right Large
Spacer (60) and the Right Frame (5).
32 65 64
Grease
31
.Attach the Left and Right Frames (4, 5) to the
Left and Right Bases (1, 2) with four M10 x
85ram Button Bolts (51) and four M10
Locknuts (65).
See steps 2 and 4. Tighten the IVll0
Locknuts (65).
6
51
24
65
I
I
51
,Attach the Top Cover (23) and the Bottom
Cover (24) to the Center Frame (7) with two
M4 x 15mm Screws (58) and an M4 x 30mm
Screw (63).
Attach the Center Frame Extension (6) to the
Center Frame (7) with two M10 x 53mm
Button Bolts (49) and two M10 Locknuts (65).
723
65
24
58
,Orient the Headrest Frame (9) and the
Backrest Frame (8) as shown. Attach the
Headrest Frame to the Backrest Frame with
two M10 x 16mm Button Screws (54).
8
54
54
9. Grease an M10 x 95mm Button Bolt (53).
Pull the indicated Short Adjustment Knob (37)
out as far as it will go. Insert the bracket on
the Backrest Frame (8) into the Top Cover
(23). Next, attach the Backrest Frame to the
Center Frame Extension (6) with the M10 x
95mm Button Bolt (53) and an M10 Locknut
(65). Then, engage the Short Adjustment Knob
into one of the holes in the bracket.
See the inset drawing. Attach an M8 x 16mm
Button Bolt (61) and an M8 Locknut (57) to the
hole in the end of the bracket on the Backrest
Frame (8).
9
Bracket
57
9
10. Attach the Foot Frame (19) to the Leg Frame
(10) with two M10 x 40mm Button Bolts (69)
and two M10 Locknuts (65).
10
19\
65
69
10
11. Slide two Foam Pads (22) onto the Lock
Frame (11). Then, press two Pad Caps (45)
into the Foam Pads.
Next, pull the indicated Long Adjustment Knob
(13), insert the Lock Frame (11) into the Leg
Frame (10), and then release the Long
Adjustment Knob. Make sure that the Long
Adjustment Knob is engaged in the indicat-
ed adjustment hole in the Lock Frame.
Insert an M6 x 37ram Bolt (33) into the Leg
Frame (10) and into the loop on the end of
the Spring (17). Tighten an M6 Nut (43) onto
the Bolt.
11
45
11\
i
22
13
10
12. Insert the Pad Tube (18) into the welded tube
on the Leg Frame (10). Next, tighten an M4 x
15mm Screw (58) into each side of the Pad
Tube. Slide two Foam Pads (22) onto the Pad
Tube. Then, press two Pad Caps (45) into the
Foam Pads.
12
22
22\
10
45
10
