Nortel IP Phone 1110 User manual

Carrier VoIP
Nortel IP Phone 1110 User
Guide (CICM)
Release: (I)SN10
Document Revision: 02.03
www.nortel.com
NN10300-021
.

Carrier VoIP
Release: (I)SN10
Publication: NN10300-021
Document status: Standard
Document release date: 7 March 2008
Copyright © 2007, 2008 Nortel Networks
All Rights Reserved.
Sourced in Canada, the United States of America, and the United Kingdom
This document is protected by copyright laws and international treaties. All information, copyrights and any other
intellectual property rights contained in this document are the property of Nortel Networks. Except as expressly
authorized in writing by Nortel Networks, the holder is granted no rights to use the information contained herein and
this document shall not be published, copied, produced or reproduced, modified, translated, compiled, distributed,
displayed or transmitted, in whole or part, in any form or media.
.

3
.
Contents
New in this release 7
Features 7
Other changes 7
Overview 9
IP Phone terminal description 9
Terminal display 11
Terminal indicators 11
IP Phone 1110 menu systems 13
Logoff 13
Call Services menu 13
Settings menu 14
Regional menu 14
User menu 14
Terminal menu 15
Call menu 15
Inbox 15
Outbox 15
Directory 15
Menu Hierarchy 17
How to use the navigation keys 18
Connecting the IP Phone to the LAN 19
Logging on 21
Logging off 23
Making calls 25
Making a call using off-hook dialing 25
Making a call using handsfree dialing 25
Making a call using predial 26
Editing a predialed number 26
Answering calls 29
Answering a call 29
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

4
Answering a second call 29
Ending a call 31
While on an active call 33
Using call hold 33
Transferring a call 33
Using conference call 34
Using call forward 35
Navigating the menu system 37
Navigating the main menu 37
Navigating the Call Services menu 38
Navigating the Settings menu 38
Navigating the Regional menu 39
Navigating the User menu 39
Navigating the Terminal menu 39
Navigating the Call menu 39
Navigating the Feature menu 40
Using the Call Services menu 43
Activating a feature from the menu 43
Using a softkey to activate a feature 44
Assigning a feature to a key 44
Removing a feature assignment from a softkey 44
Viewing softkey assignments 45
Displaying softkey labels while on a call 45
Hiding softkey labels 46
Viewing feature profiles 46
Labeling softkeys 47
Using the Regional Menu 49
Selecting the language 49
Selecting the time zone 50
Enabling Daylight Saving Time 50
Disabling Daylight Saving Time 51
Setting the time format 51
Setting the date format 52
Resetting the default time 52
Using the User menu 55
Viewing your user name 55
Viewing your login type 55
Viewing, disabling, or enabling Auto Login 56
Changing your password 57
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

5
Using the Terminal menu 59
Accessing the Audio menu 59
Viewing and editing your audio settings 60
Changing the default volume 61
Selecting a ring tone 62
Selecting the dialpad feedback 62
Enabling and disabling handsfree 63
Adjusting the contrast level of the display 64
Performing a firmware upgrade 64
Using the Call menu 67
Resetting softkeys to the defaults 67
Using the Feature menu 69
Using the Assign menu 69
Defining the Key type 70
Resetting the feature keys to the defaults 70
Labeling a feature 71
Using the Options menu 72
Enabling or disabling auto hide 72
Defining your default feature 73
Assigning the Outbox to a key 73
Using the Directory menu 75
Adding or editing a directory entry 75
Deleting an entry from the directory 76
Making a call using the directory 77
Using the Inbox 79
Accessing the Inbox 79
Viewing Inbox call information 80
Storing a number from the Inbox 80
Using the Inbox to make a call 81
Resetting the Inbox 81
Using the Outbox 83
Accessing the Outbox 83
Viewing Outbox call information 84
Storing a number from the Outbox 84
Using the Outbox to make a call 85
Resetting the Outbox 85
Call Services 87
Feature profiles 87
Softkey assignment 88
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

6
Mute feature 93
Using the dialpad to enter text 95
Use the IP Phone with the IP Softphone m6350 97
Access Code summary 99
Using the Local tools menu 101
Setting the contrast for the LCD display 102
Setting the language 103
Setting the backlight timer 104
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

7
.
New in this release
The following section details what’s new in the Nortel IP Phone 1110 User
Guide (CICM), (NN10300-021) for the release (I)SN10.
The following section details what’s new in the Nortel IP Phone 1110 User
Guide (CICM), (NN10300-021) for the release (I)CVM11.
•“Features” (page 7)
•“Other changes” (page 7)
Features This new document for Nortel Communication Server 2000/2100 supports
the integration of Nortel IP Phone 1110 into the Centrex IP Client Manager
(CICM) portfolio of supported terminals.
Other changes
There were no other changes made to this document.
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

8New in this release
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

9
.
Overview
Nortel IP Phone 1110 brings voice and data to the desktop by connecting
directly to a Local Area Network (LAN) through an Ethernet connection.
When you are logged on the system, the handset and keypad of the IP
Phone 1110 operate in the same way as a standard Meridian Business
Set (MBS) telephone. You can access additional services and features
through the softkeys. The label beside a softkey identifies the current
function associated with that key.
IP Phone terminal description
Nortel IP Phone 1110 offers these features:
•four light-emitting diode (LED) indicator lamps
—message waiting lamp
—data lamp
—link/data lamp
•multifield LCD screen
—adjustable contrast
—backlight
•four softkeys to access and utilize Centrex features that are available
through the Call Services menu
•five navigational keys
—up
—down
—left
—right
—send
•speaker for on-hook dialing or on-hook listening
•fixed keys:
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

10 Overview
—Services
—Inbox
—Volume control
—Hold
—Expand to PC
—Line
—Goodbye
•standard telephone dialpad
•Automatic network configuration
•upgradeable firmware
Figure 1 "IP Phone 1110 components" (page 10) shows the location of the
keys and the components of the IP Phone.
The IP Phone does not have a microphone for handsfree talking. A mute
function is available through the Call Services menu.
Not all features are available on all telephones. Consult your system
administrator to verify which features are available to you.
Figure 1
IP Phone 1110 components
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

Terminal indicators 11
Terminal display
The display on the IP Phone terminal has blue LED backlighting. When
the phone ceases to be active, the backlighting continues for a period of
time, as determined by the value of the backlight timer. When you initially
receive your phone, the backlight timer is set to the default value. It is
possible to alter the value of backlight timer. For instructions, see “Setting
the backlight timer” (page 104).
See Figure 2 "IP Phone display" (page 11).
Figure 2
IP Phone display
Terminal indicators
IP Phone terminal uses light-emitting diodes (LEDs) of different colors to
indicate the current state of the terminal. The following table describes
each color its associated state.
A steady indicator means that the extension or feature beside it is active.
Table 1
IP Phone indicators
Indicator LED color Meaning
Message waiting Red (located at the top of the set) Lit when a message is waiting, or a
call is missed. The light turns off after
you retrieve the waiting message.
Data waiting Blue (located at the top of the set) Lit when the terminal is on an active
call.
Link/Data Green (located on the back cover
near the network Ethernet jack) Lit when the link is alive and flashes to indicate activity.
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

12 Overview
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

13
.

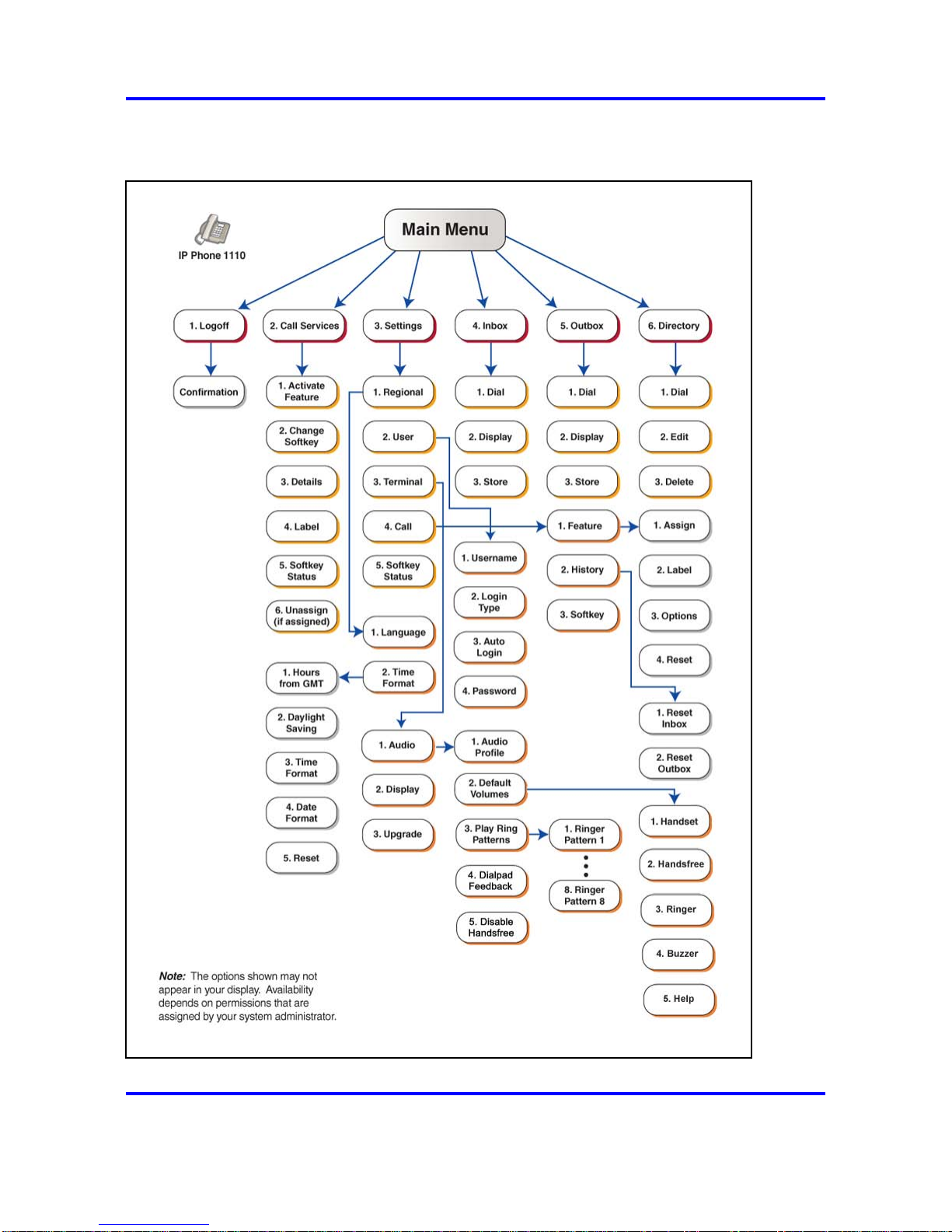

IP Phone 1110 menu systems
After you have successfully logged on to the network, the menu systems
are active and available. An up or down arrow beside an item indicates the
navigation key you can press to scroll to the next item. Labels appear next
to the softkeys, in response to items selected on the screen.
The IP Phone menu system provides access to these menus and
functions.
Some settings and selections on some menus are user-editable.
Procedures in this document tell you how to edit those items. You can edit
an item only if you have been granted the necessary permission. You may
or may not have such permission, depending on the arrangements that
exist in the system.
Logoff Use this item to log off from the network.
See “Logging off” (page 23).
Call Services menu
The Call Services menu gives the IP Phone 1110 access to Centrex
features. The softkeys in the display provide an alternative to the
dedicated feature keys on an IP Phone 2004. Any changes made to the
IP Phone 1110 feature key assignments through the feature menu, apply
only when the user is logged on to an IP Phone 2002 or 2004, which has
dedicated feature keys.
The Call Services menu is available after you select a Centrex feature
from the list, and press Ok or press the send key. Use the Call Services
menu to:
•activate a feature
•deactivate a feature
•assign a Centrex feature to a softkey
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

14 IP Phone 1110 menu systems
•remove a feature from a softkey
•view the current softkey assignments
•view a feature profile
•change the label associated with a softkey
See “Call Services” (page 87) for detailed information about this feature,
and see “Using the Call Services menu” (page 43).
Settings menu
Use the Settings menu to access these submenus and configure user
preferences.
See “Navigating the Settings menu” (page 38).
Regional menu
Use the Regional menu to:
•set your language preference
•access the Time menu where you can:
—select a time zone
—enable or disable Daylight Saving Time
—select the format used to display the time
—select the format used to display the date
—reset the time to the defaults
See “Using the Regional Menu” (page 49).
User menu
Use the User menu to:
•view your user name
•view your login type
•enable or disable auto login feature
•change your password
See “Using the User menu” (page 55).
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

Directory 15
Terminal menu
Use the Terminal menu to:
•view your audio settings
•adjust the contrast level of the display
•perform a firmware upgrade
See “Using the Terminal menu” (page 59).
Call menu
Use the Call menu to:
•access the Feature menu
•access the History Menu
•reset softkeys to default configuration
See “Using the Call menu” (page 67).
Inbox Use the Inbox menu to:
•dial a number currently stored in the Inbox
•display the contents of the Inbox
•store a number from the Inbox to the directory
See “Using the Inbox” (page 79).
Outbox Use the Outbox menu to:
•dial a number currently stored in the Outbox
•display the contents of the Outbox
•store a number from the Outbox to the directory
See “Using the Outbox” (page 83).
Directory Use the Directory menu to:
•add an entry to the directory
•edit a directory entry
•delete an entry from the directory
•make a call using the directory
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

16 IP Phone 1110 menu systems
See “Using the Directory menu” (page 75).
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

Menu Hierarchy 17
Menu Hierarchy
Figure 3
IP Phone 1110 menu hierarchy
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

18 IP Phone 1110 menu systems
How to use the navigation keys
The IP Phone terminal has five keys that you use to navigate the menus,
and to help you to enter text in the display. See Figure 1 "IP Phone 1110
components" (page 10) for the location of these keys.
When the menu system is active, the navigation keys behave this way:
•up key—return to the previous menu item
•down key—got to the next menu item
•left/right key—active when you can enter text. Press the left key to
move the cursor to the left. Press the right key to move the cursor to
the right.
•send key—performs the function specified by the label above the far
left softkey, for example Ok or Cancel.
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

19
.
Connecting the IP Phone to the LAN
Follow this procedure to connect the terminal to the Local Area Network
(LAN), and to a power source. See Figure 4 "IP Phone connectors" (page
20).
CAUTION
Risk of equipment damage
Do not plug the IP Phone into a regular telephone jack. This
causes severe damage to the terminal. Consult your system
administrator to ensure that you plug your telephone into a
10/100BaseT Ethernet jack.
Prerequisites
IP Phones can be powered by an AC adapter or over a LAN. Contact your
installation technician to identify the correct power option.
Step Action
1Connect one end of the CAT-5 line cable to the LAN Ethernet
port, identified with a LAN icon, located on the underside of the
terminal.
2Connect the other end of the CAT-5 line cable to the IP network
jack..
For a terminal sharing LAN access with a PC, connect a second
CAT-5 line cable to the PC Ethernet port located on the back of
the terminal, identified by the PC icon. Connect the other end of
the cable to the Ethernet port on the computer.
3For a secure power connection, thread the cord around the strain
relief, retaining hook, and channel on the back of the terminal.
--End--
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.

20 Connecting the IP Phone to the LAN
Procedure job aid
Figure 4
IP Phone connectors
Carrier VoIP
Nortel IP Phone 1110 User Guide (CICM)
NN10300-021 02.03 Standard
7 March 2008
Copyright © 2007, 2008 Nortel Networks
.
