Nortel Meridian SL-100 User manual

Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103
.

Document status: Standard
Document version: 20.01
Document date: 20 October 2006
Copyright © 2006, Nortel Networks
All Rights Reserved.
The information in this document is sourced in Canada, the United States of America, and the United Kingdom.
This is the Way, This is Nortel, Nortel, the Nortel logo, the globemark design, and the NORTEL NETWORKS
corporate logo, are trademarks of Nortel Networks. All other trademarks are the property of their respective owners.
All rights reserved.

3
Contents
New in this release 7
About this document 9
Meridian SL-100 hardware overview 11
SuperNode generations 13
Overview of functional elements 13
Meridian SL-100 platforms 14
Meridian SuperNode for large applications 14
Meridian SL-100 cabinets and frames 16
Cabinet concept 16
Dimensions 17
References 18
Meridian SL-100 general functions 21
System functionality 21
Core 22
Bus functions 25
Link functions 25
Network modules 25
XA-Core 27
Enhanced Network (ENET) 30
Meridian Cabinet Network Interface (MCNI) 32
Link Peripheral Processor 34
Single-Shelf Link Peripheral Processor (SSLPP) 37
Peripheral Modules 37
Meridian SL-100 peripherals 41
Trunk peripherals 42
Introduction 42
Digital Trunk Controller 42
Spectrum Peripheral Module (SPM) 47
Line peripherals 52
Introduction 52
Line Group Controller 54
Line Concentrating Modules 59
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

4Contents
Line Trunk Controller 62
Intelligent Peripheral Equipment (IPE) 62
Link Peripheral Processor-based peripherals 70
Ethernet Interface Unit (EIU) 70
IP Client Manager for the Meridian SL-100 72
Description 72
Hardware requirements 76
Features 76
Meridian SL-100 remote units 77
Remote Switching Center (RSC) 77
Remote Switching Center family 77
MCRM-S (RSC-S) 78
Extended distance on MCRM-S 78
Emergency Stand Alone 79
Meridian Cabinet Remote Unit (MCRU) 80
Remote off Remote (MCRU off of MCRM-S) 81
Trunking off of Remote Switching Center 81
PRI trunking off the RSC-S 81
Cabinet modular hardware 83
Cabinet descriptions 83
Cabinet dimensions 83
Cabinet exterior design 85
Cabinet interior design 85
Cabinet cabling 85
Earthquake resistance 86
Site level power and grounding 86
Power plant configuration 86
System grounding and bonding 87
Communication link grounding 91
Workstation, printer, and modem power and grounding 91
Overview of cabinet modules 92
Core modules 92
Network modules 92
Peripheral modules 92
Maintenance and administration modules 93
Remote peripheral modules 93
SuperNode cabinet module 100
Cooling unit 101
System Load Module 101
Computing Module 101
Message switch 102
Power supply module 102
Frame Supervisory Panel 102
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

Contents 5
Power requirement 102
SuperNode SE cabinet 103
Single-shelf core 103
System Load Module 103
Single-shelf bus 104
Cooling unit 104
Link interface 104
Enhanced Network 104
Frame Supervisory Panel 104
Power requirement 104
SNSE cabinet 104
Network cabinets 105
Enhanced network 105
Meridian Cabinet Network Interface (MCNI) 107
Trunk cabinet modules 109
Meridian Cabinet Trunk Module-ISDN 109
Cabinetized Integrated Services Module 111
Line cabinet modules 111
Meridian cabinet line module 112
Meridian Cabinet Line Module-Enhanced 113
Intelligent Peripheral Equipment Column 115
Peripheral cabinet modules 117
Link Peripheral Processor 117
Cabinetized Multi-Vendor Interface 122
Spectrum Peripheral Module 124
Cabinetized International Peripheral Equipment 125
Meridian cabinet auxiliary module phase 3 127
Maintenance and administration cabinet modules 127
Meridian Cabinet Auxiliary Module phase 3 127
Cabinetized Integrated Services Module 129
Cabinetized Miscellaneous Spares Storage 130
Cabinetized Power Distribution Center 131
Remote peripheral cabinet modules 134
Meridian Cabinet Remote Unit 134
Meridian Cabinetized Remote Module-SONET 135
System configuration 137
Cabinet update 137
Single Shelf Link Peripheral Processor (SSLPP)/Fiberized Link Interface Shelf
(FLIS) 137
Hardware components 137
Software 138
System configuration overview 138
Standard group configurations 139
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

6Contents
Primary group lineups 139
Secondary group lineups 143
Merged lineups or non-standard configurations 144
System performance 147
Power consumption 147
Floor loading 149
Environmental requirements 149
Standard features 149
OAMP for Meridian SL-100 networks 151
Maintenance and Administration Position 151
Overview 151
General maintenance 151
Line maintenance 154
Trunk maintenance 155
Administration subsystems 156
Access control system 157
System configuration 158
Telephones 161
Overview 161
IPE telephones 161
M3900 Series Digital Telephones 162
M3900 Series Digital Telephones accessories 167
Corporate Directory Application 170
Meridian Digital Telephones 171
Meridian Digital Telephone accessories 174
Meridian Business Sets 176
Additional analog sets 179
Meridian Services Attendant Console 179
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

7
New in this release
There have been no updates to the document in this release.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

8New in this release
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

9
About this document
Purpose and audience
This document describes the circuit-switched Meridian SL-100 hardware
platform, of which many of the components can be reused when evolving to
the Communication Server 2100.
This document’s audience is service provisioning, administrative and
network management and planning personnel.
How to check the version and issue of this document
The version and issue of the document are indicated by numbers (for
example, 01.01). For example, the first release of a document is 01.01. In
the next software release cycle, the first release of the same document
is 02.01.
The first two digits indicate the version. The version number increases
each time the document is updated to support a new software release. The
second two digits indicate the issue. The issue number increases each
time the document is revised, but re-released in the same software release
cycle. For example, the second release of a document in the same software
release cycle is 01.02.
ATTENTION
To determine whether you have the latest version of this document, check the
release information in the Communication Server 2100 Commercial Systems
Master Index of Publications (555-4031-001).
References in this document
This guide provides an overview of the hardware components that make
up the Meridian SL-100. The document is designed to act as a road map
to help you find the hardware information related to your specific network
configuration. As such, at the end of many of the sections in this guide,
there are tables that list references to more detailed information about the
component described.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

10 About this document
Note: Reference documents may contain Nortel product names used in
the carrier market.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

11
Meridian SL-100 hardware overview
This section describes the Meridian SL-100 circuit-switched hardware
components.
This chapter contains the following sections:
•"SuperNode generations" (page 13)
•"Meridian SL-100 platforms" (page 14)
•"Meridian SL-100 cabinets and frames" (page 16)
•"References" (page 18)
To provide large enterprise customers with maximum flexibility when
selecting their communication system, Nortel continues to offer the
circuit-switched Meridian SL-100 solution. The Meridian SL-100 combines
the best of both worlds: Nortel carrier-grade Digital Multiplex System
(DMS) and the world leading Meridian 1 Private Branch Exchange (PBX).
The Meridian SL-100’s architectural design which includes processing,
switching, access and call control layers, enables you to invest in new
technologies, such as IP technology, and to do so incrementally while
leveraging your investment in the rest of your Meridian SL-100 system.
The Meridian SL-100 provides fully integrated voice and data
communications and management. It serves as either a switching or
networking manager for corporate, military and institutional purposes. This
large-scale, software-controlled private switching system handles up to
60,000 digital voice or data connections, or a combination of both, to a wide
variety of other voice or data systems.
There are two types of Meridian SL-100 systems and they are differentiated
by the core processor. The first type is the SuperNode core with enhanced
call processing and handling capabilities. The second type is a scaled-down
version of the SuperNode core, called the SuperNode Space Enhanced
(SNSE) core, designed to serve smaller offices with a maximum of 36,000
lines.
Note: The number of lines supported depends on the switch
configuration, the feature implementation, the amount of ISDN line
penetration and the Centi-Call Seconds (CCS) per line.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

12 Meridian SL-100 hardware overview

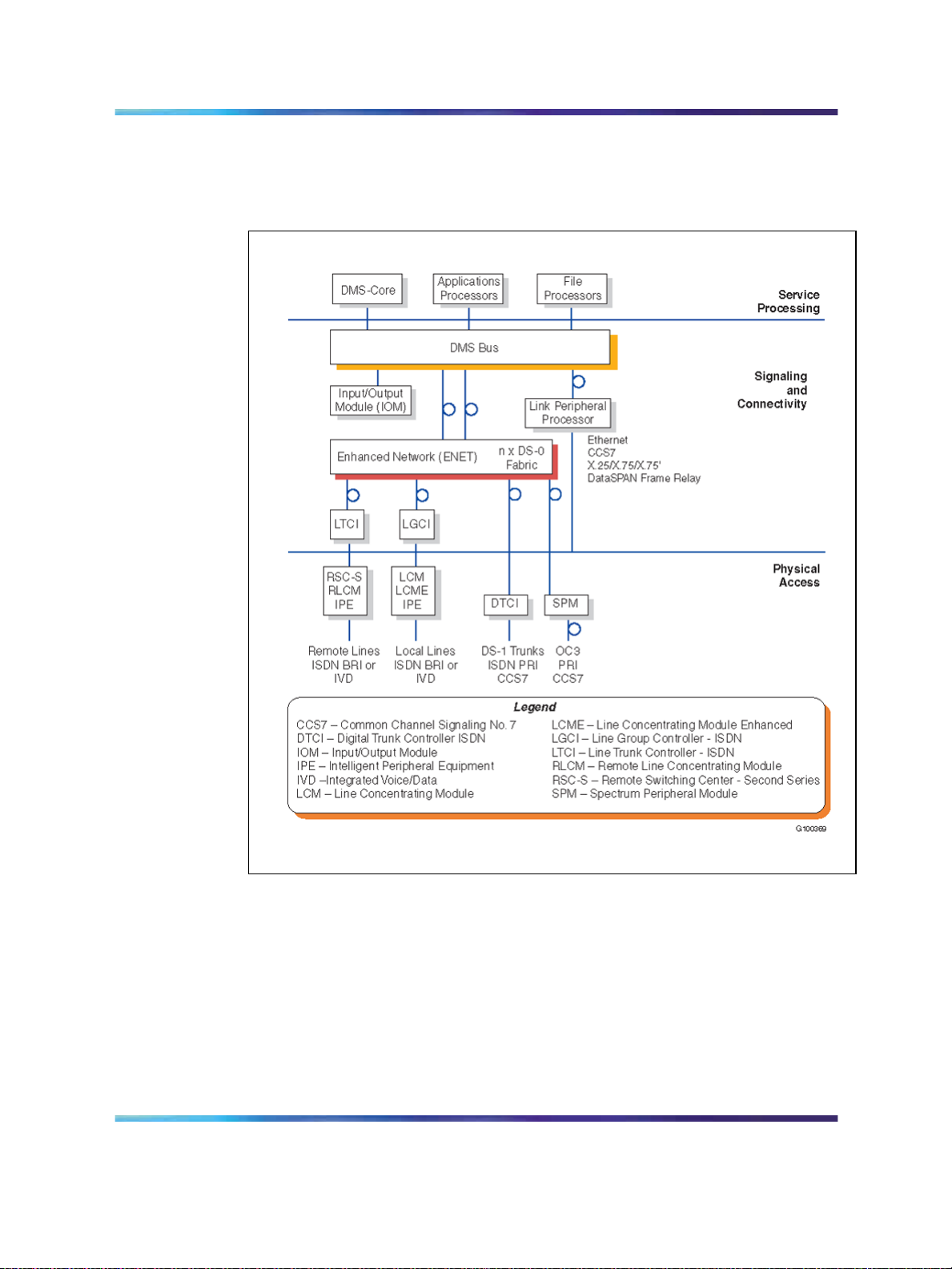

Figure 1 "Meridian SL-100 layered hardware architecture" (page 12)
illustrates the Meridian SL-100 hardware architecture.
Figure 1
Meridian SL-100 layered hardware architecture
Some of the attributes of the hardware architecture which distinguish the
Meridian SL-100 from the competition include the following:
•built-in redundancy which sets the standard in reliability
•small footprint and energy-efficient design to minimize facility costs
•modular design which allows organizations to scale the system to meet
their requirements
•clear evolutionary paths to minimize upgrade costs and maximize
investment protection, including the migration to the Communication
Server 2100 which is the next generation of the Meridian SL-100
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

SuperNode generations 13
SuperNode generations
The SuperNode generation of switches, which includes the SuperNode and
SuperNode SE systems, is based on evolutionary technology, yielding the
following improvements over the NT40 generation of switches:
•increased processing and call-handling capability
•reduced size
•improved reliability
SuperNode switches consists of the following three components:
•core - the control component.
•bus - the messaging component; hereafter called the Message Switch
(MS) bus or MS bus in this document to differentiate it from other types
of buses.
•link - the software infrastructure that implements public networking
standards including Common Channel Signaling and ISDN public
standards and protocols.
SuperNode switches have a distributed architecture and increased
processing capabilities, which provide an infrastructure for the development
of new features and services. The SuperNode system also provides an
interface to fiber transmission systems.
Overview of functional elements
All Meridian SL-100 systems consist of the same functional elements: the
control component, the messaging component, the switching network,
the peripheral modules and the input/output controller. Table 1 "Meridian
SL-100 functional elements" (page 13) describes the functional elements.
Table 1
Meridian SL-100 functional elements
Element Description
Control component The duplicated control component coordinates call processing, including
the actions of the switching network and of the Peripheral Modules. The
SuperNode control component is called the "core." The core’s major
elements are a Computing Module (CM) and System Load Module (SLM).
Note: The SuperNode messaging component is not contained in the
control component, but is separate and called the message switch bus.
Messaging
component The messaging component routes messages within the Meridian SL-100 system. The SuperNode messaging component is the MS bus. The MS
bus consists of duplicated message switches. The message switch is
based on the SuperNode CPU; thus, it uses some of the same software
as the Computing Module and the Central Control Complex CPU.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

14 Meridian SL-100 hardware overview
Element Description
Switching network The switching network is a digital switching matrix that interconnects
the Peripheral Modules using Time Division Multiplexing (TDM). The
switching network has duplicate network planes for reliability. It is made
up of microprocessor-controlled digital switching Network Modules (NM)
and is connected to the SuperNode MS bus.
Peripheral Modules The Peripheral Modules (PMs) provide an interface between the switching
network and telephony terminals such as lines and trunks. They also
provide an interface between the Meridian SL-100 system and Remote
Digital Terminals (RDTs), access nodes and other vendors’ switching
equipment.
Input/Output
Controller The Input/Output Controller (IOC) provides an interface between the
messaging component (the SuperNode MS bus) and input/output devices
such as magnetic tape drives, disk drives, data links, video display
units and printers. A video display unit connected to the IOC is used
as a component of a Maintenance and Administration Position (MAP)
workstation. The MAP workstation provides a user interface to the
Meridian SL-100 system.
Meridian SL-100 platforms
Meridian SuperNode for large applications
The Meridian SL-100 is a powerful communications system that combines
advanced hardware architecture with premier PBX software features. The
Meridian SL-100 is based on the highly successful technology Nortel
developed for Digital Multiplex System (DMS) central office switches.
These switches have set worldwide standards for reliability. The built-in
redundancy of all critical system components ensures system operations
integrity. As the largest member of the Meridian 1 family of sophisticated
business communications systems, the Meridian SL-100 has provided
superior service in a variety of industries for almost two decades.
The Meridian SL-100 supports a wide range of voice, data, video and
multimedia applications. The system can be flexibly configured to address
both current and future capacity and applications requirements as a result of
its 100,000 digital voice or data line capacity threshold. The Meridian SL-100
incorporates the Nortel advanced Dual Plane Common Control (DPCC)
design, which efficiently uses the system’s processing power by providing
distributed control over many processors. The system’s modular design
also allows easy upgrades as new processor technology becomes available.
Figure 2 "Meridian SuperNode" (page 15) shows an example of a Meridian
SuperNode.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

Meridian SL-100 platforms 15
Figure 2
Meridian SuperNode
Meridian SuperNode SE (Space Enhanced) for smaller
applications
As a smaller alternate solution to the Meridian SuperNode, the SuperNode
SE (SNSE) is specifically designed for lower line-size (4,000 to 50,000)
application-intensive requirements. The specific number of provisionable
lines is dependent on the actual switch configuration, Centi-Call Seconds
(CCS) per line and the actual mix of feature penetration.
The SNSE configuration provides the platform for current and future
Meridian SL-100 applications and features required for the small switch
market (see Figure 3 "Meridian SuperNode SE" (page 15)).
Figure 3
Meridian SuperNode SE
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

16 Meridian SL-100 hardware overview
The Meridian SuperNode SE offering combines the functionality of the
DMS-Core, DMS-Bus, 16K Enhanced Network (ENET) and a single-shelf
Link Peripheral Processor (LPP) into one cabinet by providing the following:
•State-of-the-art processing capability of XA-Core.
•Duplex ENET configured for up to 16,000 channels on one shelf.
•A Link Interface Shelf (LIS) for additional 12 Interface Units (IUs)
depending on provisioning rules.
•Available with optimal memory using block sparing.
•Duplicated, load-sharing Message Switch (DMS-Bus) on one shelf.
Meridian SL-100 cabinets and frames
Cabinet concept
The Meridian SL-100 system cabinet structure consists of basic hardware
switching modules mounted in 1.8 m (6 ft.) gray or brown cabinets.
Modular design
Modular design techniques are used in the development of both the software
and hardware. Modularity can be thought of as the implementation of a
complex system through a set of functional units or modules connected by
well-defined interfaces. As a result of proper module and interface design,
the various units can be connected, disconnected, modified or improved
without affecting either the operation of the other modules in the system
or the system as a whole.
This modularity gives the system flexibility in physical layout and function,
in providing special features and in system expansion. The cabinetized
Meridian SL-100 can be adapted to specific customer line, trunk and service
circuit requirements through additional engineering.
Advantages of the cabinet
The cabinetized Meridian SL-100 offers these benefits:
•Provides pre-cabled, factory-assembled, and tested cabinets; thus,
reducing on-site installation or commissioning intervals.
•Provides a modular system that easily expands and accommodates
variations in system size and feature choices and allows integration
of future system enhancements.
•Eliminates the need for additional external earthquake bracing by using
prebraced steel cabinets.
•Presents a modern, computer-style appearance, ideally suited for
computer rooms having raised flooring and low, suspended ceilings.
•Shortens delivery time.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

Meridian SL-100 cabinets and frames 17
•Simplifies system expansions.
Dimensions
Current Meridian SL-100 hardware is housed in cabinets or frames with the
following dimensions:
•C42 cabinet: 183 cm high 107 cm wide 72 cm deep (72" 42" 28")
•C28 cabinet: 183 cm high 72 CM wide 72 cm deep (72" 27" 28")
•Open frame: 213 cm high 72 cm wide 46 cm deep (84" 28 18")
Each cabinet or frame contains four shelves with slots for equipment (for
example, card slots for inserting circuit cards). Cabinets are equipped with
double doors on both the front and rear to provide convenient access for
maintenance personnel.

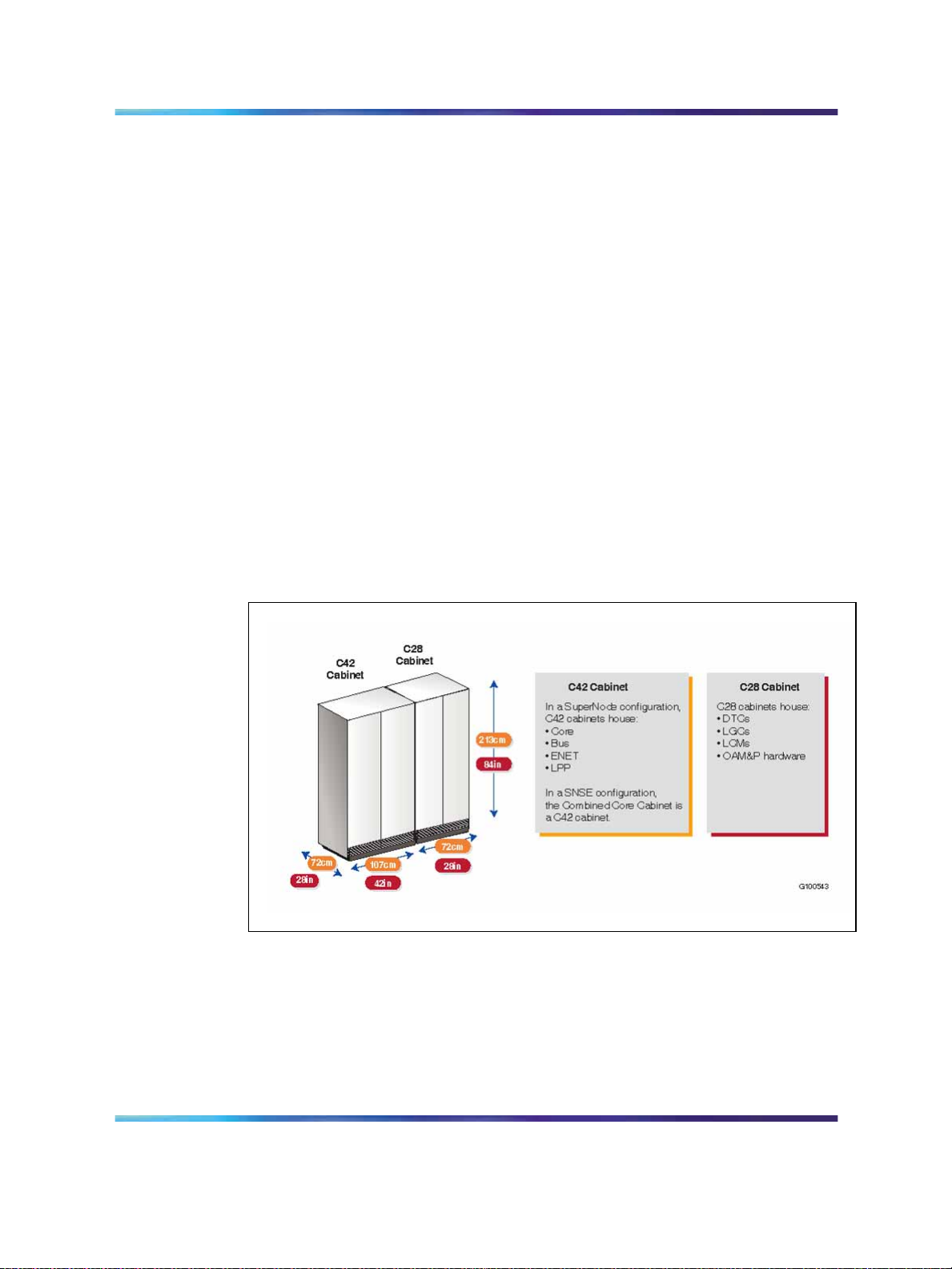

Figure 4 "Dimensions of current Meridian SL-100 cabinets" (page 17)
illustrates the dimensions of C42 and C28 cabinets and lists the hardware
units that can be housed in each one. An open frame can house the same
type of units as C28 cabinets.
Figure 4
Dimensions of current Meridian SL-100 cabinets
Note: Standard Meridian SL-100 frames are also used to house
the Spectrum Peripheral Module. The dimensions of the Spectrum
Peripheral Module hardware are smaller than those of equivalent
Extended Peripheral Module (XPM) units, but to minimize costs adapter
brackets are used to house Spectrum Peripheral Modules in existing
frames. Overall footprint can still be reduced, because access to all
cards in the Spectrum Peripheral Module double-height shelves is from
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

18 Meridian SL-100 hardware overview
the front of the frame, which means that parallel rows of Spectrum
Peripheral Module frames can be arranged back to back.
References Table 2 "References" (page 18) shows where you can find more detailed
information about the Meridian SL-100 hardware platform and components.
Table 2
References
Document Number
Enhanced MAP Workstation Product Guide 555-4001-012
Ethernet Interface Unit on LPP Services Guide 555-4001-024
Communications Server 2100 Interworking Services
Guide 555-4001-026
Digital Line Module (DLM) Reference Manual 555-4001-101
Remote Peripherals General Description 555-4001-104
ISDN Primary Rate Interface Reference Manual 555-4001-106
Communication Server 2100 ASCII SMDR Data Access
Description and Implementation 555-4001-119
Computer-to-PBX Interface General Description 555-4001-125
Asynchronous Interface Line Unit Reference Manual 555-4001-126
Intelligent Peripheral Equipment (IPE) Reference
Manual 555-4001-129
Communication Server 2100 Line Side T-1 Interface for
IPE (LTI) Services Guide 555-4001-022
Communication Server 2100 Peripheral Module Release
Document RELDOC 555-4001-599
Communication Server 2100 Getting Started with
Optivity Telephony Manager User Guide 555-4001-316
Communication Server 2100 Commercial Systems
Translations Guide 555-4031-350
Alarm Clearing Procedures 555-4031-543
Trouble Locating and Clearing Procedures 555-4031-544
Recovery Procedures 555-4031-545
Routine Maintenance Procedures 555-4031-546
Card Replacement Procedures 555-4031-547
Communication Server 2100 Commercial Systems
Service Order Reference Manual 555-4031-808
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

References 19
Document Number
Communication Server 2100 Commercial Systems
Operational Measurements Reference Manual 555-4031-814
Communication Server 2100 Commercial Systems Log
Report Reference Manual 555-4031-840
Communication Server 2100 Commercial Systems Data
Schema Reference Manual 555-4031-851
Communication Server 2100 Commercial Systems
Office Parameters Reference Manual 555-4031-855
In addition, because the Meridian SL-100 is based on the DMS system, there
are many useful DMS documents that are included on the fully-searchable
Customer Documentation CD-ROM that ships with the system.
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.

20 Meridian SL-100 hardware overview
Communication Server 2100
Meridian SL-100 Product Guide
555-4001-103 20.01 Standard
SE09 20 October 2006
Copyright © 2006, Nortel Networks Nortel Networks Confidential
.
