NSK Ti-max Z45L User manual

002

1
ENGLISH
1. User and Indications for Use
User: Qualified Professionals
Indications for Use: This medical device is intended for transmitting rotation of the power source at the direct drive ratio or at a different gear ratio,
thereby running the instrument such as a bur or a reamer to cut and polish natural or artificial teeth during dental treatment.
2. Precautions for handling and operation
Please read these precautions carefully and use only as intended or instructed.
Safety instructions are intended to avoid potential hazards that could result in personal injury or damage to the device. Safety instructions are
classified as follows in accordance with the seriousness of the risk.
Class Degree of Risk
WARNING Hazard that could result in serious injury or damage to the device if the safety instructions are not correctly followed.
CAUTION Hazard that could result in light or moderate injury or damage to the device if the safety instructions are not correctly
followed.
NOTICE General product specification information highlighted to avoid product malfunction and performance reduction.

2
WARNING
•Immediatelyafteratreatment,thehandpieceshouldbecleaned,lubricatedandsterilized.Failuretoproperlymaintainthe
handpiecemayleadtooverheating,causingburninjuriesorproductfailure.(Referto"8.Post-useMaintenance")
•Ifbloodinfiltratesinsideahandpiece,anautomatichandpiececleaningandlubricationsystemmaynottotallycleanthe
internalhandpiececomponents,whichmayleadtointernalbloodcoagulation.Coagulatedbloodinsidethehandpiecemay
causehandpiecefailureandoverheating,causingburninjuries.Toavoidtherisk,NSKrecommendstoimmediatelylubricate
thosehandpieceswithPANASPRAYPlus/PANASPRAY.
•DepressingthePushButtonwhilethehandpieceisinrotationmayleadtooverheating,causingburninjuriesorproduct
failure.Avoidthepushbuttontocontactwithanyoraltissue.
•Supplycoolantwaterandcoolantairwhileusingthehandpiece.Nosupplyingthecoolantwaterandcoolantairmayleadto
overheating,causingburninjuriesorproductfailure.
•Donotusethehandpieceforprophylaxispurposes.Polishingpastecouldenterthehandpiece,causingthefailureofthe
PushButtonorburninjuriesduetotheoverheatingofthehandpiecehead.
•Keepanydebrisorotherforeignmaterialsawayfrominsidethegearorthehandpiece.Foreignmaterialsremaininginside
mayleadtooverheating,causingburninjuriesorotheraccidents.

3
EN DE FR ES IT PT
WARNING
•Ballbearingsarewearitemsandmayrequirereplacement.Besuretoinspectthehandpiecebeforeuse(Referto
"7.CheckingtheHandpieceBeforeEachUse").Ifabnormalvibrationornoisearefound,thebearingsorotherinternalparts
maybewornoutordamaged.Damagedpartsmayleadtohandpieceoverheatingcausingburninjuries.Ifoverheatingis
suspected,stopusingthehandpieceimmediatelyandcontactyourAuthorizedNSKDealer.

4
CAUTION
•When operating the product always consider the safety of the patient.
•Users are responsible for the operational control, maintenance and continual inspection of this product.
•Prior to clinical use, inspect the handpiece. Check for vibration, noise and overheating. If any abnormalities are found, stop using the
handpiece immediately and contact your Authorized NSK Dealer. (Refer to "7. Checking the Handpiece Before Each Use")
•Do not disassemble or alter the handpiece except as recommended by NSK in this Operation Manual.
•Do not allow any impact on to the product. Do not drop the product.
•Operators and all others in the area must wear eye protection and a mask when operating this handpiece.
•Do not use burs with problems listed below as the bur may break, seize up or disengage from the chuck.
- Bent, deformed, worn, rusted, broken, deficient bur.
- Bur which is cracked on the edge or axis.
- Non-ISO(EN ISO) standard, or tampered bur.
•Do not use burs other than specified in "10. Specifications" as such burs may be accidentally released or break during rotation.
•Always keep the bur shank clean. Dirt or debris in the chuck could cause poor bur concentricity or low chuck retention force.
•Always insert the bur all the way into the chuck. If insertion is insufficient, premature failure of the bearings or accidental release of the bur
may occur.

5
EN DE FR ES IT PT
CAUTION
•Do not exceed Max. Bur Length shown in "10. Specifications".
•Do not use a surgical bur with its maximum length of 25mm or longer. Using such bur with this handpiece may lead to premature abrasion of
the bearings. In addition, sudden release, bend or breakage of the bur may occur.
•Always follow the instructions provided by the bur manufacturer.
•Do not exceed the bur speed recommended by the bur manufacturer.
•Should the handpiece function abnormally during use, stop using the handpiece immediately and contact your Authorized NSK Dealer.
•Do not use the following fluids to wipe, immerse or clean the product; strong/super acid water, strong acid/alkaline chemicals, chlorine-
containing solutions, solvents such as benzine or thinner.
•The handpiece is delivered in a non-sterile condition and must be autoclaved prior to use.
•Perform regular function and maintenance checks. (Refer to "9. Periodical Maintenance Checks")
•If the handpiece has not been used for a long period, rotate the handpiece and check for noise, vibration and overheating before use.
•To avoid clinical downtime it is recommended that a spare be kept on hand in case of a breakdown during treatment.
•The operation of the handpiece is permitted only on dental units which correspond to the standards IEC 60601-1 (EN 60601-1) and
IEC 60601-1-2 (EN 60601-1-2).
•U.S. Federal law restricts this device to sale by or on the order of a licensed physician.

6
3. Accessory List
No. Part Name Quantity
1 Wrench 1
2 E Type Spray Nozzle 1

7
EN DE FR ES IT PT
CAUTION
4. Connecting and Disconnecting the Handpiece and the Motor
4-1 Connecting

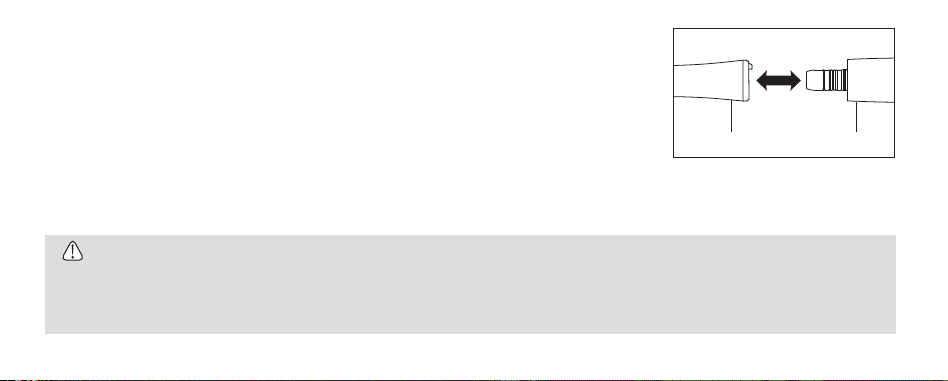

1) Insert the handpiece direct to the motor (Fig. 1). Screw the handpiece until it clicks and locks into
position.
2) Confirm that the handpiece is firmly connected to the motor.
4-2 Disconnecting
Hold the motor and the handpiece, then pull apart.
•Do not connect or disconnect the handpiece until the motor has completely stopped.
•Connect ONLY to E type motors (ISO 3964 (EN ISO 3964)).
•Do not exceed the Max. Rotation Speed (Motor) shown in "10. Specifications".
Fig. 1
Handpiece Motor

8
5. Inserting and Removing the Bur
5-1 Inserting the Bur
1) Insert the bur into the chuck.
2) Depress the Push Button to open the chuck ( ).
3) Insert the bur fully into the chuck until it stops ( ) then release the Push Button.
4) Confirm that the bur is not removed by gently pulling and pushing the bur without depressing the
Push Button.
NOTICE
•Grip the handpiece while placing your thumb tip on the Push button which makes it easier to depress the button.
Fig. 2
Push Button

9
EN DE FR ES IT PT
5-2 Removing the Bur
Depress the Push Button to open the chuck ( ) and remove the bur ( ).
Fig. 3
Push Button

10
CAUTION
•Do not use burs with problems listed below as the bur may break, seize up or disengage from the chuck.
- Bent, deformed, worn, rusted, broken, deficient bur.
- Bur which is cracked on the edge or axis.
- Non-ISO(EN ISO) standard, or tampered bur.
•Do not use burs other than specified in "10. Specifications" as such burs may be accidentally released or break during rotation.
•Always keep the bur shank clean. Dirt or debris in the chuck could cause poor bur concentricity or low chuck retention force.
•Always insert the bur all the way into the chuck. If insertion is insufficient, premature failure of the bearings or accidental release of the bur
may occur.
•Do not exceed Max. Bur Length shown in "10. Specifications".
•Do not use a surgical bur with its maximum length of 25mm or longer. Using such bur with this handpiece may lead to premature abrasion of
the bearings. In addition, sudden release, bend or breakage of the bur may occur.
•Always follow the instructions provided by the bur manufacturer.
•Do not exceed the bur speed recommended by the bur manufacturer.
•Do not mount or remove the bur until the motor has completely stopped.
•Do not apply excess pressure to the bur as it may break or bend or become difficult to remove.

11
EN DE FR ES IT PT
CAUTION
•When using a bur with a length of 20-25mm, the working diameter must be within the value specified in the table below. The use of a bur
with a diameter that exceeds the specified values may result in a bur run out and cause the bur to bend or break.
øa Diamond Bur : ø2mm or less
Carbide Bur : ø1mm or less
Be careful of overheating when using some
types of carbide bur, as the coolant water (in
“water jet” mode) cannot reach the bur tip
because of the shape of the tip.
Water
øa
øa
20 - 25mm
ø1.59-1.60mm
ø1.59-1.60mm
20 - 25mm
øa

12

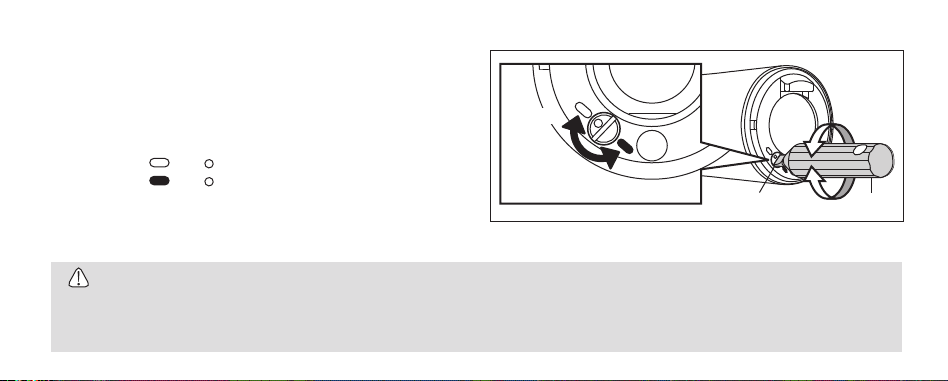

6. Switching coolant water type
It is possible to switch the type of coolant water flow which cools the drilling
point.
Turn the switching valve with an attached wrench to switch the coolant
water type.
- Align the mark and to set the water spray shape.
- Align the mark and to set the water jet shape.
CAUTION
•Make sure to turn the switching valve unti it stops.
•Before initiating treatment, assure the water is spraying correctly.
•If water is not being supplied correctly, recheck the switching valve.
Fig. 4
Water spray
Shape
Water jet shape Switching Valve Wrench

13
EN DE FR ES IT PT
7. Checking the Handpiece Before Each Use
Follow the check below before use. If any abnormalities are found, stop using the handpiece immediately
and contact your Authorized NSK Dealer.
1) Check the Head Cap is firmly tightened.
2) Check the coolant water is flowing properly.
3) Mount the bur. (Refer to "5. Mounting and Removing the Bur")
4) Rotate the handpiece for about one minute with coolant water at the Max. rotation speed of the attached
motor. During rotation, check for abnormalities such as abnormal rotation, vibration, noise.
5) After the handpiece rotation has completely stopped, touch the handpiece head to confirm the head is
NOT heating abnormally (Fig. 5).
CAUTION
•To avoid injury, keep your hands away from the bur during rotation.
Fig. 5

14
8. Post-use Maintenance
After each patient maintain the product as follows.
WARNING
•Immediatelyafteratreatment,thehandpieceshouldbecleaned,lubricatedandsterilized.Failuretoproperly
maintainthehandpiecemayleadtooverheating,causingburninjuriesorproductfailure.
CAUTION
•Do not use the following fluids to wipe, immerse or clean the product; strong/super acid water, strong acid/alkaline chemicals, chlorine-
containing solutions, solvents such as benzine or thinner.

15
EN DE FR ES IT PT
8-1 Preparation
1) Wear a eye protection, a mask and gloves to avoid infection.
2) Remove the bur.
3) Disconnect the handpiece from the motor.
8-2 Cleaning
Manual Cleaning (External Surface)
1) Remove dirt and debris on the handpiece surface using a brush under running water (at 38°C or less).
Do not use a wire brush.
2) Wipe off the moisture on the surface using absorbent cloth.
CAUTION
•If water comes inside the handpiece, blow air into the rear of the handpiece using an air syringe and remove the remaining water.

16
Automatic Cleaning (External and Internal Surfaces)
Use a thermo-disinfector in accordance with ISO 15883 (EN ISO 15883).
Refer to the thermo-disinfector manual.
CAUTION
•After washing with thermo-disinfector and prior to lubrication, dry the product until all internal moisture is thoroughly removed. Thermo-
disinfector moisture remaining inside the product could reduce the effect of lubrication and could cause corrosion inside of the product.

17
EN DE FR ES IT PT

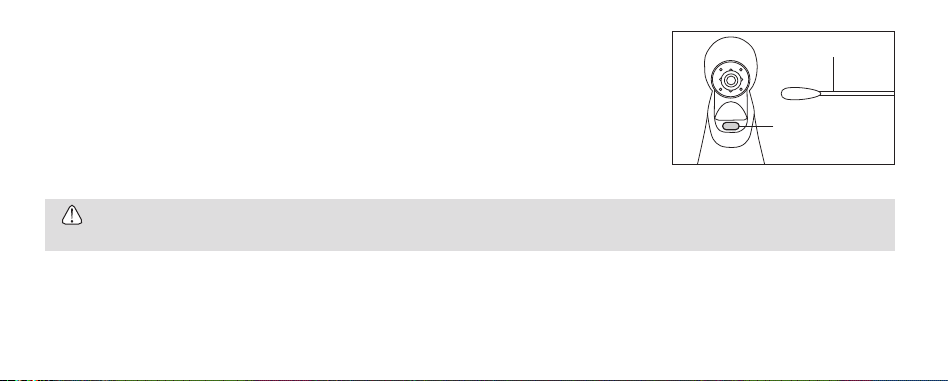

8-3 Cleaning (Optic)
Wipe clean the Glass Rod tip with an alcohol-immersed cotton swab. Remove all debris and oil.
CAUTION
•Do not use a sharp tool to clean the Glass Rod. It could damage the glass and reduce the light transmission.
Fig. 6
Cotton Swab
Glass Rod

18
8-4 Disinfection
Manual Disinfection (External Surface)
Wipe the surface with cloth soaked in disinfectant solution such as alcohol.
Automatic Disinfection (External and Internal Surfaces)
Use a thermo-disinfector in accordance with ISO 15883 (EN ISO 15883).
Refer to the thermo-disinfector manual.
8-5 Lubrication
NSK PANA SPRAY Plus / PANA SPRAY
Apply NSK PANA SPRAY Plus / PANA SPRAY every time after each use and/or before autoclaving.

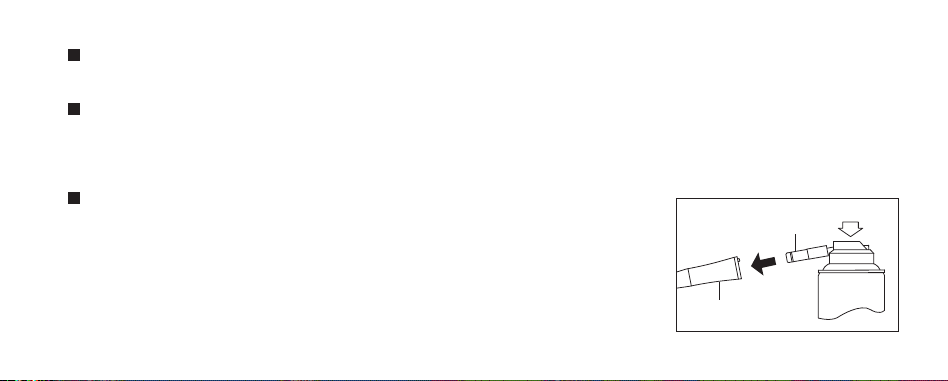

1) Attach the Spray Nozzle into the Spray Port nozzle on the can.
2) Insert the Spray Nozzle into the rear of the handpiece. Hold the handpiece and spray for approximately
2-3 seconds. Apply lubricant until it expels from the handpiece head for at least 2 seconds (Fig. 7).
Fig. 7
E-Type Spray
Nozzle
Handpiece

19
EN DE FR ES IT PT
CAUTION
•Hold the spray can upright.
•Be sure to hold the handpiece firmly to prevent slipping out of hand by the spray pressure when lubricating.
•Supply lubricant until it comes out of the handpiece head.
•If you wish to expel excessive oil from inside of the handpiece, rotate the handpiece for approx.15 seconds without a bur. During the rotation,
do not depress the push button inadvertently, especially when using absorbent cloth to prevent oil from scattering. Depressing the push button
during rotation may cause a failure to attach a bur.
Fig. 8 Fig. 9
