Nuna Tavo User manual

instruction manual

1
Usage
1
Illustrations
6
4
2
3
5
2
2
1
2
1

7
8
9
2
1
10
2
1
1
11
12

18
17
13
14
15
16

20
21
22
23
19
1
2
24

30
26
1
2
27
1
12
28
29
25

31 34
32
1
1
2
35
!
1
2
3
36
13
2
33
1
2
3

Smart
Design
We like design.
And people who like design get us.
We will not embarrass your kids.
We cannot promise they will stay clean.
But we know it will all be okay. We are parents.
We are Nuna.

8
EN
Contents
Illustrations 1-6
English (EN) 7
Safety and Recommendations 9
Warnings 10
Parts List 12
Contents of the Box 13
How to Set Up the Nuna TAVO 13
How to Use the Nuna TAVO 14
Accessories 17
Cleaning and Maintenance 18
Warranty and Product Registration 19
Where to Find Nuna Products 20
Français (FR) 21-35
Español (ES) 37-51

9
EN
Safety and
Recommendations
Please take note of the following before using the Nuna TAVO.
Safety is very important to us and you can be assured that our products
comply with the relevant standards and that they have been tested by a
number of independent testing panels and laboratories.
The Nuna TAVO is a patented product and complies with US safety
standards and ASTM F833.
If you have any questions or comments regarding the Nuna TAVO, we will
be glad to hear them through our web site nuna.eu or nunababy.ca.
IMPORTANT! KEEP
THESE INSTRUCTIONS
FOR FUTURE
REFERENCE!
Read these instructions carefully before use and keep
them for future reference. Your child’s safety may be af-
fected if you do not follow these instructions.
This stroller is intended for children from birth and up to
50 lbs maximum.

10
EN
WARNINGS
Failure to follow these warnings and instructions could
result in serious injury or death.
NEVER leave child unattended. Always keep your child
in view while in TAVO.
Avoid serious injury from falling or sliding out. Always
use seat belt. After fastening buckles, adjust belts to
get a snug fit around your child.
Please save instruction manual for future use.
Avoid finger entrapment: Use care when folding and
unfolding the TAVO. Be certain the TAVO is fully erected
and latched before allowing your child near the TAVO.
NEVER use TAVO on stairs or escalators. You may
suddenly lose control of the TAVO or your child may fall
out. Also, use extra care when going up or down a step
or curb.
Strangulation Hazard: Do not place items with a string
around your child’s neck, suspend strings from this
product, or attach strings to toys.
TAVO is to be used only at walking speed. Product is not
intended for use while jogging, skating, etc.
Use of the TAVO with a child weighing more than 50 lbs
(22.7 kg) or 45 in (114.3 cm) will cause excessive wear and
stress on the TAVO. Use the TAVO with only one child at a
time.
Adding accessories such as purses, shopping bags, or
parcels to the handle or canopy can cause the TAVO to be
unstable. Only use Nuna accessories with your TAVO.
To prevent a hazardous, unstable condition, do not place

11
EN
more than 10 lbs (4.5kg) in the storage basket (combined
weight in basket and in basket pocket).
DO NOT use storage basket as a child carrier.
Never allow your TAVO to be used as a toy.
Discontinue using your TAVO should it become damaged
or broken.
Overloading, incorrect folding, and the use of accessories
e.g. child seats, bag hooks, rain covers, buggy boards,
etc… other than those approved by Nuna may damage or
make this TAVO stroller unsafe.
Never allow children to stand on the footrest.
This stroller has been designed to use from birth. We
recommend using lowest reclined position for newborn
babies.
This stroller does not replace a cot or a bed. Should your
child need to sleep, they should be placed in cot or bed.
The parking device should be engaged when the stroller
is stopped and when placing or removing child.
Do not place any item on the canopy.
WARNING To avoid any danger of suffocation, remove
all plastic covers before using this item and destroy or
keep away from babies and children!
WARNING Always check that the car seat attachment
devices are correctly engaged before use.
WARNING To avoid injury ensure that your child is kept
away when unfolding and folding this product.
WARNING Child may slip into leg openings and
strangle. Never use in reclined carriage position unless
the extra flap is pulled out from under the calf support,
snapped into place and the occupant retention is secure.

12
EN
Parts List
Make sure all parts are available before assembly. If any part is missing,
please contact local retailer. No tools are required for assembly.
Choking Hazard: Remove and immediately discard
protective end caps from each wheel, wheel hub axle and
covered zipper.
18
x 2 x 2
4
2
13
20
19
6
5
7
8
9
10
12
14
16
11
13
17
15
1 Front Wheel (x2)
2 Rear Wheel (x2)
3 Armbar
4 Stroller
5 Canopy Visor
6 Seat Pad
7 Armbar
8 Calf Support
9 Front Wheel
10 Rear Wheel
11 Buckle
12 Shoulder Harness
Pads
13 Handle Adjustment
Button
14 Folding Button
15 Handle
16 Recline Handle
17 Storage Basket
18 Brake Lever
19 Brake assembly
20 Insert

13
EN
Contents of the Box
Stroller Frame
Front Wheel
Rear Wheel
Armbar
Brake assembly
No tools required for assembly
How to Set Up the
Nuna TAVO

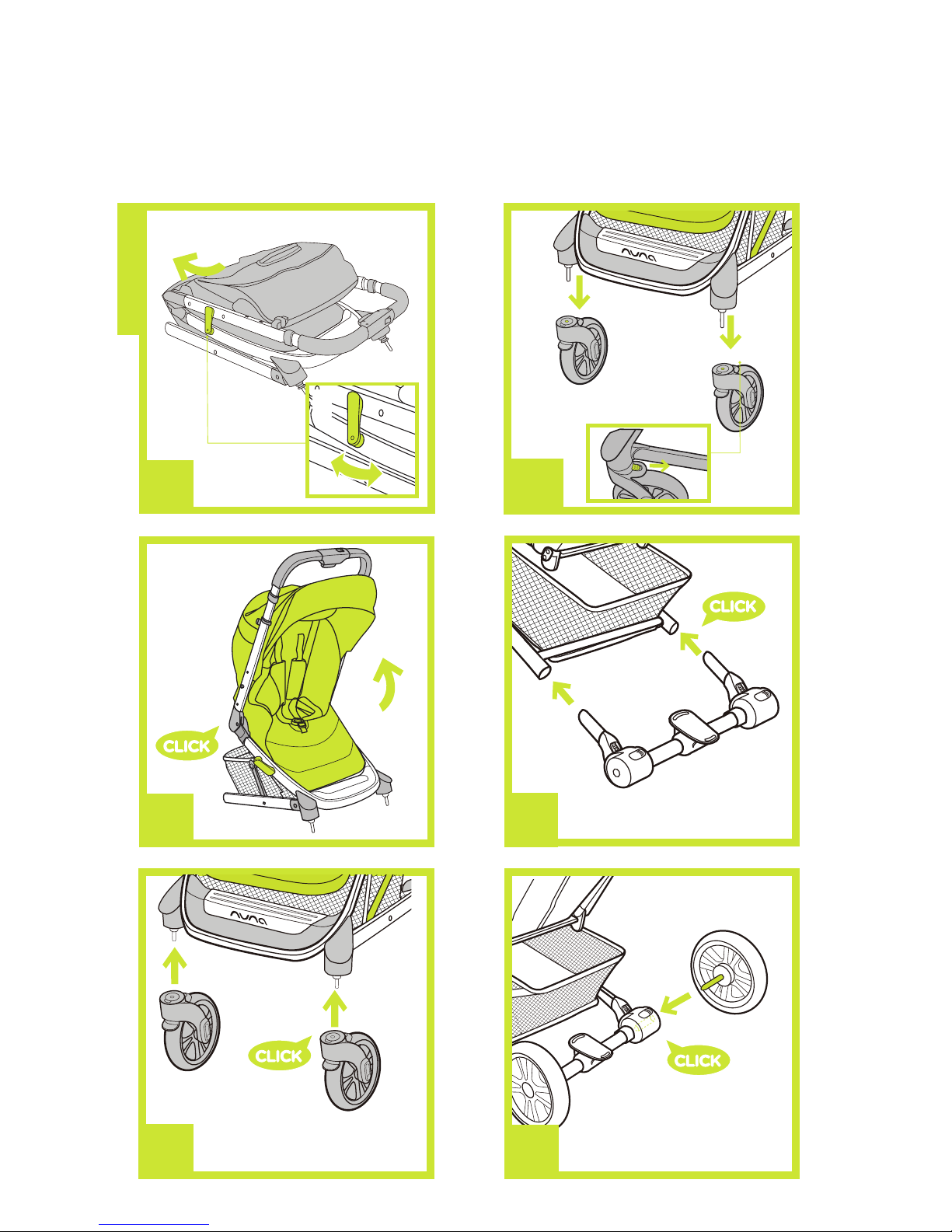

Opening the Nuna TAVO
Check that you have all the parts for this product before using it.
The assembly should be performed only by adults.
1 Separate storage latch from storage mount (1), and then lift the handle
upwards (2), a click sound means the stroller is open completely.
2 Check that the stroller is completely latched open before continuing.
Assemble Front Wheels
1 Assemble front wheels to front legs.
Check that wheels are securely attached by pulling down. (3)
2 To disassemble front wheel, detach front wheel from front leg (4)-2
while pushing the release button. (4)-1
Assemble Rear Wheels
1 Assemble brake assembly (5) to rear legs. Make sure that the brake lever
is on top. (5)

14
EN
2 Assemble rear wheels to brake assembly. A click sound means they are
locked. (6)
Check that wheels are securely attached by pulling on wheel assemblies.

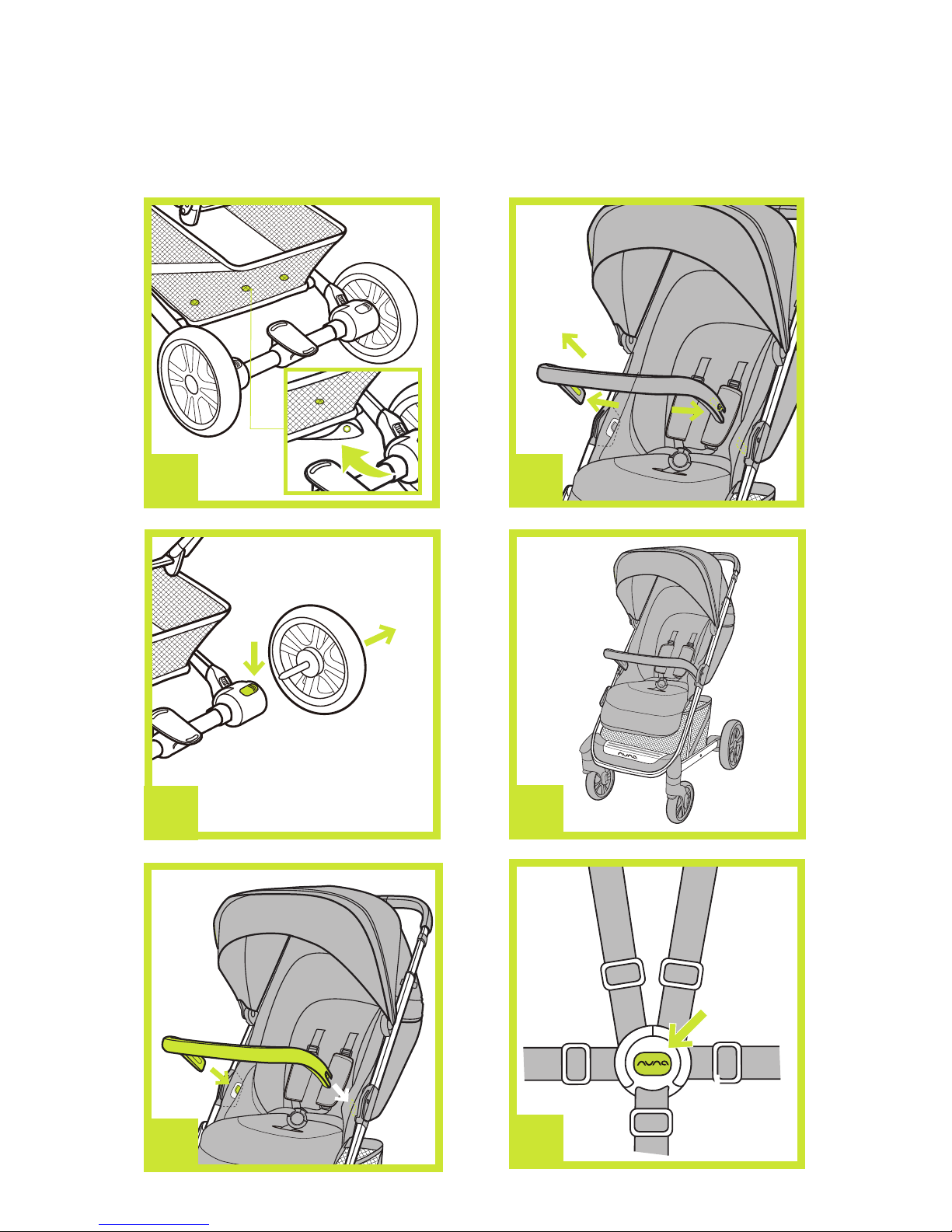

3 Wrap the rear leg connecting tube with the fabric flap from the storage
basket and connect the three snaps. (7)
4 To disassemble rear wheel, detach rear wheel from rear wheel mount
(8)-2 while pressing the release button. (8)-1
Assemble Armbar
1 Align the armbar ends with the armbar mounts, and then slide down to lock. (9)
Check that armbar is securely attached by pulling on each end.
2 To disassemble armbar, press armbar release buttons (10)-1 , and then
pull out the armbar. (10)-2
3 The completely assembled stroller is shown as (11) .
How to Use the Nuna TAVO

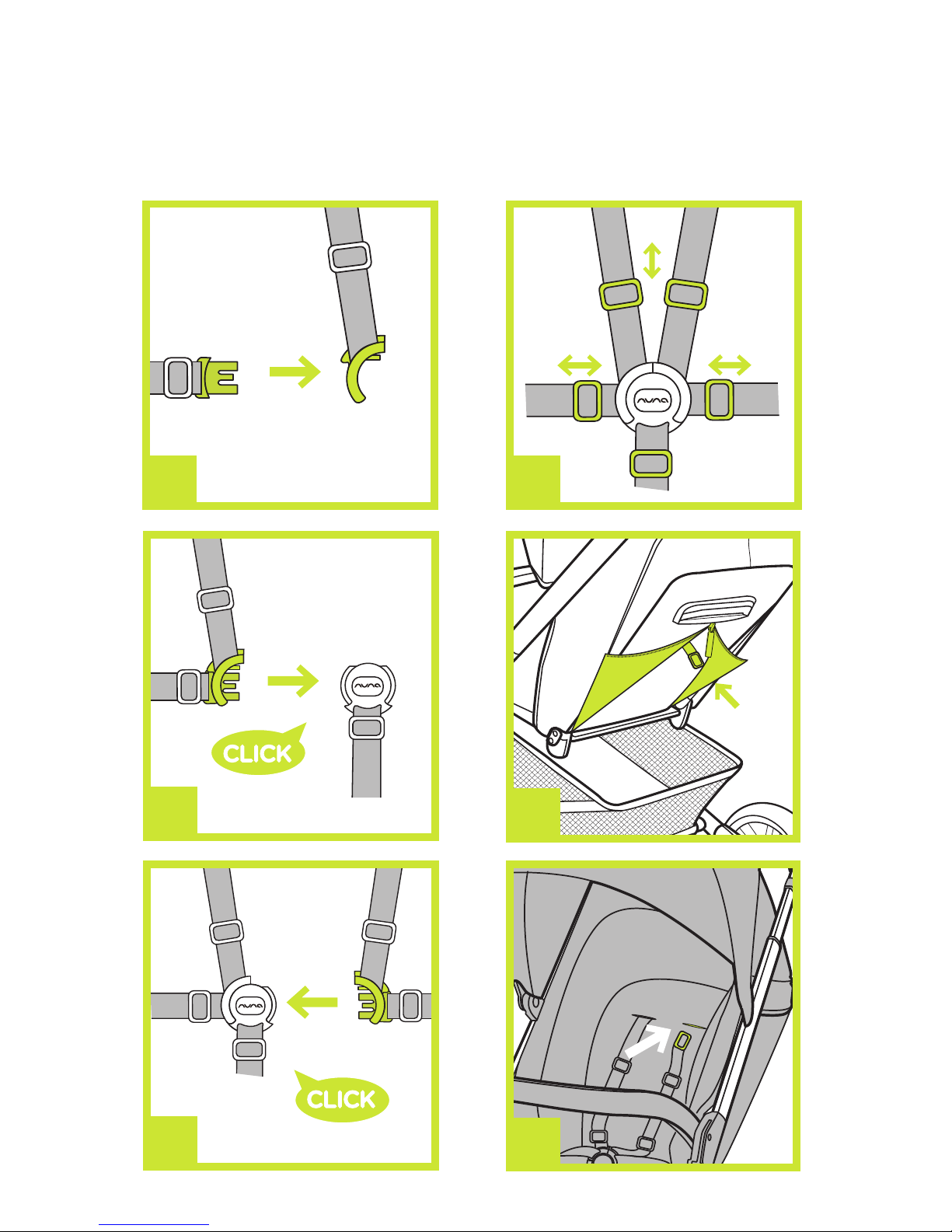

Securing child
1 To release the buckle latch, push on center button and remove the clips. (12)
2 To secure child, assemble buckle and latch. (13, 14, 15)
3 Fit harness snugly to child by sliding each adjustment buckle. (16)
Adjusting the shoulder harness position
1 To adjust the position of the shoulder harness anchor, open the zipper of
seat back, turn the anchor to align with slot. Thread it through the shoulder
harness slot from back to front (17) . Rethread it through the slot that is
closest to child's shoulder height (18)

15
EN
2 For smaller children, the top two harness anchors can be threaded through
the seat back in order to make the harness shorter. (19)
To avoid serious injury from falling or sliding out,
always secure your child with harness.
Make sure your child is snugly secured. The space
between the child and the shoulder harness should be
about the thickness of one hand.
Do not cross the shoulder belts. This will cause
pressure on child’s neck.
Use Canopy
To open the canopy, pull canopy toward front. To fold the canopy, pull canopy
toward back. (20)
1 Open the canopy window (21) . Open the zipper to open the compartment.
(21)-1 (21)-2
2 For added air flow, unzip the top zipper to expose the mesh. Roll the fabric
flap up and secure using the webbing. (22)
3 To access child from the back of the stroller, unzipthe bottom zipper. Roll
the fabric flap up and secure using the webbing. (23)
4 To remove the canopy mount first unzip the zippers then remove the
canopy mount. (24) (25)
Adjust Recline
There are 4 positions for the recline.
1 To recline the backrest, squeeze the backrest adjustment handle on the
back of the seat (26)-1 , pull down the recline . (26)-2
2 To raise the recline, push up.

16
EN
Make sure the recline is adjusted properly for use.
Adjust Calf Support
1 The calf support has 3 positions.
2 To raise the calf support, push it upwards.
3 To lower the calf support, press in both buttons on the sides and rotate the
calf support downward. (27)
4 Adjust the calf support to vertical position when the recline is flat.
Pull the fabric out from under the calf support and attach it to the stroller
using the 4 snaps. This extra flap must be used when the stroller is in full
recline. (28)
Child may slip into leg openings and strangle. Never use in the reclined
position unless the extra flap is pulled out from under the calf support,
snapped into place and is secure.
Do not use enclosure with an older child that can lift up on hands and
knees or crawl out.
Remove the armbar when the calf support is in the vertical position and
the extra flap is snapped into place.
Front Swivel Locks
1 Pull up the front swivel locks to maintain the moving direction. (29)
2 It is recommended to use swivel locks on uneven surfaces.

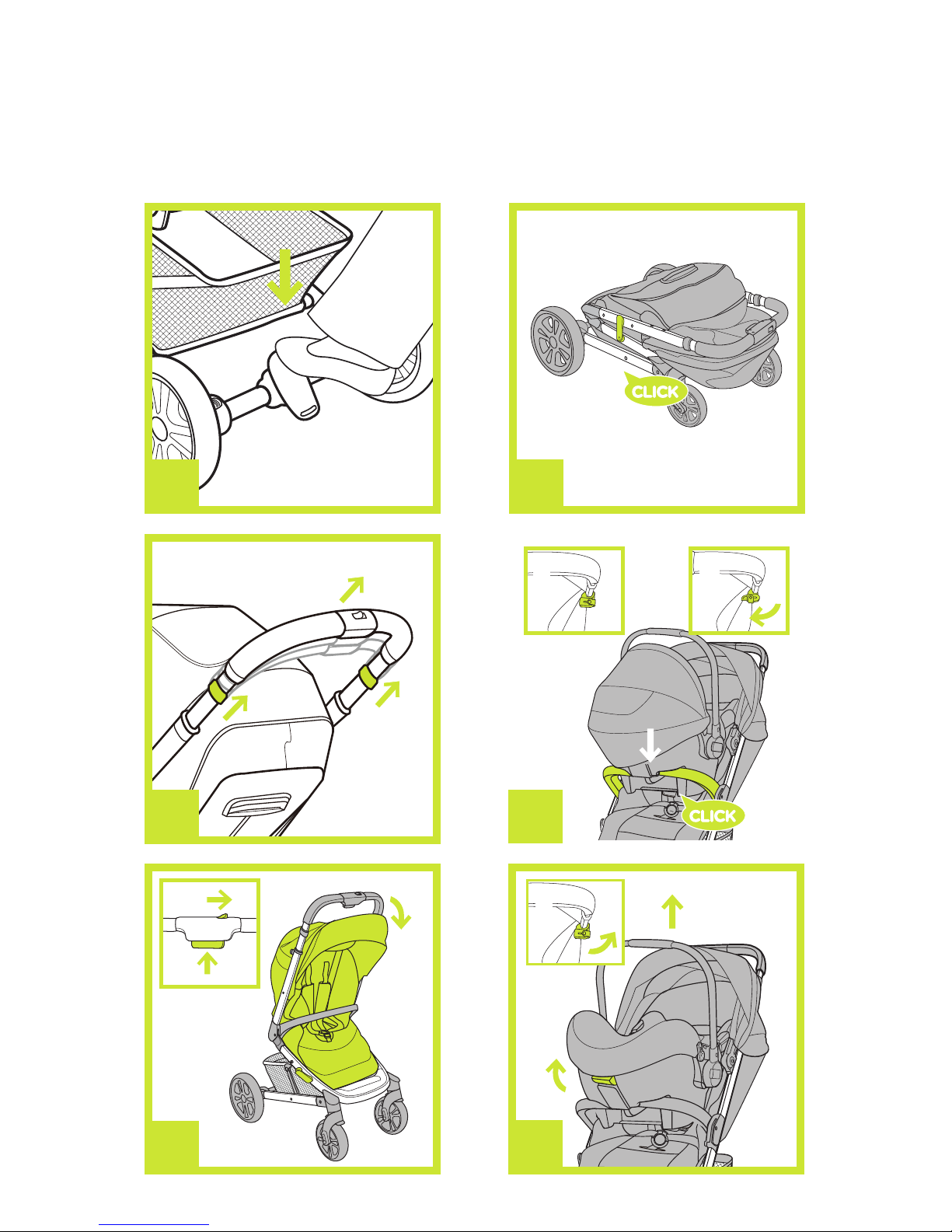

Brake
1 To lock wheels, step on the back of the brake lever and push downwards.
(30)
2 To release wheels, step on the front of brake lever and push
downwards. (31)

17
EN
Always apply brake when stroller is in stopped position.
Adjust Handle
1 The handle has 4 positions.
2 To adjust the height of the handle, pull the handle upward or downward
(32)-2 while pulling up on the handle adjustment button. (32)-1
Fold Stroller
Fold the canopy before folding the stroller.
1 Push the stroller forward to fold while activating both of the folding
buttons. (33)
2 Attach the plastic fold lock. (34)
3 The complete folded stroller is as shown. (34)
Accessories
Not all accessories are included on some models.
Use with Nuna Pipa Infant Car Seat
When using with Nuna Car Seat, please refer to the following instructions.
Recline the stroller seat to the lowest position.
1 Make sure the car seat lock is open on the right stroller handle. (35)-1
2 Place car seat into stroller so notches in rockers fit over edge of armbar.
Then click the car seat into place. (35)-2
3 Lock the car seat lock. (35)-3

18
EN
Pull up on the car seat to check that it is fully locked to the stroller.
4 To remove the car seat, Open the car seat lock, squeeze the stroller
release handle to release the car seat from armbar, and then lift car seat
out of stroller (36) .
If you have any problems using the car seat, please refer to the car
seat instruction manual.
Remove car seat before folding.
Cleaning and
Maintenance
Your TAVO is a valuable piece of equipment and deserves careful handling.
You can clean the frame, the plastic parts, and the fabric with a damp cloth,
but don’t use abrasives or bleach. Do not use silicon lubricants, as they
will attract dirt and grime. Continued and extended exposure to sunlight
can change the color of many materials. Do not store your TAVO in a damp
place. Always allow the fabric to dry naturally away from direct heat.
For reasons of safety, only use original Nuna parts.
Clean the wheels regularly with water and remove the dirt.
To ensure the long-lasting use of your TAVO, wipe it off with a soft,
absorbent cloth after using it in rainy weather.
It is normal for fabric to discolor from sunlight and to show wear and tear
after a long period of use, even when used normally.
Check regularly if any parts are torn, broken, or missing and that every-
thing functions properly. If this is the case, stop using the TAVO.

EN
19
Warranty
and Product Registration
Thank you for choosing Nuna! For replacement parts or warranty
information, please contact customer service.
In the USA : www.nuna.eu
1-855-NUNA-USA
In Canada : [e-mail]
1-800-667-4111
All products include a serial label which lists the product model number
and serial number. Before contacting customer service, please have these
numbers available for reference.
Thank you for choosing Nuna. This product is covered by a limited one-
year warranty from the date of purchase. If this product shows a defect
in materials or workmanship during the warranty period, please contact
Nuna.
Please have the proof of purchase, model number and serial number
available when you contact us.
To register your product, fill out and mail in the provided registration card
or go to our website at nuna.eu.
