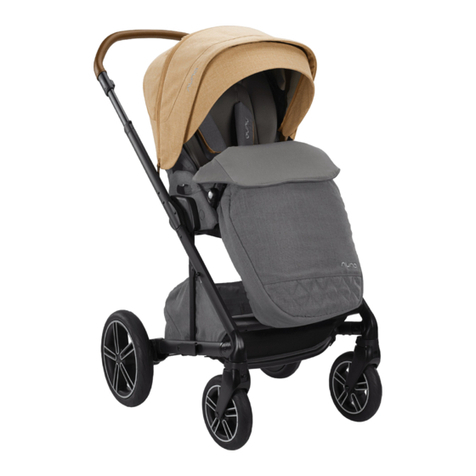

Nuna Mixxnext User manual

IM-000865D

Designed
around your life

2MIXX next instructions
Contents
Product Information 3
Warranty
Contact
Child Usage Requirements 4
Warnings 5
Parts List 9
Product Set Up 11
Product Use 15
Accessories 25
Car Seat Adaptor
MIXX Rain Cover
MIXX Bassinet
Cleaning and Maintenance 29
IMPORTANT!
KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE:
READ CAREFULLY

3MIXX next instructions 4MIXX next instructions
Product Information
Model Number:___________________________________________________________________________________________________________________________________
Manufactured Date: ______________________________________________________________________________________________________________________
The model number and the manufactured in date are located
on a label on the stroller frame.
Warranty
Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does
not amount to a major failure.
We have purposely designed our high-quality products so
that they can grow with both your child and your family.
Because we stand by our product, our gear is covered by
a custom warranty per product, starting from the day it
was purchased. Please have the proof of purchase, model
number and manufactured in date available when you
contact us.
For warranty information please visit:
www.nunababy.com
Contact
For replacement parts, service, or additional warranty
questions, please contact our customer service department.
Distributed by Nuna Baby Australia Pty Ltd
ACN: 642 240 140
Unit 1, 35 Lyn Parade Prestons, NSW Australia 2170
For after-sales & warranty service, contact:
1800 951 070
[e-mail]
Child Usage Requirements
This stroller is suitable for use with children who meet the
following requirements:
Weight: up to 22.7 kg maximum
When using the stroller frame with:
MIXX series bassinet
Weight: up to 9 kg maximum
KLIK plus infant carrier
Weight: up to 13 kg maximum
Refer to the original product instruction manual for further
usage requirements.

5MIXX next instructions 6MIXX next instructions
WA R N I N G
FOLLOW THE MANUFACTURER’S
INSTRUCTIONS. PUT ON ALL THE BRAKES
WHENEVER YOU PARK THE PRAM/STROLLER.
DO NOT LEAVE CHILDREN UNATTENDED.
ALWAYS KEEP CHILD IN VIEW WHILE IN PRAM/
STROLLER.
DO NOT USE THE SEAT WITH ANY OTHER
MODELS OF PRAM/STROLLER.
SECURE THE CHILD IN THE HARNESS AT ALL
TIMES.
USE THIS HARNESS AT ALL TIMES.
ALWAYS USE THE CROTCH COMBINATION
WITH THE WAIST BELT AND THE SHOULDER
HARNESSES.
DO NOT CARRY EXTRA CHILDREN OR BAGS ON
THIS PRAM/STROLLER.
MAKE SURE CHILDREN ARE CLEAR OF ANY
MOVING PARTS IF YOU ADJUST THE PRAM/
STROLLER. OTHERWISE THEY MAY BE INJURED.
TO AVOID SERIOUS INJURY FROM FALLING OR
SLIDING OUT, ALWAYS USE SEAT BELT.
USE THIS TETHER STRAP TO STOP THE PRAM/
STROLLER ROLLING AWAY.
DO NOT USE THIS BASSINET ONCE THE CHILD
CAN SIT UP UNAIDED. MAXIMUM WEIGHT OF
THE CHILD: 9KG.
DO NOT USE FOR UNSUPERVISED SLEEPING.
Ensure that all the locking devices are engaged
before use.
Do not let your child play with this product.
Never leave the harness buckled when not fitted to
a child in the stroller because the harness can form
loops which may pose a strangulation hazard.
The use of accessories not approved by the vehicle
manufacturer is unsafe.
Adult assembly required.
Use of this stroller with a child weighing more than
22.7 kg will cause excessive wear, and stress on the
stroller, and could create an unstable condition.
Use the pram/stroller with only one child at a time.
To prevent a hazardous, unstable condition, do not
place more than 4.5 kg in the storage basket before
use.
To prevent a hazardous, unstable condition, do not
place more than 0.45 kg in the storage pocket
on the back of the seat.
Overloading, folding incorrectly, or using
component parts from other manufacturers may
cause the pram/stroller to be damaged, broken or
unsafe. Please read the instruction manual carefully.
Please read all the instructions in the manual before
using the product. Please save instruction manual
for future use. Failure to follow these warnings and
instructions may result in serious injury or death.
Safety belts and restraint system must be used
correctly.
Child may slip into leg openings and be strangled if
the harness is not used.

7MIXX next instructions 8MIXX next instructions
Never use pram/stroller on stairs or escalators.
The pram/stroller is not to be used near an open
fire or exposed flame.
Never allow your child to stand on the pram/
stroller or sit in the pram/stroller with head toward
front of pram/stroller.
Never place the pram/stroller on roads or
dangerous area.
The pram/stroller is designed for use on flat or
gently sloping surfaces and may be unstable on
higher sloping and uneven surfaces, resulting in
the possibility of the vehicle tipping over.
Do make sure all parts are assembled and
fastened properly before using the pram/stroller.
To avoid strangulation, do not place items with a
string around your child’s neck, suspend strings
from this product, or attach strings to toys.
To prevent tipping, do not put anything on the
handle. Always lift the child in and out of the pram/
stroller.
Do not lift pram/stroller while child is in pram/
stroller.
Do not use storage basket as a child carrier.
To prevent tipping, never let child climb the pram/
stroller.
To avoid finger entrapment or injury to the body,
use care when folding and unfolding the pram/
stroller.
Be sure the pram/stroller is fully open or folded
before allowing child near the pram/stroller.
To ensure your child’s safety, please make sure all
parts are assembled and fastened properly before
using the pram/stroller.
Check that the infant child restraint attachment
device is correctly engaged before use.
To avoid strangulation, do make sure your child is
clear from the canopy.
Discontinue using your pram/stroller if it is
damaged or broken.
Pram/stroller to be used only at walking speed.
This product is not intended for use while jogging.
To avoid suffocation, remove plastic bag and
packaging materials before using this product.
The plastic bag and packaging materials should
then be kept away from babies and children.
This product is not suitable for running or skating.
Stroller designed to be used from birth shall
recommend the use of the most reclined position
for new born babies.
The parking device must be engaged when
placing and removing children.
Please ensure that the storage latch has been
properly locked, before lifting or moving the
vehicle.
Do not use or add any mattress other than the one
supplied with the bassinet.
The vehicle is not to be used as an unsupervised
sleeping environment.

9MIXX next instructions 10MIXX next instructions
Parts List
Make sure all parts are available before assembly.
If any part is missing, please contact Nuna. No tools are
required for assembly.
CHOKING HAZARD: Remove and immediately discard
protective end caps from each wheel and wheel hub axle.
1 Front Wheel (x2)
2 Rear Wheel (x2)
3 Car Seat Adaptor
4 Canopy
5 Canopy Visor
6 Arm Bar
7 Calf Support
8 Handle Adjustment
Button
9 Shoulder Harness Pads
10 Canopy Clips
11 Stroller Frame
12 Buckle and Crotch Cover
13 Insert
14 Seat Release Button
15 Top Canopy Window
16 Back Canopy Window
17 Stroller Handle
18 Recline Adjustment
Button
19 Folding Button
20 Seat Ventilation
21 Tether Strap
22 Storage Pocket
23 Storage Basket
24 Brake Lever
25 Rain Cover
15
13
16
21
22
19
20
18
23
17
24
14
x2 x2
1 2 5
6
4
5
8
6
7
1
2
11
10
9
12
3
25

Product Set Up
Open Stroller
1 - Open the storage latch as shown.
2 - Lift up on the handle from the sides and rotate to the
rear of the stroller. A “click” sound means the stroller
frame is open completely.
3 - Squeeze the recline adjustment button on the back of
the seat and rotate the backrest to the upright position.
Check that the stroller is open completely before
continuing.
Canopy
4 - Zip the canopy visor to the inside of the canopy.
Front Wheels
5 - Insert the front wheel into the front leg. A “click” sound
means the wheel is assembled completely. Repeat on
opposite side.
Check the wheel is securely attached by pulling out.
6 - To remove the front wheel, press the release button (1)
and detach the front wheel from the front leg (2).
click
11 MIXX next instructions 12MIXX next instructions
4
3
1
2
click
5
6
1
2

Rear Wheels
1 - Insert the rear wheel into the rear leg. A “click” sound
means the rear wheel is assembled completely. Repeat
on opposite side.
Check that the wheel is securely attached by pulling
them out.
2 - To remove the rear wheel, press the release button (1)
and detach the rear wheel from the rear leg (2).
Arm Bar
Always secure the child with the harness. The arm bar is
not a restraint device.
3 - Align the arm bar ends with the arm bar mounts, and
insert until it clicks into place (1). A “click” sound means
the arm bar is assembled completely.
To remove the arm bar, press the arm bar release buttons
(2) and lift the arm bar up. (3)
4 - For a more compact fold when the seat is rear facing,
press the armbar adjustment buttons (1) and rotate the
armbar down (2) until it clicks into place.
NEVER use the armbar in lowered/folded position when
child is in stroller.
5 - Fasten the inner snaps of the seat pad to the inside of
the seating area as shown.
Check Set Up
Stroller frame is latched open
Front wheels and rear wheels securely attached
Canopy mount attached to stroller frame
Arm bar is securely attached
13 MIXX next instructions 14MIXX next instructions
2
2
1
5
1
2
4
3
click
2
3
2
11
1
click
click

Product Use
The parking brake MUST be engaged when the pram/
stroller is stopped and when placing and removing child.
Securing Your Child
Avoid serious injury from falling or sliding out. Always
use the seat belt.
Make sure the harness is adjusted properly and your
child is snugly secured. The space between the child and
the shoulder harness should be about the thickness of
one finger. DO NOT cross the shoulder belts. This will
cause pressure on your child’s neck.
1 - Push the center button on the buckle to release the
buckle latch, remove the clips and place your child in the
stroller.
2 - Connect the shoulder buckle and hip buckle.
3 - Secure the shoulder buckle and hip buckle to the buckle
latch and repeat on the opposite side.
4 - Fit the harness snugly to your child by sliding the
adjustment straps to tighten (1). Then pull the waist
adjustment straps out (2).
Shoulder Harness Position
5 - The upper shoulder harness buckles can be moved up
and down for added adjustment.
15 MIXX next instructions 16MIXX next instructions
1 1
22
1
3
5
4
2

Canopy
1 - To open the canopy, pull the canopy toward the front of
the seat. To close the canopy, push it back.
2 - Position the canopy visor forward or backward as
needed. When not in use, fold the canopy visor under
the canopy.
3 - Open the zipper on the canopy for extra shade and
ventilation.
4 - For ventilation, flip up the top canopy window cover.
5 - For additional ventilation, flip up the back canopy
window cover (1) and fold down the top canopy window
(2).
The canopy is NOT removable.
17 MIXX next instructions 18MIXX next instructions
1 4
52
3
2
1

Front Swivel Locks
It is recommended to use the front swivel locks on uneven
surfaces.
1 - Squeeze (1) and pull out the front swivel lock (2) to lock
the front wheel forward facing. You may need to move
the wheel to get it to lock.
2 - Push in the front swivel lock to unlock.
Brake
3 - To lock the rear wheels, step down on rear of the brake
lever.
4 - To unlock the rear wheels, step down on front of the
brake lever.
Always apply the brake when the pram/stroller is
stopped. Push the pram/stroller slightly to ensure the
brake is engaged.
Handle
The handle has 3 positions.
5 - To adjust the height of the handle, press the handle
adjustment buttons (1) and pull the handle up or down (2).
Recline Adjustment
There are 5 recline positions for the backrest.
6 - To raise or lower the backrest, squeeze the recline
adjustment button, and pull the seat up or down.
19 MIXX next instructions 20MIXX next instructions
1
1
1
1
2
2
1 4
5
6
2
3

Calf Support
The calf support has 2 use positions.
1 - To raise the calf support, lift up.
2 - To lower the calf support, press the adjustment buttons
on the sides (1), and push down (2).
Insert
3 - To assemble the insert, place the insert over the seat and
thread the shoulder, waist and crotch harnesses through
their respective slots.
4 - Attach the hook and loop fasteners.
Reverse Seat
The seat can be used rearward or forward facing.
5 - Squeeze the seat release buttons and lift the seat up.
6 - Turn the seat in the opposite direction and place on the
seat mounts until it clicks into place. A “click” sound
means the seat is attached.
Check to make sure seat is securely attached by
pulling up on it.
The rearward-facing position of the seat is only
intended for a child up to 2 years, or until the child’s
feet extend over the edge of the leg rest.
The forward-facing position should be used from
then on.
21 MIXX next instructions 22MIXX next instructions
4
3
5
6
click
1
2
1
1
2

Use Tether Strap
1 - Use the tether strap to prevent the stroller inadvertently
rolling away. Check that when your hand is through the
loop, it allows you to easily control the stroller.
Fold
Before folding, push the canopy to the rear of the stroller.
2 - Squeeze the recline adjustment button on the back
of the seat (1) and rotate the backrest to the stored
position (2).
3 - Pull up on the folding buttons (1) and push the stroller
forward to fold (2).
4 - Lock the stroller by tucking the storage latch onto the
storage mount.
5 - Carry the stroller by lifting its handle.
Ensure the storage latch is engaged when lifting or
carrying the stroller.
23 MIXX next instructions 24MIXX next instructions
12
3
1
2
2 5
1 4

Accessories
Car Seat Adaptor
For KLIK plus infant carrier assembly and usage, please refer
to the infant carrier instruction manual.
1 - To attach the adaptors, place the adaptors onto the seat
mounts as shown. A “click” sound means the adaptors
are locked.
2 - To attach the infant carrier, place the infant carrier onto
the adaptors, A “click” sound means the infant carrier is
locked.
3 - To remove the infant child carrier, lift the infant carrier up
(2) while pressing the stroller release buttons. (1)
4 - The infant carrier angle can be adjusted with our
adjustable adaptors.
5 - To remove the adaptors, lift the adaptors up (2) while
pulling the release buttons. (1)
MIXX Rain Cover
Check that the canopy is completely open before attaching
the rain cover.
6 - To assemble the rain cover, place it over the stroller.
ALWAYS check ventilation when the rain cover is
on the product.
ALWAYS check that the rain cover has been cleaned and
dried before folding.
DO NOT fold the stroller when the rain cover is attached.
DO NOT place your child in the stroller in hot weather
with the rain cover attached.
1
2
25 MIXX next instructions 26MIXX next instructions
2
1
2
36
5
click
click
14

27 MIXX next instructions 28MIXX next instructions
MIXX Bassinet
For bassinet assembly and usage, please refer to the
bassinet instruction manual.
1 - To attach the bassinet, align the sides of the bassinet
with the seat mounts. Place the bassinet directly down
until it clicks into place.
2 - A “click” sound means the bassinet is attached.
When bassinet is installed, make sure the canopy is
pulled forward and the handle is locked.
3 - To remove the bassinet, press the bassinet release
buttons (1) and lift up (2).
Remove the bassinet before folding the stroller.
1
2
3
1
1
2
click

Nuna International B.V. NUNA and all associated logos are trademarks.
29 MIXX next instructions
Cleaning and Maintenance
Clean the frame, plastic parts, and fabric with a damp
cloth, but do not use abrasives or bleach. Do not use silicon
lubricants as they will attract dirt and grime. Do not store
your stroller in a damp place.
Clean the stroller wheels regularly with water and remove
any dirt.
Clean the adaptor with a damp cloth and a mild detergent
and dry thoroughly. Do not use abrasives.
To ensure long-lasting use, wipe off this product with a soft,
absorbent cloth after using it in rainy weather.
Refer to the care label attached to the fabric for washing and
drying instructions.
It is normal for fabric to color from sunlight and to show wear
and tear after a long period of use, even when used normally.
For reasons of safety, only use original Nuna parts.
Check regularly if everything functions properly. If any parts
are torn, broken, or missing, stop using this product.

IM-000865D
