Oase FiltoSmart 100 User manual

FiltoSmart 100/200/300
FiltoSmart Thermo 100/200/300
44407_Gebrauchsanleitung_FiltoSmartFiltoSmartThermo.indd 1 08.01.16 14:10
Downloaded from www.watergardeningdirect.com


2
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
A
FST0001
B
FST0002
Downloaded from www.watergardeningdirect.com


3
C
FST0004
D
E
FST0007
FST0003
Downloaded from www.watergardeningdirect.com


4
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
F
G
FST0008
FST0012
H
FST0009
Downloaded from www.watergardeningdirect.com


5
I
FST0010
J
FST0006
Downloaded from www.watergardeningdirect.com


6
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
K
FST0011
Downloaded from www.watergardeningdirect.com


7
L
FSt0015
M
FST0016
Downloaded from www.watergardeningdirect.com


8
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
N
FST0017
Downloaded from www.watergardeningdirect.com


9
O
FST0005
P
FST0014
Downloaded from www.watergardeningdirect.com


10
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
Q
FST0023
R
FST0018
Downloaded from www.watergardeningdirect.com

-EN -
18
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
-EN -
Translation of the original Operating Instructions
WARNING
•This unit can be used by chil-
dren aged 8 and above and by
persons with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they are super-
vised or have been instructed
on how to use the unit in a safe
way and they understand the
hazards involved.
•Do not allow children to play
with the unit.
•Only allow children to carry
out cleaning and user mainte-
nance under supervision.
•Switch off all units in the
aquarium or disconnect the
power plugs of all units before
reaching into the water.
•Do not use the unit if electrical
cables or housings are dam-
aged.
•Only connect the unit if the
electrical data of the unit and
the power supply correspond.
The unit data is to be found on
the unit type plate, on the
packaging or in this manual.
•Disconnect the power plug be-
fore carrying out any work on
the unit.
SAFETY INFORMATION
•Never operate the unit if the housing is defective!
•Never operate the unit if any electrical cables are
defective!
•Never carry or pull the unit by the electrical cable.
•Route cables such that they are protected from
damage and do not present a tripping hazard.
•Only open the unit housing or its attendant compo-
nents if this is explicitly specified in the operating in-
structions.
•Only carry out work on the unit that is described in
this manual. If problems cannot be overcome,
please contact an authorised customer service point
or, if in doubt, the manufacturer.
•Only use original spare parts and accessories for the
unit.
•Never carry out technical changes to the unit.
•Protect the plug connection from moisture.
•Only connect the unit to a correctly fitted socket.
Symbols used in these instructions
Warnings
The warning information is categorised by signal
words, which indicate the extent of the hazard.
WARNING
•Indicates a possibly hazardous situation.
•Non-observance may lead to death or serious inju-
ries.
NOTE
Information for the purpose of clarification or for pre-
venting possible damage to assets or to the environ-
ment.
Additional information
A Reference to a figure, e.g. Fig. A.
→Reference to another section.
Downloaded from www.watergardeningdirect.com

-EN -
19
PRODUCT DESCRIPTION

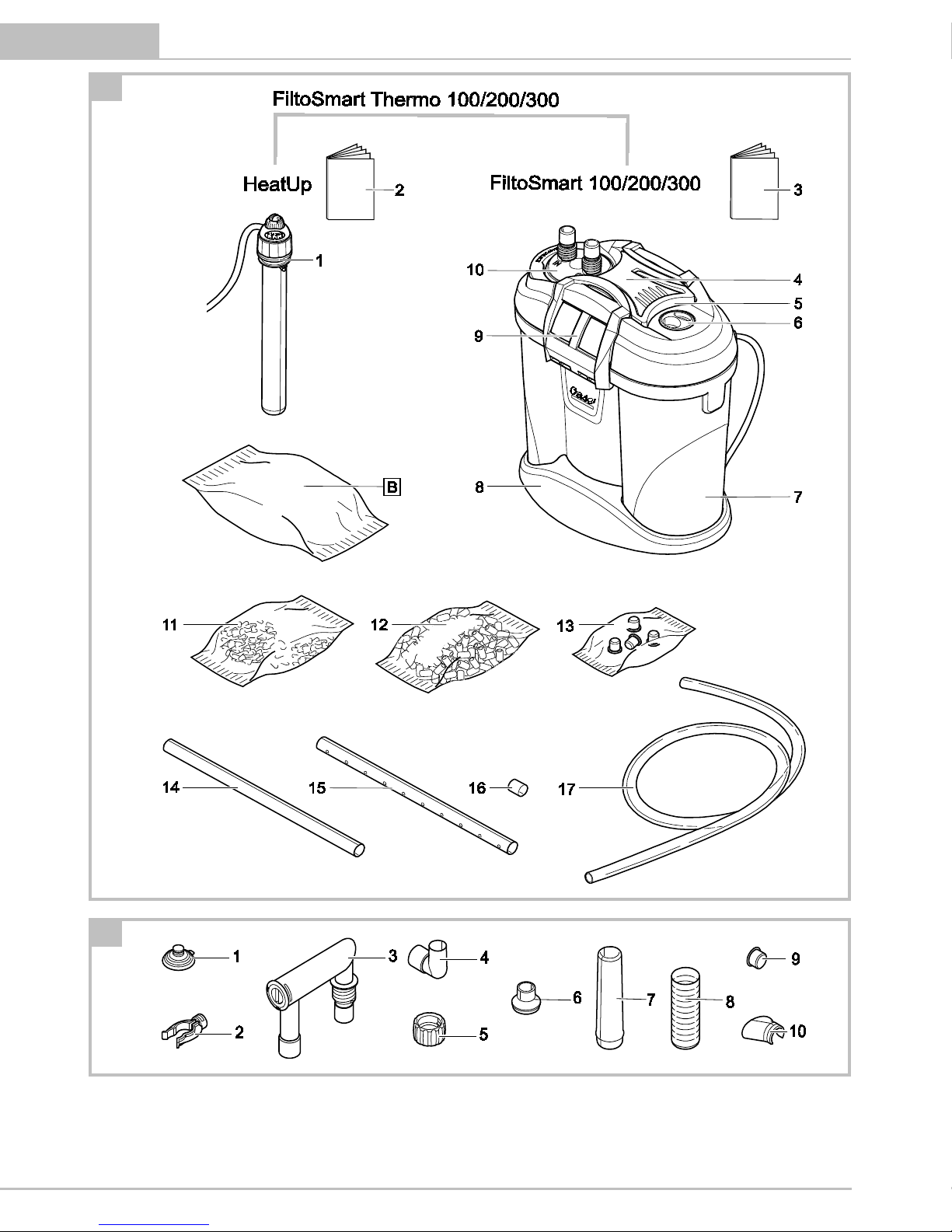

Scope of delivery
A
FiltoSmart Thermo
1
Holding ring with thermo-control heater HeatUp
FiltoSmart Thermo 100: HeatUp 100
FiltoSmart Thermo 200: HeatUp 200
FiltoSmart Thermo 300: HeatUp 300
2
Operating manual for thermo-control heater HeatUp
25/50/75/100/150/200/250/300
FiltoSmart: A blind plug is fitted instead of the thermo-
control heater HeatUp.
A
FiltoSmart,
FiltoSmart Thermo
Quantity
100
200
300
3
Operating manual for FiltoS-
mart 100/200/300, FiltoSmart
Thermo 100/200/300
1
1
1
4
Unit head
1
1
1
5
Handle, adjustable
—
1
1
6
Blind plug
1
1
1
7
Container, filled with filter me-
dia
1
1
1
8
Foot
1
1
1
9
Locking clip
2
2
2
10
Connection unit with hose con-
nector, outlet (OUT) and inlet
(IN)
1
1
1
B
Connection set
1
1
1
11
Filter bag with activated car-
bon
—
2
2
12
Ceramic substrate
1
2
3
13
Bag with 4 feet
1
1
1
14
Suction pipe
1
1
1
15
Flow-out pipe
1
1
2
16
Short hose section as connect-
ing piece for flow-out pipes
(15)
—
—
1
17
Hose
1
1
1
B
Connection set for FiltoSmart,
FiltoSmart Thermo
Quantity
100
200
300
1
Suction cup
5
5
5
2
Clamp
5
5
5
3
Hose adapter, adjustable
2
2
2
4
Angle piece
1
1
1
5
Union nut
4
4
4
6
Adapter, suction pipe
FiltoSmart 100
1
—
—
7
Adapter, suction pipe
FiltoSmart 200/300
—
1
1
8
Suction basket FiltoSmart
1
1
1
9
Cover cap
1
1
1
10
Water distributor
1
1
1
Intended use
FiltoSmart 100/200/300, FiltoSmart Thermo
100/200/300, referred to as "unit", may only be used
as specified in the following:
•FiltoSmart: Water filtering and recirculation.
•FiltoSmart Thermo: Water heating, filtering and re-
circulation.
•For operation with freshwater or saltwater.
•Operation under observance of the technical data.
The following restrictions apply to the unit:
•Only use indoors and for aquaristic purposes in the
home (not for commercial use).
•Only operate with water at a water temperature of
+4 °C to +35 °C.
Function description
C
Drawn in by a pump in the unit head, the water flows
through two filter chambers arranged next to each
other. Then the water flows back into the aquarium via
the flow-out pipe or water distributor.
Foam filters with different pore densities, and acti-
vated carbon/ceramic substrate serve as filter media.
In units with heater, the water is heated during its pas-
sage through the filter system.
Retrofitting
FiltoSmart 100/200/300 can be retrofitted with OASE
HeatUp (following table).
•The retrofit set ThermoFit (following order num-
bers) is required for installation.
FiltoSmart
100
200
300
HeatUp
25 
50 
75



100 
150 — 
200 – 
250
–
–

300 – – 
: Suitable : Particularly recommended
•45047 ThermoFit FiltoSmart 100
•45048 ThermoFit FiltoSmart 200
•45050 ThermoFit FiltoSmart 300
Downloaded from www.watergardeningdirect.com

-EN -
20
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
ACCESSING THE UNIT
NOTE
The following applies to all units with heater:
•Adhere to the rules for careful handling. (→ Careful
handling of the heater)
Careful handling of the heater
CAUTION
Hot surface!
Risk of burns when touching the glass bulb.
•Switch off the heater and allow it to cool down be-
fore removing it from the water.
CAUTION
Risk of breaking the glass!
The glass bulb of the heater can break and cause cuts.
•Take care when handling the heater.
•Allow the heater to cool down first. Do not immerse
it in cold water or pour cold water over it.
Removing the heater
The heater has to be removed for cleaning and mainte-
nance, and for removing the unit head.
How to proceed:

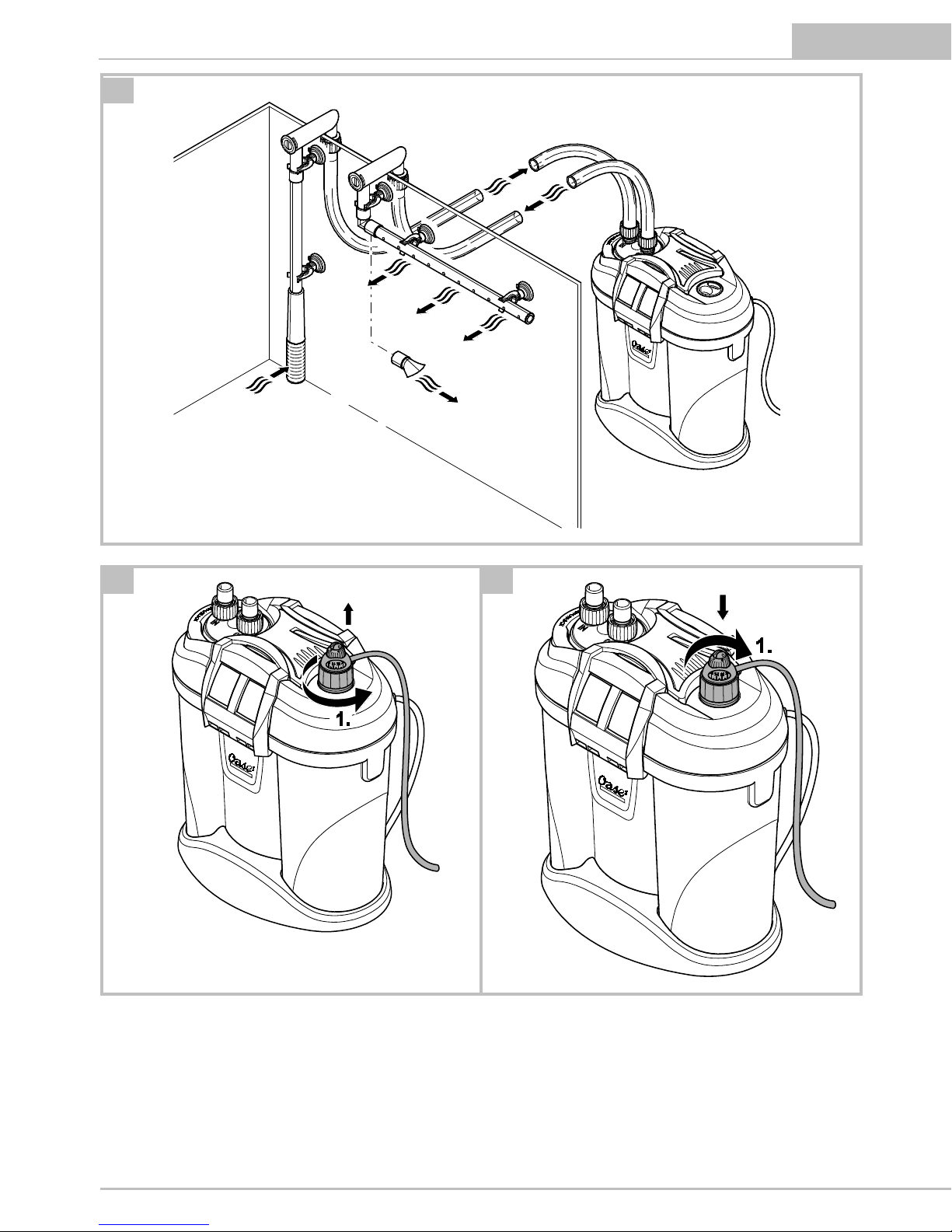

D
1. Unscrew the holding ring together with the heater
counter-clockwise.
Fitting the heater
How to proceed:
E
1. Screw the holding ring with heater clockwise into
the threaded hole.
–To exchange the heater: Moisten the glass bulb
with water and push the heater into the holding
ring as far as it goes.
Removing the connection unit
The heater has to be removed for cleaning and mainte-
nance, and for removing the unit head when hoses are
connected.
How to proceed:

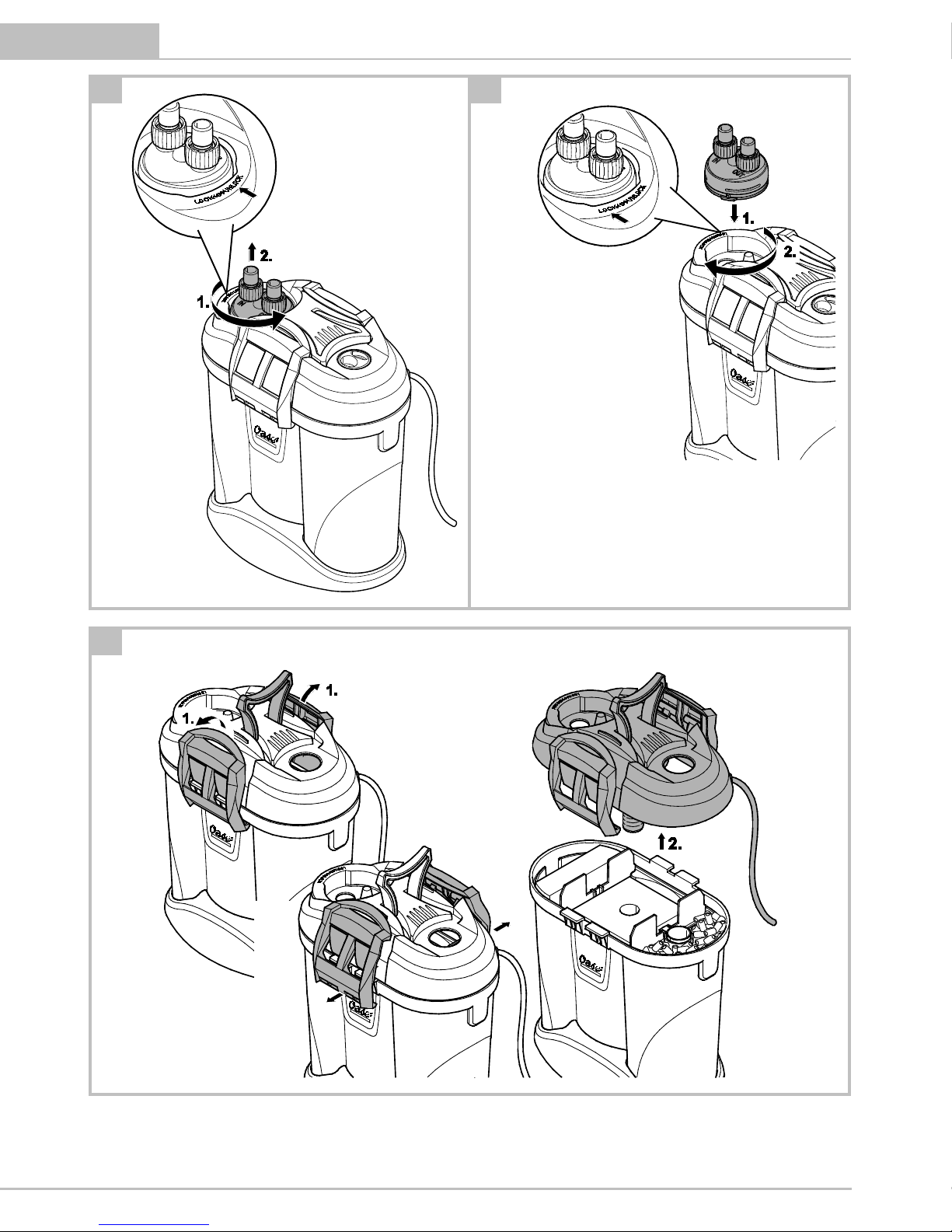

F
1. Turn the bayonet closure in the direction "UN-
LOCK".
2. Remove the connection unit.
Fitting the connection unit
How to proceed:
G
1. Fit the connection unit.
–Ensure that the ridges on the connection unit are
correctly aligned to the recesses on the unit
head.
2. Turn the bayonet closure in the direction "LOCK".
Dismantling the unit head
It has to be removed for cleaning and maintenance
and for changing the filter media.
Prerequisite:
•The heater has been removed. (→ Removing the
heater)
•The connection unit has been removed. (→ Remo-
ving the connection unit)
How to proceed:

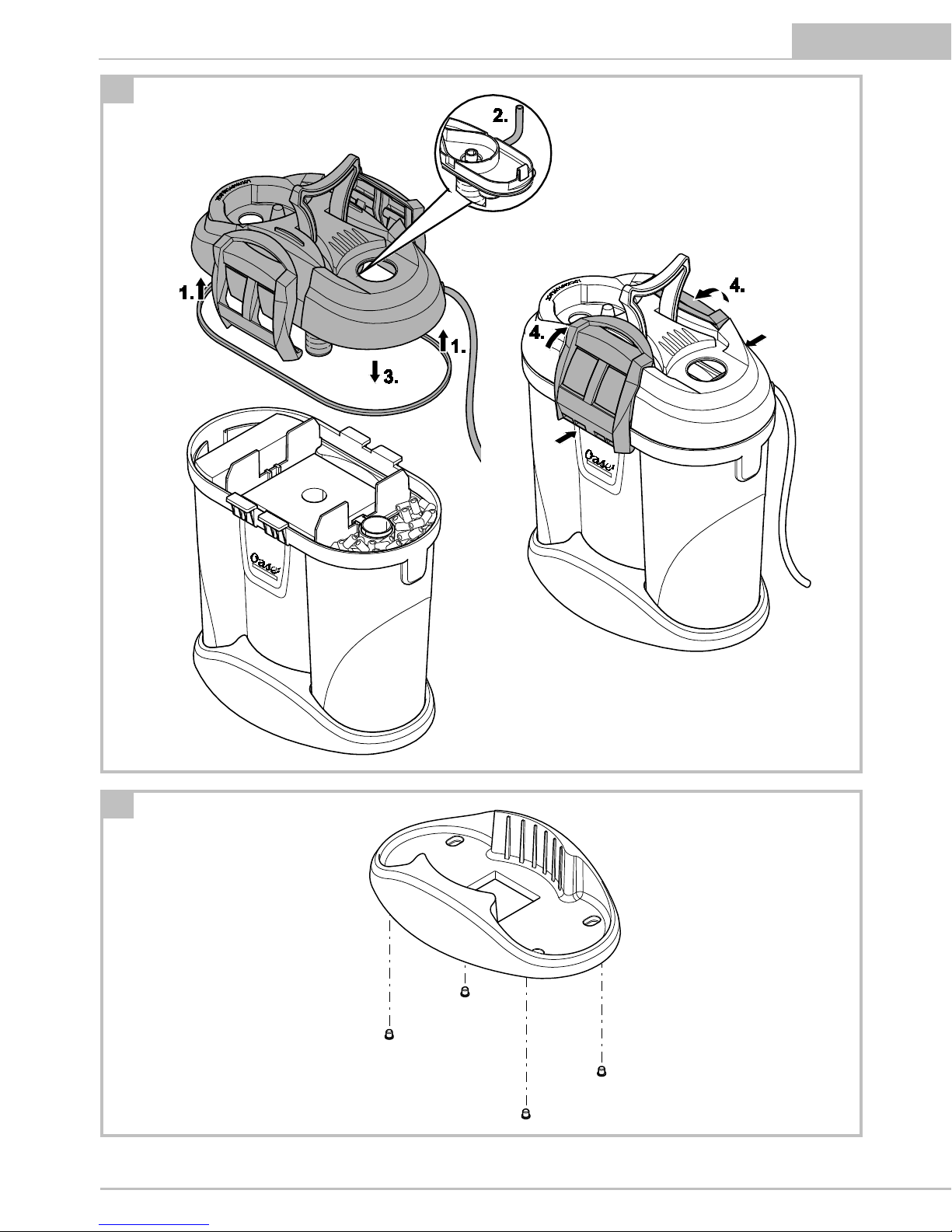

H
1. Undo the fasteners.
2. Remove the unit head.
Fitting the unit head
How to proceed:
I
1. Check that the seal on the unit head is correctly po-
sitioned.
–Clean the seal, replace it if damaged.
2. Ensure that the vent hose is in place and is pointing
upwards.
3. Fit the unit head onto the container.
4. Hinge all fasteners up and lock them in place.
Fitting the retrofit set
NOTE
The following applies to all units with heater:
•Adhere to the rules for careful handling. (→ Careful
handling of the heater)
Prerequisite
•The unit head is removed. (→ Dismantling the unit
head)
How to proceed:
•Steps 1 and 2 do not apply to FiltoSmart 100.

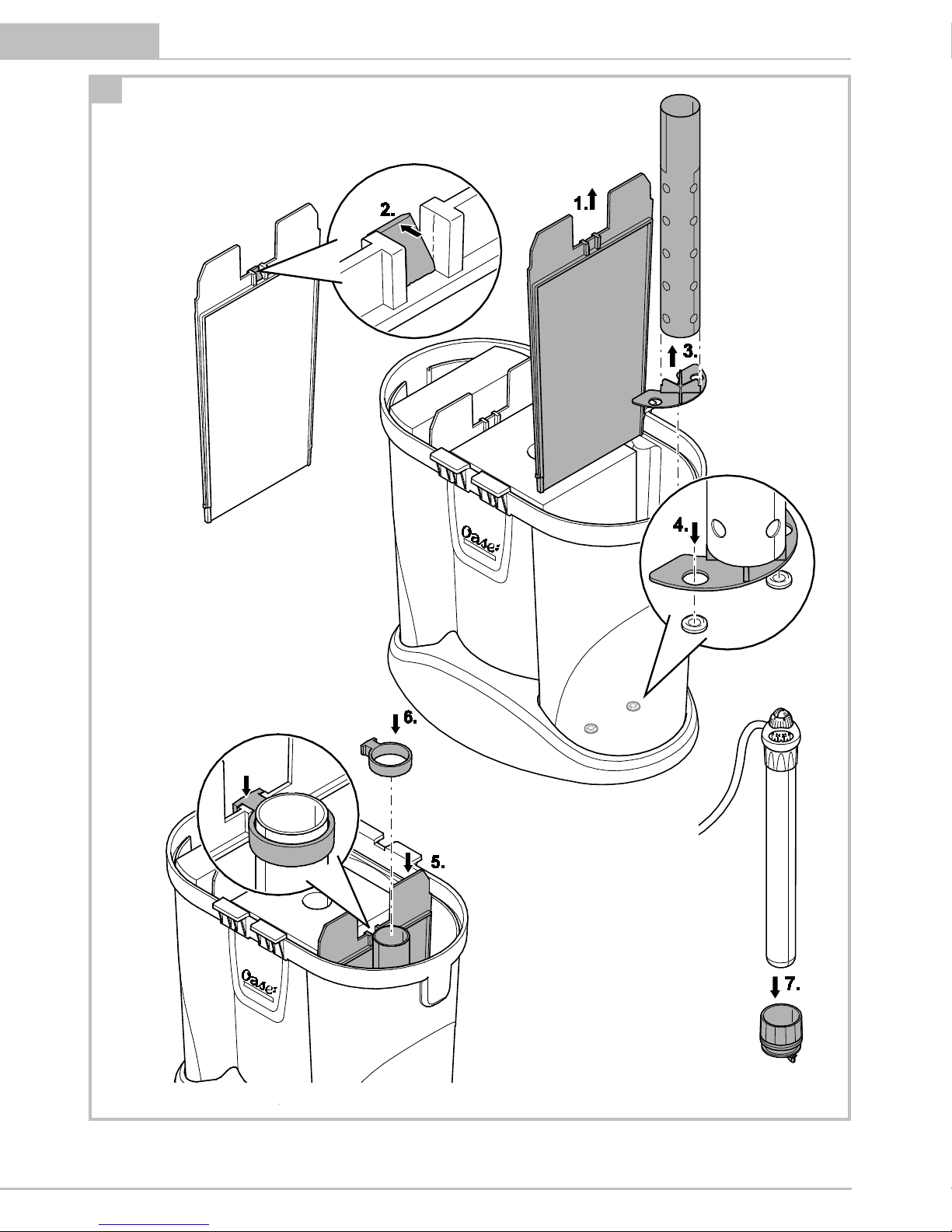

K
1. Take out a separating plate.
2. Remove any residue from the removal of the sepa-
rating plate.
3. Push the stand into the heater tube.
4. Fit the heater tube with tube holder into the recess
in the bottom of the container.
5. Insert the separating plate again.
Downloaded from www.watergardeningdirect.com

-EN -
21
6. Fit the holder and fasten it onto the separating plate
(FiltoSmart 200/300) or to the wall of the container
(FiltoSmart 100).
7. Push the heater into the holding ring as far as it
goes.
–To facilitate installation, moisten the glass bulb of
the heater with water.
–Do not fit the heater until all work has been com-
pleted. (→ Fitting the unit head)
–Ensure that the O ring is correctly positioned.
INSTALLATION AND CONNECTION
Order of tasks to be carried out:
1. If the unit is to be installed in a standing position: Fit
the enclosed rubber feet onto the base of the con-
tainer.
2. Retrofit the heater unit if necessary (→ Fitting the
retrofit set)

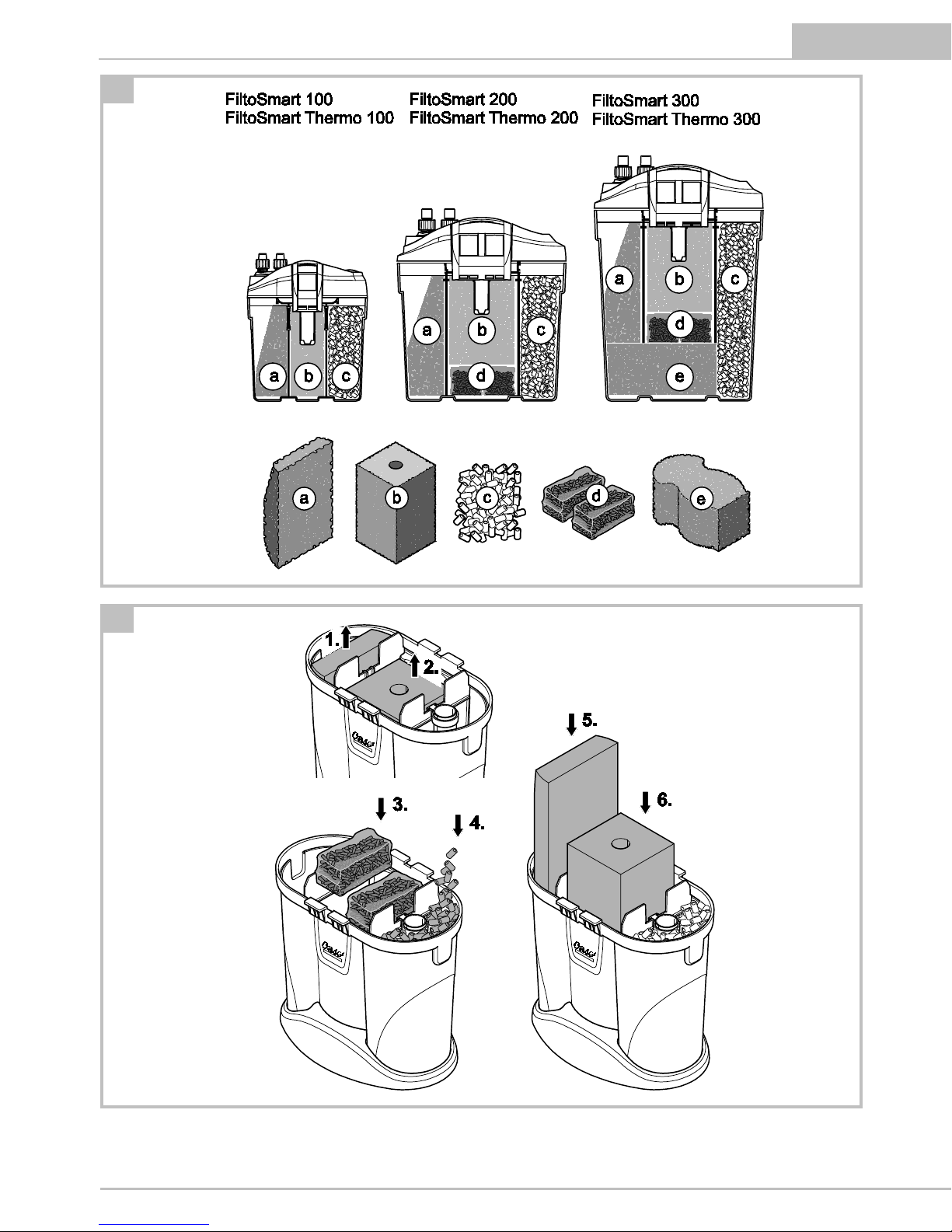

3. Position the filter media (→ Cleaning/replacing the
filter media)
4. Install the unit.
–Install the unit next to or under the aquarium.
Note the maximum head height. (→ Technical
data)
5. Establish the connections (→ Establishing the con-
nections)
Ensure adequate stability
J
To increase stability, the container is fitted in a stand
(removable).
•Screw the enclosed rubber feet into the stand.
•Only install the container with the stand fitted.
Establishing the connections
Assembling the suction unit
How to proceed:

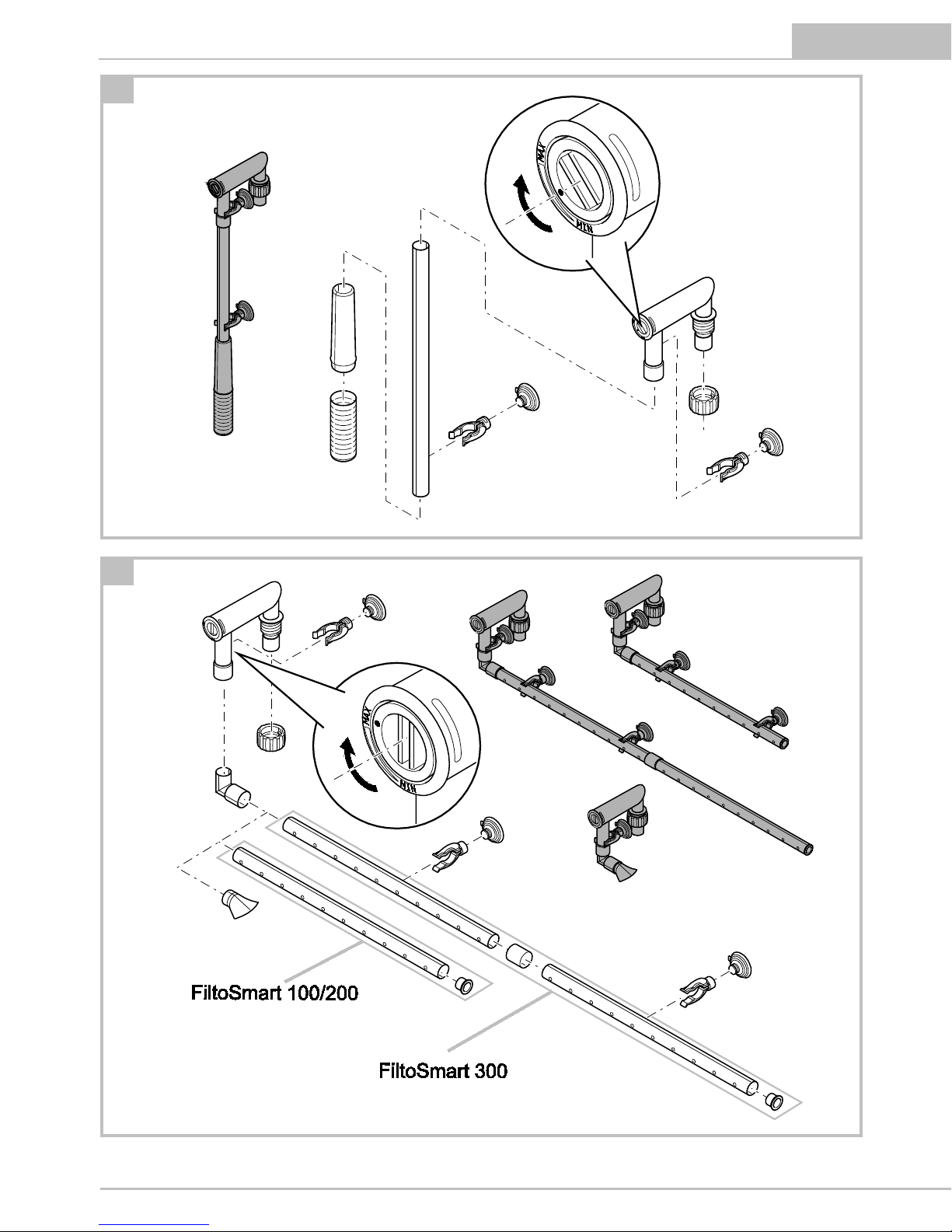

L
•Assemble the suction unit.
•Set the flow rate.
–Use a coin to turn the flow regulator in the hose
adapter in the direction of MIN or MAX.
Assembling the flow-out unit
How to proceed:
M
•Assemble the flow-out unit.
–The water distributor can be used instead of the
flow-out pipe.
•Use a coin to turn the flow regulator in the hose
adapter to MAX.
Connecting the hose
The procedure is identical for the inlet (IN) and outlet
(OUT).
How to proceed:
N
1. Shorten the hose to the required length.
–Chose the length so that the hose cannot kink in
the intended installation position.
2. Screw the union nut onto the hose connector of the
connection unit.
3. Push the hose onto the hose connector and turn the
union nut counter-clockwise to fix the hose in place.
4. Push the other end of the hose onto the hose con-
nector at the suction unit/flow-out unit and turn the
union nut counter-clockwise to fix the hose in place.
C
•Fasten the suction unit and flow-out unit in the
aquarium using suction cups.
COMMISSIONING/START-UP
NOTE
Thoroughly rinse out all filter material with warm tap
water before using for the first time in order to remove
any soiling. (→ Cleaning/replacing the filter media)
NOTE
Ensure that the pump never runs dry!
The pump will be destroyed.
•Regularly check the water level and circulation in
the filter and in the aquarium.
Downloaded from www.watergardeningdirect.com

-EN -
22
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
NOTE
Risk of fire due to the hot surface of the heater!
The heater and filter can be destroyed by the gener-
ated heat.
•Do not switch the heater on until the filter is com-
pletely filled with water, switched on and the water
is continuously circulated.
•Switch off the heater and allow it to cool down be-
fore removing it from the water.
How to proceed:
Q
•Completely fill the container with water and place it
next to the aquarium.
–Fill the container via the opening for the heater.
For this, remove the heater or blind plug. (→ Re-
moving the heater)
–When starting it up for the first time, ensure that
the connection unit is max. 80 cm below the sur-
face of the water. Ensure that the water outlet
(flow-out pipe or water distributor) is not sub-
merged.
–A completely filled filter may be more than 80 cm
below the surface of the water. Note the maxi-
mum head height. (→ Technical data)
•Route each power connection cable such that it
forms a drip loop.
•Unit with heater: Set the water temperature on the
heater. (→ Heater operating manual).
Switching on: Connect the unit to the mains. The unit
switches on immediately. When the unit is switched
on, it takes several minutes for the air to escape from
the unit (this makes a noise).
•Adjust the flow at the flow regulator if necessary.
(→ Assembling the suction unit)
Switching off: Disconnect the unit from the mains.
•Unit with heater: Disconnect the unit and heater
from the power supply
REMEDY OF FAULTS
Malfunction
Cause
Remedy
Unit does not start up.
No mains voltage
Check the mains voltage.
Impeller unit blocked
Clean
Excessive height difference between the top edge of
the aquarium and the suction unit
Reduce the height difference
Water level in the unit too low
Top up water
Water flow insufficient
Filter housing or impeller unit soiled
Clean
Impeller unit worn
Replace the impeller unit.
Flow incorrectly set
Correct the setting
Foam filter soiled
Clean
Activated carbon soiled
Clean
Ceramic substrate soiled
Clean
Suction basket clogged
Clean suction basket.
Pipework soiled
Clean suction unit, flow-out unit and
hoses.
Insufficient filtering performance
Foam filter soiled
Clean
Foam filter worn
Replace
Ceramic substrate soiled
Clean
Ceramic substrate worn
Replace
Activated carbon exhausted
Replace
Insufficient water heating
(only units with heater)
Heater defective
Replace
Heater not calibrated
Calibrate
Water temperature incorrectly set on the heater
Correct the water temperature set-
ting on the heater.
Increased noise
Air in the filter, vent hose on the pump not correctly
positioned.
Correct the position of the vent
hose.
Downloaded from www.watergardeningdirect.com

-EN -
23
MAINTENANCE AND CLEANING
•If necessary, clean with clear water using a soft
brush.
•Do not use cleaning agents or chemical solutions.
We recommend using OASE PumpClean for remov-
ing calcium deposits.
•Cleaning and replacement cycles for filter media are
dependent on the size of the aquarium and the
number of fish. Therefore, it is necessary to clean
and replace the filter media as required to ensure
optimum filter performance.
•If there are several foam filters: Clean or replace the
foam filters at different times. This saves enough
useful bacteria to ensure good biological filtration
of the water.
Cleaning/replacing the filter media
NOTE
Thoroughly rinse out all filter material with warm tap
water before using for the first time in order to remove
any soiling. (→ Cleaning/replacing the filter media)
O
Filter media
FiltoSmart
FiltoSmart Thermo
Quantity
100
200
300
a
Foam filter 10 ppi
1
1
1
b
Foam filter 20 ppi
—
1
1
c
Ceramic substrate
(420 g bag)
1
2
3
d
Activated carbon
—
2
2
e
Foam filter 10 ppi
—
1
1
Prerequisite
•The unit head is removed. (→ Dismantling the unit
head)
How to proceed:
P
•Remove the foam filters and rinse in warm water or
replace.
•Position the foam filters and activated carbon. The
activated carbon has to be taken out of the plastic
packaging but remains in its filter bag.
•Rinse the ceramic substrate in warm water or re-
place.
–FiltoSmart 300 requires three, FiltoSmart 200
two and FiltoSmart 100 one bag (420 g) of ce-
ramic substrate.
–Before using for the first time, remove the ce-
ramic substrate from the plastic bag, rinse it in
warm water and put it loosely into the filter con-
tainer.
–Cover the heater tube, if applicable, when adding
the ceramic substrate to ensure that no substrate
can enter the heater tube.
Cleaning the heater unit
NOTE
The following applies to all units with heater:
•Adhere to the rules for careful handling. (→ Careful
handling of the heater)
D,E
•Unscrew the holding ring and clean the heater ac-
cording to the separately provided manual or, to re-
place it, pull it out of the holding ring.
•Reassemble the unit in the reverse order.
Cleaning/replacing the impeller unit
Prerequisite
•The unit head is removed. (→ Dismantling the unit
head)
R
•Pull the pump lid off downward.
–FiltoSmart 200/300: Push the tab down.
•Remove the impeller unit, clean or replace.
•Reassemble the unit in the reverse order.
–Ensure that the two rubber bearings are correctly
seated.
–Ensure that the vent hose is in place and is point-
ing upwards so that the air can escape.
Re-installing the unit
•Reassemble the unit head and filter unit. (→ Fitting
the unit head)
WEAR PARTS
The following components are wear parts and are ex-
cluded from the warranty:
•Suction cups
•Impeller unit
•Foam filters
•Activated carbon
•Ceramic substrate
Downloaded from www.watergardeningdirect.com

-EN -
24
FiltoSmart 100/200/300, FiltoSmart Thermo 100/200/300
SPARE PARTS
The use of original parts from OASE ensures continued
safe and reliable operation of the unit.
Please visit our website for spare parts drawings and
spare parts.
www.oase-livingwater.com/spareparts
DISPOSAL
NOTE
Do not dispose of this unit with domestic waste.
•Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system pro-
vided for this purpose.
TECHNICAL DATA
Description
FiltoSmart, FiltoSmart Thermo
100
200
300
Rated voltage
V AC
230
230
230
Mains frequency
Hz
50
50
50
Protection type
IPX8
IPX8
IPX8
Power consumption, filter
W
11
17
23
Power consumption, heater
W
100
200
300
Flow rate
Max.
l/h
600
800
1000
Head height
Max.
m
1.1
1
1.3
Head height
Max.
m
1.8
1.8
1.8
Filter volume
l
1.25
4.3
6.4
Pre-filter volume
l
0.7
1.5
1.5
Recommended for an aquarium vol-
ume of
Max.
l
100
200
300
Length of power connection cable (also thermo-control
heater)
m
1.5
1.5
1.5
Hose length
m
2.5
2.5
2.5
Connection of hose connectors
Diameter
mm
13
17
17
Dimensions
Length
mm
190
248
246
Width
mm
192
294
290
Height
mm
312
372
462
Weight FiltoSmart
kg
2.1
4.0
4.6
Weight FiltoSmart Thermo
kg
2.3
4.3
5.0
SYMBOLS ON THE UNIT
Submersible to 1 m depth.
Protection class II, protection insulation which could become live in the event of a fault.
For use indoors.
Do not dispose of with household waste.
Read and adhere to the instructions for use.
Downloaded from www.watergardeningdirect.com

54738/06-17
Downloaded from www.watergardeningdirect.com
