-EN -
10 OptiMax 300/500/800/1000
Translation of the original Operating Instruc-
tions
SAFETY INFORMATION
This unit can be used by chil-
dren aged 8 and above and
by persons with reduced
physical, sensory or
mental capabilities or
lack of experi-ence and
knowledge if they are
supervised or have been
instructed on how to
use the unit in a safe
way and they
understand the hazards
in-volved.
Downloaded from www.watergardeningdirect.com

-EN -
11
Do not allowchildren to
play with the unit.
Only allowchildren to
carry out cleaning and
user maintenance under
supervi-sion.
Safe operation
•Switch off all units in the aquarium or
disconnect the power plugs of all units
before reaching into the water.
•Never operate the unit if either the elec-
trical cables or the housing are defec-
tive!
•Do not carry or pull the unit by its elec-
trical cable.
•Route cables/hoses such that they are
protected from damage and do not pre-
sent a tripping hazard.
•Only open the unit housing or its at-
tendant components, when this is ex-
plicitly required in the operating in-
structions.
•Only carry out work on the unit that is
described in this manual. If problems
cannot be overcome, please contact an
authorised customer service point or,
when in doubt, the manufacturer.
•Only use original spare parts and acces-
sories for the unit.
•Never carry out technical modifications
to the unit.
•Power connection cables cannot be re-
placed. If a cable is damaged, dispose of
the respective unit or components.
Electrical connection
•Only connect the unit if the electrical
data of the unit and the power supply
coincide. The unit data is to be found on
the unit type plate, on the packaging or
in this manual.
•Protect the plug connections from mois-
ture.
•Only plug the unit into a correctly fitted
socket.
Symbols used in these instructions
NOTE
Indicates information intended to give the
user a better understanding.
Additional information
A Reference to a figure, e.g. Fig. A.
Downloaded from www.watergardeningdirect.com

-EN -
12 OptiMax 300/500/800/1000
PRODUCT DESCRIPTION
OptiMax 300/500/800/1000, referred to in the
following as "unit", may only be used as specified
in the following:
•For maintaining the water circulation in an
aquarium.
•For transferring water from and draining ba-
sins or ponds/pools.
•Operation under observance of the technical
data.
The following restrictions apply to the unit:
•Only use indoors and for aquaristic purposes
in the home (not for commercial use).
•Only operate with water at a water tempera-
ture of +4 °C to +35 °C.
INSTALLATION AND CONNECTION
NOTE
Ensure that the pump never runs dry!
Possible consequences: The pump will be
destroyed.
Protective measure: Regularly check the
water level in the aquarium.
A
•Fit the supplied suction cups with a twisting
movement.
– The suction cups adhere to clean, smooth
surfaces.
Submerged installation of the pump
OptiMax 300/500/800/1000
B
•Adjust the flow at the flow regulator.
–To reduce the flow: Move the flow regula-
tor in the direction -.
–To increase the flow: Move the flow regu-
lator in the direction +.
•Connect the pressure socket of the pump, if
necessary, with a suitable hose. (→Technical
data)
•Fasten the device, e.g. to the wall of the
aquarium.
Dry installation
OptiMax 800/1000
NOTE
The pump is not self-priming and must
be installed below the level of the water.
How to proceed:

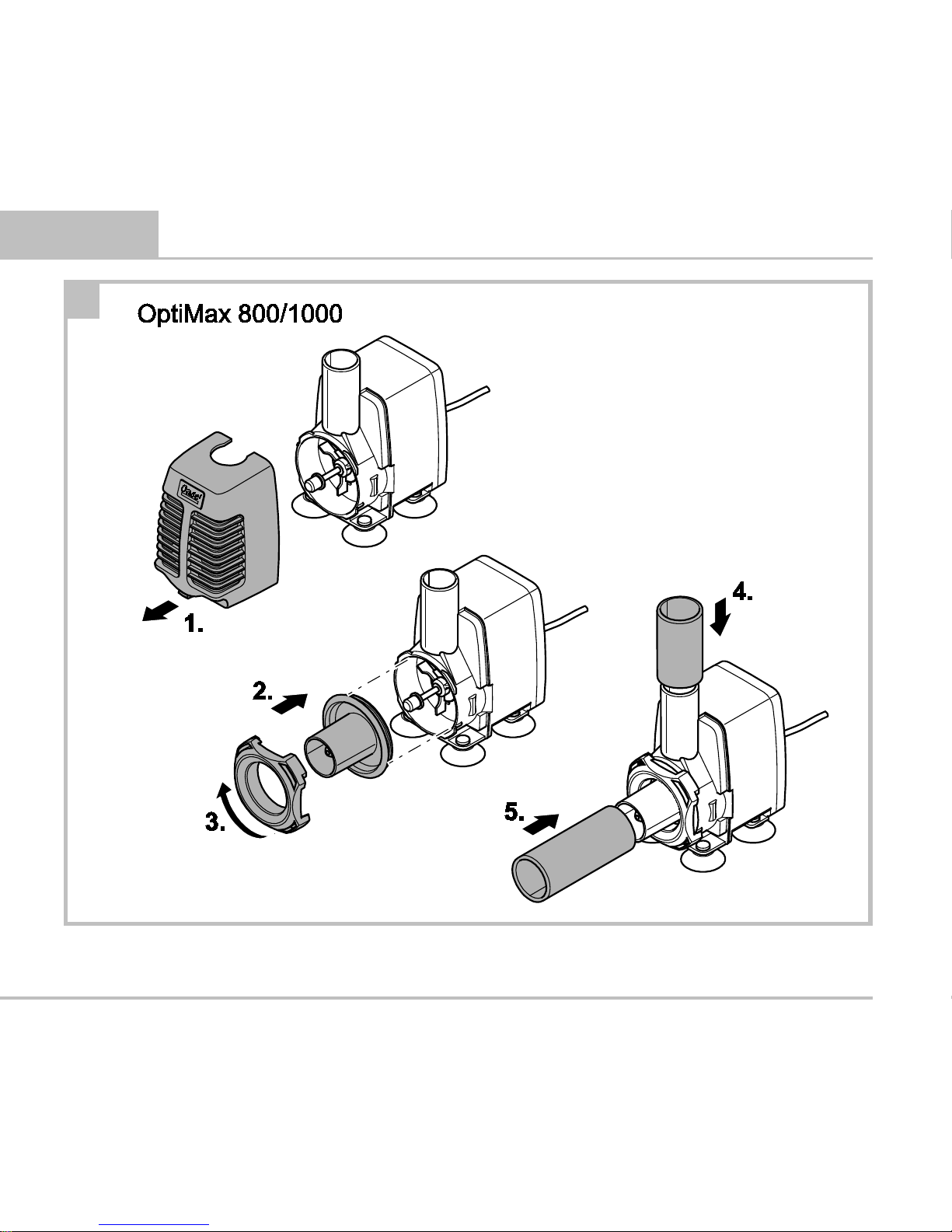

C
1. Pull off the filter housing.
2. Fit the suction connection.
3. Fit the bayonet closure and lock into place.
Downloaded from www.watergardeningdirect.com

-EN -
13
4. Fit the hose on the pressure side. (→Techni-
cal data)
5. Fit the hose on the suction side. (→Technical
data)
6. Fit the pump to the outside of the aquarium
using the suction cups to ensure that it cannot
move out of position.
COMMISSIONING/START-UP
B
•Route the power connection cable such that
it forms a drip loop!
•Switching on: Connect the unit to the mains.
The unit switches on immediately.
•Switching off: Disconnect the unit from the
mains.
MAINTENANCE AND CLEANING
If necessary, clean the unit with clear water using
a soft brush.
•Do not use cleaning agents or chemical solu-
tions. We recommend using OASE PumpClean
for removing calcium deposits.
Replacing the impeller unit

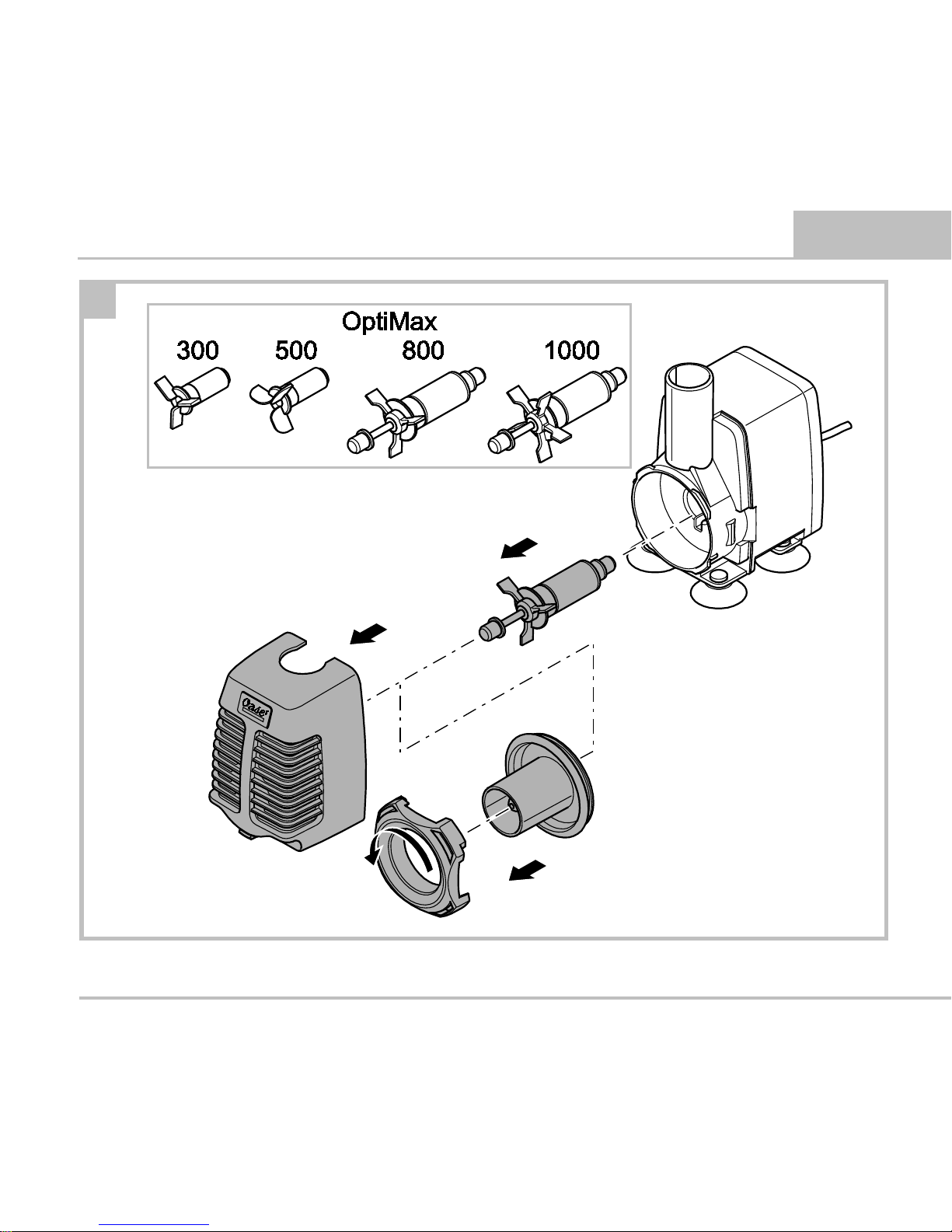

D
•Dismantle the filter housing, or bayonet clo-
sure and pressure socket.
•Remove the impeller unit, clean or replace.
•Reassemble the unit in the reverse order.
WEAR PARTS
The following components are wear parts and
are excluded from the warranty:
•Suction cups, impeller unit
Downloaded from www.watergardeningdirect.com

-EN -
14 OptiMax 300/500/800/1000
REMEDY OF FAULTS
Malfunction
Cause
Remedy
The unit does not start up
No mains voltage
Check the mains voltage.
Impeller unit blocked
Clean
Water flow insufficient
Position of the flow regulator
Readjust the flow regulator.
Filter housing or impeller unit
soiled, hose blocked
Clean
Hose defective
Replace
Hose kinked
Route hose in a straight line
Impeller unit worn
Replace impeller unit
Only submersed during installa-
tion
Filter housing clogged
Clean the filter housing.
REPAIR
A damaged unit cannot be repaired and must be
put out of operation. Dispose of the unit in ac-
cordance with the regulations.
DISPOSAL
Do not dispose of this unit with domestic waste!
For disposal purposes, please use the return sys-
tem provided. Render the unit unusable before-
hand by cutting the cables.
GUARANTEE
For this OASE unit purchased by you, OASE
GmbH assumes a 36 month manufacturer's
guarantee in accordance with the guarantee
conditions laid down in the following. The guar-
antee period starts with the first purchase from
an OASE specialist dealer. In other words, in the
event of a resale, the guarantee period will not
start again. If services are provided under the
terms of this guarantee, this does not lead to ex-
tension or renewal of the guarantee period. Your
legal rights as a purchaser, especially those ensu-
ing from the warranty, persist. They are not re-
stricted by this guarantee.
Guarantee conditions
OASE GmbH guarantees impeccable, purpose-
related properties and workmanship, expert as-
sembly and proper functionality. Subject to our
discretion, the guarantee refers to free-of-
charge repair or free-of-charge supply of spare
parts or of a replacement unit respectively.
Downloaded from www.watergardeningdirect.com

- EN -
15
Should the unit type concerned no longer be
manufactured, we reserve the right, at our dis-
cretion, to supply a replacement unit from our
range that is closest to the type subject to com-
plaint. Claims, the origin of which can be traced
back to installation and operating faults as well
as lack of care, e.g. the use of unsuitable cleaning
materials or negligent maintenance, use other
than that intended, damage due to accidents,
falls, impact, effect of frost, cutting plugs, short-
ening cables, calcium deposits or improper at-
tempts to repair the unit, are not covered by our
guarantee. We hereby refer to the proper use as
specified in the instructions of use that form an
integral part of the guarantee. Wear parts such
as bulbs etc. are exempted from the guarantee.
The refund of costs for removal and installation,
checks, claims for lost profit and damages are ex-
empted from the guarantee together with fur-
ther reaching claims for damages and loss of
whatever nature caused by the unit or its use.
The guarantee is only valid in the country in
which the unit was purchased from an OASE
dealer. This guarantee is governed by German
law under the exclusion of the agreement of the
United Nations covering contracts governing the
international sale of goods (CISG) regulations.
Guarantee claims can only be brought forward
by presenting the sales receipt to us, OASE
GmbH, Tecklenburger Straße 161 in D-48477
Hörstel, Germany by returning to us the unit or
part of the unit subject to complaint, freight free,
at your own risk, accompanied by a copy of the
original purchase receipt from the OASE special-
ist dealer, this guarantee document and written
information of the fault encountered.
Downloaded from www.watergardeningdirect.com

114 OptiMax 300/500/800/1000
OptiMax
300
230 V AC, 50 Hz
5 W
≤ 300 l/h
0.6 mWs
12 mm (3/4")
500
230 V AC, 50 Hz
5 W
≤ 500 l/h
0.8 mWs
12 mm (3/4")
800
230 V AC, 50 Hz
7 W
≤ 800 l/h
1 mWs
16 mm (1")
1000
230 V AC, 50 Hz
12 W
≤ 1000 l/h
1.3 mWs
16 mm (1")
DE
Typ
Bemessungsspan-
nung
Leistungsaufnahme
Förderleistung
Wasser-
säule
∅Schlauch
EN
Type
Rated voltage
Power consumption
Flow rate
Head
height
∅Hose
FR
Type
Tension de mesure
Consommation
Capacité de re-
foulement
Colonne
d'eau
∅Tuyau
NL
Type
Dimensionerings-
spanning
Stroomverbruik
Pompcapaciteit
Water-
kolom
∅Slang
ES
Tipo
Tensión asignada
Consumo de poten-
cia
Capacidad de
elevación
Columna
de agua
∅Manguera
PT
Tipo
Voltagem conside-
rada
Consumo de potên-
cia
Débito
Coluna
de água
Mangueira de
∅
IT
Tipo
Tensione nominale
Potenza assorbita
Portata
Colonna
d'acqua
∅Tubo flessi-
bile
DK
Type
Nominel spænding
Strømforbrug
Transportkapaci-
tet
Vand-
søjle
∅Slange
NO
Type
Merkespenning
Inngangseffekt
Kapasitet
Vannsøyl
e
∅Slange
SE
Typ
övre märkspänning
Effekt
Matningspre-
standa
Vatten-
pelare
∅Slang
FI
Tyyppi
mitoitusjännite
Ottoteho
Syöttöteho
Vesipylv
äs
∅Letku
HU
Típus
mért feszültség
Teljesítményfelvétel
Szállítási tel-
jesítmény
Vízosz-
lop
∅Tömlő
Downloaded from www.watergardeningdirect.com

115
OptiMax
300
230 V AC, 50 Hz
5 W
≤ 300 l/h
0.6 mWs
12 mm (3/4")
500
230 V AC, 50 Hz
5 W
≤ 500 l/h
0.8 mWs
12 mm (3/4")
800
230 V AC, 50 Hz
7 W
≤ 800 l/h
1 mWs
16 mm (1")
1000
230 V AC, 50 Hz
12 W
≤ 1000 l/h
1.3 mWs
16 mm (1")
PL
Typ
napięcie zna-
mionowe
Pobór mocy
Wydajność pom-
powania
Słup
wody
∅Wąż
CZ
Typ
domezovací napětí
Příkon
Dopravní výkon
Vodní
sloupec
∅Hadice
SK
Typ
dimenzačné napätie
Príkon
Dopravný výkon
Vodný
stĺpec
∅Hadica
SI
Tip
dimenzionirana
napetost
Nazivna moč
Črplana zmoglji-
vost
Vodni
steber
∅Cev
HR
Tip
gornji nazivni napon
Prijemna snaga
Protočni kapaci-
tet
Vodeni
stup
∅crijeva
RO
Tip
tensiunea măsurată
Putere consumată
Debit de pom-
pare
Coloană
de apă
∅Furtun
BG
Тип
номинално
напрежение
Консумирана мощ-
ност
Дебит
Воден
стълб
∅на маркуч
UA
Тип
розрахункова
напруга
Споживана потуж-
ність
Продуктивність
Водяний
стовп
∅Шланг
RU
Тип
расчетное
напряжение
Потребляемая
мощность
Производитель-
ность
Водяной
столб
∅Шланг
CN
设计电压
功耗
输送能力
水柱
∅软管
Downloaded from www.watergardeningdirect.com

116 OptiMax 300/500/800/1000
DE
Staubdicht. Was-
serdicht bis 1 m
Tiefe.
Vor direkter
Sonnenein-
strahlung
schützen.
Im Innenraum
verwenden.
Nicht mit norma-
lem Hausmüll ent-
sorgen!
Lesen Sie die Ge-
brauchsanleitung
EN
Dust tight. Sub-
mersible to 1 m
depth.
Protect from
direct sun ra-
diation.
For indoor use.
Do not dispose of
together with
household waste!
Read the opera-
ting instructions.
FR
Imperméable aux
poussières.
Etanche à l'eau
jusqu'à une pro-
fondeur de 1 m.
Protéger
contre les
rayons directs
du soleil.
Pour utilisation à
l'intérieur.
Ne pas recycler
dans les ordures
ménagères !
Lire la notice
d'emploi.
NL
Stofdicht. Water-
dicht tot een
diepte van 1 m.
Beschermen
tegen direct
zonlicht.
In interne in-
zetstuk gebruiken.
Niet met het nor-
male huisvuil af-
voeren!
Lees de ge-
bruiksaanwijzing.
ES
A prueba de
polvo. Impermea-
ble al agua hasta
1 m de profundi-
dad.
Protéjase con-
tra la radia-
ción directa
del sol.
Para empleo inte-
rior.
¡No deseche el
equipo en la ba-
sura doméstica!
Lea las instruccio-
nes de uso.
PT
À prova de pó. À
prova de água
até 1 m de pro-
fundidade.
Proteger con-
tra radiação
solar directa.
Utilizar em inte-
riores.
Não deitar ao lixo
doméstico!
Leia as instruções
de utilização.
Downloaded from www.watergardeningdirect.com

117
IT
A tenuta di pol-
vere. Impermea-
bile all'acqua fino
a 1 m di profon-
dità.
Proteggere
contro i raggi
solari diretti.
Utilizzare
nell'inserimento
interno
Non smaltire con
normali rifiuti do-
mestici!
Leggere le istru-
zioni d´uso!
DK
Støvtæt. Vandtæt
ned til 1 m
dybde.
Beskyt mod
direkte sollys.
Anvendesin-
dendørs.
Må ikke bortskaf-
fes med det al-
mindelige hus-
holdningsaffald!
Læs brugsanvis-
ningen.
NO
Støvtett. Vann-
tett ned til 1 m
dyp.
Beskytt mot
direkte sollys.
Brukninnendørs.
Ikke kast i almin-
nelig husholdning-
savfall!
Les bruksanvisnin-
gen.
SE
Dammtät. Vat-
tentät till 1 m
djup.
Skydda mot
direkt solstrål-
ning.
Ska använda-
sinomhus.
Får inte kastas i
hushållssoporna!
Läs igenom
bruksanvisningen.
FI
Pölytiivis. Vesitii-
vis 1 m syvyyteen
asti
Suojattava
suoralta au-
ringonvalolta.
Sisälläätoimivana
käytettäväksi.
Älä hävitä laitetta
tavallisen kotita-
lousjätteen mu-
kana!
Lue käyttöohje.
HU
Portömített.
Vízálló 1 m-es
mélységig.
Óvja közvet-
len nap-
sugárzástól.
Beltéri használa-
tra.
A készüléket nem
a normál ház-
tartási szeméttel
együtt kell
megsemmisíteni!
Olvassa el a hasz-
nálati útmutatót.
Downloaded from www.watergardeningdirect.com

118 OptiMax 300/500/800/1000
PL
Pyłoszczelny. Wo-
doszczelny do
1 m głębokości.
Chronić przed
bezpośre
dnim
nasłonecznie-
niem.
Do zastosowania
we wnętrzu.
Nie wyrzucać
wraz ze śmieciami
domowymi!
Przeczytać in-
strukcję użytko-
wania!
CZ
Prachotěsný.
Vodotěsný do
hloubky 1 m.
Chránit před
přímým
slunečním
zářením.
Používejte uvnitř.
Nelikvidovat v
normálním ko-
munálním
odpadu!
Přečtěte Návod
k použití!
SK
Prachotesný.
Vodotesný do
hĺbky 1 m.
Chránit’ pred
priamym
slnečným ži-
arením.
Používajte v inte-
riéri.
Nelikvidovať v
normálnom ko-
munálnom
odpade!
Prečítajte si
Návod
na použitie.
SI
Ne prepušča
prahu. Ne prepu-
šča vode do glo-
binen 1 m.
Zaščitite pred
neposrednimi
sončnimi
žarki.
Za notranjo
uporabo.
Ne zavrzite skupaj
z gospodinjskimi
odpadki!
Preberite navodila
za uporabo!
HR
Ne propušta
prašinu. Ne
propušta vodu do
1 m dubine.
Zaštitite od
izravnog
sunčevog
zračenja.
Upotrebljavajte u
zatvorenom pro-
storu.
Ne bacati u
običan kućni ot-
pad!
Pročitajte upute
za upotrebu!
RO
Etanş la praf.
Etanş la apă,
până la o adân-
cime de 1 m.
Protejaţi îm-
potriva razelor
directe ale so-
arelui.
Utilizaţi în inte-
rior.
Nu aruncaţi în
gunoiul menajer !
Citiţi instrucţiunile
de utilizare !
Downloaded from www.watergardeningdirect.com

119
BG
Защитено от
прах. Водоустой-
чив до дълбо-
чина 1 м.
Да се пази от
слънчеви
лъчи.
Използвайте на
закрито.
Не изхвърляйте
заедно с обикно-
вения домакин-
ски боклук!
Прочетете
упътването.
UA
Пилонепроникн
ий.
Водонепроникн
ий до 1 м.
Пристрій по-
винен бути
захищений
від прямого
сонячного ви-
промінюванн
я.
Використовувати
всередині
приміщень.
Не викидайте з
побутовим
сміттям!
Читайте
інструкцію.
RU
Пыленепрониц.
Водонепрониц.
на глубине до
1 м.
Защищать от
прямого воз-
действия сол-
нечных лу-
чей.
Применять
только внутри
помещения.
Не утилизиро-
вать вместе с до-
машним мусо-
ром!
Прочитайте
инструкцию по
использованию.
CN
防尘。防水水深
至1 米
防止阳光直射。
在室内使用。
不要与普通的家
庭
垃圾一起处理！
请阅读使用说明
书。!
Downloaded from www.watergardeningdirect.com

120 OptiMax 300/500/800/1000

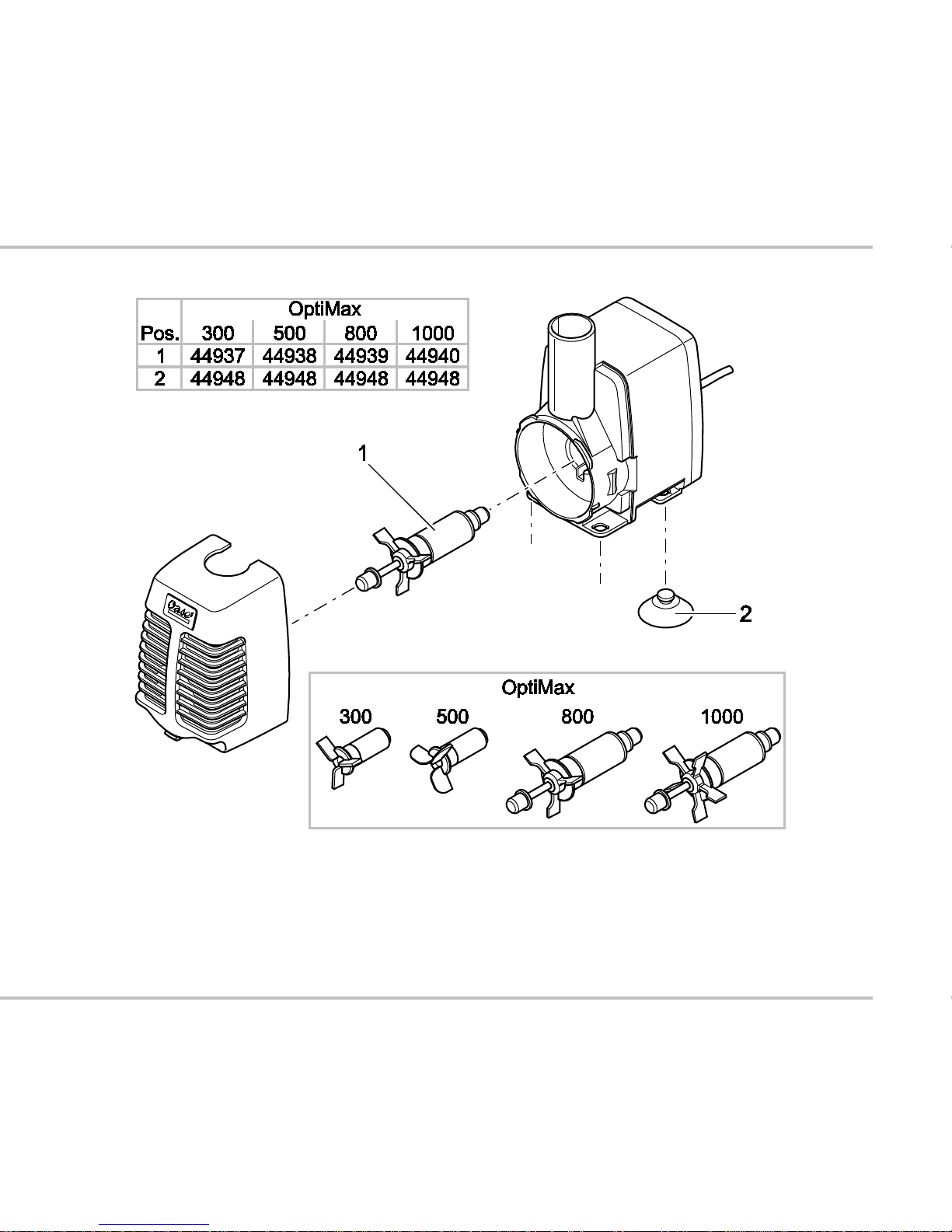

OIX0007
Downloaded from www.watergardeningdirect.com

43000/02
-16
Downloaded from www.watergardeningdirect.com
