IN CASE OF EMERGENCY
USE ONLY IN SITUATIONS OF
GRAVE AND IMMINENT DANGER
MANUAL ACTIVATION
1 2
345

EPIRB3 USER MANUAL
4 912S-03967 - 01.04 28/02/2023
1. ABOUT YOUR EPIRB
1.1 COSPAS/SARSAT System

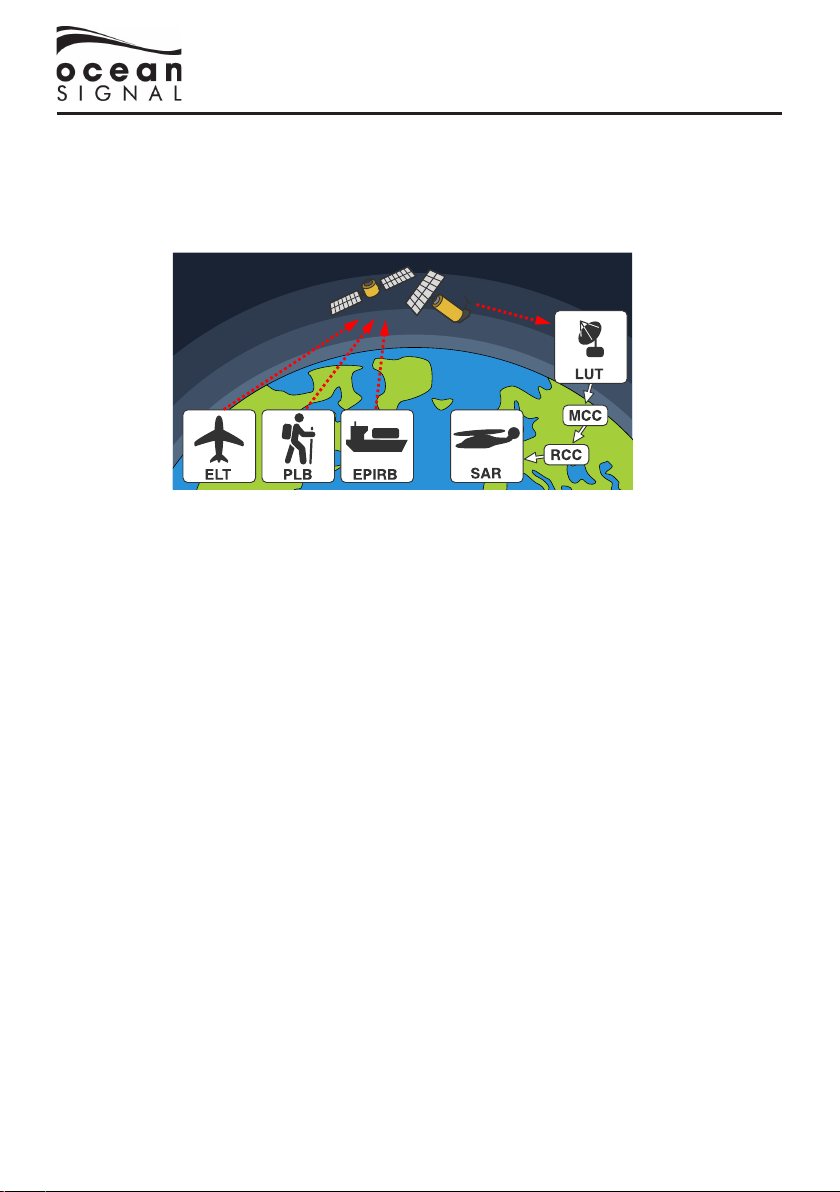

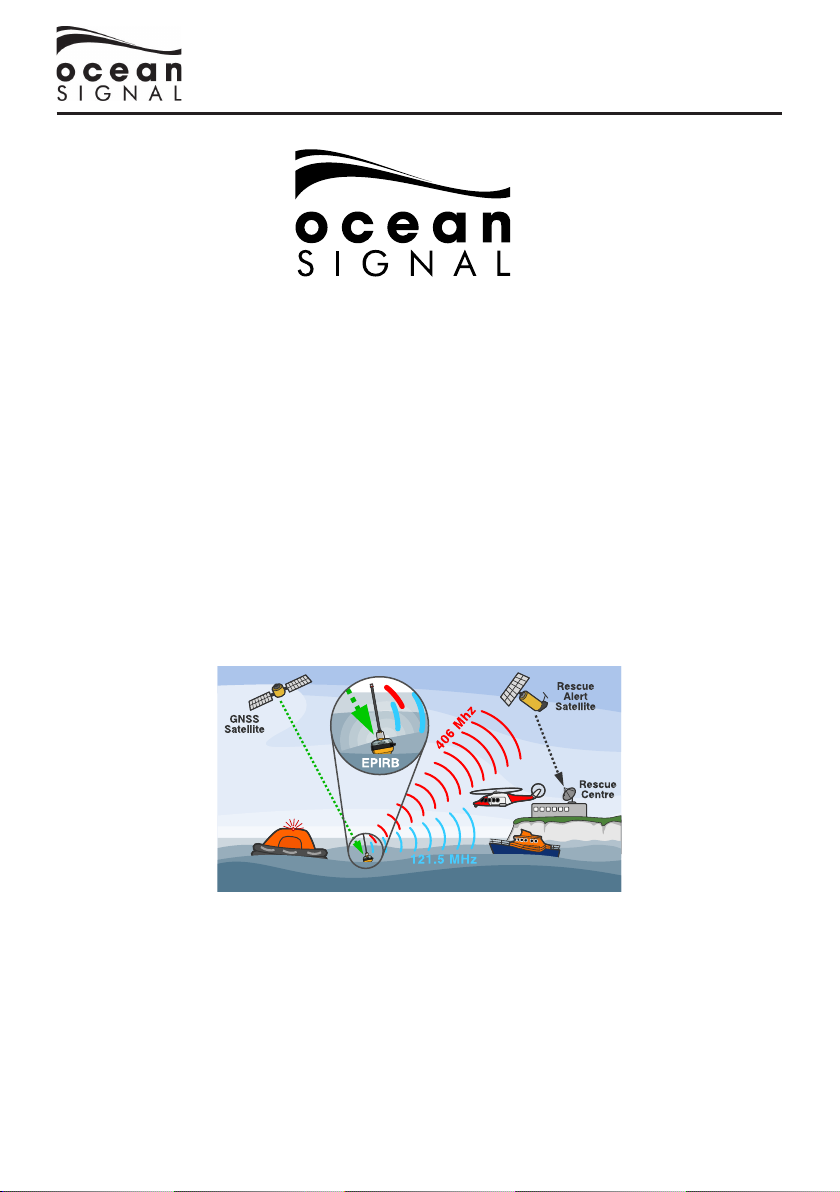

The basic Cospas-Sarsat concept is illustrated in the figure below.
The System is composed of:
• distress radio beacons (ELTs for aviation use, EPIRBs for maritime use, and
PLBs for personal use) which transmit signals during distress situations
• instruments on board satellites in geostationary and low-altitude Earth
orbits which detect the signals transmitted by distress radio beacons
• ground receiving stations, referred to as Local User Terminals (LUTs), which
receive and process the satellite downlink signal to generate distress alerts
• Mission Control Centers (MCCs) which receive alerts produced by LUTs and
forward them to Rescue Coordination Centers (RCCs), Search and Rescue
Points Of Contacts (SPOCs) or other MCCs
The Cospas-Sarsat System includes two types of satellites:
• satellites in low-altitude Earth orbit (LEO) which form the LEOSAR System
• satellites in geostationary Earth orbit (GEO) which form the GEOSAR System
The future Cospas-Sarsat System will include a new type of satellite in the medium-al-
titude Earth orbit (MEO) which will form the MEOSAR System. The EPIRB3 is fully
compatible with the new MEOSAR satellites.

28/02/2023 912S-03967 - 01.04 5
EPIRB3 USER MANUAL
1.2 Return Link Service
The Galileo Return Link Service (RLS) is a free-of-charge global service available to
Cospas-Sarsat RLS compatible beacons. The new functionality, currently offered uniquely
by Galileo, enables a communication link that relays a Return Link Message (RLM) back to
the originating beacon through the Galileo Navigation Signal in Space.
The RLS feature is an indication on the EPIRB3 that confirms to the User that the distress
signal from the EPIRB3 has been localised by the Cospas-Sarsat system and is being
sent to the SAR authorities. It does NOT mean that a search and rescue mission has been
launched, but only confirms that the distress alert has been received by the Cospas-Sarsat
system and is being routed to the appropriate SAR agencies.
The RLS aims to send an acknowledgment to the beacon within 30 minutes following
activation (the response may not be received by the beacon for significantly longer).
RLS is an optional function and may not be permitted in all countries.
The full RLS specification can be found here:
https://gsc-europa.eu/sites/default/files/sites/all/files/Galileo-SAR-SDD.pdf

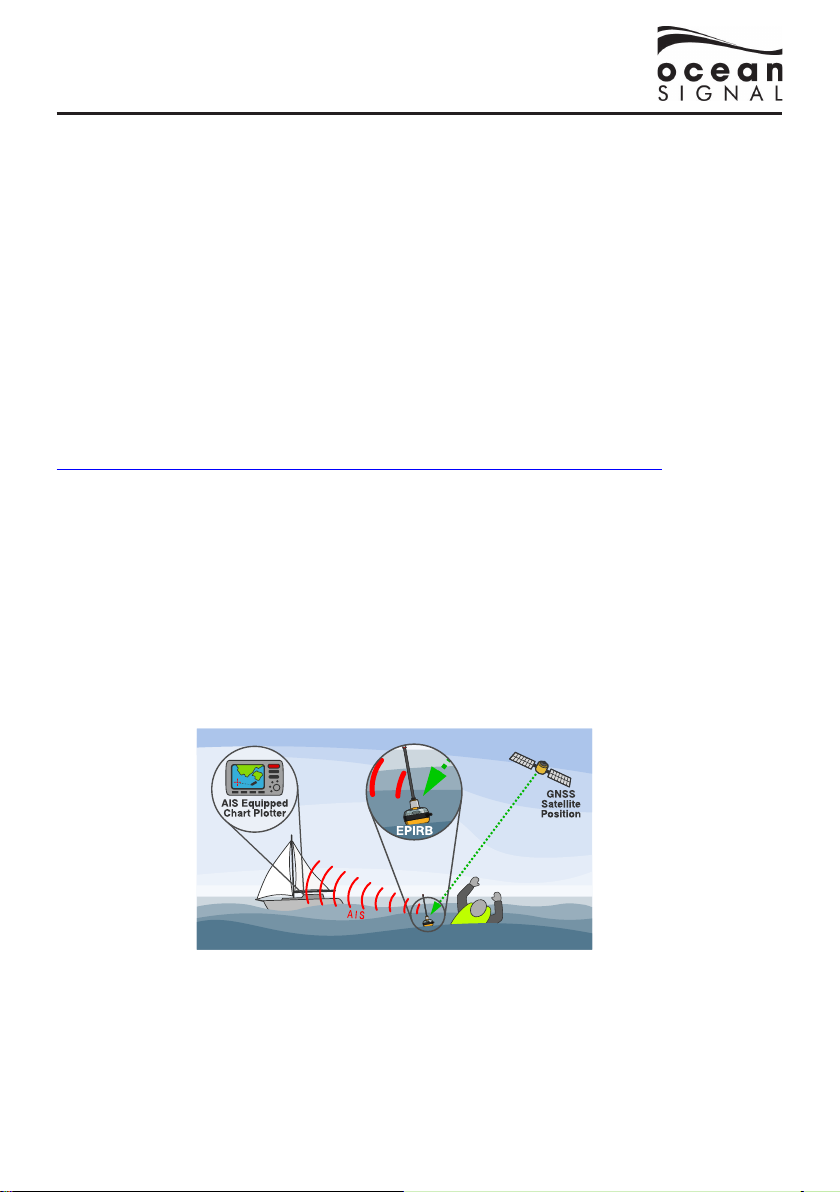

1.3 AIS System
AIS systems operate on VHF radio bands and transceivers are fitted to all commercial
shipping and an ever growing number of recreational vessels globally. Shortly after
activation, an AIS EPIRB device will activate an alarm on all AIS equipped vessels within
VHF range alerting them to the fact that a person is in the water needing assistance. Often
it is a vessel in the close vicinity of an incident that is able to react and effect a rescue
quicker than the emergency services.
Emergency service craft are fitted with AIS receivers allowing them to pinpoint a casualty in
the water more precisely than any other system.

EPIRB3 USER MANUAL
6 912S-03967 - 01.04 28/02/2023
1. ABOUT YOUR EPIRB 4
1.1 COSPAS/SARSAT System 4
1.2 Return Link Service 5
1.3 AIS System 5
2. GENERAL 7
2.1 Introduction 7
2.2 Exposure to RF Electromagnetic Energy 7
2.3 Warnings 7
2.4 What’s in the Box 8
2.5 Operating Modes 8
3. EPIRB3 OVERVIEW 9
4. INSTALLATION 10
4.1 Location 10
4.2 Mounting Dimensions 10
4.3 Remove the EPIRB3 from the Mounting Bracket 11
4.4 Fit the Manual Mounting Bracket 11
4.5 Fitting the EPIRB3 into the Mounting Bracket 11
5. OPERATION 12
5.1 Manual Release 12
5.2 Optical Indications on activation 15
5.3 Deactivation 16
6. FALSE ALERTS 16
7. TESTING 17
7.1 NFC and Mobile App. 17
7.2 Beacon Test 18
7.3 GNSS Test 20
8. BEACON REGISTRATION 21
8.1 Advice to owners of EPIRBs 21
8.2 Country Specific Registration Information 21
8.3 UNREGISTERED BEACON 22
9. APPENDIX 22
9.1 Maintenance 22
9.2 Batteries 23
9.3 Decommissioning and Disposal 23
9.4 Transport 24
9.5 Specifications 25
9.6 Approvals 26
9.7 Spares 26
10. WARRANTY INFORMATION 27
10.1 Limited Warranty 27
10.2 Extended Warranty 27

28/02/2023 912S-03967 - 01.04 7
EPIRB3 USER MANUAL
2. GENERAL
2.1 Introduction
This manual provides valuable information for the installation, operation and routine
maintenance of the EPIRB3.
Please read this manual completely before using your EPIRB3.
2.2 Exposure to RF Electromagnetic Energy
This product complies with EN62479 (EU) and RSS-102 (Canada).
2.3 Warnings
!It is a legal requirement to register your EPIRB3 with your National Authority.
!Only use your EPIRB3 in a situation of grave and imminent danger.
!Deliberately misusing your EPIRB3 or setting it off accidentally may result in
prosecution and a fine.
!Contains Lithium batteries:
- store between -30°C (-22ºF) to+70°C (+158ºF)
If the EPIRB3 is stored at higher temperatures the battery life may be
degraded and should be replaced earlier than the date stated. Failure to
do this may result in the EPIRB3 fulfilling the stated 48hr operating life.
The effect is more pronounced as the temperature increases.
- DO NOT ATTEMPT TO REPLACE THE BATTERIES YOURSELF
unauthorised opening and battery replacement may put
your life at risk.
- do not short circuit, incinerate or recharge.
!Please see section 9.4 for information on safe transportation.
!The battery in your EPIRB3 should be replaced immediately if it has been
activated, or if the test indicator shows the battery as ‘used’, or if the expiry date
marked on the unit has been exceeded.
!Battery replacement must be carried out at an Ocean Signal authorised battery
replacement centre using manufacturer supplied battery components.
!Please read these instructions carefully. Failure to follow the guidance in this
manual may result in loss of warranty.

EPIRB3 USER MANUAL
8 912S-03967 - 01.04 28/02/2023
2.4 What’s in the Box
1. EPIRB3
2. Manual Mounting
Bracket
3. User Guide &
Labels
4. Mounting Screws
(x3)
2.5 Operating Modes
Your EPIRB3 may be operated in a variety of modes.
2.5.1 Manual Release and Automatic Activation
Should the vessel be in danger of sinking the EPIRB3 should be
removed from its bracket, the antenna extended and then placed
in the sea. Contact with the water will automatically activate the
EPIRB3.
2.5.2 Manual activation on deck
When deploying the EPIRB3 on a deck, ensure it is vertical and
clear of obstructions that might impede a clear view of the sky. If
the unit is thrown into the water then it will activate automatically.
2.5.3 Manual activation in a life raft
The EPIRB3 may be deployed from a life-raft, where it should be
held in a vertical position so that there is a clear view of the sky. It
is recommended that the EPIRB is held outside of the canopy. The
EPIRB3 can also be tethered to the life-raft and allowed to float
alongside.

28/02/2023 912S-03967 - 01.04 9
EPIRB3 USER MANUAL
!The lanyard is provided to attach the EPIRB3 to the life raft or your person, once
it is activated. Do not use it to attach it to the ship, as this may result in the loss of
the EPIRB3 if the vessel sinks.
!It is important that the vessel details are marked on the EPIRB3. Please use a
fine tip UV resistant indelible pen to clearly mark the MMSI, Vessel Name and
Call Sign in the spaces provided. Cover this label with the clear protective label
provided to protect the text from wear.
1
2
3
4
6
7
8

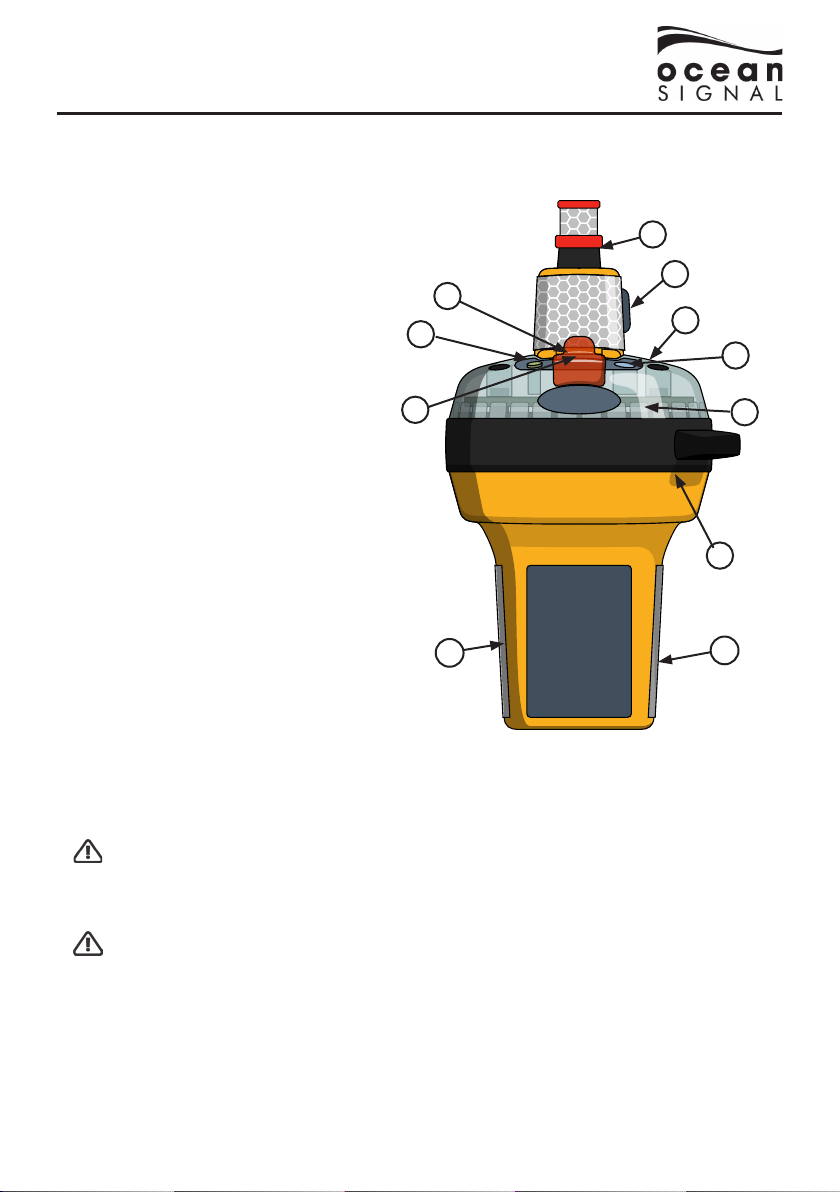

1) ON/OFF Key (Under flap)
2) Indicator LED
3) Break Off Tab
4) Antenna
5) Antenna Rewind Knob
6) Strobe light
7) TEST Key
8) NFC Antenna
9) Lanyard under rubber band
10) Serial Number/ UIN Label
11) Programming Details Label
3. EPIRB3 OVERVIEW
9
11
5
10

EPIRB3 USER MANUAL
10 912S-03967 - 01.04 28/02/2023
4. INSTALLATION
!Failure to follow the following installation guidelines may cause the EPIRB3 to
operate incorrectly.
!Do not mount the EPIRB3 closer than 1.0 metre to any steering compass as this
may affect the accuracy of the compass.
!Keep the EPIRB3 away from any strong magnetic sources such as loudspeakers,
compass compensation magnets, etc.
!Do not install or operate in a location subject to high intensity RF fields (e.g.radar
or communications antennas)
!GNSS operation may be impaired if operated within 10m of GMDSS sat-com
systems.
!Always install the manual mounting bracket inside the vessel to prevent the
EPIRB being dislodged and activated in heavy seas.
4.1 Location
The location selected must be sufficiently robust to support the weight of the entire unit.
Exposure to the elements and surrounding hazards along with vibration should also be
taken into consideration when choosing the location. Ensure that the mounting location
allows easy access to the EPIRB3 for emergency use, maintenance and servicing.

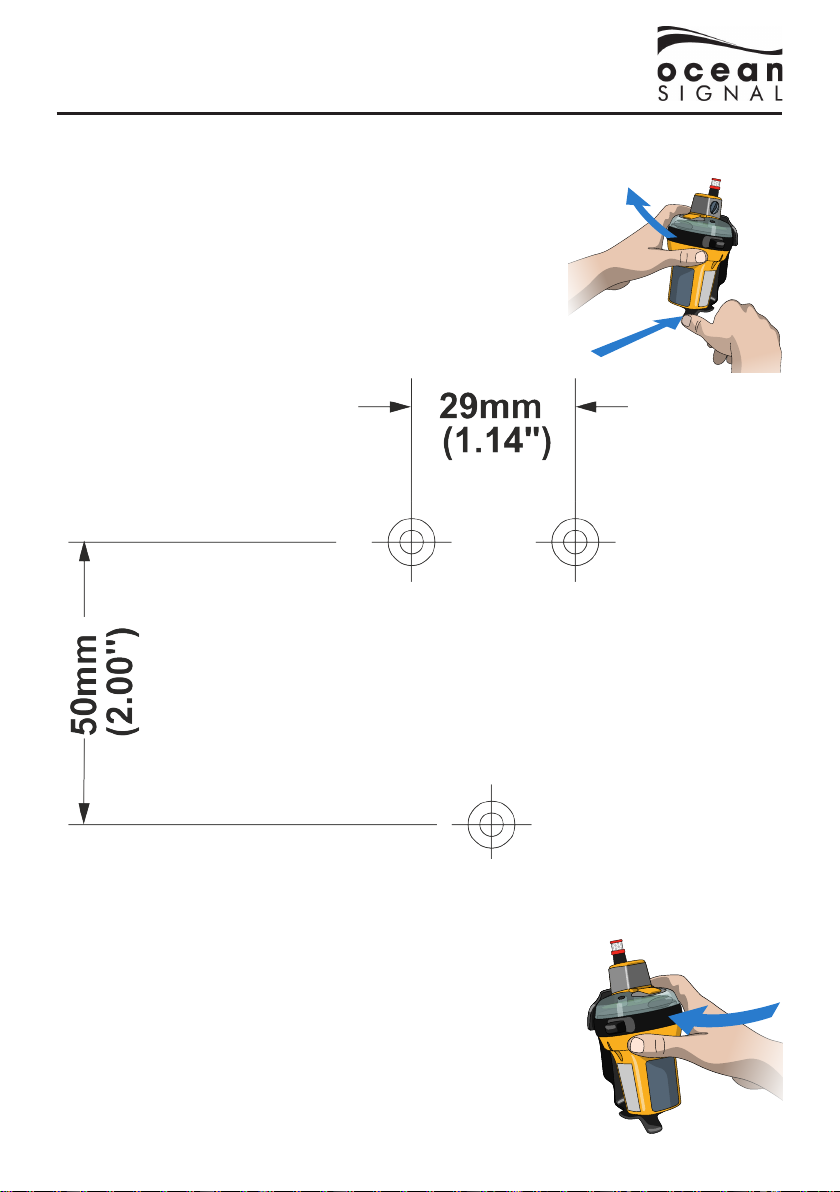

4.2 Mounting Dimensions
Shown below is a minimum spacing suggested to allow easy hand access to release the
EPIRB3 from the bracket.
