INSTALLATION MANUAL OG812
OG812

Hello.
1
Congratulations on purchasing your new Ogawa OG812.
At Ogawa we understand every body is different and have carefully designed on our massage chair with that in mind.
But enough about us, this is about you. Learning how to use your new chair is simple (we designed it that way).
So let’s get started.

2
MASSAGE
INTRO
CARE

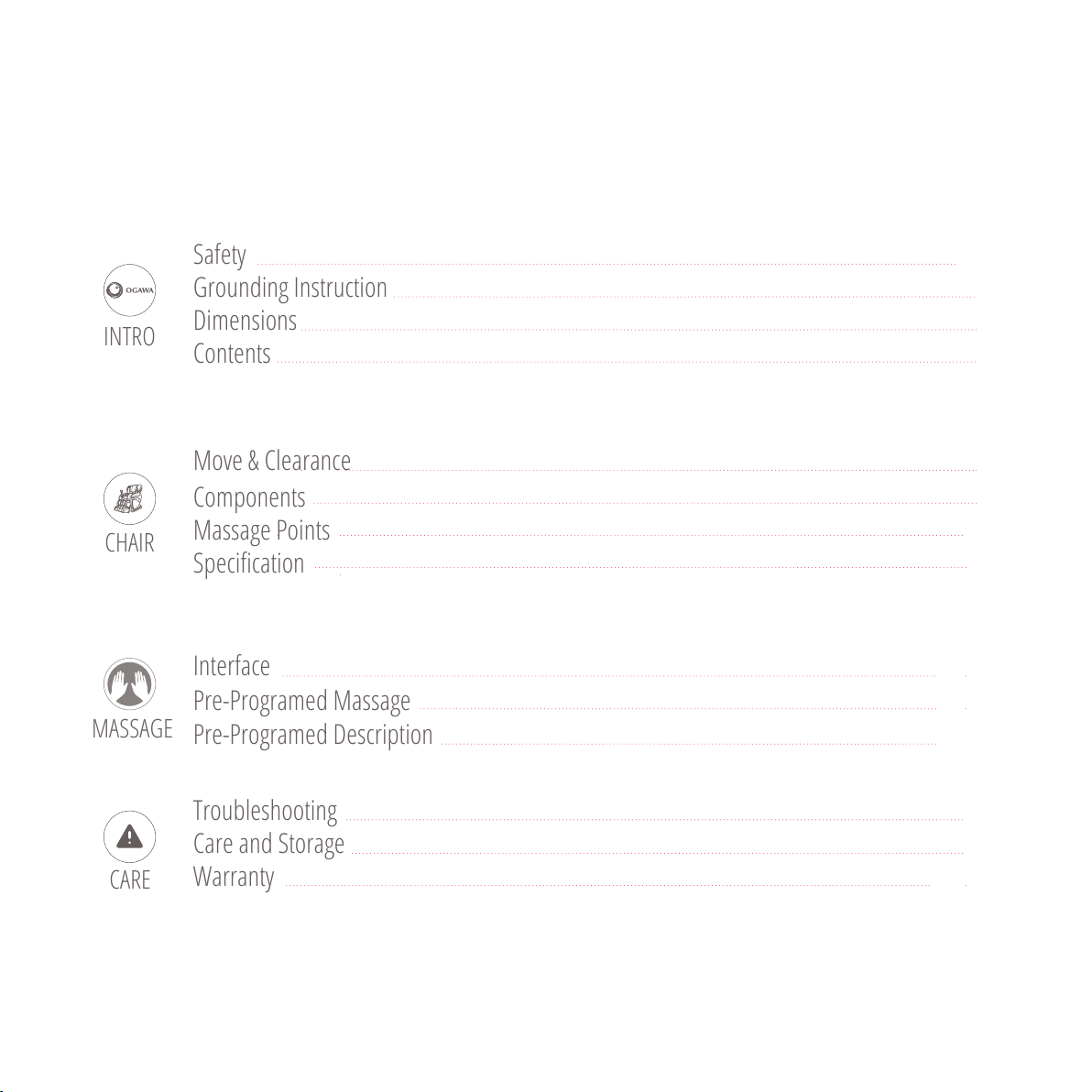

TABLE OF CONTENTS
Dimensions
Contents
Move & Clearance
Components
Massage Points
Specification
Interface
Pre-Programed Massage
Pre-Programed Description
Troubleshooting
Care and Storage
Warranty
6
7
8
9
10
11
12-13
14-28
29-31
Safety
Grounding Instruction
3-5
5
32
32
33-34
CHAIR

SAFETY PRECAUTIONS
We’re looking out for you.
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using (this appliance).
• Always unplug this appliance from the electrical outlet immediately after using and
before cleaning.
• Never use pins or other metallic fasteners with this appliance.
•
IMPORTANT SAFETY INSTRUCTIONS
DANGER-To reduce the risk of electric shock:
WARNING--To reduce the risks of burns, fire, electric shock or injury to persons:
• An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the appliance to a service center for examination and
repair.
• Do not carry this appliance by supply cord or use cord as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Keep children away from extended foot support.
• Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
• Use heated surfaces carefully. May cause serious burns. Do not use over insensitive skin areas or in the
presence of poor circulation. The unattended use of heat by children or incapacitated persons may be
dangerous.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to
persons.
Carefully examine the covering before each use. Discard the appliance if the covering shows any sign of
deterioration, such as checking, blistering, or cracking.
3

• Do not use the massage chair in an excessively humid or dusty environment as this may
result in malfunction or electric shock.
• Do not use the massage chair in a room with a temperature of 104°F or higher.
• Do not expose the massage chair to heaters, stoves or direct sunlight.
• Place and use the massage chair on an even, non-slip floor.
• The massage chair is designed for home use and not for commercial purposes.
This massage chair is intended for household use only. Consult your doctor before use if you:
SAVE THESE INSTRUCTIONS
1. Usage Environment
2. Safety Precautions
3. People with Medical Conditions
• This massage chair is to be used indoors only.
• If you use the massage chair in a cold room, do not increase the
room temperature abruptly. It is recommended that you increase the
temperature gradually to a normal level.
• If the massage chair is stored in a cold place and is being brought
into a warm environment, it is advisable to wait for one hour before
use. This is because its performance may not be at optimum level,
as there may be water droplets on the mechanical parts due to
consideration. Using the massage chair under such conditions may
result in malfunction.
Caution
Caution
• To ensure safe and correct use of the massage chair, do not operate it without reading this
operation manual carefully.
• Do not use the massage chair when the upholstery or seat is removed. This may cause
injury or malfunction.
• Do not use the massage chair in combination with other therapeutic equipment or electric
blanket etc., as this may result in ineffectiveness or injury.
• Do not use the massage chair an hour before or after eating as this may have adverse
effects on the user.
• Do not allow children or pets to play around the massage chair, e.g. behind the backrest,
under the seat base or legrest of the massage chair. This may result in injury.
• Do not use the massage chair when your body is wet.
• Do not operate the massage chair with wet hands.
• It is not recommended to use the massage chair for more than 30 minutes.
• Do not perform continuous massage on the same spot of your body for more than 5
minutes at a time as this may result in excessive stimulation and may have adverse effects.
• Do not insert your hand or foot along the paths of the massage rollers during use as this
may cause injury.
• Stop operation immediately if you feel any discomfort.
• This product is not intended for self-treatment of conditions that should be managed by a
qualified health care provider.
• People on medication or with medical conditions, please consult your doctor before use.
Please do not use the product if you are not feeling well.
• are under medical rest as ordered by a doctor.
• have spinal disorders, an abnormal spinal condition or have suffered a spinal injury.
• have back problems.
• have diabetes, osteoporosis or sensory impairment.
• have joint dysfunction such as rheumatism, hammertoe or gout.
• have a pacemaker or other electronic medical devices.
• may be pregnant.
• have phlebitis or thrombosis.
• have an increased risk for blood clots.
• had recent surgery.
• Have surgical pins, screws, or anything mechanical in the legs, ankles or feet.
• This massage chair is not intended for use by children or persons
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction or instruction concerning use of the
massage chair by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with
the massage chair.
• Avoid using the massage chair under the influence of alcohol.
• Do not apply massage rollers directly on the head, elbow or knee
joints, torso or abdomen.
• If your legs or feet slip off the leg rest during massage, do not force
them back in as this may result in injury.
• Remove the power plug from the electrical outlet immediately should
liquid be accidentally spilled onto the massage chair. Do not use wet
hands to connect or disconnect the power plug from the electrical
outlet.
• Do not tamper with the power cord or use the massage with a
damaged cord as this may result in malfunction and electric shock.
4

5
In the following events, please switch off the main power switch immediately and disconnect the power cord
from the electrical outlet:
• If liquid is accidentally spilled onto the massage chair. This may result in electric shock or
malfunction.
• If the fabric of the backrest is torn and the internal components are exposed.
• If pain or discomfort is felt during massage, stop operation immediately and consult your
doctor.
• If you detect any malfunction or any other abnormal condition during operation.
• If there is power failure. Injury may occur when power is restored unexpectedly.
• If there is lightning.
4. Instances When the Massage Chair Should Not Be Used
5. Assembly and Repair of the Massage Chair
6. Things to Be Noted About the Power Plug and Cord
GROUNDING INSTRUCTIONS
Grounding Pin
Grounded Outlet Box
Grounded Outlet
• Do not disassemble the backrest cover of the massage chair. Touching the internal
components may result in malfunction or electrical shock.
• This massage chair must only be professionally serviced or repaired. Do not attempt to
disassemble or repair the massage chair by yourself.
• Check that the Alternating Current (AC) voltage corresponds with the specifications indicated for the
massage chair.
• Do not connect or disconnect the power plug from the electrical outlet with wet hands. This may result in
malfunction or electric shock.
• When disconnecting the power plug, pull it by holding the plug, not the cord.
• Although operation will be stopped automatically by the Auto-Timer function, always remember to switch
off the main power after use.
• Do not place the power cord under the massage chair or any other heavy objects.
• Do not wind the power cord around the massage chair as this may damage the cord and result in a fire or
electric shock.
• Do not operate the massage with a damaged cord or extension cord.
• Do not use the massage if the electrical outlet is loose.
• If the power cord is damaged, it should be replaced by a qualified technician.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord with
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
Danger-Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do
not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a
qualified electrician.

6
Make sure your door is wider than 36” for the chair to pass through without disassembly
Door width has to be wider than 32”
32”
52.4”
30.1”
27.2”
53.8”
30.1”
22.7”
28.8” 13.2”
36”
50”
55.6”
33.5”
DIMENSIONS
First, let’s get your chair inside.
Seat Base
1
Backrest
2
Side Panels
3
Box Box
Box

7

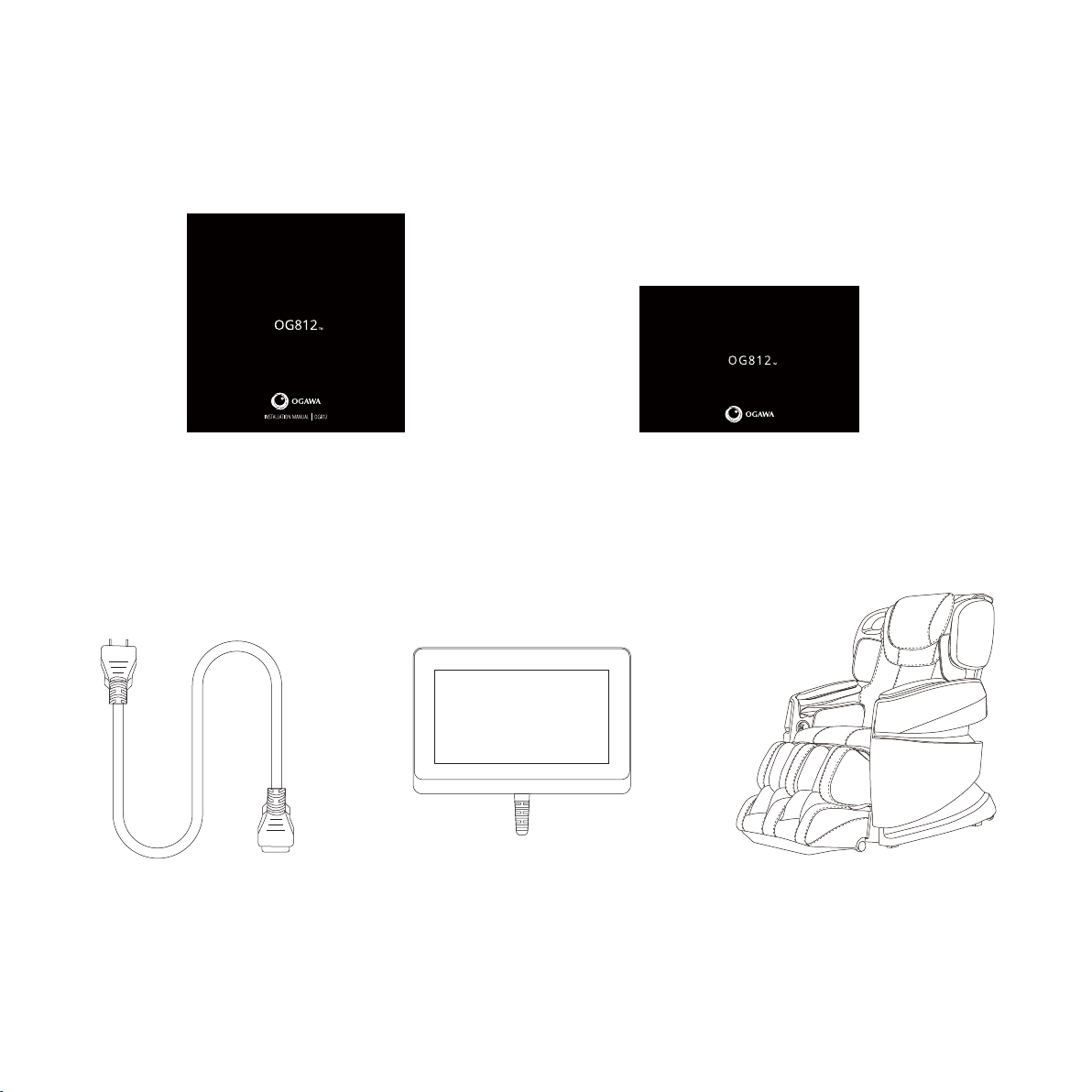

CONTENTS
Installation Manual Warranty Postcard
OG812 MASSAGE CHAIRTablet RemotePower Cord
Everything you need for a relaxing experience.

8
Move & Clearance
Reserve space on left and right Reserve space in the front and back
8” 8”
31.5”
31.5”
CLEARANCE
HOW TO MOVE
Lift and hold the bottom of the chair One person lift footrest 45 Degrees onto wheels
A few simple steps to find the best place for your new chair.

9
CHAIR COMPONENTS
Note: The speaker will only operate when the massage chair is in operation
Some of your chair’s most important features.
LED + Speaker
Shoulder Panel
Wired Tablet
Holder
Handrest
Backrest
Side Panel
Wheel
Pillow
Seat Pad
Calf Rest
Footrest
To play music using your massage chair’s speakers please connect your
smartphone, tablet, or other electronic device to your chair using bluetooth

10
MASSAGE POINTS
10 Air Bags
1 Vibration
2 Heaters
16 Air Bags
2 Rollers
Back Massage Mode Vibration Air Bag Heater Roller

11
CHAIR SPECIFICATIONS
Power Consumption
300W
Max. Time Rate
30 minutes
Shipping Weight
Gross weight: 310.2lbs
Net Weight: 250.8lbs
Safety Feature
Equipped with overheating and power
surge detectors safety feature
Dimensions (L x W x H)
Chair Dimension: 55.6"x33.5"x50"
Reclined Dimension: 78"x33.5"x44"
A few important facts about your massage chair.
Rated Voltage
110 - 120V
Rated Frequency
60Hz
Power of Speakers
15W (2 sides)
Length of Wiring
Controller wiring 59.1”
Power supply wiring 70.9”
Usage Condition
Environment temperature:10。 C-40。 C
Contrasting humidity:30-85RH
Storage Condition
Storage temperature:-20。 C- 60。 C
Storage humidity level:30-85RH
Model No.
OG812
OG812

12
WIRED TABLET INTERFACE
We have designed your massage chair’s tablet controller with a user-friendly interface to make using your chair even easier.
Home Screen
Pre-Programed
Massage
Setting
Custom
Massage

13

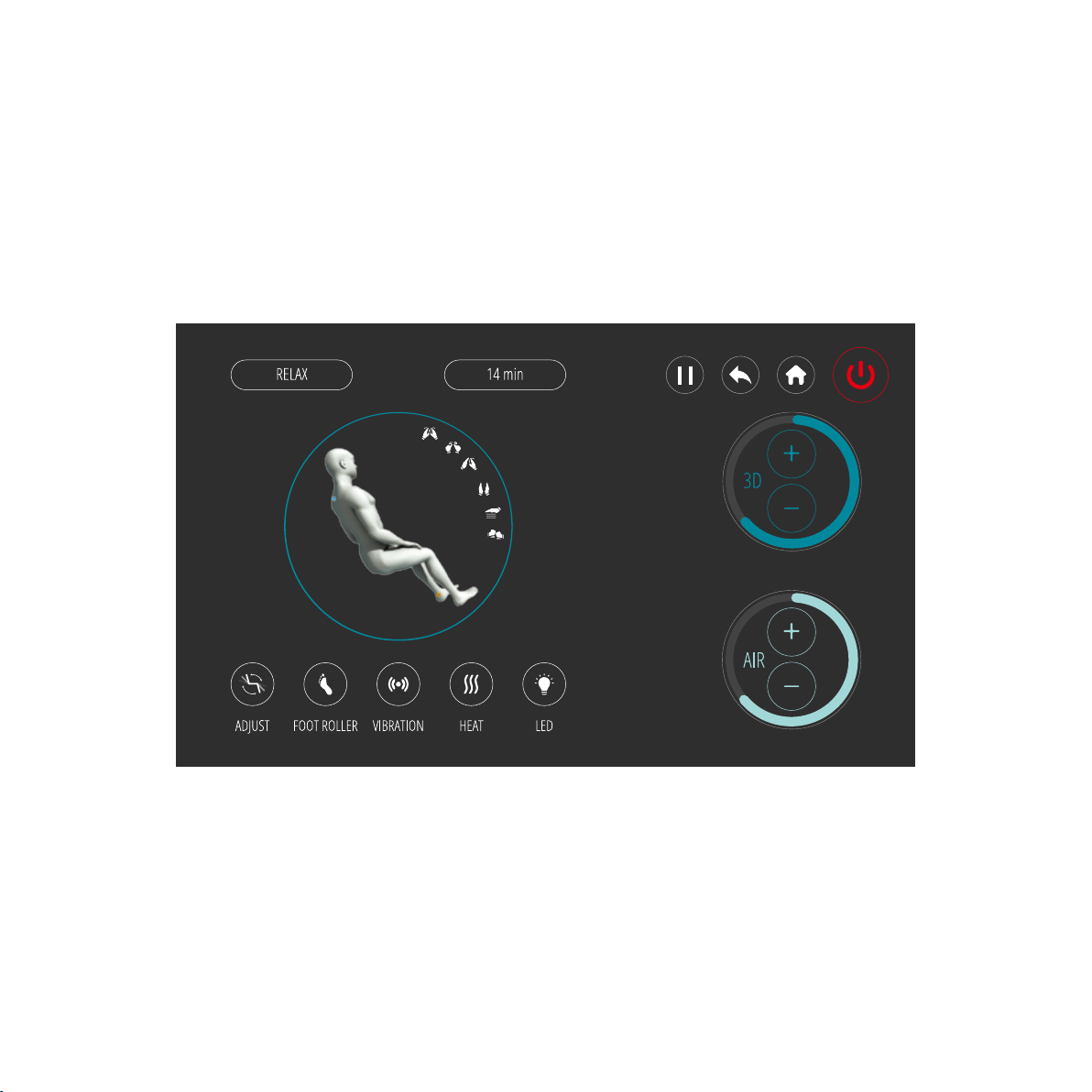

Massage Controls
Name Of Program
Time Left
Power
Strength
Intensity
Light Color Variation
Heat
Vibration
Foot Roller
Chair Angle Adjust

14

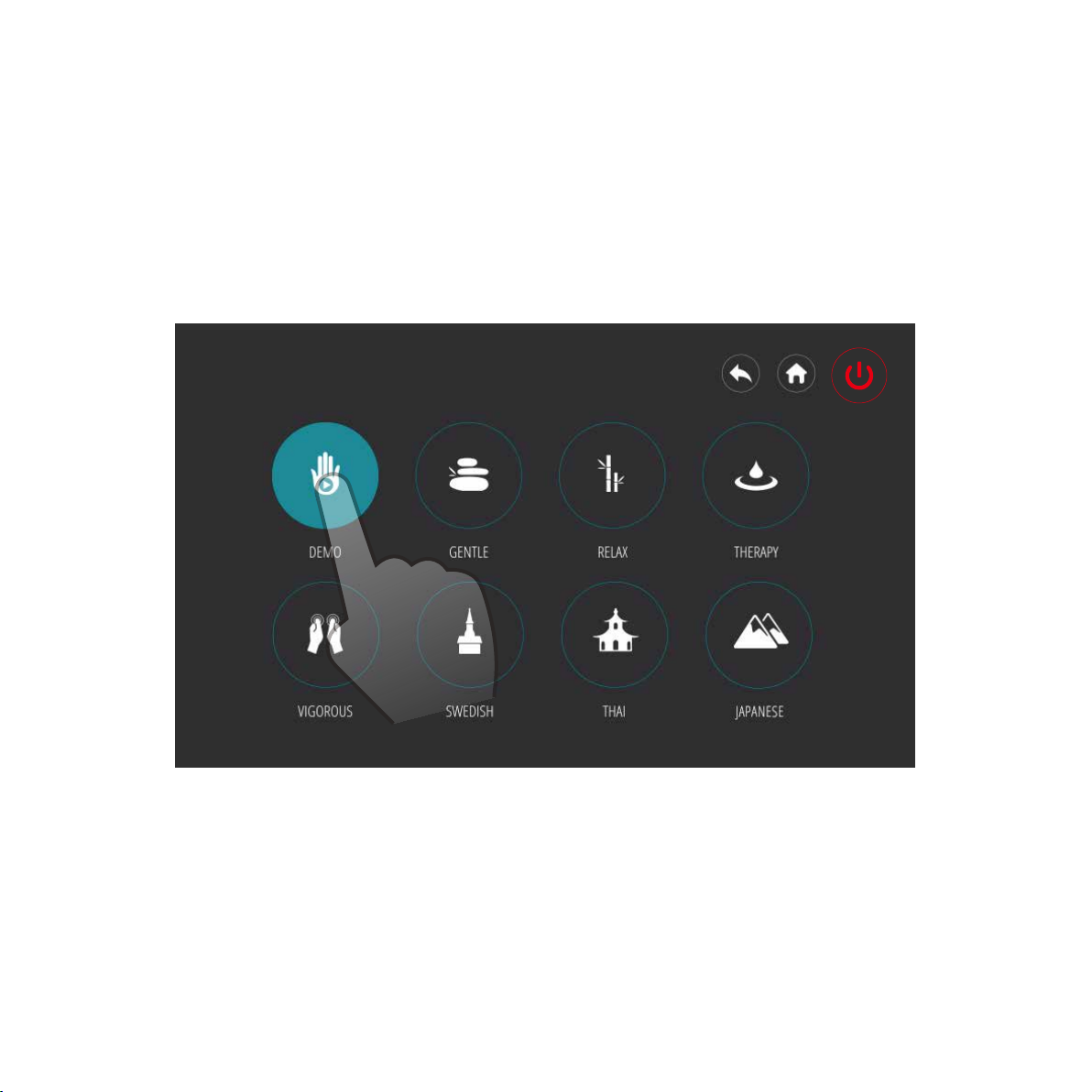

PRE-PROGRAMED MASSAGE
We have designed your chair with multiple massage options for your changing needs.
Follow these simple instructions to begin a new pre-programed massage.
Choose the "Massage" icon to select your pre-programed massage

15
Choose 1 of our 8 pre-programed massages

16
Pre-Programed Massage Interface

17
Using the arrows, you can adjust the standard shoulder position

18
Every body is different. That’s why we’ve given you the option to customize your own massage to meet your specific needs.
Follow these simple instructions to create a new custom massage.
Choose the "Custom Massage" icon to begin creating your custom massage
CUSTOM MASSAGE

19

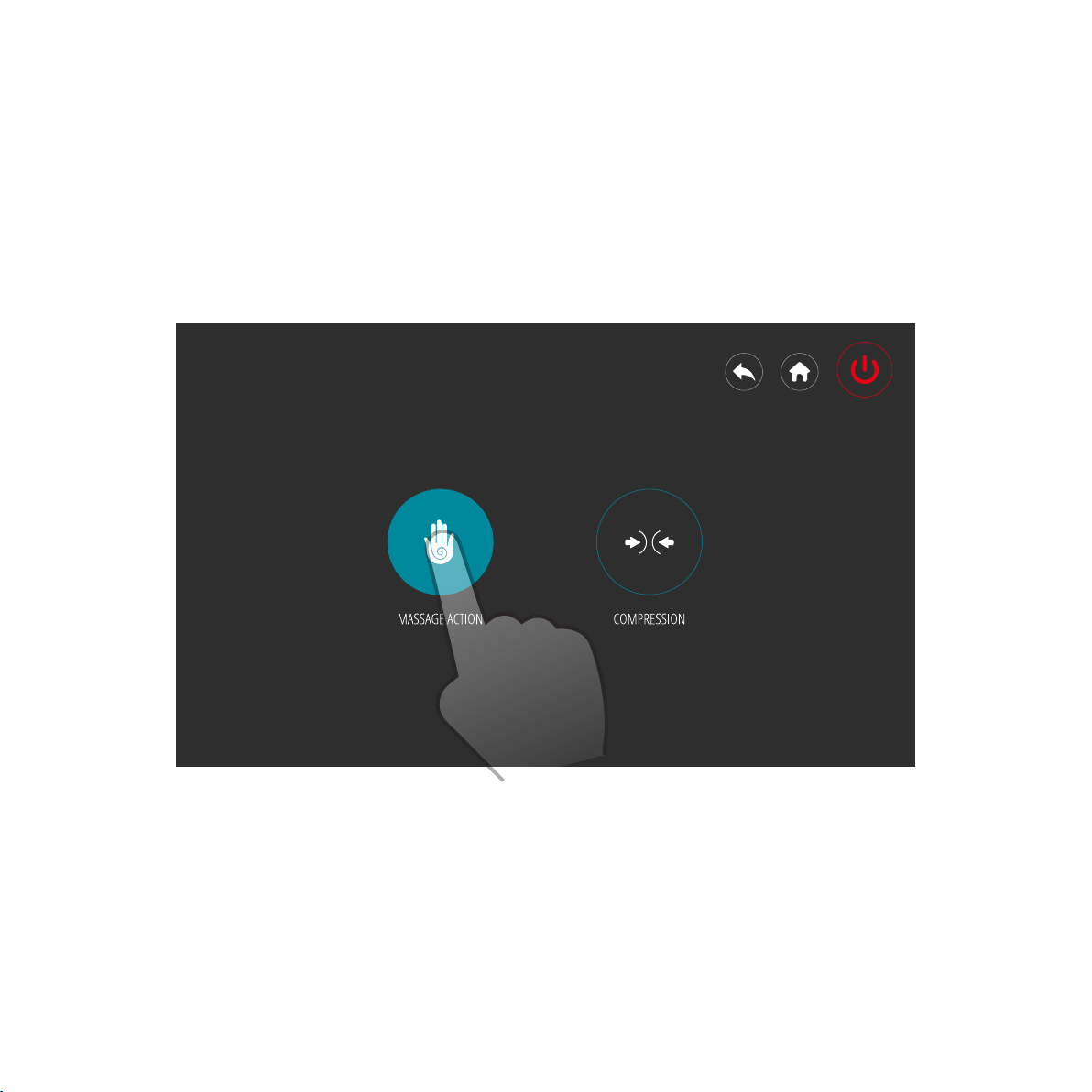

Choose the "Massage Action" icon
