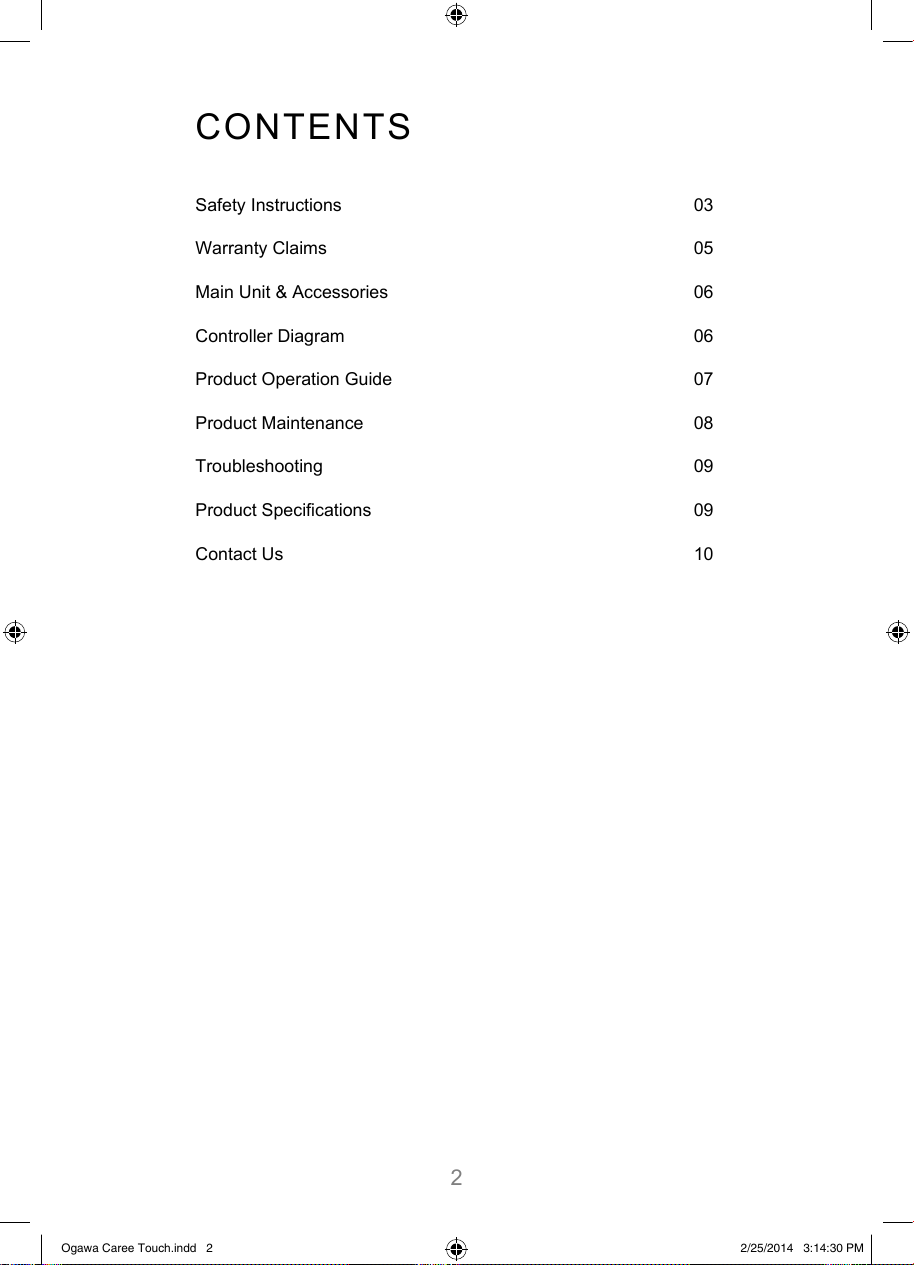

CONTENTS
Safety Instructions 03
Warranty Claims 05
Main Unit & Accessories 06
Controller Diagram 06
Product Operation Guide 07
Product Maintenance 08
Troubleshooting 09
Product Specifications 09
Contact Us 10
Ogawa Caree Touch.indd 2Ogawa Caree Touch.indd 2 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

3
Safety Instructions
i. Usage environment
●Do not use the appliance in a wet condition or dusty environment as this may
result in malfunction or electric shock.
●Do not use the appliance in the bathroom.
●Do not use the appliance on the bed.
●Do not place or store the appliance where it can fall or be pulled into a tub or
sink. Place the appliance in a safe location.
●Do not sit on the appliance.
●Do not expose the appliance to a heater or direct sunlight.
ii. Health precautions
If you are experiencing health complications or conditions as stated below, please
consult your doctor before use:
- Suffering from heart disease
- Pregnancy
- Any health concerns
iii. When the product should not be used
●If the use exceeds 15 minutes at one time.
●This unit should not be used by children or invalids without adult supervision.
●Do not use this product before sleep.
●If the fabric cover is torn.
●If water is accidentally spilled onto the appliance.
●If the user feels abnormal or severe pain during the massage.
●If the user detects any malfunction or other abnormal conditions during
operation.
●If there is lightning.
iv. Caution and warning
●Unplug the appliance from the outlet when not in use.
●Do not use any attachments that are not recommended by OGAWA.
●Do not operate this appliance if it has a damaged cord or plug. Please return
the unit to OGAWA Service Center for examination and repairs.
Ogawa Caree Touch.indd 3Ogawa Caree Touch.indd 3 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

4
Safety Instructions
●Do not drop or insert any object into any opening.
●Handle heated surfaces carefully. The unattended use of the heated surfaces
by children or invalids may be dangerous.
●Do not lift or carry this appliance by the power cord or any cord.
●This appliance is designed only for personal use, and not for professional
purposes.
●Do not cover the appliance during operation.
●Do not crush the appliance and avoid any sharp folds.
v. Note
●To ensure safe and proper use of the appliance, do not operate it before
reading this user manual carefully first.
●The appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge. They
need to be supervised and instructed about its usage by a person responsible
for their safety.
●Extensive usage could lead to excessive heating and a shorter product
lifespan. Should this occur, discontinue the use and allow the unit to cool
before operating again.
●For people under medication or with a medical condition, please consult your
doctor before use. Please do not use the product if you are not feeling well.
●If the appliance is used in a cold room, do not increase the room temperature
abruptly. It is advised that the temperature is gradually increased to a normal
level.
●If the appliance is stored in a cold place and being taken into a warm
environment, please wait one hour before use to get the optimum massaging
level.
●Do not remove the cover of the appliance. Mishandling the internal
components may result in malfunction or electric shock.
●Do not connect or disconnect the power plug from the electrical outlet with
wet hands.
●Do not use the appliance if the electrical outlet is loose.
Ogawa Caree Touch.indd 4Ogawa Caree Touch.indd 4 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

5
Warranty Claims
1. Warranty is not transferable.
2. This warranty is effective only if the product is purchased from OGAWA.
3. Proof of purchase (original receipt) is required for all warranty repairs.
4. All implied warranties, including but not limited to these implied warranties of fitness
and merchantability, are limited to the duration stated in the warranty policy.
5. Damage due to misuse, improper treatment and unauthorized modification and
repair are not covered by this warranty.
6. Warranty does not cover accessories and attachments which do not belong to the
massage unit.
7. Warranty is not effective to rental, business, commercial, institutional or other non-
residential users.
8. All services covered by this warranty must be approved by OGAWA and repaired by
authorized technicians only.
9. If replacement parts for defective materials are not available, OGAWA reserves the
right to make substitution in lieu of repair or replacement.
Ogawa Caree Touch.indd 5Ogawa Caree Touch.indd 5 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

6
Main Unit & Accessories
A) Handheld massager
B) Exchangeable massage head
Controller Diagram
High
Off
Low
Off: The unit does not function.
High: The LED is turned on, and the roller is striking at a high rate.
Low: The LED is turned on, and the roller is striking at a low rate.
Ogawa Caree Touch.indd 6Ogawa Caree Touch.indd 6 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

7

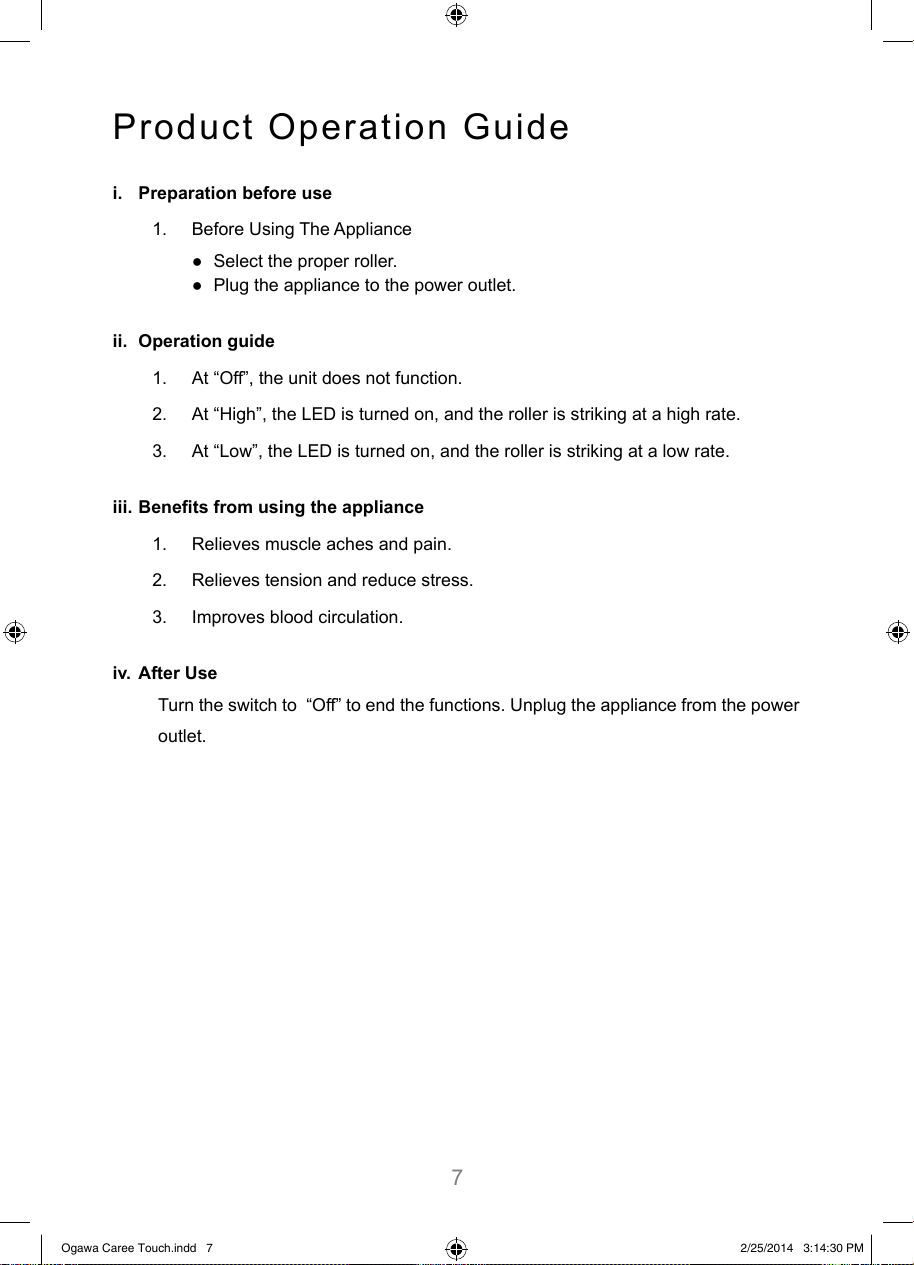

Product Operation Guide
i. Preparation before use
1. Before Using The Appliance
●Select the proper roller.
●Plug the appliance to the power outlet.
ii. Operation guide
1. At “Off”, the unit does not function.
2. At “High”, the LED is turned on, and the roller is striking at a high rate.
3. At “Low”, the LED is turned on, and the roller is striking at a low rate.
iii. Benefits from using the appliance
1. Relieves muscle aches and pain.
2. Relieves tension and reduce stress.
3. Improves blood circulation.
iv. After Use
Turn the switch to “Off” to end the functions. Unplug the appliance from the power
outlet.
Ogawa Caree Touch.indd 7Ogawa Caree Touch.indd 7 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

8
Product Maintenance
TO STORE
●Place the massager in this box or in a safe, dry and cool place. Avoid contact with
sharp edges or pointed objects that might cut or puncture the surface.
●Please wind up and store the power cord under the appliance bottom frame. Do not
hang the unit by the power cord.
TO CLEAN
●Avoid immersing the unit in any liquid during cleaning.
●Unplug the unit and allow it to cool before cleaning.
●Clean only with a soft, slightly damp sponge.
●Do not allow water or any other liquid to go inside the unit.
●Avoid using abrasive cleaners, brushes, gasoline, kerosene, glass/furniture polish
or paint thinner to clean the product.
●Do not attempt to repair the product. For servicing, please contact OGAWA.
CAUTION
●Avoid tearing on the appliance surface.
●Only gentle force should be exerted against the unit in order to eliminate any risk of
injury.
Ogawa Caree Touch.indd 8Ogawa Caree Touch.indd 8 2/25/2014 3:14:30 PM2/25/2014 3:14:30 PM
All manuals and user guides at all-guides.com

9

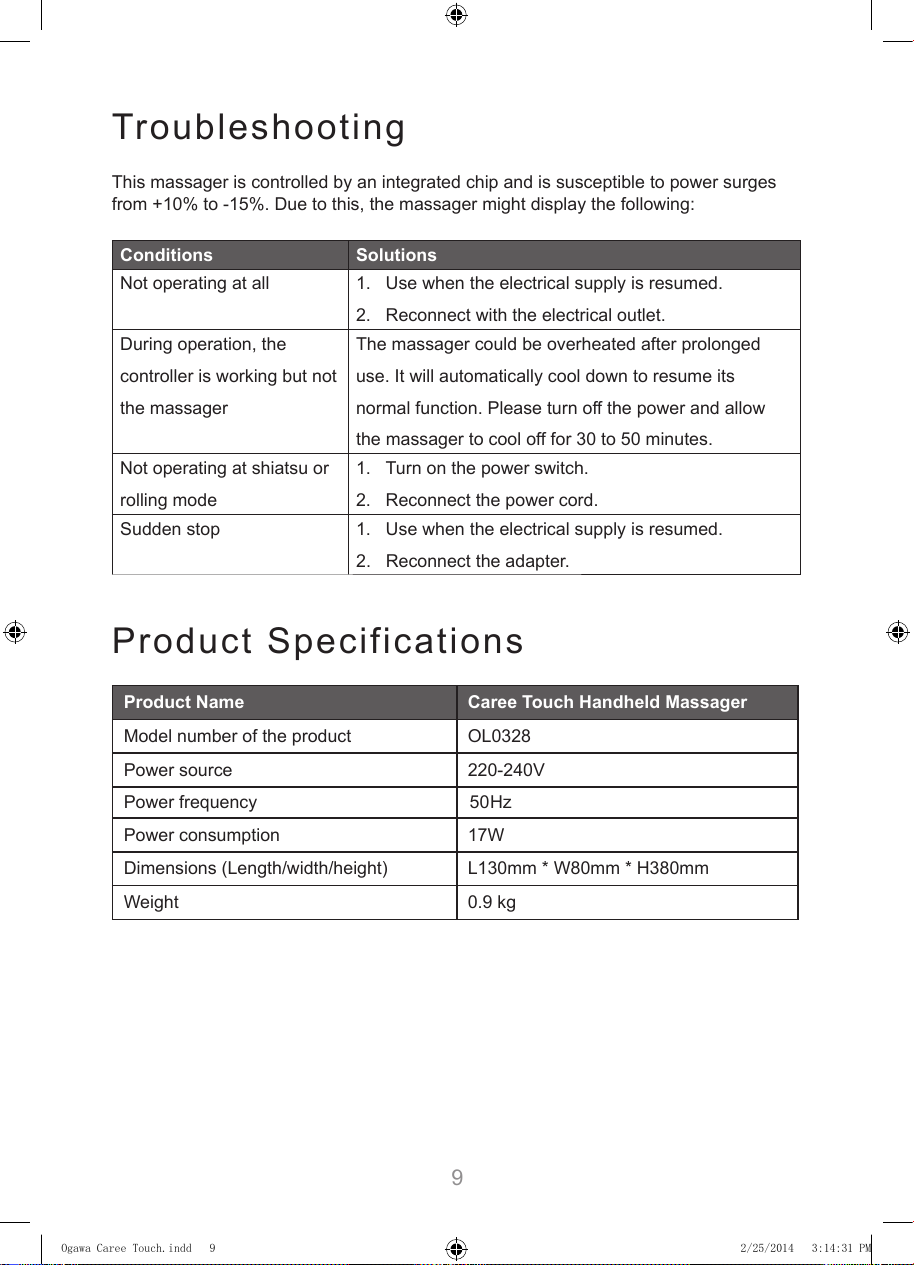

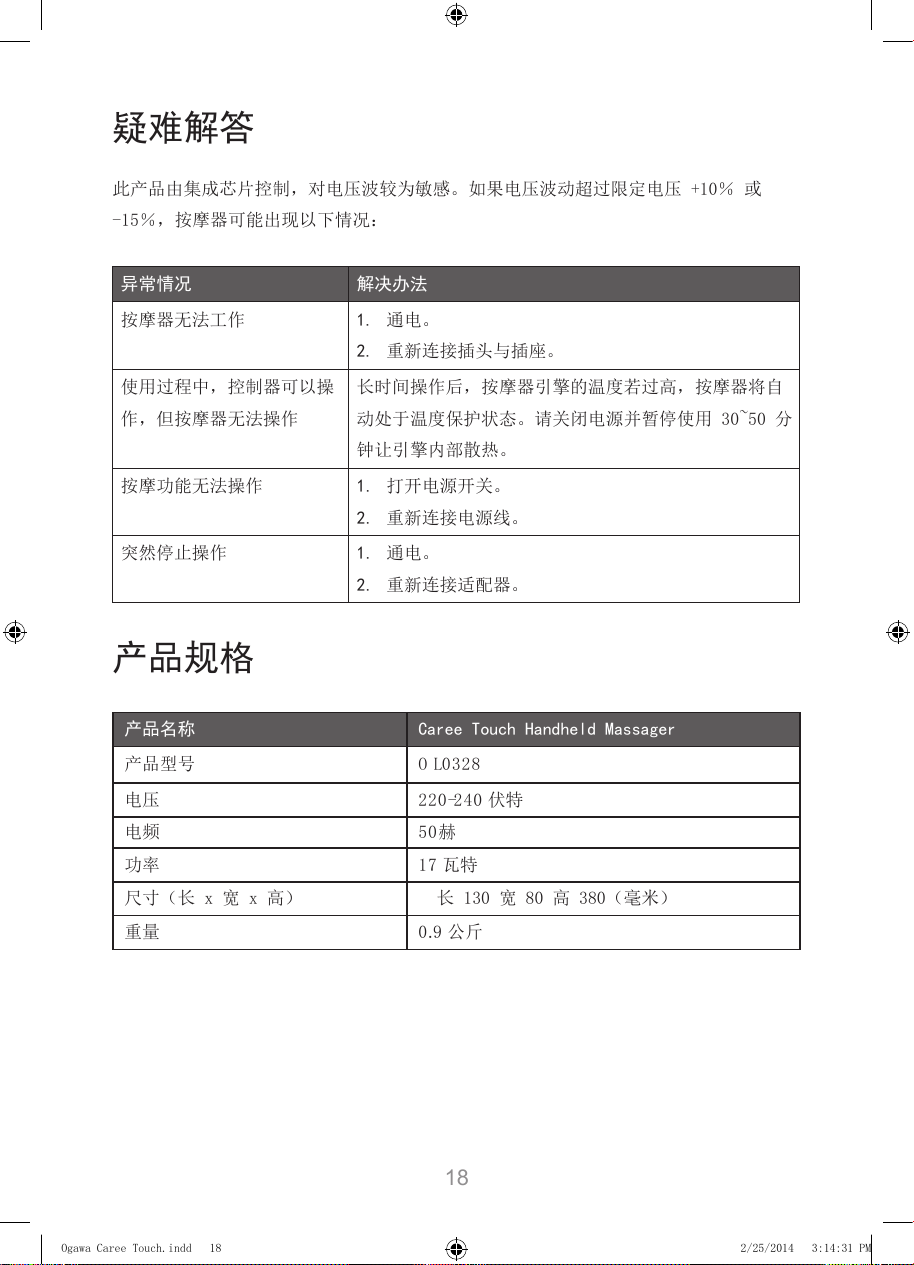

Troubleshooting
This massager is controlled by an integrated chip and is susceptible to power surges
from +10% to -15%. Due to this, the massager might display the following:
Conditions Solutions
Not operating at all 1. Use when the electrical supply is resumed.
2. Reconnect with the electrical outlet.
During operation, the
controller is working but not
the massager
The massager could be overheated after prolonged
use. It will automatically cool down to resume its
normal function. Please turn off the power and allow
the massager to cool off for 30 to 50 minutes.
Not operating at shiatsu or
rolling mode
1. Turn on the power switch.
2. Reconnect the power cord.
Sudden stop 1. Use when the electrical supply is resumed.
2. Reconnect the adapter.
Product Specifications
regassaMdlehdnaHhcuoTeeraCemaNtcudorP
Model number of the product OL0328
V042-022ecruosrewoP
zH05ycneuqerfrewoP
W71noitpmusnocrewoP
Dimensions (Length/width/height) L130mm * W80mm * H380mm
gk9.0thgieW
Ogawa Caree Touch.indd 9 2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

10

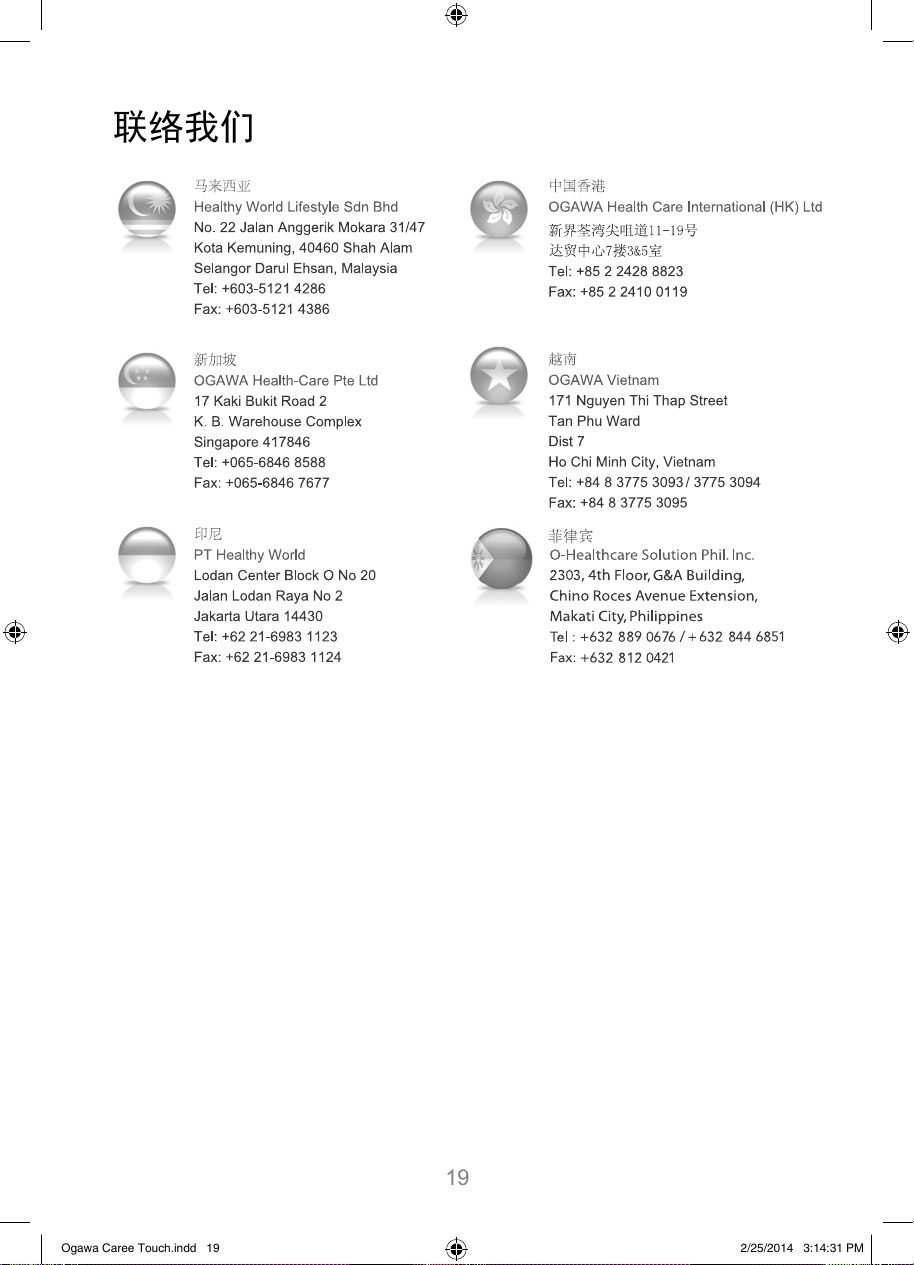

Contact Us
Ogawa Caree Touch.indd 10Ogawa Caree Touch.indd 10 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

11
目录
安全说明 12
保修权限 14
主要部件及附件 15
手控器说明 15
产品操作说明 16
产品保养 17
疑难解答 18
产品规格 18
联络我们 19
Ogawa Caree Touch.indd 11Ogawa Caree Touch.indd 11 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

12
安全说明
i. 使用环境
●请勿在潮湿或灰尘密集的环境下使用本产品，以免导致触电或机器故障。
●请勿在浴室中使用。
●请勿在床上使用。
●请勿将此产品放置于高处或水池等旁边，以免掉落。请存放于安全的地方。
●请勿坐在此产品上。
●请勿将此产品放置于电热器旁或阳光直射处。
ii. 健康注意事项
如果您有并发症或身体状态如下，请在使用前先咨询医生的意见：
- 心脏病患者
- 怀孕
- 有任何健康问题
iii. 禁止使用的情况
●每次使用请勿超过 15 分钟。
●小孩或残病人士使用时，需有旁人监护。
●请勿在睡前使用本产品。
●如果布套破损，请勿使用本产品。
●如果液体泼溅到产品上，请勿使用本产品。
●如果使用中产生不正常或严重疼痛时，请勿使用本产品。
●如果使用中察觉出任何机件故障或不正常状况，请勿使用。
●请勿在雷电情形发生时使用本产品。
iv. 注意事项及警告
●没有使用时，请拔下电源插头。
●请勿使用非 OGAWA 提供的配件。
●当电源线或插头损坏时，请勿使用并及时联系 OGAWA 服务中心进行维修检
查。
Ogawa Caree Touch.indd 12Ogawa Caree Touch.indd 12 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

13

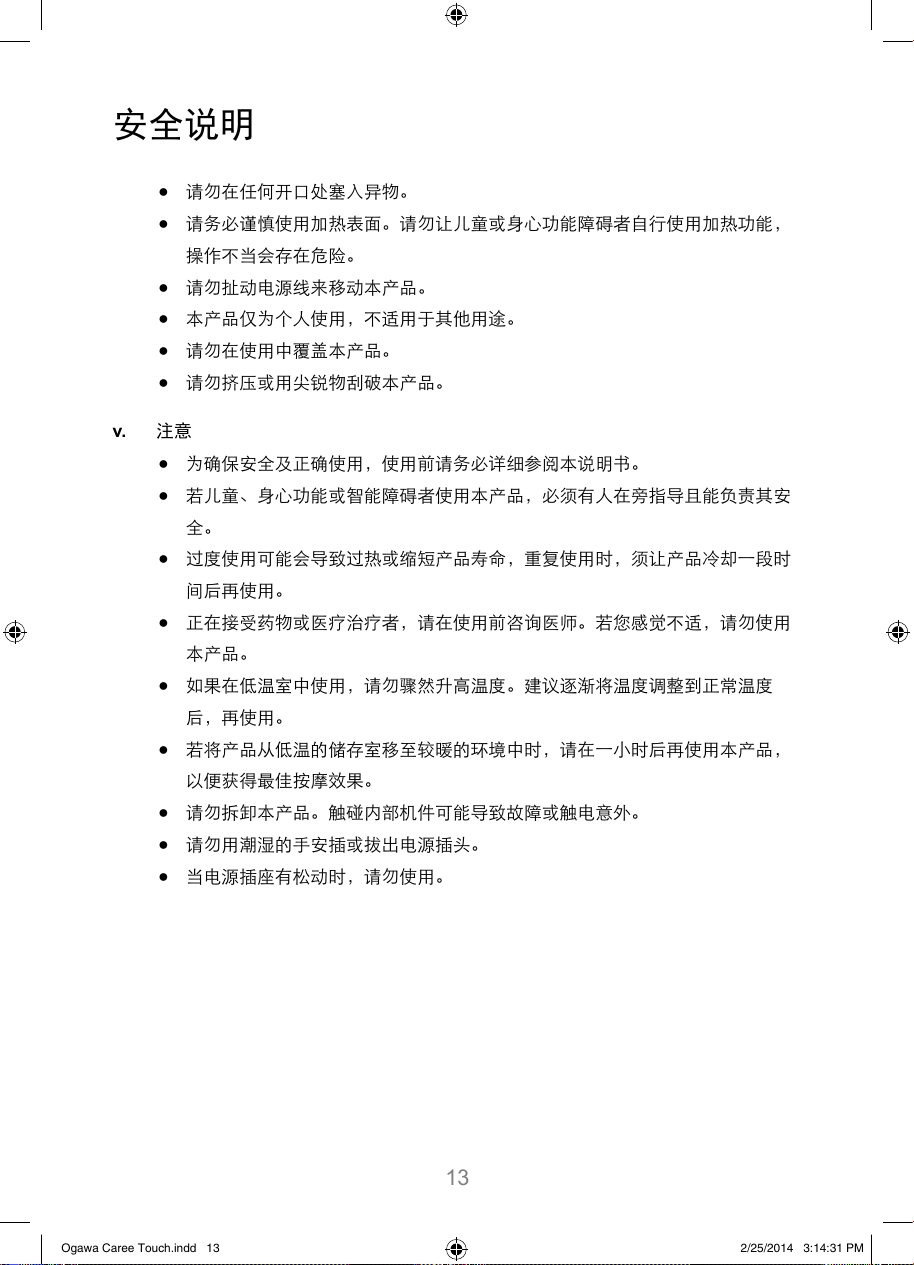

安全说明
●请勿在任何开口处塞入异物。
●请务必谨慎使用加热表面。请勿让儿童或身心功能障碍者自行使用加热功能，
操作不当会存在危险。
●请勿扯动电源线来移动本产品。
●本产品仅为个人使用，不适用于其他用途。
●请勿在使用中覆盖本产品。
●请勿挤压或用尖锐物刮破本产品。
v. 注意
●为确保安全及正确使用，使用前请务必详细参阅本说明书。
●若儿童、身心功能或智能障碍者使用本产品，必须有人在旁指导且能负责其安
全。
●过度使用可能会导致过热或缩短产品寿命，重复使用时，须让产品冷却一段时
间后再使用。
●正在接受药物或医疗治疗者，请在使用前咨询医师。若您感觉不适，请勿使用
本产品。
●如果在低温室中使用，请勿骤然升高温度。建议逐渐将温度调整到正常温度
后，再使用。
●若将产品从低温的储存室移至较暖的环境中时，请在一小时后再使用本产品，
以便获得最佳按摩效果。
●请勿拆卸本产品。触碰内部机件可能导致故障或触电意外。
●请勿用潮湿的手安插或拔出电源插头。
●当电源插座有松动时，请勿使用。
Ogawa Caree Touch.indd 13Ogawa Caree Touch.indd 13 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

14
保修权限
1. 本保修权限不可转让。
2. 本保修服务仅对在 OGAWA 购买的产品有效。
3. 当要求保修服务时，请出示购买证明（正本收据）。
4. 所有保修项目，包括但不限于这些健身及适销性的保修项目有效期限需视保修政策
而定。
5. 因错误使用、处理不当以及未经授权私自改装和维修产品而导致的损坏，不属于保
修范围。
6. 此保修范围不包括不属于产品本身的附件。
7. 此保修范围不适用于租凭、交易、商业、机构或其他非住宅用户。
8. 此保修范围内所涉及的维修服务需经过 OGAWA 授权，且必须由授权的技术人员维
修。
9. 若需更换的维修附件缺货，OGAWA 有权采用替代配件进行维修。
Ogawa Caree Touch.indd 14Ogawa Caree Touch.indd 14 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

15
主要部件及附件
A) 手持按摩器
B) 可替换按摩头
手控器说明
High
Off
Low
Off : 当开关拨动到 Off 档时，整机关闭无功能。
High : 当开关拨动到 High 档时，指示灯亮，按摩头呈敲击状态，敲击频率为快档。
Low : 当开关拨动到 Low 档时，指示灯亮，按摩头呈敲击状态，敲击频率为慢档。
Ogawa Caree Touch.indd 15Ogawa Caree Touch.indd 15 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

16
产品操作说明
i. 使用前准备
1. 使用产品之前
●选择合适的按摩头。
●请将电源线插入电源插座。
ii. 操作指导
1. 当开关拨动到“Off”档时，整机关闭。
2. 当开关拨动到“High”档时，指示灯亮，按摩头呈敲击状态，敲击频率为快
档。
3. 当开关拨动到“Low”档时，指示灯亮，按摩头呈敲击状态，敲击频率为慢
档。
iii. 使用效果
1. 缓解肌肉疼痛。
2. 缓解精神紧张并降低压力。
3. 促进血液循环。
iv. 使用后
使用完毕之后，请将开关拨动到“Off”档，拔出电源线。
Ogawa Caree Touch.indd 16Ogawa Caree Touch.indd 16 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

17

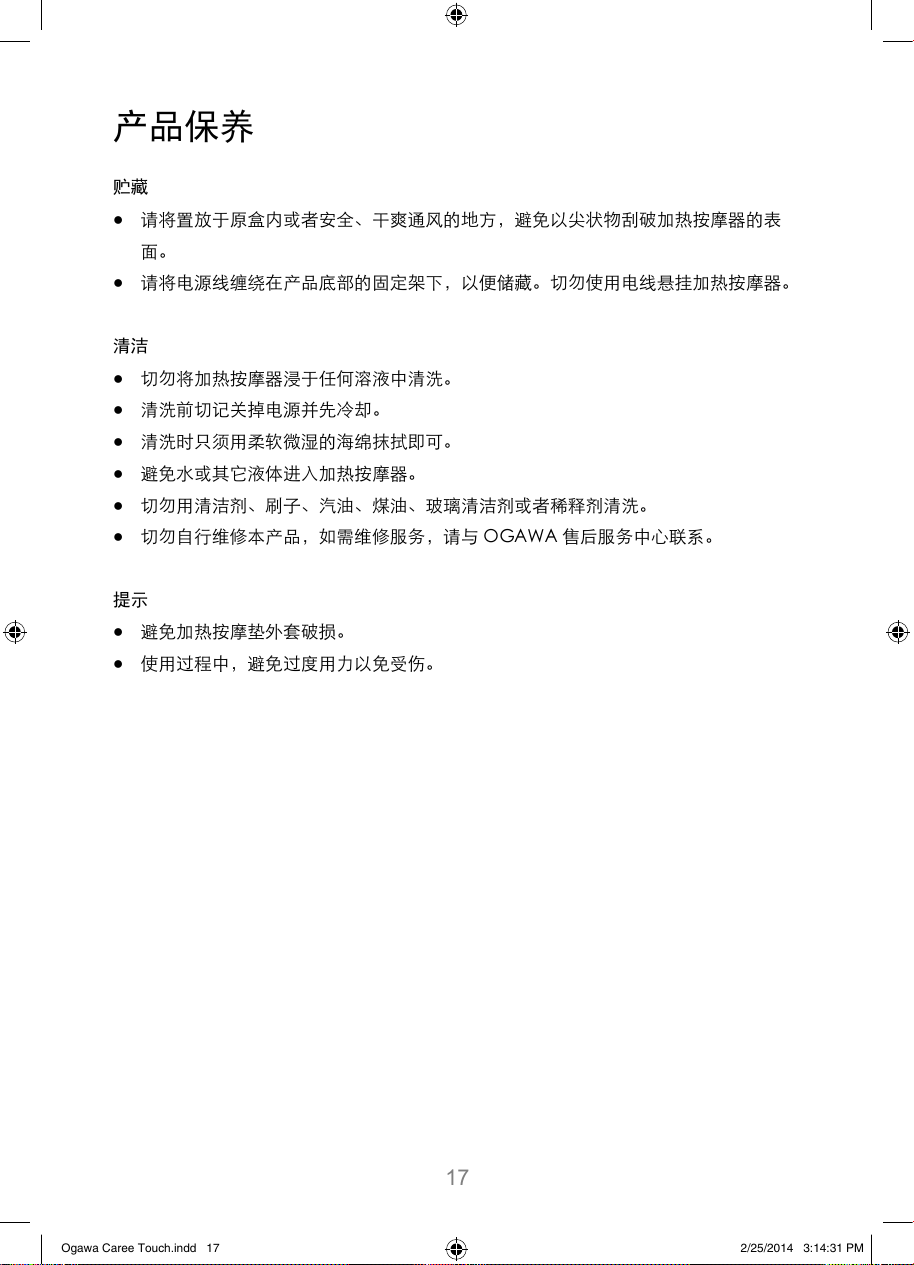

产品保养
贮藏
●请将置放于原盒内或者安全、干爽通风的地方，避免以尖状物刮破加热按摩器的表
面。
●请将电源线缠绕在产品底部的固定架下，以便储藏。切勿使用电线悬挂加热按摩器。
清洁
●切勿将加热按摩器浸于任何溶液中清洗。
●清洗前切记关掉电源并先冷却。
●清洗时只须用柔软微湿的海绵抹拭即可。
●避免水或其它液体进入加热按摩器。
●切勿用清洁剂、刷子、汽油、煤油、玻璃清洁剂或者稀释剂清洗。
●切勿自行维修本产品，如需维修服务，请与 OGAWA 售后服务中心联系。
提示
●避免加热按摩垫外套破损。
●使用过程中，避免过度用力以免受伤。
Ogawa Caree Touch.indd 17Ogawa Caree Touch.indd 17 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

18
疑难解答
此产品由集成芯片控制，对电压波较为敏感。如果电压波动超过限定电压 +10％ 或
-15％，按摩器可能出现以下情况：
异常情况 解决办法
按摩器无法工作 1. 通电。
2. 重新连接插头与插座。
使用过程中，控制器可以操
作，但按摩器无法操作
长时间操作后，按摩器引擎的温度若过高，按摩器将自
动处于温度保护状态。请关闭电源并暂停使用 30~50 分
钟让引擎内部散热。
按摩功能无法操作 1. 打开电源开关。
2. 重新连接电源线。
突然停止操作 1. 通电。
2. 重新连接适配器。
产品规格
regassaMdlehdnaHhcuoTeeraC称名品产
8230LO号型品产
特伏 042-022压电
赫 05频电
特瓦 71率功
尺寸（长 x 宽 x 高） 长 130 宽 80 高 380（毫米）
斤公 9.0量重
Ogawa Caree Touch.indd 18 2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com

19
联络我们
Ogawa Caree Touch.indd 19Ogawa Caree Touch.indd 19 2/25/2014 3:14:31 PM2/25/2014 3:14:31 PM
All manuals and user guides at all-guides.com
