Ogawa Mobile Shiatsu LITE OG2015 User manual

User Manual
OG2015 使用手册
Mobile Shiatsu.indd 1 3/21/2014 11:20:16 AM

1
All information is correct at the time of print
User Manual
Mobile Shiatsu.indd 1 3/21/2014 11:20:17 AM

2
CONTENTS
30snoitcurtsnIytefaS
50smialCytnarraW
60seirosseccA&tinUniaM
70ediuGnoitarepOtcudorP
90ecnanetniaMtcudorP
01gnitoohselbuorT
Product Specifi 01snoitac
11sUtcatnoC
Mobile Shiatsu.indd 2 3/21/2014 11:20:17 AM

3
Safety Instructions
i. Usage environment
●Do not use the appliance in a wet condition or dusty environment as this may
result in malfunction or electric shock.
●Do not use the appliance in the bathroom.
●Do not use the appliance on the bed.
●Do not place or store the appliance where it can fall or be pulled into a tub or
sink. Place the appliance in a safe location.
●Do not sit on the appliance.
●Do not expose the appliance to a heater or direct sunlight.
ii. Health precautions
If you are experiencing health complications or conditions as stated below, please
consult your doctor before use:
- Suffering from heart disease
- Pregnancy
- Any health concerns
iii. When the product should not be used
●If the use exceeds 15 minutes at one time.
●This unit should not be used by children or invalids without adult supervision.
●Do not use this product before sleep.
●If the fabric cover is torn.
●If water is accidentally spilled onto the appliance.
●If the user feels abnormal or severe pain during the massage.
●If the user detects any malfunction or other abnormal conditions during
operation.
●If there is lightning.
iv. Caution and warning
●Unplug the appliance from the outlet when not in use.
●Do not use any attachments that are not recommended by OGAWA.
●Do not operate this appliance if it has a damaged cord or plug. Please return
the unit to OGAWA Service Center for examination and repairs.
Mobile Shiatsu.indd 3 3/21/2014 11:20:17 AM
●The appliance is only to be used with the power supply unit provided with
the appliance.

4
Safety Instructions
●Do not drop or insert any object into any opening.
●Handle heated surfaces carefully. The unattended use of the heated surfaces
by children or invalids may be dangerous.
●Do not lift or carry this appliance by the power cord or any cord.
●The appliance has heated surface. Person insensitive to heat must be
careful when using the appliance.
●This appliance is designed only for personal use, and not for professional
purposes.
●Do not cover the appliance during operation.
●Do not crush the appliance and avoid any sharp folds.
v. Note
●To ensure safe and proper use of the appliance, do not operate it before
reading this user manual carefully first.
●The appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge. They
need to be supervised and instructed about its usage by a person responsible
for their safety.
●Extensive usage could lead to excessive heating and a shorter product
lifespan. Should this occur, discontinue the use and allow the unit to cool
before operating again.
●For people under medication or with a medical condition, please consult your
doctor before use. Please do not use the product if you are not feeling well.
●If the appliance is used in a cold room, do not increase the room temperature
abruptly. It is advised that the temperature is gradually increased to a normal
level.
●If the appliance is stored in a cold place and being taken into a warm
environment, please wait one hour before use to get the optimum massaging
level.
●Do not remove the cover of the appliance. Mishandling the internal
components may result in malfunction or electric shock.
●Do not connect or disconnect the power plug from the electrical outlet with
wet hands.
●Do not use the appliance if the electrical outlet is loose.
●Do not allow children to play with the appliance.
●Cleaning or maintenance shall not be made by children without supervision.
Mobile Shiatsu.indd 4 3/21/2014 11:20:17 AM

5
Warranty Claims
1. Warranty is not transferable.
2. This warranty is effective only if the product is purchased from OGAWA.
3. Proof of purchase (original receipt) is required for all warranty repairs.
4. All implied warranties, including but not limited to these implied warranties of fitness
and merchantability, are limited to the duration stated in the warranty policy.
5. Damage due to misuse, improper treatment and unauthorized modification and
repair are not covered by this warranty.
6. Warranty does not cover accessories and attachments which do not belong to the
massage unit.
7. Warranty is not effective to rental, business, commercial, institutional or other non-
residential users.
8. All services covered by this warranty must be approved by OGAWA and repaired by
authorized technicians only.
9. If replacement parts for defective materials are not available, OGAWA reserves the
right to make substitution in lieu of repair or replacement.
Mobile Shiatsu.indd 5 3/21/2014 11:20:17 AM

6
Main Unit & Accessories
A) Massager
B) Car adapter
C) Power adapter
Car adapter Power adapter
Mobile Shiatsu.indd 6 3/21/2014 11:20:17 AM
The body
ON/OFF button
Kneading head

7
Product Operation Guide
i. Product features
●Multi-function massager that can be used on every part of the body,
especially on the neck, the shoulder, the waist.
●4 smooth massager heads that can be automatically inverted to knead
and relax muscles.
●Physical therapy function and massager stimulation to soothe multiple
aches and provide a more thorough massage convenient use with just
one button.
●Light and handy, portable.
●After using for 15 minutes, the power will automatically end.
●For use at home and in a car. The ergonomic design allows the product to
be used in different occasions and places.
Mobile Shiatsu.indd 7 3/21/2014 11:20:17 AM

8
ii. Operation instruction
The waist The leg The shoulder and neck
a) Preparation before use
●Check if there is any damage to the appliance.
●Place the appliance on the part which needs to massaged, before
ensuring that the appliance is properly placed.
b) Usage method
1. Connect the DC head of the power adapter to the DC connector of the
appliance, and plug the other side into the power base.
2. Operation method
●Press the ON/OFF button once to start the massage and heating function,
at which point, the massager head will start to move. (Yellow display)
●Press the ON/OFF button second time to turn off the heating fuction, at
which point, the massager head will start to move with no display.
●Press the ON/OFF button for 2 seconds to end all function.
3. When using the product in the car, plug the DC head of the car adapter into
the DC connector of the appliance, while plugging the other side into the
cigar lighter. The operating method is the same as above.
Mobile Shiatsu.indd 8 3/21/2014 11:20:18 AM

9
Product Maintenance
TO STORE
●Place the massager in this box or in a safe, dry and cool place. Avoid contact with
sharp edges or pointed objects that might cut or puncture the surface.
●Please wind up and store the power cord under the appliance bottom frame. Do not
hang the unit by the power cord.
TO CLEAN
●Avoid immersing the unit in any liquid during cleaning.
●Unplug the unit and allow it to cool before cleaning.
●Clean only with a soft, slightly damp sponge.
●Do not allow water or any other liquid to go inside the unit.
●Avoid using abrasive cleaners, brushes, gasoline, kerosene, glass/ furniture polish
or paint thinner to clean the product.
●Do not attempt to repair the product. For servicing, please contact OGAWA.
CAUTION
●Avoid tearing on the appliance surface.
●Only gentle force should be exerted against the unit in order to eliminate any risk of
injury.
Mobile Shiatsu.indd 9 3/21/2014 11:20:18 AM

10
Troubleshooting
This massager is controlled by an integrated chip and is susceptible to power surges
from +10% to -15%. Due to this, the massager might display the following:
Conditions Possible reason Solutions
The appliance
cannot be
opened.
1. The appliance is not
connected to the power
source.
2. Do not start the ON/OFF
button.
1. Please check if the power is
connected properly.
2. Start the ON/OFF button.
The appliance
suddenly
shuts down all
functions.
1. The appliance is powered off.
2. The total operating time is
over 15 minutes.
3. The appliance has been used
for a long time, resulting in
over-heating.
4. Due to too much force
applied, the massager head is
stalled.
1. Please check if the power.
source is connected properly.
2. Re-start the ON/OFF button.
3. After the appliance has
cooled down, re-start the ON/
OFF button.
4. Re-start ON/OFF button.
Product Specifications
Product Name Mobile shiatsu LITE
Model number of the product OG2015
V042-001ecruosrewoP
50/60HzycneuqerfrewoP
W42noitpmusnocrewoP
12VDC, 2AVoltage
setunim51remiT
Dimension (Length/width/height) （315*200*100）mm
1.35±0.3kgthgieW
Mobile Shiatsu.indd 10 3/21/2014 11:20:18 AM

11

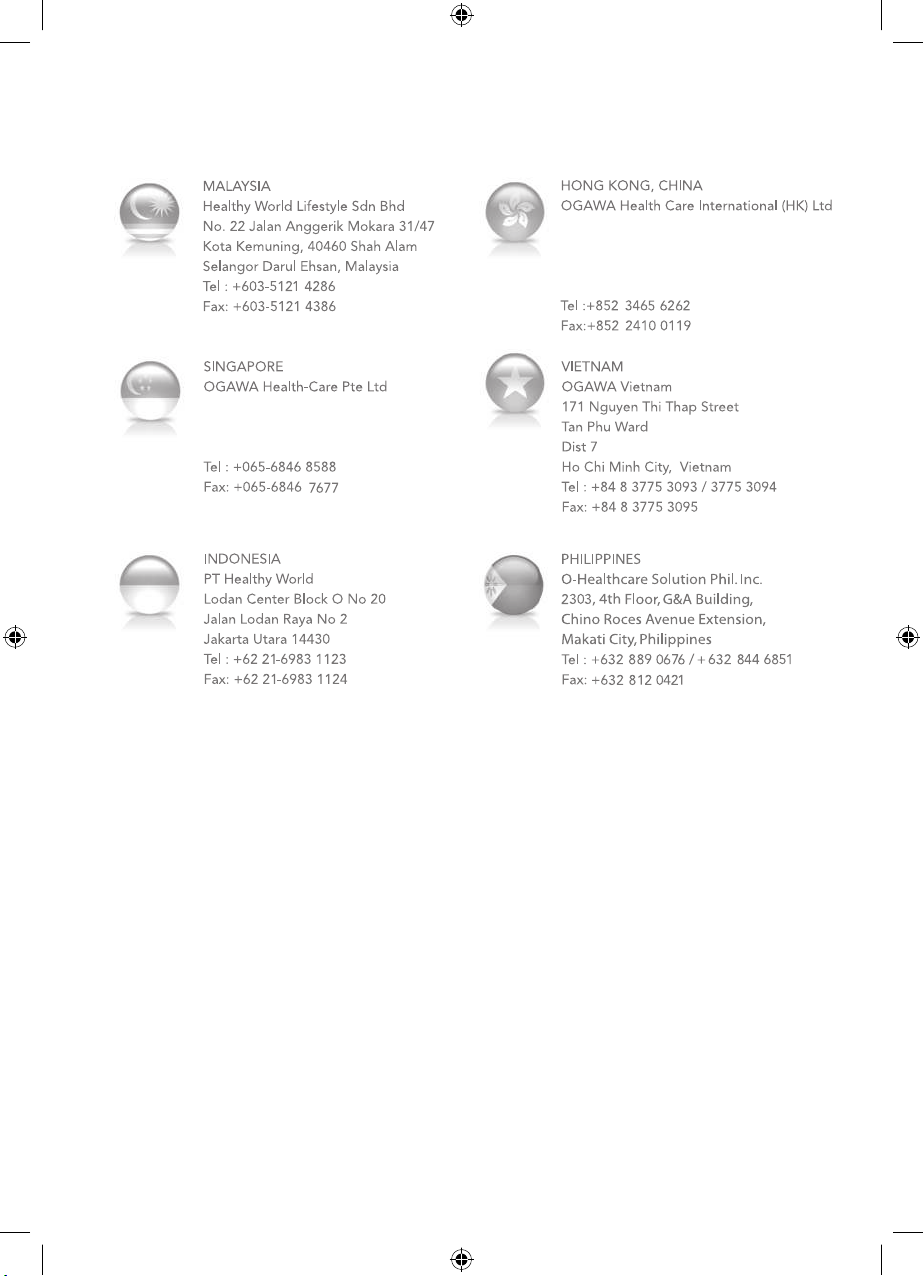

Contact Us
Ogawa Caree Touch.indd 10 2/25/2014 3:14:31 PM
27 Tampines IndustrialA venue 5,
T5 @ Tampines
Singapo re 528623
31/F, YHCTowe r, 1 SheungYuet Road
Kowloon Bay
Kowloon
Hong Kong

12
目录
31明说全安
51限权修保
61件附及件部要主
61明说器控手
71明说作操品产
91养保品产
02答解难疑
02格规品产
12们我络联
Mobile Shiatsu.indd 12 3/21/2014 11:20:18 AM

13
安全说明
i. 使用环境
●请勿在潮湿或灰尘密集的环境下使用本产品，以免导致触电或机器故障。
●请勿在浴室中使用。
●请勿在床上使用。
●请勿将此产品放置于高处或水池等旁边，以免掉落。请存放于安全的地方。
●请勿坐在此产品上。
●请勿将此产品放置于电热器旁或阳光直射处。
ii. 健康注意事项
如果您有并发症或身体状态如下，请在使用前先咨询医生的意见：
- 心脏病患者
- 怀孕
- 有任何健康问题
iii. 禁止使用的情况
●每次使用请勿超过 15 分钟。
●小孩或残病人士使用时，需有旁人监护。
●请勿在睡前使用本产品。
●如果布套破损，请勿使用本产品。
●如果液体泼溅到产品上，请勿使用本产品。
●如果使用中产生不正常或严重疼痛时，请勿使用本产品。
●如果使用中察觉出任何机件故障或不正常状况，请勿使用。
●请勿在雷电情形发生时使用本产品。
iv. 注意事项及警告
●没有使用时，请拔下电源插头。
●请勿使用非 OGAWA 提供的配件。
●当电源线或插头损坏时，请勿使用并及时联系 OGAWA 服务中心进行维修检
查。
Mobile Shiatsu.indd 13 3/21/2014 11:20:18 AM
●请勿使用非该产品配套的开关电源。

14
安全说明
●请勿在任何开口处塞入异物。
●请务必谨慎使用加热表面。请勿让儿童或身心功能障碍者自行使用加热功能，
操作不当会存在危险。
●请勿扯动电源线来移动本产品。
●该产品有加热表面，对于热不敏感的人必须小心使用。
●本产品仅为个人使用，不适用于其他用途。
●请勿在使用中覆盖本产品。
●请勿挤压或用尖锐物刮破本产品。
v. 注意
●为确保安全及正确使用，使用前请务必详细参阅本说明书。
●肢体不健全，感官或精神上有障碍或缺乏相关知识经验的人，必须有人在旁
指导且能负责其安全下使用该产品。
●过度使用可能会导致过热或缩短产品寿命，重复使用时，须让产品冷却一段时
间后再使用。
●正在接受药物或医疗治疗者，请在使用前咨询医师。若您感觉不适，请勿使用
本产品。
●如果在低温室中使用，请勿骤然升高温度。建议逐渐将温度调整到正常温度
后，再使用。
●若将产品从低温的储存室移至较暖的环境中时，请在一小时后再使用本产品，
以便获得最佳按摩效果。
●请勿拆卸本产品。触碰内部机件可能导致故障或触电意外。
●请勿用潮湿的手安插或拔出电源插头。
●当电源插座有松动时，请勿使用。
●避免儿童在产品上玩耍。
●儿童必须在有监管的条件下才能对产品进行清洁和维护。
Mobile Shiatsu.indd 14 3/21/2014 11:20:18 AM

15
保修权限
1. 本保修权限不可转让。
2. 本保修服务仅对在 OGAWA 购买的产品有效。
3. 当要求保修服务时，请出示购买证明（正本收据）。
4. 所有保修项目，包括但不限于这些健身及适销性的保修项目有效期限需视保修政策
而定。
5. 因错误使用、处理不当以及未经授权私自改装和维修产品而导致的损坏，不属于保
修范围。
6. 此保修范围不包括不属于产品本身的附件。
7. 此保修范围不适用于租凭、交易、商业、机构或其他非住宅用户。
8. 此保修范围内所涉及的维修服务需经过 OGAWA 授权，且必须由授权的技术人员维
修。
9. 若需更换的维修附件缺货，OGAWA 有权采用替代配件进行维修。
Mobile Shiatsu.indd 15 3/21/2014 11:20:18 AM

16
主要部件及附件
A) 按摩器
B) 车用转接器
C) 电源适配器
手控器说明
车用转接器 电源适配器
Mobile Shiatsu.indd 16 3/21/2014 11:20:18 AM

17
产品操作说明
i. 产品特性
●多用途按摩器，适用于身体各部位，特别是颈部、肩部及腰部。
●4 个平滑按摩头自动正反转，并放松肌肉。
●温热理疗功能，多重舒缓酸痛，按摩更深入。使用方便，一个按钮提供
简易操作。
●轻巧且携带方便。
●使用 15 分钟后，电源自动关闭。
●居家/车载两用，人体工学曲线设计，兼顾多场合多部位使用，按摩更随
心。
Mobile Shiatsu.indd 17 3/21/2014 11:20:19 AM

18
ii. 操作说明
部肩颈部腿部腰
a) 使用前准备
●检查产品有无破损。
●将产品置放于想要按摩的身体部位，并且确定摆放位置适当。
b) 使用方法
1. 将电源适配器的 DC 头接入产品的 DC 线接口，另一端插入 220 V/50 HZ 的
电源插座上。
2. 操作方法
●按 ON/OFF 开关按钮一次，开启按摩及加热功能，此时按摩球转动，并显
显示为黄色。
●按 ON/OFF 开关按钮第二次，开启按摩功能，加热功能关闭，此时仅按摩
球转动。
●长按 ON/OFF 开关按钮2秒，关闭所有功能。
3. 车用时，将车用转接器的 DC 头，接入产品的 DC 连接口，另一端插入点烟
器，操作方法同上。
Mobile Shiatsu.indd 18 3/21/2014 11:20:19 AM

19
产品保养
贮藏
●请将置放于原盒内或者安全、干爽通风的地方，避免以尖状物刮破加热按摩器的表
面。
●请将电源线缠绕在产品底部的固定架下，以便储藏。切勿使用电线悬挂加热按摩器。
清洁
●切勿将加热按摩器浸于任何溶液中清洗。
●清洗前切记关掉电源并先冷却。
●清洗时只须用柔软微湿的海绵抹拭即可。
●避免水或其它液体进入加热按摩器。
●切勿用清洁剂、刷子、汽油、煤油、玻璃清洁剂或者稀释剂清洗。
●切勿自行维修本产品，如需维修服务，请与 OGAWA 售后服务中心联系。
提示
●避免加热按摩垫外套破损。
●使用过程中，避免过度用力以免受伤。
Mobile Shiatsu.indd 19 3/21/2014 11:20:19 AM
