Ogawa SMART RELUXE OG6383 User manual

User Manual
OG6383使用手册

01 - 04
05
06 - 07
08 - 09
10 - 12
13 - 16
17
18
Before Use
● Important safety instructions
● Grounding instructions
● Setup of the massage lounger
● Before use
● Product parts
How to use
● Operation Guide
● After massage
Maintenance
● Cleaning and maintenance
Q&A/Important notes
● Q&A
● Troubleshooting
● Specification

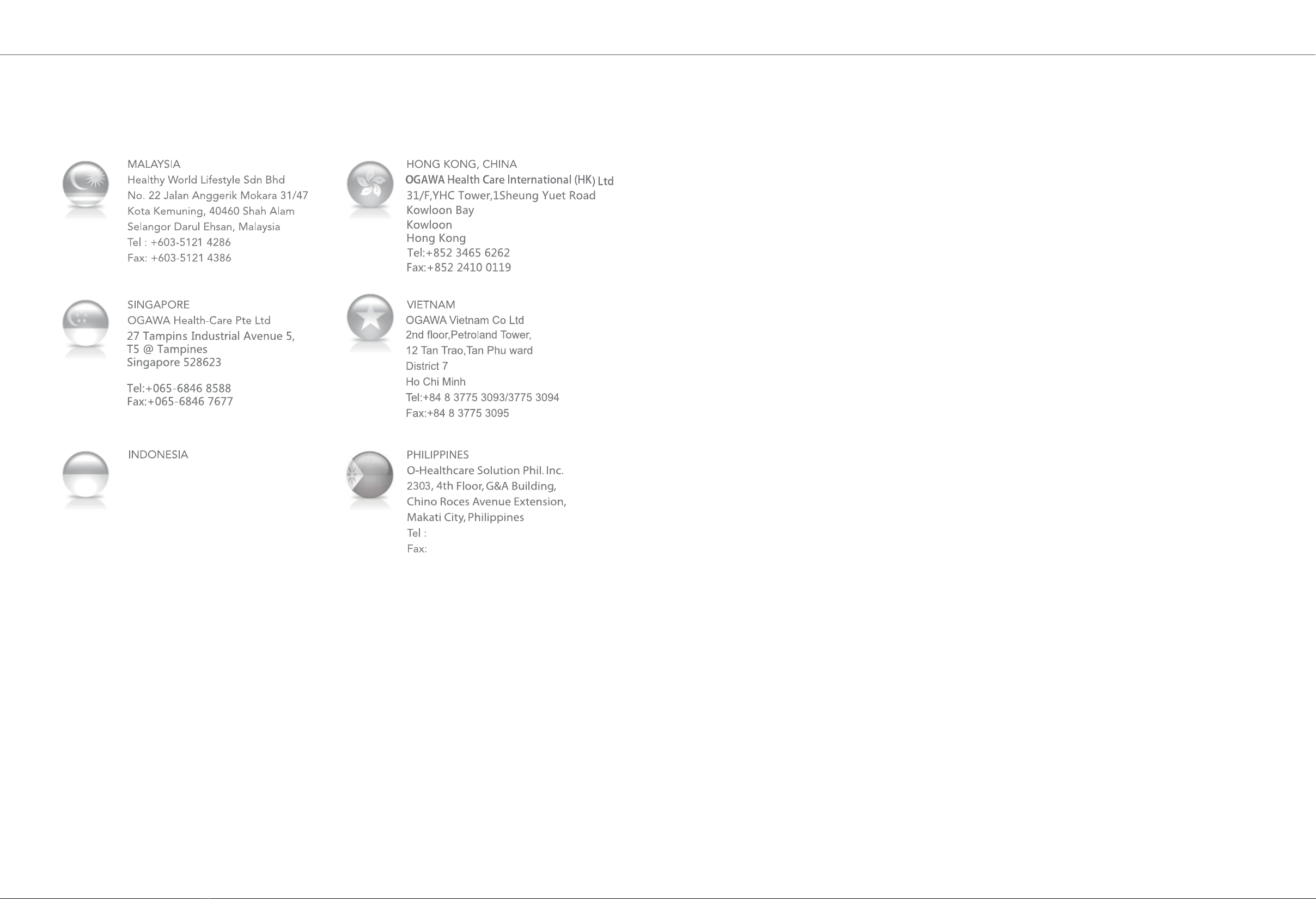

● Contact Us
19
20-21
22
23
Contents
SMART RELUXE MASSAGE CHAIR
User manual
All information is correct at the time of print

01 02
Important safety instructions Must be followed
These safety instructions must be strictly followed in use to aviod personal injuries and property damage are as follows:
(1) pacemaker or another in-vivo electronic medical device tending
to suffer electronic jamming;
(2) Patients with malignant tumors;
(3) Patients with heart disease;
(4) Persons proved to be unable to identify temperatures;
(5) Pregnant persons or women who have just had childbirth;
(6) Persons with perceptual disturbance because of diabetes or
another serious peripheral circulation disturbance;
(7) Osteoporosis patients, spinal fracture patients, or persons with
acute painful diseases such as sprains or muscle strains;
(8) Persons with injuries in the massaged parts;
(9) Persons with a body temperature above 38℃(with a fever)(For
example,persons with intense acute inflammation symptoms
such as listlessness, cold shivers and blood pressure change
or persons in poor health）；
(10) Persons who are unwell or must have a rest;
(11) Persons with an abnormal or bent vertebra;
(12) Persons with protrusion of intervertebral disc;
(13) Persons who feel very uncomfortable(except for the
circumstances above)
All the safety instructions are described in compliance with degrees of the injuries or damage as a result of wrong use.
Pay attention to the symbols before safety instructions(an example is given below).
Actions that must be absolutely forbidden
Before using the product,persons who are being treated or have any of the following symptoms should consult a physician.
If you feel physically abnormal while using or no effect after use, stop the product immediately and consult a physician about it.
Before being massaged or moving the backrest or the lower Leg/Foot massage section, make sure there is no peopleor pet
close to the product(in front, behind, below or on the side)
Before use,make sure there is no foreign matter between the backrest and the back cover.
Before use,lift the back cushion and check whether fabric of traveling sections of the massage wheels or of other positions
Do not massage for more than 30 minutes each time.
Do not massage a single part for more than 5 minutes.
After use each time, turn the power switch to the “O”position,then pull out the power plug.
Follow the regulations about use of the socket and the wiring devices.
Insert the power plug thoroughly into the socket.
Use a 220-240V~, 50-60Hz power supply.
(Do not use the product in a foreign country or connect it with a transformer without permission.)
are damaged.
(Even if the fabric is slightly damaged, stop the product immediately, pull out the power plug and send the product to repair.)
Otherwise accidents or physical discomfort may happen.
Remove such dirt anddust on the power plug at regular intervals.
In the case of any abnormality or fault, stop the product immediately and pull out the power plug to avoid smoke,fires and electric
shocks.
Otherwise fires caused by poor insulation due to factors such as moisture may happen.
(Wipe the power plug with dry cloth.)
Do not put the back cushion between the backrest and the back cover.
Otherwise product faults may happen.
When handling the product,hold its frame.
Otherwise product faults or personal injuries may happen.
The following persons should not use the product.
Persons for whom massage is forbidden by doctors, such as persons with thrombosis, serious aneurysm, acute venous
aneurysm, various skin inflammations(such as subcutaneous tissue inflammation) or various skin infections.
The following persons should not massage their waists.
Do not put hands,arms or feet into the backrest’s fabrics of traveling sections of the massage wheels.
Do not use the Waist Warm massage for a long time
Do not damage the Knee Warm(heater) section.
Do not damage the power line or the power plug.
(Do not damage , machine, forcedly bend, twist or prolong the power line or the power plug, or place the power line or the
power plug close to a heater, or tie or bind any heavy objects on the power line or the power plug.)
Do not climb onto the backrest or the armrests.
Do not lean or sit on the backrest.
Keep your head from reachable areas of the backrest and the back cover.
Persons unable to espress themselves clearly or unable to operate the product should not use the product.
When massaging the neck, pay attention to moving directions of the massage wheels and do not massage with a too large force
or massage front part of the neck.
Children should not use the product. Keep them from playing on the product or climbing onto the Lower Leg/Foot massage
section, the seat, the backrest or the armrests.
Persons with acute lumbago, protrusion of intervertebral disc,or displacement of a lumbar vertebra;
Persons with the deformation or oher discomfort of the hip joint;
Otherwise diseases may get worse.
Otherwise diseases may get worse.
Otherwise accidents or personal injuries may happen.
If the internal heater is damaged, fires or electric shocks may happen.
Otherwise you may get low-heat burns.
Do not insert or pull out the power plug with the wet hands.
Otherwise electric shocks may happen.
Do not refit, disassemble or repair the product with out permission.
Otherwise fires, abnormal movements or personal injuries may happen.
Do not insert pins or needles into the product.
Do not cut the product with a cutter.
Even if the temperature is relatively lower (40℃~60℃), low-heat burns may happen after longtime contact with skin (in spite of no obvious
hot or painful feeling).
A damaged power line or power plug may result in electric shocks, short circuit faults or fires. Please consult the shop from which you
bought the product or a designated authorised service center about maintenance method of the power line or the power plug.
(Abnormality and fault examples)
In any of these abnormalities and faults, have the product inspected and repaired by an authorized service center immediately.
The product fails to work after the power switch is turned to the ON position;
After the power line is moved, the product is discontinuously powered on;
In use, the product gives off a burning smell or an abnormal sound;
The product is deformed or abnormally heating;
Otherwise accidents or physical discomfort may happen.
If the product is used when the fabric is damaged, you may get injured or get an electric shock.
If any of these safety instruction is not followed, you may suffer an adverse effect and be injured.
Otherwise accidents or injuries may happen due to naughty behaviors of children.
Otherwise electric shocks, product faults or fires because of overheat may happen.
Otherwise electric shocks or fires cause by overheat may happen.
Otherwise accidents or physical discomfort may happen.
Must be
followed
Must be
Forbidden
Wet-hand
operation
forbidden
Disassembly
Forbidden
followed
Actions that must be done
Warning
Warning
Warning
Actions tending to cause serious injury or death
Caution Actions tending to cause minor injuries or property damage

03 04
The following persons (even if they arephysically healthy at present) should consult a physician before using the product.
(1) Persons with musculer atrophy due to aging or thin persons;
(2) Persons feeling lumbago because of bone or viscus problems;
(3) Persons tending to suffer sprains of bruising;
(4)Persons with carsickness or seasickness or strong response when taking other transport means;
(5) Persons who once received a heartoperation or another visceral operation;
Before sitting on the product, make sure there is no foreign matter between any two parts of it.
(Make sure there is no foreign matteron the back cover, the backrest, the seat surface, the Lower Leg/Foot massage section or
inside surface of the back cushion.)
Do not use the product when wearing any hard decorative article on head(such as hair pin).
Do not put hands or feet between the product and the Lower Leg/Foot massage section.
Do not stand or sit on the back cover.
Do not put hands, feet or head between the backrest and the back cover.
Do noy put petson the product (such as its back cover, backrest and armrest).
Do not pull out the power plug or turn OFF the power switch suddenly during massage.
Do not put hands, arms,or head into the seam of the Lower Leg/Foot massage section(footrest).
For safety, admit the Lower Leg/Foot massage section after massage.
Before sitting on the seat, make sure the massage wheels arein the retracting positions.
When pulling out the power plug, do not pull the power line but hold the power plug.
If you want to leave the seatduring the massage, stop the product first.
If thereis any hard article (such as mobilephone or key)in a pocket of the trousers, take it out before massage.
Before hand or arm massage, remove watch, nail wrap, ring, etc.
Otherwise health may get worse.
Otherwise injuries may happen.
Otherwise injuries may happen.
Otherwise an electric shock or a short circuit fault may happen.
Before moving the product, make the Lower leg/Foot massage section back to the original position by adjusting its angle.
Otherwise injuries may happen.
When moving the product by pulleys, put articles such as matson the floor.
Otherwise marks may be left on the floor.
Keep children from the retaining screws on the remote controller holder.
Otherwise children may cause accidents or suffer injuries by eating it or playing with it.
In use, place the product horizontally.
Keep head abdomen or skin from the massage wheels and do not put hands or feet between the massage wheels.
Do not put the knees between the Lower Leg/Foot massage section.
Do not fall asleep while using the product. Do not use the product after drinking.
If air in the filling of the air bag on the seat is not completely discharged, do not stand or jump on the seat or put things on it.
Otherwise accidents due to turnover of the product may happen.
Do not use the product and other devices at the same time.
Otherwise accidents or physical discomfort may happen.
Otherwise accidents or injuries may happen.
If any symptom such as skin inflammation, itching or swelling in use, stop the product immediately and consult a physician.
Otherwise accidents or physical discomfort may happen.
If the product is used again for massage after a period of out-of-service, read the operating instructions again and make sure the
product can run normally first.
Otherwise accidents or injuries may happen.
Before moving the product by pulleys, remove the obstructions close to it. Lift the seat surface of the Lower leg/Foot massage
section to a position a little lower than the waist and move the product slowly.
Otherwise accidents or injuries may happen because of turnover of product.
Othewise accidents, injuries, or product faults caused by clamping of hands, feet, or other articles by the product may happen.
Otherwise injuries may happen.
Otherwise personal injuries due to the product toppling mat occur.
Do not stand or sit on the Lower Leg/Foot massage section or the footrest.
Do not stand or sit on the armrests.
Otherwise personal injuries may happen.
Do not drag or push the product after it is installed.
Otherwise the floor may be damaged.
Do not move the product while there is a person on it.
Otherwise, accidents, or injuries may happen due to a toppling of the product.
Do not use the product on heating devices such as electric blankets.
Otherwise fires may happen.
Do not put the remote controller on the product.
Otherwise the product may be damaged.
Do not use the product in a bathroom or another wet place.
Otherwise electric shocks or product faults may happen.
Do not sprinkle substances such as wateron the product or its remote controller.
Other wise electric shocks, short circuit, or product faults may happen.
Before cleaning or maintaining the product, pull out the power plug first.
Otherwise electric shocks or injuries may happen.
In the case of a power failure, pull out the power plug at once.
Otherwise accidents or injuries may happen when power is restored.
When the product is not used, pull out the power plug.
Otherwise electric leakage fires may happen because of insulation aging cause by dust and moisture.
Otherwise accidents or injuries due to rotation of front of the footrest or turnover of the product may happen.
If bottom of the Lower Leg/Foot massage section runs into floor, the floor may be damaged.
Must be
followed
Wet-hand
contact
forbidden
Product
wetting
forbidden
Pull out the
power plug
Forbidden
Forbidden
Caution Caution

at least 6cm
05 06
Setting of Massage Chair
Installation site
11Please be sure there is enough space for the massage chair to tilt.
Description of product movement
22Method 1: Hold the two bottom sides of the seat frame before lifting and moving it.
Mat
The contact area between
the legs and the floor
the contact area between
the seat frame and the floor
Do not expose the massage chair to the direct sunlight or high temperature condition (e.g. in front of heating
equipment), as it may lead to color fading or hardening of the synthetic leather of the massage chair.
Please lay a mat under the machine to avoid causing damage to the floor. When laying the mat, the size of
mat should be big enough to cover the contact area between the machine and the floor and the foot contact
area.Floor area (at least 200cmx90cm), as shown in the figure.
It should keep close to the power socket when the machine is installed.
※Caution
1. Please lift and move the massage chair on
the damageable floor, such as wood floor.
2. Please stretch your hands into the bottom
of the seat frame to hold the steel frame and
lift it, so as not to damage the plastic parts on
the outside of the seat frame.
Put the machine down slowly and be
careful not to crush your foot.
Do not let go of the legs of the machine
until it is kept completely flat. A sudden
loosening will cause the legs being
rebound to its original position.
The floor may be damaged. Therefore, it is
suggested to lay things like mat on the floor.
Due to the heavy weight of the machine, please
handle it with care, so as not to cause strain of
back. (The machine must be handled by two or
more people.)
Product weight Approx 74kg
Place the machine on the floor.
Caution
Grounding instructions
If the grounding conductor is not correctly connected, electric shocks may happen. If you are not sure about correctness of the grounding,
have it inspected by a professional electrican. Even if the grounding plug provided with the product does not match with the socket you
have, do not refit it by yourself but ask a professional electrician to install an appropriate socket.
The product has a grounding plug. Make sure the product is connected with a socket matching with shape of the grounding plug.
Do not connect the product to a multi-plug.
If the power plug is damage, it must be replaced by a special plug available from OGAWA or authorize agents.
The product has a heat surface, people who are not sensitive to heat must pay attention to it!
The product must be grounded to reduce the electric shock hazard because of functional faults of the product.
The product has a power line with a grounding conductor and a grounding plug. The grounding plug must be inserted into an
appropriate socket that has been correctly installed and grounded in full compliance with the local code and decree.

07 08
Method 2: Use the rear castor to move the massage chair.
Press the “on / off” key to turn off all
functions.
Do not drag or push the machine when it is not
completely installed.
Do not hold the side plate or the plastic parts on
the outside of the seat frame to move it.
Otherwise, it is easy to cause machine fault or
personal injury.
If you need to use the rear castor to move the
machine, you are recommended to lay a mat under
the moving position, so as not to scratch the floor.
Do not move the machine when someone is seated.
Otherwise, it may cause machine fault or personal
injury due to a fall.
Please turn off the machine and ensure that the
backrest and the foot are completely reset before
moving the machine.
Otherwise, it may cause machine fault or personal
injury.
If using the rear castor to move the machine,
please lay a mat on the floor; or it may leave
scratches on the floor.
Caution
1
Reset the backrest and legs of the
machine to the original position.
Set the power switch below the rear
of the machine to the position “o”
(off) and unplug the power plug.
2
Tilt the massage chair downward and backward
about 45 degrees before moving it, according to
the methods shown.
Note: The movement range should be moderate when
pushing it down, so as not to cause damage to the hood
due to the complete tilting of the chair.
Caution Before use
Check the surroundings
11Make sure there is no people, pet and
other object around the machine.
Make sure there is no foreign object in the gap of the machine.
22Before massage, please ensure that there is no foreign object
in the legs and foot and other positions.
Do not stretch your hands, fingers, feet and head into the gap
between the legs and the seat and between the legs and the armrest.
Please ensure that there is no foreign object between the parts of
the machine before having a seat.
Do not stretch your hands, arms or head into the gap between the
backrest and the rear cover.
Do not put your pets on massage chairs (seat, backrest, armrests,
legs, etc.).
Caution
Before use, please check whether the power cord and power
plug are damaged or not.
Please ensure that there is no foreign object between the
parts of the machine before having a seat.
Please be sure to insert the power plug into the end.
Otherwise, it may cause electric shock or fire due to overheating.
Please use 220-240V～50-60Hz alternating current.
Do not use this product overseas or connect it to the transformer
without permission.
Otherwise, it may cause electric shock, machine fault or fire due
to overheating.
Do not plug and unplug power plug with wet hands.
Warning
Power on.
33Before massage, please ensure that
there is no foreign object in the legs
and foot and other positions.
Insert the power
plug into the power
socket.
1
Set the power switch under the
machine to the position “I” (open).
2

09 10
Before use, you must first open the back cushion to
check whether the fabric in the key areas is
damaged. And the fabric in other parts should be
also checked to make sure it is not damaged.
(No matter how small the damage is, please stop
using it immediately, unplug the power plug and
send it to repair.) The use of the machine in case
of damaged fabric may cause danger of injury or
electric shock.
Caution
Before use
Ensure that the massage wheel is in the storage position.
44When the massage wheel is not in the storage position,
press the “on / off” key to return it to the storage position.
Ensure that the fabric is not damaged and cracked.
55Key inspection area: Fabric of the backrest covered
on the moving range of the massage wheel.
Key inspection area
久坐释压 肩颈重点 泰式拉伸
老年模式 摇摆助眠 运动恢复
定点 局部 上下
力度
调节
手法
切换
气压
强度
局部
气压
全身
气压
模式
切换
速度
调节
宽度
调节
零重力
Press the “on / off” key to return
it to the storage position.
Product Parts
Shoulder
air bag
Arm air
bag
Remote
control
Footrest
Calve
of air bag
Footrest
Feet of
air bag
Pillow pad
Backrest pad
Sidepanel
Seatrest
Roller wheel
Wheel

Manual
Full Air Partial Air intensity Foot Roller
Strength Speed Width
Relaxation
Thai Stretching
Shape n Tone
Sweet Dream
Neck n Shoulder
Senior
Mode S/P
11 12
Product Parts Product Parts
Function distribution diagram
Shoulder
airbag
massage
Head,
neck to
seat:
Movement
massage
Footrest
calve
airbag
massage
Footrest
feet
airbag
massage
Foot roller
massage
Arm
airbag
massage
Remote
control
storage
Seat
vibration
massage
Heel
airbag
massage
Sole press
Controller
1
6
3
8
9
11
12
2
7
5
4
10
13
14
1
6
3
8
9
11
15
2
5
4
10
12
13
14
17
16
7
ON/OFF
PAUSE
HEAT
VIBRATION
Z-G
INCLINE/ RECLINE
INCLINE LEG/ RECLINE LEG
Full Body Auto Programmer
SPOT/PARTIAL
UPWARD/DOWNWARD
Manual Massage Function
STRENGTH
WIDTH
SPEED
FULL AIR
PARTIAL AIR
INTENSITY
18 FOOT ROLL
15 18
1716

13 14
I. Please take note on below information when using this product:
II. Control Buttons for the Massage Chair
1.Connect to the power supply, and press the power switch on the bottom of the massage chair frame
to “I” position, and the massage chair is now in a reset state. At this point, the massage chair is in idle
mode. During this idle mode, the red light of ON/OFF button will blink, which indicates the electric supply
is connected.
2.During its idle mode, there are only five functions: ON/FF, Incline, Recline, Incline Leg and Recline Leg
that can be operated.
1. ON/OFF
The Start/Stop Control Button
Press once on this button, the LCD backlight and ON/OFF button will be lit. Press any massage function
button to begin the chair’s massage functions. This will also start the timer. Press this button again to stop
all the massage functions and the massage rollers, backrest and footrest will return to their original position.
6. INCLINE/ RECLINE
Angle Adjustment Control Button for Massage Chair
These two control buttons can adjust the Inclining/ Reclining angle respectively. Press once on the Inclining
or Reclining control button to adjust the backrest and footrest to a desired comfortable position, press the
button again to stop it.
7.INCLINE LEG/ RECLINE LEG
Angle Adjustment Control Button for Footrest
These two control buttons can adjust the massage angle on the footrest. Press once on the Incline Leg or
Recline Leg control button to adjust the footrest to a desired comfortable position, press the button again to
stop it.
If either 1 of the 6 Auto Programs is activated, the chair will automatically perform a back scan. User can
press on “UP” or “DOWN” control button to do adjustment.
8.Full Body Auto Programmer
Press this button to activate Zero-G1 function in default, press the button again to activate Zero-G2 function,
and press again to return to the idle position.
Note: Zero-G is invalid during Thai stretching
5. ZERO-G
2. PAUSE
The Pause Button
When the chair is in massage mode and the user wants to temporarily pause it, press the Pause button
and all massage functions will stop. The “Pause” button will be blinking and the set time countdown will be
paused as well. Press the Pause button again to immediately cease the “Pause” function and resume the
original massage function, the countdown will continue as well.
3. HEAT
The Waist Heating Button
Press this button to activate the heating function on waist. Press again to stop the function.
4. VIBRATION
The Seat Vibration Button
Press this button to activate the vibration function on seat. Press again to stop the function.
Product Operation Guide
The following are the Auto program available:
[Relaxation]: Massage strength: Medium. Combination of 6 types of massage functions: kneading, swedish,
tapping, shiatsu, clapping and rolling that precisely massage on full body.
[Shape n Tone]: Massage strength: Medium. Focusing on kneading, tapping and clapping massage with seat
vibration to your buttocks.
[Neck n Shoulder]: Massage strength: Strong. Focusing on neck and shoulder massage.
[Thai Stretching]: Massage strength: Strong. Focusing on tapping and kneading massage for body stretching.
Remark: 1. Incline/Recline and Incline Leg/Recline Leg functions cannot be operated during
this program is activated.
2. This program is not suitable for elderly and physically weak people.
[Sweet Dream]: Massage strength: Weak. Focusing on light massage that promotes sleep.
[Senior]: Massage strength: Weak. Focusing on kneading and swedish massage with heat function which is
suitable for elderly and physically weak people.

15 16
9. SPOT/ PARTIAL
The Spot or Partial Back Massage
This button allows the user to select spot massage for any part on the back. Press this button once to
activate spot massage at the desired position. Press this button again to switch to Partial function.
While running spot massage, when this button is pressed again, the massage will change from spot to
partial. The massage will take the spot position as the central to perform partial massage at a distance
of approximate 8 cm. Press again to stop the function.
The Partial Back Massage
14.SPEED
Speed Adjustment Button – 5 levels of speed available
After activating the swedish, tapping, shiatsu or clapping function, user can press the button to adjust
the massage speed in increasing mode, which is from slow to fast in one cycle.
15.FULL AIR
Full Body Air Pressure Massage Button
Press this button to activate the full body air pressure massage, press again the button to turn it off.
16.PARTIAL AIR
Manual Air Pressure Massage Button
Press this button to activate manual air pressure massage for footrest> hand> shoulder> Stop in a
cycle.
17.INTENSITY
Intensity Adjustment Button for Air Pressure – 5 levels of intensity available
After activating the Air Pressure function (Auto and Manual), press this button to adjust the air pressure
intensity in increasing mode, which is from weak to strong in one cycle.
18.FOOT ROLL
Foot Roll Function Start/Stop Control Button
Press once to activate the roller on foot, press again to stop the foot roll function.
10.UPWARD/DOWNWARD
Massage Position Adjustment Button for Spot and Partial Massage
In the spot or partial massage, user can use these two buttons to adjust the massage position by long
pressing the UPWARD/DOWNWARD button and release the button when the massage roller reach the
desired position.
Remark: When auto back scanning unable to satisfy your need, user can manually adjust the shoulder
height position within 10 seconds after scanning.
12.STRENGTH
Strength Adjustment Button for Kneading – 5 levels of strength available
After activating the Kneading function, user can press the button to adjust the massage strength to
“Lv1> Lv2> Lv3> Lv4> Lv5” in one cycle.
13.WIDTH
Back Massage Width Adjustment Button – 3 levels of width available
After activating the tapping, shiatsu, clapping or rolling function, user can press the button to adjust
the massage width to “narrow> medium> large” in one cycle.
11.Manual Massage Function
KNEADING, SWEDISH, TAPPING, SHIATSU, CLAPPING, ROLLING
Press this button to activate the rhythmic kneading manual massage function for a full back massage.
Every time this button is pressed, the manual massage function will change in the sequence of
“KNEADING> SWEDISH> TAPPING> SHIATSU> CLAPPING> ROLLING> stop”.
When the manual massage function is operating, press this button to change the rhythmic mode of
manual massage between 1 and 2.
MODE

17 18
The end of the massage
Children are forbidden to use this machine.
In addition, children or pets are not allowed to
play on the machine body, or climb up the legs,
foot massage part, seat, backrest or armrest.
Otherwise, it may cause accidents or injuries.
Caution
Every time when you finish the use of it, slide
the power switch to the position “o” (off), and
unplug the power plug.
Otherwise, it may cause accident or injury due
to child’s mischief.
Warning
Ensure there is nothing in the legs massage part
Slowly remove the legs from the legs massage
part
Press the back lifting up key on the controller to
retract the legs massage part to the original
position.
Retract the foot massage part to the original
position.
1
Cut off the power.
4
Method to retract the legs massage part:
2
Put the controller in the storage bag on
the right side of the machine seat.
3
For security, be sure to put your legs away after used.
1. Turn “off” the power switch.
2. Unplug the power plug.
Cleaning and maintenance
Cleaning of the synthetic leather
Cleaning of the plastic parts
Wipe the synthetic leather with a soft dry cloth.
Put a piece of soft cloth into water or
neutral detergent contained hot water,
wring it out and wipe the plastic parts.
Do not clean the product with chemicals
such as thinners, gasoline and alcohol.
Wipe with a piece of cloth once soaked
in clean water and wrung out.
Have the plastic parts take natural air
drying.
Wring the cloth out before using it to wipe
the remote controller.
Do not clean the product with chemicals such as thinners, gasoline
and alcohol.
When using a leather maintenance product(cleaning cloth) sold
on the market, follow its directions for use.
If the synthetic leather is very dirty, wipe it with the method below.
①Put a piece of soft cloth into water or 3% to 5% neutral detergent
contained hot water and wring it out.
②Wipe surface of the synthetic leather with the soft cloth
③Wipe the detergent with a piece of cloth once soaked in clean
water and wrung out.
④Wipe with a piece of wrung soft cloth.
⑤Have the synthetic leather take natural air drying.
If it is difficult to remove the stains on the synthetic leather, soak a
piece of melamine foam bought from the market into a neutral
detergent and use it wipe the product.
Do not dry the surface by a hair drier.
Surface of the synthetic leather may be dried by fabric colors; therefore,
be careful when wiping the product with denim or colored cloth.
Keep these positions from long-time contact with plastics to avoid fading.
Synthetic leather may discolor, so the position in contact with the
hair dye used should be covered by a towel.

19 20
Can persons paying frequent visits to hospitals
because of diseases use the product?
零重力
Questions and answers(Q&A)
These persons should consult physicians
before using the product.
It is on back of the main body.
Massage is the so-called “touch-pressure stimulation”:
Muscles are compressed to relieve their tension and
promote hemokinesis. Some diseases may get
worsened because of massage.Thus, consult the
attending doctors before using the product.
To simulate the most natural massage effect, the product
is designed with a core structure allowing alternate back
massage by a left massage wheel and a right massage
wheel. During massage, the massage wheels possibly
have slightly different position on the back. That’s why
you have that feeling. It is not a fault.
Select method or below:
Select method or below:
Tilt the backrest and lower the Lower Leg/Foot massage
section
Massage the upper body only with the help of the footrest.
(Massage the feet and the upper boday separately.)
Raise the backrest and lift the Lower/Foot massage section.
Massage the upper body only with the help of the footrest.
(Massage the feet and the upper body separately.)
The body height requirement differs with the
specific body type. See the rough reference
below when using the product.
Pay attention to the following things during
moving.
For a taller person with knee bending when using the product:
For a short person difficult to touch the foot massage section:
If a person shorter than 145 centimeters or taller than
185 centimeters uses the upper body massage
function and the Lower Leg/Foot massage function of
the product at the same time, it will be possible that
his soleswill have poor contact with the foot massage
section or that his knees will need to be bent.
If the original packing box is available, make sure the
power line is not wound on the product, wind it and place
it on the seat surface. When handling the product, keep
the power line from falling off and rubbing with ground.
If the original packing box is unavailable, properly keep
other packing auxiliary materials and wrap the product
with them to avoid scratch and vibration during handling.
For convenience during moving, tilt backrest of the
product till the lowest position.
During handling, do not sit on the product.
Press ON button power on the product.
Press to make the
backrest completely tilt.
Press the button until
backrest and footrest stop
Turn off the power switch and pull out the power plug.
How about the body height requirement for
use of the product?
Where is serial number of the product?
It is caused by the core structure.
I care about the sounds of the product makes
when being used.
This phenomenon possibly exits during
massage because of the core structure.
Does it matter if the massage wheels have
different massage intensities?
Set the air bag intensity to be “1” through the
Air Bag button. You can also lower the Lower
leg/Foot massage section to reduce the
acupressure force on the feet.
The acupressure force is too large.
Supposing you massage for 30 minutes in two
times (15 minutes for each time) on each day,
about 2.5 kilowatt-hours will be consumed
each month.
How about monthly power consumption of
the product?
Are there any things needing special attention
during moving？
If the fault still exists after that, contact the shop from which you bought the product.
For safety, the massage wheels will possibly stop upon a too
large external force during use.
For safety, the product will stop upon an obstruction or a too
large force.
If all marks and buttons on the remote controller begin to flicker, it suggests
an extreme abnormality. In this case, turn off the power switch and turn it on
about 10 seconds later.
If the massage wheels stop again, adjust your sitting posture and do not lean
on the backrest completely. (Users, particularly those heavier than 100
kilograms, should follow relevant precautions.)
If all contents and buttons are flickering and the backrest or the footrest has
stopped, turn off the power supply and turn it on about 10 seconds later and
then operate the product.
If the head is not in contact with the headrest, or the back is not in contact
with the backrest, the shoulder position in body type detection will possibly
be lower than the actual position. Sit in the deepest position of the product,
lean your head on the headrest and operate from the beginning again.
It is not a fault but a normal phenomenon because the product is provide
with a massage core allowing alternate beats of the massage wheels.
To avoid accidents, contact an authorized service center.
The power line is disconnected.
Due to the heater structure, the product will still feel warm shortly after
heating because of the residual heat.
If a single part is continually massaged even after the heating function is
disabled, you will feel increasingly warmer.
The power switch is not turned on.
No program is selected after ON button on the remote controller is pressed.
The massage wheels stop
during use
(The product beeps and all icons and
buttons on the remote controller
flicker and then go out.)
The product cannot tilt, or the
footrest can not be raised or
lowered
(The product beeps, the running light
on the remote controller go out and
the product stops)
The massage wheels cannot
reach the shoulders or the
neck
The left and right massage
wheels have different heights
(intensities)
The product cannot run at all.
The product cannot cool down
even if the Dual-temperature
function is disabled
The product is damaged
The power line or the power
plug had abnormal heating
Upper body (the neck to the waist)
massage
Lower leg/Foot massage
After a fault happens, inspect and try the corresponding method below.
If above solution are not applicable, kindly refer to “Product Warranty Card” and contact
OGAWA service center.
Fault Cause and elimination method
Troubleshooting

21 22
The sounds and feelings you care about in use of the product.
You will hear or have the following sounds or feelings when using
the product. It is not abnormal phenomena but results of the
product strcture.
If the sound is loud, it is also possible that the product has failed.
Sound when the stretching massage are retracte d
Sound and feeling when the massage wheels rub patterns on the fabric
Sound of movements such as kneading and beat
Friction sound of the running massage wheels
Sound of up-down movement
Sound of the conveyor belt
Motor sound
Sound of the squeezing massage wheels when they begin to stretch
Sound when a person is sitting on the seat
Friction sound between the armrests and the back cushion when the backrest is tilting
Friction sound between the massage wheels and the fabric
Sound of the inflator pump during Air Bag massage
Sound of air exhaust during Air Bag massage
Running sound of the solenoid valve at bottom of the product durning Air Bag massage.
Swing of the footrest
Sound when the shoulders are stretched or moved
Running sound of the air bags
Sliding sound of the foot massage section
The product fails to work after the power switch is
turned to the ON position.
After the power line is moved, the product is
discontinuously powered on;
In use, the product gives off a burning smell or an
abnormal sound;
The product is deformed or abnormally heating
In any of these abnormalities and faults,have the
product inspected and repaired by an authorized
service center immediately.
Friction sound between the back cushion and the back cover leather when the backrest is tilting
In this case, have the product inspected and repaired by an authorized service center.
Warning Warning
Do not refit, disassemble or repair the product
without permission.
Otherwise fires, abnormal movements or personal
injuries may happen.
In the case of any abnormality or fault, stop the
product immediately and pull out the power plug
to avoid fuming, fires and electric shocks.
<Abnormality and fault examples>
Troubleshooting （continued）
Click
Snap
Product Name
Model No.
Rated Voltage
Rated Frequency
Rated Power Consumption
Max Time Rate
Dimensions (L X W X H)
Weight
Length of wire
Usage condition
Storage Condition
Safety Feature
Maximun body weight of user
SMART RELUXE MASSAGE CHAIR
OG6383
220-240V～
50-60Hz
80W
15 Minutes
Upright: 1480x750x1080mm(L×W×H)
Reclined：1740x750x805mm(L×W×H)
Gross Weight: Approx. 90.5kgs
Net Weight: Approx. 74kgs
Controller wire:70 Centimeter
Power supply wire: 180 Centimeter
Environment temperature:0°C~35°C
Contrasting humidity:20%~80%
Storage temperature:-5°C~35°C
Storage humidity:20%~80%
Equipped with overheated and power
Approx 100 kg
Specifications
For a user heavier than 100 kilograms, the product may have bigger noise and its
fabric housing may be worn quicker.

23
Contact Us
[phone]
[phone]/ [phone]
PT. CITRA PRATAMA MEDIKARYA
JL. Pangeran Jayakarta Komplek 20
Blok B No. 6. Mangga Dua Selatan.
Sawah Besar. Jakarta Pusat 10730,
Indonesia
Tel : [phone]
Fax : [phone]

SMART RELUXE MASSAGE CHAIR
User manual
All information is correct at the time of print

01 - 04
05
06 - 07
08 - 09
10 - 12
13 - 16
17
18
使用前
● 重要的安全事項
● 接地說明
● 設置按摩椅
● 使用前
● 產品結構
使用方法
● 操作說明
● 按摩結束
維護
● 清洗及保養
Q&A/重要事項
● Q&A
● 故障檢修
● 規格
● 聯繫我們
19
20-21
22
23
目錄

按摩中或移動靠背、小腿、腳部按摩部件時，請事先確認本機周圍（本機後面、下面、前面和側面）沒有人或寵物。
01 02
重要的安全事項 必須遵守
下文列舉的是使用中為防止人身、財產損害而必須嚴格遵守的安全事項。
所有安全事項將根據因錯誤使用而導致危害或損害的程度，予以說明。
請注意各安全事項前的符號。（下文為符號範例）
正在接受治療或有下列症狀的人，在使用本機前，應諮詢醫師。
使用中感到身體異常、或使用後覺得沒有效果時，請立即停止使用，並諮詢醫師。
每次按摩請控制在30分鐘內。
請將對身體同一部位的按摩控制在5分鐘內。
在使用本機前，一定要掀開靠墊，以檢查靠背覆蓋在按摩輪活動範圍上的面料是否破損或者其他部位的面料
是否披損。
（無論發現多麼細小的破損，都請立刻停止使用，拔掉電源插頭，並將本機報修。）
使用前請務必確認靠背和後蓋之間無異物或者寵物。
否則恐發生事故或造成身體不適。
否則恐發生事故或造成身體不適
請定期清理電源插頭上的灰塵等髒污。
發生異常、故障時，立即停止使用，拔掉電源插頭。（否則可能冒煙、起火、觸電）
否則可能因濕氣等原因引發絕緣不良，從而導致火災。
（請用乾燥的抹布擦拭電源插頭。）
請勿將靠墊伸入靠背和後蓋之間。
否則可能會導致機體故障。
請握住邊框進行本機搬運。
下列人員請勿使用腰部按摩。
在使用中請勿將手、手臂、腳塞入靠背覆蓋在按摩輪活動範圍上的面料。
兒童禁止使用本機。此外，請勿讓兒童在本機上玩耍，或者爬到小腿.腳部按摩部、座面、靠背或扶手上。
請勿攀爬靠背或者扶手。
請勿倚靠或坐在靠背上。
請勿將頭伸入靠背和後蓋之間的活動區域。
請勿讓不能表達自己意思的人或沒有能力操作本機的人使用本機。
按摩頸部時，請注意按摩輪的動向，請勿按摩前頸，請避免過重地按摩頸部。
患有急性腰痛、椎間盤突出症、腰椎移位症的人
罹患變形性髖關節症等髖關節不適的人
否則可能會導致機體故障或人身傷害。
下列人員請勿使用本機。
被醫生禁止按摩的人（例：患有血栓症、重度動脈瘤、急性靜脈瘤、各種皮膚炎或皮膚感染症
（包括患皮下組織炎症）的人等）
否則可能會導致病情惡化。
否則可能會導致病情惡化。
否則可能會引起事故或造成傷害。
請勿用沾濕的手插、拔電源插頭。
否則可能導致觸電事故。
請勿擅自改造本機。請勿自行分解或修理本機。
否則可能導致起火、異常動作、人身傷害。
請勿長時間使用“腰部溫熱”按摩。
可能出現低溫燙傷。
請勿損壞膝蓋部溫熱（加熱器）。
不要將別針、針扎進本機。
不要用刀具損傷。
即使溫度相對較低（40℃~60℃），長時間接觸皮膚的同一部位沒有發熱、疼痛等自覺症狀，也可能導致低溫燙傷。
損傷內部加熱器可能導致火災或者觸電事故。
請勿損壞電源線及電源插頭
（請避免此類行為：損傷、加工、強行彎曲、扭轉、拉長電源線及電源插頭，或將電源線及電源插頭靠近
發熱器，或在電源線及電源插頭上系重物、或任意捆綁。）
使用破損的電源線或電源插頭，可能引起觸電、短路或引發火災，請到購買本產品的商店或指定的維修中心諮詢修理電
源線或電源插頭的方法。
（異常、故障事例）
接通電源開關後可能不運作。
移動電源線後，有時通電有時不通電。
運行中發出焦臭味、異常聲響。
按摩椅變形或者異常發熱。
請立即委託授權服務中心檢查和修理。
否則恐發生事故或造成身體不適。
在面料破損的情況下使用本機，可以引發受傷或觸電的危險。
否則可能出現負面效果並造成傷害。
每次使用完畢，應將電源開關滑到“O”（關閉）位置，拔掉電源插頭。
請嚴格遵守插座和配線器具的使用規定。
請使用220-240V~，50-60Hz交流電。
（請勿在國外使用本產品，或擅自連接變壓器。）
否則可能因兒童頑皮引發事故或造成傷害。
請務必將電源插頭插到底，使其確實地插入插座中。
否則可能引發觸電或因過熱導致火災。
否則可能引發觸電、機體故障或因過熱導致火災。
絕對禁止事項。
必須遵守
必須遵守
濕手禁止
分解禁止
必須執行事項。
可能造成重傷或死亡後果的事項內容。
可能造成輕傷或財產損害的事項內容。
(1) 佩戴起搏器或其他易受電子幹擾的體內植入型電子醫
療器械的人
(2) 惡性腫瘤病人
(3) 心臟病人
(4) 被查證喪失辨別溫度能力的人
(5) 孕婦或剛完成分娩的人
(6) 因糖尿病等高度末梢迴圈障礙引起知覺障礙的人
(7) 骨質疏鬆症患者、脊柱骨折病人、患有扭傷或肌肉拉
傷等急性疼痛性疾病的人
(8) 按摩部位受傷的人
(9) 體溫在38℃以上（有發熱症狀）的人
(10) 必須靜養或身體顯著不適的人
(11) 脊柱異常或脊柱彎曲的人
(12) 患有椎間盤突出的人
(13) 除上述之外，身體感覺特別不適的人

03 04
必須遵守
禁止濕手觸碰
禁止沾濕
拔出電
源插頭
下列人員即使目前身體健康，也請諮詢醫師後再使用本機。
（1）因年齡增長而導致肌肉萎縮的人或身體纖瘦的人 （2）因骨頭或內臟問題而感覺腰痛的人
（3）容易扭傷或容易瘀傷的人 （4）暈車、暈船或乘坐其他交通工具時，反應異常激烈的人
（5）過去曾被施予心臟手術或其它內臟手術的人
就坐前，請先確認本機各個部件之間沒有異物。
（確認後蓋、靠背、座面、小腿.腳部按摩部、靠墊內側沒有夾雜異物。）
頭部佩戴任何硬質飾物（如髮夾等）時請勿使用本機。
當褲子口袋內部有硬物時（如手機、鑰匙等），將其取出，然後按摩。
按摩手、手臂時，取下手錶、指甲套、戒指等。
請勿將手或腳伸入本機與小腿.腳部按摩部之間。
請勿將手 、手臂或頭伸入小腿腳部按摩部（腳置臺）的縫隙間。
安全起見，結束按摩後，請一定要收納好小腿.腳部按摩部。
請勿將手、手臂或頭伸入靠背和後蓋之間。
請勿將寵物放在按摩椅上（後蓋、靠背、扶手等）。
按摩中，請勿突然拔出電源播頭、或突然關閉電源開關。
否則可能有損自身健康。
否則可能造成傷害。
請勿站立或坐在後蓋上。
否則可能導致本機翻倒，造成人身傷害。
請勿在已安裝好的狀態下托動或推動本機。
否則可能損壞地板。
請勿在有人入座時移動本機。
否則可能因機身翻倒引發事故或造成傷害。
請勿在電熱毯等加熱設備上使用本機。
否則可能引起火災。
請勿將遙控器放置在座面上。
否則可能損壞本機。
請勿在浴室或其他潮濕的地方使用本機。
否則可能引發觸發或機體故障。
請勿將水滴等物質撒在本機或遙控器上。
否則可能引發觸電、短路或引起機體故障。
清洗及保養本機，必須先從插座上拔出電源插頭。
否則可能引發觸電或造成傷害。
停電時立刻拔出電源插頭。
否則可能在恢復供電時導致事故、傷害。
不用時，一定要從插座上拔出電源插頭。
否則灰塵、濕氣可能導致絕緣老化，引發漏電火災。
請勿站立或坐在扶手上。
否則可能導致人身傷害。
請勿站立或坐在小腿.腳部按摩部及腳置臺上。
否則腳置臺前部旋轉或本機傾倒可能導致事故、傷害。
小腿.腳部按摩部底部撞到地板時，可能損壞地板。
否則可能導致傷害。
就座前，確認按摩輪處在收納位置。
按摩途中若想離開座位，必須先停止按摩椅運作，再離開座位。
否則可能引發事故或造成傷害。
請勿扯電源線試圖拔出電源插頭，一定要握住插頭本身將其拔出。
否則可能引發觸電或短路。
移動本機前，必須把小腿.腳部按摩部的角度調節回最初位置。
否則可能造成傷害。
如果使用滑輪滾動本機，請在地板上墊上墊子等。
否則可能在地板上留下傷痕。
請勿讓兒童使用遙控器托架的固定螺絲。
否則可能因兒童誤食或頑皮引發事故或造成傷害。
使用滑輪移動本機前，須先清空周圍障礙物。抬起小腿.腳部按摩部座面到略低於腰的位置，慢慢移動。
否則可能因機身翻倒引發事故或造成傷害。
須將本機放置在水平面上使用。
否則可能因機身翻倒引發事故。
因使用本產品而產生出疹、紅腫、發癢等症狀時，請立即停止使用，並諮詢醫師。
否則可能引發事故或導致身體不適。
閒置一段時間後使用本品，請先重新閱讀一遍產品使用說明書，並確認機體運作正常後，再開始使用。
否則可能引發事故或造成傷害。
否則可能導致事故、傷害。
請勿和其他器械同時使用。
請勿將頭部、腹部或皮膚緊貼按摩輪。此外，請勿將手或腳伸入按摩輪之間。
請勿將膝蓋夾在小腿和腳部按摩部之間。
勿在使用本機時入睡。此外，飲酒後請勿使用本機。
當鼓起的座面氣囊裡的空氣沒有被排放完時，不要站在座面上，或者跳上去，或者在上面放東西。
否則可能造成事故或引起身體不適。
否則可能因手、腳或其他物品被本機夾住，而引發事故、造成傷害或機體故障。

至少 6cm
05 06
設置按摩椅
安裝位置
11確保足夠空間以便按摩椅可以傾斜。
產品移動說明
22方法一:托住座架底部兩側，然後抬起並移動。
墊子
腳部接觸
地板的面積
座架接觸
地板的面積
請勿將按摩椅暴露於陽光直射或高溫環境下（如加熱設備前），因為這樣可能導致按摩椅合成皮革褪色或硬化。
為避免地板損傷，請在本機下鋪上墊子。平鋪墊子時，墊子的大小應足以蓋住本機接觸地板的範圍與腿置
台接觸地板的範圍（至少200cmX90cm），如圖所示。
安裝本機時應靠近電源插座。
※注意※
1、在木地板等易損的地面上請抬起側板
進行移動。
2、請將手伸入座架底部托住鋼架再抬起，
以免座架外側塑料件損壞。
緩慢地放下本機，小心腳部被壓傷。
直到機身完全放平前，請勿放開腳
置臺。突然鬆手，將導致腳置臺彈
回最初位置。
地板可能受損，因此，建議在地板
上鋪上墊子等物料。
由於本機較重，因此搬運時請小心，以免造成
背部拉傷。（本機必須由兩人或多人搬運。）
本機重量 約74kg
將本機放置在地板上
接地說明
本機必須接地.如果本機發生功能故障，可以使用接地來減少觸電危險。
若設備接地導線的連接不當，則會導致觸電危險。如果您對本機的接地是否正確存有疑問，請委託專業電工
進行檢查。即使本機附帶的插頭與插座不配，也不能對其進行改造。請委託專業電工安裝合適的插座。
本機具有接地插頭。請確認本機連接至具有與插頭形狀匹配的插座。
本機不能使用轉接插座。
如果電源線損壞，必須使用專用的電源線或從其製造商或維修部買專用元件來更換。
本產品具有發熱表面，對熱不敏感的人使用時必須注意
本機裝備了具有接地導線和接地插頭的電源線。必須將該插頭插入已完全依照當地代碼和法令進行
正確安裝和接地的、合適的插座。

07 08
方法二：使用後腳輪移動按摩椅。
1 按下“開/關”按鈕，關閉所有功能。
請勿在未安裝好的狀態下托動或推動本機。
請勿握住側板或座架外側塑料件進行搬動。
否則容易導致本機故障或人身傷害。
如需在使用後腳輪移動本機
建議在移動位置下方鋪上墊子，以免地板劃傷。
請勿在有人入座時移動本機。
否則可能因跌倒導致本機故障或人身傷害。
移動本機前請關機並確認靠背與腳部完全複位。
否則可能導致本機故障或人身傷害。
如果使用後腳輪移動本機，請在地板上
墊上墊子，否則可能在地板上留下劃痕。
注意
注意
1
2 將本機靠背和腿部複位到原始位置。
將本機後下方電源開關按到“O”(關閉)
位置，拔下電源插頭。
2
按圖示方式，將椅子向下後方傾倒約45度進行移動。
注意：下壓幅度請勿太大，避免椅子完全
傾倒導致頭罩損壞。
，
使用前
檢查周圍
11確定本機周圍沒有人、寵物及其他物體。
確保本機縫隙間沒有異物
22按摩前請確認小腿、腳部等位置沒有夾住異物。
不要將手、手指、腳、頭伸進小腿與座部、扶
手的間隙內。
入座前，請先確認本機各個部位之間沒有異物。
請勿將手、手臂或頭深入靠背與後蓋之間。
請勿將寵物放在按摩椅上(座部、靠背、扶手、
腿部等位置)。
注意
使用前請檢查電源線及電源插頭是否損壞。
入座前，請先確認本機各個部位之間沒有異物。
請務必將電源插頭插到底。
否則可能引發觸電或過熱導致火災。
請使用220-240V～ 50-60Hz交流電。
請勿在國外使用本產品、或擅自連接變壓器。
否則可能引發觸電、機體故障或過熱導致火災。
請勿用沾濕的手插、拔電源插頭。
警 告
打開電源
33按摩前請確認小腿、腳部等位置沒有夾
住異物。
1.將電源插頭插入電源插座。
1
2.將本機後下方電源開關按到“I”(開啟)位置。
2
