OHAUS Defender 2000 Series User manual

i
2000 Series Indicators
Instruction Manual
T24PE Indicator
Manual_Indicator_T24PE_V1

ii

EN-12000 Series Indicators
TABLE OF CONTENTS
1. INTRODUCTION..........................................................................................................................................EN-4
1.1 Definition of Signal Warnings and Symbols...................................................................................................EN-4
1.2 Safety Precautions .....................................................................................................................................EN-4
1.3 Overview of Parts and Controls ...................................................................................................................EN-5
1.4 Control Functions.......................................................................................................................................EN-8
2. INSTALLATION ...........................................................................................................................................EN-9
2.1 Unpacking ................................................................................................................................................EN-9
2.2 External Connections..................................................................................................................................EN-9
2.2.1 Scale Base to Indicator ....................................................................................................................EN-9
2.2.2 AC Power to Indicator ......................................................................................................................EN-9
2.2.3 Battery power to Indicator ...............................................................................................................EN-10
2.2.4 RS232 Interface Cable to Indicator (Optional)....................................................................................EN-10
2.3 Internal Connections.................................................................................................................................EN-11
2.3.1 Opening the Housing.......................................................................................................................EN-11
2.3.2 Jumper Connections .......................................................................................................................EN-11
3. SETTINGS................................................................................................................................................EN-12
3.1 Menu Structure ........................................................................................................................................EN-12
3.2 Menu Navigation .....................................................................................................................................EN-13
3.3 Calibration Menu .....................................................................................................................................EN-13
3.3.1 Zero Calibration ............................................................................................................................EN-13
3.3.2 Span Calibration...........................................................................................................................EN-14
3.3.3 Linearity Calibration ......................................................................................................................EN-14
3.3.4 Geographical Adjustment Factor .....................................................................................................EN-15
3.3.5 End Calibration.............................................................................................................................EN-15
3.4 Setup Menu.............................................................................................................................................EN-17
3.4.1 Reset...........................................................................................................................................EN-17
3.4.2 Capacity ......................................................................................................................................EN-17
3.4.3 Graduation...................................................................................................................................EN-19
3.4.4 Power On Unit ..............................................................................................................................EN-19
3.4.5 Zero Range ..................................................................................................................................EN-19
3.4.6 End Setup ....................................................................................................................................EN-19

EN-2 2000 Series Indicators
TABLE OF CONTENTS (Cont.)
3.5 Readout Menu.........................................................................................................................................EN-19
3.5.1 Reset...........................................................................................................................................EN-19
3.5.2 Stable Range................................................................................................................................EN-20
3.5.3 Filter............................................................................................................................................EN-20
3.5.4 Auto-Zero Tracking........................................................................................................................EN-20
3.5.5 Sleep...........................................................................................................................................EN-20
3.5.6 Light ...........................................................................................................................................EN-20
3.5.7 Auto Off .......................................................................................................................................EN-20
3.5.8 Expand........................................................................................................................................EN-20
3.5.9 End Readout ................................................................................................................................EN-20
3.6 Mode Menu.............................................................................................................................................EN-21
3.6.1 Reset...........................................................................................................................................EN-21
3.6.2 Parts Counting Mode.....................................................................................................................EN-21
3.6.3 End Mode ....................................................................................................................................EN-21
3.7 Unit Menu ...............................................................................................................................................EN-21
3.7.1 Reset...........................................................................................................................................EN-21
3.7.2 Kilogram Unit ...............................................................................................................................EN-21
3.7.3 Gram Unit ....................................................................................................................................EN-21
3.7.4 Pound Unit...................................................................................................................................EN-22
3.7.5 End Unit ......................................................................................................................................EN-22
3.8 Print Menu ..........................................................................................................................................EN-22
3.8.1 Reset...........................................................................................................................................EN-22
3.8.2 Baud...........................................................................................................................................EN-22
3.8.3 Parity ..........................................................................................................................................EN-22
3.8.4 Stop Bit .......................................................................................................................................EN-23
3.8.5 Handshake ..................................................................................................................................EN-23
3.8.6 Stable Only ..................................................................................................................................EN-23
3.8.7 Auto Print.....................................................................................................................................EN-23
3.8.8 Content........................................................................................................................................EN-23
3.8.9 Layout.........................................................................................................................................EN-24
3.8.10 End Print .....................................................................................................................................EN-24

EN-32000 Series Indicators
TABLE OF CONTENTS (Cont.)
3.9 Security Switch ........................................................................................................................................EN-25
4. OPERATION.............................................................................................................................................EN-25
4.1 Turning Indicator On/Off............................................................................................................................EN-25
4.2 Zero Operation.........................................................................................................................................EN-25
4.3 Manual Tare............................................................................................................................................EN-25
4.4 Changing Units of Measure .......................................................................................................................EN-26
4.5 Printing Data...........................................................................................................................................EN-26
4.6 Application Modes ...................................................................................................................................EN-26
4.6.1 Weighing.....................................................................................................................................EN-26
4.6.2 Parts Counting .............................................................................................................................EN-26
4.6.3 Totalization ..................................................................................................................................EN-27
5. SERIAL COMMUNICATION..........................................................................................................................EN-28
5.1 Interface Commands ................................................................................................................................EN-28
5.2 Output Format .........................................................................................................................................EN-28
5.3 Printout Examples....................................................................................................................................EN-29
6. LEGAL FOR TRADE ...................................................................................................................................EN-30
6.1 Settings ..................................................................................................................................................EN-30
6.2 Verification..............................................................................................................................................EN-30
6.3 Sealing...................................................................................................................................................EN-30
7. MAINTENANCE.........................................................................................................................................EN-31
7.1 Cleaning.................................................................................................................................................EN-31
7.2 Troubleshooting.......................................................................................................................................EN-31
7.3 Service Information ..................................................................................................................................EN-31
8. TECHNICAL DATA.....................................................................................................................................EN-31
8.1 Specifications..........................................................................................................................................EN-31
8.2 Accessories.............................................................................................................................................EN-32
8.3 Drawings and Dimensions........................................................................................................................EN-33
8.4 Compliance.............................................................................................................................................EN-34

EN-4 2000 Series Indicators
1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for the T24PE indicator. Please read this manual
completely before installation and operation.
Safety notes are marked with signal words and warning symbols. These show safety issues and warnings. Ignoring the safety
notes may lead to personal injury, damage to the instrument, malfunctions and false results.
Signal Words
CAUTION For a hazardous situation with low risk, resulting in damage to the device or the property or in loss
of data, or injuries if not avoided.
Attention For important information about the product
Note For useful information about the product
Warning Symbols
General Hazard Electrical Shock Hazard
1.2 Safety Precautions
 •VerifythattheACadapter’sinputvoltagerangeandplugtypearecompatiblewiththelocalACpowertobeused.
 •Makesurethatthepowercorddoesnotposeapotentialobstacleortrippinghazard.
 •Donotpositiontheindicatorsuchthatitisdifficulttoreachthepowerconnection.
 •Theindicatorisforindooruseonly.
 •Usetheindicatoronlyindrylocations.
 •Useonlyapprovedaccessoriesandperipherals.
 •Operatetheequipmentonlyunderambientconditionsspecifiedintheseinstructions.
 •Disconnecttheequipmentfromthepowersupplybeforecleaning.
 •Donotoperatetheequipmentinhazardousorunstableenvironments.
Forsafeanddependableoperationofthisequipment,pleasecomplywiththefollowingsafetyprecautions:
1.1 Definition of Signal Warnings and Symbols

EN-52000 Series Indicators
1.3 Overview of Parts and Controls
Figure 1-1. T24PE Indicator.
Item Description
1 Front Housing
2 Control Panel
3 Power Receptacle
4 Load Cell Cable Connector
5 RS232 Connector (optional)
6 Data Label
7 FCC Information
8 Rear Housing
9 Mounting Track
10 Screw (4)
11 Security Screw
TABLE 1-1. T24PE PARTS.
7
8
9
10
6
34
5
11
1
2

EN-6 2000 Series Indicators
1.3 Overview of Parts and Controls (Cont.)
Item Description
1 Power Connector J1
2 Battery Connector J9
3 Option Connector J2
4 LFT Switch
5 4-6 Lines Sense Jumper W1 (located on the other side of PCB)
6 Load Cell Connector J4
7 4-6 Lines Sense Jumper W2 (located on the other side of PCB)
TABLE 1-2. MAIN PC BOARD.
Figure 1-2. Main PC Board.

EN-72000 Series Indicators
1.3 Overview of Parts and Controls (Cont.)
2
4
6
7
85
9
10
No. Designation
1 Pound, Kilogram, Gram symbols
2 Battery function symbol
3 TARE Menu button
4 FUNCTION Mode button
5 Accumulation Symbol
6 NET function symbol
7 PRINT Units button
8 PCS function symbol
9 Stable weight Symbol
10 ON/ZERO Off button
11 Center of Zero Indicator
Figure 1-3. Controls and Indicators.
TABLE 1-3. CONTROL PANEL.
11 3
1
Ib
On/Zero
O
Print
Units
Function
Mode
Tare
Menu
Stable

EN-8 2000 Series Indicators
1.4 Control Functions
Button
Primary Function
(Short Press)
ON/ZERO
If Indicator is On, sets
zero.
PRINT
Sends the current value
to the COM port if
AUTOPRINT is set to Off.
FUNCTION
Initiates an application
mode.
TARE
Performs a tare
operation.
Secondary Function
(Long Press)
Off
Turns the Indicator on
or off.
Units
Changes the weighing
Unit.
Mode
Allows changing the
application mode.
Press and hold allows
scrolling through modes.
Menu
Enter the User menu.
Menu Function
(Short Press)
Yes
Accepts the current
setting on the display.
No
Advances to the next
menu or menu item.
Rejects the current
setting on the display
and advances to the
next available setting.
Increments the value.
Back
Moves Back to previous
menu item.
Decrements the value.
Exit
Exits the User menu.
Aborts the calibration in
progress.
TABLE 1-4. CONTROL FUNCTIONS.
On/Zero
Off
Yes
Print
Units
No
Function
Mode
Back
Tare
Menu
Exit

EN-92000 Series Indicators
2. INSTALLATION
2.1 Unpacking
Unpackthefollowingitems:
 •Indicator
 •ACAdapter
 •ColumnConnector
 •InstructionManual
2.2 External Connections

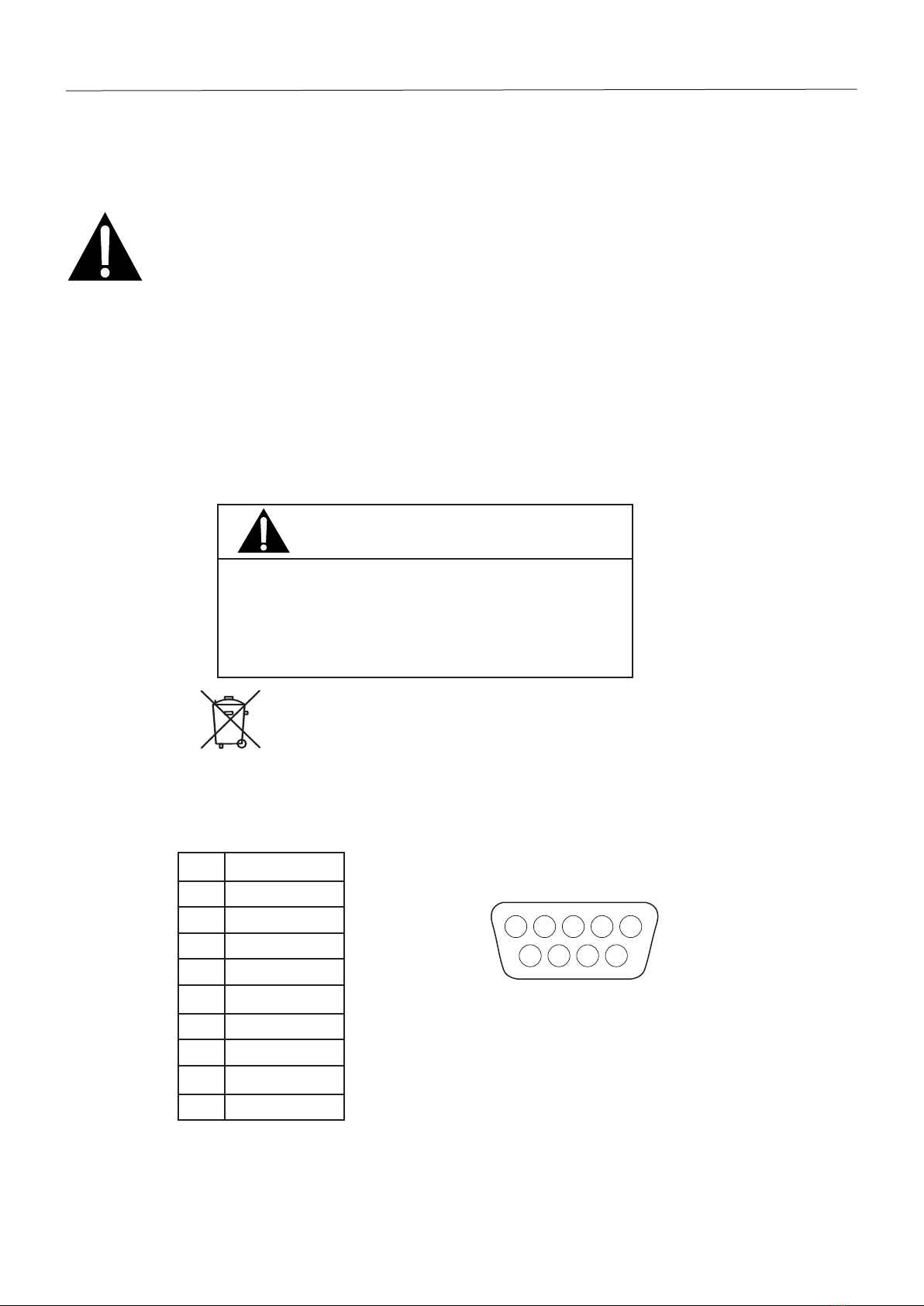

2.2.1 Scale Base to Indicator
Connecttheloadcellcabletotheindicatorasshownbelow:
Pin Connection
1 +EXE
2 +SEN
3 +SIG
4 GND
5 -SIG
6 -SEN
7 -EXE
2
1
Note:ToconnectT24PEtootherbases,anoptionalloadcellconnector(PN:30101021)needstobepurchased
and soldered as shown above.
2.2.2 AC Power to Indicator
Connect the AC Adapter to the power receptacle (Figure 1-1, item 3), then plug the AC Adapter into an electrical outlet.

EN-10 2000 Series Indicators
2.2.3 Battery Power
The indicator can be operated on the internal rechargeable battery when AC power is not available. The indicator will
automatically switch to battery operation if there is a power failure or the power cord is removed.
Attention:
Before using the indicator for the first time, the internal rechargeable battery should be fully charged for up to
12 hours. The indicator can be operated during the charging process. The battery is protected against over
charging and the indicator can remain connected to the AC power line.
Connect AC power to the indicator and allow it to charge. While the battery is charging, the triangle above the battery function
symbol will light. When the battery is fully charged, this triangle will disappear.
The indicator can operate for up to 80 hours on a fully charged battery.
Duringbatteryoperation,aflashingtriangleabovethebatteryfunctionsymbolindicatesthebatteryislowandrequires
recharging. Approximately 30 minutes of operation will remain when the battery symbol starts to blink. The indicator will
display Lo.BAT and automatically turn off when the battery is fully discharged.
CAUTION
BATTERY IS TO BE REPLACED ONLY BY AN AUTHORIZED OHAUS
SERVICE DEALER.
RISK OF EXPLOSION CAN OCCUR IF REPLACED WITH THE
WRONG TYPE OR CONNECTED IMPROPERLY.
Dispose of the lead acid battery according to local laws and regulations.
Pin Connection
1 N/C
2 TXD
3 RXD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
Figure 2-1. RS232 Pins.
2.2.4 RS232 interface Cable to Indicator (Optional)
Connect the optional RS232 cable to the RS232 connector Figure 1-1, item 5.
Note:Forinstallationinstructions,pleaserefertooptionalRS232usermanual.
1
2
3
4
5
6
78
9

EN-112000 Series Indicators
Remove the four Phillips head screws from the rear housing.
Open the housing being careful not to disturb the internal connections.
Once all connections are made, reattach the front housing.
2.3.2 Jumper Connections
Fora4-wireloadcellwithnosensewires:JumpersW1andW2mustbeshorted.
For a 6-wire load cell that includes sense wires, Jumpers W1 and W2 must be opened.
Note: 6-wire load cell setting is default.
After wiring is completed and jumpers are in place, replace the indicator housing screws.
Figure 2-2. Jumper Connections.
2.3 Internal Connections
Someconnectionsrequirethehousingtobeopened.
2.3.1 Opening the Housing
CAUTION: ELECTRICAL SHOCK HAZARD. REMOVE ALL POWER CONNECTIONS TO THE INDICATOR
BEFORE SERVICING OR MAKING INTERNAL CONNECTIONS. THE HOUSING SHOULD ONLY BE OPENED
BY AUTHORIZED AND QUALIFIED PERSONNEL, SUCH AS AN ELECTRICAL TECHNICIAN.

EN-12 2000 Series Indicators
3 SETTINGS
3.1 Menu Structure
TABLE 3-1. MENU STRUCTURE.
CALIBRATION SETUP READOUT MODE UNIT PRINT END
Zero RESET RESET RESET RESET RESET
SPAN NO NO NO NO NO
LINEARITY YES YES YES YES YES
GEO CAPACITY STABLE RANGE COUNT KILOGRAM BAUD
00…31 5…20000 0.5d OFF OFF 300, …19200
END CAL GRADUATION 1d ON ON PARITY
0.001…20 2d TOTALIZE GRAM 7 EVEN
POWER ON UNIT 5d OFF OFF 7 ODD
AUTO FILTER ON ON 7 NONE
GRAM LOW END MODE LB 8 NONE
KILOGRAM MED OFF STOP
ZERO RANGE HI ON 1
0% AZT END UNIT 2
2% OFF HANDSHAKE
100% 0.5d NONE
END SETUP 1d XON-XOFF
3d STABLE ONLY
SLEEP OFF
ON ON
OFF AUTO PRINT
LIGHT OFF
HI ON STABLE
MED LOAD
LOW LOAD AND ZERO
AUTO OFF INTERVAL
OFF 1…3600
SET 1 CONTINUOUS
SET 2 CONTENT
SET 5 RESULT
EXPAND MODE GROSS
OFF NET
ON TARE
END READOUT UNIT
MODE
INFO
LAYOUT
FORMATE
S
M
FEED
LINE
4 LINES
FORM
END PRINT

EN-132000 Series Indicators
3.2 Menu Navigation
3.3 Calibration Menu
Threecalibrationprocessesareavailable:ZeroCalibration,SpanCalibrationand
Linearity Calibration. Zero Perform
Span Perform
Linearity Perform
Geographic
Adjustment Set 00…Set 19… Set 31
End Calibration Exit CALIBRATE menu
NOTES:
1. Make sure that appropriate calibration masses are available before
beginning calibration.
2. Make sure that the scale base is level and stable during the entire
calibration process.
3. Calibration is unavailable with LFT set to On.
4. Allow the Indicator to warm up for approximately 5 minutes after
stabilizing to room temperature.
5. To abort calibration, press the Exit button anytime during the calibration
process.
6. Make sure to finish Zero Calibration before performing Span Calibration to
ensure weighing accuracy.
TO ENTER THE MENU MODE
Press and hold the Menu button until MENU appears on the display. The first upper level menu appears on the display.
Summaryofbuttonnavigationfunctionsinmenumode:
--Yes Allows entry into the displayed menu.
- Accepts the displayed setting and advances to the next menu item.
--No Skips by the displayed menu.
- Rejects the displayed setting or menu item and advances to the next available item.
--Back Moves backwards through the upper and middle level menus.
- Backs out of a list of selectable items to the previous middle level menu.
--Exit Exits from menu directly to the active weighing mode.
3.3.1 Zero Calibration
Zero Calibration uses one point. The calibration point is established with no load on the scale. Use this
calibration method to adjust for a different pre-load without affecting the span or linearity calibration.
When [CAL] is displayed, press the YES key to accept the Calibration sub-menu selection.
(Pressing the NO key to advance to the next sub-menu, [SEtUP].)
When [ZErO] is displayed, press the YES key to accept the Zero Calibration menu item selection.
The display flashes [0] and the kg led is light.
Press the Yes key to establish the zero point.
Note:Thenewzeropointmustbewithintherangeofthenormalizedweight.
The display shows [--C--] while the zero point is established.
If zero calibration was successful, the scale exits to the next Calibration menu and displays [SPAN]
CAL
ZErO

EN-14 2000 Series Indicators
3.3.2 Span Calibration
Span Calibration uses one point. The span point is established with a calibration mass placed on the scale.
When SPAN is displayed, press the Yes button to access the Span Calibration menu item.
The display flashes the span calibration point. Place the specified weight on the scale and press the Yes
button.
To choose a different span point, repeatedly press the No button to increment the selections or press the Back
button to decrement the selections. Refer to Table 3-3 for available span points. When the desired value is
displayed, place the specified weight on the scale and press the Yes button.
The display shows --C-- while the span point is established.
If span calibration was successful, the scale exits to the next Calibration menu and displays [LINEAr]
Note:SpanCalibrationshouldbeperformedafterZeroCalibration.
3.3.3 Linearity Calibration
Linearity calibration uses 3 calibration points. The first calibration point is established with no weight on the
scale. The second calibration point is established at approximately half capacity. The third calibration point
is established at capacity. The Linearity calibration points are fixed and cannot be altered by the user during
the calibration procedure. Refer to Table 3-3 for the linearity points.
When LINEAr is displayed, press the Yes button to access the Linearity Calibration menu item.
The display flashes 0. With no weight on the scale, press the Yes button to establish the zero point.
The display shows --C-- while the zero point is established.
The display flashes the mid calibration point.
Place the specified weight on the scale and press the Yes button.
The display shows --C-- while the mid point is established.
The display flashes the full calibration point.
Place the specified weight on the scale and press the Yes button.
The display shows --C-- while the full point is established.
If linearity calibration was successful, the scale exits to the next Calibration menu and displays [GEO]

EN-152000 Series Indicators
3.3.4 Geographical Adjustment Factor
The Geographcial Adjustment Factor (GEO) is used to compensate for variations in gravity.
Attention: Changing the GEO Factor alters the calibration. The GEO value was set at the factory and
     shouldonlybechangedbyanauthorizedmanufacturer’srepresentativeorcertifiedverirication
personnel.
Refer to table 3-2 to determine the GEO factor that corresponds to your location.
Advance to the next menu.
3.3.5 End Calibration
12

EN-16 2000 Series Indicators
Geographical latitude
awayfromtheequator,
(North or South) in
degrees and minutes.
TABLE 3-2. GEOGRAPHICAL ADJUSTMENT VALUES
Elevation in meters
0 325 650 975 1300 1625 1950 2275 2600 2925 3250
325 650 975 1300 1625 1950 2275 2600 2925 3250 3575
Elevation in feet
0 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660
1060 2130 3200 4260 5330 6400 7460 8530 9600 10660 11730
Latitude GEO value
0°00’ 5°46’ 54433221100
5°46’ 9°52’ 55443322110
9°52’ 12°44’ 65544332211
12°44’ 15°06’ 66554433221
15°06’ 17°10’ 76655443322
17°10’ 19°02’ 77665544332
19°02’ 20°45’ 87766554433
20°45’ 22°22’ 88776655443
22°22’ 23°54’ 98877665544
23°54’ 25°21’ 99887766554
25°21’ 26°45’ 109988776655
26°45’ 28°06’ 1010998877665
28°06’ 29°25’ 11 10 10 9 9 8 8 7 7 6 6
29°25’ 30°41’ 11 11 10 10 9 9 8 8 7 7 7
30°41’ 31°56’ 12 11 11 10 10 9 9 8 8 7 7
31°56’ 33°09’ 12 12 11 11 10 10 9 9 8 8 7
33°09’ 34°21’ 13 12 12 11 11 10 10 9 9 8 8
34°21’ 35°31’ 13 13 12 12 11 11 10 10 9 9 8
35°31’ 36°41’ 14 13 13 12 12 11 11 10 10 9 9
36°41’ 37°50’ 14 14 13 13 12 12 11 11 10 10 9
37°50’ 38°58’ 15 14 14 13 13 12 12 11 11 10 10
38°58’ 40°05’ 15 15 14 14 13 13 12 12 11 11 10
40°05’ 41°12’ 16 15 15 14 14 13 13 12 12 11 11
41°12’ 42°19’ 16 16 15 15 14 14 13 13 12 12 11
42°19’ 43°26’ 17 16 16 15 15 14 14 13 13 12 12
43°26’ 44°32’ 17 17 16 16 15 15 14 14 13 13 12
44°32’ 45°38’ 18 17 17 16 16 15 15 14 14 13 13
45°38’ 46°45’ 18 18 17 17 16 16 15 15 14 14 13
46°45’ 47°51’ 19 18 18 17 17 16 16 15 15 14 14
47°51’ 48°58’ 19 19 18 18 17 17 16 16 15 15 14
48°58’ 50°06’ 20 19 19 18 18 17 17 16 16 15 15
50°06’ 51°13’ 20 20 19 19 18 18 17 17 16 16 15
51°13’ 52°22’ 21 20 20 19 19 18 18 17 17 16 16
52°22’ 53°31’ 21 21 20 20 19 19 18 18 17 17 16
53°31’ 54°41’ 22 21 21 20 20 19 19 18 18 17 17
54°41’ 55°52’ 22 22 21 21 20 20 19 19 18 18 17
55°52’ 57°04’ 23 22 22 21 21 20 20 19 19 18 18
57°04’ 58°17’ 23 23 22 22 21 21 20 20 19 19 18
58°17’ 59°32’ 24 23 23 22 22 21 21 20 20 19 19
59°32’ 60°49’ 24 24 23 23 22 22 21 21 20 20 19
60°49’ 62°90’ 25 24 24 23 23 22 22 21 21 20 20
62°90’ 63°30’ 25 25 24 24 23 23 22 22 21 21 20
63°30’ 64°55’ 26 25 25 24 24 23 23 22 22 21 21
64°55’ 66°24’ 26 26 25 25 24 24 23 23 22 22 21
66°24’ 67°57’ 27 26 26 25 25 24 24 23 23 22 22
67°57’ 69°35’ 27 27 26 26 25 25 24 24 23 23 22
69°35’ 71°21’ 28 27 27 26 26 25 25 24 24 23 23
71°21’ 73°16’ 28 28 27 27 26 26 25 25 24 24 23
73°16’ 75°24’ 29 28 28 27 27 26 26 25 25 24 24
75°24’ 77°52’ 29 29 28 28 27 27 26 26 25 25 24
77°52’ 80°56’ 30 29 29 28 28 27 27 26 26 25 25
80°56’ 85°45’ 30 30 29 29 28 28 27 27 26 26 25
85°45’ 90°00’ 31 30 30 29 29 28 28 27 27 26 26

EN-172000 Series Indicators
Reset No, Yes
Capacity 5…20000 kg
Graduation 0.0005…20 kg
Power On Unit Auto, kg, g, lb
Zero Range 2%, 100%
End Setup Exit SETUP menu
3.4 Setup Menu
When the Indicator is used for the first time, enter this
menu to set the Capacity and Graduation.
3.4.1 Reset
Reset the Setup menu to the factory defaults.
No = not reset.
Yes = reset.
NOTE:IftheLegalforTradeswitchisswitchedtoONposition,theCapacity,Graduation,ZeroRangeand
settings are not reset.
3.4.2 Capacity
Set the scale capacity from 5 to 20000. Refer to the Setup Table 3.3 for available settings.
5kg
10kg

EN-18 2000 Series Indicators
TABLE 3-3. SETUP AND CALIBRATION VALUES
Full Capacity Graduation size(KG 1000~20000d) Span calibration points
KG LB
5
10
0.0005,0.001,0.002,0.005
5
10 20 0.0005,0.001,0.002,0.005,0.01 5,10
15
30
0.001,0.002,0.005,0.01
5,10,15
20 40 0.001,0.002,0.005,0.01,0.02 5,10,15,20
25 50 0.002,0.005,0.01,0.02 5,10,15,20,25
30
60
0.002,0.005,0.01,0.02
5,10,15,20,25,30
40 80 0.002,0.005,0.01,0.02 5,10,15,20,25,30,40
50
100
0.005,0.01,0.02,0.05
5,10,15,20,25,30,40,50
60
150
0.005,0.01,0.02,0.05
5,10,15,20,25,30,40,50,60
75 160 0.005,0.01,0.02,0.05 5,10,15,20,25,30,40,50,60,75
100 200 0.005,0.01,0.02,0.05,0.1 5,10,15,20,25,30,40,50,60,75,100
120 250 0.01,0.02,0.05,0.1 5,10,15,20,25,30,40,50,60,75,100,120
150
300
0.01, 0.02,0.05,0.1
5,10,15,20,25,30,40,50,60,75,100,120,150
200 400 0.01,0.02,0.05,0.1,0.2
5,10,15,20,25,30,40,50,60,75,100,120,150
200
250 500 0.02,0.05,0.1,0.2
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250
300 600 0.02,0.05,0.1,0.2
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300
400 800 0.02,0.05,0.1,0.2
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400
500 1000 0.5,0.1,0.2,0.5
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500
600 1500 0.05,0.1,0.2,0.5
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600
750 1600 0.05,0.1,0.2,0.5
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750
1000 2000 0.05,0.1,0.2,0.5,1
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000
1200 2500 0.1,0.2,0.5,1
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200
1500 3000 0.1,0.2,0.5,1
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500
2000 4000 0.1,0.2,0.5,1,2
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000
2500 5000 0.2,0.5,1,2
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500
3000 6000 0.2,0.5,1,2
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000
5000 10000 0.5,1,2,5
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000,5000
6000 15000 0.5, 1,2,5
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000,5000,6000
7500 16000 0.5,1,2,5
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000,5000,7500
10000 20000 0.5,1,2,5,10
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000,5000,7500,10000
12000 25000 1,2,5,10,20
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000,4000,5000,6000,7500,10000,12000
15000 30000 1,2,5,10,20
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,
2000,2500,3000,4000,5000,6000,7500,10000,12000,15000
20000 40000 1,2,5,10,20
5,10,15,20,25,30,40,50,60,75,100,120,150
200,250,300,400,500,600,750,1000,1200,1500,2000,2500,
3000,5000,7500,10000,20000
