Onespace 60-5605T User manual

For fastest service on claims, requests for
replacement parts, or questions please visit our website at
www.comfortproducts.net/support
e-mail: [e-mail]
Keep your sales receipt as documentation of your ownership.
CUSTOMER SERVICE
OneSpace is a Trademark of Comfort Products, Inc.
™
SUPPLIER CODE: BJTJ
TAFT MESH BACK OVERSIZE 500LB CAPACITY EXECUTIVE CHAIR
MODEL 60-5605T
ASSEMBLY INSTRUCTIONS

2
CONTENTS
ITEMS ARE NOT SHOWN TO SCALE.
PART DESCRIPTION STOCK# QTY.
1
2
3
4
5
6
7
8
Back Cushion 61-5605TBC 1
Seat Cushion 61-5605TSC 1
Armrest (left)
Armrest (right)
61-5605TLA
61-5605TRA 1
1
Seat Plate 61-PLATE5600T 1
Seat Post 61-5605TPO 1
Star Base 61-5605TSB 1
Caster 61-CAST5600T 5
PARTS LIST
PART DESCRIPTION QTY.
A5/16 x 1 in.
5/16 x 1,1/4 in.
5/16 x 1,3/4 in.
5/16 x 1,1/2 in.
2
B
4
4
C
2
D
Allen Wrench 1
HARDWARE KIT
REPLACEMENT PARTS
IF YOU ARE MISSING ANY OF THE PARTS ABOVE, OR IF YOU HAVE A DAMAGED PART, PLEASE VISIT
WWW.COMFORTPRODUCTS.NET/SUPPORT AND REFERENCE THE MODEL NUMBER ON THE FRONT
OF THIS MANUAL. SIMPLY COMPLETE THE INFORMATION, INCLUDING THE PART YOU NEED. THE
PART WILL NORMALLY BE SHIPPED WITHIN 48 HOURS.
Arm Cover
E
F
G
Screwcap 4
2
STOCK # 61-5605THA

3
STEP 4
Attach the right (3) and left (4) armrests to the seat cushion (2)
using two screws (C) each. Do not fully tighten the screws. These
will be tightened after the back cushion is attached.
STEP 2
Align the seat plate (5) over the pre-drilled holes under the seat
cushion (2) (NOTE the position of the seat plate handle to the seat
cushion FRONT arrow). Attach the seat plate (5) to the seat
cushion (2) using two scre w s (A) and two screws (B) as shown.
Tight en securely with the allen wrench.
STEP 1
Insert the casters (8) into holes of the star base (7). Insert the
seat post (6) into the center hole of the star base (7).
STEP 3
NOTE: To install casters, apply
pressure to base of caster
using your thumb as shown
Turn the seat cushion so that it is upright. Position the center hole
in the seat plate ( 5 ) over the seat post (6). Then carefully lower
the chair onto the seat post.
ASSEMBLY INSTRUCTIONS
5B
A
2
34
C
6
7
8
Front

44
While seated, lean forward, lifting your body weight from
the seat. Reach underneath the right side of chair and
locate the handle. Lift the handle up slowly to allow the chair
to rise to the desired height. To lower the seat height, lift the
handle while seated.
TO ADJUST SEAT HEIGHT
Reach under the front center of the chair seat and grasp the
round black tension knob. To loosen the tilt mechanism,
recline the back cushion of the chair. To tighten the tension
knob, rotate counter-clockwise. Rotate the knob until the
desired resistance is reached.
TO ADJUST TILT TENSION
Right
Handle
STEP 5
Align the back cushion (1) with the holes in the armrests and
secure it with four screws (D). Fully tighten the screws from
step 4.
STEP 6
Place four screw caps (F) over the screws at the bottom of the
arms. Place the two arm covers (G) over the round sections on
the arms and rotate them clockwise as shown below.
Round tension
knob
ASSEMBLY AND FUNCTION INSTRUCTIONS
1
D

5
Right handle:
* Pull outward
to allow tilting
* Push inward
to lock the tilt.
While seated, reach underneath the right side of chair and
locate the handle. Slide the handle all the way out towards
the right (away from the seat). When the handle is in this
position, leaning back will cause the chair to tilt backwards.
To lock the chair in the upright (vertical) position, sit in the
chair, and push the handle in to the left (towards center of
seat).
TO OPERATE TILT LOCK
FUNCTION INSTRUCTIONS

6

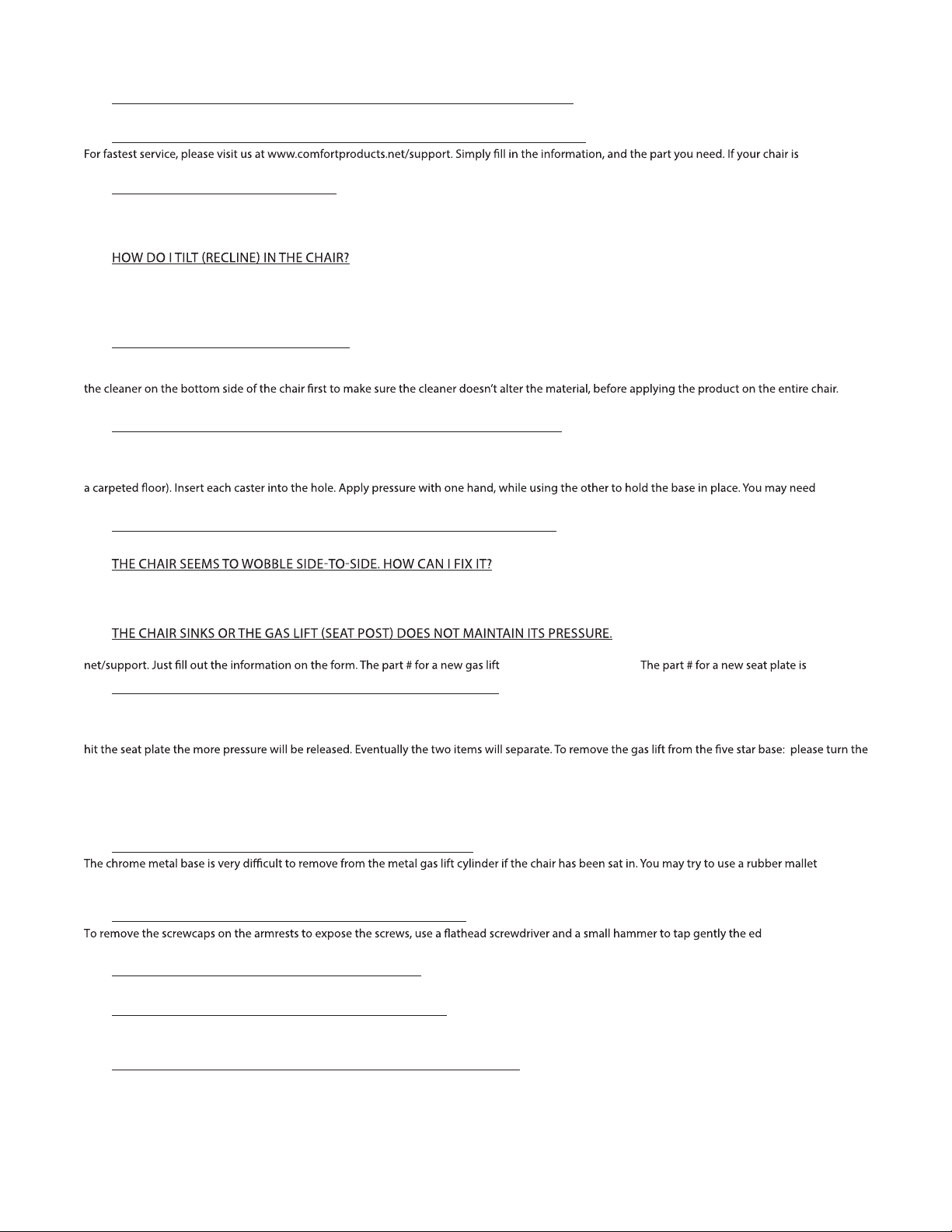

FREQUENTLY ASKED QUESTIONS
•WHERE DO I FIND THE MODEL NUMBER AND SUPPLIER CODE FOR MY CHAIR?
The chair model number and supplier code is located on a sticker underneath the seat cushion, and on the front page of your instruction manual.
•HOW DO I ORDER REPLACEMENT PARTS? WHEN AM I GOING TO RECEIVE THEM?
covered under warranty, there is no charge for replacement parts. We normally ship replacement parts within 48 hours.
•HOW DO I ADJUST THE SEAT HEIGHT?
Refer to page 4. While seated, lean forward, lifting your body weight from the seat. Reach underneath the right side of chair and locate the handle.
Lift the handle up slowly with a clockwise twisting motion to allow the chair to rise to the desired height. To lower seat height, lift the handle slowly
with a clockwise twisting motion while seated.
•
Refer to page 4. While seated, reach underneath the right side of chair and locate the handle. Slide the handle all the way out towards the right
(away from the seat). When the handle is in this position, leaning back will cause the chair to tilt backwards. To lock the chair in the upright
(vertical) position, sit in the chair, and push the handle in to the left (towards center of seat). If your chair tilts forward instead of backward, then
you may have the seat plate on backward.
•HOW SHOULD THE CHAIR BE CLEANED?
While we do not recommend a particular brand of cleaning product, you can use a damp cloth to wipe down your chair. Or you can use an over-
the-counter cleaner made for the bonded leather upholstery on your chair. If you would like to use a cleaning product, we suggest that you test
Please note that any type of discoloration or alteration made to the chair from a cleaner will automatically void the warranty.
•THE CASTERS ARE DIFFICULT TO INSTALL. HOW DO I INSTALL THE CASTERS?
Refer to inset image on page 3, STEP 1. The metal stem needs to be fully inserted into the bottom of the star base in order for the caster to stay
in. There are 2 options. One: lay the base on the carpeted ground, with the bottom of the base facing upward. Insert each caster into the hole by
applying pressure with your thumb at the base of caster. They should pop in easily. Two: hold the 5-star base in an upright position (One leg is on
push the caster in with a little force, (twisting or using a soft mallet to tap in).
•MY CASTER BROKE. HOW DO I REMOVE THE METAL STEM FROM THE BASE?
You can use pliers to remove the metal pin. Please contact www.comfortproducts.net/support and request a 61-CAST5600T replacement caster.
(seat post) is 61-5605TPO. 61-PLATE5600T.
•
Make sure all screws are properly tightened, especially the screws attaching the seat plate to the seat cushion. If this does not solve the problem, you
may need a new seat plate (61-PLATE5600T), and gas lift (seat post) (61-5605TPO) for your chair. Please contact us at www.comfortproducts.net/support, or
[email protected].
•
Refer to question above, “How do I adjust the seat height?”If the seat will not maintain its height, order a new gas lift and seat plate at www.comfortproducts.
•HOW DO I REMOVE/REPLACE THE SEAT PLATE AND/OR GAS LIFT?
Refer to page 7 for images and links to video demonstrations. To remove the seat plate from the gas lift: you will need to turn your chair over. Next, get a
rubber mallet. You will want to hit around the area that the gas lift (Cylinder) goes inside the seat plate (The black metal plate attached to the seat that has
a handle). After you hit the seat plate, give the gas lift a pull and see if it is coming loose. These two items are locked together by pressure; the more you
chair upside down. There are about one to two inches where the gas lift (Cylinder) goes through the 5 star base (The legs with wheels). Next, grab a rubber
mallet. Then, if you look in the center of the gas lift, there is a little clip. You do not want to hit the clip in the middle as it will release the pressure needed in
order to raise or lower your chair. You will want to hit the outer edge or the rim of the gas lift. The more you hit the gas lift the more pressure will be released.
After you give the gas lifts a few hits, it should come right out, or give it a pull and see if its loose. If it still won’t budge, then visit www.comfortproducts.net/
support or e-mail us at [email protected] to order a new seat plate and gas lift.
•HOW DO I REMOVE/REPLACE THE BASE FROM THE GAS LIFT?
and hammer the post from the underside of the base. If you are still unable to disengage the base, contact us at www.comfortproducts.net/
support.
•HOW DO I REMOVE THE SCREWCAPS FROM MY ARMRESTS?
will help to pry the screwcap loose from the armrest.
•THE ARMRESTS SEEM LOOSE. HOW CAN I FIX THEM?
Make sure all screws are properly tightened.
•THE PARTS DON’T SEEM TO ALIGN. WHAT SHOULD I DO?
Do not tighten the hardware completely into the component you are assembling. Tighten hardware a quarter of the way. When all components are
aligned , then you can tighten all the screws.
•THE SCREWS WON’T THREAD INTO THE HOLES. WHAT SHOULD I DO?
Be certain that you are aligned with the hole. Sometimes holes in soft upholstered areas are deep set, and you may not be making contact with
the female inset for the screw. Also, check that there is no debris on the screw or in the inset for the screw. You can also try the spare screw.
ge of the screwcap. This
, and the product is at sitting level

7
OneSpace is a Trademark of Comfort Products, Inc.
™
LIMITED WARRANTY
PLEASE VISIT WWW.COMFORTPRODUCTS.NET FOR WARRANTY INFORMATION
Comfort Products warrants this product to be free from defects in material and workmanship for 1 year. This warranty is made by
Comfort Products only to the original end-user customer acquiring the product directly from Comfort Products’authorized dealers
as shown by the original sales receipt. The end-user customer remedy pursuant to this warranty is limited to repair or replacement
of parts at Comfort Products’ option within a reasonable amount of time. Comfort Products reserves the right to require damaged
parts to be returned to Comfort Products upon request. Natural markings such as scars, brands, grain, variations, wrinkles, color
variations, etc. will be considered normal characteristics, and not construed as defects. Comfort Products cannot warrant leather
before any warranty work is performed. This warranty shall not apply to any products which must be replaced because of normal
wear and tear, negligence, abuse, or “accident”, shipping damage or product use and installation other than in accordance with
someone other than Comfort Products or because of natural variations over which Comfort Products has no control. When repairing
or replacing a defective product, Comfort Products does not guarantee matching color, grain, texture or dye lots. This warranty
does not cover the cost of transportation or labor. In no event shall Comfort Products be liable in either tort or contract for any loss
or direct, special, incidental, consequential or exemplary damages. This Limited Warranty is NOT applicable to end-user customers
who use Comfort Products for rental purposes. This warranty applies only to end-user customers in the United States. All warranties
support. Comfort Products customer service can be reached via e-mail at [email protected].
MODEL: 60-5605T
SAFETY AND MAINTENANCE
•DO NOT stand on the chair. DO NOT use the chair as a stepladder.
•Use this product for seating one person at a time.
•DO NOT
•Avoid contact with sharp objects to prevent puncturing the fabric.
•Every 6 months, check all bolts and screws to ensure they are tight.
•To clean, spot clean only using a damp towel and mild cleaner. First test on a small, obscure area of fabric.
•Chair weight limit not to exceed 500 lb
500
s.
•WHAT IS THE WARRANTY LENGTH?
register your warranty.
•HOW IS THE WARRANTY VALIDATED?
Your warranty time period is validated by the purchase date on your original purchase receipt. (Please note that the warranty can not be validated
without your original purchase receipt).
•WHAT IS THE WEIGHT LIMIT ON MY CHAIR?
The 60-5605T chair has been tested to meet BIFMA standards, and has a weight limit of up to 500 lbs.
Comfort Products, Inc.
122 Gayoso Avenue, Suite 101
Memphis, TN 38103
email: [email protected]
www.comfortproducts.net

TOOLS NEEDED: (1) Newspaper or cardboard for work area, (2) Silicone lubricant (such as WD40),(3)
Rubber Mallet
INSTRUCTIONS:
1.) Spread newspaper or cardboard on your work surface.
2.) Turn your chair on its side.
3.) Spray lubricant around the center post where connected to your 5-star base.
4.) Remove casters (wheels) from base.
5.) Use the rubber mallet and bang on the center post, directly in the center of the 5-star base (Figure A).
REMOVING A GAS LIFT POST FROM YOUR OFFICE CHAIR
TOOLS NEEDED: (1) Newspaper or cardboard for work area, (2) Silicone lubricant (such as WD40),(3)
Rubber Mallet
INSTRUCTIONS:
1.) Follow instructions for removing 5-star base.
2.) Spray gas lift where connected to seat plate.
3.) With rubber mallet, beat on seat plate around gas lift post to release pressure (Figure B).
REASSEMBLING YOUR OFFICE CHAIR WITH REPLACEMENT PARTS
Tools needed: Newspaper or cardboard for work area.
INSTRUCTIONS:
2.) Position the base on the ground and place the gas lift post into the center hole of the base (Figure C).
the chair to re-engage all parts (Figure D.)
These two parts are engaged by pressure alone. The more you hit it, the more pressure is released, and
eventually the base will release from the post.
FIGURE A
FIGURE B
The gas lift post is engaged to the seat plate by pressure alone. By banging on the seat plate, you should
be able to reduce the pressure and remove the gas lift.
FIGURE C
FIGURE D
The colored plastic button should be at the top as
shown.
8
You may visit these websites for a helpful video
demonstration about how to change your gas lift:
http://bit.ly/TvWwot
http://bit.ly/Qic7ox
base, refer to this video link:
http://bit.ly/SPGyyO
VIDEO LINKS
