OPTO-EDU A13.0905 User manual

www.optoedu.com 1/18 [e-mail]
A13.0905
Inverted Metallurgical Microscope,
Semi-APO
Instruction Manual
This instruction manual is for the Invert Metallurgical microscope IE200
series. To ensure the safety and obtain optimum performance and to
familiarize yourself fully with use of this microscope, we recommend that you
study this manual thoroughly before operating the microscope. Retain this
instruction manual in an easily accessible place near the work desk for future
reference.
The instruction is according to industry standard JB/T10077-1999.

www.optoedu.com 2/18 [e-mail]
Contents A13.0905
Before using..............................................................................................3
1. Nomenclature........................................................................................5
2．Assemblage.........................................................................................7
2-1 Assemblage scheme.....................................................................7
2-2 Assemblage step..........................................................................8
3. Operation.........................................................................................11
3-1 Illumination...............................................................................11
3-2 Focusing....................................................................................11
3-3 Adjust tension of focus..............................................................11
3-4 Adjust diopter............................................................................12
3-5 Adjust inter-pupillary distance ..................................................12
3-6 Use filter....................................................................................12
3-7 Adjust field diaphragm..............................................................13
3-8 Adjust aperture diaphragm ........................................................13
3-9 Use simple polarizing kit ..........................................................14
3-10 Replace fuse ............................................................................14
3-11 Mount and use TV device........................................................14
3-12 Mount and use photo device ...................................................15
4.Technical Parameter ............................................................................16
5．Troubleshooting................................................................................16

www.optoedu.com 3/18 [e-mail]
Before using A13.0905
Invert metallurgical microscope is used to discern and analyze organizational structure from
kinds of metal. It is very important in the work of quality research for foundry, smelt, heat
treatment and inspection for raw material and analysis for metallurgical structure of material after
processing. It is also the important tool of research work for metal physics, which is wildly used
in enterprise, university and R&D.
1. Attention:
1.1 As the microscope is precision
instruments, it should be taken carefully
and avoid impact during transportation.
1.2 Do not expose the microscope in the
sun directly, either not in the high
temperature, damp, dusty or acute
shake place. Make sure the worktable is
horizontal. Following environment is
required: Indoor temperature: 5℃～
40℃, Max relative humidity:80%.
1.3 To move the microscope, please hold
groove ①behind and tube position ②
and lay it carefully. (Fig. 1)
★It will be damaged by holding the stage, focusing knobs, tube or illuminator.
1.4 The lamp will be very hot during working, please make sure there is enough space around for
dissipating.
1.5 Please connect the microscope with ground to avoid lighting strike.
1.6 Please make sure the power switch is “0”(Off)(See the left Fig) and the bulb cool down
before replace the bulb or fuse.
★Bulb: 3W LED bulb
12V/30W halogen bulb (Philips 5761)
1.7 It adopt wildly voltage 90~240V, and do not need any transformer. Please make sure the
power supply before using.
1.8 Please use special wires supplier by our company.
Fig.1

www.optoedu.com 4/18 [e-mail]
A13.0905
2. Maintenance
2.1 Clean the lenses gently with a soft lens tissue. Carefully wipe off oil or fingerprints on the
lens surfaces with tissue moistened with 3:7 mixture of ethanol and anther or dimethylbenzene.
★Ethanol and Anther are both flammable. Please leave them away from fire or fire source,
especially during the power switch turn on and turn off.
2.2 Don’t use organic solution to clean the surfaces of the microscope, especially for plastic parts.
Please use the neutral detergent if necessary.
2.3 If the microscope damped by the liquid during working, please cut off the power immediately
and make it dry.
2.4 Do not disassemble or assemble the microscope to avoid damaging the capability.
2.5 After using, put on dust cover to protect microscope.
3. Safety sign
Sign
Signification
It shows the surface gets hot and don’t touch with bare hand.
Read the introduction before using. Unsuitable operation would lead person hurt
or instrument faulty.
|
Power switch ON
O
Power switch OFF

www.optoedu.com 5/18 [e-mail]
1. Nomenclature A13.0905
Mechanical stage
Eyepiece
Knob for adjustment
tension
Coarse knob
Fine knob
Analyser
Knob for
brightness
Pole for field
diaphragm
Pole for aperture
diaphragm
Polarizer slide
Filter slide
Metal stage

www.optoedu.com 6/18 [e-mail]
A13.0905
Objective
IE200M stand
Power
switch
Trinocular
head
Centering screw for
field diaphragm
Diopter
adjustment ring
Reflected
illuminator
Nosepiece
Lamp
holder

www.optoedu.com 7/18 [e-mail]
2 ． Assemblage A13.0905
2-1Assemblage scheme
The below numbers shows the assemblage order.
★Before assemblage, please make sure all parts are without any dust or dirt..
★Be careful during assemblage and do not scrap or touch the optical lens.
Plug
Lamp holder
Objecti ve
Metal stage
Clips
Eyepiec e
analyzer
Polarizer slide/filter slide

www.optoedu.com 8/18 [e-mail]
A13.0905
2-2Assemblage step 2-2-1 Set lamp holder
b Make sure the pin ①and ③facing to the hole
②and ④, then lock. (Fig. 2)
★LED bulb: 3W
★Halogen bulb: 6V30W (Philips 5761)
2-2-2 Set or replace bulb
Use clean glove or gauze to hold the bulb and
make sure the bulb pin ①facing to hole ③
and lock. Please make sure the bulb should be
vertical. (Fig. 3)
★Do not touch the bulb by finger directly.
C lean by gauze if there is finger print on
bu bulb.
★Whenever replace the bulb, please cut
off the power first and wait the
illuminator part cool down.
2-2-3 Set objectives
Turn the coarse knob to make the nosepiece to
lowest. Through the hole on stage to set the
objectives ①on nosepiece from low
magnification to high magnification with the
direction. (Fig. 4)
★Clean the objectives regularly. It is very
sensitive of dust for objective of invert
microscope.
★Please use low magnification objective,
such as 5X or 10X to find image, then use
high one for observation.
★Make sure to hear click when turning to
show the objective on correct position.
Fig.3
Fig.4
Fig.2

www.optoedu.com 9/18 [e-mail]
A13.0905
2-2-4 Set the metal stage
⑴Set the metal stage ①on mechanical
stage as the direction showed. (Fig. 5)
⑵Turn the metal stage to make the V hole
②direct to the user.
2-2-5 Set clips
⑴Take out clips ①from pole ②. (Fig. 6)
⑵Screw pole ②into hole ③on
mechanical stage, then lock by screw nut ④.
⑶Set the clips ①into pole ②and make it
direct to center of stage.
2-2-6 Set eyepiece
⑴Take off eyepiece cap ①. (Fig. 7)
⑵Insert the eyepiece ②to tube.
Fig.5
Fig.7
Fig.6

www.optoedu.com 10/18 [e-mail]
A13.0905
2-2-7 Set Analyzer
Insert the analyzer ①into hole ②on
microscope stand with its face up to hear click.
(Fig.8)
2-2-8 Set polarizer and filter
Insert the polarizer or filter ①into hole ②on
connector between microscope stand and
illuminator with its face up to hear click.
(Fig.9)
2-2-9 Connect power supply
⑴Make sure the main power switch is at
“O”(OFF) position.
⑵Insert one side of power plug ①into
microscope socket ②and the other side
connecting to power supply. (Fig. 10)
★Don’t overexert with the wires when it
is bendy or voluble.
★Use the wire supplied by our company
only. If it is lost or damaged, choose
another suitable one.
★Connect all wires correctly, make sure
the microscope connect with ground.
Fig.8
Fig.10
Fig.9

www.optoedu.com 11/18 [e-mail]
3. Operation A13.0905
3-1 Illumination
⑴After connect the microscope with power
supply, set main switch at “-“position.
⑵Turn the knob ①for brightness to suitable.
Clockwise turning of the adjusting knob is to
bright and counter to dark. (Fig 11)
★It can protect the bulb if using under low
power supply.
3-2 Focusing
⑴Put the specimen on metal stage and use
objective 5X.
★Please make sure the specimen should be
vertical with the objective. If not, please fix
the specimen by plasticene
⑵Adjust the diopter of right tube to “0”
(See 3-4 Adjust diopter). Observe through
right eyepiece and turn the coarse knob ①to
find the image (Fig 12)
⑶Turn the fine knob ②to make the image
clear.
3-3 Adjust tension of focus
If the tension is too tight or image is out of
focus plane or the stage slips down during
focusing, please adjust the tension knob ①of
focus. (Fig. 13)
★The knob ①direction indicated is for
loose and opposite direction for tight.
Fig.12
Fig.11
Fig.13

www.optoedu.com 12/18 [e-mail]
A13.0905
3-4 Adjust diopter
Diopter is ±5 and it is point to the line on tube.
After getting the clear image through right
eyepiece, Please obverse through left
eyepiece with left eye. If the image is not
clear, please adjust the left diopter adjusting
ring ①. (Fig 14)
★When both eyepiece have diopter, select
one for standard and adjust another. Please
make sure the diopter of standard one
should be at “O”position before focusing.
3-5 Adjust inter-pupillary distance
When two eyes observe, please turn the two
prism house with the direction indicate to
adjust the inter-pupillary till suitable.
(Fig. 15)
The mark “·”on left tube indicates the
inter-pupillary.
The inter-pupillary range: 50~76mm
★Please remember your inter-pupillary for
next observe.
3-6 Use filter
It can make the background of image softly
and improve the image more clearly through
using filters. (Fig. 16)
Filter: Green, blue, red
A13.0905
Fig.14
Fig.15
Fig.16

www.optoedu.com 13/18 [e-mail]
3-7 Adjust field diaphragm
Field diaphragm can strength the image
contrast by preventing the diameter of bean of
light into condenser and in order to strength
the image contrast. When the image is in the
edge of field, the objective can bring out the
supper image.
⑴Turn the pole ②for field diaphragm
adjusting to the most left with counter
clockwise to make the field smallest. (Fig 17)
⑵Through the eyepieces, here you can find
the image of field diaphragm.
⑶Adjust the both centering screws ①of
field diaphragm to make the diaphragm image
to the center.
⑷Open the field diaphragm slowly, if the
field inscribed with its image, it indicates the
diaphragm centered. (Fig 18)
⑸Please increase the diaphragm a little
during operation to make the field excircle
with its image.
3-8 Adjust aperture diaphragm
Aperture diaphragm controls the aperture
of illumination. The aperture of
illumination should be suitable with
objective’s, then it can provide the best
image and increase depth of field.
The adjustment of aperture diaphragm is
the same as field diaphragm. Please use
knob ①. Please adjust aperture
diaphragm to suitable through the contrast
of image. (Fig. 19)
A13.0905
Fig.17
Fig.19
Fig.18

www.optoedu.com 14/18 [e-mail]
3-9 Use simple polarizing kit
Simple polarizing kits includes polarizer and
analyzer. (Fig. 20)
⑴Set analyzer and polarizer as 2-2-7 and
2-2-8. (Please take off filter slide when using
polarizer slide)
⑵It can change position of polarizing light to
rotate analyzer.
⑶When analyzer is at zero position, the
analyzer and polarizer are crossed.

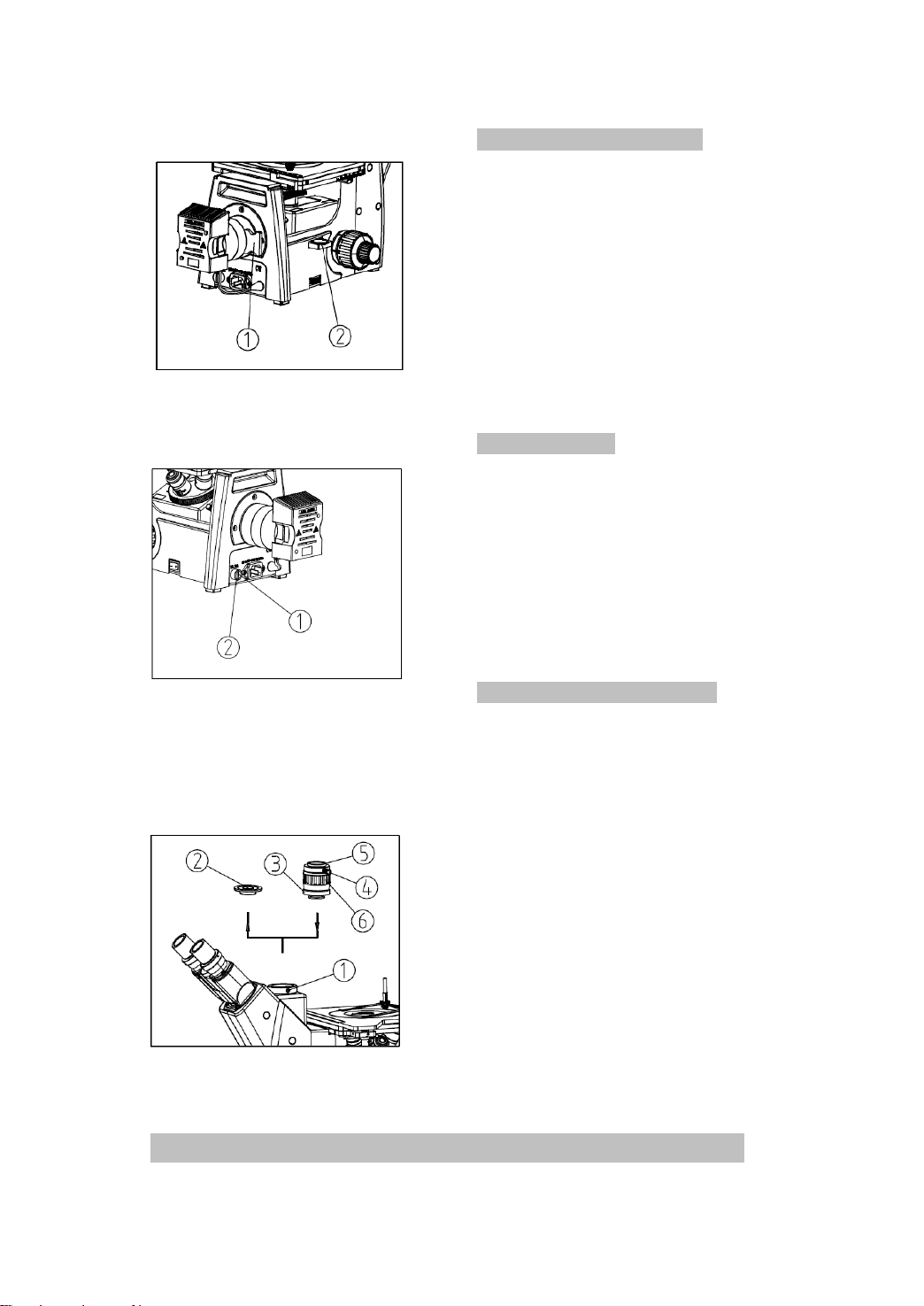

3-10 Replace fuse
Before replace fuse, please make sure the
power switch is at “0”(Off) and cut off the
power supply. Use screwdriver to take off the
fuse ①from fuse holder ②and replace a new
one. (Fig 21)
★The rating for fuse: 250V, 8A.
3-11 Mount and use TV device
⑴Loose the lock-screw ①on tri-tube and
take off the tri-cap ②. (Fig 22)
⑵Take off the caps of TV adapter ③and
settle on tri-tube and lock by screw ①.
⑶Loose the lock-screw ④on TV adapter and
take off C-mount ⑤. Then set the C-mount to
CCD or Vidicon and connect to TV adapter
again, lock on.
⑷Adjust the image clear through binocular
then obverse through CCD. If it is not clear,
you can adjust the adjusting ring ⑥till clear
A13.0905
Fig.21
Fig.22
Fig.20

www.optoedu.com 15/18 [e-mail]
3-12 Mount and use photo device
⑴Loose the lock-screw ①on tri-tube and
take off the tri-cap ②. (Fig 23)
⑵Mount the photo device as the direction
indicated into tri-tube, then lock on screw ①.
⑶Loose the lock-screw ③on photo
adapter and take off photo tube ④. (Fig. 24)
⑷Insert 3.2X photo eyepiece ⑤into tube
⑥. Then mount photo tube ④and lock on
screw ③.
⑸Adjust the image clear through binocular
then use camera as its manual.
Fig.23
Fig.24

www.optoedu.com 16/18 [e-mail]
4.Technical Parameter A13.0905
Technical Parameter for IE200 invert metallurgical microscope
5 ． Troubleshooting A13.0905
eyepiece
PL10X/18mm plan eyepiece
Objective
195mm normal metallurgical objective (5X、10X、20X、40X)
195mm LWD professional plan metallurgical objective (5X、10X、20X、
50X、100X)
Head
Gemmell trinocular head, 45 degrees inclined, with 8:2 prismatic
Inter-pupillary distance: 55-75mm
Nosepiece
Build-in quadruple nosepiece( Build-in quintuple nosepiece)
Focus
Fine and coarse coaxial, moving range: 33mm, fine precision: 0.001mm
Stage
Size: 180*155mm, moving range: 75*40mm
φ12 metal stage(φ25metal stage for selection)
Illumination
Reflected Kohler illuminator with iris aperture diaphragm and centering
field diaphragm. 100-240VAC power supply with 3W LED bulb(6V30W
halogen bulb for selection). Adjustment for brightness.
Polarizing set
Analyzer can be rotatable and both polarizer and analyzer can be move light
path.
Filter
Blue, green, yellow
Operation
Environment
●Indoor
●Altitude: 2000m Max.
●Temperature: 5℃－40℃ (41°F－104°F)
●Humidity: 80% for 31℃ (88°F)
70% for 34℃ (93°F)
60% for 37℃ (99°F)
50% for 40℃ (104°F)
●Pollution: 2 (Refer to IEC664)

www.optoedu.com 17/18 [e-mail]
The performance of the microscope can’t be made fully because of unfamiliar using, this table
will give some advices.
Trouble
Cause
Remedy
1. Optical parts
⑴bulb works, but
the light is not
enough
Field diaphragm is not enough large
Turn it larger
The knob for brightness is too low
Adjust to suitable
The polarizer and analyzer is pulled
inside
Take them off
⑵the edge of field
dark or not equal
Nosepiece is not fixed
Fix the nosepiece
Dirt on lens or eyepiece or objective
Clean them
Filter, polarizer or analyzer are not at
right position
Pull the slides in or pull in
the light path selection pole
⑶dirt inside of
field
Dirt on specimen
Clean specimen
Dirt on lenses
Clean lenses
⑷image blur
Slide cover on sample
Take the cover away
Sample is not upright to objective
Adjust the sample
Nosepiece is not fixed
Fix the nosepiece
Aperture diaphragm opened too large
Adjust it
Dirt on lens of eyepiece
Clean it
⑸image blur
somewhere or
image moving
during focusing
Sample is not settled correctly
Set it again
Nosepiece is not fixed
Fix the nosepiece
⑹eye tired easily
or double image
Interpupillary is not correct
Adjust interpupillary
Diopter is not correct
Adjust diopter
Not the same magnification for both
eyepiece
Use same eyepiece
A13.0905

www.optoedu.com 18/18 [e-mail]
Trouble
Cause
Remedy
2. Mechanics
⑴too tight of coarse
knob
Tension knot is too tight
Loose it to suitable
⑵stage slips down
during obverse
Tension knot is too looses
Tight it to suitable
3. Electrical parts
⑴bulb does not work
There is not power supply
Connect the power supply
The wires do not connect right
Connect it correctly
Faulty setting of bulb
Set the bulb correctly
Bulb burn out
Replace bulb
⑵Not enough
brightness
Faulty adjusting of brightness
Re-adjust the brightness
Bulb is not standard
Use standard bulb
⑶bulb always burns
out
Bulb is not standard
Use standard bulb
⑷light flickered
Bulb is going to burn out
Replace the bulb
The wires do not connect right
Connect it correctly
