44X10W RGBW 4IN1 LED MOVING WASH LIGHT

2
1. Dimension............................................................................................ 3
2. Safety Information................................................................................ 3
3. Preparing for installation ....................................................................... 5
4. Installation........................................................................................... 6
5. Connecting AC Power............................................................................ 6
6. Configuring the fixture.......................................................................... 7
7. Connecting to a DMX control device ....................................................... 8
8. Configuring the fixture for DMX control .................................................. 9
9. Cleaning .............................................................................................10
10. DMX protocols ...................................................................................11
11. Control menu.....................................................................................12
12. Specification......................................................................................14
13. Photometrics .....................................................................................15
STATEMENT
The product has well capability and intact packing when leave factory. All of
the user should comply with warning item and manual, any misuse cause of the
damages are not included in our guarantee, and also can not be responsible
for any malfunction & problem owing to ignore the manual.
TABLE OF CONTENTS

3

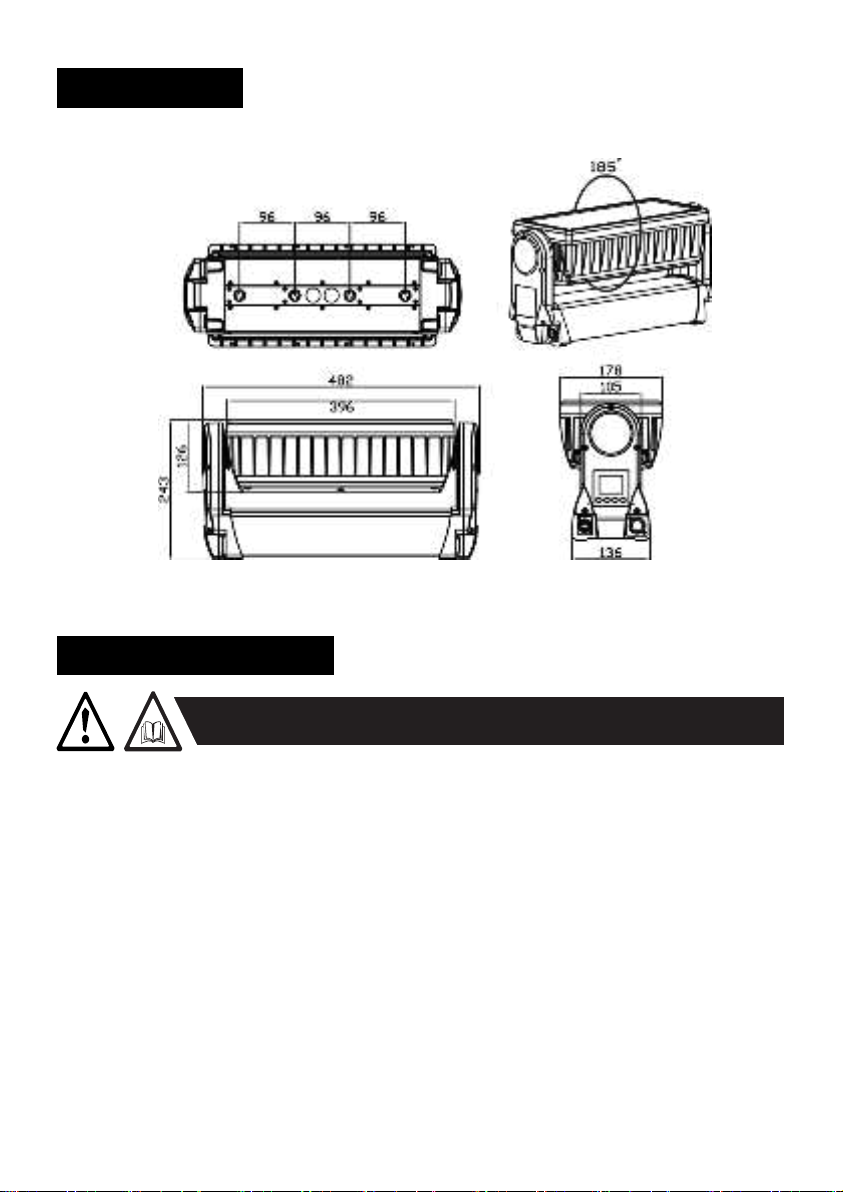

1. Dimension
2. Safety Informations
This luminaries are multi-environmental fixtures with an IP-rating of 65,
intended for professional use only. They are not suitable for household use.
Review the following safety precautions carefully before installing or operating
the fixture. This fixture must be installed in accordance with the applicable
installation code by a person familiar with the construction and operation of the
fixture and the hazards involved.
Preventing electric shock
WARNING! Read the safety precautions in this section before
unpacking, installing, powering or operating this product.

4
⚫Always power off/unplug the fixture before removing any covers.
⚫Ensure that the power is turned off when connecting the fixture to the AC
mains supply.
⚫Ensure that the fixture is electrically connected to earth (ground).
⚫Do not apply power if the fixture is in any way damaged.
⚫Do not immerse the fixture in water or liquid.
Preventing burns and fire
⚫Install in a location that prevents accidental contact with the fixture.
⚫Install only in a well-ventilated space.
⚫Install at least 0.3 m (12 in.) away from objects to be illuminated.
⚫Install only in accordance with applicable building codes.
⚫Ensure a minimum clearance of 0.1 m (4 in.) around the cooling fans.
⚫Do not paint, cover or modify the fixture.
⚫Keep all flammable materials away from the fixture.
⚫Allow the fixture to cool for 15 minutes after operation, before touching it.
⚫CAUTION: Exterior surface temperature after 5 min. operation = 45 °C
(113 °F). Steady state = 60 °C (140 °F).
Avoid personal injury
WARNING! Take measures to prevent burns and fire.
WARNING! Risk of electric shock.

5
⚫Do not look directly at the light source from close range.
⚫Take precautions to prevent injury due to falls when working at height.
⚫For permanent installation, ensure that the fixture is securely fastened to a
load-bearing surface with suitable corrosion-resistant hardware.
⚫For temporary installation with clamps, ensure that the quarter-turn
fasteners are turned fully and secured with a suitable safety cable. The
cable must be approved for a safe working load (SWL) of 10 times the
weight of the fixture, and it must have a minimum gauge of 3 mm.
3. Preparing for installation
Unpack the fixture and inspect it to ensure that it has not been damaged during
transport.
The fixture is shipped with two quarter-turn brackets, that can be used to
mount the fixture at elevation.
The fixture is IP65-rated, and is designed for use in wet locations. This means
that it is protected from:
⚫Dust, to the degree that dust cannot enter the fixture in sufficient
quantities as to interfere with its operation.
⚫Lower pressure jets of water from any direction.
When selecting a location for the fixture, ensure that:
⚫It is situated away from public thoroughfares and protected from contact
with people.
⚫It is not immersed in water or exposed to high-pressure water jets.
⚫It has adequate ventilation.
WARNING! Take measure to prevent personal injury.

6
4. Installation
The fixture may be installed in any orientation, but if installed horizontally with
a downward beam-angle, water can potentially pool in the fan wells. Under
normal operation the moisture will evaporate. However, in locations with high
rainfall, you may wish to fabricate a rain shield above the fixture, or modify the
position and orientation of the fixture to minimize pooling.
Two quarter-turn brackets are supplied with the fixture if
it is to be flown above the ground. Rig the fixture to a
support truss or structure using the supplied brackets and
suitable clamps.
Fasten a safety cable (not shown) between the
support structure and the attachment point on
the fixture. The safety cable must be able to bear
at least 10 times the weight of the fixture.
5. Connecting AC Power
The fixture can operate on any 100–240 V, 50/60 Hz AC mains power supply. It
draws approximately 2 amps at full power. For permanent installation, have a
qualified electrician wire the mains cable directly to a suitable branch circuit.
The junction’s ingress protection (IP) rating must be suitable for the location.
For temporary installation, the mains cable may be fitted with a grounded
connector intended for exterior use.
When installing standard type C circuit breakers there will be no limitations due
to the fixture in-rush current. Due to the nominal current of the fixture, ensure
that no more than:

7
4 fixtures are connected through the same type C, 10A circuit breaker.
7 fixtures are connected through the same type C, 16A circuit breaker.
The fixture must be grounded/earthed and be able to be isolated from AC
power. The AC power supply must incorporate a fuse or circuit breaker for fault
protection.
After connecting the fixture to power, run the on-board test, using the “Fixture
Text” menu, to ensure that the fixture and each LED are functioning correctly.
See “Control menu” on page 13.
CAUTION: Do not open the fixture to replace the supplied power cable, or
connect the fixture to an electrical dimmer system, as this can damage it.
6. Configuring the fixture
Set up the fixture using the control panel and LCD display at the arm side of the
fixture.
Navigate the menus and options using the arrow buttons and select items using
the Enter button. The options available are listed in “Control menu” on page 13.
After powering on, the display shows the currently selected operating mode
and other information.
The fixture is set by default to be controlled in DMX mode.
Master/Slave configuration
You can set a fixture to operate as master fixture to another fixture (which then
becomes a slave fixture), or an entire group of fixtures (which then becomes
slave fixtures). The assigned slave fixture(s) will mimic the settings of the
master fixture. Use the “Auto Program -> Auto Color / Auto Fade”menu to set
your fixture as master fixture, then other fixtures set to DMX mode as slave
fixture.

8
Setting a static color manually
The fixture can be configured to display a predefined and static color using the
“Manual Color” (see “Control menu”on page 13).
It may suit your needs when you without a DMX controller to do the color
mixing.
Using stand-alone operation
Stand-alone operation is where the fixture is not connected to a control device,
but is preprogrammed with 2 modes (Auto Color, Auto Fade), that play
continuously in a loop, the run speed of “Auto Color”, “Auto Fade”are
adjustable.
To define a stand-alone program, use the “Auto Program”menus (see “Control
menu” on page 13).
7. Connecting to a DMX control device
The fixture is controllable using a DMX control device and it can be connected
using a DMX cable.
If using a cabled DMX system, connect the DMX in cable (with male 3-pin XLR
plug) and out cable (with female 3-pin XLR plug) to the DMX data link.
Terminate the DMX out cable of the last fixture in the data link. For outdoor
installations, use only IP-rated XLR connectors suitable for outdoor use.
The DMX512 is widely used in intelligent lighting control, with a DMX 512
controller. connect several lights together, DMX in and DMX out, 3 pin XLR
connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

9
8. Configuring the fixture for DMX control
About DMX
The fixture can be controlled using signals sent by a DMX controller on a
number of channels (which varies depending on the DMX mode that has been
set).
The first channel used to receive data from a DMX control device is known as
the DMX start address. Each fixture must have a DMX start address set. For
example, if a fixture has a DMX address of 10 and it is in 4-channel DMX mode,
then it uses channels 10, 11,12 and 13. The following fixture in the DMX chain
could then be set to a DMX address of 14. If two or more DMX fixtures of the
same type have the same DMX address, then they will mimic each other’s
behaviour. Incorrect settings will result in unpredictable responses to the
lighting controller.

10
Setting the DMX address
The DMX address can be seen on the main screen. To change the address
setting, press the up arrow to increase the address, or the down arrow to
decrease the setting. When the desired address is displayed, press Enter to
save the setting.
Note that channel spacing is determined by the DMX mode.
See the “DMX protocols” on page 11 for specific DMX control values.
Setting the DMX mode
Using the “DMX Channel Mode” menu available from the control panel, specify
the DMX mode that provides the fixture controls that you require, confirm
chosen mode by pressing ‘Enter’.
9. Cleaning
To maintain optimal performance, regular cleaning is essential. Cleaning
schedules will vary depending on the operating environment, and the
installation should therefore be checked at frequent intervals within the first
few weeks of operation to see whether cleaning is necessary. This procedure
will allow you to assess cleaning requirements in your par- ticular situation.
Clean the fixture using a soft cloth dampened with a solution of water and a
mild detergent. Do not use products that contain solvents, abrasives or caustic
agents for cleaning, as they can cause damage to both hardware, cables and
connectors.

11
10. DMX protocols
Configuring DMX is described “Setting the DMX mode” on page 10.
Channel
Value
Function
5CH
12CH
1
1
Tilt :
0-255
Tilt movement
*
2
Tilt fine:
0-255
Tilt fine movement
*
3
Dimmer :
0-255
All dimmer
*
4
Strobe :
0-5
No function
6-42
Strobe macro 1
43-85
Strobe macro 2
86-128
Strobe macro 3
129-171
Strobe macro 4
172-214
Strobe macro 5
215-255
Strobe macro 6
2
5
Red :
0-255
Red dimmer
3
6
Green :
0-255
Green dimmer
4
7
Blue :
0-255
Blue dimmer
5
8
White :
0-255
White dimmer
*
9
Auto Macro :
0-1
No function
2-45
Full On

12
46-115
Color change macro
116-185
Color fade macro
186-255
Color pulse macro
*
10
Color temperature:
0-255
Warm to cold white
*
11
Tilt Speed:
0-255
Tilt movement speed from fast to slow
*
12
Dimmer Speed:
0-255
Dimmer speed from fast to slow
11. Control menu
Display:
MENU To select the programming functions (press to unlock screen)
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address:
1. Press "MENU" to unlock screen, then select the “DMX Address” and
press "ENTER".

13
2. Showing "Set DMX Address 001", Press the "UP or DOWN" key to
increase or decrease the DMX address value.
3Press "ENTER" to save and Exit, Press "Cancel" does not save and Exit.
Level 1
Level 2
Description
DMX Address
001-512
Set DMX address
DMX Channel
Mode
5_CH
——
5 channels DMX mode
12CH
12 channels DMX mode
Dimmer
Mode
DIM1
Dimmer mode 1
DIM2
Dimmer mode 2
DIM3
Dimmer mode 3
DIM4
Dimmer mode 4
DIM5
Dimmer mode 5
Mode
Selection
DMX512
DMX mode
Auto1
Auto run mode 1
Auto2
Auto run mode 2
Auto3
Auto run mode 3
Y motor
Tilt movement
White
White dimmer
Strobe
Strobe effect
Red
Red dimmer
Green
Green dimmer
Blue
Blue dimmer
System
Setting
Language
语言/English
Bk_Light
OFF/ON
Dmx512
Clear/Keep
System
Info
RDM UID
RDM UID
Version
Software Version Number
DMX Channel
Currently used mode

14
12. Specification
Technical data
LED Type: 10W RGBW 4in1 LEDs
LED Count: 44
LED Colors: RGBW
Movement
Resolution: 8-16 Bit
Tilt (Degrees): 185°
Control
Control Modes: 5CH / 12CH
Display: LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Cooling: temperature controlled, overheating protection
Effects
Dimmer: 0-100% electronic
Dimmer mode: 5 modes
Internal Effects: 3 Color Auto Run Effects
Connectors
Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
Power Input: Seetronic PowerCON TRUE1 In/Out
Operating Condtions
Mains voltage: 100-240V AC / 50-60Hz
Powe: 400W
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F
Operating Position: any

15
Mounting Options
Standing: Body feet
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets
Shipping
Single fixture: cardboard (inner and outer cartons)
Tourpack: 4-way Flight Case
Dimensions & Weight
Length: 482 mm / 18.9 in
Width: 178 mm / 9.0 in
Height (head horizontal): 243 mm / 9.5 in
Weight
N.W: 10 kg
G.W: 12.5 kg

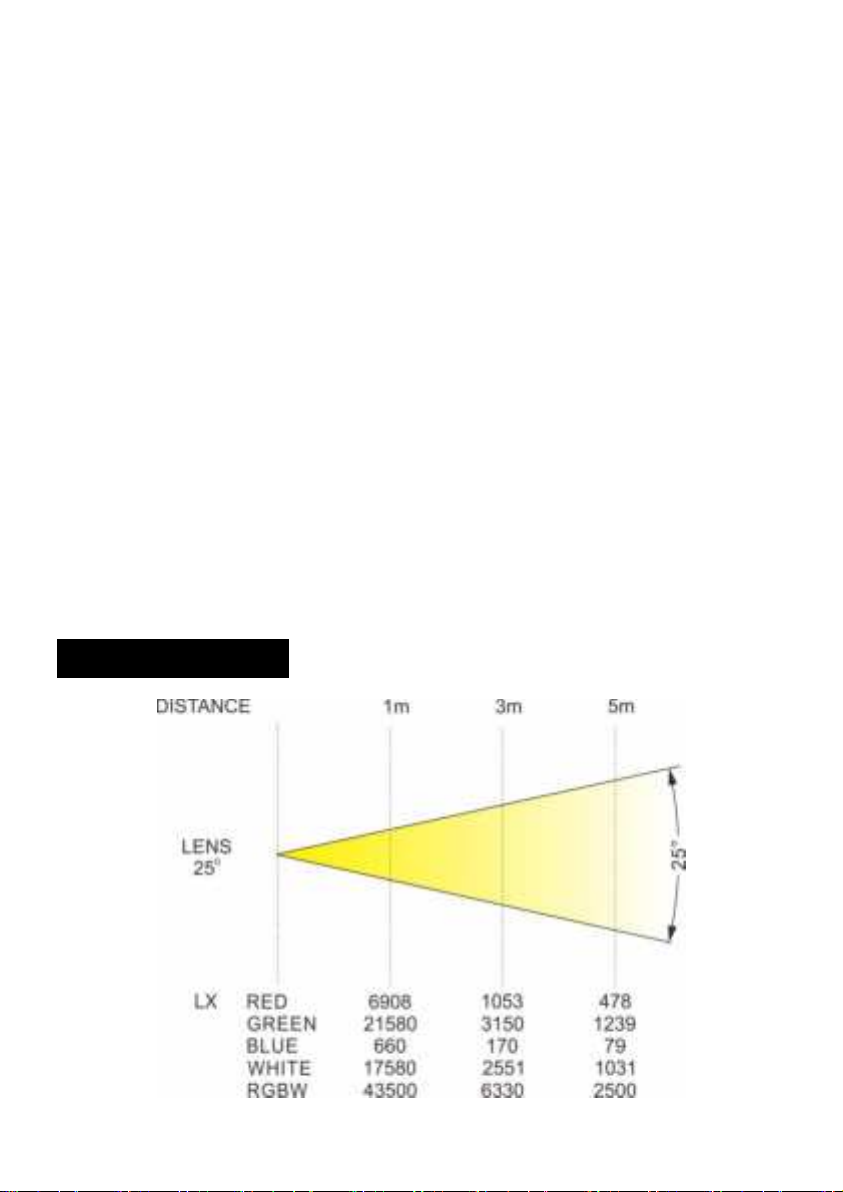

13. Photometrics
