Allegro Media Tube®Lite
INSTALLATION GUIDE
V1.0
Cover:
Allegro Media Tube®Lite RGBW
Allegro Media Tube®Lite RGB
Allegro Media Tube®Lite DW

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 2 of 20
CONTENT
1. Safety And Operation 3
2. Introduction 4
3. Installation 7
4. System Configuration 11
5. Care and Maintenance 16
6. Troubleshooting 17
7. Technical Specification 18
8. Warranty Statement 19
For your own safety and that of the product, please read this installation guide
carefully before beginning setup and installation.

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 3 of 20
1. Safety And Operation
— CAUTION - Unplug the power supply from the mains power before connecting any cables as this can damage
the products.
— CAUTION - Avoid looking directly into the LED light source at close range for your own safety.
— Persons installing this product should make sure:
1. The installation complies with all applicable codes, state and local laws, ordinances, standards and
safety regulations.
2. The installation environment is carefully studied and suitable surge protection measure(s) is taken.
3. He or she is qualified for the handling of electrical equipment.
— Do not attempt to install or use the product until installation instructions and safety labels are fully understood.
This product is designed for indoor and outdoor use.
— Ensure product operates within the specified temperature range. (Refer to 7. TECHNICAL SPECIFICATION for
more details.)
— The Allegro Media Tube®Lite does not contain any user-serviceable parts. Opening of the luminaire will void
the warranty.
— Do not use the product if any part of it, or the power cables are damaged.
— Only use product for specified voltage, do not exceed. (Refer to 7. TECHNICAL SPECIFICATION for more
details.)
— Always maintain connection to ensure waterproofing.
— If the product has been subjected to drastic temperature variances, for example, following transportation, do
not connect the fixture until it has reached room temperature, as moisture condensation may cause electric
shock and product damage.
— When installing the products and system power supplies, please ensure they will not be exposed to moisture
and extreme heat (and direct sunlight for outdoor products). Keep a clean operating environment for the fixtures
and system power supplies.
— Please study this Installation Guide thoroughly and check the latest Technical Specification Sheets available
from the Traxon website www.traxontechnologies.com and www.osram.us/traxon before setup.
— Any non-compliance of the Installation Guide will void the Traxon warranty.

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 4 of 20
2. Introduction
2.1 General
Allegro Media Tube®Lite Diffused View Length Maximum number of pixels (PXL)
AL MT LT RGBW 300 3PXL DF R ETL 300mm / 11.8” 3
AL MT LT RGBW 1200 12PXL DF R ETL 1200mm / 47.2” 12
AL MT LT RGB 300 3PXL DF R ETL 300mm / 11.8” 3
AL MT LT RGB 1200 12PXL DF R ETL 1200mm / 47.2” 12
AL MT LT DW 300 3PXL DF R ETL 300mm / 11.8” 3
AL MT LT DW 1200 12PXL DF R ETL 1200mm / 47.2” 12
Allegro Media Tube®Lite Direct View Length Maximum number of pixels (PXL)
AL MT LT RGBW 300 3PXL CR ETL 300mm / 11.8” 3
AL MT LT RGBW 1200 12PXL CR ETL 1200mm / 47.2” 12
AL MT LT RGB 300 3PXL CR ETL 300mm / 11.8” 3
AL MT LT RGB 1200 12PXL CR ETL 1200mm / 47.2” 12
AL MT LT DW 300 3PXL CR ETL 300mm / 11.8” 3
AL MT LT DW 1200 12PXL CR ETL 1200mm / 47.2” 12
Allegro Media Tube®Lite is a slim, direct view luminaire designed to integrate into any wall, facade or media lighting
application with tight installation requirements. Available with a Direct View or Diffused View lens and 3 pixels per foot,
Allegro Media Tube Lite provides smooth effects to add life and motion to the installation. Featuring auto addressing
and simple quick-lock connections, Allegro Media Tube Lite is perfect for building façades, media applications, and
more.
Features:
— Available lengths: 300mm / 1ft (3PXL), 1200mm / 4ft (12PXL)
— Diffused view and direct view
— Three color options: RGBW, RGB, DW (2700K - 6500K)
— DMX512
— Daisy Chain System with quick lock connectors
— Auto-addressing
— Outdoor Applications, Suitable for Coastal Environment (IP66 and IK09 rated)*
*IK09 is for diffused view

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 5 of 20

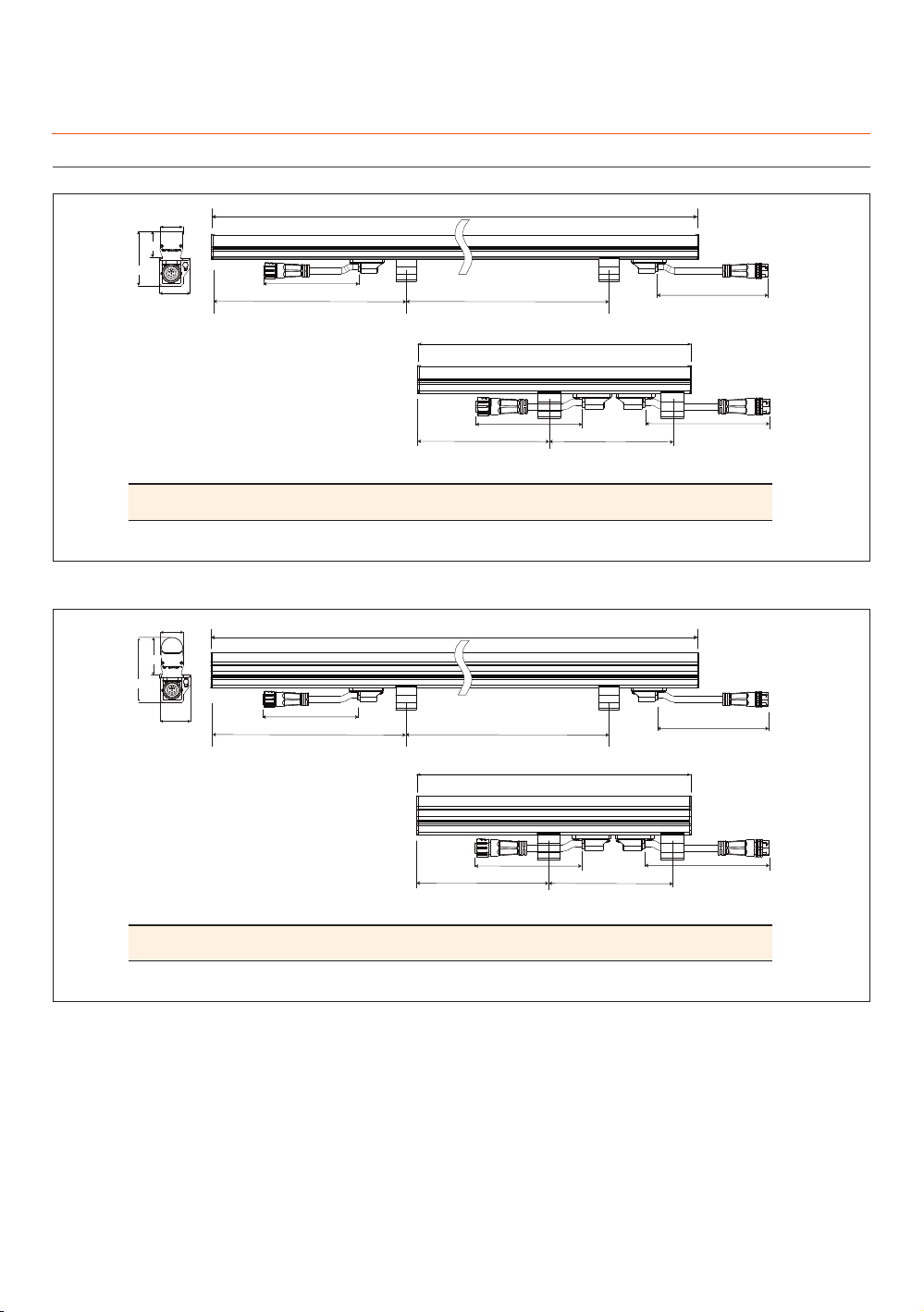

2.2 Dimensions
FIG.1: Allegro Media Tube®Lite Direct View
AD
A D
L
L
L1 L2
L1 L2
W1
W2
H2
H1
FIG.2: Allegro Media Tube®Lite Diffused View
A D
L
L1 L2
AD
L
L1 L2
W1
W2
H2
H1
NOTE: Please see CAD files for additional dimensional data.
W1 W2 H1 H2 A D L L1 L2
1200mm
48”
24.5mm
0.96”
33.3mm
1.31”
58.2mm
2.29”
31.2mm
1.23”
240mm
9.45”
850mm
33.46”
1200mm
47.24”
116.5mm
4.59”
136.3mm
5.37”
300mm
12”
24.5mm
0.96”
33.3mm
1.31”
58.2mm
2.29”
31.2mm
1.23”
145mm
5.71”
135mm
5.31”
300mm
11.81”
116.5mm
4.59”
136.3mm
5.37”
NOTE: Please see CAD files for additional dimensional data.
W1 W2 H1 H2 A D L L1 L2
1200mm
48”
24.5mm
0.96”
33.3mm
1.31”
70mm
2.76”
43mm
1.69”
240mm
9.45”
850mm
33.46”
1200mm
47.24”
116.5mm
4.59”
136.3mm
5.37”
300mm
12”
24.5mm
0.96”
33.3mm
1.31”
70mm
2.76”
43mm
1.69”
145mm
5.71”
135mm
5.31”
300mm
11.81”
116.5mm
4.59”
136.3mm
5.37”

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 6 of 20
FIG.3: Allegro Media Tube®Lite Accessories
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
1m, 5m, 30m / 3.28’, 16.40’, 98.43”
0.14m, 1m, 4m / 0.46’, 3.28’, 13.12’
56.3mm / 2.22”
2*18AWG+4*24AWG
Round Cable
22.5mm / 0.89” 22.5mm / 0.89” 20.3mm / 0.80”
20.3mm
2*18AWG+4*24AWG
Round Cable
φ7mm / 0.28”
φ7mm / 0.28”
Wire# Description Color
1DMX+ Green
2Ground White
3DMX− Blue
4DC48V− Black
5DC48V+ Red
6Address Brown
Connector Pin Assignment
1
2
3
45
6
4
5
3
2
16
1
2
3
45
6
4
5
3
2
16
Input Output
2.3 Packing Contents
FIG.4: Packing Contents
Allegro Media Tube®Lite Direct/Diffused View x 1
Mounting bracket x 2

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 7 of 20
3. Installation
3.1 Points To Consider
Plan your installation before mounting the Allegro Media Tube®Lite. The following should be considered for a
successful installation.
— Weather conditions and ambient temperature of installation site.
— Appropriate cable lengths (cable gauges described in system diagram). Please consult your local Traxon office
or authorized agent for necessary aid.
— The number of the Allegro Media Tube®Lite and appropriate LED Engines.
— DMX512 to be used to control the Allegro Media Tube®Lite.
— Distance between each Tube for thermal expansion and maintaining pixel pitch.
— Mounting distances should be considered.
— Proper surge protection.
FIG.5: Allegro Media Tube®Lite Cable System
Starter Cable
From terminal block to first Allegro Media Tube Lite in chain
Interconnection Cable
From Allegro Media Tube Lite to another Allegro Media Tube Lite
End Cap with 120Ω Terminator
The end cap includes DMX data terminator
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
1m, 5m, 30m / 3.28’, 16.40’, 98.43”
2*18AWG+4*24AWG
Round Cable
20.3mm / 0.80”
φ7mm / 0.28”
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
0.14m, 1m, 4m / 0.46’, 3.28’, 13.12’
22.5mm / 0.89”
20.3mm
2*18AWG+4*24AWG
Round Cable
φ7mm / 0.28”
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
56.3mm / 2.22”
22.5mm / 0.89”

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 8 of 20
3.2 Pre-Installation Checks
3.2.1 Installation Checklist
1. Prepare cables and all necessary accessories (Waterproof Quick Lock End Caps etc).
2. Perform functional check of the Allegro Media Tube®Lite. Take care not to damage cables/connectors during
pre-installation checks.
3. Ensure all pre-installation checks laid out below have been followed.
4. Mount the Allegro Media Tube®Lite on-site. If the installation is to be left uncompleted overnight, place all
non-connected LED Engines and the Allegro Media Tube®Lite in an indoor environment.
5. All units must be connected or utilize end caps to protect from water ingress.
Ensure all the Interconnection Cables, Allegro Media Tube®Lite and LED Engines are initially stored in a dry area
to guarantee the complete sealing of the system from water before installation.

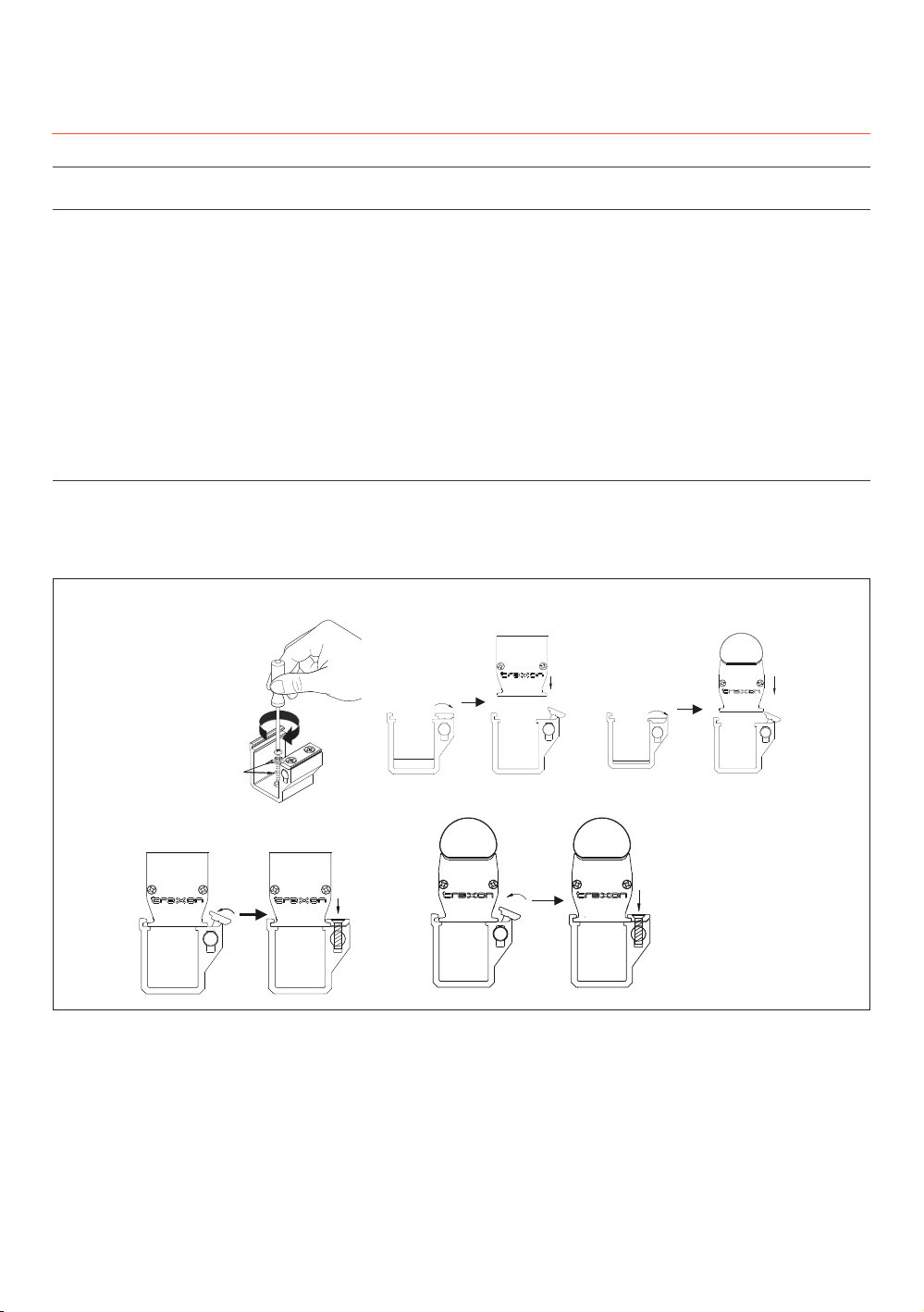

3.2.2 Mounting Bracket
Mounting hardware (screws, lock washers and washers) are required for mounting the bracket to the surface.
Mounting hardware by others. The mounting brackets can be moved along the extrusion to match installation
requirements.
FIG.6: Mounting Bracket
22.5mm/0.89”
Mounting Hardware
(by others)
Tighten screw
to lock bracket
in place
22.5mm/0.89”
OR
Tighten screw
to lock bracket
in place
OR

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 9 of 20
3.2.3 Installation Sequence
1. Measure the correct distances for brackets and install the Allegro Media Tube®Lite fixtures.
2. Connect the Allegro Media Tube®Lite in the daisy-chain manner outlined in the System Diagram to form large
installations.
3. Perform functional check on all the Allegro Media Tube®Lite and inspect cables and brackets for any
damage. Check for any abnormalities with the control signal.
4. Report any functional defect found to your nearest Traxon Technologies office. DO NOT attempt to install the
Allegro Media Tube®Lite with functional defects on-site.
3.3 On-Site Installation
• DO NOT attempt installation in wet or severe weather conditions.
• DO NOT leave and expose any Allegro Media Tube®Lite or LED Engines
unconnected under wet/raining or snowing environment.
• IP failure induced by stressed/damaged cables during or after installation
will not be under warranty by Traxon Technologies.
• ALWAYS keep the cables protected from sharp objects and ensure no
damage is generated on the cable.
Failure to keep Allegro Media Tube®Lite within the operating temperature range of –40°C to +50°C / –40°F to
+122°F and storage temperature range of –40°C to +70°C / –40°F to +158°F will void the product’s warranty.
3.3.1 On-Site Installation
1. Fix brackets to installation surface with anchor bolts or screws (by others).
2. The Allegro Media Tube®Lite are interconnected using the IN and OUT cables/connectors on each end of
the tube. Connectors will make an audible “click” when connected. Gently pull on the cables in opposites
directions to ensure they are fully locked and do not come loose. The below diagram shows the Tube
connections. Always remember to affix a Quick Lock Waterproof End Cap (sold separately) for the OUT
connector of the final Tube in each daisy chain. See System Diagram for details.
FIG.7: Allegro Media Tube®Lite Connections
Starter Cable End Cap
NOTE: Any water ingress incurred due to improper installation of cable connectors or Waterproof Quick Lock
End Caps will not be covered under warranty by Traxon Technologies.

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 10 of 20
3. Be sure not to compress the IN/OUT cables.
NOTE: To keep LED pitch consistent and allow for thermal expansion, be sure to keep a minimum distance of
4mm (0.16”) between consecutive Allegro Media Tube®Lite (see below diagram).
FIG.8: Keep minimum distance between fixtures
To maintain consistent LED pitch and to allow for thermal expansion, a minimum of
4mm / 0.16" is required between luminaire's. End Cap Seal on Last Tube
>4mm / 0.16"
4. The first tube of the daisy-chain group has to be connected to the control system via Waterproof Junction
Box (by others).Starter cables, Data and Power cables, and video fiber optic cables have to be installed
through conduit.
5. Set up the control system indoors as detailed in the System Diagram and connect to the Allegro Media Tube®
Lite. Start each unit and verify correct function.

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 11 of 20

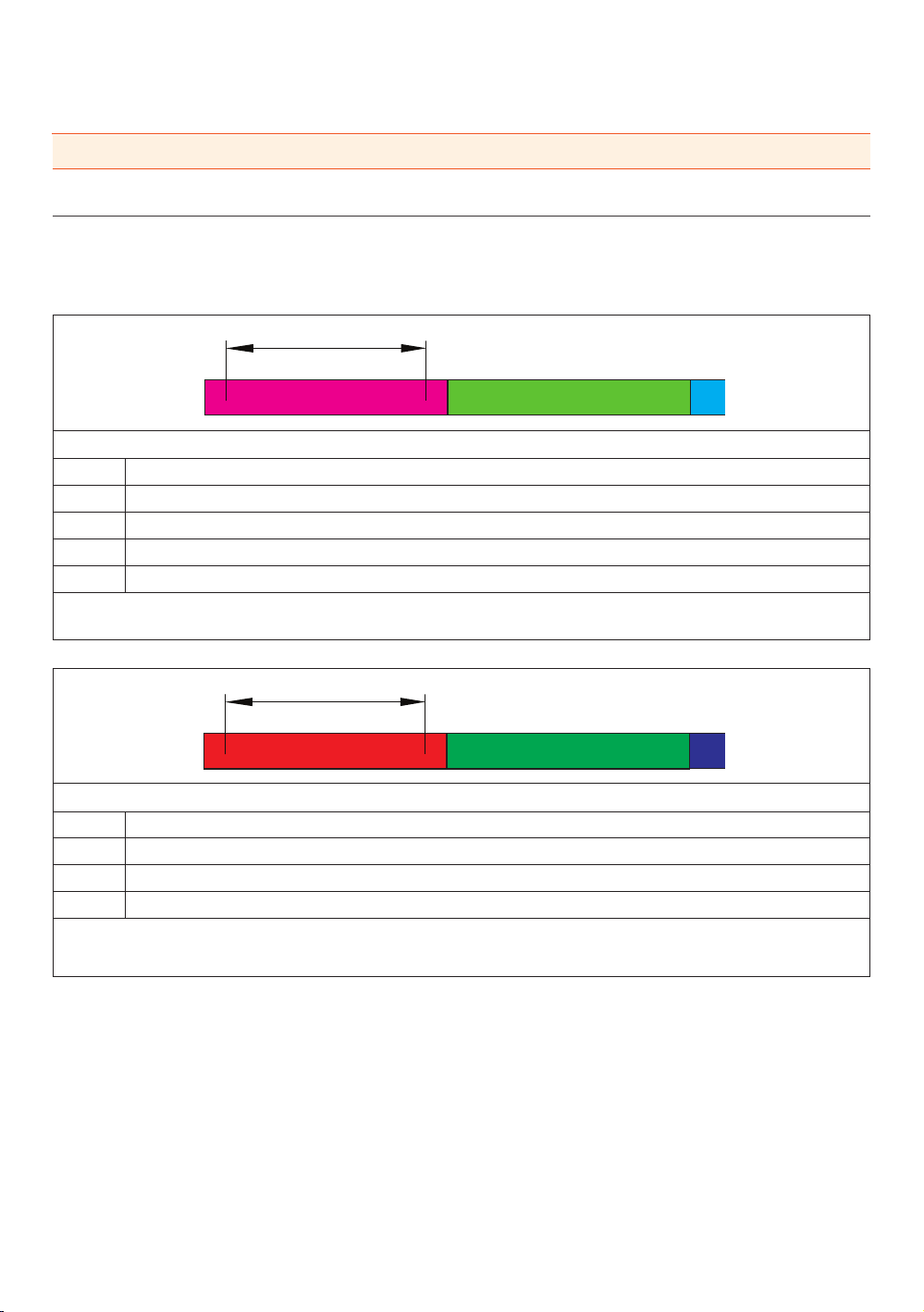

4. System Configuration
4.1 LED CONTROL
The LEDs on the Allegro Media Tube®Lite are controlled by DMX512. For RGBW, each pixel on the Tube uses
six RGB 3 in 1 LEDs and six white LEDs, for R, G, B and W channels. Pixel number 1 begins on the IN connector
side, and it uses the first four channels. RGB and DW work in a similar way, but use less pixels per length.
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
RGBW
Pixel n Control Channel Number
R +4(n-1) + 1
G +4(n-1) + 2
B +4(n-1) + 3
W +4(n-1) + 4
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
RGB
Pixel n Control Channel Number
R +3(n-1) + 1
G +3(n-1) + 2
B +3(n-1) + 3
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 12 of 20
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
DW
Pixel n Control Channel Number
WW + 2 (n-1) + 1
CW Tube start address +2n
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 13 of 20

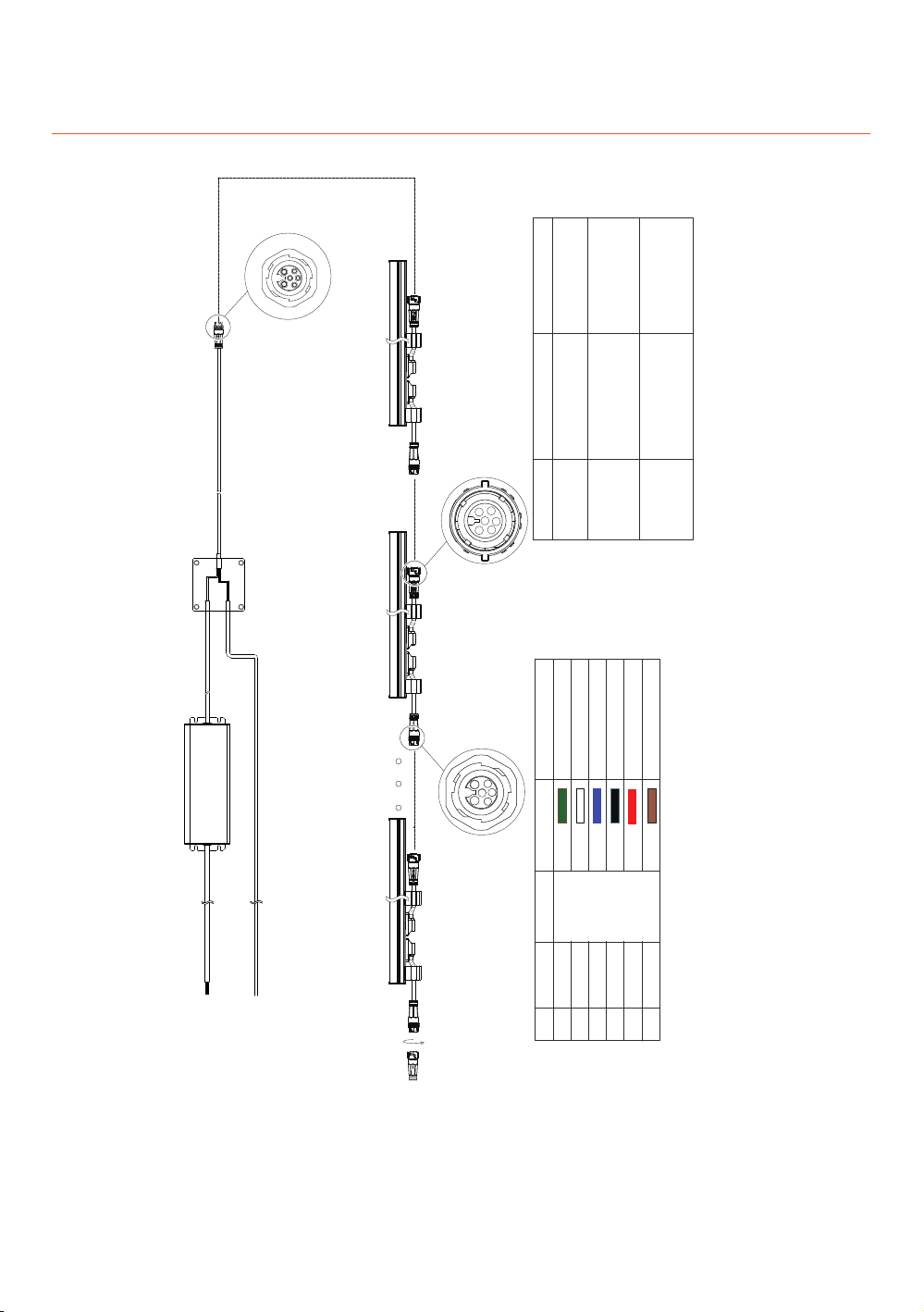

FIG.9: System Diagram
Tubes are daisy chained
Signal
DMX+
DATA_GND
DMX–
DC48V–
DC48V+
Address
Color
Green
White
Blue
Black
Red
Brown
Connection
DMX+
DATA_GND
DMX–
DC48V-
DC48V+
Do not connect
Pin#
1 2 3 4 5 6
AL MT LT End Cap 120Ω terminator ETL(AM444420055)
Wiring diagram shows only typical connections. Max. number of fixtures is based on minimal interconnection lengths. Actual number of fixtures is dependent on cable interconnections. Number of fixtures will reduce if longer cable lengths are used. Consult with your regional sales office to confirm maximums.
Color Type Max. Daisy Chain
6m/19.69’
12m/39.37’
6m/19.69’
15m/49.21’ 17m/55.77’
6m/19.69’
15m/49.21’
19.2m/62.99’
PSU Power
100W 240W 100W 240W 320W 100W
240W
320W
DMX In
LED Engine 48V Outdoor 100W/240W (AA766150055/AM089330055)
AC 120V - 277V In
AL MT LT Starter Cable, 6-wire 1m/5m/30m , ETL (AM444390055/AM444400055/AM444410055)
1
2
3
45
6
4
5
3
2
16
Wire Gauge
2x18AWG
+
4x24AWG
RGBW
RGB
DW

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 14 of 20
FIG.10: System Diagram-Snake Model
DMX In
LED Engine 48V Outdoor 100W/240W (AA766150055/AM089330055)
AC 120V - 277V In
AL MT LT Starter Cable, 6-wire 1m/5m/30m , ETL (AM444390055/AM444400055/AM444410055)
Tubes are daisy chained
Interconnection cable (mandatory)
Interconnection cable (optional)
Tubes are daisy chained
123
45
1
2
3
45
Signal
DMX+
DATA_GND
DMX–
DC48V–
DC48V+
Address
Color
Green
White
Blue
Black
Red
Brown
Connection
DMX+
DATA_GND
DMX–
DC48V-
DC48V+
Do not connect
Pin#
1 2 3 4 5 6
Wiring diagram shows only typical connections. Max. number of fixtures is based on minimal interconnection lengths. Actual number of fixtures is dependent on cable interconnections. Number of fixtures will reduce if longer cable lengths are used. Consult with your regional sales office to confirm maximums.
Color Type Max. Daisy Chain
6m/19.69’
12m/39.37’
6m/19.69’
15m/49.21’ 17m/55.77’
6m/19.69’
15m/49.21’
19.2m/62.99’
PSU Power
100W 240W 100W 240W 320W 100W
240W
320W
Wire Gauge
2x18AWG
+
4x24AWG
RGBW
RGB
DW
AL MT LT End Cap 120Ω terminator ETL(AM444420055)

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 15 of 20
FIG.11: Orientation and Color Mixing
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT IN
OUT IN
OUT IN
OUT IN
OUT IN
OUT IN
OUT
IN
OUT
IN
OR
“Snake Mode” “Snake Mode”
OR
• For best color mixing results, ensure the tubes have the same orientation and remain parallel to the
main movement pattern of the veiwer.
• If same orientation cannot be achieved, ensure the orientation of the tubes that snake back are
180° to the previous row / column and consider the main movement pattern of the viewer.
For left or right viewing angles, align the tubes left to right or right to left.
For top or bottom viewing angles, align the tubes top to bottom or bottom to top.
Main movement pattern
Main movement pattern
OUT
IN

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 16 of 20
5. Care and Maintenance
Traxon products are of superior design and quality and should be treated with care. The recommendations below
will help fulfill any warranty obligations and gain good use and longevity from the products.
— Do not attempt or use the product(s) until you read and understand the installation instructions. Failure to
adhere to these instructions could result in serious injury or property damage.
— Do not use product(s) if cables are damaged.
— Do not connect cables and connectors when wet or in wet area. Moisture on bare connectors can cause
electric shock and damage to product(s).
— Do not use product(s) in extreme heat environment. Ensure there is sufficient airflow and use cool air circulation
if required.
— Do not drop, knock, or shake product(s). Rough handling can damage the electronics and void the warranty.
— Do not use harsh chemicals, cleaning solvents, or strong detergents to clean products. Wipe with a damp
cloth on housings and a dry cloth on electronics to remove dirt or dust.
— Do not attempt to service or repair the product(s) unless done by an authorized service personnel. Contact
your local Traxon office or distributor for details.
— If the product is not working as specified, please contact your nearest authorized service center or Traxon
Technologies office for assistance.

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 17 of 20
6. Troubleshooting
CAUTION: Ensure power supply is OFF when disconnecting / connecting cables.
Problem Cause Possible Solutions
Product does NOT light
up after installation
Incorrect power
connection
— Check Mains Power
— Check power supply leads and wire connections
— Ensure output wires are connected with proper
polarity
— Check if LED Engine’s secondary output is working
as specified.
Shadowing Light source covered — Check for cables, wires or unwanted debris
covering LED light source
Modules are dim Excess products
connected
— Ensure the power supplies are not overloaded due
to an excess of products connected
Flickering Incorrect power input/
Excess products
connected
— Ensure the input voltage is correct
— Ensure the power supplies are not overloaded due
to an excess of products connected
If problems persist or the product is not working as specified, please contact your nearest authorized service
center or Traxon Technologies office for assistance.

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 18 of 20
7. TECHNICAL SPECIFICATION
Allegro Media Tube®Lite RGBW
Direct View Diffused View
300mm / 11.8” 1200mm / 47.2” 300mm / 11.8” 1200mm / 47.2”
Color Range: 16.7 Million additive RGB colors; White 6500K
Light Source: 18 RGBW 4 in 1 60 RGBW 4 in 1 18 RGB + 18 White 60 RGB + 60 White
Beam Angle: 90° 115°x170°
Power Input*: 48V DC
Power Consumption (typ).: 4.2W / 16.8W
Weight: 0.45kg / 0.99lb 1.1kg / 2.43lb 0.45kg / 0.99lb 1.1kg / 2.43lb
Operating Temperature: –40°C to +50°C / –40°F to +122°F
Storage Temperature: –40°C to +70°C / –40°F to +158°F
Allegro Media Tube®Lite RGB
Direct View Diffused View
300mm / 11.8” 1200mm / 47.2” 300mm / 11.8” 1200mm / 47.2”
Color Range: 16.7 Million additive RGB colors
Light Source: 18RGB 60RGB 18RGB 60RGB
Beam Angle: 90° 115°x170°
Power Input*: 48V DC
Power Consumption (typ).: 4.2W / 16.8W
Weight: 0.45kg / 0.99lb 1.1kg / 2.43lb 0.45kg / 0.99lb 1.1kg / 2.43lb
Operating Temperature: –40°C to +50°C / –40°F to +122°F
Storage Temperature: –40°C to +70°C / –40°F to +158°F
Allegro Media Tube®Lite DW
Direct View Diffused View
300mm / 11.8” 1200mm / 47.2” 300mm / 11.8” 1200mm / 47.2”
Color Range: White CCT 2700K-6500K
Light Source: 18 2700K+18 6500K 60 2700K +60 6500K 18 2700K+18 6500K 60 2700K+60 6500K
Beam Angle: 90° 115°x170°
Power Input*: 48V DC
Power Consumption (typ).: 4.2W / 16.8W
Weight: 0.45kg / 0.99lb 1.1kg / 2.43lb 0.45kg / 0.99lb 1.1kg / 2.43lb
Operating Temperature: –40°C to +50°C / –40°F to +122°F
Storage Temperature: –40°C to +70°C / –40°F to +158°F

www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS
PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide V1.0 12/21 P. 19 of 20
As with all electronic devices, LED output degrades over time - a term called lumen depreciation. This also
explains why it is nearly impossible to expect photometric performances of two LED products with different service
life spans to be the same. The rate of LED degradation is a complex function of many factors such as operating
efficiency, duration of continuous operation, and operating conditions (e.g. ambient temperature).
Because LEDs are semiconductor devices, their performances are subject to inherent variability commonly found
in semiconductor industry. To improve consistency in performance across the same product, LED manufacturers
“sort” LEDs into bins according to different preset parameters, such as forward driving voltage, illumination,
etc. Whereas binning is a sorting function, it is not a correction process. Inherent variability in the manufacturing
process always results in different binning distributions according to different production lots. Traxon uses
automatically binned LEDs on its products, thereby minimizing output variations within the model range.
8. Warranty Statement
Traxon Technologies warrants its Products against material or workmanship defects for a period of five (5) years
from date of purchase, provided that the purchased items are used under the conditions stated in this user
manual.
Please refer www.traxontechnologies.com and www.osram.us/traxon for all warranty terms and conditions.

Please check for the latest updates and changes on the Traxon website.
© 2021 TRAXON TECHNOLOGIES ALL RIGHTS RESERVED. Information is subject to change without prior notice.
www.traxontechnologies.com | www.osram.us/traxon
