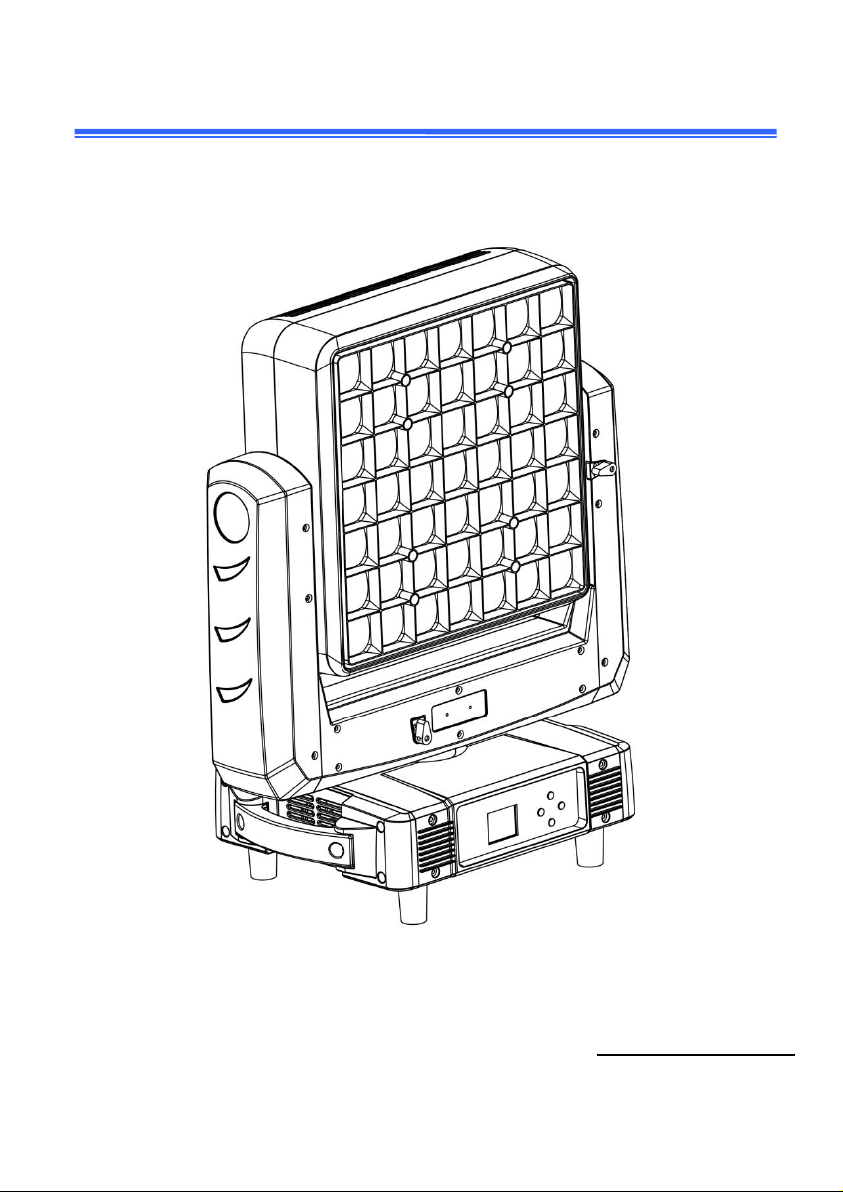

Osram 4920Z User manual

4920Z
49*20w Matrix Zoom Moving Head
User manual
P le a se rea d t he ins t r u ction s ca refu ll y before use

2
TABLE OF CONTENTS
1. S af ety I nst r uctions ......................................................................................3- 4
2. Technical Specifications .......................................................................................... 5
3. Lux Date…………………………………………………………………..……….6
4. How To Control The Unit ......................................................................................7-9
5. DMX Channel List....................................................................................10-38
6. Shape.........................................................................................................................39
7 . Trouble shooting ..................................................................................................... 41
8 . Fixture Cleaning ...................................................................................................... 42
statement
The product has well capability and intact packing when leave factory. All of the
user should comply with warning item and manual, any misuse cause of the
damages are not included in our guarantee, and also can’t be responsible for
any malfunction & problem owing to ignore the manual.

3
1. S af ety I nst r uctions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before
using the unit.
Before operating, ensure that the voltage and frequency of power supply
match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50
cm from adjacent surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while
operating as it is fire hazard.
Use safety cable when fixes this unit. Do not handle the unit by taking its
head only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. Donot operate it where the
temperature is higher than this Unit surface temperature may reach up to
85℃. Donot touch the housing bare-hand during its operation. Turn off the
power and allow about 15 minutes for the unit to cool down before replacing
or serving.
the event of serious operating problem, stop using the unit immediately.
Never try to repair the unit by yourself. Repairs carried out by unskilled
people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the same type spare
parts.
Do not touch any wire during operation as high voltage might be causing
electric shock.

4
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the
unit to rain or moisture.
Do not open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.
Caution:
There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating. And make
sure that the structure to which you are attaching the unit is secure and is able to
support a weight of 10 times of the unit’s weight. Also always use a safety cable
that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.

5
2. Technical Specifications
Light Sources
49*20W 4IN1 RGBW LED
Beam Angle:4°- 46°
Power Consumption: 760W±5%,power factor PF≥0.95; standby power: 26W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 477mm×272mm×579.5mm
Net Weight:22.5 Kgs
Carton package 1in1 size: 60*60*46cm
Gross Weight: 27.2Kgs
Flight Case 1in2 size: 79*56*79cm
Gross Weight: 87.8Kgs
Control
DMX Channel:22/25/33/229/206 Channels
Control Modes: DMX512/mater-Slave/Auto Run/Music/Artnet
Pan/Tilt
Pan: 540°, Tilt: 360°
Pan/Tilt Resolution: 8/16 bit
Tilt infinite rotation; Using photoelectric reset system
Construction
Display:180° reversible 1.8 inch TFT colorful Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Power Con in/out
Protection Rating: IP20
Features
Full light domain dimming, 65536 levels of dimming accuracy;
Fast strobe 1~25Hz; preset various kinds of color macro function; preset
various

6
kinds of effect macro function
Led temperature protection & Speed of fan automatic adjustment based on the
temperature of the head.
Single led control, zoom effect, Tilt infinite rotation
3 LUX Date

7
200
4. How To Control The Unit
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1 Press "Menu" to "Set DMX Address", and press "ENTER" keys to enter
into
2 Show "Set DMX Address DMX Address:001", Press the "UP and DOWN"
keys to amended
3Press "ENTER" keys to save and Exit, Press the "MENU" Keys does not
save and Exit
1.Pan Degree
1)540 °, 2)360°
Pan running angle
selection
2.Mic Sense
001 - 100
Sound sensitivity
adjustment

8
Menu
3.Language
English
Chinese
4.No Signal
1.Black Out 2.Hold
5.Fan Set
1.Auto 2. Low
3.High
6.ArtNet Set
ArtNet Enable：
1.ON 2.OFF
2.Universe:0---255
3.IP Mode：
A.2.X.X.X Auto
B.10.X.X.X Auto
C.Custom
4.Custom IP
192.168.000.001
5.SubNetMask
255.000.000.000
7.Reset
Yes
Reset
No
8.Default
Yes
Default
No
9.Adjust
Pass Word：up+down+up+down
1.Pan
0 - 255
2.Tilt
0 - 255
3.Focus
0 - 255
4.Red
0 - 255
5.Green
0 - 255
6.Blue
0 - 255
7.White
0 - 255
Address
Setting from 001 - 512

9
Reverse
Forward or
reversed setting
Pan
1.Yes
2.No
Tilt
1.Yes
2.No
Display
1.Yes
2.No
Information
1.CH
Value
Each channel show CH
value
2.Temp
____℃
Show the temperature of
led board
3.Soft
V.XXX
Show the version
number
4.IP
002.016.035.052
Default IP
5.Mask
255.000.000.000
Default submask
Channel
1.22Channels
Select channel mode
2.25Channels
3.33Channels
4.229Channels
5.206Channels
Mode
DMX 512
AUTO
SOUND
1.Pan:0--255
2.Pan Rotation：
0--255

10
Mode
Manual control
Manual control
3.Tilt:0--255
4.Tilt Rotation： 0--255
5.Focus:0--255
6.Red1：0--255
7.Greed1：0--255
8.Blue1：0--255
9.White1：0--255
10.Strobe1：0-255
11.Red2：0--255
12.Greed2：0--255
13.Blue2：0--255
14.White2：0--255
15.Strobe2：0-255
Alone/Master
1.Master
Alone/Master
2.Alone

11
5.DMX Channel List
Model 1 - 22Channels
Channel
Display
Function
Value
CH-1
Red
Red dimming
0 --- 255
CH-2
Red adjustment
Red adjustment
0 --- 255
CH-3
Green
Green dimming
0 --- 255
CH-4
Green adjustment
Green adjustment
0 --- 255
CH-5
Blue
Blue dimming
0 --- 255
CH-6
Blue adjustment
Blue dimming
0 --- 255
CH-7
White
White dimming
0 --- 255
CH-8
White adjustment
White adjustment
0 --- 255
CH-9
linear color
temperature
No effect
0---4
Color temperature from warm
to cold
5---255
CH-10
Macro color
No effect
0--9
Macro color 1
10--19
Macro color 2
20--29
.... (10 numbers 1 macro color)
....

12
CH-10
Macro color
Macro color 24
240--249
Macro color 25
250--255
CH-11
Dimmer
dark to bright linear dimming
0 --- 255
CH-12
Dimmer adjust
Dimmer adjustment control
0 --- 255
CH-13
Strobe
Turn on the light
0---3
Synchro strobe speed
slow to fast (1HZ-25HZ)
4---203
Random strobe
204--255
CH-14
Pan
Pan control
0 --- 255
CH-15
Pan adjustment
Pan adjustment control
0 --- 255
CH-16
Tilt
Tilt control
0 --- 255
CH-17
Tilt adjustment
Tilt adjustment control
0 --- 255
CH-18
Pan/Tilt Speed
Speed fast to slow
0 --- 255
CH-19
Tilt infinite rotation
control
No Funtion
0---55
Infinite rotation from slow to
fast
56---155
Infinite rotation reversal from
slow to fast
156---255
CH-20
Zoom
Zoom
0---255
Mode -1
0 --- 49

13
CH-21
Dimming Mode
Mode -2
50 --- 99
Mode -3
100---149
Mode -4
150---255
CH-22
Reset
NO
0-250
Reset within 5s
251---255
Model 2 - 25Channels
Channel
Display
Function
Value
CH-1
Pan
Pan control
0 --- 255
CH-2
Pan adjustment
Pan adjustment control
0 --- 255
CH-3
Tilt
Pan control
0 --- 255
CH-4
Tilt adjustment
Tilt adjustment control
0 --- 255
CH-5
Pan/Tilt speed
Speed from fast to slow
0 --- 255
CH-6
Tilt infinite
control
No effect
0----55
Go from slow to fast
56----155
Reverse from slow to fast
156----25
5
CH-7
Zoom
Zoom
0 --- 255
CH-8
Dimmer
dark to bright linear dimming
0 --- 255

14
CH-9
Strobe
Turn on the light
0---3
Synchro strobe speed
From slow to fast (1HZ-25HZ)
4---203
Random strobe
204--255
CH-10
R dimming
dark to bright linear dimming
0-255
CH-11
G dimming
dark to bright linear dimming
0-255
CH-12
B dimming
dark to bright linear dimming
0-255
CH-13
W dimming
dark to bright linear dimming
0-255
CH-14
linear color
temperature
No effect
0---4
Color temperature from warm to
cold
5---255
CH-15
Macro color
No effect
0--9
Macro color 1
10--19
Macro color 2
20--29
....(10 numbers 1 macro color)
....
Macro color 24
240--249
Macro color 25
250--255
No
0--2
pattern 1
3--5
pattern 2
6--9

15
CH-16
Static pattern
.........(3 numbers 1 pattern)
.....
pattern 59
174--176
pattern 60
177--255
CH-17
Dynamic
pattern
NO
0--9
dynamic pattern 1
10--11
dynamic pattern 2
12--13
......(2 numbers 1 pattern)
.....
dynamic pattern 93
194--195
dynamic pattern 94
196--255
CH-18
Pattern
translation
(With 17
channels)
Select a dynamic pattern scene
0-255
CH-19
Dynamic
pattern speed
(with 17
channels)
No effect
0---9
Forward, from fast to slow（with
17CH）
10---132
Reverse, from slow to fast(with
17CH)
133---255
CH-20
Back color R
dark to bright linear dimming
0-255
CH-21
Back color G
dark to bright linear dimming
0-255
CH-22
Back color B
dark to bright linear dimming
0-255

16
CH-23
Back color W
dark to bright linear dimming
0-255
CH-24
Dimming Mode
Mode -1
0 --- 49
Mode -2
50 --- 99
Mode -3
100---149
Mode -4
150---255
CH-25
Reset
NO
0-250
Reset within 5s
251-255
Model 3 - 33Channel
Channel
Display
Function
Value
CH-1
Pan
Pan control
0 --- 255
CH-2
Pan adjustment
Pan adjustment
control
0 --- 255
CH-3
Tilt
Pan control
0 --- 255
CH-4
Tilt adjustment
Tilt adjustment
control
0 --- 255
CH-5
Pan/Tilt speed
Speed from fast to
slow
0 --- 255
CH-6
Tilt infinite control
No effect
0----55
Go from slow to fast
56----155
Reverse from slow to
156----255

17
fast
CH-7
Zoom
Zoom
0-255
CH-8
Dimmer
dark to bright linear
dimming
0 --- 255
CH-9
Dimmer adjust
Dimmer adjusting
control
0 --- 255
CH-10
Strobe
No effect
0---3
Synchro strobe
speed
From slow to fast
(1HZ-25HZ)
4---203
Random strobe
204--255
CH-11
Red
Red dimming
0-255
CH-12
Red adjustment
Red adjustment
0-255
CH-13
Green
Green dimming
0-255
CH-14
Green adjustment
Green adjustment
0-255
CH-15
Blue
Blue dimming
0-255
CH-16
Blue adjustment
Blue dimming
0-255
CH-17
White
White dimming
0-255
CH-18
White adjustment
White adjustment
0-255
CH-19
Mode -1
0 --- 49
Mode -2
50 --- 99

18
Dimming Mode
Mode -3
100---149
Mode -4
150---255
CH-20
linear color
temperature
No effect
0---4
Color temperature
from warm to cold
5---255
CH-21
Macro color
No effect
0--9
Macro color 1
10--19
Macro color 2
20--29
....(10 numbers 1
macro color)
....
Macro color 24
240--249
Macro color 25
250--255
CH-22
Static pattern
No effect
0--2
pattern 1
3--5
pattern 2
6--9
......
...... (3 numbers and
one type)
pattern 59
174--176
Pattern 60
177--255

19
CH-23
Dynamic pattern
No effect
0--9
dynamic pattern 1
10--11
dynamic pattern 2
12--13
...........
...... (2 numbers and
one type)
dynamic pattern 93
194--195
dynamic pattern 94
196--255
CH-24
Pattern translation
(with 23 channels)
Select a dynamic
pattern scene
0--255
CH-25
Dynamic pattern
effect speed
NO
0--9
Forward, from fast to
slow(with 23CH）
10--132
Reverse, from slow
to fast(with 23CH)
133--255
CH-26
Pattern effect fade
Pattern effect fade
0-255
CH-27
Background
dimming
Background 0-100%
dimming
0-255
CH-28
Background strobe
Background strobe
0-255
CH-29
Pattern Back R
Pattern effect R
0-255
CH-30
Pattern Back G
Pattern effect G
0-255

20
CH-31
Pattern Back B
Pattern effect B
0-255
CH-32
Pattern Back W
Pattern effect W
0-255
CH-33
Reset
No effect
0-250
Reset within 5S
251-255
Model 4 - 229Channels
Channel
Display
Function
Value
CH-1
Pan
Pan control
0 --- 255
CH-2
Pan adjustment
Pan adjustment
control
0 --- 255
CH-3
Tilt
Pan control
0 --- 255
CH-4
Tilt adjustment
Tilt adjustment
control
0 --- 255
CH-5
Pan/Tilt speed
Speed from fast to
slow
0 --- 255
CH-6
Tilt infinite control
No effect
0----55
Go from slow to fast
56----155
Reverse from slow to
fast
156----255
CH-7
Zoom
Zoom
0-255
