ASSEMBLY & INSTRUCTION MANUAL
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
INbza012_UK
842-191

TABLE OF CONTENTS
Patio Heater Safety Warnings --------------------------------------------------------------1-2
Part List & Hardware ----------------------------------------------------------------------------3
Exploded View -----------------------------------------------------------------------------------4
Patio Heater Assembly ---------------------------------------------------------------------- 4-8
Operating Instructions ------------------------------------------------------------------------11
Leak Testing ------------------------------------------------------------------------------------12
Gas Requirement ------------------------------------------------------------------------------12
Connecting To a Gas Cylinder ---------------------------------------------------------------13
Important Safety Rules ----------------------------------------------------------------------- 13
Maintenance ------------------------------------------------------------------------------------14
Servicing ----------------------------------------------------------------------------------------14
Storage ------------------------------------------------------------------------------------------15
Troubleshooting--------------------------------------------------------------------------------16
Technical Data --------------------------------------------------------------------------------- 16
Guarantee -------------------------------------------------------------------------------------- 16
Discard ------------------------------------------------------------------------------------------ 16
PATIO HEATER SAFETY WARNINGS
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND
USE.
- This appliance must be used outdoors or in a well ventilated area, and should
not be installed or used indoors.
- Change the gas cylinder in a well ventilated area, away from any inflammation
sources.
- The cylinder must be stored outdoors or in a well ventilated area.
- Stora ge this appli ance indo ors is permissib le only if gas c ylinder is
disconnected and removed from the appliance.
- Do not move this appliance when in operation, or after it has been turned off
before the temperature has cooled down.
- Do not attempt to alter the appliance in any manner. Do not paint the radiant
screen, control panel or reflector.
- Do not obstruct the ventilation holes of the cylinder housing.
- The appliance must be installed and gas cylinder stored in accordance with local
gas fitting regulations.
- Shut off the valve at the gas cylinder or the regulator before moving the
appliance.
- Repairs should be done by a qualified person.
- In case of violent wind, particular attention must be taken against tilting of the
appliance.
- Check that the regulator seal is correctly fitted and able to fulfil its function.
- Close the gas supply at the valve of the gas cylinder or the regulator after use.
- Do not use this appliance until all connections have been leak tested.
- In the event of gas leakage, the appliance shall not be used or if alight, the gas
supply shall be shut off and the appliance shall be investigated and rectified
before it is used again.

- Checking the tubing or the flexible hose per month and each time the cylinder is
changed.
- The tubing or the flexible hose must be changed within the prescribed intervals
or within one year.
- The hose assembly must be replaced prior to the appliance being put into
operation if there is evidence of excessive abrasion or wear, or if the hose is
damaged, and that the replacement hose assembly shall be that specified by
the manufacturer.
- The heater should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required as necessary. It is
imperative that control compartment, burners and circulating air passageways
of the appliance be kept clean.
- Shut off and check heater immediately if any of the following conditions exist:
o The smell of gas in conjunction with extreme yellow tipping of the burner
flames.
o Heater does not reach a proper temperature. A temperature less than 5℃
will cause restricted heat flow and the appliance will not work properly.
o The appliance starts making popping noises during use (a slight popping
noise is normal when the appliance is extinguished).
- The regulator & hose assembly must be located out of pathways where people
may trip over it or in area where the hose will not be subject to accidental
damage.
- Any guard or other protective device removed for servicing the heater must be
replaced before operating the heater.
- Children and adults should be warned of the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
- Young children and pets should be carefully supervised when they are in the
area of the heater.
- Clothing or other flammable materials should not be hung from the appliance, or
placed on or near the appliance.
- Do not place articles on or against this appliance. Certain material or items
when stored under or near this appliance will be subjected to radiant heat and
could be seriously damaged.
- Do not use or store flammable materials near this appliance.
- Do not spray aerosols in the vicinity of this appliance while it is in operation.
- Always maintain at least 0.9m clearance from combustible materials.
- Always position the appliance on a firm level surface. An amply ventilated area
must have a minimum of 25% of the surface area open. The surface area is the
sum of the walls surface.

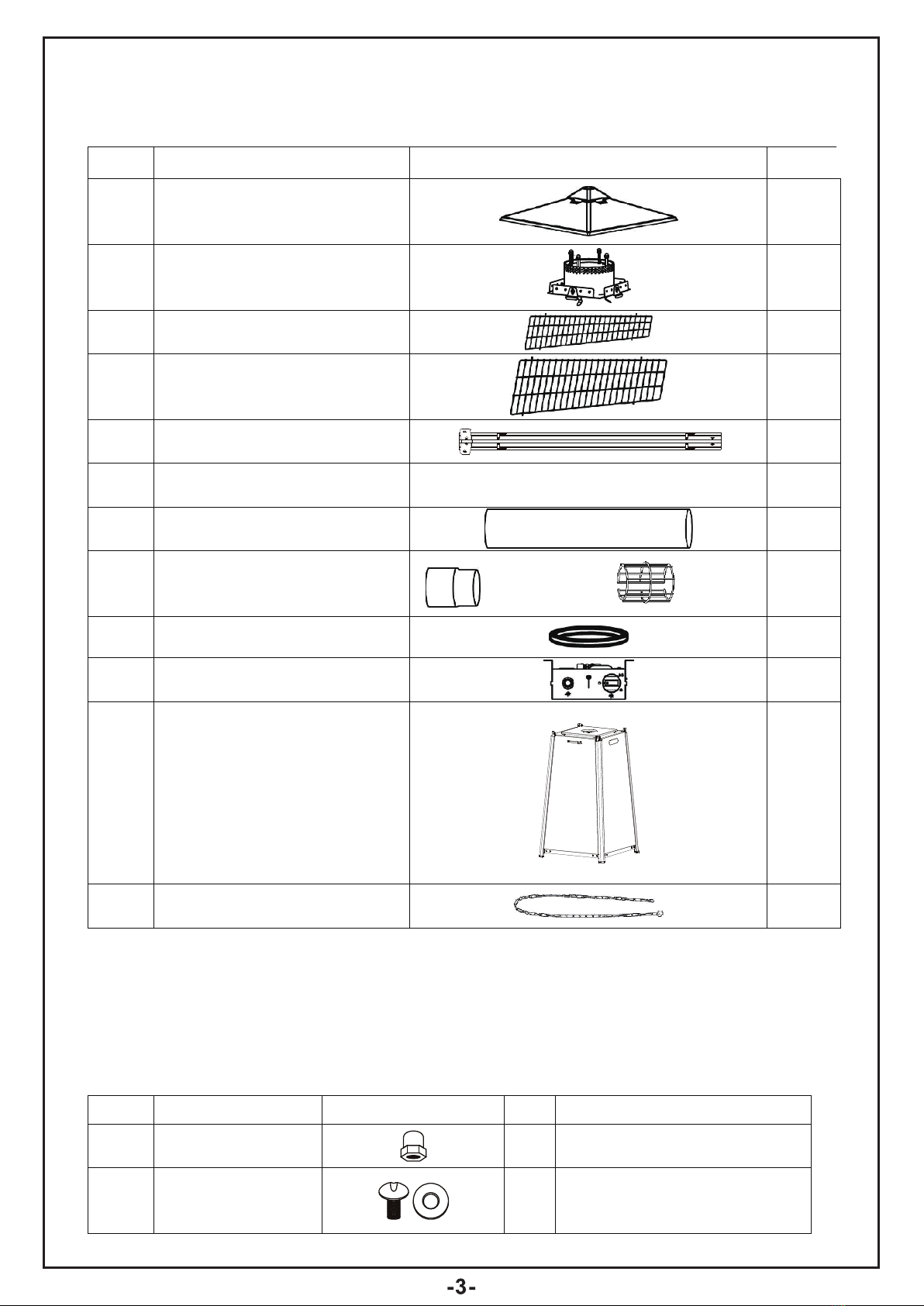

H1501A PATIO HEATER PART LIST
PART # PART NAME PICTURE QTY
A
REFLECTOR 1
B FLAME SCREEN 1
C MESH GUARD - UPPER 4
D MESH GUARD - LOWER 4
E SUPPORT BAR - UPPER 4
F SUPPORT BAR - LOWER 4
G GLASS TUBE 2
H
CONNECTOR
Option 1: Glass Tube Connector
Option 2: Stainless Steel Connector (Option 1) or (Option 2)
1
I RUBBER RING 1
J BURNER ASSEMBLY
K TANK HOUSING ASSEMBLY 1
L CHAIN (ASSEMBLED WITH DOOR) 1
HARDWARE
PART # PART NAME PICTURE QTY DESCRIPTION
AA
M5 CAP NUT 4 TO CONNECT REFLECTOR AND
FLAME SCREEN
BB STANDARD
SCREWS & WASHER
12
M5 X 8 SCREW & M5 WASHER
TO FIX BURNER ASSEMBLY ON
THE TANK HOUSING ASSEMBLY.

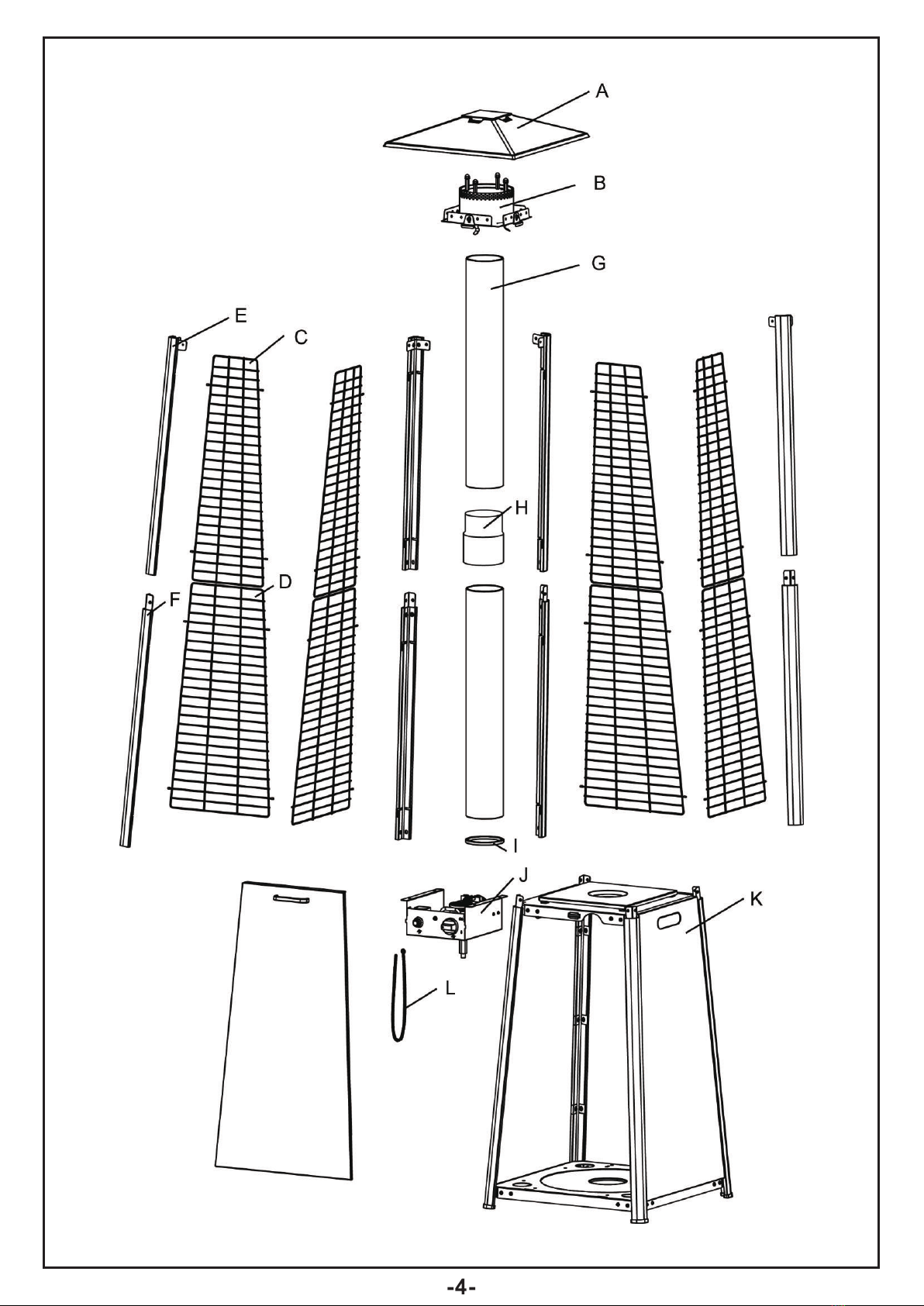

EXPLODED VIEW

PATIO HEATER ASSEMBLY
ASSEMBLY INSTRUCTIONS
- List of Required Tools: Philip Screwdriver
- Leak Detection Solution one part detergent and three parts water
- Assemble all nuts and bolts loosely at first. Tighten all connections
after completion of assembly. This eases your work and increase the
stability of the appliance.
- Before assembly, make sure all packing material and any transmit protection
must be removed.
- Small deviations in equipment may occur. This is no lack of quality but
subject to improvements.
- If any part is missing or damaged, do not attempt to assembly this product,
Contact customer service for replacement parts.
- Assembly should be performed on a flat, level, non-abrasive surface.
- ESTIMATED ASSEMBLY TIME: 45 minutes.

firmly in place.

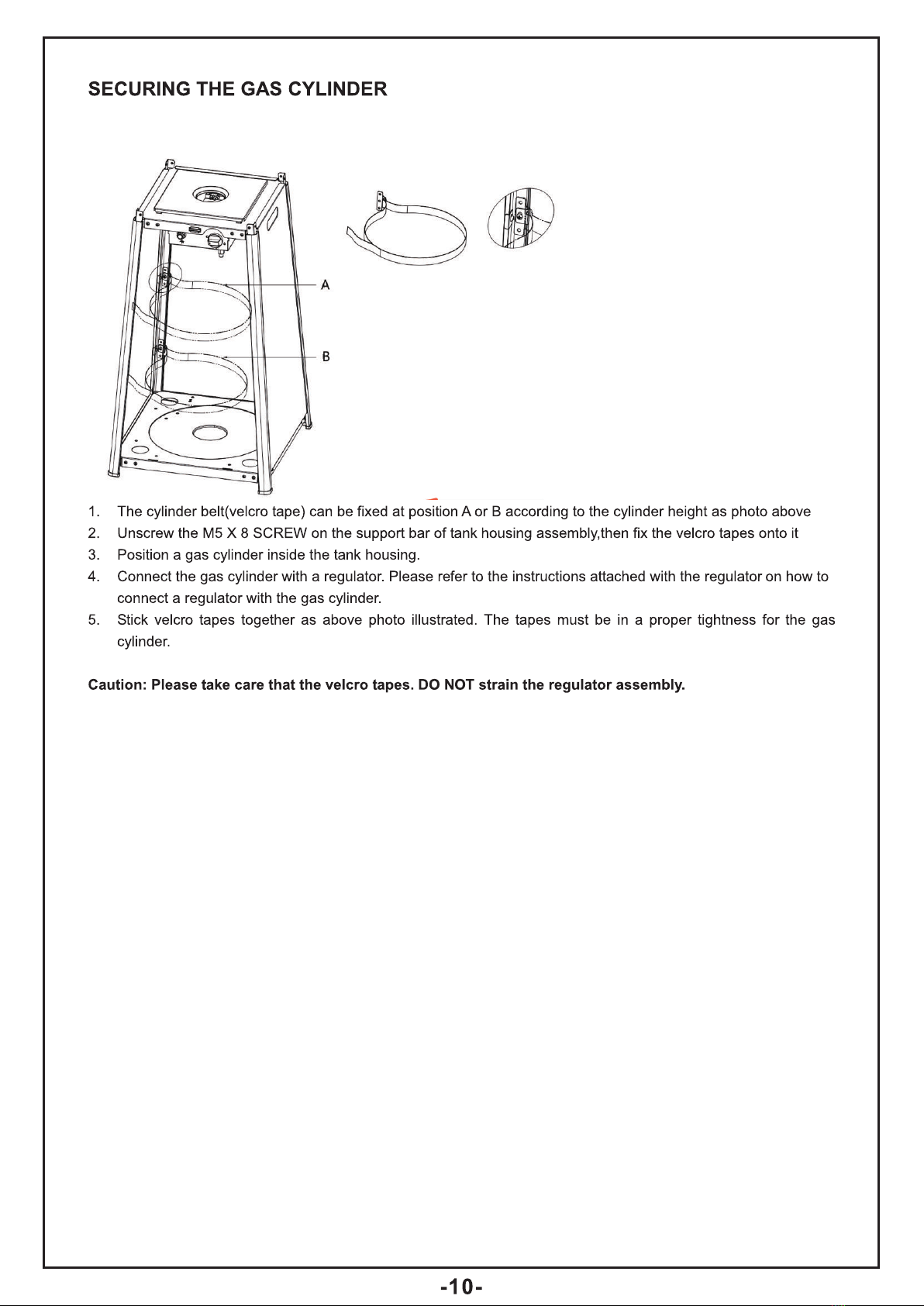

OPERATING INSTRUCTIONS
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS
DELIVERY SYSTEM MUST BE PURGED OF AIR BEFORE IGNITING! TO DO
THIS, TURN THE CONTROL KNOB ANTI-CLOCKWISE TO THE PILOT SETTING.
PRESS KNOB IN AND HOLD FOR 3 MINUTES BEFORE ATTEMPTING IGNITION.
BATTERY REPLACMENT
Rem ove imp uls e igni tio n cap f rom Bur ner Asse mb ly ( J) by tu rni ng cap
counterclockwise. Install 1 AAA battery. Negative end of battery goes in first, then
replace impulse ignition cap by turning cap clockwise.
TO LIGHT THE PILOT
- Check all connections prior to each
use.
- Turn on main gas supply at source.
- Press to turn control knob anti-
clockwise to PILOT, see right photo.
- Hold knob depressed, press
IGNITION button repeatedly until
pilot flame is lit, then continue to
hold the knob depressed for 10
seconds until the pilot remains it
after releasing knob.
- If pilot fails to ignite or alight, press
to turn knob clockwise to OFF and
repeat.
TO LIGHT THE PATIO HEATER
- The pilot should be lit and the knob set to PILOT.
- Hold knob depressed gently and turn anti-clockwise to LOW.
- When mesh glows lit, turn knob clockwise from Low to HIGH as needed.
Note: The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the pilot position.
Then turn the knob to the level of heat desired.
RE-LIGHTING
- Turn Control Knob to OFF.
- Wait at least 5 minutes, to let gas dissipate, before attempting to re-light pilot.
- Repeat the “Lighting” steps.
TO EXTINGUISH
- Hold knob depressed & turn the knob clockwise to 'OFF'
- Close the valve of the gas cylinder or the regulator after use.
- Close the gas bottle and allow this appliance to cool before moving the
appliance.
Note: After use, some discoloration of the emitter screen is normal. Close
regulator after use, allow the appliance to cool before moving.

LEAK TESTING
NEVER USE A NAKED FLAME TO CHECK FOR
LEAKS.
NEVER LEAK TEST WHILE SMOKING.
The gas connections on this appliance are leak
tested at the factory prior to shipment.
This appliance needs to be periodically checked for
leaks and an immediate check is required if the
smell of gas is detected.
- Make a soap solution using 1 part of liquid dish-
washing soap to 3 parts water. The soap
solution can be applied with a soap bottle,
brush, or rag to the leak tested points shown in
the figure above.
- The valve of the gas cylinder should be in the
OFF position at this point of the leak test. Once
the soapy solution is applied to the gas
connections, the valve of the gas cylinder
needs to be turned to the ON position.
- Soap bubbles will begin to form in the soapy
solution if a leak is present.
- In case of a leak, turn off the gas supply.
Tighten any leaking fittings, then turn the gas
supply on and recheck.
GAS REQUIREMENTS
- The appliance must use an EN12864 or EN16129 approved gas regulator and CE
approved gas hose with a length of 50cm (BS3212 and EN1763-1). Choose the
proper regulator according to outlet pressure in the technical table in page 14.
You will need to purchase suitable gas hose and regulator from your local gas
dealer if the appliance does not include gas hose and regulator.
- Never use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented
or rusty gas tank may be hazardous and should be checked out by a gas supplier.
- Never connect this appliance to an unregulated gas source.
- When the appliance is not in use, turn the gas cylinder OFF.
- Always perform a leak test on gas connections whenever a cylinder is connected. If
bubbles form in the leak test solution, do not use. Never use a flame to test for
leaks.
CONNECTING TO A GAS CYLINDER
- Recommended to use max.15kg or smaller gas cylinder (maximum height 65cm)
refer to your gas supplier for suitable gas cylinder.
- Approved gas regulator is used according to appliances categories and countries
listed in data plate. Approved flexible hose would be changed when the national
conditions require it.
- Assembly of the tubing must be conducted by some qualified tuber of destination
countries.
- Only change gas cylinders outdoors or in a well ventilated area away from naked
flames and any other source of ignition (candle, cigarettes, other flame producing
appliance….).
- The gas cylinder must always be used in an upright position.
- Close the heater control knob by turning fully clockwise.
- Close the gas cylinder tap and then attach the regulator onto the gas cylinder.
- Tighten all connections firmly and with a spanner where appropriate. The cylinder
should be located on the cylinder base.
- Check for leaks at all joints using soapy water. If a leak is found, tighten the
joint and then re-test.

IMPORTANT SAFETY RULESH1117&H1217
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum
of 25% of the surface area open.
The surface area is the sum of the walls surface.
The use of this appliance in enclosed areas can
be dangerous and is PROHIBITED.
Children and adults should be aware of the high
operating temperatures of areas above the post
when operating this heater. Children should be
carefully supervised when in the vicinity of the
heater.
NEVER hang anything, including clothes or any
other flammable items, on this heater.
DO NOT operate this heater unless it is fully
assembled with its reflector in place.
Respect the minimum clearances from
combustible materials.
MAINTENANCE
To enjoy years of outstanding performance from your heater, make sure you
perform the following maintenance activities on a regular basis:
- Keep exterior surfaces clean.
- Use warm soapy water for cleaning. Never use flammable or corrosive cleaning
agents.
- While washing your unit, be sure to keep the area around the burner and pilot
assembly dry at all times. If the gas control is exposed to water in any way, DO
NOT try to use it. It must be replaced.
- Airflow must be unobstructed. Keep controls, burner and circulation air
passageways clean. Signs of possible blockage include:
- Gas odor with extreme yellow tipping of flame.
- Heater does NOT reach the desired temperature.
- Heater glow is excessively uneven.
- Heater makes popping noises.
- Spiders and insects can nest in burner or orifices. This dangerous condition can
damage the heater and render it unsafe for use. Clean burner holes by using a
heavy duty pipe cleaner. Compressed air may help clear away smaller particles.
- Carbon deposits may create a fire hazard. If any carbon deposits develop, clean
dome and engine with warm soapy water.
Note: in a salt-air environment (such as near the sea), corrosion occurs more
quickly than normal. Frequently check the corroded areas and repair them
promptly.

SERVICING
- Please consult your local dealer for servicing this appliance and replacement of
its parts. The servicing of the appliance shall be carried out only by authorised
personnel.
- Caution: do not use unauthorized parts or components for this appliance, only
use original equipment replacement parts and components. The use of
unauthorized parts or components will void the warranty and can create an
unsafe condition.
STORAGE
There is no limitation on the storage of the appliance indoors provided that
the cylinder is removed from the appliance.
Between uses:
- Turn control knob OFF
- Turn gas cylinder OFF
Store heater upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow, dust and debris).
If desired, cover to protect exterior surfaces and to prevent build up in air
passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
- Turn control knob OFF.
- Disconnect gas cylinder and move to a secure, well ventilated location
outdoors. DO NOT store in a location that will exceed 50°C.
Store heater upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to prevent build up in air
passages.
Note: Wait until heater is cool before covering

TROUBLESHOOTING
IF THE PROBLEM IS: AND THIS CONDITION EXISTS: THEN DO THIS:
Pilot won’t light
Cylinder valve is closed Open valve
Blockage in orifice or pilot tube Clean or replace orifice or pilot tube
Air in the gas line
Open gas line and bleed it (pressing
control knob in) for not more than 1-
2 minutes or until you smell gas
Low gas pressure Gas cylinder low or empty
Igniter fails Use match to light pilot, and obtain new
igniter and replace. ( See below pictures)
Pilot won’t stay lit
Dirt build up around pilot Clean dirt from around pilot
Connection between gas valve and pilot
assembly is loose Tighten connection and perform leak test
Bad thermocouple Replace thermocouple
Burner won’t light
Gas pressure is low Replace gas cylinder
Blockage in orifice Clear blockage
Control knob is not in "ON" position Turn control knob to "ON" position
Burner flame is low
Note: Do not operate
heater below 5℃(40°F)
Gas pressure is low Replace gas cylinder
Outdoor temperature is greater than 5℃
(40°F) and tank is less than 25% full
Replace gas cylinder
Supply hose is bent or kinked Straighten hose and perform leak test on
hose
Control knob is fully " ON"
Turn control knob to "OFF", let it cool to
room temperature and check burner and
orifices for blockage
Emitter glows uneven
Note: Bottom 2.5cm of
emitter normally does
not normally glow
Gas pressure is low Replace gas cylinder
Base is not on a level surface Place heater on a level surface
Heater not level Level heater
Carbon build-up Dirt or film on reflector and emitter Clean reflector and emitter
Thick black smoke Blockage in burner
Turn control knob to "OFF", let it cool to
room temperature and remove
blockage and clean burner inside and
outside.

TECHNICAL DATA
SKU:842-191
Manufacturer’s model NO.: H1502A
Heat input ? Qn(Hs)=11.2kW
Consumption: 815g/h
PIN: 0063CO7365
Country Code CH-ES-FR-GB-
GR- IE-IT-PT
BE-CY-CZ-DK-EE-FI-
GR-IT-LT-LV-MT-NL-NO-
SE-SI-SK-BG-RO-TR
AT-CH-DE PL
CZ-FR-
GB-GR-IE-
PT
AT-CH-
DE-NL
Gas Category I3+(28-30/37) I3B/P(30) I3B/P(50) I3B/P(37) I3P(37) I3P(50)
Type of Gas Butane Propane Butane/
Propane / Mixture
Butane/
Propane /
Mixture
Butane/
Propane
/ Mixture
Propane Propane
Gas pressure
28-
30mba
r
37mbar 30mbar 50mbar 37mbar 37mbar 50mbar
Injector Marking 1.6 1.6 1.4 1.5 1.6 1.5
Warning
Read the instructions before using this appliance.
The appliance must be installed in accordance with instructions and local regulations.
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of 25% of the surface area open.
The surface area is the sum of the walls surface.
0063
GUARANTEE
Any defect affecting the functionality of the appliance which becomes apparent
within one year of its purchase will be corrected by free repair or replacement
provided that it has been used and maintained in accordance with the instructions
and has not been abused or misused in any way. Your statutory rights are not
affected. If it's under guarantee, state where and when it was bought, and include
proof of purchase (e.g. till receipt).
In line with our policy of continuous product development we reserve the right to
change product, packaging and documentation specifications without notice.
DISCARD
At the end of the life of the appliance, please cast of the appliance according to the
on that moment applying regulations and guidelines.
