OVE BREEZE ROUND CORNER SHOWER SCD 32x32x77 User manual

P. 1
START WITH THIS INSTALLATION MANUAL
STEP 1: INSTALL YOUR SHOWER BASE (USING THIS MANUAL).
STEP 2: INSTALL YOUR SHOWER WALL BASED ON OPTION (A) OR OPTION (B).
OPTION (A): INSTALLATION WITH TILES OR COMPOSITE WALL PANELS (NOT SUPPLIED)
OPTION (B): INSTALLATION WITH OVE ACRYLIC PANELS (IF PURCHASED AS A KIT)
STEP 3: INSTALL YOUR SHOWER DOOR.
32x32x77” / 34x34x77” / 36x36x77” / 38x38x77”
BREEZE ROUND CORNER SHOWER SCD
SHOWER INSTALLATION MANUAL - FOR CORNER SHOWER
www.ovedecors.com | [email protected]
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
An installation video (V06) guide can be found on our Youtube channel:
https://tinyurl.com/y95nqcmv
A B

P. 2
TABLE OF CONTENTS
SHOWER BASE DIMENSIONS 3
SHOWER WALL DIMENSIONS 4
OVERALL SHOWER DIMENSIONS 5
PACKAGE CONTENTS (SHOWER DOOR) 6
PARTS LIST (SHOWER DOOR) 8
PARTS LIST (SHOWER BASE) 11
PARTS LIST (SHOWER WALL) 12
SAFETY INFORMATION 13
BEFORE INSTALLATION 14
BASE INSTALLATION (OPTION A) 15
BASE INSTALLATION (OPTION B) 25
ACRYLIC WALL PANELS INSTALLATION 32
SHOWER DOOR INSTALLATION 35
MAINTENANCE AND CARE, WARRANTY 47

P. 3
Measures: INCH (mm)
SHOWER BASE DIMENSIONS
Measurements 32” 34” 36” 38”
AFlange width 31 7/8"
810mm
33 7/8"
860mm
35 15/16"
913mm
37 13/16"
960mm
BShower base height (With ange) 5 1/8"
130mm
5 1/8"
130mm
5 1/8"
130mm
5 1/8"
130mm
CThreshold height (Without ange) 4 1/8"
105mm
4 1/8"
105mm
4 1/8"
105mm
4 1/8"
105mm
DOverall shower base width 32 11/16"
830mm
34 15/16"
887mm
40 1/16"
1018mm
44 5/16"
1125mm
EDrain distance from corner 7 7/16"
189mm
7 1/4"
184mm
12 3/8"
314mm
11 5/8"
296mm
FDrain opening diameter 3 3/8"
85mm
3 3/8"
85mm
3 3/8"
85mm
3 3/8"
85mm
GBase edge length (maximum) 36 1/8"
918mm
39 1/4"
996mm
46 7/8"
1187mm
51 7/8"
1318mm
HFinished surface area 911 in2
0.588 m2
1051 in2
0.678 m2
1407 in2
0.908 m2
1708 in2
1.102m2
AA
B
CH
D
D
E
E
F
G
H

P. 4
Measurements 32"34"36"38"
NWall width 30 3/4"
781mm
32 7/8"
835mm
34 13/16"
884mm
36 13/16"
935mm
QWall height 73 1/4"
1860mm
73 1/4"
1860mm
73 1/4"
1860mm
73 1/4"
1860mm
ROverall wall thickness 2 13/16"
71mm
2 13/16"
71mm
2 13/16"
71mm
2 13/16"
71mm
SWall thickness 15/16"
23mm
15/16"
23mm
15/16"
23mm
15/16"
23mm
NR
Q
N
S

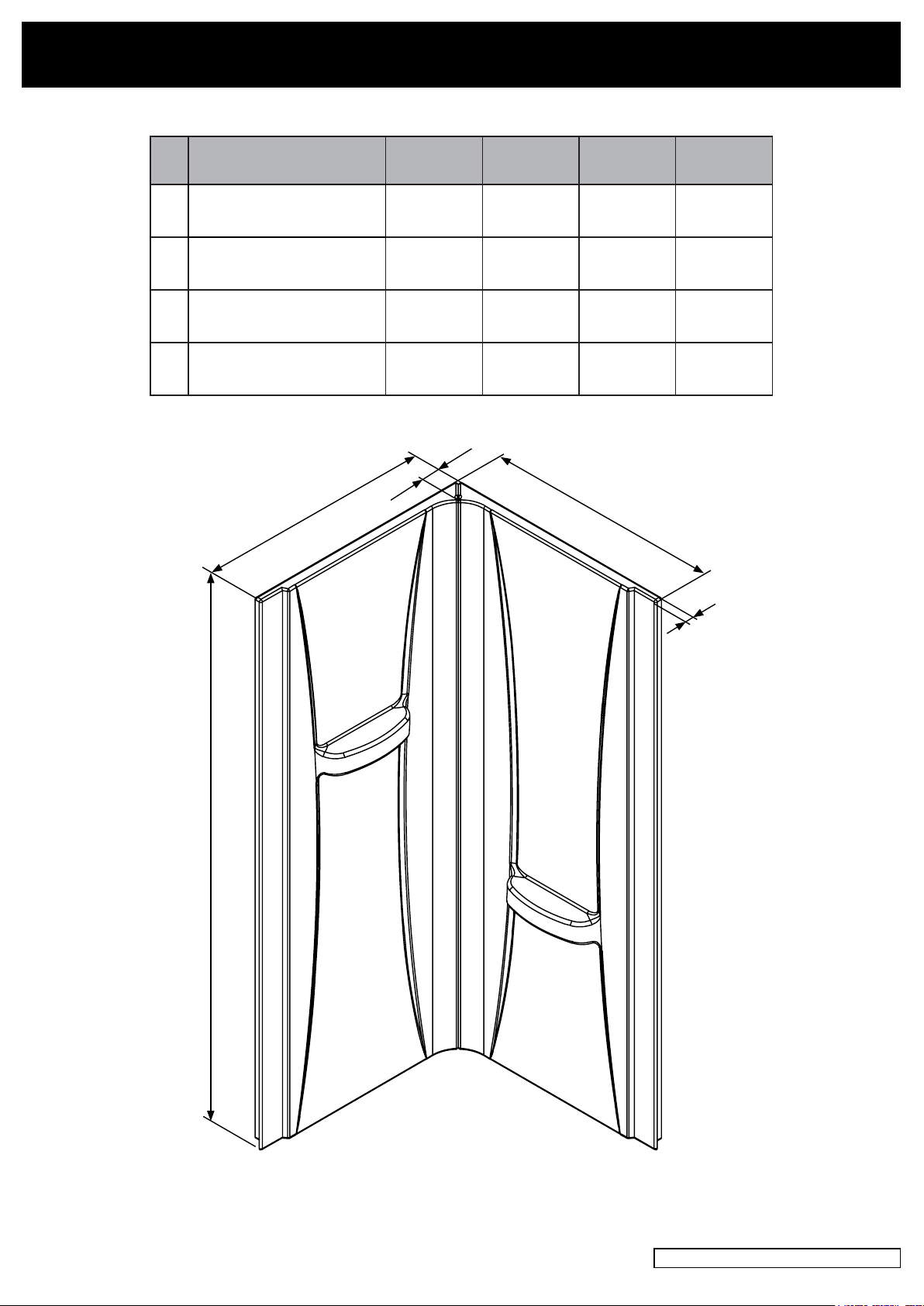

SHOWER WALL DIMENSIONS (IF PURCHASED AS A KIT)
Measures: INCH (mm)

P. 5

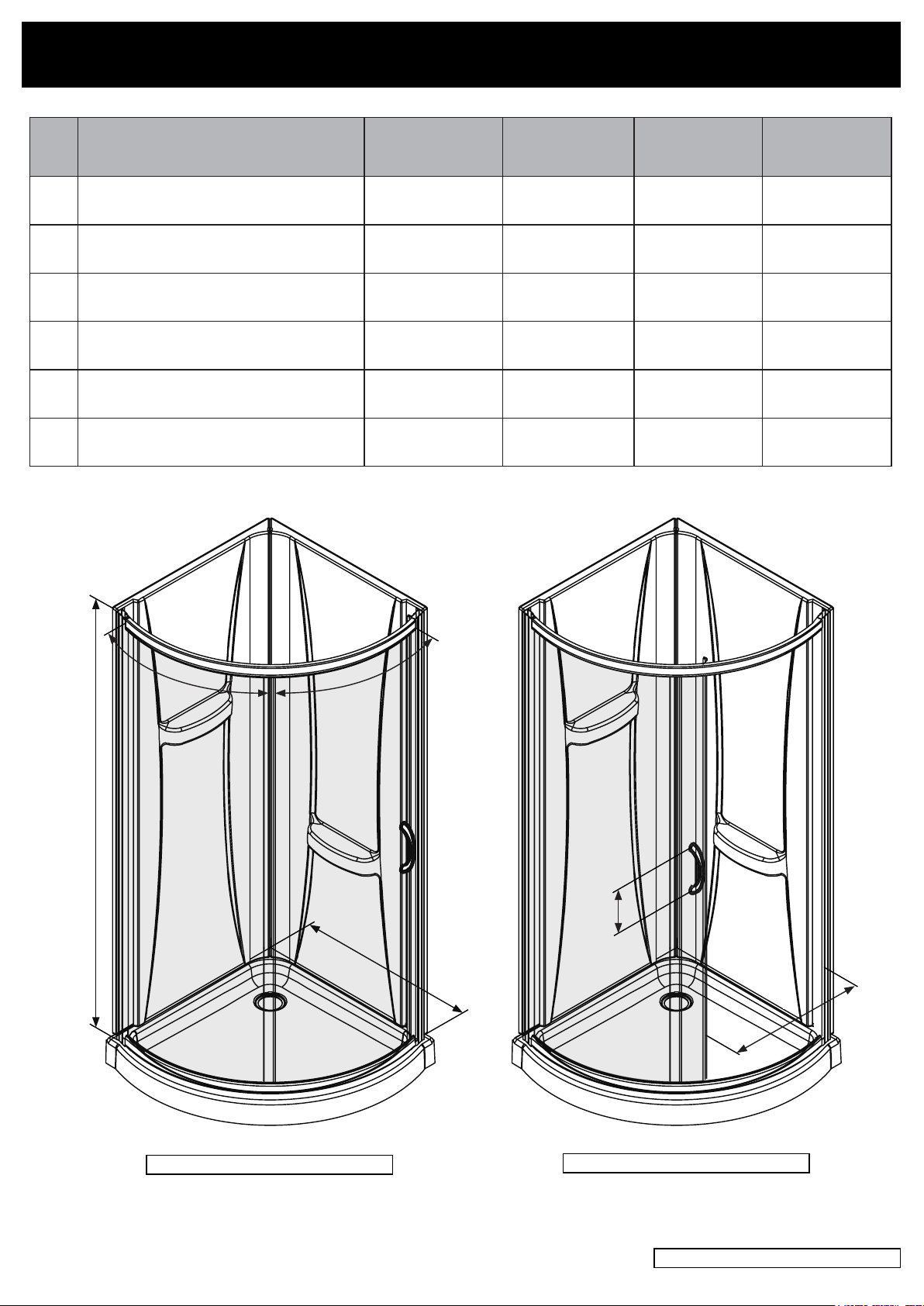

OVERALL SHOWER DIMENSIONS
Measures: INCH [mm]
X
Y
VW
O
U
Measurements 32"34"36"38"
OShower width (wall track to wall track) 29 13/16"
758mm
31 1/4"
793mm
33 7/16"
850mm
35 7/8"
911mm
UShower height 72 13/16"
1850mm
72 13/16"
1850mm
72 13/16"
1850mm
72 13/16"
1850mm
VFixed panel width 22 3/4" R23"
578 R584mm
25 1/16"R23"
637 R584mm
30 15/16"R23"
786 R584mm
39 3/16"R24 1/2"
995 R622mm
WDoor panel width 23 15/16"R22 1/16"
608 R560mm
26 3/16"R22 1/16"
665 R560mm
32 1/4"R22 1/16"
819 R560mm
32 5/8" R23 9/16"
829 R598mm
XDoor opening 19 15/16"
506mm
21 13/16"
554mm
25 11/16"
652mm
26 1/8"
664mm
YDistance between handle holes 5 11/16"
145mm
5 11/16"
145mm
5 11/16"
145mm
5 11/16"
145mm
OVERALL SHOWER DIMENSION SHOWER DOOR OPENING DIMENSION

P. 6

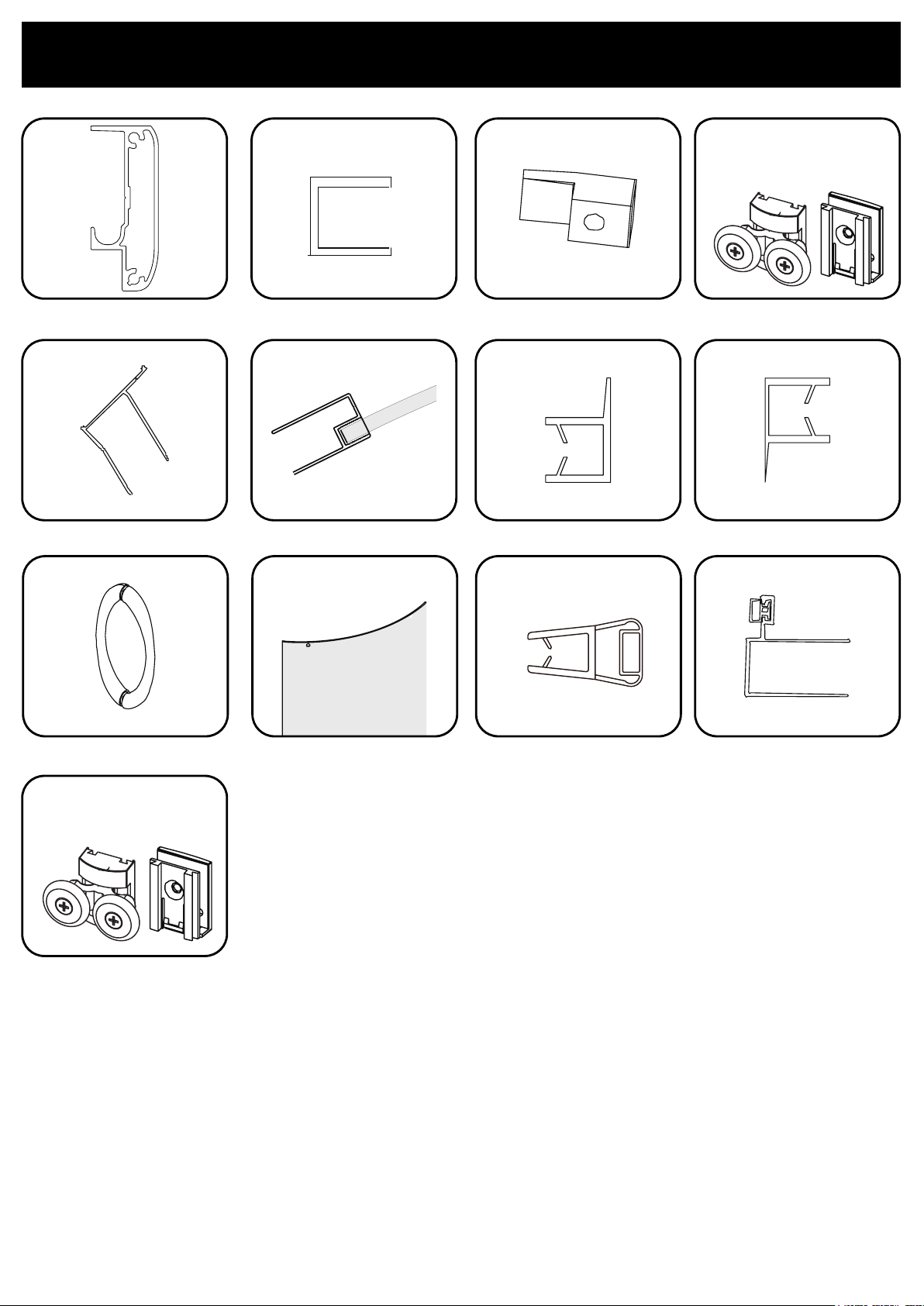

PACKAGE CONTENTS (SHOWER DOOR)
A
B
F
D
C
E
H
G
J
L
M
K
I

P. 7
PACKAGE CONTENTS (SHOWER DOOR)
A
2x
B
2x
C
2x
D
2x
E
2x
F
1x
G
1x
H
1x
I
1x
J
1x
L
1x
K
1x
M
2x

P. 8
PARTS LIST (SHOWER DOOR)
PART # DESCRIPTION QUANTITY CODE
AFrame track (top and bottom) 2
32” Chrome: 99STR1033
34” Chrome: 99STR1034
36” Chrome: 99STR1035
38” Chrome: 99STR1036
32” Satin Nickel: 99STR3766-AC
34” Satin Nickel: 99STR3767-AC
36” Satin Nickel: 99STR3768-AC
38” Satin Nickel: 99STR3769-AC
32” Matt Black: 99STR3770-AC
34” Matt Black: 99STR3771-AC
36” Matt Black 99STR3772-AC
38” Matt Black: 99STR3773-AC
B Fixed panel seal strip (top and bottom) 2
32” Chrome and Satin Nickel: 99SRU3633-AC
34” Chrome and Satin Nickel: 99SRU3634-AC
36” Chrome and Satin Nickel: 99SRU3635-AC
38” Chrome and Satin Nickel : 99SRU3636-AC
32” Matt Black: 99SRU3703-AC
34” Matt Black: 99SRU3704-AC
36” Matt Black: 99SRU3705-AC
38” Matt Black: 99SRU3706-AC
C Fixed panel clamp 2
Chrome: 99SGC1030
Satin Nickel: 99SGC4053-AC
Matt Black: 99SGC4054-AC
D Top wheels and holder (holder pre-installed) 2
Chrome: 99SWE0067-AC
Satin Nickel: 99SWE3644-AC
Matt Black: 99SWE3645-AC
E Wall track 2
32” Chrome: 99STR3835-AC
32” Satin Nickel: 99STR3837-AC
32” Matt Black: 99STR3836-AC
34” Chrome: 99STR3838-AC
34” Satin Nickel: 99STR3840-AC
34” Matt Black: 99STR3839-AC
36” Chrome: 99STR3841-AC
36” Satin Nickel: 99STR3843-AC
36” Matt Black: 99STR3842-AC
38” Chrome: 99STR1043-AC
38” Satin Nickel: 99STR3774-AC
38” Matt Black: 99STR3775-AC

P. 9
PARTS LIST (SHOWER DOOR)
PART # DESCRIPTION QUANTITY CODE
F Fixed panel 1
Transparent glass
32” Chrome: 99SG10018-AC
34” Chrome: 99SG10327-AC
36” Chrome: 99SG10328-AC
38” Chrome: 99SG10329-AC
32” Satin Nicke: 99SG3754-AC
34” Satin Nickel: 99SG3755-AC
36” Satin Nickel: 99sG3756-AC
38” Satin Nickel: 99SG3757-AC
32” Matt Black: 99SG3758-AC
34” Matt Black: 99SG3759-AC
36” Matt Black: 99SG3760-AC
38” Matt Black: 99SG3761-AC
Rough messy
frosted glass
32” Chrome: 99SGP-7S5N5VN8-AC
34” Chrome: 99SGP-739GKCQU-AC
36” Chrome: 99SGP-7Q9K943L-AC
38” Chrome: 99SGP-59G50X35-AC
32” Satin Nickel: 99SG3762-AC
34” Satin Nickel: 99SG3763-AC
36” Satin Nickel: 99SG3764-AC
32” Matt Black: 99SG3766-AC
34” Matt Black: 99SG3767-AC
36” Matt Black: 99SG3768-AC
G Fixed panel seal strip 1 Chrome and Satin Nickel: 99SRU0057
Matt Black: 99SRU3707-AC
H Door panel seal strip 1 Chrome and Satin Nickel: 99SRU0058
Matt Black: 99SRU3708-AC
I Door handle 1
Chrome: 99SHA1022
Satin Nickel: 99SHA3639-AC
Matt Black: 99SHA3640-AC

P. 10
PARTS LIST (SHOWER DOOR)
PART # DESCRIPTION QUANTITY CODE
J Door panel 1
Transparent glass
32” : 99SGD0021-AC
34” : 99SGD0041-AC
36” : 99SGD0040-AC
38” : 99SGD0042-AC
Rough messy frosted
glass
32” : 99SGD3661-AC
34” : 99SGD3662-AC
36” : 99SGD3663-AC
38” : 99SGD3664-AC
Small squares frosted
glass
32” : 99SGD4958-AC
34” : 99SGD4959-AC
35” : 99SGD4960-AC
36” : 99SGD4961-AC
K Door magnetic seal strip 1 Chrome and Satin Nickel: 99SRU0059
Matt Black: 99SRU3709-AC
L Magnetic door track 1
Chrome: 99STR1037
Satin Nickel: 99STR3776-AC
Matt Black: 99STR3777-AC
M Bottom wheels and holder (holder pre-installed) 2
Chrome: 99SWE0068-AC
Satin Nickel: 99SWE3646-AC
Matt Black: 99SWE3647-AC
*** Complete hardware kit N/A
Chrome: 99SHW0040-AC
Satin Nickel: 99SHW6076-AC
Matt Black: 99SHW6077-AC
CCAA BB DD
SUPPLIED HARDWARE LIST (SHOWER DOOR)
Wall Anchor
ø6x30
x8
Screw
ST4x45
12+2
Screw
ST3.5x25
8+1
Screw
ST4x14
2+1
Screw cap
x14
Screw
ST4x13
6+1
Washer
x14
EE FF GG

P. 11
Pencil Screwdriver
Drill and drill bits
ø1/8” (3mm)
ø3/16” (5mm)
ø1/4” (6mm)
LevelMeasuring tape Box cutter
Wood shims CementHole saw drill bit
Silicone
A
Saw
PART # DESCRIPTION QUANTITY CODE
A Shower base 1
BB Screw (ST4x30mm) 8+1
PARTS LIST (SHOWER BASE)
TOOLS REQUIRED (NOT SUPPLIED)
BB
Rubber mallet Ratchet
5mm Bit socket
Safety glasses
Trowel Construction Adhesive 1x3 Battens

P. 12
PARTS LIST SHOWER WALL (IF PURCHASED AS A KIT)
PART # DESCRIPTION QUANTITY CODE
E Wall panel (left) 1
32" : 99SAP0044-AC
34" : 99SAP0046-AC
36" : 99SAP0048-AC
38" : 99SAP0050-AC
F Wall panel (right) 1
32" : 99SAP0045-AC
34" : 99SAP0047-AC
36" : 99SAP0049-AC
38" : 99SAP0051-AC
GG Bolt and nut 9 99SHW0353-AC
EF
GG

P. 13
CAUTION
Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while
handling this product. To minimize these risks, please note:
• Always wear safety glasses and gloves while handling.
• Always read and follow all the steps in the installation instructions.
• Inspect all contents and glass for damage before installation.
• Extreme caution should be taken while handling the glass during installation as the tempered glass may shatter if in contact with a hard
surface.
• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in small pieces (never in pointed
fragments).
• Always take all precautions not to touch the tempered glass with any tools during the installation, or after installed.
• Do not cut or modify the tempered glass as it will shatter if cut.
• Carefully remove product from packaging and keep packaging until installation is complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer service at the number provided in
this guide.
• Install the shower on a oor that is level and able to accommodate the weight of the unit and an occupant.
• Consult local building codes and compliance standards prior to installation and ensure conformity.
• After installation, and from time to time, check the glass for t and nish to ensure that nothing has come loose since installation.
• Keep this installation manual for future reference.
SAFETY INFORMATION
NOTICE
Any modication or alteration from what is specied in this instruction manual will void any and all warranty on this
product.
The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If
you disregard instructional warnings, you will void your warranty and possibly deal with water damage.
Consult the distributor’s website for any additional information or question on this product’s installation.
PREPARATION
You will need at least two people to install this unit properly.

P. 14
BEFORE INSTALLTION
For the easy installation of this product please read the following important points:
• READ ALL the instructions completely before beginning.
• ENSURE you nd all parts listed in the part list of each package: Shower Door, Shower Base, Shower Wall (if purchased as a kit).
Contact customer service immediately if any part is missing at 1-866-839-2888 or [email protected].
• If your walls are of tile or composite panels (Option A) continue to page 15. If you are using the provided Acrylic Panels, continue to (Option
B) on page 25.

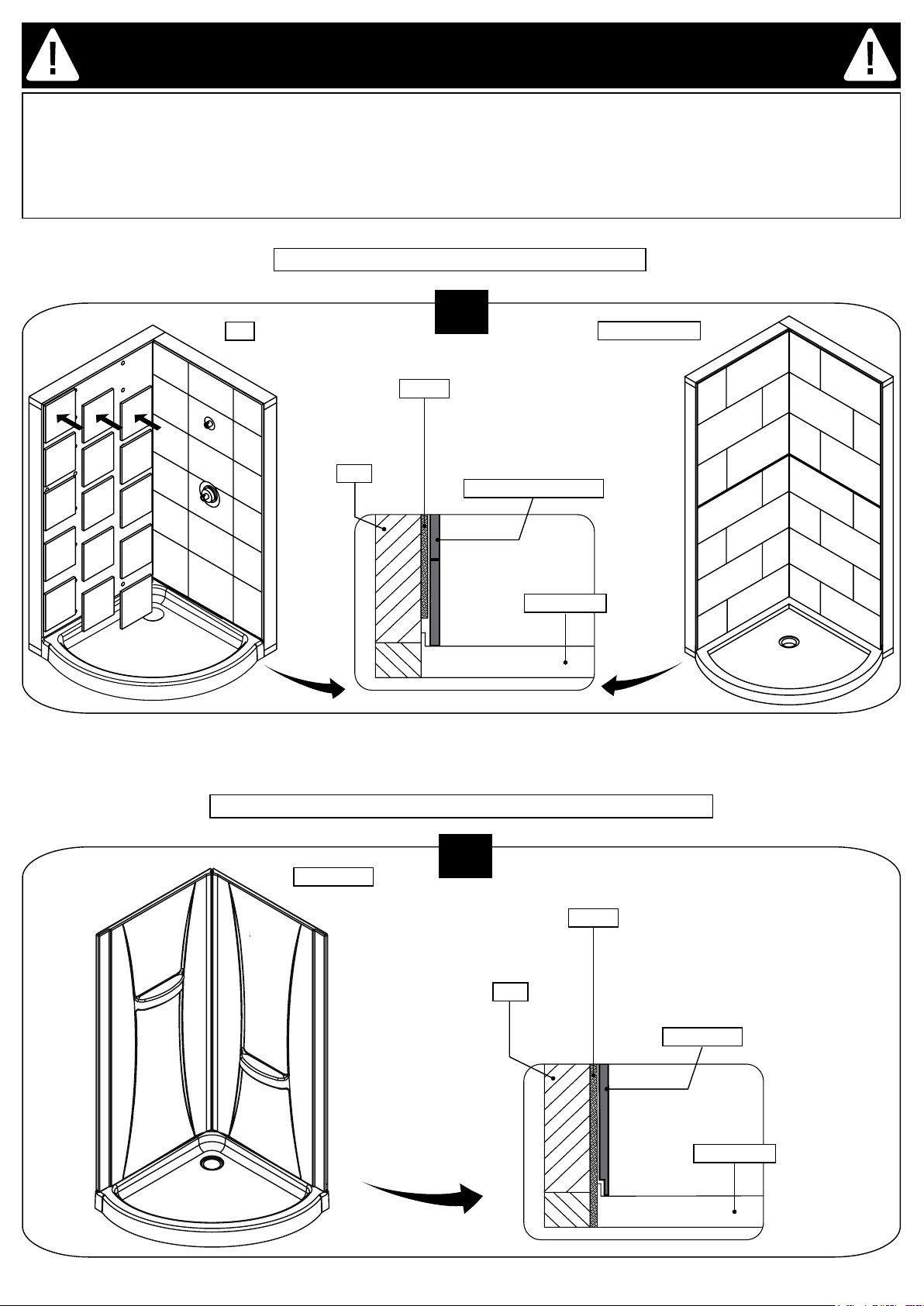

Please see the images below for OPTION (A), OPTION (B).
Drywall
Stud
Shower base
Tile or Composite panel
A
B
Drywall
Stud
Shower base
Acrylic panel
Tile Composite panel
Acrylic panel
Shower Kit: Shower Door + Shower Base
Shower Kit: Shower Door + Shower Base + Shower Wall

P. 15
BASE INSTALLATION OVERVIEW (OPTION A)

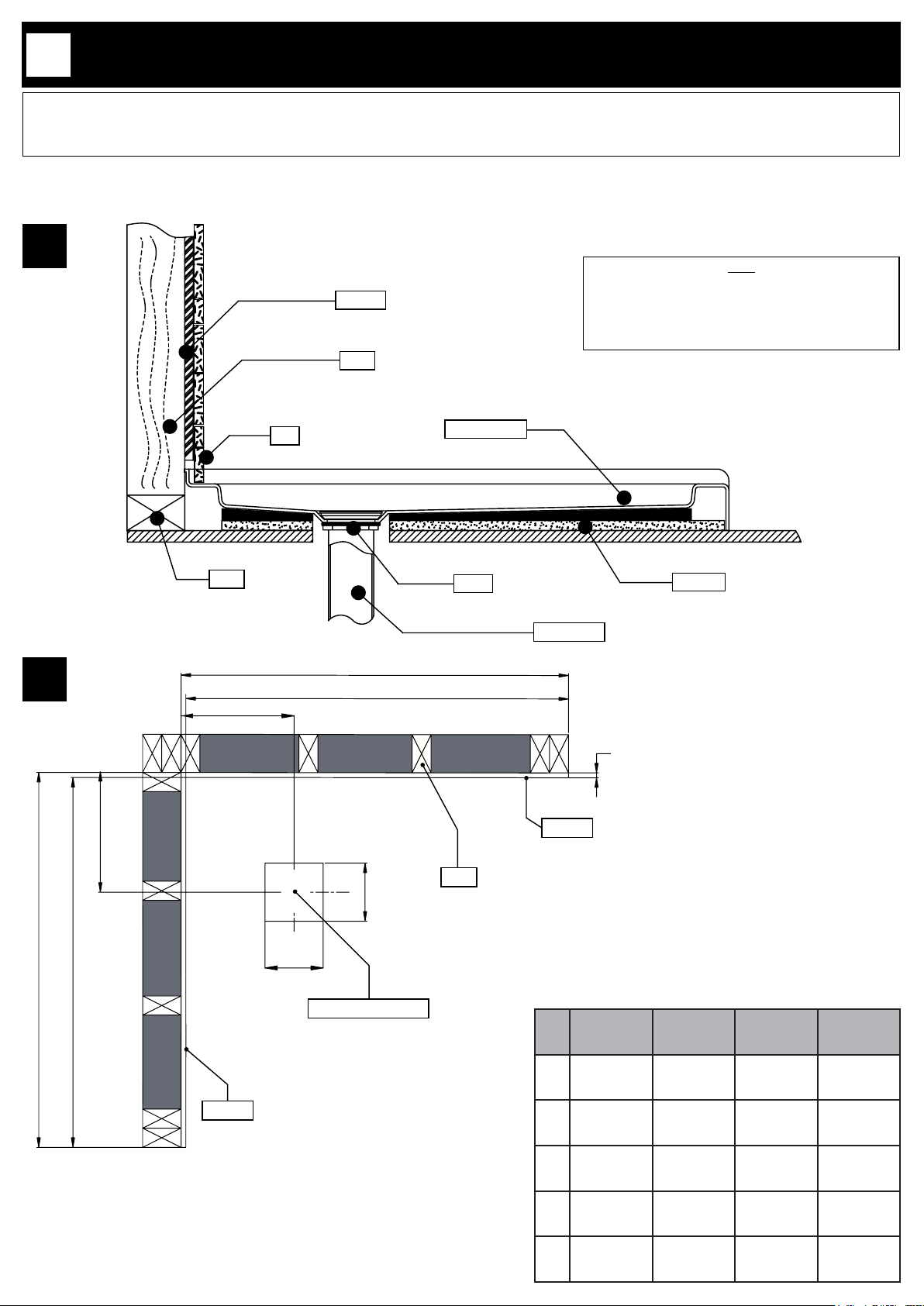

1. Before you start the installation of your product consult the illustration 1 below showing a side-view of the completed installation.
2. Illustration 2 shows the recommended wall structure and measurements for the product installation.
NOTE: Customer must follow and comply with the local and national building and plumbing codes. All illustrations in this manual are for reference
only and do not take precedent on any code or regulation. It’s recommended that this product be installed by a professional.
Drywall
Stud
Shower base
Cement
Drain
Waste pipe
Stud
Tile
FAQ
Q: What thickness of cement must I apply?
A: Between 1” and 1 1/2”.
Q: Is the base installed on the studs or on the drywall?
A: On the studs.
1
2
Drywall
Stud
Waste pipe rough-in
32” 34” 36” 38”
A31 7/8"
810mm
33 7/8"
860mm
35 15/16"
913mm
37 13/16"
960mm
E7 7/16"
189mm
7 1/4"
184mm
12 3/8"
314mm
11 5/8"
296mm
J1/2"
13mm
1/2"
13mm
1/2"
13mm
1/2"
13mm
K6"
152mm
6"
152mm
6"
152mm
6"
152mm
L31 9/16"
802mm
33 9/16"
852mm
35 1/2"
902mm
37 1/2"
952mm
A
L
L
A
E
J
E
K
K
Drywall
A

P. 16
NOT SUPPLIED!
The studs, the drywalls and the drywall
screws are not supplied.
90°
E
E
BASE INSTALLATION (PREPARATIONS)
1.1. Ensure that the wall structure is leveled.
1.2. Place the shower base (A) on the oor and mark the outline using a pencil.
*This section is only for tile wall installation, for composite wall panel installation please refer to your composite wall panel instruction manual.
1.2
1.1
32” 34” 36” 38”
E7 7/16"
189mm
7 1/4"
184mm
12 3/8"
314mm
11 5/8"
296mm
A 1

P. 17
32” 34” 36” 38”
E7 7/16"
189mm
7 1/4"
184mm
12 3/8"
314mm
11 5/8"
296mm
K6"
152mm
6"
152mm
6"
152mm
6"
152mm
P2 1/4"
57mm
2 1/4"
57mm
2 1/4"
57mm
2 1/4"
57mm
E
E
Stud
Drywall
Sub oor
Waste pipe rough-in
K
P
E
Strainer
NOT SUPPLIED!
The shower drain and the waste pipe
are not supplied.
Strainer body
Gasket
Drain body
Shower base
BASE INSTALLATION (SHOWER DRAIN GUIDELINES)
2.1. Ensure that the waste pipe plumbing is completed.
2.2. The shower drain is not supplied, these illustrations are for reference only. It is recommended that you review the drain installation from the manufacturer
before continuing. Usually, the drain body must be sealed onto the waste pipe before continuing the base installation. Once the base installation is completed,
the strainer body is screwed into the drain body. Apply silicone under the strainer body to reduce the risks of leakage.
2.2
2.1
A 2

P. 18
NOT SUPPLIED!
The cement and the polyethylene sheet
are not supplied.
FAQ
Q: What thickness of cement must I apply?
A: Between 1” and 1 1/2” (2.5 to 3.8cm).
Q: Is the base installed on the studs or on the
drywall?
A: On the studs.
BASE INSTALLATION (SUB-STRUCTURE)
3.1. Apply cement (1 in to 1 1/2 in [2.5 to 3.8cm] thick) within the traced contour of the shower base. This will help level the base in subsequent steps. The
thickness of the cement layer varies depending on your oor.
3.2. Before setting the shower base onto the cement, it is recommended to cover the cement with a thin (2mm [1/16 in]) sheet of polyethylene. This will prevent
the base from being permanently stuck to the cement, and allow for future ajustments if necessary.
3.3. Level the shower base.
3.1
Polyethylene sheet 1/16” (2mm) thick
3.2
3.3
A 3

P. 19
ø1/8”
3mm
5/16”[8]
BASE INSTALLATION
4.1. The shower base ange is slightly slopped by design. At the locations where you will screw the shower base to the studs, it is recommended that you use
wood shims to ll the gap between the base ange and the studs.
4.2-4.3. Drill guide holes, and x the shower base by screwing it to the studs. It is recommended that you screw 1 screw per stud, and aim for the center of the
stud.
4.1
4.2
4.3
BB
A 4

P. 20
24H!

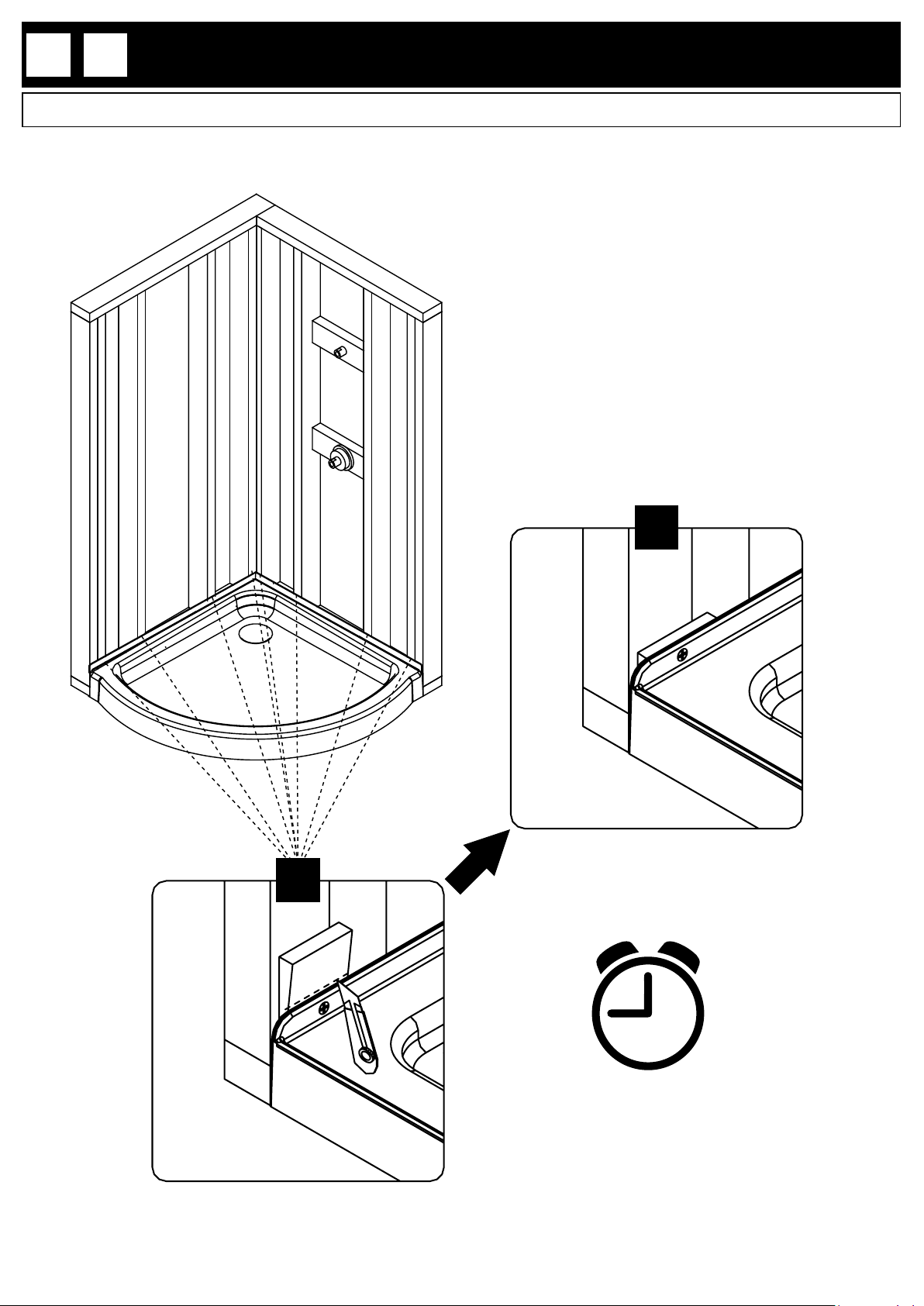

BASE INSTALLATION
5.1. Cut the protruding part of the wood shims.
5.2. Let the cement dry for 24 hours before continuing.
5.2
5.1
A 5
