OVE BEL 32 User manual

1
BEL 32
MODEL #BEL-SP32
ITEM #0665827
32”
[813]
Opening
18 1/2” / 24 7/16”
[470] / [620]
22 7/16”
[570]
CSA Markings
78 3/4”
[2000]
Wall-to-Wall
46 3/16” / 58 3/16”
[1173] / [1478]
Rough-in
48” / 60”
[1219] / [1524]
Wall-to-Wall
30 5/16”
[770]
22 9/16” / 28 7/8”
[573] / [733]
25 3/8” / 31 1/2”
[645] / [800]
Measures: inch [millimeter]
Glass panel only
2017-04-28
An installation video guide can be found on our Youtube channel.
2800 Etienne Lenoir, Laval
Québec H7R 0A3 Canada
Purchase date: _________________________ Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday

2
CAUTION
Please carefully read the following important safety information before handling or installing this shower. There
is a risk of serious injury while handling this product. To minimize these risks, please note:
• Always wear safety glasses and gloves while handling.
• Always read and follow all the steps in the installation instructions.
• Inspect all contents and glass for damage before installation.
• Extreme caution should be taken while handling the glass during installation as the tempered glass may
shatter if in contact with a hard surface.
• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in
small pieces (never in pointed fragments).
• Always take all precautions not to touch the tempered glass with any tools during the installation, or after
installed.
• Do not cut or modify the tempered glass as it will shatter if cut.
• Carefully remove product from packaging and keep packaging until installation is complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer
service at the number provided in this guide.
• Installtheshoweronaoorthatislevelandabletoaccommodatetheweightoftheunitandanoccupant.
• Consult local building codes and compliance standards prior to installation and ensure conformity.
• Afterinstallation,andfromtimetotime,checktheglassfortandnishtoensurethatnothinghascome
loose since installation.
• Keep this installation manual for future reference.
NOTICE
• Anymodicationoralterationfromwhatisspeciedinthisinstructionmanualwillvoidanyandallwarranty
on this product.
• The distributor is not responsible for any damage to the unit or personal property caused by improper
installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water
damage.
• Consult www.ovedecors.com for any additional information or question on this product’s installation.
PREPARATION
You will need at least two people to install this unit properly.
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: Shower (60 min).
SAFETY INFORMATION

3
TABLE OF CONTENT
PACKAGE CONTENT.......................................................................................................................................... 5
HARDWARE CONTENT...................................................................................................................................... 6
TOOLS REQUIRED............................................................................................................................................. 6
SHOWER REVERSIBILITY.................................................................................................................................. 7
BASE INSTALLATION GUIDELINES (OPTIONAL)............................................................................................ 8
WALL TRACK INSTALLATION........................................................................................................................... 9
RETURN PANEL INSTALLATION.................................................................................................................... 10
SEALING............................................................................................................................................................11
LIMITED PRODUCT WARRANTY......................................................................................................................12
CARE AND MAINTENANCE..............................................................................................................................12

4

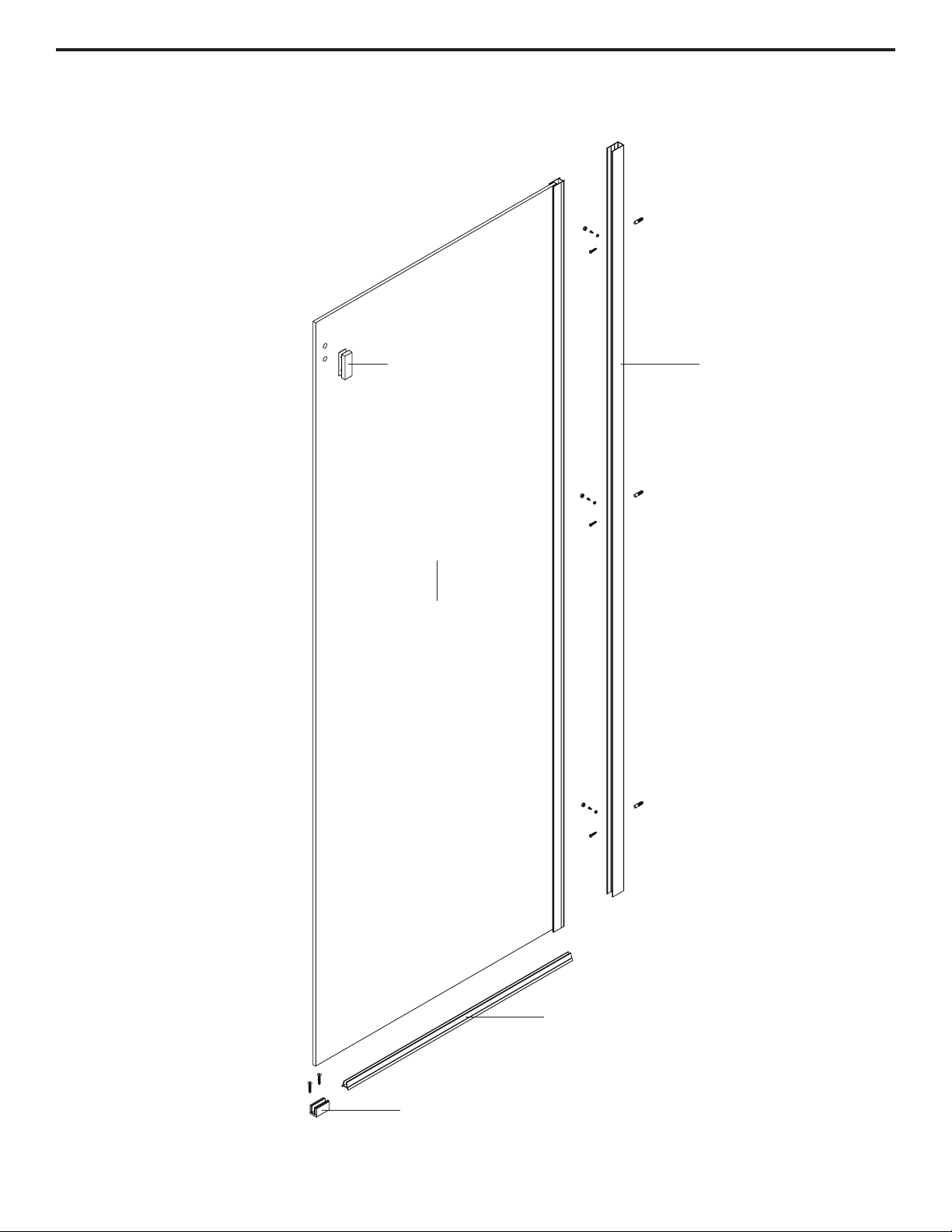

PACKAGE CONTENT
W
B
V
N
S

5
PACKAGE CONTENT
PART# DESCRIPTION QTY CODE
B Aluminum wall track 1 99STR3107-WM
N Fixed panel’s bottom seal strip 1 99SRU0060
S Return panel’s clamp 1 99SGC1042-WM
V Support bar’s anchor 1 99SGC1039-WM
W Return panel 1 99SG30007-WM
X Hardware content 1 99SHW0105-WM

6

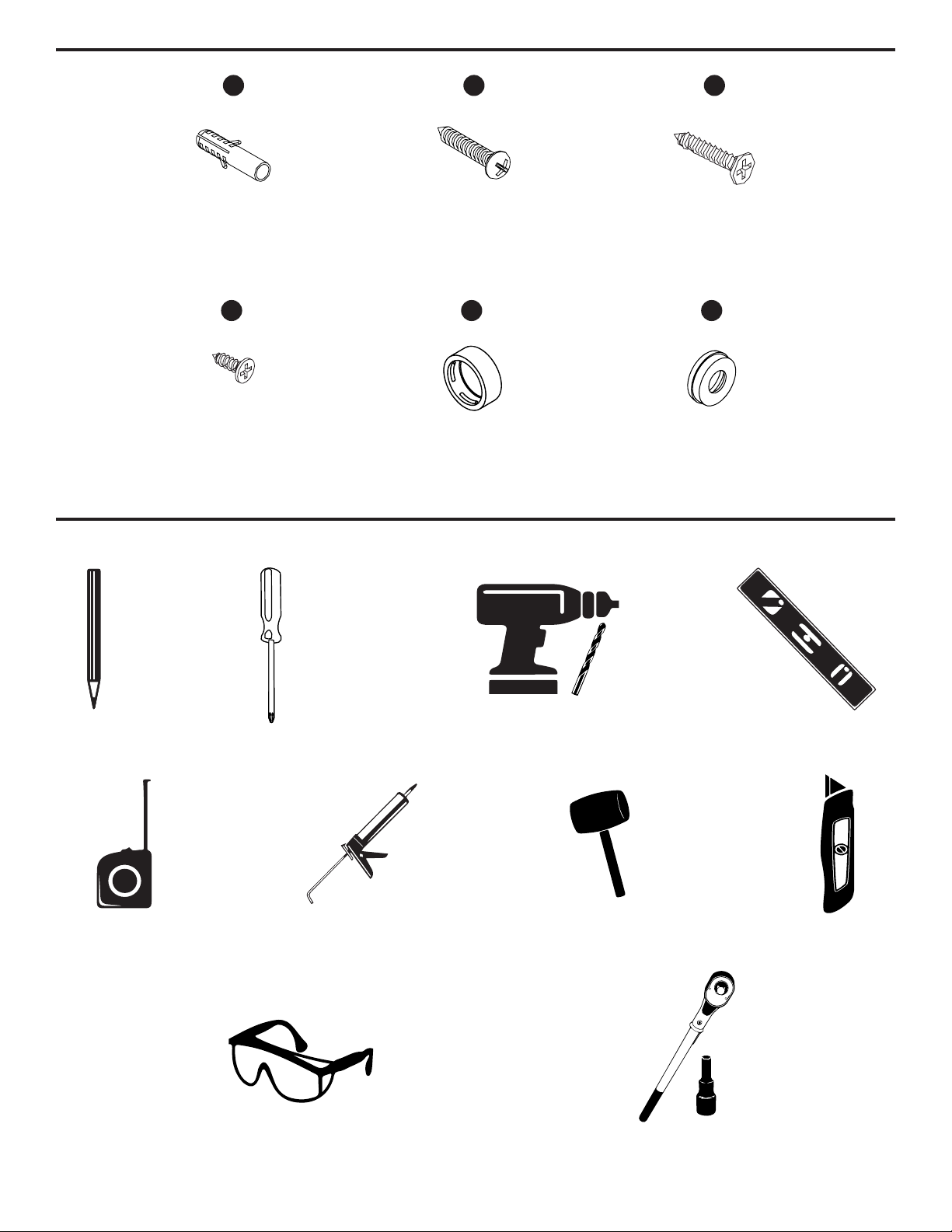

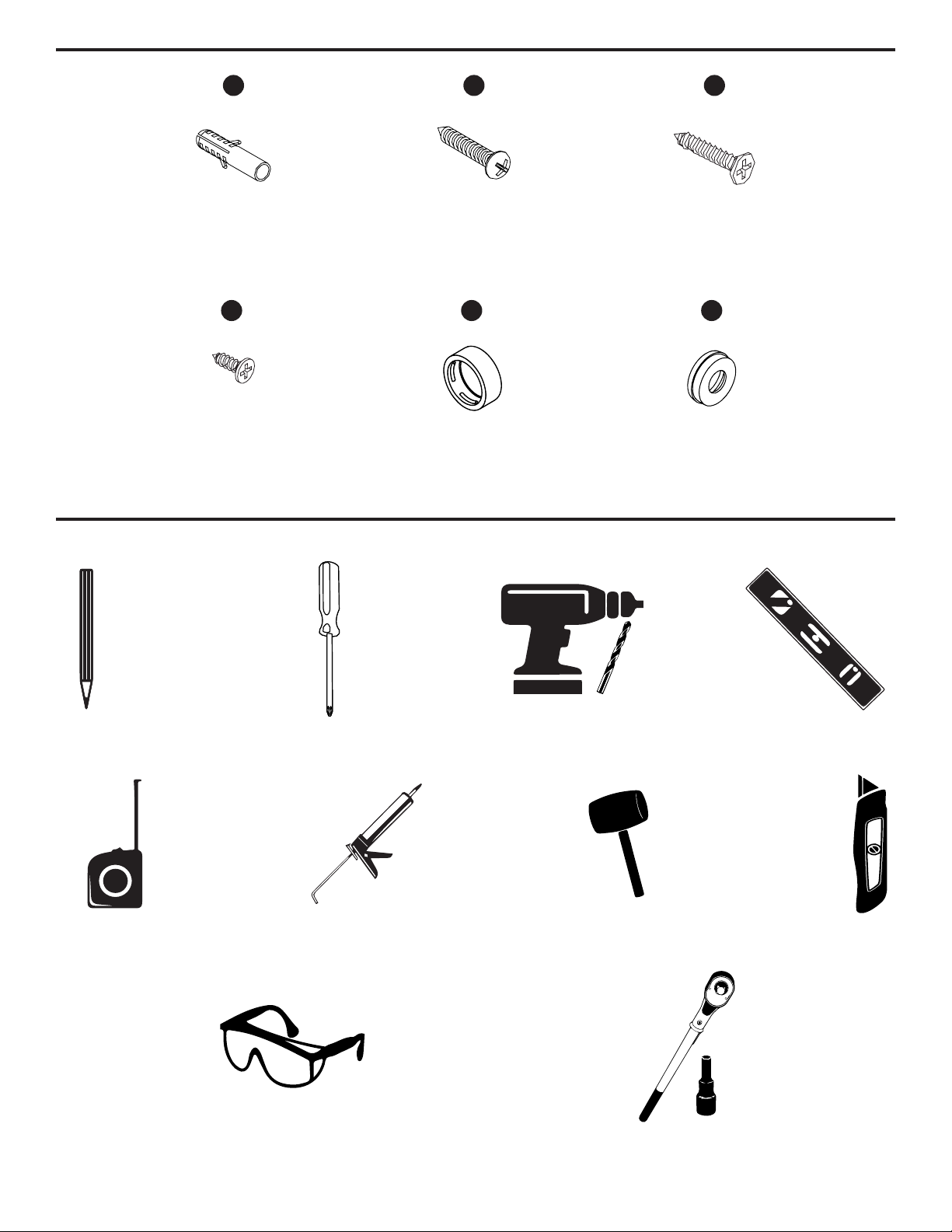

HARDWARE CONTENT
CC
FFEE
AA BB
Screw
ST5x25mm
2+1
Wall Anchor
ø8x30mm
3+1
Cap
3x
Fitting
3x
TOOLS REQUIRED
Pencil Screwdriver Drill with ceramic tile bits
ø4mm (3/16in) & ø8mm (5/16in) Level
Measuring Tape Silicone Rubber mallet Cutter
Safety glasses
Screw
ST5x30mm
3+1
DD
Screw
ST4x12mm
3+1
5mm Bit socket

7

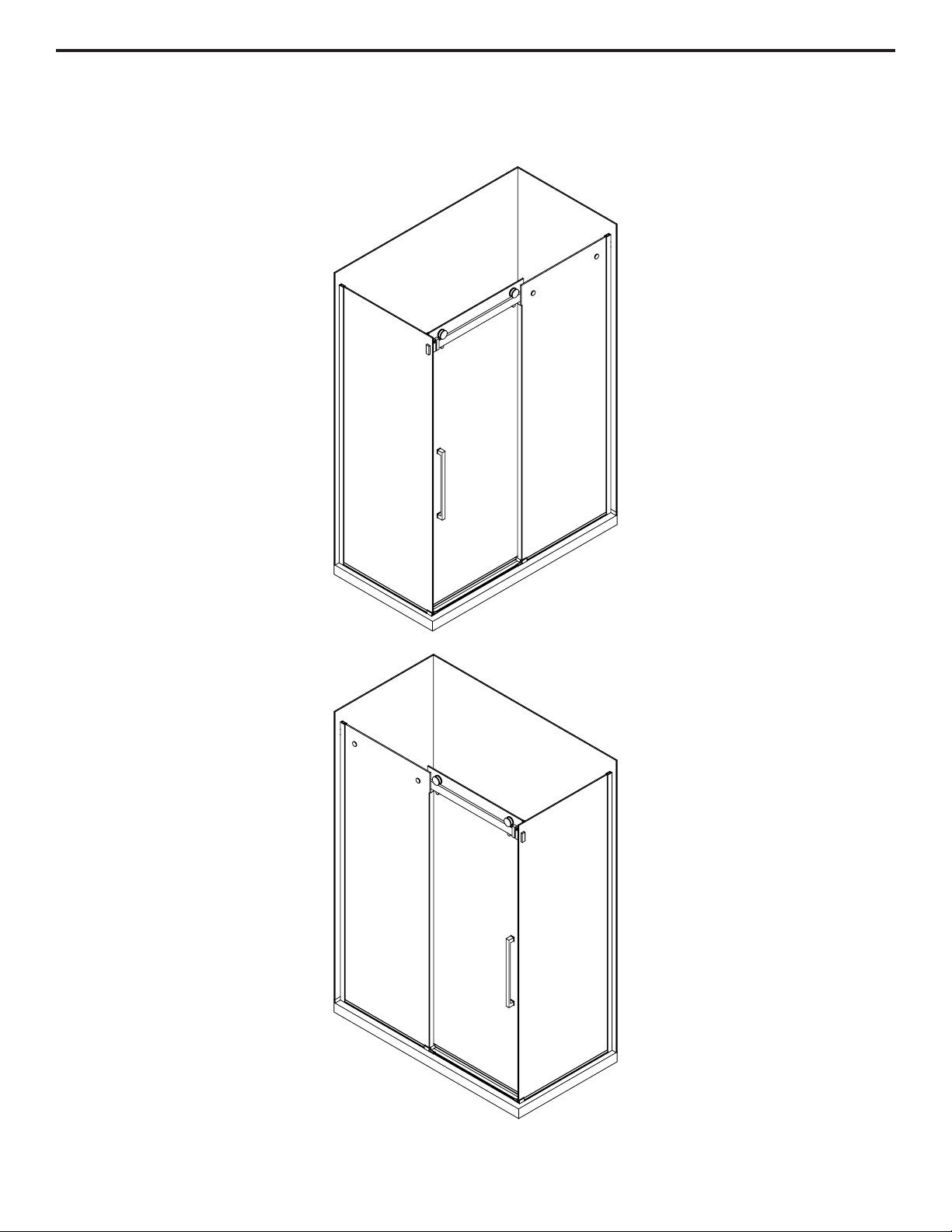

• This instruction is drawn up for an opening from right to left (see illustration B).
• For an installation from left to right (see illustration A), use the same instructions, but switch around the
panels: mirror effect.
SHOWER REVERSIBILITY
A
B

8

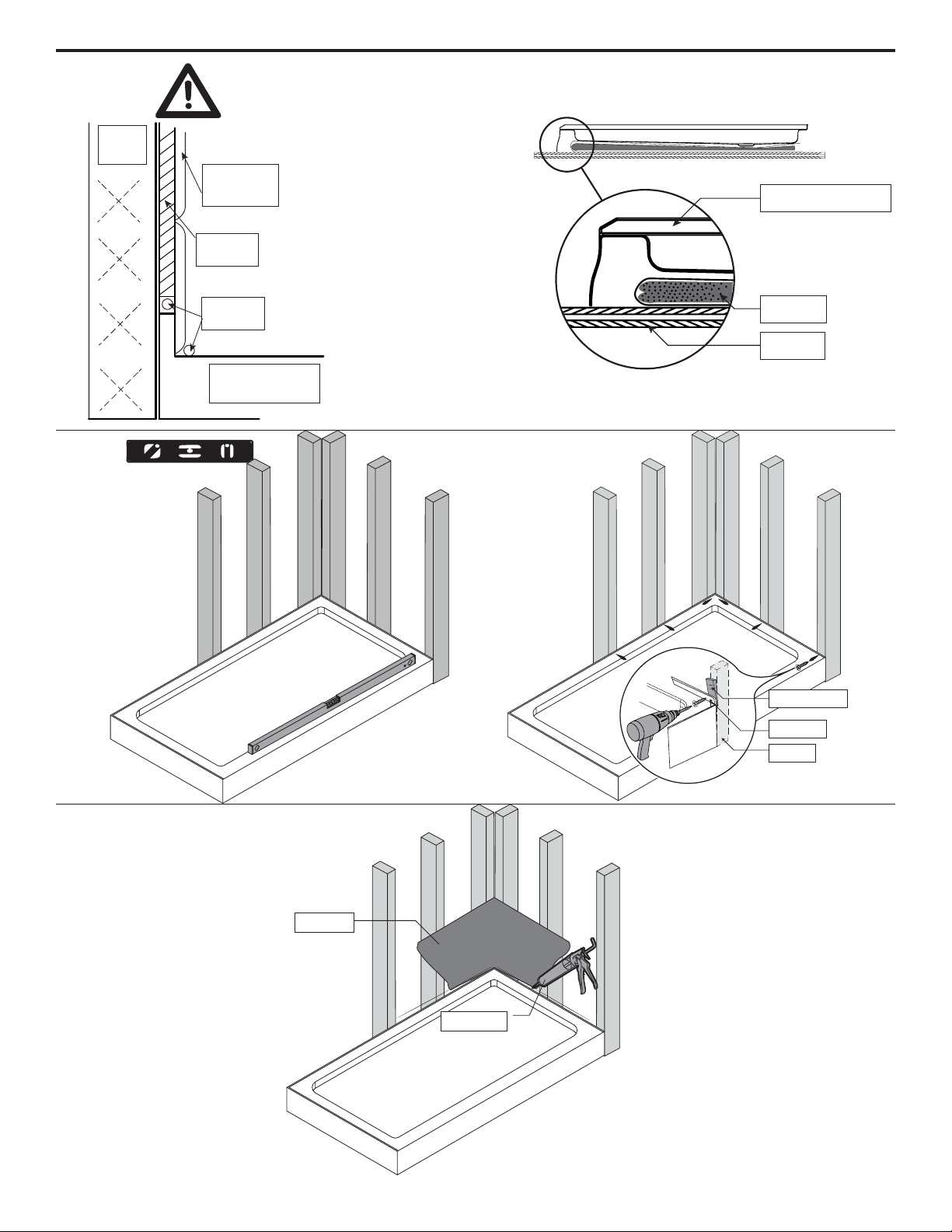

BASE INSTALLATION GUIDELINES (OPTIONAL)
1 2
4
Tile Wall
Studs
Drywall
Silicone
5
Shower Base
3
Shower Base
Cement
Floor
Wood shim
Flange
Stud
Drywall
Silicone
Flange

9

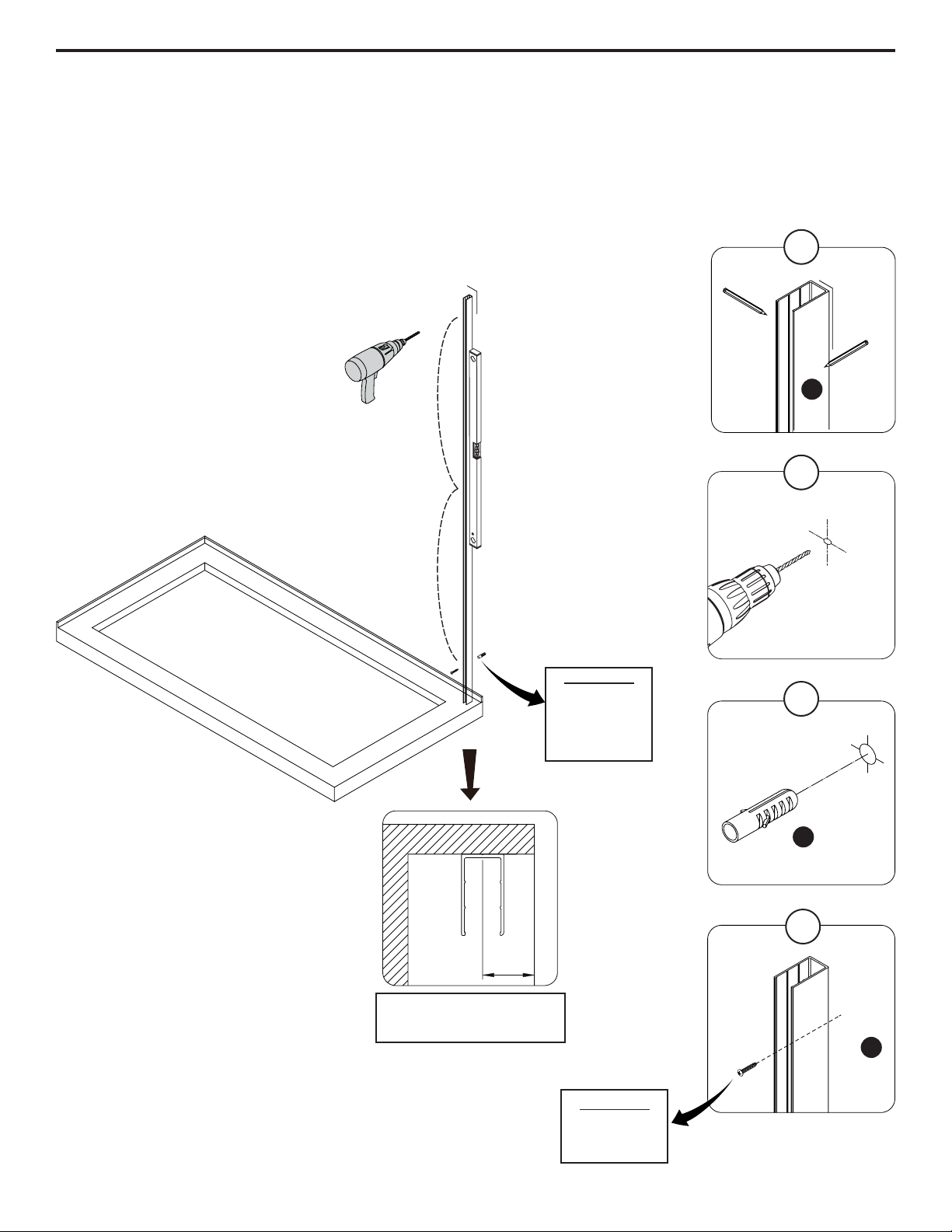

1. Ensure the base and walls are leveled. Place the metal track (B) approximately as “C” from the edge of the
base to the center of the metal track. Ensure the metal track (B) is leveled, then mark the holes clearly on the
wall.
2.RemovetrackanddrillpilotholesinthemarkedlocationswithaΦ8mm(5/16in)drillbit.
3.Insertthewallanchors(AA)usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Replace and secure the metal track (B) with screws (BB). Do not overtighten.
WALL TRACK INSTALLATION
Φ8mm
5/16in
Helpful Hint
Do not overtighten!
This may crack the
acrylic or tile walls.
AA
BB
2
3
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
C
4
B
1
C=32 for Bel 48
C=23 for Bel 60

10

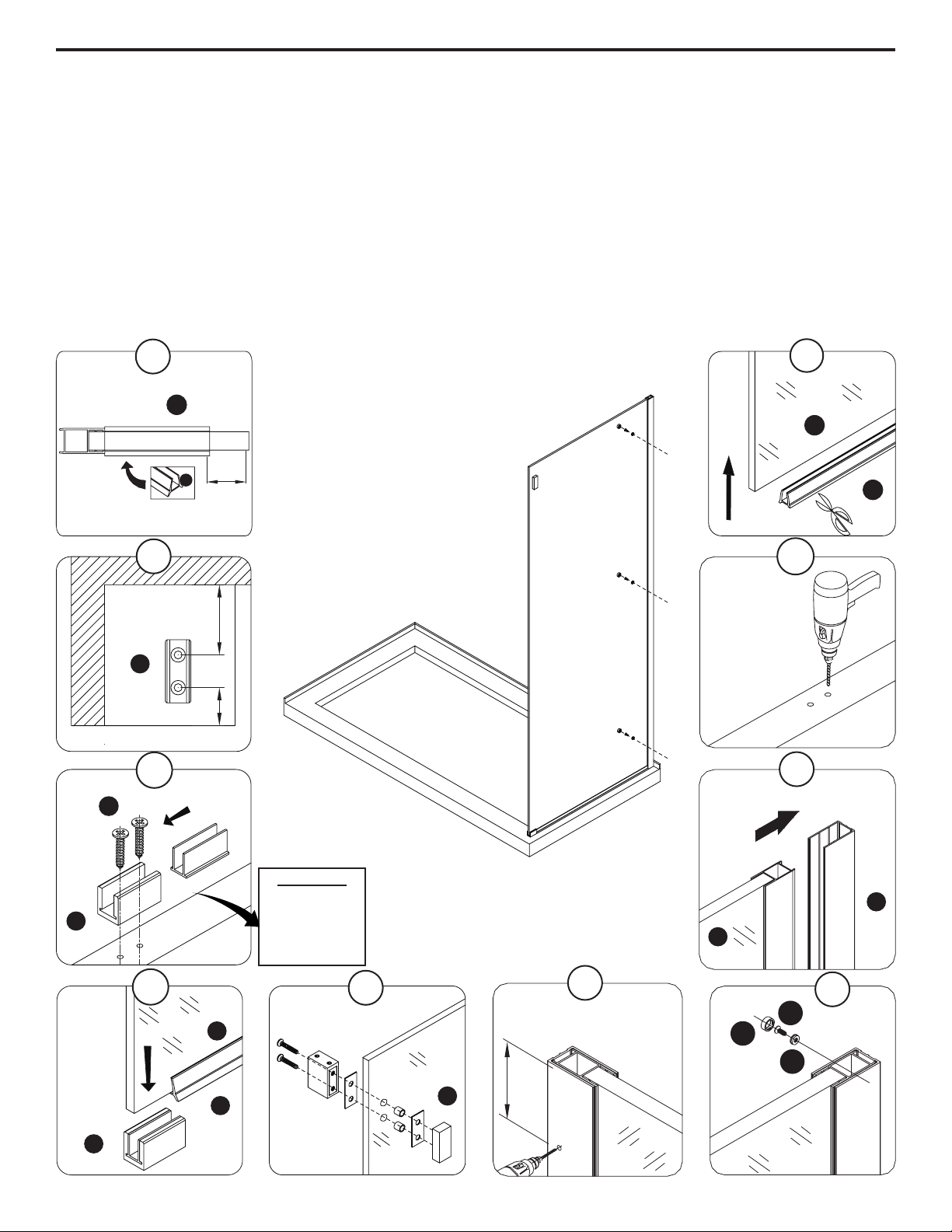

1-2. Insertthexedpanel’sbottomsealstrip(N)atthebaseofthereturn panel (W). Cut the surplus part with a cutter to
size, about 40mm from the panel’s edge.
3. Place the return panel’s clamp (S) on the base.
4. Mark the positions of holes of the return panel’s clamp (S) with a pencil, and drill pilot holes with a ø4mm (3/16in) drill bit.
5. Fix the return panel’s clamp (S) with the screw (CC). Ensure the plastic gasket in the guide is in place as it protects the
xedglasspanel.
6-7 Place the return panel (W) into the wall track (B) and the return panel’s clamp (S).
Note: The wall track (B) allows you to adjust the position of the xed glass panel (W). Adjusting the depth and/or
giving the xed glass panel a slight angle allows for precise alignment with the door.
8. Install the support anchor (V) to the return panel (W).
9. Drill the return panel(W)withΦ3mm(1/8in)in3places.
10. Securethewalltrack(B)usingscrews(DD),ttings(FF)andcaps(EE).
RETURN PANEL INSTALLATION
40mm
N
N
2
Φ4mm
3/16in
6
EE
DD
FF
10
1
B
N
Helpful Hint
Add a drop of
silicone in the
holes before
inserting the
screws
30mm 739mm
S
CC
S
N
W
S
4
5
7
3
8
V
100mm
9
Φ3mm
1/8in
W
W

11

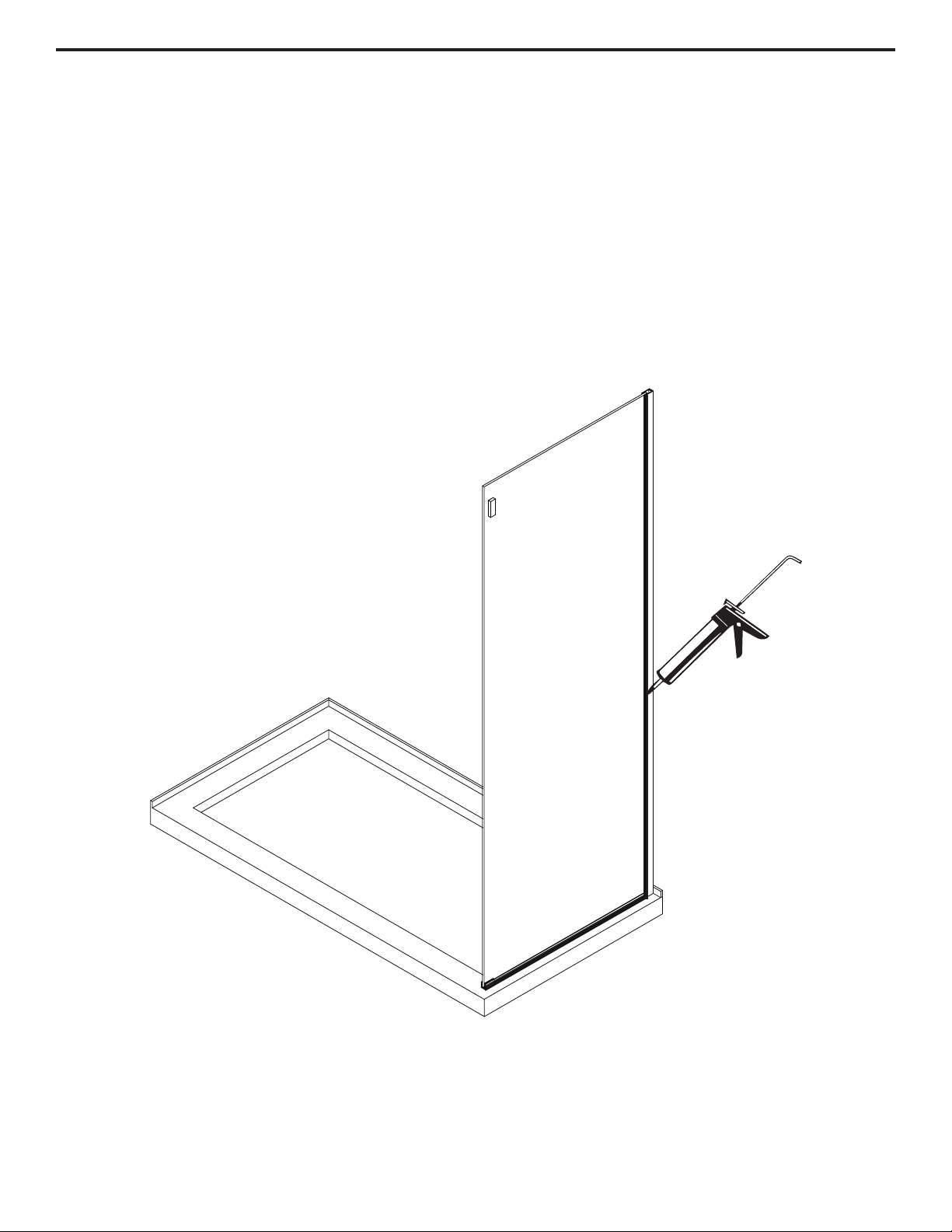

SEALING
Ensure that the door closes tightly and opens smoothly, and that there is a tight connection between the side
glass panels and the frame as well as the support bar.
Applyaclearsiliconewatersealantaroundtheoutsideperimeterofanyxedshowercomponents(horizontally
betweenbottomofxedsideglasspanelandbase,aswellasverticallybetweenthewall,glassframes,and
any side glass panel).
Allow 24 hours for silicone to dry.
Improper application of silicone sealant may cause your shower to leak.

12
OVE Decors ULC
LIMITED Product Warranty
OVE is a distributor of the following Products:
• Shower Doors (warranty period 5 years).
• Acrylic Surfaces (warranty period 5 years against blistering, cracking or chipping in the acrylic surface).
• AcrylicShellStructure(warrantyperiod5yearsagainstlossofwaterthroughberglasslaminateoftheacrylicbody).
• Shower Hardware (handles, hinges, rubber support clips, metal support bars and wall tracks) (warranty period 1 year against defects in materials
or workmanship).
LimitedWarranty:OVEwarrantstotheoriginalretailpurchaserthatwithinareasonabletimeafternoticationfrompurchaser,OVEwillrepairor
replace the Product, or any part or component of the covered Product, distributed by OVE which is proven to the satisfaction of OVE to be defective in
workmanship or materials, and which has failed during normal use and within the warranty period. This Limited Warranty does not apply to Products
that have been damaged, or which fail, as a result of causes other than manufacturing defects (such as but not limited to improper installation; lack
of or improper care or maintenance; exposure to elements including corrosive products, environments or water; alteration; abuse or misuse). This
warrantydoesnotcoverdamagetonishes.ThewarrantycommencesontherstdateaProductispurchasedbythecustomer.Thiswarranty
applies exclusively to products purchased and used in non-commercial applications.
Warranty Claim Procedure: To make a claim please call 1-866-839-2888 to trouble-shoot the issue and start the claim process, or email info@
ovedecors.com. Products may be inspected or evaluated by OVE and any Product or component found to meet the above warranty criteria will be
repaired or replaced at OVE’s option. Replacement or repaired parts will be shipped at no cost to customer via ground freight only. Any expedited
methods of shipments are customer’s expense.
DISCLAIMER AND EXCLUSION OF WARRANTIES: This warranty is meant to be a complete and exclusive statement of
the terms of all limited warranties offered by OVE.
To the fullest extent permitted by law, other than the express warranty set forth in this instrument there are NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE EXTENDED BY OVE.
Thiswarrantygivesyouspeciclegalrights.Youmayalsohaverights,whichmayvaryunderapplicablestate,provinces,ornationallegislation,
whichcannotbedisclaimedormodiedbytheaboveDisclaimer.Exceptaspermitted,theDisclaimerisnotintendedtowaive,modify,releaseorlimit
the applicability of preemptive state, province, or national legislation inconsistent with the terms of this Limited Warranty and Disclaimer. However, to
theextentpermittedbylaw,noimpliedwarrantiesofmerchantabilityortnessareintendedorextendedhereunder.NotwithstandingtheDisclaimer
if any implied warranty is imposed by operation of law, to the extent permitted, the duration of such implied warranties is limited to the shorter of the
term of the express warranty or the applicable statute of limitations.
The Products listed above are intended to be installed and used for personal, consumer residential use. Use of Products for any other purpose such
as commercial purposes voids this warranty. The Limited Warranty is applicable only to the Products listed herein, and no warranty is extended to
productsnotdistributedbyOVE.Thewarrantyisapplicableonlytotherstretailpurchaser.
Transferability: This warranty is not transferrable.
LIMITATION AND EXCLUSION OF REMEDIES AND DAMAGES: OVE’s sole responsibility under this Limited Warranty shall
be to repair or replace, at its option, any defective Product or component. Purchaser agrees that this is the sole and
exclusive remedy under this Limited Warranty. OVE will not be responsible for any incidental, consequential, special or
indirect damages, including loss of use as a result of any manufacturing defect in a Product. OVE will not be responsible
for labor, or any other fees associated with removal or installation of warranted parts. Some states, provinces, or
national legislation do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
may not apply to you.
Productmodication:OVEreservestherighttochange,modifyorimprovetheProductswithoutobligationtoincorporatesuchchangesinProducts
previously sold or installed.
AuthorityandModication:TheretailsellerisnottheagentofOVEandisnotauthorizedtovaryormodifythetermsoftheLimitedWarranty.In
addition, the retail seller cannot bind OVE or make any representations or promises about the Product that are binding on OVE.
CARE AND MAINTENANCE
For the daily maintenance, use a wet cloth and a soft liquid cleaner.
Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which
can graze or tarnish surfaces.
Usearatchettostronglytightenanyboltsusedtosupportthexedglasspanelsordoorspanel(supportboltscanwithstandupto250lbf*inof
torque).
Check these bolts every 4 months and re-tighten them if necessary.

13
MODEL #BEL-SP32
ITEM #0665827
BEL 32
32”
[813]
Ouverture
18 1/2” / 24 7/16”
[470] / [620]
22 7/16”
[570]
Marques CSA
78 3/4”
[2000]
Mur-à-Mur
46 3/16” / 58 3/16”
[1173] / [1478]
Ouverture
48” / 60”
[1219] / [1524]
Mur-à-Mur
30 5/16”
[770]
Mesures: pouces [millimètres]
22 9/16” / 28 7/8”
[573] / [733]
25 3/8” / 31 1/2”
[645] / [800]
Panneaux de Verre
Un guide d’installation video est disponible sur notre chaîne Youtube.
2017-04-28 2800 Etienne Lenoir, Laval
Québec H7R 0A3 Canada
Date de l’achat: _______________________ Numéro de référence du produit: ______________________
Questions, problèmes ou pièces manquantes?
Avant de retourner le produit à votre détaillant, contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.

14
AVERTISSEMENT
Veuillez lire attentivement les importantes consignes de sécurité suivantes avant la manutention et l’installation
de cette douche. La manipulation de ce produit présente un risque de blessure grave. Pour minimiser ces
risques, veuillez prendre note de ce qui suit:
• Toujours porter des lunettes et des gants de sécurité pendant la manutention.
• Toujours lire et suivre toutes les étapes indiquées dans les instructions d’installation.
• Avant l’installation, inspecter tout le contenu et le verre pour détecter toute forme de dommages.
• Pendant l’installation, faire très attention lorsque vous manipulez les pièces en verre, car le verre trempé peut
se fracasser s’il entre en contact avec une surface dure.
• Manipulez le verre trempé avec précaution sinon il pourrait se briser en petits morceaux (jamais en fragments
pointus).
• Prendre toujours toutes les précautions nécessaires pour que, pendant l’installation ou après, les outils que
vous utilisez n’entrent pas en contact avec le verre trempé.
• Nepascoupernimodierleverretrempé,carilpourraitsebriserenéclats’ilestcoupé.
• Sortir le produit de son emballage avec soin et le conserver jusqu’à ce que l’installation soit complétée.
• Inspectez toutes les pièces. S’il y a des dommages sur le produit avant l’installation, veuillez communiquer
avec le service à la clientèle au numéro indiqué dans ce guide.
• Installez la douche sur un plancher au niveau et capable de supporter le produit et son utilisateur.
• Veuillez consulter le code du batiment et les normes de conformité avant l’installation du produit.
• Après l’installation, et périodiquement, vérier l’assemblage et la nition des pièces en verre, pour vous
assurer qu’aucun élément ne s’est desserré depuis l’installation.
• Conserver le présent manuel d’instruction pour consultation future.
AVIS
• Toute modication ou altération apportée aux indications données dans le présent manuel d’instructions
annule toute garantie associée à ce produit.
• Le distributeur n’est pas responsable pour les dommages sur le produit ou sur la personne causés par une
installation inadéquate. Si vous ne tenez pas compte des indications du manuel d’instruction, vous annulerez
votre garantie et vous vous exposerez à des dommages causés par les fuites d’eau.
• Pour de plus amples renseignements sur l’installation du produit ou si vous avez des questions, veuillez
consulter le site www.ovedecors.com.
PRÉPARATION
2 personnes sont requises pour installer le produit correctement et sécuritairement.
Avant de commencer l’installation du produit, soyez assuré d’avoir toutes les pièces. Comparez les pièces
avec les listes fournies. S’il y a des pièces manquantes ou endommagées, ne tentez pas d’assembler le
produit.
Temps de montage estimé: douche (60 min).
INFORMATION SUR LA SÉCURITÉ

15
CONTENU DE L’EMBALLAGE ......................................................................................................................... 17
QUINCAILLERIE FOURNIE .............................................................................................................................. 18
OUTILS REQUIS ............................................................................................................................................... 18
CETTE DOUCHE EST RÉVERSIBLE ............................................................................................................... 19
GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL) .................................................................................. 20
INSTALLATION DES RAILS MURAUX ............................................................................................................. 21
INSTALLATION DU PANNEAU DE RETOUR....................................................................................................22
SCELLAGE........................................................................................................................................................ 23
GARANTIE LIMITÉE DU PRODUIT...................................................................................................................24
TRAITEMENT ET ENTRETIEN.......................................................................................................................... 24
TABLE DES MATIÈRES

16
W
B
V
N
S
CONTENU DE L’EMBALLAGE

17
# DE PIÈCE DESCRIPTION QUANTITÉ CODE
BRail d’aluminium 1 99STR3107-WM
NJointd’étanchéitédubasdupanneauxe 1 99SRU0060
SSerre-joint pour panneau de retour 1 99SGC1042-WM
VAncrages pour barre de support 1 99SGC1039-WM
WPanneau de retour 1 99SG30007-WM
X Quincaillerie fournie 1 99SHW0105-WM
CONTENU DE L’EMBALLAGE

18
CC
FFEE
AA BB
Vis
ST5x25mm
2+1
Ancrage mural
ø8x30mm
3+1
Capuchon
3x
Raccords
3x
Vis
ST5x30mm
3+1
DD
Vis
ST4x12mm
3+1
QUINCAILLERIE FOURNIE
Tournevis
Clé à rochet
Embout 5mm
Crayon Niveau
Lunettes de Sécurité
Perceuse avec forets à céramique
ø4mm (3/16po) & ø8mm (5/16po)
Ruban à mesurer Silicone Maillet en caoutchouc Exacto
OUTILS REQUIS

19
A
B
• Utilisez ces instructions pour une ouverture de la porte de droite à gauche (illustration B).
• Pour une installation de gauche à droite (illustration A), suivez ces mêmes instructions mais permutez
l’emplacement des panneaux: effet miroir.
CETTE DOUCHE EST RÉVERSIBLE

20
GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL)
1 2
4
Mur de tuiles
Montant
mural
Placoplâtre
Silicone
5
Base de douche
3
Base de douche
Ciment
Plancher
Cale en bois
Bride
Montant mural
Placoplâtre
Silicone
Bride
