Panasonic MJ-DJ01S User manual

Operating Instructions
Juicer (Household Use)
MJ-DJ01
MJ-SJ01
ModelNo.
N
MJ-SJ01
1000
1250
1500
mL
750
500
250
oz
fl
53
50
40
30
20
10
MJ-DJ01
1000
1250
1500
mL
750
500
250
oz
fl
53
50
40
30
20
10
Thank you for purchasing this Panasonic product.
•This product is intended for household use only.
•Please read these instructions carefully in order to use this product correctly and safely.
•Before using this product please give your special attention to the section
"SAFETY PRECAUTIONS" (Page 2-4).
•Please keep these Operating Instructions for future use.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
PART NAMES
DISASSEMBLY
CIRCUIT BREAKER PROTECTION
HOW TO USE
AFTER USE

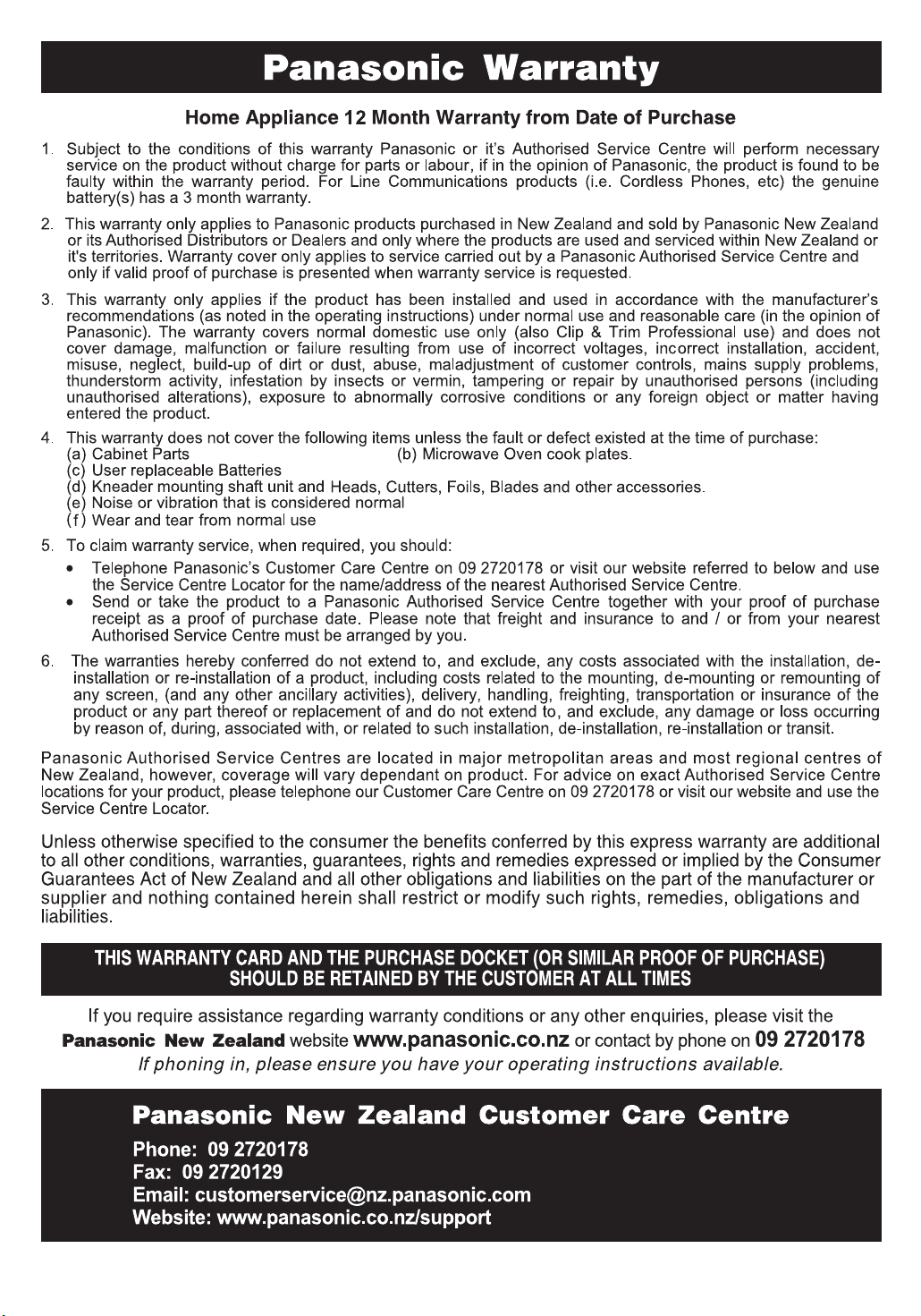

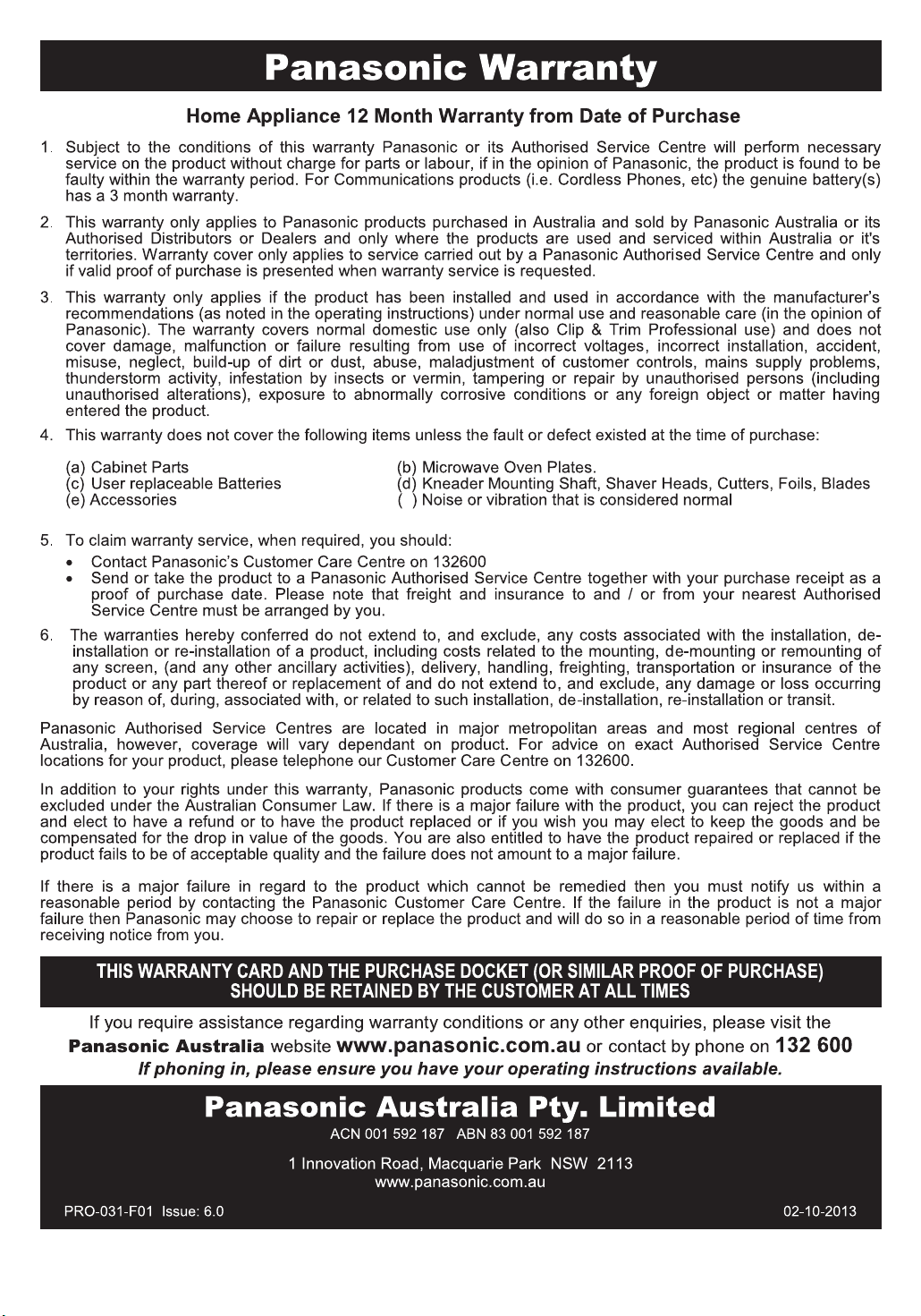

WARRANTY
SPECIFICATION
....................... 2-4
............................................ 5
.......................................... 6
.......... 6
............................................ 7
............................................... 8
......................................... 9-10
...................................... 12

Page
2
SAFETY PRECAUTIONS (Make sure to follow these instructions)
WARNING
This symbol indicates prohibition.
This symbol indicates requirement that must be followed.
WARNING
CAUTION
Indicates serious injury or death.
Indicates risk of injury or property damage.
 The following indication indicate the degree of damage caused by incorrect operation.
 The symbols are classified and explained as follows.
In order to prevent accidents or injuries to the user, other people, and damage to property, please follow
the instructions below.
 Do not damage the Cord or the Plug.
(It may cause electric shock, or fire caused by short circuit.)
Do not use the appliance if the Cord or the Plug is damaged or the Plug is loosely
connected to the outlet.
(It may cause electric shock, or fire caused by short circuit.)
a If the Cord is damaged, it must be replaced by the manufacturer, its service center or
similarly qualified person in order to avoid a hazard.
 Do not plug or unplug the Plug with wet hands.
(It may cause electric shock.)
 Do not operate the appliance when the Cord is in wound condition.
(It may cause electric shock or fire.)
 Do not exceed outlet voltage or use an alternate current other than that specified on the
appliance.
(It may cause electric shock or fire.)
• Make sure the voltage supplied to the appliance is the same as your local supply.
• Plugging other devices into the same outlet may cause over-heating.
Do not immerse the Motor Housing in water or splash it with water.
(It may cause electric shock or fire caused by short circuit.)
 Do not dismantle, repair or modify the appliance.
(It may cause fire, electric shock or injury.)
a Please contact your service center for repairing.
 Do not insert any objects in the vent or the gap.
(It may cause electric shock or malfunction.)
• Especially metal objects such as pins or wires.

3
WARNING
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
(It may cause burning, injury or electric shock.)
 Insert the Plug firmly.
(Otherwise it may cause electric shock and fire caused by the heat that may generate around
the Plug.)
 Clean the Plug regularly.
(A soiled Plug may cause insufficient insulation due to moisture, and may cause fire.)
 When abnormal operation or breaking down occurs, discontinue the appliance operation
immediately and unplug.
(It may cause smoke, fire or electric shock.)
e.g. for abnormal operation or breaking down.
• The Plug and the Cord becomes abnormally hot.
• The Cord is damaged or there has been a power failure.
• The Motor Housing is deformed or abnormally hot.
a Please unplug the appliance immediately and contact the service centre for advice or a
repair.
 Care should be taken when handling and cleaning the Spinner and the Spout.
(It may cause injury.)
 Make sure to hold the Plug when unplugging the Plug, ie. never pull on the Cord.
(Otherwise it may cause electric shock, or fire caused by short circuit.)
Do not put your fingers or utensils such as spoons, forks etc. into the Feeding Tube
during operation. If food becomes clogged in the Feeding Tube, use the Food Pusher or
another piece of fruit or vegetable to push it down.
(It may cause injury.)
 Do not remove the Pulp Container when the motor is operating.
(It may cause injury.)
 Do not replace any parts of the appliance with non-genuine spare parts.
(It may cause injury, electric shock or fire.)
 Do not use the appliance if the Spinner is damaged.
(It may cause injury.)

4
CAUTION
 Do not leave the appliance unattended when it is in operation.
(It may cause fire or burns.)
• When leaving the appliance unattended, turn the power off.
 Do not use the appliance in the following places.
• Any uneven surface, on non-heat resistant carpet or table cloth etc.
(It may cause fire or injury.)
• In a location where there is risk of the appliance being splashed with water, or near a heat
source.
(It may cause electric shock or current leakage.)
 Do not assemble the Spinner when there is food residue left around the Container Unit.
(It may cause unpleasant odour and the Spinner to work improperly.)
 Do not continue operation for a long time. It is recommended to rest the appliance for at
least 2 minutes after 2 minutes operation.
(It may cause over-heating.)
 Unplug the Plug when the appliance is not in use.
(Otherwise it may cause electric shock, or fire caused by current leakage.)
 When carrying the appliance, be sure to hold the Motor Housing with both hands.
(It may cause injury.)
 Switch off the appliance and disconnect it from power supply before changing
accessories or approaching parts that are moving during operation.
(It may cause injury.)

5
PART NAMES
1 MJ-DJ01
2 MJ-SJ01
*The shape of the Plug may be different from illustration.
A Food Pusher
B Feeding Tube
CContainer Cover
D Spinner Pad
ESpinner
FContainer Unit
G Rotatable Container
H Spout
IPulp Container
JClamps
K Motor Housing
L Switch 1 MJ-DJ01
2 MJ-SJ01
M Cup Cover
N Juice Jug
O *Plug
P Cord
Maximum amount
approx. 1.5 L / 53 fl oz
1000
1250
1500
mL
750
500
250
oz
fl
53
50
40
30
20
10
M
N
A
B
C
E
D
FG
H
I
J
K
L
P
O

6
DISASSEMBLY
CIRCUIT BREAKER PROTECTION
2 Lift up the Container
Cover and the Food
Pusher.
3 Detach the Pulp
Container.
1 Release the Clamps.
1
1Lift up the Container
Unit.
2 3
When the Circuit Breaker automatically stops the motor due to overloading, follow the directions
below.
1. Turn off the Switch to " 0 / O " position, (refer to page 5).
2. Remove accumulated food residue from the Spinner and the Container Cover. Then cut ingredients
into smaller pieces.
3. Attach parts again (refer to page 7) and resume operation. Push them gently into the Feeding Tube
using the Food Pusher.
1 Lift up the Spinner.
2 Remove the Spinner
Pad.
Note: If difficult to wash the Container Unit, it can be detached.
1
1 Pull upper part A
of the Rotatable
Container until the
hook part B is as
illustrated.
2 Press the hook part B as
illustrated and pull upwards
to detach it.
3 To attach the Container Unit
again by insert part C first
thus reversing steps 1 to 2.
2
2
3
A
B
Part C
Part C
B
1
2

7
HOW TO USE
Wash all detachable parts and dry well before using the appliance for the first time, refer to page 8.
Unplug when assembling the unit. Before plugging in, ensure the Switch is switched to off.
Place the Container Unit
onto the Motor Housing.
 Make sure the Spout
and the Clamps
positioned same
direction as illustrated.
 Make sure the Container
Unit sits properly on the
Motor Housing.
11 Attach the Pulp
Container and make
sure it is fully
aligned with the
body.
2 Place the Spinner
in the Container
Unit and fix it into
position.
3 Place the Container
Cover onto the
Container Unit.
2
31Push the Clamps
as shown until a
locking sound is
heard.
 If the Clamps are
not clamped
correctly, the motor
will not operate.
4
Place the Juice Jug as
shown.
Make sure the Spout
is in the downward
position when juicing.
Note:
*The Spout can be
rotated freely for 120°
when the Spout is in the
upward position.
Note:
• Ingredients that are not recommended:
Soft fruits that produce puree and can clog the Spinner – e.g. bananas, peaches, apricots etc.
Low juice ingredients which can block the product – e.g. fresh basil leaf etc.
• Please remove hard seeds and stones from fruit before juicing such as guava etc. Hard seeds that difficult to remove
from such as pomegranate is prohibited for juicing.
• During initial usage, the appliances might have some unpleasant smell (slight burn smell) but this condition is normal.
• Some ingredients may produce a lot of pulps accumulate to the Container Cover that cause operation stop.
(CIRCUIT BREAKER PROTECTION: refer to page 6)
• Make sure all parts are correctly mounted before you switch on the appliance.
• Please use the Juice Jug with the Cup Cover to avoid juice splashing. Make sure to align the Juice Jug opening
to the Spout when juicing.
• For model MJ-DJ01, speed 2 is suitable for hard type fruits e.g. apples, carrots etc. while speed 1 is suitable for
softer type fruits e.g. watermelons.
51
Plug in and switch on.
2 Insert the ingredients one
by one and push them
slowly into the Feeding Tube
using the Food Pusher.
3 Align the Food Pusher into
the Feeding Tube as
illustrated.
6After use, switch off and
unplug.
 While removing the
Juice Jug, ensure
the Spout is pulled
up to prevent juice
from dripping.
 Ensure the Spinner
is fully stopped
before release the
Clamps.
1000
1250
1500
mL
750
500
250
oz
fl
53
50
40
30
20
10
120°
1000
1250
1500
mL
750
500
250
oz
fl
53
50
40
30
20
10
1000
1250
1500
mL
750
500
250
oz
fl
53
50
40
30
20
10
1
2
3
 Some pulp might be hard to collect in the Pulp
Container and stick on the Container Cover
depending on the ingredients and amount.
1
2
3

8
AFTER USE
Wash both sides of the spinner
filter mesh with a sponge under
running water. If necessary use
a brush.
Note: Sponge and brush is
not provided.
Wipe off the Motor Housing
with a damp cloth.
Plug and Cord
1) Turn over the Motor Housing and wind the
Cord two turns as
illustrated.
1) Turn over the Juice Cup and place it on the
Feeder Opening.
2) Keep the Cup Cover inside the Pulp Container.
Before detaching parts, make sure the motor has stopped completely, then disconnect the Plug
from the outlet. (DISASSEMBLY: refer to page 6)
All parts must be cleaned immediately. Left-over fruit particles may cause unpleasant odours, stains or
malfunction of the Spinner.
Note:  Do not use benzene, thinner, alcohol, bleach, polishing powder or metal brush; otherwise the
surface will be damaged.
 Do not put in the dishwasher.
 Some discolouration of the Spinner, the Container Cover, the Pulp Container, the Juice Cup
Cover or the interior of the Container Unit may occur upon usage.
Cleaning
Storing
Wash each part in cold or lukewarm water with a soft sponge. Rinse and dry thoroughly before storing.
2) Insert the Cord into the cord clamp to fix
the Cord in position.
oz
fl
53
50
40
30
20
10
1000
1250
1500
750
500
250
mL
oz
fl
53
50
40
30
20
10
1000
1250
1500
750
500
250
mL

9

10
f

11

JZ50R151
C0714
Printed in Malaysia
© PanasonicCorporation2014
PanasonicManufacturingMalaysiaBerhad
No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,
40200 Shah Alam, Selangor Darul Ehsan, Malaysia.
Website: http://panasonic.net/
Model Name
Power Supply
Power Consumption
Operation Rating
Dimensions(WxDxH) (Approx.)
Mass (Approx.)
Switch
Capacity (Approx.)
MJ-DJ01 MJ-SJ01
220 - 240 V 50 - 60 Hz
240 - 270 W
Continuous
{Repetition 2 min. ON, then 2 min. OFF}
216 mm x 305 mm x 384 mm
4.4 kg4.2 kg
2 Speed 1 Speed
1.5 LJuice Cup, 2.0 LPulp Container
SPECIFICATION
