ParaBody 425103 User manual

1Part # 6739601 Revision:11/19/98
ASSEMBLY INSTRUCTIONS
425103 HOME GYM

IMPORTANT NOTES
Please note:
Tools Required forAssembly
* Thank you for purchasing the Parabody 425103 Home Gym. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
* Rubber mallet or hammer
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* 5/32”, 7/32”, 5/16” Allen wrench
* Adjustable wrench
* Tape measure
2
NOTE:BOLTLENGTHISMEASUREDFROMTHE UNDERSIDE OFTHEHEADOFTHEBOLT.
BOLT LENGTH RULER:
* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water. Touch-up paint can be purchased from your Parabody customer service representative
at [phone].
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH
WELCOMETOTHEWORLDOF Serious steel!
There is a risk assumed by individuals who use this type of equipment. To minimize risk, please
follow these rules:
2. Do not allow minors or children to play on or around this equipment.
1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately.
Failure to do so may result in serious injury.
3. Exercise with care to avoid injury.
4. If unsure of proper use of equipment, call your local Parabody distributor or call the
Parabody customer service department at [phone].

3
PART #
6729403
6731003
6726902
6723603
6724102
6726003
6725902
6723803
6729602
6727002
6725302
6728002
6725703
6728402
6723103
6726702
6724603
6727603
6728903
6728603
6723203
6725502
6728803
6736702
6730803
6723902
6733003
6275302
6686802
6501302
6726501
6708201
6489902
6375902
6125101
6523401
6194601
6654702
6654302
6726402
6726202
3116201
3116101
6166701
6533501
6405201
3118401
3106803
6480301
3105401
6412001
6466901
6140701
3103801
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
2
2
1
2
6
1
1
1
1
9
9
3
3
2
1
4
10
7
6
1
6
4
PART #
6535301
3117901
3119101
3119201
3119401
6321202
6145801
6416601
6535501
3203401
6177001
6427101
3117305
3112901
6732901
3108002
3102503
6714601
6266001
6075906
6214401
3104901
6619501
6020601
6382301
6389701
6409101
6375801
3102901
3102933
3102922
3102902
3102910
3102917
3102937
3102943
3102501
3102802
3102502
3102801
3102804
3202401
3104301
6535601
6724801
6724901
6724701
6725001
6725101
6189501
6214501
3117401
6690901
3102701
DESCRIPTION
1/4” CAP NUT
E-RING
JOINT CONNECTOR CAP
8-32 X 3/16” SCREW
#8 INTTOOTH LOCKWASHER
CONTROL LEVER
3-PRONG KNOB
PARAGLIDE
3" WHEELS
3/8 X 2-1/2” SOCKET HD SCREW
2-1/2 X 5-1/2” NONSKID STRIP
KEYHOLECLEVIS
3/8 DIA X 1” CLEVIS PIN
1-7/16” COTTER PIN
TENSION CORDS
WEIGHT STACK CUSHION
3/4"WASHER
HEADPLATE
15 HOLE SELECTOR SHAFT
12 LINK CHAIN
WEIGHT STACK PIN
3/4” FLANGE BEARING
3/4” SLEEVE BEARING
1/2” FLANGE BEARING
PLATE BUSHING 10 CT.
CHROME LOW ROW BAR
ANKLESTRAP
AB CRUNCH STRAP
3/8 X 1-1/4” BOLT
3/8 X 2” BOLT
3/8 X 2-3/4” BOLT
3/8 X 2-1/4” BOLT
1/2 X 3” BOLT
1/2 X 4” BOLT
1/2 X 4-1/2” BOLT
1/2 X 3-1/2” BOLT
3/8” WASHER
3/8” LOCKNUT
1/2” WASHER
1/2” LOCKNUT
1/2” LOW HT LOCKNUT
3/8” BUTTON HD CAP SCREW
3/4” SQ. RUBBER BUMPER
PEC DEC CABLE
LATCABLE
PRESS CABLE
LEG EXT CABLE
HEADPLATE CABLE
ABCABLE
WEIGHTSTACK LABELS
WEIGHTPLATE
CAP PLUG
3/4 X 11” SHAFT
3/8” HEX NUT
QTY
3
1
2
2
2
1
1
1
2
2
2
3
3
3
3
2
2
1
1
1
1
8
2
8
3
1
1
1
6
10
16
3
11
8
3
4
40
26
18
16
10
11
1
1
1
1
1
1
1
1
15
4
2
2
DESCRIPTION
BASE
CALF/LOW ROW
COUNTER LEVER
REAR UPRIGHT
PEC SEAT
BEARING HOUSING
D-RING
MIDDLE UPRIGHT
PEC SEATADJUST
PRESS SWIVEL
ROLLER PADADJUST
PRESS SEATADJUST
RECEIVINGTUBE
TOMALOCKHANDLE
LEG CURL/EXT
BACK PADADJUST
TOP BOOM
PRESS BASE
PEC ARM LEFT
PEC ARM RIGHT
PRESS SUPPORT TUBE
PRESS ADJUST TUBE
PRESS BACK SUPPORT
PEC CAM
FRONT UPRIGHT
CENTER PULLEY BRACKET
PRESS ARM
LATBAR
PULLEYBRACKET
SWIVEL PULLEY
SHROUD
425 SHROUD LABEL
1/4 X 2 X 7-1/4” PLATE
1-1/4 SQ. X 4-7/8” TUBE
3/4 OD X 16” TUBE
72-3/8” GUIDE ROD
ROLLER PAD 4 X 7
12 X 9-1/2” PAD
33-1/2 X 9-1/2” PAD
22 X 10-1/2” PAD
15-3/4 X 15-1/2” PAD
3-1/2” PULLEY
4-1/2” PULLEY
2-7/8” L BRACKET
2-3/8” L BRACKET
2” SQ. END CAP
4” VINYL CAP
5/16” SET SCREW
3/8” FLANGE SPACER
3/4" STARLOCK COLLAR
3/8” SPRING PINASSEMBLY
1/2” SPRING PINASSEMBLY
1 X 1” GLIDE
5/16” SNAP LINK
KEY
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
PARTS LIST

4
FIGURE 1
STEP 1

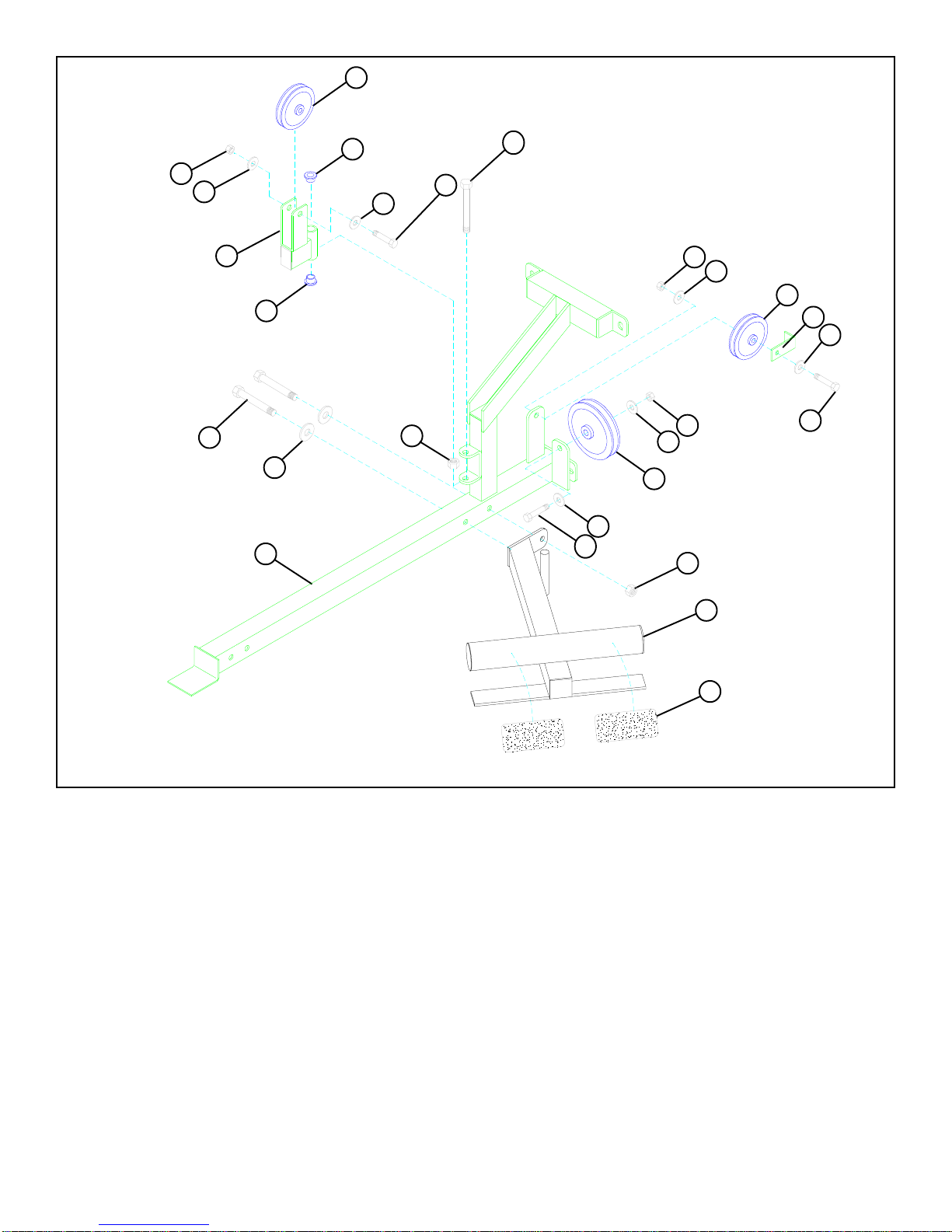

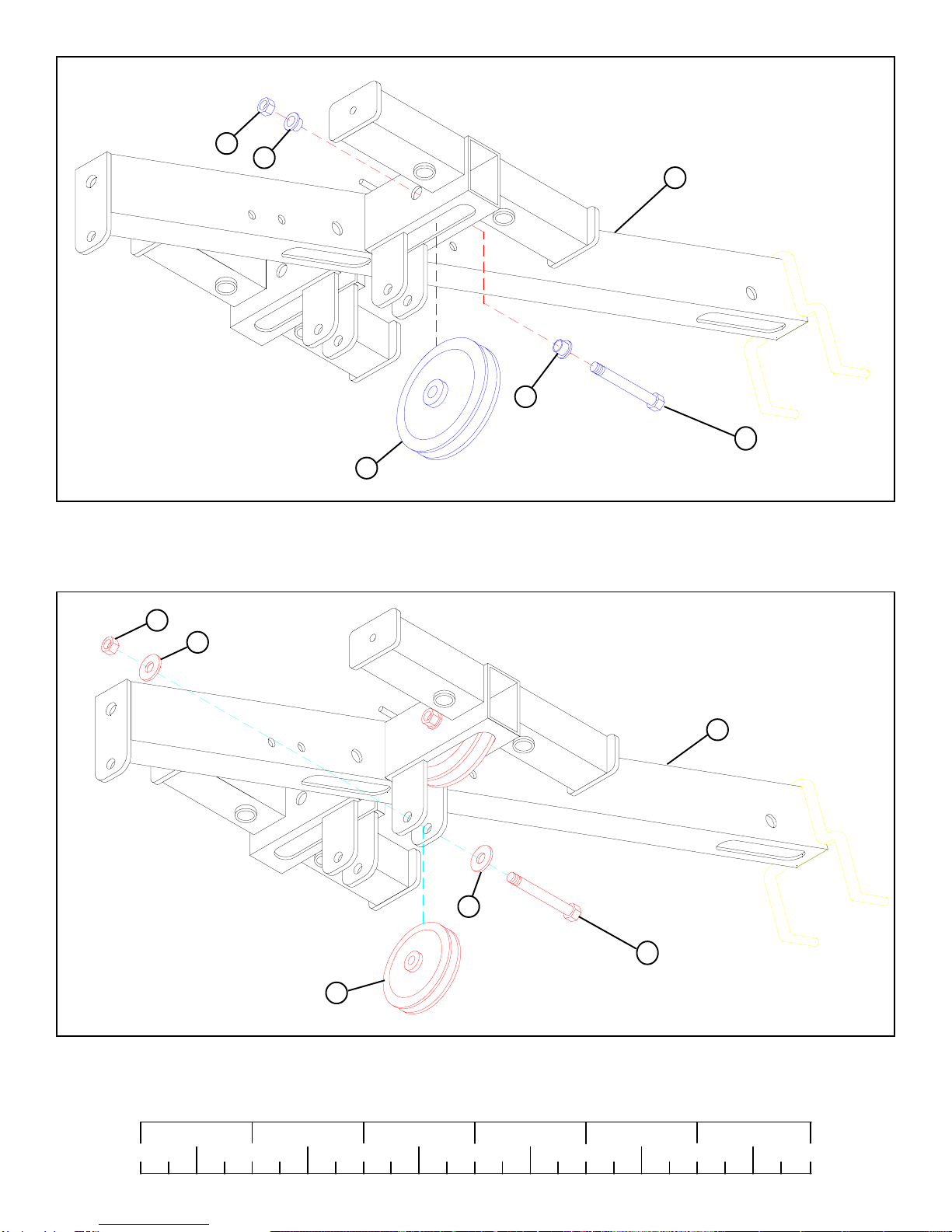

• SECURELY assemble the LOW ROW/CALF RAISE (2) to the PRESS BASE (18) using two 1/2 X 3" BOLTS (87), two 1/2"
WASHERS (93), and one 1/2" LOCK NUT (94).
• Insert two 1/2" FLANGE BEARINGS (78) into the SWIVEL PULLEY BRACKET (30) as in FIGURE 1.
• Assemble the SWIVEL PULLEY BRACKET (30) to the PRESS BASE (18) using one 1/2 X 3-1/2" BOLT (90) and one 1/2” LOW
HEIGHT LOCK NUT (95). (TIGHTEN THE CONNECTION ENOUGH TO REMOVE THE PLAY, YETALLOWING THE
SWIVELBRACKETTOROTATE FREELY.)
• SECURELY assemble one 3-1/2” PULLEY (42) to the SWIVEL PULLEY BRACKET (30) using one 3/8 X 2" BOLT (84), two 3/
8” WASHERS (91), and one 3/8” LOCK NUT (92). See FIGURE 1.
• SECURELY assemble one 3-1/2" PULLEY (42) to the rear horizontal flat of the PRESS BASE (18) using one 3/8 X 2" BOLT (84),
one 2-3/8" CABLE RETAINING CLIP (45), two 3/8" WASHERS (91), and one 3/8" LOCK NUT (92) as shown in FIGURE 1.
(NOTE: 2-3/8” CABLE RETAINING CLIP (45) should face as shown in FIGURE 1.)
• Attach two 5-1/2 X 2-1/2" NON SKID STRIPS (65) to the LOW ROW/CALF RAISE (2) approximately where shown in FIGURE 1.
• SECURELY assemble one 4-1/2" PULLEY (43) to the lower horizontal flat of the PRESS BASE (18) using one 3/8 X 2" BOLT
(84), two 3/8" WASHERS (91), and one 3/8" LOCK NUT (92) as shown in FIGURE 1. (NOTE: Make sure there is no contact
between the two pulleys.)
91
92
30
78
42
92
78
91
93 43
95
42 4591
91
18
2
94
92
65
90 1/2 X 3-1/2”
84 3/8 X 2”
1/2 X 3” 87 3/8 X 2” 84
3/8 X 2” 84
LOW HT.
91
91

5
FIGURE 2
STEP 2
0123456
1/2 1/2 1/2 1/2 1/2 1/2
4
1
93
94
• LOOSELY assemble the REAR UPRIGHT (4) to the BASE (1) using two 1/2 X 3” BOLTS (87), two 1/2” WASHERS (93), and two
1/2” LOCK NUTS (94) as shown in FIGURE 2.
87 1/2 X 3”

6
FIGURE 3
STEP 3

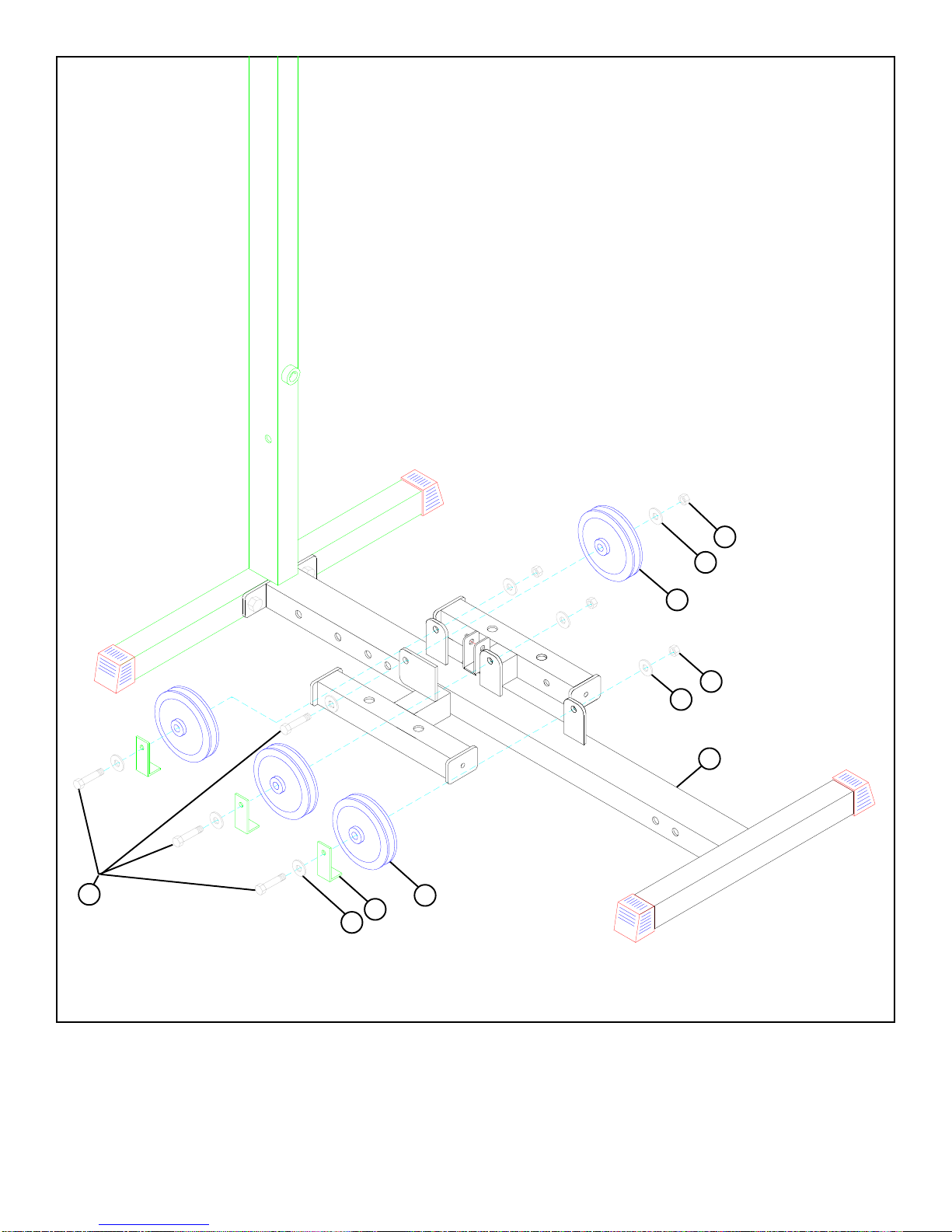

• SECURELY assemble three 4-1/2” PULLEYS (43) to the upper flats on the BASE (1) using three 3/8 X 2” BOLTS (84), six 3/8”
WASHERS (91), three 2-7/8” L-BRACKETS (44), and three 3/8” LOCK NUTS (92). See FIGURE 3.
• SECURELY assemble one 4-1/2” PULLEY (43) to the lower flat on the BASE (1) using one 3/8 X 2” BOLT (84), two 3/8”
WASHERS (91), and one 3/8” LOCK NUT (92). See FIGURE 3.
84 3/8 X 2”
92
91
43
92
91
1
44
91
43

7
FIGURE 4
STEP 4
• LOOSELY assemble the FRONT (25) & MIDDLE UPRIGHTS (8) to the BASE (1) using four 1/2 X 4” BOLTS (88) and four 1/2”
LOCK NUTS (94) as shown in FIGURE 4.
0123456
1/2 1/2 1/2 1/2 1/2 1/2
25
1
1/2 X 4” 88 94
8

8
FIGURE 5
STEP 5
• LOOSELY assemble the PRESS BASE (18) to the BASE (1) using two 1/2 X 4” BOLTS (88), two 1/2” WASHERS (93), and two
1/2” LOCK NUTS (94). See FIGURE 5.
FIGURE 6
STEP 6
• LOOSELY assemble the PRESS BASE (18) to the REAR (4) & MIDDLE UPRIGHTS (8) using two 1/2 X 3” BOLTS (87), two
1/2” WASHERS (93), and two 1/2” LOCK NUTS (94). See FIGURE 6.
88 1/2 X 4”
18 1
94
93
1
1/2 X 3” 87
18
94
93 8
4

9
0123456
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 7
STEP 7
• LOOSELY assemble one 4-1/2” PULLEY (43) to the TOP BOOM (17) using one 3/8 X 2-3/4” BOLT (85), two 3/8” FLANGE
SPACERS (49), and one 3/8” LOCK NUT (92). See FIGURE 7.
STEP 8
FIGURE 8
• LOOSELY assemble one 3-1/2” PULLEY (42) to the TOP BOOM (17) using one 3/8 X 2-1/4” BOLT (86), two 3/8” WASHERS
(91), and one 3/8” LOCK NUT (92). See FIGURE 8.
85 3/8 X 2-3/4”
86 3/8 X 2-1/4”
17
49
92 49
43
92
91
91
42
17

10
FIGURE 9
STEP 9
FIGURE 10
• Insert two WEIGHT PLATE BUSHINGS (79) into the
“PARABODY” side of each of the fifteen WEIGHT
PLATES (105) as shown in FIGURE 10.
STEP 10
79
105
• LOOSELY assemble two 3-1/2” PULLEYS (42) to the TOPBOOM (17) using two 3/8 X 2-3/4” BOLTS (85), four 3/8” FLANGE
SPACERS (49), and two 3/8” LOCK NUTS (92). See FIGURE 9.
3/8 X 2-3/4” 85
17
49
92
49
42
49
85 3/8 X 2-3/4”
49
92
42
0123456
1/2 1/2 1/2 1/2 1/2 1/2

11
FIGURE 11
STEP 11
• Insert two GUIDE RODS (36) into the BASE (1) as shown on FIGURE 11. (NOTE: Lubricate GUIDE RODS (36) with
silicon or teflon spray available at most hardware stores.)
• Slide two 1-1/4 SQ. X 4-7/8” TUBES (34), two 3/4” WASHERS (71), and two WEIGHT STACK CUSHIONS (70) - IN THAT
ORDER - down over the GUIDE RODS (36).
• SECURELY assemble the SELECTOR SHAFT (73) to the HEAD PLATE (72) using one 3/8 X 1-1/4” BOLT (83) and one 3/8”
WASHER (91).
• Using EXTREME CARE slide all fifteen WEIGHT PLATES (105) down over the GUIDE RODS (36) on to the WEIGHT STACK
CUSHIONS (70). Make sure that the keyholes of the WEIGHT PLATES (105) are all facing the right way.
• Insert four CAP PLUGS (106) into the top and bottom ends of the GUIDE RODS (36) as shown in FIGURE 11.
• Slide the head plate assembly down over the GUIDE RODS (36) onto the weight stack.
• Attach the WEIGHT STACK LABELS (104) to the weight stack. Also insert the WEIGHT STACK PIN (75) into the first
WEIGHT PLATE (105) of the weight stack.
106
36
105
1
73
91
75
104
70
71
34
83 3/8 X 1-1/4”
72
106

12
STEP 12

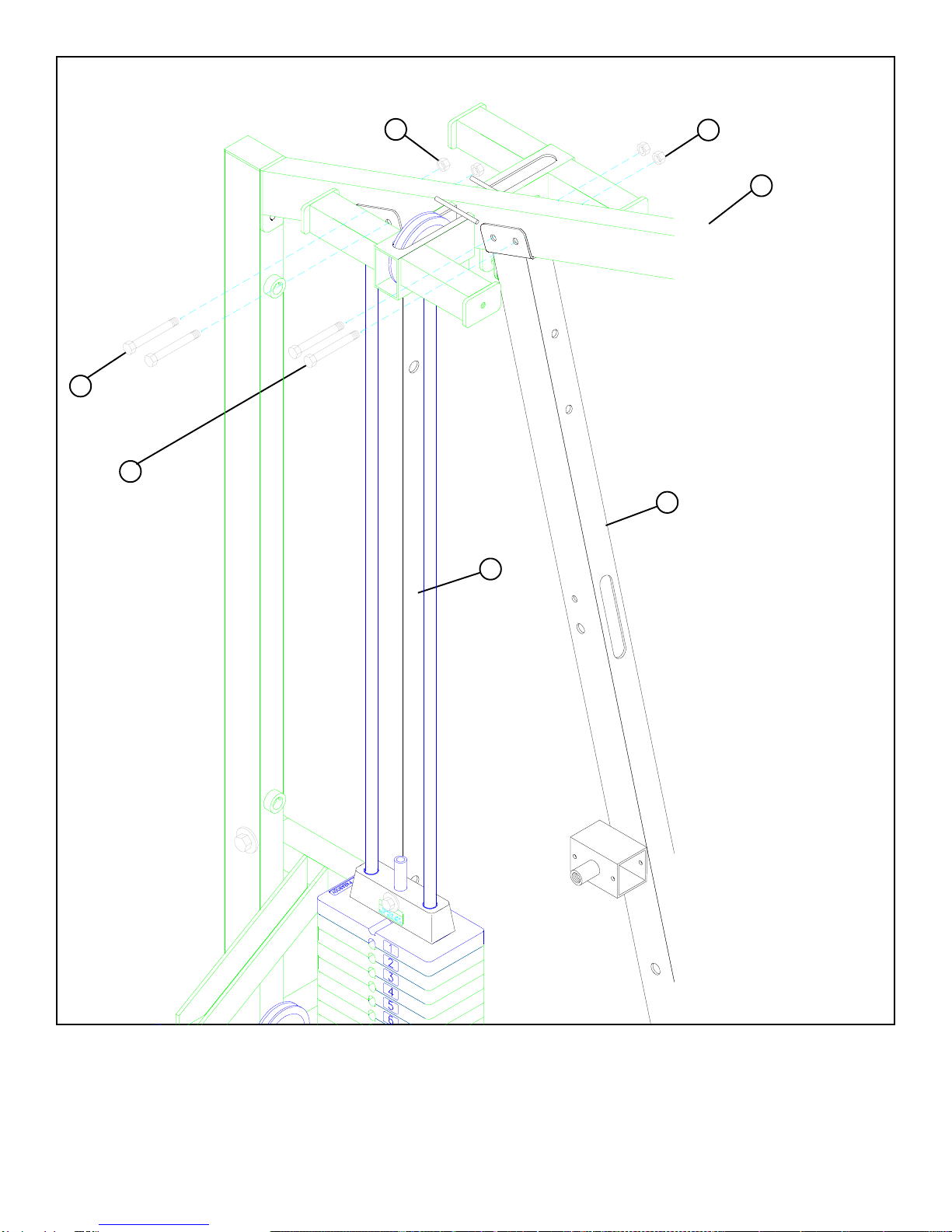

• LOOSELY assemble the TOP BOOM (17) to the top of the MIDDLE (8) & FRONT UPRIGHT (25) using four 3/8 X 2-3/4”
BOLTS (85) and four 3/8” LOCK NUTS (92). See FIGURE 12.
FIGURE 12
92
17
92
85 3/8 X 2-3/4”
85 3/8 X 2-3/4”
25
8

13
0123456
1/2 1/2 1/2 1/2 1/2 1/2
STEP 13

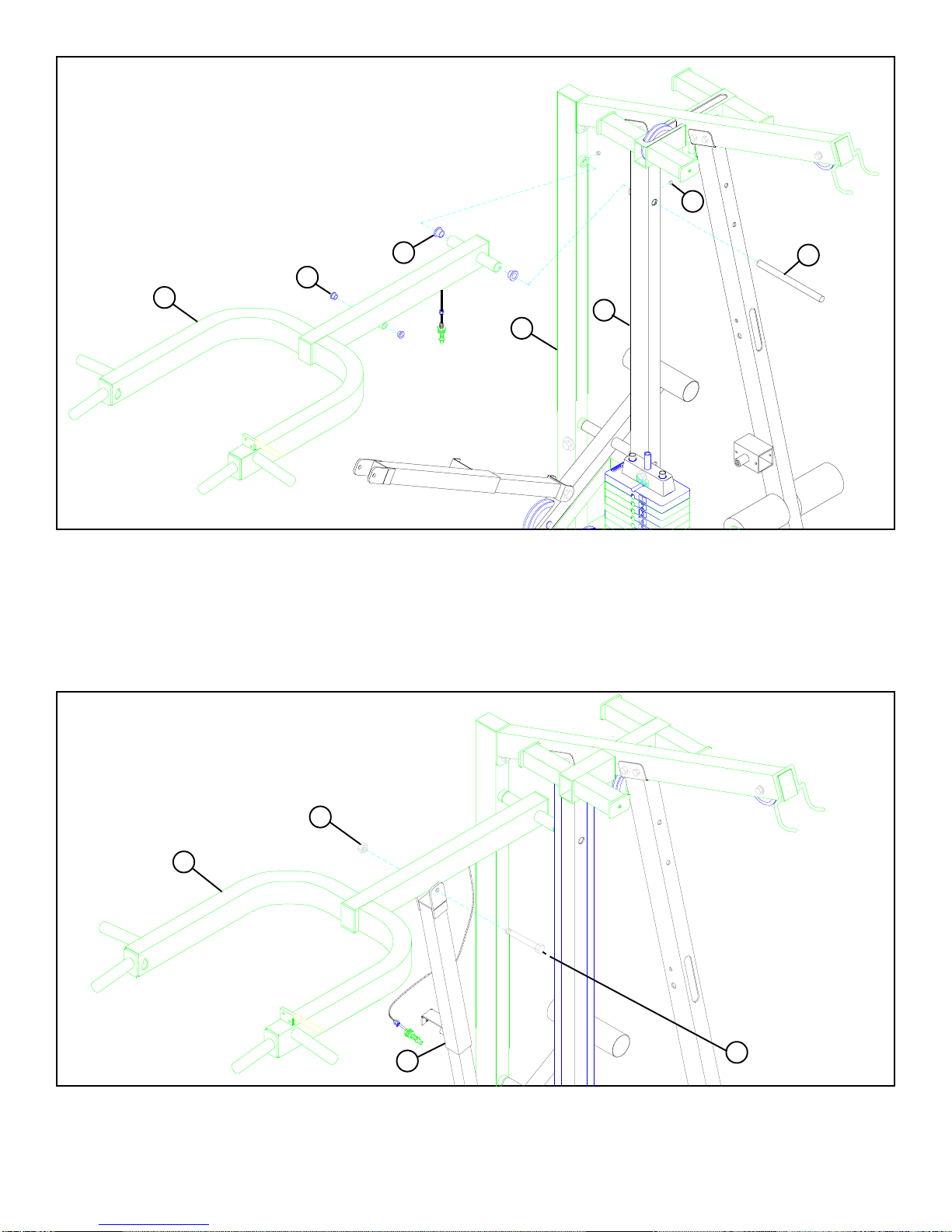

• LOOSELY assemble the TOP BOOM (17) to the top of the REAR UPRIGHT (4) using two 1/2 X 4” BOLTS (88) two 1/2”
WASHERS (93) and one 1/2” LOCK NUT (94). See FIGURE 13.
FIGURE 13
• SECURELY assemble one 3/8” SPRING PIN ASSEMBLY (51) to the SPRING PIN HOUSING on the FRONT UPRIGHT (25) as
shown in FIGURE 13.
• Attach one 3-PRONG KNOB (61) the FRONT UPRIGHT (25) as shown in FIGURE 13.
• Assemble two ROLLER PADS (37) to the FRONT UPRIGHT (25) using one 3/4 OD X 16” TUBE (34) and two STARLOCK
COLLARS (50). See FIGURE 13.
37
17
50 51
1/2 X 4” 88
93
94
34
61
25 37
50
4

14
FIGURE 14
STEP 14
FIGURE 15
STEP 15

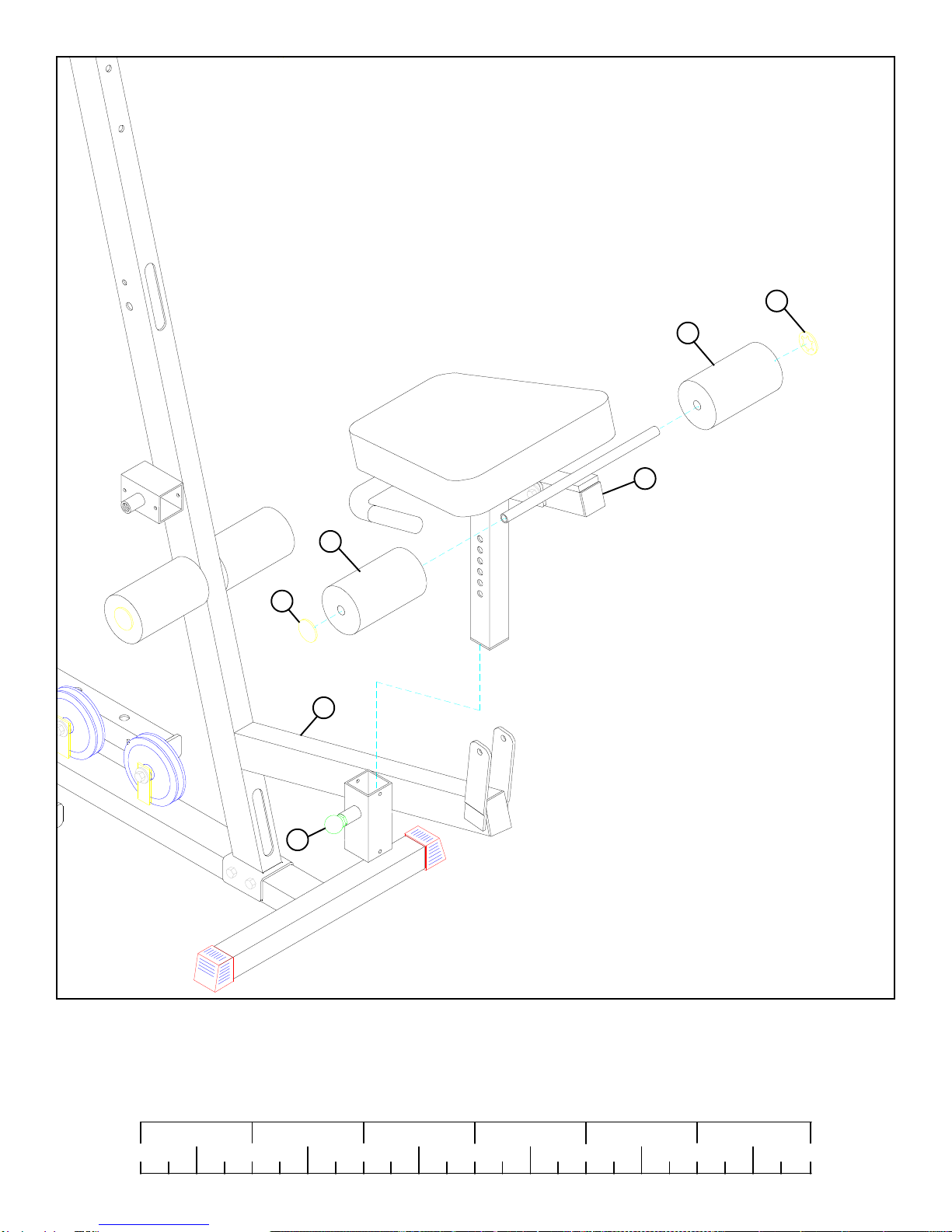

• SECURELY assemble the PEC SEAT ADJUST (8) to the PEC SEAT (5) using two 1/2 X 3” BOLTS (87), two 1/2” WASHERS
(93) and two 1/2” LOCK NUTS (94). See FIGURE 14.
• SECURELY attach one 3/4” SQ. RUBBER BUMPER (97) to the PEC SEAT (5) as shown in FIGURE 14.
• SECURELY assemble the PEC SEAT PAD (41) to the PEC SEAT (5) using two 3/8 X 2-3/4” (85) and two 3/8” WASHERS (91).
See FIGURE 15.
5
8
94
93
97
41
85 3/8 X 2-3/4”
1/2 X 3” 87
5
91

15
0123456
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 16
STEP 16

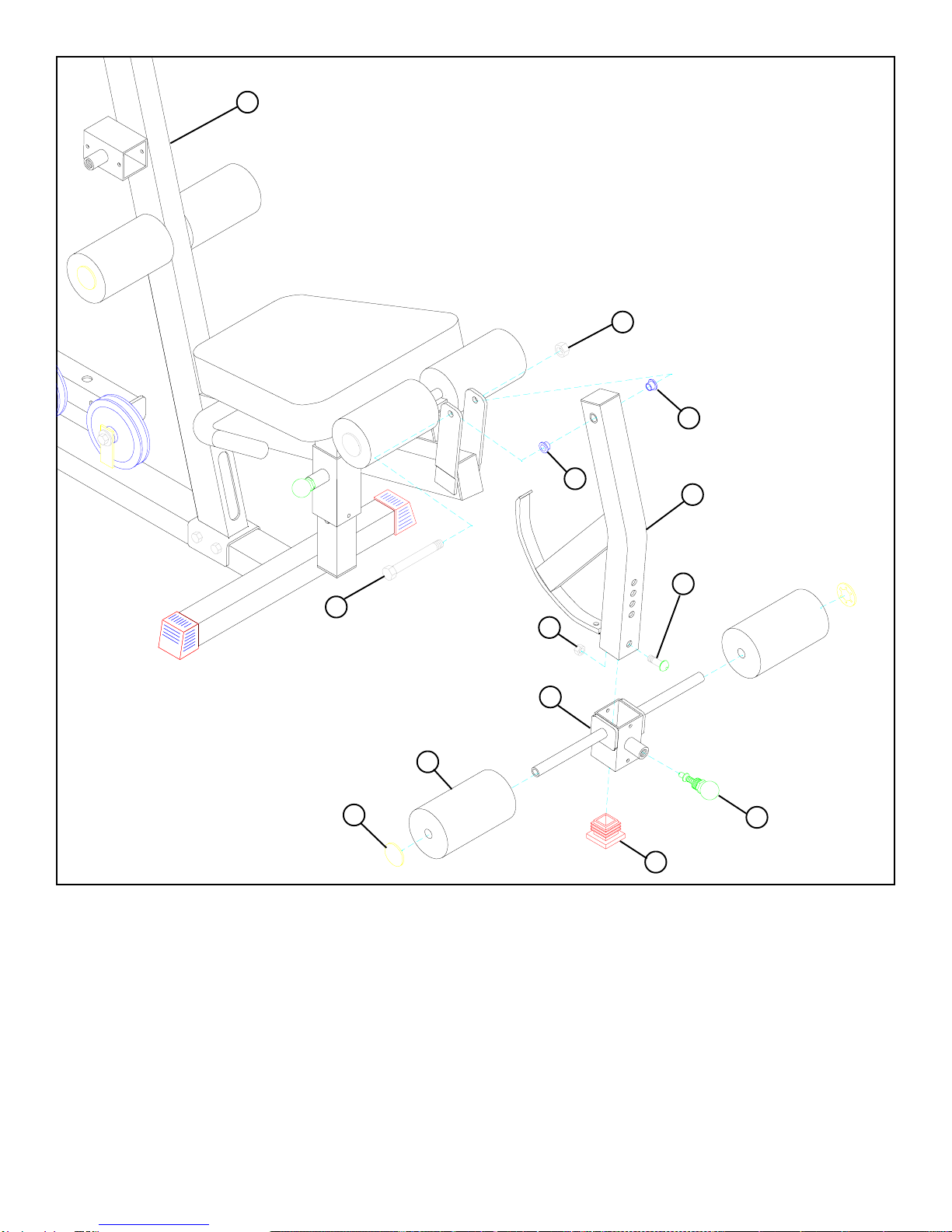

• Assemble two ROLLER PADS (37) to the PEC SEAT (5) using two STARLOCK COLLARS (50). See FIGURE 14.
• Pull back the SPRING PIN (51) on the FRONT UPRIGHT (25) and insert the PEC SEAT (5) down to the desired height. Release
the SPRING PIN (51) and allow it to engage into the adjustment holes. Use the 3-PRONG KNOB (61) to tighten the PEC SEAT
(5) in place. See FIGURE 16.
37
50
37
5
50
25
51

16
FIGURE 17
STEP 17
• SECURELY assemble one 3/8” SPRING PIN (51) to the ROLLER PAD ADJUST (11) as shown in FIGURE 17.
• Insert two 1/2” FLANGE BEARINGS (78) into the LEG CURL/EXT (15) as shown on FIGURE 17.
• Slide ROLLER PAD ADJUST (11) over the LEG CURL/EXT (15) until the spring pin pops into the holes. See FIGURE 17.
• SECURELY assemble one 3/8 X 1” BUTTON HEAD CAP SCREW (96) and one 3/8” LOCK NUT (92) to the last hole in the
LEG CURL/EXT (15) as shown in FIGURE 17.
• Insert one 2” SQ. END CAP (46) into the end of the LEG CURL/EXT (15) as shown in FIGURE 17.
• Assemble two ROLLER PADS (37) to the ROLLER PAD ADJUST (11) using two STARLOCK COLLARS (50).
• Assemble the LEG CURL/EXT (15) to the FRONT UPRIGHT (25) using one 1/2 X 3” BOLT (87) and one 1/2” LOW HEIGHT
NUT (95). (NOTE: Tighten the connection enough to remove play, yet allowing the LEG CURL/EXT to rotate freely.)
96 3/8 X 1”
87 1/2 X 3”
95 LOW HEIGHT NUT
78
78 15
92
11
37
50
46
51
25
BUTTON
HEAD

17
FIGURE 18
STEP 18
0123456
1/2 1/2 1/2 1/2 1/2 1/2
• Insert the PUSH/PULL CABLE through the bottom of the PRESS ARM (27) up to the CONTROL LEVER (60) and hold in place
with one E-RING (56) as shown in FIGURE 18.
• SECURELY assemble the PUSH/PULL CABLE to the CONTROL LEVER (60) using one 3/8” JOINT CONNECTOR CAP (57),
one #8 INT. TOOTH LOCK WASHER (59), and one 8-32 X 3/16 IN. SCREW (58) as shown in FIGURE 18.
• Slide one 4” VINYLSLEEVE (47) over the CONTROL LEVER (60). Then SECURELY assemble the CONTROL LEVER (60) to
the TAB on the PRESS ARM (27) using one 3/8” JOINT CONNECTOR CAP (57), one #8 INT. TOOTH LOCK WASHER (59),
and one 8-32 X 3/16 IN. SCREW (58) as shown in FIGURE 18.
59
PUSH/PULL
CABLE
27
58
60
57
56 47

18
FIGURE 19
STEP 19
• Insert two 3/4” FLANGE BEARINGS (76) into the COUNTER LEVER (3) as shown in FIGURE 19.
• Hold the COUNTER LEVER (3) between the REAR (4) and MIDDLE UPRIGHTS (8) and slide the 3/4 DIA X 11” SHAFT (107)
throught the MIDDLE UPRIGHT (8), COUNTER LEVER (3), and through the collar on the REAR UPRIGHT (4). To SECURE
the SHAFT (107) in place, insert two 5/16” SET SCREWS (48) into the collars on the UPRIGHTS and tighten. See FIGURE 19.
• SECURELY attach one 4-1/2” PULLEY(43) to the COUNTER LEVER (3) using one 3/8 X 2-3/4” BOLT (85), two 3/8”
FLANGE SPACERS (49) and one 3/8” LOCK NUT (92). See FIGURE 19.
• SECURELY attach two 1 X 1” GLIDES (53) to the UNDERSIDE of the COUNTER LEVER (3) as shown in FIGURE 19.
0123456
1/2 1/2 1/2 1/2 1/2 1/2
53 4
8
76
107
3/8 X 2-3/4” 85
48
9249
49
3
43
UNDERSIDE

19
FIGURE 20
STEP 20
• CAREFULLY slide the PRESS ADJUSTMENT TUBE (22) into the RECEIVING TUBE (13). (NOTE: Make sure the spring pin
barrel on the RECEIVING TUBE (13) is on the same side as the holes in the PRESS ADJUSTMENT TUBE (22).)
• Attach eight PARAGLIDE STRIPS (62) INSIDE the end of the RECEIVING TUBE (13) and four PARAGLIDE STRIPS (62) to
the OUTSIDE of the PRESS ADJUSTMENT TUBE (22) using the following steps:
• Thoroughly clean all sufaces where PARAGLIDE STRIPS (62) are to be attached.
• Remove the PARAGLIDE STRIPS (62) from the paper backing and firmly apply them to surfaces. (NOTE: Orientate the
strips so they will slide by each other.)
• Insert two 1/2” FLANGE BEARINGS (78) into the COUNTER LEVER (3) as shown in FIGURE 20.
• Assemble the PRESS ADJUSTMENT TUBE (22) to the COUNTER LEVER (3) using one 1/2 X 3-1/2” BOLT (90) and one 1/2”
LOW HEIGHT LOCK NUT (95). (NOTE: Tighten the connection enough to remove play, yet allowing the PRESS AD-
JUSTMENT TUBE (22) to rotate freely.)
1/2 X 3-1/2” 90
3
78
22
62
13
62
95 LOW
HEIGHT
NUT
• Thread one 3/8 X 1” BUTTON HEAD CAP SCREW (96) through the slot in the RECEIVING TUBE (13) and into the ADJUSTMENT
TUBE (22)
96 3/8 X 1”
BUTTONHD
CAPSCREW

21
FIGURE 22
STEP22
• Inserttwo3/4”FLANGE BEARINGS (76) into the PRESS ARM(27)asshown in FIGURE 22.
• Holdthe PRESS ARM(27) between theREAR (4) andMIDDLE UPRIGHTS (8) and slide the 3/4 DIA X 11” SHAFT (107) throught
theMIDDLEUPRIGHT(8),PRESSARM (27), and through the collaronthe REAR UPRIGHT(4).To SECUREthe SHAFT(107)in
place,insert two 5/16”SET SCREWS (48)into the collarson the UPRIGHTS andtighten. See FIGURE22.
• Inserttwo1/2”FLANGE BEARINGS (78) into the PRESS ARM(27)asshown in FIGURE 22.
STEP23
FIGURE 23
• AssembletheRECEIVINGTUBE (13) tothePRESSARM(27)usingone 1/2 X 3” BOLT(87) and one 1/2” LOWHEIGHTLOCKNUT
(95).(NOTE:Tightentheconnectionenoughtoremoveplay,yet allowingthePRESSARM(2)torotatefreely.)SeeFIGURE23.
48
107
76
4 8
27 78
95 LOW HEIGHT NUT
27
13 87 1/2 X 3”
