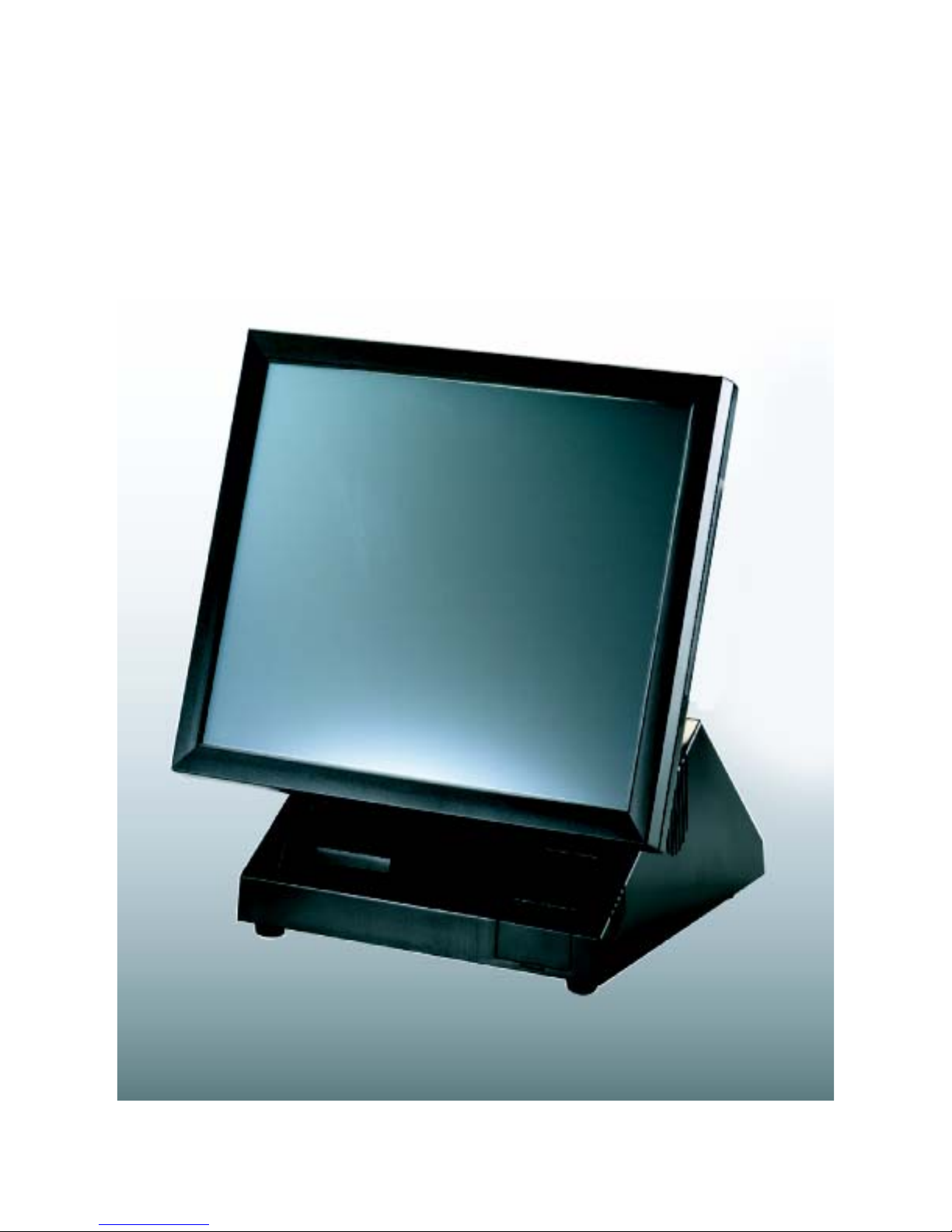

Partner PT-6900 User manual

PT-6900
User manual

i
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws,
with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without writ-
ten consent of the author.
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or
warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or
fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes
from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or
changes.
Trademark recognition
All product names used in this manual are the properties of their respective owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar-
antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compli-
ance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by
the system's manufacturer could void the user's authority to operate the equipment.
Declaration of conformity
This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

ii
About this manual
This manual is intended for system administrators who are familiar with setting up a new system and installing an
operating system.
The manual consists of the following sections:
Safety information
Before installing and using the PT-6900 POS, take note of the following precautions:
• Read all instructions carefully.
• Do not place the unit on an unstable surface, cart, or stand.
• Do not block the slots and opening on the unit, which are provided for ventilation.
• Do not push objects in the ventilation slots as they may touch high voltage components and result in shock and
damage to the components.
• Only use the power source indicated on the marking label. If you are not sure, contact your dealer or the Power
Company.
• The unit uses a three-wire ground cable, which is equipped with a third pin to ground the unit and prevent elec-
tric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your
electrician to replace your obsolete outlet.
• Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
• Follow all warnings and cautions in this manual and on the unit case.
• When replacing parts, ensure that your service technician uses parts specified by the manufacturer.
• Avoid using the system near water, in direct sunlight, or near a heating device..
Chapter 1 Getting Started: This section covers unpacking and checking the package con-
tents, and identifying components. Information on connecting
peripheral devices, and powering on is also provided.
Chapter 2 Upgrading Components: This section provides information on upgrading components
such as a hard disk drive or CompactFlash card reader.
Chapter 3 BIOS Setup Utility: The BIOS chapter provides information on navigating and chang-
ing settings in the BIOS Setup Utility.
Appendix: The appendix covers troubleshooting, information on having the
PT-6900 serviced, and technical specifications.
WARNING
The system uses a 3V CR2032 battery mounted on the mainboard to keep time.
There is a risk of explosion if the wrong battery type is used when replacing.
Dispose of used batteries according to local ordinance regulations.
CAUTION
The USB ports may be damaged if care is not taken when connecting devices.
Ensure USB devices are correctly inserted.
Plugging a phone line into the LAN port (RJ-45 connector) may damage the con-
nector. Plug only an RJ-45 connector into the LAN port.

iii
Revision history
Version 1.0, April 2007

iv

v
TABLE OF CONTENTS
Chapter 1
Getting Started ..................................................................................................................1
Unpacking the PT-6900 ...................................................................................................................... 1
Checking the package contents ........................................................................................................... 2
Identifying components ...................................................................................................................... 3
Front-right view .................................................................................................................................................3
Rear-right view ..................................................................................................................................................4
Rear connectors .................................................................................................................................................5
Removing the rear cover ..................................................................................................................... 7
Attaching the customer display ........................................................................................................... 8
Adjusting display angles ..................................................................................................................... 9
Setup considerations ........................................................................................................................... 9
Connecting peripheral devices .......................................................................................................... 10
Connecting a cash drawer ................................................................................................................. 11
Powering the PT-6900 on and off ..................................................................................................... 12
Chapter 2
Upgrading Components ..................................................................................................13
Safety and precautions ...................................................................................................................... 13
Before you begin ............................................................................................................................... 14
Installing a hard disk drive (HDD) ................................................................................................... 14
Installing a CompactFlash card ......................................................................................................... 16
BIOS Setup Utility .........................................................................................................17
About the Setup Utility ..................................................................................................................... 17
Entering the Setup Utility ................................................................................................................................18
BIOS navigation keys .......................................................................................................................................18
Using BIOS .....................................................................................................................................................19
Standard CMOS features .................................................................................................................. 19
IDE Primary/Secondary Master/Slave ...........................................................................................................20
Advanced BIOS Features ................................................................................................................. 21
CPU Feature ...................................................................................................................................................22
Advanced Chipset Features .............................................................................................................. 23
Integrated Peripherals ...................................................................................................................... 25
OnChip IDE Device .........................................................................................................................................26
Onboard Device ...............................................................................................................................................27
SuperIO Device ................................................................................................................................................28
Power Management Setup ................................................................................................................ 30
PnP/PCI Configurations .................................................................................................................... 32
IRQ Resources .................................................................................................................................................33
PC Health Status ............................................................................................................................... 34
Frequency/Voltage Control ............................................................................................................... 35
Other BIOS Options .......................................................................................................................... 36
Load Fail-Safe Defaults ...................................................................................................................................36

vi
Load Optimized Defaults .................................................................................................................................36
Set Supervisor and User Passwords ................................................................................................................37
Save & Exit Setup ............................................................................................................................................37
Exit Without Saving .........................................................................................................................................37
Appendix ........................................................................................................................38
Troubleshooting ................................................................................................................................ 38
Tips for Troubleshooting .................................................................................................................................38
The Power-On Self Test ...................................................................................................................................38
Beep Errors at POST .......................................................................................................................................38
Beep Message Errors at POST ........................................................................................................................39
General Problems ............................................................................................................................................40
Having the PT-6900 Serviced ........................................................................................................... 41
Specifications ..................................................................................................................................... 42

vii
LIST OF FIGURES
Figure 1.1 Unpacking/repacking the PT-6900...............................................................................1
Figure 1.2 Front-right view of PT-6900........................................................................................2
Figure 1.3 Rear-right view of PT-6900 .........................................................................................3
Figure 1.4 Connectors with cables disconnected...........................................................................4
Figure 2.1 Main BIOS menu .........................................................................................................8
Figure 2.2 Standard CMOS Features menu...................................................................................9
Figure 2.3 IDE Primary Master submenu......................................................................................10
Figure 2.4 Advanced BIOS Features menu..................................................................................11
Figure 2.5 CPU Feature submenu..................................................................................................12
Figure 2.6 Advanced Chipset Features menu................................................................................13
Figure 2.7 Integrated Peripherals menu.........................................................................................15
Figure 2.8 OnChip IDE Device menu ...........................................................................................16
Figure 2.9 Onboard Device menu..................................................................................................17
Figure 2.10 Super IO Device menu.................................................................................................18
Figure 2.11 Power Management Setup menu..................................................................................20
Figure 2.12 PnP/PCI Configurations menu.....................................................................................22
Figure 2.13 PC Health Status menu.................................................................................................24
Figure 2.14 Frequency/Voltage Control menu................................................................................25
Figure 4.1 Connecting a cash drawer ............................................................................................50
Figure 4.2 Mainboard jumper settings...........................................................................................55
Figure 6.1 Exploded diagram main parts.......................................................................................92
Figure 6.2 Exploded diagram display parts and cables .................................................................94

viii

1
CHAPTER 1
GETTING STARTED
This chapter describes the procedures from unpacking the PT-6900 POS, to powering it on. The following topics are
described.
• “Unpacking the PT-6900”
• “Checking the package contents” on page 2
• “Identifying components” on page 3
• “Removing the rear cover” on page 7
• “Attaching the customer display” on page 8
• “Adjusting display angles” on page 9
• “Setup considerations” on page 9
• “Connecting peripheral devices” on page 10
• “Connecting a cash drawer” on page 11
• “Powering the PT-6900 on and off” on page 12
Unpacking the PT-6900
The PT-6900 and cable accessories are packed in a cardboard carton with foam padding for protection during shipping.
Figure 1.1 Unpacking the PT-6900
Carefully unpack the PT-6900 and keep the packing materials. If you need to ship the PT-6900 in the future, repack it
as shown in Figure 1.1.

2Chapter 1 Getting Started
Checking the package contents
After you unpack the PT-6900 check that the following items are included.
If any item is missing or appears damaged, contact your dealer immediately.
PT-6900 (SOME UNITS SHIP WITH CUSTOMER
DISPLAY AND MSR INSTALLED)POWER PLUG DRIVER CD-ROM WITH
DRIVERS AND USER MANUAL
PDF
MSRS(OPTIONAL)CUSTOMER DISPLAY
(OPTIONAL)(THIS) USER MANUAL
Adapter
PT-6900

Identifying components 3
Identifying components
This section describes the parts and connectors on the PT-6900.
Front-right view
Figure 1.2 Front-right view of PT-6900
DESCRIPTION
1 15-inch TFT LCD touch screen
2 Power button
3 USB cover
4GreenPowerLED
5 Amber Hard drive LED
NOTE
There are two USB connectors under the USB cover and two more USB connec-
tors on the rear of the PT-6900.
13452

4Chapter 1 Getting Started
Rear-right view
Figure 1.3 Rear-right view of PT-6900
DESCRIPTION
1 Customer display cover
2 CompactFlash card cover
3 Rear cover
4 Rear cover latches
4
3
2
1

Identifying components 5
Rear connectors
Figure 1.4 shows the connectors on the rear of the PT-6900. You must remove the rear cover to access the connectors.
See “Removing the rear cover” on page 7.
Figure 1.4 Rear connectors labeled
DESCRIPTION
1 Line out
2 Act LED (green) lights when network activity is detected
3 RJ-45 (LAN) connector
4 Link LED (orange) lights when the network is found
5 PS/2 mouse connector
6 COM3 connector
7 Parallel connector
8 COM2 connector
9 Power connector
10 RJ-11 cash drawer connector
11 COM1 connector
12 VGA connector
13 COM4 connector
14 PS/2 keyboard connector
15 USB connectors
16 Mic in
31 5 6 72 4 8
14 13 12 11 10 9
15
16

6Chapter 1 Getting Started
CAUTION
Plugging a phone line (RJ-11) into the LAN port (RJ-45 connector) may damage
the connector. Connect only an RJ-45 plug to the LAN port.

Removing the rear cover 7
Removing the rear cover
Refer to the following to remove the rear cover.
1Rotate the display until it’s perpendicular.
2Open the rear cover latches.
3Remove the rear cover.

8Chapter 1 Getting Started
Attaching the customer display
The PT-6900 may ship with a customer display attached. If you ordered the display separately, refer to the following to
attach it.
1Remove the rear cover. See “Removing the
rear cover” on page 7.
2Remove the screw.
3Push with your thumbs as shown and lift up
to remove the panel cover.
4While pushing from the underside, slide the
customer display cover firmly in the direc-
tion of the arrow to remove it.
5Replace the panel cover and secure it with
the screw.
6Connect the customer display cable.
7Align the grooves on the customer display
bracket and slide the customer display
firmly into place.
8Secure the display with the two supplied
screws.
NOTE
To supply power to the customer display, the COM6 voltage is factory set to
DC+12V.

Adjusting display angles 9
Adjusting display angles
The main display can be tilted back from an upright perpendicular position to about 45 degrees as shown in Figure 1.5.
The customer display can be tilted as shown in Figure 1.6.
Setup considerations
When setting up the PT-6900, consider the following:
• Use a desktop or counter that is stable and even.
• Ensure there is enough room around the sides and rear of the PT-6900 for ventilation.
• Ensure there is room to connect cables and that cables are long enough to reach peripheral devices or a power
outlet.
Figure 1.5 Adjusting the display Figure 1.6 Adjusting the customer display

10 Chapter 1 Getting Started
Connecting peripheral devices
Peripheral devices such as a printer or scanner can be connected to the PT-6900. Refer to the user manual of the device
you are connecting for instructions on installing drivers where needed. (Remove the rear cover to access the connec-
tors. See “Removing the rear cover” on page 7.)
Figure 1.7 Connecting peripheral devices
CAUTION
Do not plug a phone line into the RJ-45 (ADSL or router) connector. Doing so
can damage the connector.
USB Compliant
devices
Mouse Printer
MR HS AA CD OH SD RD TR
28800bps
ADSL modem
or router
MonitorKeyboard Cashdrawer
Microphone
Amplifier or
speakers Headphones COM2
COM3
COM4 COM1
Power plug
