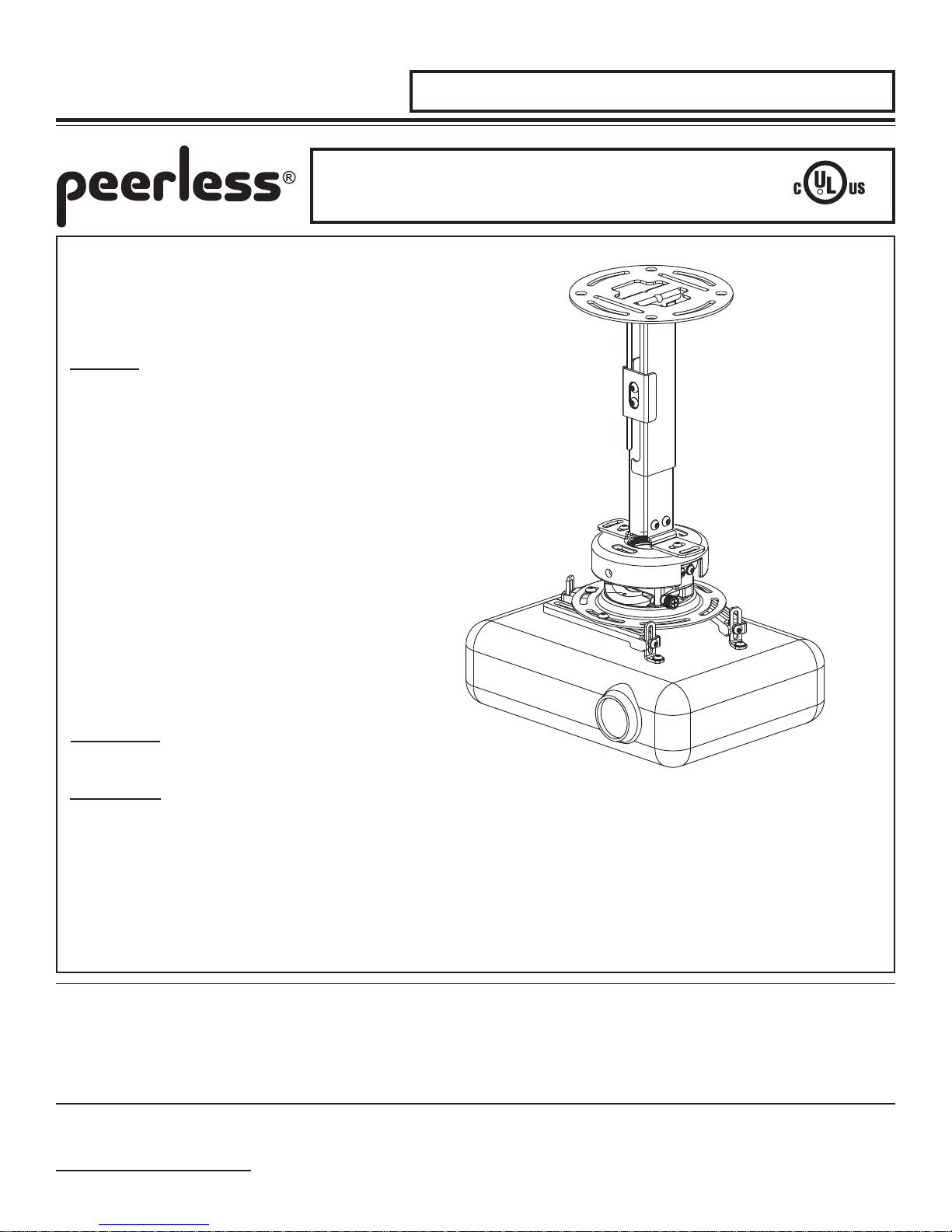

TECHNICAL DATA SHEET MODELS: PRS-EXC,PRS-EXC-S,PRS-EXC-W
page 1 of 3
ISSUED: 06-05-08 SHEET NO: 056-9632-1
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com ©2007,PeerlessIndustries,Inc.Allrightsreserved.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
A R C H I T E C T S S P E C I F I CAT I O N S
R
PRS Precision Gear Projector Mount Kit
with EXC Ceiling mount
Accessories:
• SuspendedCeilingKits(CMJseries)
• Ceilingplates(variousmodelsavailable)
• ExtensionColumns(variousmodelsavailable)
• CordManagementAdapter(ACC800)
• Extensioncollarconnector(ACC109)
• Projector Wall Arm (PWA-14)
• TrussCeilingAdapter(ACC557)
Dimensions:
For product dimensions, see page 2.
• UnistrutAdapter(ACC550)
• I-beamClamps(ACC558,ACC559)
• CathedralCeilingPlate(ACC912)
• Anti-vibrationPlate(ACC840,ACC845)
• Side-sideAdjuster(ACC830)
• CordWrap(ACC852,ACC852S, ACC 852W)
• Escutcheonring(ACC640)
ThePRS-EXC isthe lowest profile universal projectormount
available today. In a kit with the adjustable EXC ceiling column, it
offers a quick and easy installation in addition to unmatched
versatility. This convenienct kit allows for ceiling mount only.
The Universal Projector Ceiling Mount shall be a Peerless model ____________ and shall be located where indicated on the plans. It
shall feature Tilt: +20°/-5°, Roll: ±10°, Swivel: 360° (when attached to an extension column), ±30° swivel (when flush mounted), which
enables the image to be perfectly aligned with the screen. It shall have a 25 lb load capacity. It shall have a quick release spring loaded
screw for easy removal and installation of the projector. It shall be constructed of aluminum alloy finished in black, white, or silver. Assembly
and installation shall be done according to instructions provided by the manufacturer.
Features:
• Tilt:+20°/-5°,Roll:±10°,Swivel:360°(when
attached to an extension column), ±30° swivel
(whenflushmounted),whichenablestheimage
to be perfectly aligned with the screen
• For projectors up to 25 lbs
• Independentroll, pitch,andyawadjustments
provideeasyimagealignment
• Can be mounted directly to a single wood beam/
stud or concrete slab without disassembling the
mountandwithoutreinforcingtheceiling
• Ceilingmountonly
• Quickreleasemechanism to easilyremove
projectorformaintenance
• Cablemanagementallowscablestoberouted
throughprojectormountout of sight
• IncludesSpider®Universaladapterplate
• Availablein black,silver,andwhite
TECHNICAL DATA SHEET MODELS: PRS-EXC,PRS-EXC-S,PRS-EXC-W
page 2 of 3
ISSUED: 06-05-08 SHEET NO: 056-9632-1
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com ©2007,PeerlessIndustries,Inc.Allrightsreserved.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
All dimensions shown as: inch (mm)
19.13" (486mm) min.
32.91" (836mm) max.
6.50"
(165mm)
2.20" (56mm)
1.21" (31mm) min.
2.14" (54mm) max.
Dimensions:
Weight:
7.475lb (3.39kg)
Shipping weight:
8.81 lb (3.99 kg)
Maximum Load Capacity:
25lb (11.34 kg)
ShippingCartondimensions:
L= 19.375in(492mm)
W= 10.00in(254mm)
H= 4.375in(111mm)
TECHNICAL DATA SHEET MODELS: PRS-EXC,PRS-EXC-S,PRS-EXC-W
page 3 of 3
ISSUED: 06-05-08 SHEET NO: 056-9632-1
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com ©2007,PeerlessIndustries,Inc.Allrightsreserved.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
DETAIL OF CHANNEL
6.3 in
(160 mm)
5.7 in
(145 mm)
DETAIL OF ADAPTER PLATE
16.55 in*
(420 mm)
*Mounting holes on projector must be within a
16.6" diameter in order to use this product.
5.23 in
(132 mm)
YAW360° (when attached to an extension
column), ±30°(when flush mounted)
PITCH+5°/-20°
ROLL+10°
