Enterprise PoE IP Phone
VIP-351PT
Quick Installation Guide

1-1
English
Document Objectives
This guide provides physical installation, network congurations, and Internet
access establishment information for the PLANET PoE IP Phone.
Equipment Packaging & Overview

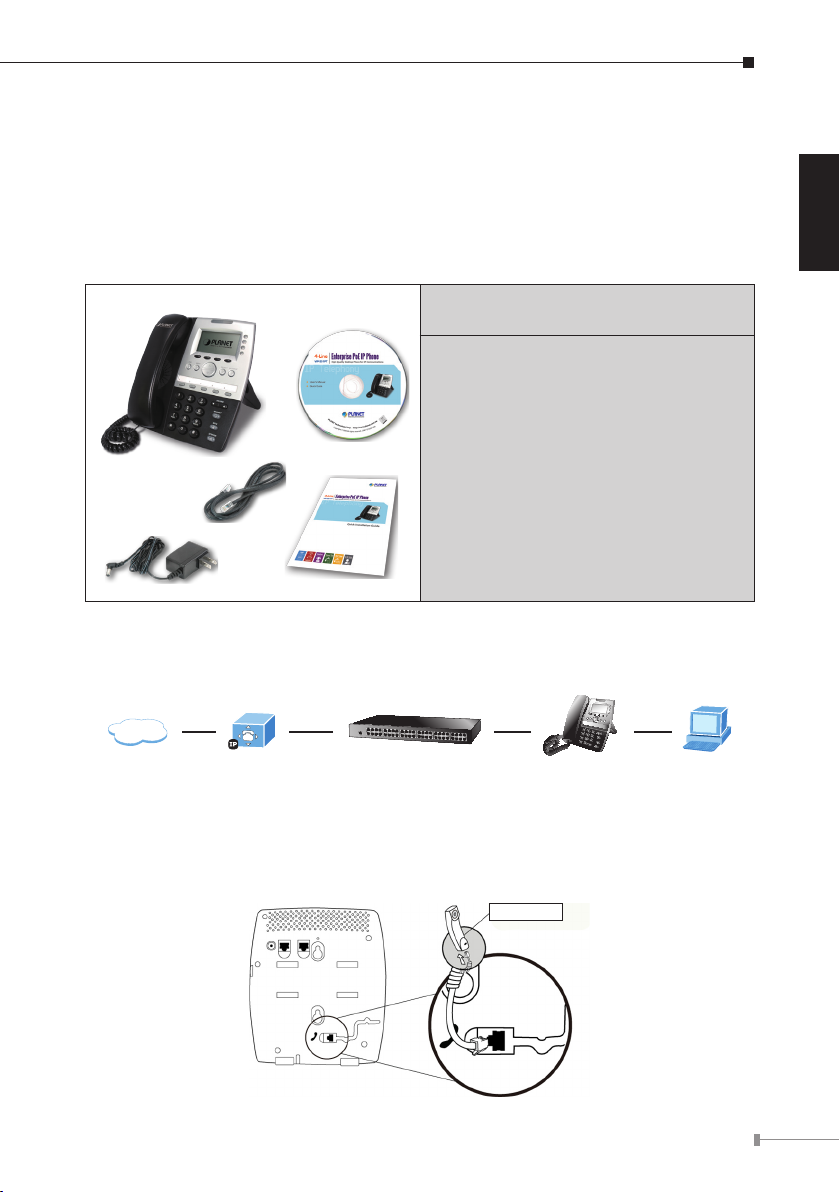

Package Contents
PoE IP Phone Unit
Power adapter
Quick Installation Guide
User’s Manual CD
RJ-45 cable
Installation Connect the PoE IP Phone
IP PBX PoE Switch VIP-351PT PCInternet
Internet
Installation
Step 1: Connecting Handset
Handset

1-2
English

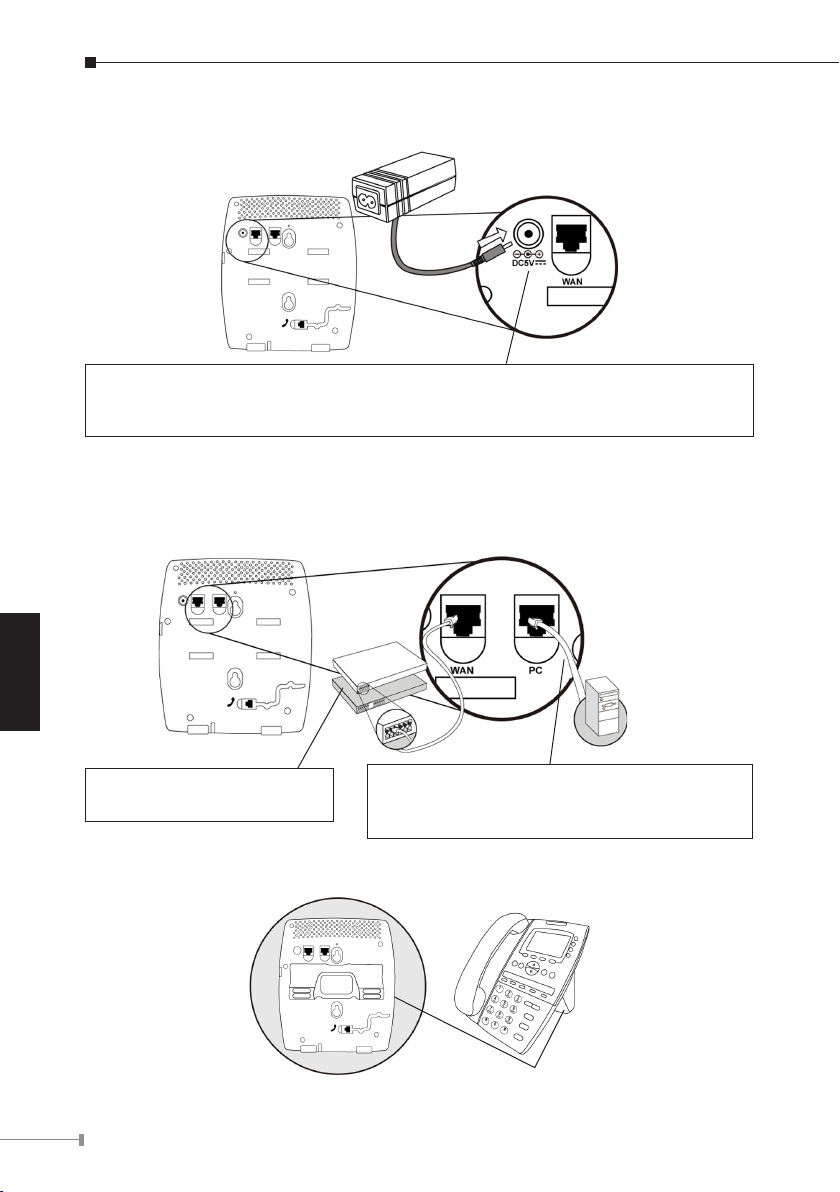

Step 2: Connecting Power AC Power and Network
Power Adapter (5V DC)
NOTE: Use only the power adapter shipped with the unit to ensure correct functionality.
Connecting Power via Power over Ethernet
In the VIP-351PT can be congured without external power, if connecting to an
IEEE powered Ethernet switch.
Plug the Ethernet cable into the back of the base
station. Plug the other end of the Ethernet cable into
your already prepared network connection.
IEEE 802.3af compliant
Power over Ethernet Switch.
Step 3: Attaching the Desk Stand
Desk stand attached to phone

1-3
English
Basic Conguration
A. LCD conguration access
1. Press【MENU】to enter or exit conguration menu.
2. Go to 『3. Settings』‡『4. System Conguration』 to congure the network
conguration.
3. Please congure the phone based on your network conguration: Static, DHCP
or PPPoE.
4. Go to 『1. Network Setting』‡『Static / DHCP / PPPoE』and press Select
/ Save to chose the network conguration.
5. Go to 『2. IP Address (Static)』and press up / down key to congure the IP
address, then press Save to save changes.
B. Web conguration access
The Enterprise PoE IP Phone provides GUI (Web based, Graphical User Interface)
for machine management and administration.
The default IP address of PoE IP phone is 192.168.0.1. You may now open your
web browser, and insert http://192.168.0.1 in the address bar of your web
browser to logon the IP Phone’s web conguration page.
The IP phone will prompt for logon username / password, please enter: root /
null (without password) to continue machine administration.
Note
In order to connect machine for administration, please locate your
PC in the same network segment (192.168.0.x) of PoE IP phone. If
you’re not familiar with TCP/IP, please refer to related chapter on
user’s manual CD or consult your network administrator for proper
network configurations.
Quick reference in CD-ROM guide
This guide is used to help you startup your Enterprise PoE IP phone settings. It
is also recommended to check the user manual CD-ROM for more details like the
“LCD menu”, “Web Setup”, and how to set the device back to default value.

Business PoE (Power over Ethernet) IP-Telefon
VIP-351PT
Kurzanleitung

2-1
Germany
Ziel der Anleitung
Dieses Dokument erklärt die Installation der Hardware, das Einrichten des
Netzwerk-Zugangs sowie das Einrichten des Internet-Zugangs für das PLANET PoE
IP-Telefon
Verpackungsinhalt und Überblick

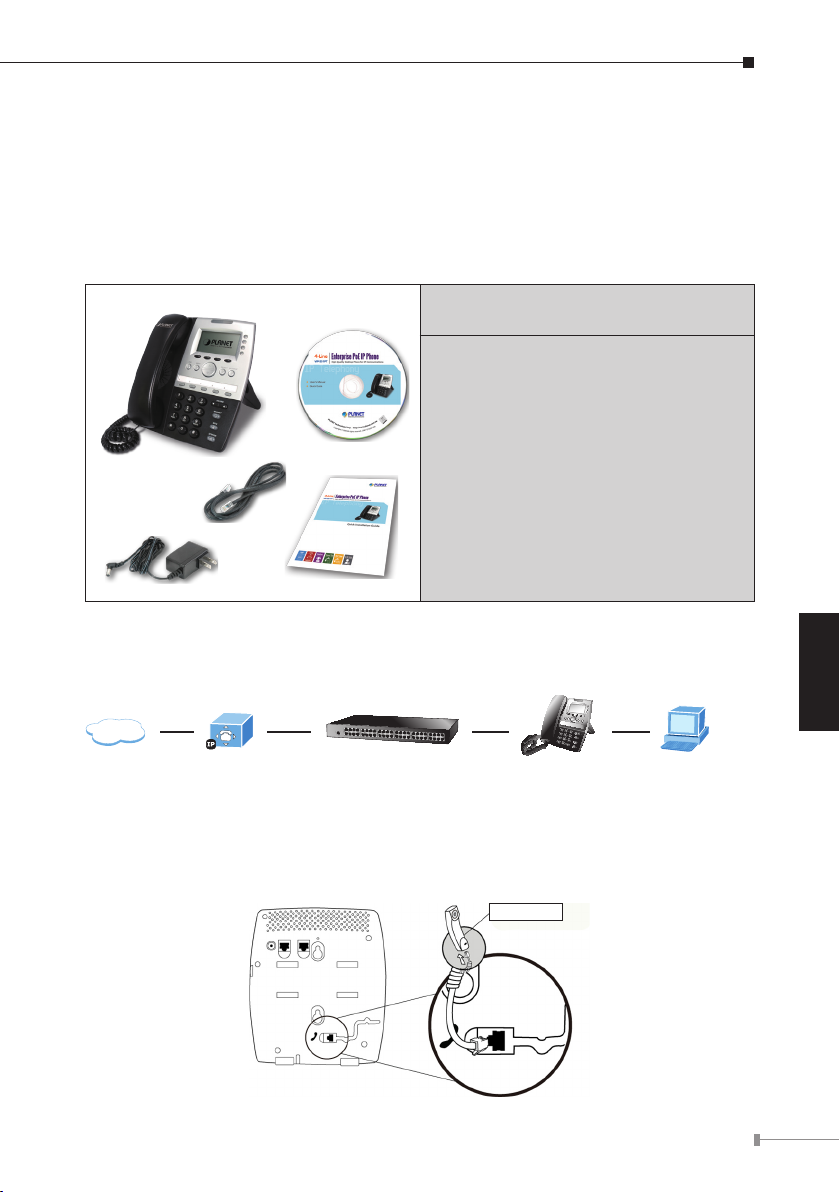

Verpackungsinhalt
PoE IP-Telefon
Stromadapter
Kurzanleitung
Benutzerhandbuch auf CD-ROM
RJ-45 Kabel
Installation: Anschließen des PoE IP-Telefons
IP PBX PoE Switch VIP-351PT PCInternet
Internet
Installation
Schritt 1: Anschluß des Telefonhörers
Telefonhörer
