Planet VIP-150T User manual

Trademarks
Copyright © PLANET Technology Corp. 2004
Contents subject to revise without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trade-
marks belong to their respective owners.
FCC Warning
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the Instruction manual, may cause harmful inter-
ference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the You will be re-
quired to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case the You may be required to take adequate
measures.
Revision
PLANET IP Phone VIP-150T
QUICK INSTALLATION GUIDE
For model: VIP-150T
Part No.: EMQ-VIP150TV1

1
Table of Contents
Chapter 1 Overview 1
1.1 Before Startup 1
1.2 Physical Details 1
Chapter 2 Basic Configuration 5
2.1 Initialize VIP-150T 5
Chapter 3 Making calls 11
3.1 IP address call (P2P mode): 11
Chapter 4 Quick reference in CD-ROM guide 15

1
Chapter 1
Overview
Thank you for purchasing PLANET IP Phone VIP-150T (VIP-150T, in the following terms).
You can now ease the cost of long distance call yet still enjoy the toll voice quality via
Internet.
1.1 Before Startup
Before your rst time start up, please check if the package comes with following items:
• VIP-150T
• Your manual CD
• Quick Installation Guide
• RJ-45 cable
And later, you are required to familiar your environment, your TCP/IP network and your
phone systems.
1.2 Physical Details

2
3
1.2.1 Front view and keypad function:
• C: Cancel and Clear
• çè : Move to left /previous and right/next.
• OK: Press OK to confirm the modification.
• Direct Line (DL) Button 1 – 10: Speed dialing according to phone book data
1-10.
• “+” and “- “ key: Adjust voice volume in communication.
• SPEAKER: Speaking without picking up handset.
• MUTE: Mute the voice of MIC and let others can’t hear from you in communica-
tion.
• PSTN: Press PSTN to switch between IP Phone and PSTN calls
• HOLD: To hold a call, after press HOLD button, both sides will hear hold tone
• SPEED: Press SPEED and number (Phone book index) to do speed dial accord-
ing to phone book data.
• FORWARD: Forward an incoming call to another IP device.
• MESSAGE and its indicated LED light: When missing the incoming calls, the
message LED will be flashing. You can know the information of miss call by
pressing the message button.
• TRANSFER:
1. Transfer a call to third calling party: When call party A and B are in commu-
nications, A can press TRANSFER button then the phone number of calling
party C. After calling party C picking up the phone, A can talk to C or hang
up the call to make B and C connected.
M
Caution
When transferring calls, call party A cannot press phone
number of C before hearing dial tone.
During transferring the call, A cannot hangs up before C
picking up the call.
2. Change characters to be capital or lowercase: when press TRANSFER be-
fore press letters can switch type of letters.
• REDIAL: Redial the last outgoing call.
• Number 1 –10, * and #: The function is as the same as the general phone
set.

2
3
• Corresponding list of keypad and symbol:
1 “Space” ; “,” ; “.” ; “!” ; “1”
2 “A” ; “ B” ; “C” ; “2”
3 “D” ; “E” ; “F” ; “3”
4 “G” ; “H” ; “I” ; “4”
5 “J” ; “K” ; “L” ; “5”
6 “M” ; “N” ; “O” ; “6”
7 “P” ; “Q” ; “R” ; “S” ; “7”
8 “T” ; “U” ; “V” ; “8”
9 “W” ; “X” ; “Y” ; “Z” ; “9”
Ü“-“ ; “?” ; “*”
0 “0”
# “_” ; “@” ; “#”
 NOTE:
All function keys mentioned above (except dialing keypad)
are effective only in IP Phone mode.
1.2.2 Rear view
9V DC 9V DC Power input outlet
LAN RJ-45 connector, connected directly to Switch/
Hub through straight CAT-5 cable.
PC RJ-45 connector, connected directly to the PC
through straight CAT-5 cable.
PSTN RJ-11 connector, connected directly to the
PSTN analog line.
LED Display Two LED indicated lights; LNK/ACT and 100 for
LAN port and PC port. When network status is
in normal, LED of LNK/ACT will be flashing;
when transmit rate is in 10 Mbps/100Mbps,
LED of 100 will light off/on.

4
5
This page is intentionally left blank

4
5
Chapter 2
Basic Configuration
This chapter shows you the starting point of VIP-150T to be integrated into your network
and/or Internet. Conguration steps in this quick guide will be focused on keypad
conguration. More detail conguration, including keypad, web, and telnet instructions
will be illustrated in respective chapters in user’s manual.
2.1 Initialize VIP-150T
2.1.1 Start up
(a) Power on, the LCD screen shows as below after about 15 seconds.
VIP-150T
Board Start Booting
(b) Wait about one minute until VIP-150T finishes boot program initialization.
(c) You can see flashing greeting as below:
System Initializing………..
(d) Then VIP-150T will come into standby mode: The main LCD screen would be
shown as similar as following. The P2P word means VIP-150T is now in Peer-to-
Peer Mode, and when VIP-150T is connected to SNTP server, on LCD will show
current time obtained from SNTP server.
VIP-150T
P2P 10:10:10 AM
2.1.2 LCD conguration
Most functions may be directly congured via keypad operations in VIP-150T.
You may press ç or è to enter machine conguration menu. The OK button is used to
enter sub menus or conrm settings press C can jump out current menu to previous
level.
G
Hint
• The TRANSFER key can be used to switch characters
between capital and lowercase.
• The SPEED key can be used to switch data input mode
between character mode or IP mode.
• When inputting data, press C button will jump out to
menu list. Press ç will clear previous input data.

6
7
VIP-150T has following conguration menus in the LCD control panel:
1. Call List
2. Forward Type
3. Phone Book
4. Ringer Settings
5. Network
6. Advanced Settings (protected by password)
7. Reboot
Please be sure to check and conrm the congurations you’ve done. All the modied
parameters should be activated via the Reboot menu.
In this session, we will introduce the main conguration of VIP-150T for you to quickly and
easily establish voice communication.
2.1.2.1 System Conguration
(i) Call List
If there is an unanswered IP call, it will be kept in message box. MESSAGE LED
will be flashing until user press MESSAGE to check miss call and re-press MES-
SAGE to return to main screen.
Missed Calls: to see all missed calls in message box.
Received Calls: to see all received calls in message box.
Dialed calls: to see all dialed calls in message box.
(ii) Forward Type
There are selections in Forward type menu, user must select under which
condition to forward calls.
(1) Busy
When VIP-150T is in busy status, the incoming call will be forwarded to the
assigned phone number.
a. Activate
Enter a forwarded phone number to activate busy forward function.
b. Deactivate
Deactivate Busy Forward function.
(2) No Response
When VIP-150T hasn’t been picked up for around 10 seconds, the incoming
call will be forwarded to the assigned phone number.

6
7
a. Activate
Enter a forwarded phone number to activate no response forward func-
tion.
b. Deactivate
Deactivate No Response Forward function.
(3) Unconditional
Unconditional forwarding contains the previous two types call forwarding.
Whether the VIP-150T is in busy or not-responding state, the incoming calls
will be automatically forwarded to the assigned phone number.
a. Activate
Enter a forwarded phone number to activate Unconditional Forward
function.
b. Deactivate
Deactivate Unconditional Forward function.
(4) Deactivate All Forward function.
The call forward feature can be disabled in this menu.
(iii) Phone Book
• List

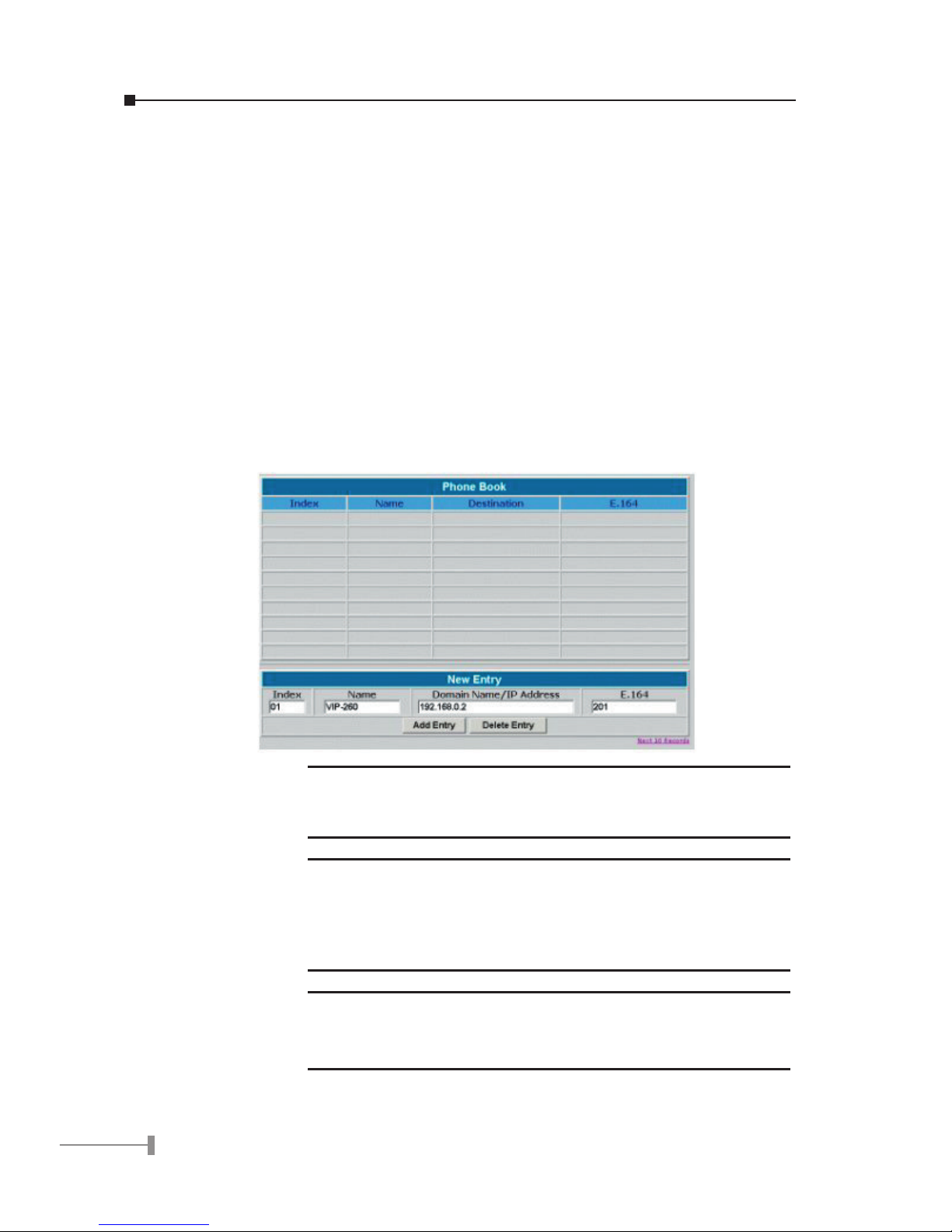

List all records of name, telephone number, and IP address in the phone
address book.
• Edit/Delete
Edit or delete a record of name, telephone number, and IP address of the
phone address book.
• New
Add a new record of name, telephone number, and IP address of the phone
address book.
(iv) Ringer Settings
• Volume
User can adjust ring volume by press ç or è on the keypad to decrease or
increase ringer volume.
• Style
There are three tone styles for VIP-150T. Move the “>” symbol by press ç
or è on the keypad to select the tone style preferred, then press OK to
confirm it.

8
9
(v) Network
• Information
User can press ç or è to check current network status:
Mode: Display current network connection mode of VIP-150T to be Static
(Fixed IP), DHCP, or PPPoE.
IP, Mask, Gateway: display current IP information.
• Network Mode
Set up network mode of VIP-150T to be Static (Fixed IP), DHCP, or PPPoE.
• IP address
Set up IP address of VIP-150T.
• Subnet Mask:
Set up subnet mask address of VIP-150T.
• Default Gateway
Set default gateway address of VIP-150T.
• Domain Name Server
Set IP address of Domain Name Server. Once VIP-150T can connect to DNS
server, user can set URL address for Proxy server or Phone book instead
of IP address.
• PPPoE Configuration
User Name
Set PPPoE connection authentication user name.
Password
Set PPPoE connection authentication password.
• Auto Re-connect
Choose ON or OFF to enable or disable this function. If user enables this
function, after PPPoE disconnected, VIP-150T will automatically reboot to
re-connect, and after reboot, if VIP-150T still can’t connect with server, VIP-
150T will keep trying to connect. On the other hand, if user disables this
function, VIP-150T won’t reboot and keep trying to connect.
• SNTP Configuration
SNTP Mode:
User can set SNTP function to be on or off, which means VIP-150T will
capture current time from SNTP server or not.
SNTP Server:

8
9
User can specify a SNTP server for VIP-150T to capture current time.
Time Zone:
User can set time zone via pressing ç or è according to the location
VIP-150T is. For example, in Taiwan the time zone should be set as
GMT+8:00.
• Behind IP-Sharing
If VIP-150T is allocated behind IP sharing or NAT device, please be sure
to check if the device support SIP communications and enable appropriate
settings, such as “DMZ” function or set “Virtual Server” to reserve com-
munication ports (UDP port: 5060 and 16384) for VIP-150T.
(vi) Advanced Settings (protected by password)
• SIP Settings
Connect Mode:
Select SIP connection mode to be peer-to-peer mode or proxy mode.
Proxy Setting
Proxy:
Set Proxy IP address or Domain Name.
Outbound proxy
Set Outbound Proxy IP address or Domain Name.
Proxy port
Set Proxy port for VIP-150T to send messages.
Expire (in seconds)
Set expire time of registration, in the duration of 2/3 expire time, VIP-
150T will re-register to Proxy Server again.
User Info
User Name
Set User Name of VIP-150T to register to Proxy Server. If Proxy server
doesn’t request specific User name, please enter Line number here.
Line Number
Set Line Number of VIP-150T to register to Proxy Server.
Password
Set User Password of VIP-150T to register to Proxy Server. This con-
figuration is not necessary, if Proxy server doesn’t request client to set
password, user only has to set User Name the same as Line Number.

10
11
• Firmware Update
Download method
There are two methods to download new version file, please move the
“>“ symbol by press ç or è on the keypad to select TFTP or FTP method,
then press OK to confirm it.
FTP/TFTP Sever
User has to offer one TFTP/FTP server IP Address and set this IP Address
via keypad. The IP Address is necessary for upgrading VIP-150T new
application rom file.
Set FTP user account
User has to input user name and password for FTP server login .It is
necessary for upgrading VIP-150T new application firmware file via FTP
method.
File Name
User has to press the file name of new application firmware prepared
for upgrading
Firmware Version
Show versions of all software and hardware.
Start to Upgrade
Select YES or NO to start upgrade. After download is finished, press OK
then VIP-150T will ask if need to reboot.
 NOTE:
Download via LCD command can only upgrade new applica-
tion firmware file.
• LCD Menu Password
Set entry password of phone LCD menu.

10
11
Chapter 3
Making calls
There are several ways to make calls to desired destination in VIP-150T. In this chapter,
we’ll lead you step by step to establish your rst voice communication via keypad
operations.
3.1 IP address call (P2P mode):
Please refer to the descriptions in previous chapter to complete machine network
parameter congurations.
G
Hint
Please identify the proper network connection type on your
side, and find the proper connection method supported by
VIP-150T
G
Hint
When key in IP address/Subnet Mask/Gateway values,
please add 0 before IP address (ex.192.168.0.1 please key
in 192.168.000.001) for machine operation.
After machine network conguration is completed, you may now open web browser to
log in machine to add the remote calling party in machine phone book to establish voice
communications.
Before starting web browser to connect to VIP-101T, please check TCP/IP congurations
on PC: the PC must be congured either as a DHCP client and or xed IP allocation on
the intranet or Internet. After ensuring TCP/IP conguration on the workstation, you may
connect to web administration page of VIP-101T either from intranet, or Internet
After TCP/IP congurations on your PC, you may now open your web browser, and input
192.168.0.1 to logon VIP-101T web conguration page.

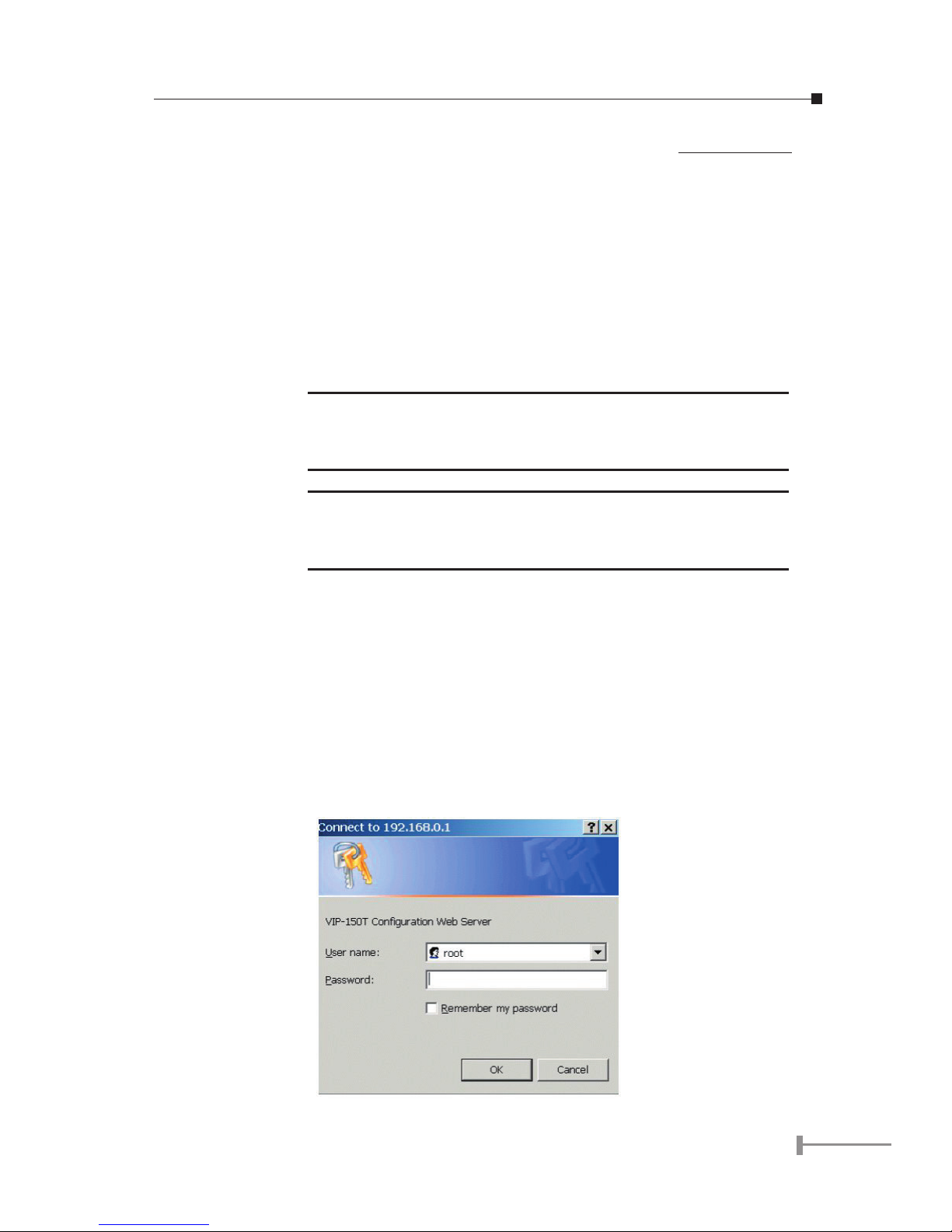

VIP–101T will prompt for logon username/password: root / null (no password)

12
13
Operation steps:
After logging in machine, please browse to the “Phone Book” conguration menu, and
assign the index, name, and the IP address/domain name of the calling party you’d like to
connect to. For those who are making calls to PLANET VIP-160/260 SIP voice gateway
A call setup example could be as like following:
Supposing there is a telephone set connected with the rst FXS port on VIP-260 (which
default number is 201)
The Phone Book conguration on VIP-150T:
Index number: 01 Destination Name: VIP-260, IP address/Domain name: 192.168.0.2
E.164: 201.
After clicking on “Add Entry”, you can just pick up the handset and dial 201 to establish
the voice communication toward the telephone set connected on FXS port 1 of VIP-260.
The phone book conguration should look like the following:
G
Hint
By default configuration, by pressing the symbol “#” will
send out the dialed digits immediately.
G
Hint
a) If the remote calling party is a voice gateway, you’ll need
to enter proper number to connect to the destination.
b) If the remote calling party is an IP phone, the digits will
be accepted and establish the voice communications.
G
Hint
If the call cannot be made, please check if all the TCP/IP
parameters are correctly configured, and matched with the
network environment or parameters assigned by your ISP.

12
13
G
Hint
The dialing numbers will vary to reflect the field application
settings.
Voice communication via SIP proxy:
PLANET VIP-150T able to establish voice communications via SIP proxy server. Users need
to apply voice account information while making calls.
Following steps will describe how to make calls via Internet Telephony Service Provider
(www.addavoice.com)
a) Go to www.addavoice.com to register an account for voice calls.
b) After signing up, browse to SIP configuration page of VIP-150T. Insert the Proxy
server, server communication port, username, and password field.
c) After these parameters are inserted, click “DONE”, and browse to “Reboot”
menu to reboot the VIP-150T and make the configuration effective.

14
15
G
Hint
Machine default running mode is P2P mode. If you’d like to
connect others via SIP proxy mode, please log in machine
via web browser, and modify machine mode to “Proxy” in the
“SIP Configuration” menu.

14
15
Chapter 4
Quick reference in CD-ROM guide
This guide is used to help you startup your VIP settings. It is also recommended to check
the user manual CD-ROM for more details information, and how to set the device back
to default value.

16
17
This page is intentionally left blank

16
17
This page is intentionally left blank

18
This page is intentionally left blank
