Planet IGS-5225-8P4S-12V User manual

Industrial L2+ Multi-Port Full Gigabit
Managed Ethernet Switch
IGS-5225-4T2S/IGS-5225-4P2S/IGS-5225-4UP1T2S
IGS-5225-8P4S/IGS-5225-8P4S-12V
IGS-5225-8P2T2S/IGS-5225-8P2T4S
Quick Installation Guide

Table of Contents
1. Package Contents...................................................................... 3
2. Requirements............................................................................ 5
3. Wiring the Power Inputs ............................................................ 6
3.1 Grounding the Device.......................................................... 8
4. Terminal Setup.......................................................................... 9
4.1. Logging on to the Console..................................................10
 4.2 ConguringIPaddress .......................................................11
5. Starting Web Management ........................................................13
5.1 Logging in to the Industrial Managed Switch ........................13
 5.2 SavingCongurationviaWeb .............................................16
6. RecoveringBacktoDefaultConguration ...................................17
7. Customer Support ....................................................................20

3
1. Package Contents
Thank you for purchasing PLANET L2+ Industrial Managed Switch,
IGS-5225 Series. The number of the ports of these models is as
follows:
GbE Copper
Ports PoE Ports GbE SFP Ports
IGS-5225-4T2S 4 - 1G/2.5G: 2
IGS-5225-4P2S 4at/af: 4 2
IGS-5225-4UP1T2S 5at/bt: 4 2
IGS-5225-8P4S 8at/af: 8 1G: 2
1G/2.5G: 2
IGS-5225-8P4S-12V 8at/af: 8 1G: 2
1G/2.5G: 2
IGS-5225-8P2T2S 10 at/af: 8 1G/2.5G: 2
IGS-5225-8P2T4S 10 at/af: 8 1G: 2
1G/2.5G: 2
“Industrial Managed Switch” mentioned in this Quick Installation
Guide refers to the above models.

4
Open the box of the Industrial Managed Switch and carefully
unpack it. The box should contain the following items for each model of
the Industrial Managed Switch:
The
Industrial
Managed
Switch
Quick
Installation
Guide
Wall
Mounting
Kit
DB9 to
RJ45,
RS232
Console
Cable
RJ45
Dust
Cap
SFP
Dust
Cap
IGS-5225-
4T2S     5 2
IGS-5225-
4P2S     5 2
IGS-5225-
4UP1T2S     6 2
IGS-5225
-8P4S     9 4
IGS-5225-
8P4S-12V     9 4
IGS-5225-
8P2T2S     11 2
IGS-5225-
8P2T4S     11 4
If any of these are missing or damaged, please contact your dealer
immediately. If possible, retain the carton including the original packing
materials to enable you to repack the product in case there is a need
to return it to us for repair.

5
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for
further management:
zWorkstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS
X or later, Linux, UNIX, or other platforms are compatible with TCP/
IP Protocols.
zWorkstations are installed with Ethernet NIC (Network Interface
Card)
zSerial Port Connection (Terminal)
The above Workstations come with COM Port (DB9) or USB-to-
RS232 converter.
The above Workstations have been installed with terminal
emulator, such as Hyper Terminal included in Windows XP/2003,
putty or tera term.
Serial cable -- one end is attached to the RS232 serial port,
while the other end to the console port of the Industrial Managed
Switch.
zEthernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser.
Note
It is recommended to use Internet Explorer 8.0 or above
to access the Industrial Managed Switch.

6
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch comes with one
6-contact terminal block. Please follow the steps below to insert the
power wire.
1. Insert positive/negative DC power wires into Contacts 1 and 2 for
Power 1, or Contacts 5 and 6 for Power 2.
IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-8P2T4S: DC 48~56V
PWR1 PWR2
Alarm
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-8P2T4S Upper Panel
IGS-5225-8P4S-12V: DC 12~54V
PWR1 PWR2
Alarm
DI1 DO0 DO1DI0 GNDGND
DC Input:
12-54V , 6A max.
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-2: IGS-5225-8P4S-12V Upper Panel

7
IGS-5225-4T2S: DC 12~48V, AC 24V
Max. Fault Alarm Loading: 24V, 1A
DC Input: 12-48V
, 1.7A max.
AC Input: 24V
, 1A max.
V1+ V2+
PWR1 PWR2Alarm
1 2 3 4 5 6
Figure 3-3: IGS-5225-4T2S Upper Panel
IGS-5225-4P2S: DC 48~56V
FaultPWR1
V1+ V2+
PWR2
Max. fault loading: 24V, 1A
DC Input: 48-56V
,
3.5A max.
1 2 3 4 5 6
Figure 3-4: IGS-5225-4P2S Upper Panel
IGS-5225-4UP1T2S: DC 48~56V
PWR1 PWR2
Fault
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-5: IGS-5225-4UP1T2S Upper Panel

8
2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
123456
V+ V- V+ V-
Power 1 Power 2
Positive (+) Pin Negative (-) Pin
IGS-5225 Series Pin 1/5 Pin 2/6
Note
1. The wire gauge for the terminal block should be in
the range from 12 to 24 AWG.
2. Please check the wire AWG Ampere specification
before connecting PLANET Industrial Managed Switch.
Caution
PWR1 and PWR2 must provide the same DC voltage
for power load balance while operating with dual power
input.
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a
sudden lightning could cause fatal damage to the device.
PWR1 PWR2
Fault
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground

9
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial Managed Switch. The console port of the Industrial Managed
Switch is DCE already, so that you can connect the console port
directly through PC without the need of null modem.
PC/Workstation with
Terminal Emulation Software
RJ45 to DB9 RS232 Cable
Serial Port
Console Port
115200,N,8,1
IGS Industrial Managed Switch
11
Console
115200,N,8,1
P1 P2 Fault
DIDO
Ring
11
R.O.
12
12
PoE Usage
ACT1000 LNK
ACT100 LNK
A terminal program is required to make the software connected to the
IGS-5225 series Industrial Managed Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port
shouldbeconguredas:
zBaud: 115200
zParity: None
zData bits: 8
zStop bits: 1
zFlow control: None

10
4.1. Logging on to the Console
Once the terminal has been connected to the device, power on the
Industrial Managed Switch and the terminal will display “running testing
procedures”.
Note
The following terminal configuration of the IGS-
5225-4UP1T2S is taken for an example.
Then, the following message asks to log in user name and password.
The default user name and password are shown as follows and the
login screen in Figure 4-1 appears.
User name: admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed
Switch. For a detailed description of the commands, please refer to the
following chapters.
Note
1. For security reason, please change and memorize
the new password after this first setup.
2. Only accept command in lowercase letter under
console interface.

11
4.2 ConguringIPaddress
The Industrial Managed Switch is shipped with default IP address
shown below:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the
Switch, please use the procedure as follows:
Display of the current IP Address
1. At the “#” prompt, enter “show ip interface brief”.
2. The screen displays the current IP address shown in Figure 4-2.
Figure 4-2: IP Information Screen
CongurationoftheIPAddress
3. At the “#” prompt, enter the following command and press <Enter>
as shown in Figure 4-3.
IGS-5225-4UP1T2S# congureterminal
IGS-5225-4UP1T2S(cong)#interface vlan 1
IGS-5225-4UP1T2S(cong-if-vlan)#ip address 192.168.1.100
255.255.255.0
The previous command would apply the following settings for the
Industrial Managed Switch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0

12
Figure 4-3: Conguring IP Address Screen
4. Repeat step 1 to check if the IP address has changed.
Storethecurrentswitchconguration
5. At the “#” prompt, enter the following command and press <Enter>.
#copyrunning-congstartup-cong
Figure 4-4: Saving Current Conguration Command Screen
If the IP is successfully congured, the Industrial Managed Switch will
apply the new IP address setting immediately. You can access the Web
interface of the Industrial Managed Switch through the new IP address.
Note
If you are not familiar with the console command or the
related parameter, enter “help” anytime in console to
get the help description.

13
5. Starting Web Management
The following shows how to start up the Web Management of the
Industrial Managed Switch. Note the Industrial Managed Switch is
congured through an Ethernet connection. Please make sure the
manager PC must be set to the same IP subnet address.
For example, the default IP address of the Industrial Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x
(where x is a number between 1 and 254, except 100), and the
default subnet mask is 255.255.255.0.
IP Address:
192.168.0.x
IP Address:
192.168.0.100
IGS Industrial Switch
RJ45/UTP Cable
Figure 5-1: IP Management Diagram
5.1 Logging in to the Industrial Managed Switch
1. Use Internet Explorer 8.0 or above for Web browser and enter IP
address https://192.168.0.100 (the factory-default IP address) to
access the Web interface.
2. When the following dialog box appears, please enter the default user
name “admin” and password “admin” (or the password you have
changed before) as shown in Figure 5-2.

14

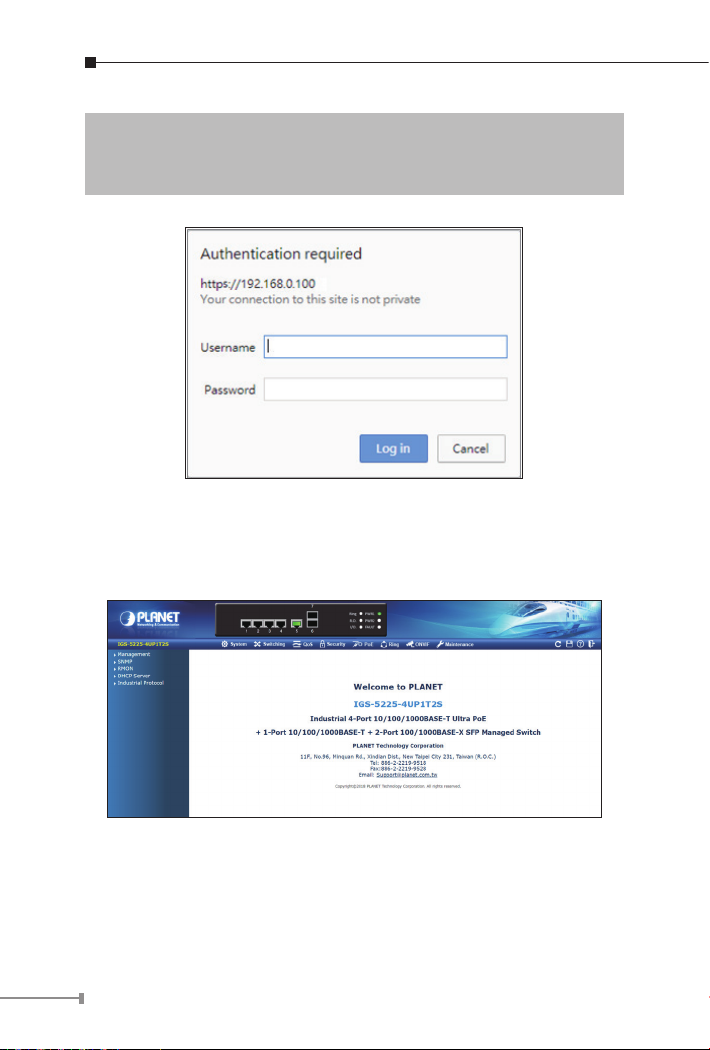

Default IP Address: 192.168.0.100
Default User Name: admin
Default Password: admin
Figure 5-2: Login Screen
3. After entering the password, the main screen appears as shown in
Figure 5-3.
Figure 5-3: Web Main Screen of Industrial Managed Switch

15
The Industrial Managed Switch Menu on the top and left of the
Web page lets you access all the functions and status the Industrial
Managed Switch provides. The Switch Menu always contains one or
more buttons, such as “System”, “Switching”, “QoS”, “Security”,
“PoE”, “Ring”, “ONVIF” and “Maintenance”.
Figure 5-4: Switch Menu
Now, you can use the Web management interface to continue the
Switch management. Please refer to the user manual for more.
Note
If you are not familiar with Switch functions or the
related parameter, press “Help icon” like the
following anytime on the Web page to get the help
description.

16
5.2 SavingCongurationviaWeb
To save all applied changes and set the current conguration as a
startup conguration, the startup-conguration le will be loaded
automatically across a system reboot.
1. Click the Save icon on the top Switch Menu bar.
Figure 5-5: Save Cong -- Hot Key
2. Press the “SaveConguration” button.
3. Or the other way to save the setting is to Click Maintenance, Save
StartupCong.
Figure 5-6: Save Cong -- Maintenance

17
6.RecoveringBacktoDefaultConguration
To reset the IP address to the default IP address “192.168.0.100”
and the user password to factory default mode (default password
is admin), press the hardware reset button on the front panel for
about 10 seconds. After the device is rebooted, you can log in the
management Web interface within the same subnet of 192.168.0.xx
and default password. Be noted that all the previous setups will be
disappeared after the factory default reset is made.
P1 P2 Alarm
Ring
Reset
115200,N,8,1
1G/2.5G
LNK/ACT
R.O.
6
5
100
LNK/ACT
Reset
Figure 6-1: IGS-5225-4T2S Reset Button

18
Reset
P1 P2 Fault
Ring R.O.
Console
115200,N,8,1
ACT1000 LNK
ACT100 LNK
5 6
120W
PoE Usage
90W
60W
30W
Reset
Figure 6-2: IGS-5225-4P2S Reset Button
Reset
4
3
PoE-in-Use
IGS-5225-4UP1T2S
LNK1000 ACT
10/100 ACTLNK
4
3
2
1
2
1
bt
af/at
Reset
Figure 6-3: IGS-5225-4UP1T2S Reset Button

19
9 10
11
10/100
1G
LNK/ACT
LNK/ACT
100
1G/2.5G
LNK/ACT
LNK/ACT
11
12
13
13
14
Reset IGS-5225-8P2T4S
12
14
Reset
Figure 6-4: IGS-5225-8P4S/IGS-5225-8P4S-12V/IGS-5225-8P2T2S/
IGS-5225-8P2T4S Reset Button

20
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online
FAQ resource on PLANET web site rst to check if it could solve your
issue. If you need more support information, please contact PLANET
switch support team.
PLANET online FAQs:
http://www.planet.com.tw/en/support/faq
Switch support team mail address:
[email protected]
IGS-5225-4T2S/IGS-5225-4P2S/ IGS-5225-8P2T4S/IGS-5225-8P4S/
IGS-5225-8P4S-12V/IGS-5225-8P2T2S/IGS-5225-4UP1T2S User’s
Manual:
https://www.planet.com.tw/en/support/downloads?&met-
hod=keyword&keyword=IGS-5225&view=3#list
(Please select your switch model name from the Product Model drop-
down menu)
Copyright ©PLANET Technology Corp. 2022.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
