Plura MTD-ID User manual

Operating Manual
Version: 1.2
September 26, 2019
MTD-ID
Additional display for TCUE, TCU & SPT

Operating Manual MTD-ID
CONTENTS
A1 REVISION HISTORY
A2 COPYRIGHT
A3 WARRANTY
A4 UNPACKING/SHIPPING/REPACKAGING INFORMATION
A5 SAFETY INSTRUCTIONS
FUNCTIONAL DESCRIPTION 11
INTRODUCTION 11
CONFIGURATION 12
FIRMWARE UPDATE 13
TECHNICAL DATA 13
SPECIFICATIONS 13
MECHANICAL 13
MTD-ID KIT 14
REQUIREMENTS 14
PREPARATION 14
INSTRUCTIONS 15

Operating Manual MTD-ID
A1 Revision History
No.
Date
Subject
0.x
Preliminary documents, changes without notice.
1.0
May 19, 2017
First released document.
1.1
June 7, 2017
Added technical data.
1.2
September 26, 2019
Changed address of Plura Europe GmbH.
The latest document describes the functions of the latest product’s software. You can download
the latest software version from:
https://plurainc.com
A2 Copyright
Copyright © Plura Europe GmbH 2017-2019. All rights reserved. No part of this publication
may be reproduced, translated into another language, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise without the prior written consent of Plura Europe GmbH.
Printed in Germany.
Technical changes are reserved.
All brand and product names mentioned herein are used for identification purposes only and
are trademarks or registered trademarks of their respective holders.
Information in this publication replaces all previously published information. Plura Europe
GmbH assumes no responsibility for errors or omissions. Neither is any liability assumed for
damages resulting from the use of the information contained herein.
For further information please contact your local dealer or:
Plura Europe GmbH
Binger Weg 12
D- 55437 Ockenheim
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Internet: http://www.plurainc.com

Operating Manual MTD-ID
A3 Warranty
Plura warrants that their products will be free from defects in materials and workmanship for a
period of two years from the date of shipment. If this product proves defective during the
warranty period, Plura, at its option, will repair or replace the defective product without
charge, provided this product is returned to Plura freight prepaid.
In order to obtain service under this warranty, Customer must notify Plura of the defect before
expiration of the warranty period and make suitable arrangements for the performance of
service. Customer shall be responsible for packaging and shipping the defective product to
Plura, please notice the Shipping Information given below.
This warranty shall not apply to any defect, failure or damage caused by abuse, misuse,
improper use, negligence, accident, modification, alteration, or improper or inadequate
maintenance and care.
This warranty is given by Plura with respect to this product in lieu of any other warranties,
express or implied. Plura and its vendors disclaim any implied warranties of merchantability or
fitness for a particular purpose. Plura’s responsibility to repair or replace defective products is
the sole and exclusive remedy provided to the customer for breach of this warranty. Plura and
its vendors will not be liable for any indirect, special, incidental, or consequential damages
irrespective of whether Plura or the vendor has advance notice of the possibility of such
damages.

Operating Manual MTD-ID
A4 Unpacking/Shipping/Repackaging Information
This product has been carefully inspected, tested and calibrated before shipment to ensure
years of stable and trouble-free service.
The shipping carton and pads provide protection for the product during transit. Retain the
shipping cartons in case subsequent shipment becomes necessary.
Carefully unpack the product from its transit material and carefully check the product for signs
of damage. In the event that the product has been damaged during transit, contact the carrier
and your Plura dealer.
Please confirm that all items listed on the packing list have been received. Check the items
against your original order to ensure that you have received the correct parts. If any item is
missing, please contact your Plura dealer.
Ensure that all packaging material is removed from the product and its associated
components before installing the unit.
Products returned to Plura for servicing or repair should have a tag attached showing:
•Name and complete address of the owner and the name of the person that can be
contacted.
•Unit’s serial number and a description of the service required, or failure detected.
Products returned should be shipped prepaid in the original packaging material if possible. If
the original packaging is not available or is unfit for use, supply an adequate packaging
which should meet the following criteria:
•Packaging must be able to withstand the product weight.
•Product must be held rigid within the packaging.
•Allow at least two inches of space between the product and the container.
•The corners of the product must be protected.
•Seal the carton with shipping tape or an industrial stapler.
If the product is still within the warranty period, the product will be returned by prepaid
shipment after servicing.

Operating Manual MTD-ID
A5 Safety Instructions
The general safety information in this part is for both operating and service personnel. Plura
products are only to be used as directed. Specific warnings and cautions will be found
throughout the manual where they apply.
Review the following safety instructions to avoid injury and prevent damage to this product or
any products connected to it.
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
Safety Terms and Symbols
Terms and Symbols in this manual:
CAUTION: Caution statements identify conditions or practices that could result
in damage to this product or other property.
Terms and Symbols which may be found on the product:
ATTENTION: Refer to the manual.
Observe precautions for handling electrostatic-sensitive devices.
Signal Ground.
Product Damage Precautions
PREVENT OVERHEATING
To prevent product overheating, position the unit only where sufficient air
circulation can be maintained. Good air circulation is essential to prevent
internal heat build-up, do not block any ventilation openings. Do not expose
the unit to direct sun light or any other strong lights. Keep the unit away from
heat sources.
PROVIDE PROPER ENVIRONMENT
Dust, humidity, shocks and strong electromagnetic fields must be avoided. Do
not expose this apparatus to dripping or splashing water. Ensure that no
objects filled with liquid are placed on the apparatus.

Operating Manual MTD-ID
OBSERVE EMC REGULATIONS
The EMC regulations are observed only under the following condition:
Use high quality shielded cables at data inputs and outputs.
SUSPECTED FAILURES
Whenever it is likely that safe operation is impaired, the apparatus must be
made inoperative and secured against unintended operation. The appropriate
service authority must then be informed. Do not operate with suspected
failures. Servicing is required when the apparatus has been damaged in any
way, such as power-supply is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
PREVENTIVE MAINTENANCE: CLEANING
Qualified Service Personnel Only: The apparatus should be cleaned often
enough to prevent dust or dirt from accumulating. Dust accumulating in the
apparatus acts as an insulating blanket, preventing proper cooling, and
possibly causing overheating and component breakdown. Under high humidity
conditions, accumulated dust can also provide an electrical conduction path.
Remove accumulated dust with a soft cloth or small paint brush. Remove
hardened dirt with a soft cloth, dampened in a mild detergent and water
solution. Do not use polish or abrasive cleaners or any other chemical cleaning
agents.
PREVENTIVE MAINTENANCE: VISUAL INSPECTION
Qualified Service Personnel Only: Visually inspect the apparatus for signs of
damage, scorched components, and loose or disconnected pin connectors. If
you discover heat damaged parts, try to determine the cause of the
overheating before replacing the damaged parts; otherwise, the damage may
repeat.
ATTENTION:
Observe precautions for handling electrostatic-sensitive devices. See
“Electrostatic Discharge (ESD) Precautions” below for details.

Operating Manual MTD-ID
Electrostatic Discharge (ESD) Precautions
All semiconductor devices are sensitive to ESD. To prevent any damage or
degradation on components of the product caused by ESD, observe these
precautions when directed to do so (installing, removing sensitive
components):
Use a Ground Strap. Wear a grounded anti-static wrist or heel strap to discharge the static
voltage from your body.
1. Use a Safe Work Area. Avoid handling components in areas that have a floor or work
surface covering capable of generating a static charge. Nothing capable of generating or
holding a static charge should be allowed in the work area.
2. Handle ESD sensitive components carefully. Do not slide components over any surface.
Do not touch exposed connector pins. Pick-up components by the body, never by the
leads.
3. Transport and store sensitive components or assemblies in a static-protected bag or
container.
A6 Certifications & Compliances
CE-Declaration:
We,
Plura Europe GmbH
Binger Weg 12
D- 55437 Ockenheim
herewith declare under our sole responsibility that the
MTD-ID
meets the intent of the following directives, standards and specifications:
89/336/EEC Electromagnetic Compatibility
EN 50081-1 Emissions
•EN 55022
•EN 55103-1
EN 50082-1 Immunity
•EN 55024
•EN 55103-2

Operating Manual MTD-ID
Page 11
Functional Description
Introduction
MTD-ID is an intelligent 4.3" Multi-Time ID Display that provides the SPT and/or TCU operator
with all timing related information within the production environment in one place. The MTD-
ID is a unique solution and convenient method to display 7 different timers at your fingertips in
a close proximity.
The MTD-ID is an easy add-on tool with Plura TCU (Timer Control Unit) and/or SPT (Studio
Production Timer). The MTD-ID screen is divided into 7 different programmable sections; each
section can display one of the available Timers (A to F), local real-time, additional time zones
and/or Date. The timer colors are programmable (Red, Green or Yellow).

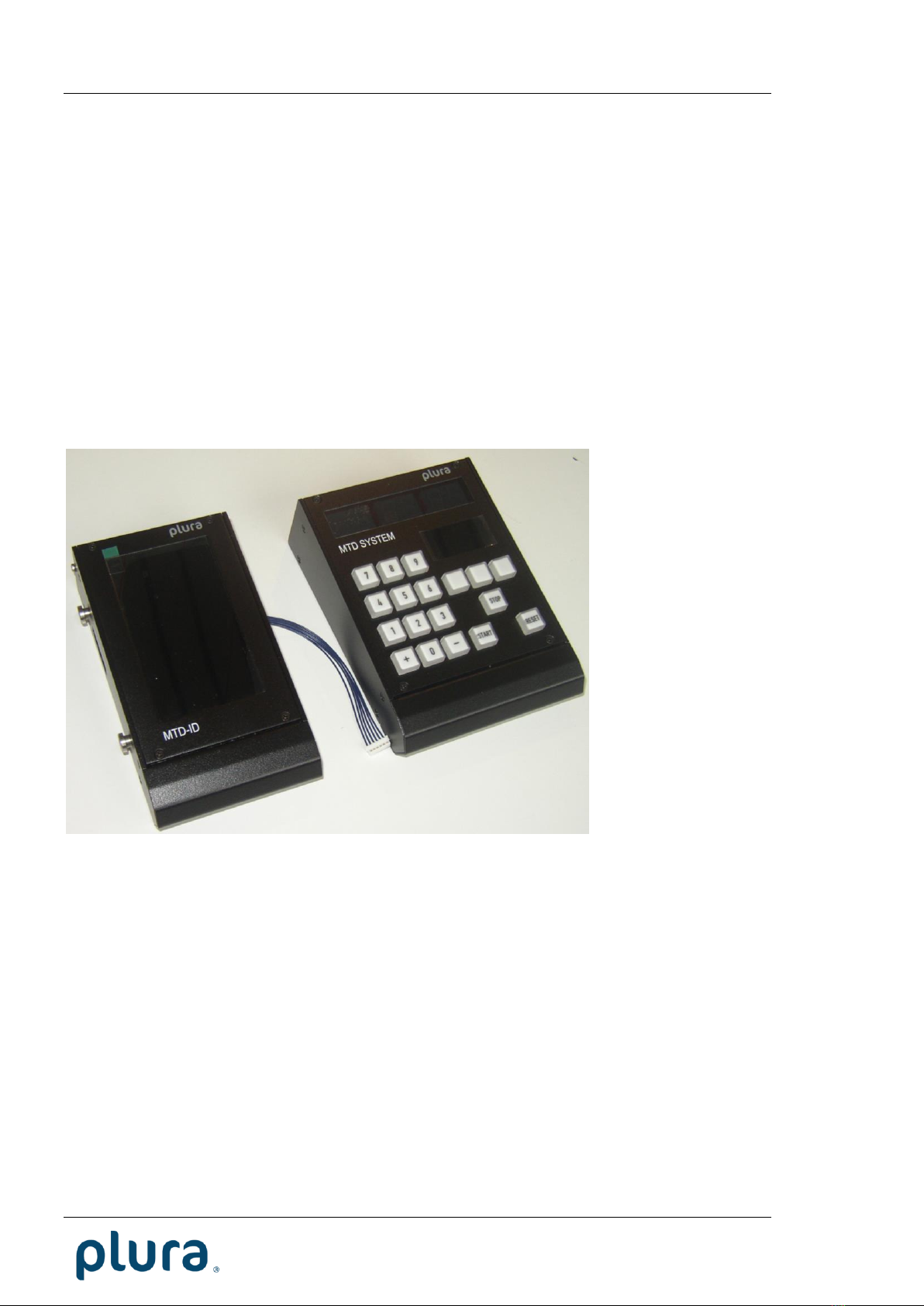

MTD-ID in combination with a TCU

Operating Manual MTD-ID
Page 12
Configuration
MTD-ID is configured by its base unit (SPT, TCU or TCUE resp.). Please refer to chapter
“Configuration” of the base unit’s manual for details. You’ll need the UD SC Config.exe tool;
alternative you can use the web interface.
MTD-ID is configured on the “MTD-ID” page:
Brightness
Backlight Brightness of the display: 7 steps, 7 = maximum brightness.
Format
Mode Operating modes of the display –dependent on “Source” selection. Please
refer to chapter “Display” of the base unit’s manual for details.
Color Display color:
Auto If “Source” = “SPT”, “LTC(MTD)” or “MTD”:
The display decodes the color out of the MTD data.
Red/Yellow/Green
Delimiter Separating sign between pairs of digits:
Auto If “Source” = “SPT”, “LTC(MTD)” or “MTD”:
The display decodes the separating sign out of the MTD
data.
Off No separating sign.
Decimal Points
Colon

Operating Manual MTD-ID
Page 13
Firmware Update
Firmware update of MTD-ID is done by updating the base unit. You’ll need an “xxx + MTD-
ID” firmware file (xxx = name of the base unit). Please refer to chapter “Firmware Update” of
the base unit’s manual for details.
After the firmware update is finished please check power-up messages of both MTD-ID and its
base unit. Both firmware numbers have to be the same, e.g. “7.17”. If they’re different please
repeat the firmware update process, preferable over Ethernet.
Technical Data
Specifications
Operating voltage
5 V DC, ± 5 % provided by base unit
Power consumption
1.0 W typical
Environmental character-
istics, operating
Temperature: +5 °C to +40 °C
Relative humidity: 30 % to 85 %, non-condensing
Environmental character-
istics, non-operating
Temperature: -10 °C to +60 °C
Relative humidity: 5 % to 95 %, non-condensing
Mechanical
Material
Aluminium, rear plate made of steel
Dimensions
87 (W) x 49 (H) x 161 (D) mm; 3.43 (W) x 1.93 (H) x 6.34 (D) inches
Weight
≈ 0.4 kg

Operating Manual MTD-ID
Page 14
MTD-ID Kit
With the kit an existing SPT, TCU or TCUE can be complemented by an MTD-ID.
Requirements
The existing SPT, TCU (v2) or TCUE needs to be designed for MTD-ID. This is true for units
with a white LCD text display (not a yellow OLED) shipped in 2017 or later. Such units have an
internal connector for an MTD-ID. Most former units can be retrofitted as well in factory,
please contact Plura for details.
Preparation
Aside from the MTD-ID kit and your SPT, TCU or TCUE you’ll need a Phillips head screwdriver,
size 1, for the retrofit.

Operating Manual MTD-ID
Page 15
Instructions
In this step by step instruction a SPT unit is complemented by an MTD-ID. Other units like TCU
or TCUE will be handled the same.
1st: Remove the left side panel of both MTD-ID and SPT. You’ll need to loosen four Phillips
screws on each panel. The screws may be fastened very tight, so be careful not to damage the
panels. In case you damage the screws please replace it by spare screws shipped with the kit.
Eventually the panels adhere a bit to the case, and then you have to pull it firmly to remove it.
2nd: Swap both panels and fit it again with four Phillips screws each, i.e. fit the original SPT
side panel to the MTD-ID and the MTD-ID side panel to the SPT. Then remove the single lock
screw from the back of the panel that is now fitted to the SPT.

Operating Manual MTD-ID
Page 16
3rd: Plug the connector of MTD-ID’s cable to the side connector of the SPT. Push it firmly until it
latches and confirm that it’s locked.
4th: Place both units side by side and plug it together.

Operating Manual MTD-ID
Page 17
5th: Slide the MTD-ID unit towards the rear to fit both units together.
6th: At the rear fasten the lock screw you removed in step 2.
7th: Do a firmware update of the main unit. Use the firmware “SPT + MTD-ID”. You’ll be
asked for an activation code, please contact Plura to get it.
8th: You’re finished and can start to configure the MTD-ID unit as described in the preceding
chapter.

U.S.A. · Germany · U.A.E. · S. Korea
www.plurainc.com
