Plura PBM-224-4K User manual

Operating
Instructions PBM-4K Series
PBM -224-4K
PBM-232-4K

PBM-4KSeries USER MANUAL
2
Table of Contents
PREACUTION---------------------------------------------------------------------------------------------5
OVERVIEW------------------------------------------------------------------------------------------------7
ADVANCED FEATURES ----------------------------------------------------------------------------------7
FUNCTIONAL EXPLANATION OF EACH PART --------------------------------------------------------9
1. FRONT PANEL ---------------------------------------------------------------------------------------------9
 PBM-224-4K -----------------------------------------------------------------------------------------9
 Front Keys Arrangements ---------------------------------------------------------------------------9
 Front Keys Operations----------------------------------------------------------------------------- 10
 Front panel LED Operations----------------------------------------------------------------------- 10
 Speaker Out---------------------------------------------------------------------------------------- 10
2. REAR PANEL -------------------------------------------------------------------------------------------- 11
 I/O Details ----------------------------------------------------------------------------------------- 11
 DC Battery IN -------------------------------------------------------------------------------------- 11
 RJ-45 ----------------------------------------------------------------------------------------------- 11
 Interface description------------------------------------------------------------------------------- 12

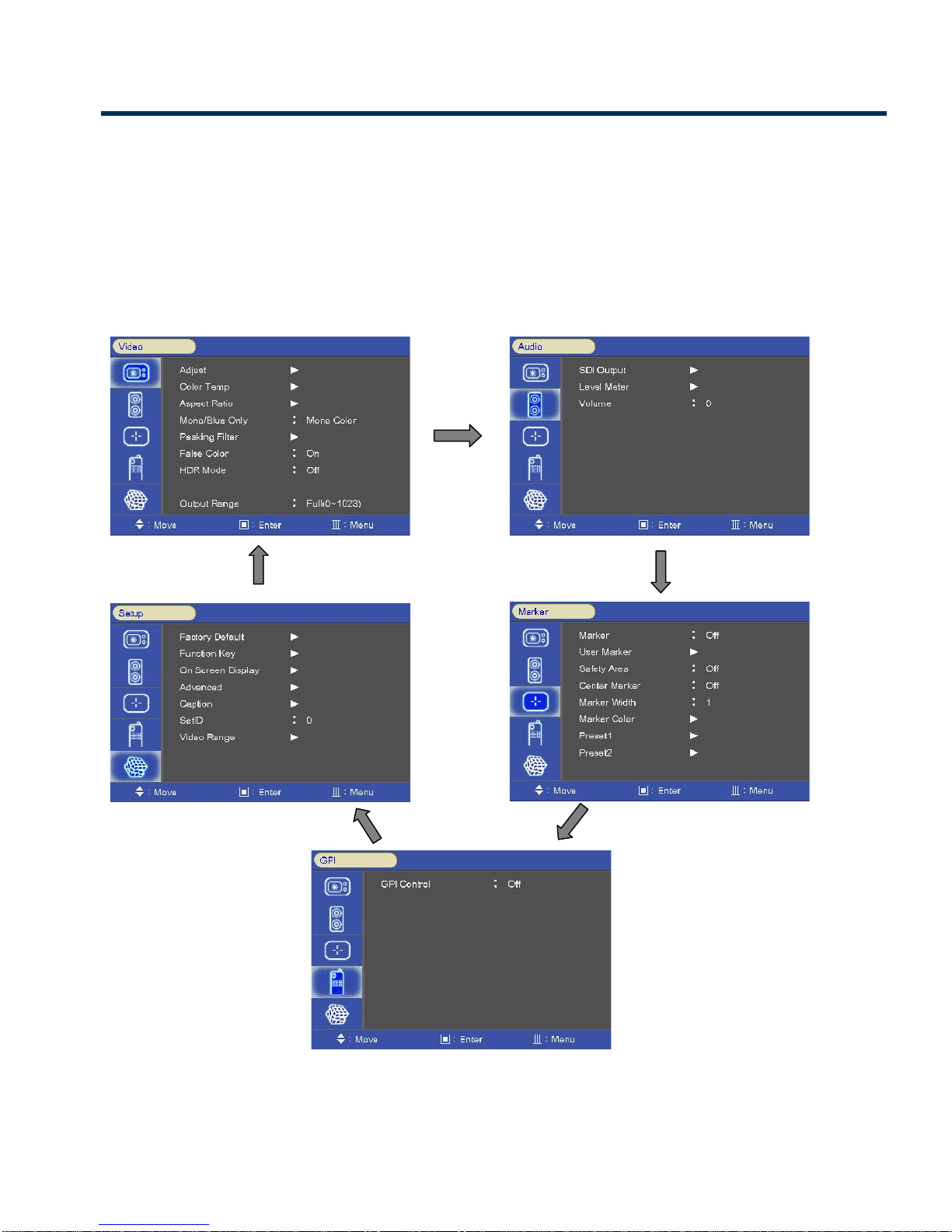

4. MENU OVERVIEW ------------------------------------------------------------------------------------- 12
1. TO SHOW AND REMOVE THE MENU ---------------------------------------------------------------------- 12
2. TO GO TO THE NEXT LEVEL ------------------------------------------------------------------------------- 12
3. TO GO BACK TO THE PREVIOUS LEVEL --------------------------------------------------------------------- 12
4. TYPICAL MENU OPERATION------------------------------------------------------------------------------ 13
5. BASIC OPERATION ------------------------------------------------------------------------------------ 13
1. TURNING ON THE MONITOR----------------------------------------------------------------------------- 13
2. VOLUME ADJUSTMENT ---------------------------------------------------------------------------------- 13
6. ON SCREEN MENUS SELECTION AND ADJUSTMENT --------------------------------------------- 14
1. HOW TO ADJUST THE OSD SCREEN ---------------------------------------------------------------------- 14
7. SELECT VIDEO INPUT --------------------------------------------------------------------------------- 15
1. HOW TO SELECT VIDEO SOURCE BY OSD----------------------------------------------------------------- 15
8. PICTURE MENU OPTIONS ---------------------------------------------------------------------------- 16

PBM-4KSeries USER MANUAL
3
1. ADJUST------------------------------------------------------------------------------------------------- 16
2. COLOR TEMPERATURE CONTROL ------------------------------------------------------------------------- 16
3. ASPECT RATIO ------------------------------------------------------------------------------------------ 17
4. MONO/BLUE ONLY ------------------------------------------------------------------------------------- 17
5. PEAKING FILTER ----------------------------------------------------------------------------------------- 17
6. FALSE COLOR ------------------------------------------------------------------------------------------- 18
7. HDR MODE -------------------------------------------------------------------------------------------- 18
8. OUTPUT RANGE----------------------------------------------------------------------------------------- 18
9. AUDIO MENU OPTIONS ------------------------------------------------------------------------------ 19
1. SDI OUTPUT ------------------------------------------------------------------------------------------- 19
2. LEVEL METER ------------------------------------------------------------------------------------------- 19
3. VOLUME------------------------------------------------------------------------------------------------ 20
10. MARKER MENU OPTIONS-------------------------------------------------------------------------- 21
1. MARKER & USER MARKER------------------------------------------------------------------------------- 21
2. SAFETY AREA ------------------------------------------------------------------------------------------- 21
3. CENTER MAKER ----------------------------------------------------------------------------------------- 22
4. MARKER WIDTH ---------------------------------------------------------------------------------------- 22
5. MARKER COLOR ---------------------------------------------------------------------------------------- 22
6. PRESET1 & PRESET2 ------------------------------------------------------------------------------------ 22
11. GPI MENU OPTIONS -------------------------------------------------------------------------------- 22
1. GPI CONTROL & GPI PORTS ---------------------------------------------------------------------------- 22
12. SETUP MENU OPTIONS ---------------------------------------------------------------------------- 23
1. FACTORY DEFAULT--------------------------------------------------------------------------------------- 23
2. FUNCTION 1 ~6 ---------------------------------------------------------------------------------------- 24
3. ONSCREEN DISPLAY ------------------------------------------------------------------------------------ 24
 OSD Option ---------------------------------------------------------------------------------------- 25
 Time code------------------------------------------------------------------------------------------ 25
 Under Monitor Display (color: Tally R/G mode action ) ----------------------------------------- 25
4. ADVANCED --------------------------------------------------------------------------------------------- 25
 Information ---------------------------------------------------------------------------------------- 25
 Control --------------------------------------------------------------------------------------------- 26
 Screen Control ------------------------------------------------------------------------------------- 26

PBM-4KSeries USER MANUAL
4
 Network Configuration ---------------------------------------------------------------------------- 26
5. CAPTION FOR NORTH AMERICAN MARKET --------------------------------------------------------------- 26
6. SET ID ------------------------------------------------------------------------------------------------- 27
7. VIDEO RANGE ------------------------------------------------------------------------------------------ 27
13. OSD TREE -------------------------------------------------------------------------------------------- 28
1. VIDEO -------------------------------------------------------------------------------------------------- 29
2. AUDIO ------------------------------------------------------------------------------------------------- 30
3. MARKER------------------------------------------------------------------------------------------------ 31
4. GPI ---------------------------------------------------------------------------------------------------- 32
5. SETUP -------------------------------------------------------------------------------------------------- 33
14. MECHANICAL DIMENSION------------------------------------------------------------------------- 34

PBM-4KSeries USER MANUAL
5
PREACUTION
Before operating this unit, please read this manual carefully.
WARNING:
To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable pa
rts inside. Refer any service matters to qualified service personnel. To prevent fire or shock hazard, do
not expose the rear of the set to rain or moisture. Do not rub, clea n or hit the Active Matrix LCD with object
that may scratch, mark, or damage the Active Matrix LCD permanently.
CAUTION:
Unauthorized tampering with the inside of the monitor invalidates the warranty.
The manufacturer shall not warrant for any damage caused by improper maintenance and/or repair or work
by third parties.
Important safeguards for you and your new product:
Your product has been manufactured and tested with your safety in mind. However, improper use can
result in potential electrical shock or fire hazards. Please read and observe the following safety points
when installing and using your new product and save them for future reference.
1. Read Instructions
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for future reference.
4. Notice Warnings
All warnings on the product and in the operating instructions should be adhered to.
5. Cleaning
Disconnect the unit from the mains before cleaning the unit. Do not use abrasive
cleaners. Use a damp cloth ONLY for cleaning.
6. Water and Moisture
Do not use this product near water.
7. Transporting Product
This product should be moved with care. Quick stops, excessive force and uneven
surfaces may cause the product damages.
8. Accessories
Do not use accessories not recommended by PLURA Inc. as they may cause hazards.
9. Ventilation
Do not block any of the ventilation openings.

PBM-4KSeries USER MANUAL
6
Install in accordance with the manufacturer ’ s instructions.
10. Power Sources
This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply, consult your power supply
company.
11. Power Lead Polarization
This product is equipped with a three-wire grounding-type cord. This is a safety feature.
Do not use any other type power cord.
12. Power Cord Protection
Power-supply cords should be dressed so that they are not likely to be pulled or pinched
by items placed upon or against them.
13. Lightning
For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet. This will
prevent possible damage to the product due to lightning and power-line surges.
14. Grounding the product
This product must be grounded properly to comply with the safety regulations in the
country of use. If you are unsure of these regulations, please consult a qualified
electrician.
15. Servicing
Do not attempt to service this product by yourself as opening or removing covers may
expose you to dangerous voltages or other hazards. Refer all servicing to qualified
service personnel.
16. Damage Service Required
Isolate this product from the mains and refer to qualified service personnel under the
following conditions:
A. If the power-supply cord or plug is damaged.
B. If the front LCD front has been damaged.
C. If the product does not operate correctly by following the operating instructions. Use
only the user control buttons any improper adjustment of other controls may result
in damage and will often require extensive work by a qualified technician to restore
the product to its normal operation.
D. If the product has been dropped.
E. If the product exhibits a distinct change in performance.
17. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to p
erform safety checks to determine that the product is in proper operating condition and t
he warranty seal is provided .
18. Mounting
The product should be mounted on a wall as recommended in the instructions.
19. Power
This set operates on an AC supply; the voltage is as indicated on the label on the Manual.
This appliance must be earthed at all times through the chassis as well as through the
power lead.

PBM-4KSeries USER MANUAL
7
OVERVIEW
The Plura PBM-4K series is a multi-format 4K/UHD capable monitor series. The Plura PBM-4K is a great
tool for all UHD/4K, 3G broadcast systems and all other wide-range industries. The PBM-4K series was
designed and engineered for simple operation and future flexibility. The platform is built around a
powerful FPGA chipset. The core of this platform is based on fully programmable architecture. Future
proof expansion (i.e. additional features and functionalities) can and will be implemented in the field via
the Ethernet interface.
The PBM-4K series comes in multiple sizes 24”, 32”, 43”, 55” & 65” & 84”, all sizes offer the extensive and
well-know Plura prominent features.
PBM-4K Series, which supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed,
accurate color representation and stunning picture consistency that high-end production applications
require. The PBM-4K series offers HDR Display capabilities supporting PQ (ST-2084) & HLG standards.
The Plura PBM-4K Series, will support SMPTE 2082 and other earlier industry standards, 2 x 12G/3G/HD-
SDI inputs with active loop, 1 x SFP slot to support multiple IP & fiber I/O standards, 1 x HDMI 2.0, in
addition to all other legacy I/O.
ADVANCED FEATURES
The new PBM-4K has the following advanced features:-
1 x HDMI 2.0
2 x 12G, 6G, 3G, 1.5G
1 x SFP Slot supporting Multiple Standards
Quad 3G SQ and 2SI with 4KXpress
10 bit panel color depth
Supports up to 4096 x 2160 resolutions
HDR (High Dynamic Range) capabilities
PQ ( SMPTE ST 2084 ) & HLG ( Hybrid Log Gamma )
Side by side HDR / SDR mode
RGB 12 Bit Digital Signal Processing
178° Viewing Angle Display
Gamma Selectable (0.8 – 3.0)
Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
(ICAC) - Plura Intelligent Connection for Alignment & Calibration
3D LUT ( ITU-R BT 2020, Native, BT.709, SMPTE-C, EBU, NTSC, D-Cinema, 709)
Display Advanced Waveform & Vector Scope simultaneously with line select. “Coming soon”
Various and User defined Markers Display, Safe Area
Programmable 6 User Front Pushbutton Controls & GPI
Closed Caption (608/708) – North American Market
Cutting edge De-interlacing and Scaling Technology

PBM-4KSeries USER MANUAL
8
Fast Response Time for high motion video
Internal Monitor Display (IMD)
Ethernet & RS232 Remote Control
Underscan / Overscan / Normal / Zoom
Pixel to Pixel Mode, Tally, DC Operation
False Color and Peaking Filter / Focus Assist
Video Range test with adjustable Y & C values
Display LTC & DVITC time code with line select
Embedded Audio Input, Digital Audio Decoding
Internal Pattern Generator and Wall Control System
Built In Stereo Speaker, 16 CH Audio Metering Display

PBM-4KSeries USER MANUAL
9
Functional explanation of each part
1. Front Panel
PBM-224-4K
Front Keys Arrangements
HDMI
SDI1
SFP
MARKER
F1
F2
F3
MENU
SEL/
INPUT
UP
DOWN
STANDBY
ADJUST
SDI2
F5
F6
F4
Speaker
Front Key
LED
Tally LED
Headphone

PBM-4KSeries USER MANUAL
10
Front Keys Operations
Key Name
Operation
STANDBY
►Power ON/OFF Button.
SDI 1
►Select SDI 1.
SDI 2
►Select SDI 2.
HDMI
►Select HDMI.
SFP
►Select SFP.
MARKER
►Draw Marker on Screen ( Off -> 16:9 -> 4:3 … -> 2.35:1 ).
F1 ~ F6
►Executes user defined functions i.e.
Undefined, Aspect, Audio LV Meter, Audio Group, Audio Channel, H/V Delay,
Mono/Blue only, Gamma select, Marker size, Safety Maker Size, Marker Preset1,
Marker Preset2.
MENU
►Activates main OSD menu.
►Navigates higher menu levels in main OSD menu.
►► Exit OSD menu.
UP
►Increases speaker volume.
►Increases values for certain menu functions.
►Executes function (by OSD help commands) in main OSD menu.
DOWN
►Decreases speaker volume.
►Decreases values for certain menu functions.
►Executes function (by OSD help commands) in main OSD menu.
SEL/INPUT
►Activates and select input source.
►Changes input source.
►Executes functions (by OSD help commands) in main OSD menu.
Adjust
►Adjust Menu parameters (Volume -> Brightness -> Contrast -> Color -> Sharpness-> &
Tint)
►Turn Right = to UP button
►Turn Left = to DOWN button
Front panel LED Operations
- Stand-by mode = LED is Red
Speaker Out
Interface
Description
Speaker R out
8 ohm±15%, Max 2W + 2W
Speaker L out

PBM-4KSeries USER MANUAL
11
2. Rear Panel
I/O Details
DC Battery IN
PIN NO
Description
1
GND
2 , 3
4
24V
RJ-45
Remote PIN Assignment
1 PIN
COMMON(GND)
5 PIN
GPI 4 PORT
2 PIN
GPI 7 PORT
(STAND BY/POWER ON/OFF)
6 PIN
GPI 3 PORT
3 PIN
GPI 6 PORT
7 PIN
GPI 2 PORT
4 PIN
GPI 5 PORT
8 PIN
GPI 1 PORT
SDI 1
SFP IN
SDI 2
IN
OUT
IN
OUT
HDMI IN
RS-232C USB GPI ETHERNET
1
2
3
4
DC IN 24V
GPI
Control Terminal: 1 ~ 7 Pin
Contact Closure
Switch
ETHERNET

PBM-4KSeries USER MANUAL
12
Interface description
Interface
Description
SDI 1 IN
12G/3G/HD SDI Input
SDI 2 IN
SDI 1 OUT
SDI 1, SDI 2 Loop Out
SDI 2 OUT
SPF
SFP Module x 1(SFP1/SFP2 Input)
HDMI
High Definition Multimedia Input
RS232C
Auto color calibration
USB
Firmware Upgrade
GPI
GPI 1 ~ 7 Control Port
ETHERNET
Network Control
AC IN
AC90V ~ 240V, 50Hz/60Hz
DC IN
DC 24V
4.MENU OVERVIEW
In this system menu, there are several ways to maneuver the menu settings.
Most menus consist of three levels to select the necessary option, but some settings require greater depth.
If you press the MENU button, the first and second level of the menu system will appear on the monitor
screen. The third level can be displayed by pressing SEL/INPUT. If a menu has more than three levels,
the pop-up dialogue box will be displayed as the fourth or fifth level.
1. To show and remove the Menu
Press the MENU button to display the menu. Press the MENU button again to hide the menu.
2. To go to the next level
Press SEL/INPUT button.
3. To go back to the previous level
Press MENU button
GND Terminal: 8 Pin of RJ-45

PBM-4KSeries USER MANUAL
13
4. Typical Menu Operation
1. Press MENU button: The main menu will be displayed.
2. Use UP/DOWN button to select the desired menu option (icon).
3. While the desired menu option is selected, press SEL/INPUT to move to the second level.
4. Use UP/DOWN button to select the second menu option.
5. Press SEL/INPUT to move to the third level: Some menu options require additional steps.
6. Press MENU to return to the previous menu to return to monitor viewing.
5.BASIC OPERATION
1. Turning On the Monitor
1. Firstly, make sure you have connected the AC power cord or DC XLR connector. The monitor will switch
to standby or power on mode. If the monitor is in standby mode, press the ST-BY button to turn on the
monitor.
2. Select the source by using SEL/INPUT button on Keypad in front of monitor
2. Volume Adjustment
1. Press the ADJUST button on Keypad.
2. Press the MENU button on Keypad.
- OSD Audio menu -> Volume menu.

PBM-4KSeries USER MANUAL
14
6.On Screen Menus Selection and Adjustment
1. How to adjust the OSD screen
1. Press the MENU button and then UP/DOWN button to select each menu.
2. Press the SEL/INPUT button and then use UP/DOWN (SEL/INPUT)/MENU button to display the
available menu.
• The monitor's OSD (On Screen Display) may differ slightly from what is shown in this manual.

PBM-4KSeries USER MANUAL
15
7.SELECT VIDEO INPUT
1. How to Select Video Source by OSD
1. Press the SET/INPUT button and then UP/DOWN button to select the required video source.
2. Press the SET/INPUT button to select the desired video source.
3. If Input Name is enabled, The SET/INPUT button will show the input name previously programmed
instead of the source name.

PBM-4KSeries USER MANUAL
16
8.PICTURE MENU OPTIONS
1. Adjust
- Adjust the values of Brightness, Contrast, Color, Tint and
Sharpness range from -50 to 50
2. Color Temperature Control
- For Setting the Color temperature or adjusting RGB gain value
- User (User setting RGB gain value), VAR(3200K ~ 9300K), Most common value ( 9300K, 6500K,
5400K,3200K) and 3D LUT Calibration value(D65 – 6504K/C-6774K/D-Cinema 6302K)
- Color Space: Native/BT.709/SMPTE-C/EBU/NTSC/D-Cinema/BT.2020

PBM-4KSeries USER MANUAL
17
3. Aspect Ratio
- For setting the aspect ratio.
- Pixel to Pixel: Video input will match the video display resolution (NO Scaling). If input resolution is
higher than panel resolution, the video will be downscaled to match the panel resolution.
- Full Screen: The video input will be scaled to the max panel resolution.
- Pixel to Pixel, Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1: The video will displayed with based on
the selected aspect ratio.
- Function key can be assigned to the aspect ratio and will be rotating through this sequence, Pixel to
Pixel, Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
- AFD (Auto Format Direct) function can be turned ON or OFF
4. Mono/Blue Only
- Mono color: For selecting monochrome images.
- Blue Only: Blue Video channel is enabled
5. Peaking Filter
-Peaking Filter: Peaking Filter On/Off.
-Peaking Color: Red/Blue/White/Violet.
-Peaking Level: 0~100.

PBM-4KSeries USER MANUAL
18
6. False Color
- False Color on/off
7. HDR Mode
- ST 2084-300 / ST 2084-1000 / ST 2084-10000 / HLG
- HDR Demo on/off
8. Output Range
- Normal (16~235)/Full (0~255)

PBM-4KSeries USER MANUAL
19
9.AUDIO MENU OPTIONS
1. SDI Output
- Select primary or secondary audio group to extract. (Group 1~4)
- Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off)
2. Level Meter
- Display the audio level meter on screen in SDI input.
-Pair: Respectively By Audio Pair (L&R) display
-Group: Respectively By Audio Group display

PBM-4KSeries USER MANUAL
20
- Level Meter Position selects. (TOP/Bottom)
- Level Meter Scale mode selects. (BBC / EBU / VU / NORDIC / DIGITAL / DIN / EXPAND DIN)
3. Volume
