USER’S MANUAL

PNI GreenHouse SC1800B

3KW

ABOUT THIS MANUAL

Purpose

This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read

this manual carefully before installations and operations. Keep this manual for future reference.

Scope

This manual provides safety and installation guidelines as well as information on tools and wiring.

The following cases are not within the scope of warranty:

(1) Out of warranty.

(2) Series number was changed or lost.

(3) Battery capacity was declined or external damaged.

(4) Inverter was damaged caused of transport shift, remissness,ect external factor.

(5) Inverter was damaged caused of irresistible natural disasters.

(6) Not in accordance with the electrical power supply conditions or operate environment caused damage.

SAFETY INSTRUCTIONS

WARNING: This chapter contains important safety and operating instructions. Read and

keep this manual for future reference.

1. Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all

appropriate sections of this manual.

2. CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.

Other types of batteries may burst, causing personal injury and damage.

3. Do not disassemble the unit. Take it to a qualified service center when service or repair is required.

Incorrect re-assembly may result in a risk of electric shock or fire.

4. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.

Turning off the unit will not reduce this risk.

5. CAUTION –Only qualified personnel can install this device with battery.

6. NEVER charge a frozen battery.

7. For optimum operation of this inverter/charger, please follow required spec to select appropriate cable

size. It’s very important to correctly operate this inverter/charger.

8. Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop

a tool to spark or short circuit batteries or other electrical parts and could cause an explosion.

9. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please

refer to INSTALLATION section of this manual for the details.

10. Fuses (1 piece of 150A,63VDC for 1KW,4 pieces of 40A, 32VDC for 2KW and 6 pieces of 40A, 32VDC

for 3KW) are provided as over-current protection for the battery supply.

11. GROUNDING INSTRUCTIONS -This inverter/charger should be connected to a permanent grounded

wiring system. Be sure to comply with local requirements and regulation to install this inverter.

12. NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input

short circuits.

13. Warning!! Only qualified service persons are able to service this device. If errors still persist after

following troubleshooting table, please send this inverter/charger back to local dealer or service center

for maintenance.

INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to

offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable

and easy-accessible button operation such as battery charging current, AC/solar charger priority, and

acceptable input voltage based on different applications.

Features

Pure sine wave inverter

Configurable input voltage range for home appliances and personal computers via LCD setting

Configurable battery charging current based on applications via LCD setting

Configurable AC/Solar Charger priority via LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

Basic System Architecture

The following illustration shows basic application for this inverter/charger. It also includes following devices to

have a complete running system:

Generator or Utility.

PV modules (option)

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances

such as tube light, fan, refrigerator and air conditioner.

Figure 1 Hybrid Power System

Product Overview

INSTALLATION

Unpacking and Inspection

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should

have received the following items inside of package:

The unit x 1

User manual x 1

USB cable x 1

Software CD x 1

Preparation

Before connecting all wirings, please take off bottom cover by removing two screws as shown below

Mounting the Unit

Consider the following points before selecting where to install:

⚫Do not mount the inverter on flammable construction

materials.

⚫Mount on a solid surface

⚫Install this inverter at eye level in order to allow the LCD

display to be read at all times.

⚫For proper air circulation to dissipate heat, allow a clearance

of approx. 200 mm to the side and approx. 300 mm above

and below the unit.

⚫The ambient temperature should be between 0°C and 55°C

to ensure optimal operation.

⚫The recommended installation position is to be adhered to

the wall vertically.

⚫Be sure to keep other objects and surfaces as shown in the

below diagram to guarantee sufficient heat dissipation and

to have enough space for removing wires.

SUITABLE FOR MOUNTING ON CONCRETE OR

OTHER NON-COMBUSTIBLE SURFACE ONLY.

Install the unit by screwing two screws.

1-3KW

Battery Connection

CAUTION: To safety operation and regulation compliance, it’s requested to install a separate DC over-current

protector or disconnect device between battery and inverter. It may not be requested to have a disconnect

device in some applications, however, it’s still requested to have over-current protection installed. Please refer

to typical amperage in below table as required fuse or beaker size.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use

appropriate cable for battery connection. To reduce risk of injury, please use the

proper recommended cable and terminal size as below.

Recommended battery cable and terminal size:

Model

Typical Amperage

Battery capacity

Wire Size

1KW

84A

100AH

1*4AWG

200AH

2*6AWG

2KW

84A

100AH

1*AWG

200AH

2*6AWG

3KW

125A

100AH

1*4AWG

200AH

2*6AWG

Please follow below steps to implement battery connection:

1. Assemble battery ring terminal based on recommended battery cable and terminal size.

2.1KW model supports 12VDC system. Connect all battery packs as below chart, It’s suggested to connect at

least 100Ah capacity battery for 1KW model. 2KW/3KW model supports 24VDC system. Connect all battery

packs as below chart, It’s suggested to connect at least 100Ah capacity battery for 2KW-3KW model.

2. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are

tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly

connected and ring terminals are tightly screwed to the battery terminals.

WARNING: Shock Hazard

Installation must be performed with care due to high battery voltage in series.

CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring

terminal. Otherwise, overheating may occur.

CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are

connected tightly.

CAUTION!! Before making the final DC connection or closing DC breaker/disconnector, be sure

DC (+) must be connected to DC (+) and DC (-) must be connected to DC (-).

AC Input/Output Connection

CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between

inverter and AC input power source. This will ensure the inverter can be securely disconnected during

maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is 10A

for 1kW, AC breaker is 20A for 2KW, 32A for 3KW.

CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT-misconnect input

and output connectors.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input

connection. To reduce risk of injury, please use the proper recommended cable size as below.

Suggested cable requirement for AC wires

Model

Gauge

Torque Value

1KW

16 AWG

0.8~ 1.0Nm

2KW

14 AWG

0.8~ 1.0Nm

3KW

12 AWG

1.2~ 1.6Nm

Please follow below steps to implement AC input/output connection:

1. Before making AC input/output connection, be sure to open DC protector or disconnector first.

2. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3 mm.

3. Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws. Be

sure to connect PE protective conductor ( ) first.

→Ground (yellow-green)

L→LINE (brown or black)

N→Neutral (blue)

1-3KW

WARNING:

Be sure that AC power source is disconnected before attempting to hardwire it to the unit.

4. Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws.

Be sure to connect PE protective conductor ( ) first.

→Ground (yellow-green)

L→LINE (brown or black)

N→Neutral (blue)

1-3KW

5. Make sure the wires are securely connected.

CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it's

CAUTION: Important

Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause

utility short-circuited when these inverters are working in parallel operation.

required to have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and

recovers in a short time, it will cause damage to your connected appliances. To prevent this kind of damage,

please check manufacturer of air conditioner if it's equipped with time-delay function before installation.

Otherwise, this inverter/charger will trig overload fault and cut off output to protect your appliance but

sometimes it still causes internal damage to the air conditioner.

PV Connection

CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between

inverter and PV modules.

WARNING! All wiring must be performed by a qualified personnel.

WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV

module connection. To reduce risk of injury, please use the proper recommended cable size as below.

Model

Typical Amperage

Cable Size

Torque

1KW/2KW/3KW

50A

8 AWG

1.4~1.6Nm

60A

8 AWG

1.4~1.6Nm

80A

6 AWG

2.0~2.4Nm

.PV Module Selection:

When selecting proper PV modules, please be sure to consider below parameters:

1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.

2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.

Solar Charging Mode

MPPT charger

PWM charger

INVERTER MODEL

1KW

2-3KW

1KW

Charging Current

50A

60A/80A

50A

Max. PV Array Open Circuit

Voltage

60Vdc

100Vdc

145Vdc

70Vdc

55dc

PV Array Voltage Range

15~60Vdc

30~80Vdc

30~130Vd

30~32Vdc

15~18V

Min. battery voltage for PV

charge

8.5Vdc

17Vdc

8.5Vdc

System DC Voltage

12Vdc

24Vdc

12Vdc

Please follow below steps to implement PV module connection:

1. Remove insulation sleeve 10 mm for positive and negative conductors

2. Check correct polarity of connection cable from PV modules and PV input

connectors. Then, connect positive pole (+) of connection cable to positive

pole (+) of PV input connector. Connect negative pole (-) of connection cable

to negative pole (-) of PV input connector.

3. Make sure the wires are securely connected.

Recommended PV module configuration

PV Module Spec.（reference）

-250W

-Vmp:30.9Vdc

-Imp:8.42A

-Voc:37.7Vdc

-Isc:8.89A

-Cells:60

Inverter Model

Solar Input

Q’ty of modules

MPPT-50A((2-3KW)

2S4P

8PCS

MPPT-50A((1KW)

1S6P

6PCS

MPPT-60A

3S3P

9PCS

MPPT-80A

3S4P

12PCS

PWM-50A

1S6P

6PCS

Solar panel installation schematic

MPPT-50A(2-3KW) MPPT-60A MPPT-80A PWM-50A(1-3KW)

MPPT-50A(1KW)

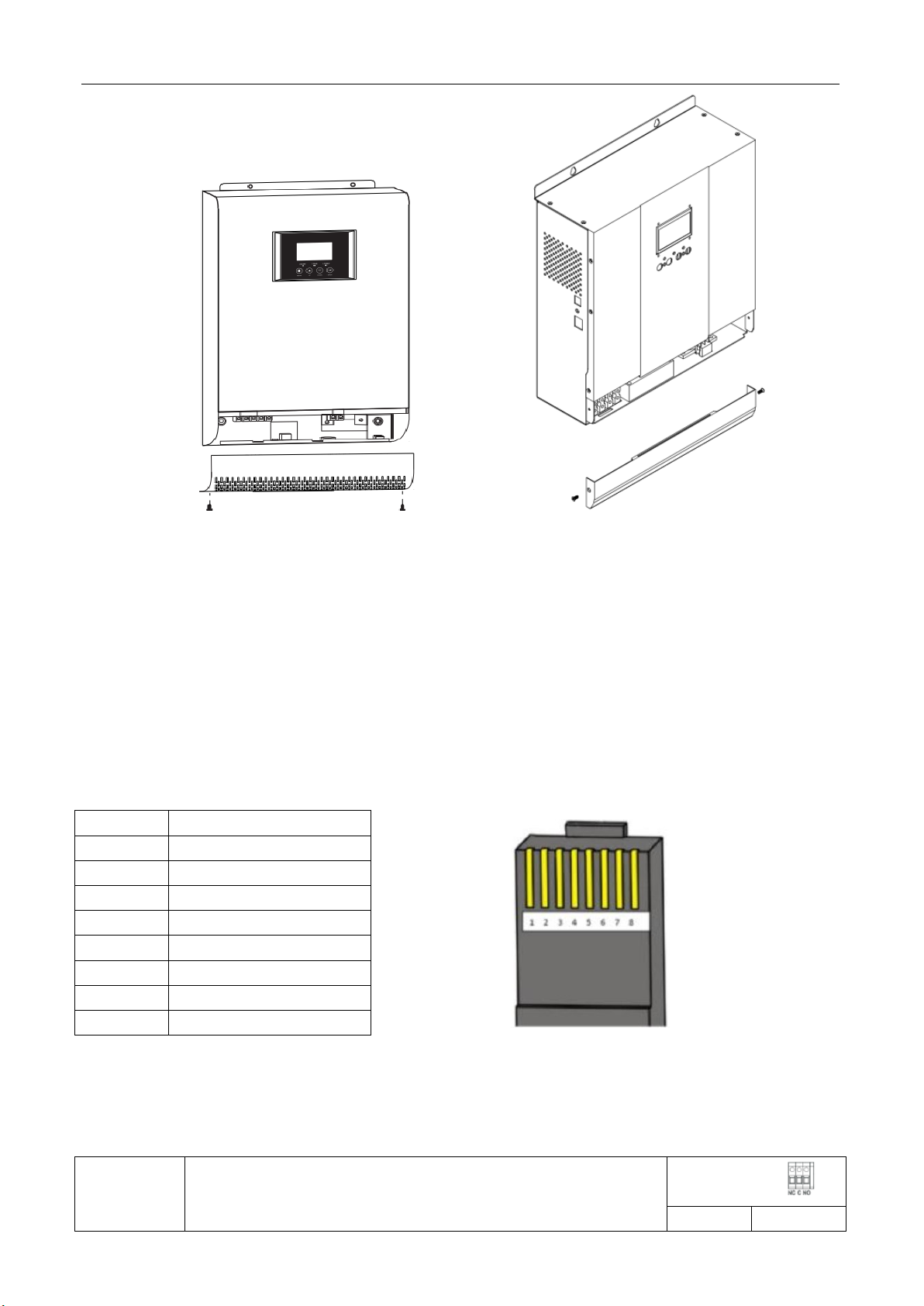

Final Assembly

After connecting all wirings, please put bottom cover back by screwing two screws as shown below.

Communication Connection

Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer

and follow on-screen instruction to install the monitoring software. For the detailed software operation, please

check user manual of software inside of CD.

WARNING：It’s forbidden to use network cable as the communication cable to directly communicate with the PC

port. Otherwise,the internal components of the controller will be damaged.

WARNING：RJ45 interface is only suitable for the use of the company’s supporting products or professional

operation.

Below chart shows RJ45 Pins definition

Definition

RS-485-B

RS-485-A

GND

Dry Contact Signal

There is one dry contact (3A/250VAC) available on the rear panel. It can be used to deliver signal to external

device when battery voltage reaches warning level.

Unit Status

Condition

Dry contact port

NC & C

NO & C

Power Off

Unit is off and no output is powered.

Open

Power On

Output is powered from Utility

Open

Output is

powered

from Battery

or Solar.

Program 01

set as Utility

Battery voltage < Low DC warning

voltage

Open

Battery voltage > Setting value in

Program 21 or battery charging

reaches floating stage

Open

Program 01

is set as SBU

or Solar first

Battery voltage < Setting value in

Program 20

Open

Battery voltage>Setting value in

Program 21 or battery charging

reaches floating stage

Open

OPERATION

Power ON/OFF

Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch

(located on the button of the case) to turn on the unit.

Operation and Display Panel

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes

three indicators, four function keys and a LCD display, indicating the operating status and input/output

power information.

LED Indicator

Messages

AC/INV

Green

Solid On

Output is powered by grid in Line mode.

Flashing

Output is powered by battery or PV in battery mode

CHG

Yellow

Flashing

Battery is charging or discharging.

FAULT

Red

Solid On

Fault occurs in the inverter.

Flashing

Warning condition occurs in the inverter.

LCD display

LED indicators

Function keys

Function Keys

Function Key

Description

Enter reset mode or setting mode go to previous selection.

Increase the setting data.

DOWN

Decrease the setting data.

ENTER

Enter setting mode and Confirm the selection in setting mode go to next

selection or exit the reset mode.

LCD Display Icons

Icon

Function description

Input Source Information and Output Information

Indicates the AC information.

Indicates the DC information.

Indicate input voltage, input frequency, PV voltage, battery voltage and

charger current.

Indicate output voltage, output frequency, load in VA, load in Watt and

discharging current.

Configuration Program and Fault Information

Indicates the setting programs.

Indicates the warning and fault codes.

Warning: flashing with warning code.

Fault: lighting with fault code.

Battery Information

Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery

mode and charging status in line mode.

In AC mode, it will present battery charging status.

Status

Battery voltage

LCD Display

Constant

Current mode /

Constant

Voltage mode

<2V/cell

4 bars will flash in turns.

2 ~ 2.083V/cell

Bottom bar will be on and the other three

bars will flash in turns.

2.083 ~ 2.167V/cell

Bottom two bars will be on and the other

two bars will flash in turns.

> 2.167 V/cell

Bottom three bars will be on and the top

bar will flash.

Batteries are fully charged.

4 bars will be on.

In battery mode, it will present battery capacity.

Load Percentage

Battery Voltage

LCD Display

Load >50%

< 1.717V/cell

1.717V/cell ~ 1.8V/cell

1.8 ~ 1.883V/cell

> 1.883 V/cell

50%> Load > 20%

< 1.817V/cell

1.817V/cell ~ 1.9V/cell

1.9 ~ 1.983V/cell

> 1.983V/cell

Load < 20%

< 1.867V/cell

1.867V/cell ~ 1.95V/cell

1.95 ~ 2.033V/cell

> 2.033V/cell

Load Information

Indicates overload.

Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.

0%~24%

25%~49%

50%~74%

75%~100%

Mode Operation Information

Indicates unit connected to the mains.

Indicates unit connected to the PV panel.

Indicates load is supplied by utility power.

Indicates the solar charger is working.

Indicates the DC/AC inverter circuit is working.

Mute Operation

Indicates unit alarm is disabled.

LCD Setting

After pressing and holding "ENTER" button for 2 seconds, the unit will enter setting mode, and then,

press "ENTER" or "MENU" button to confirm the selection and exit. Press "UP" or "DOWN"

button to select setting programs.

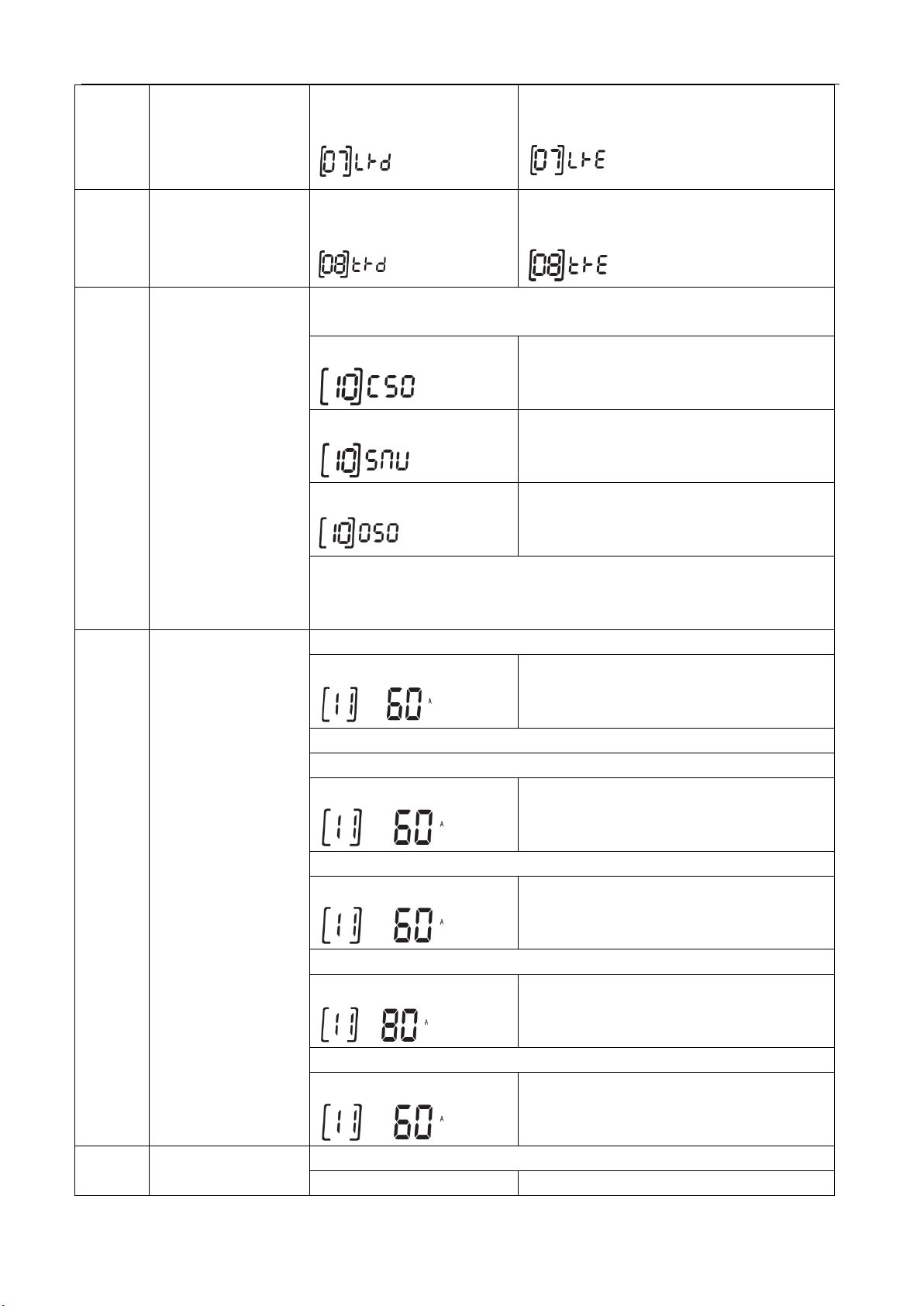

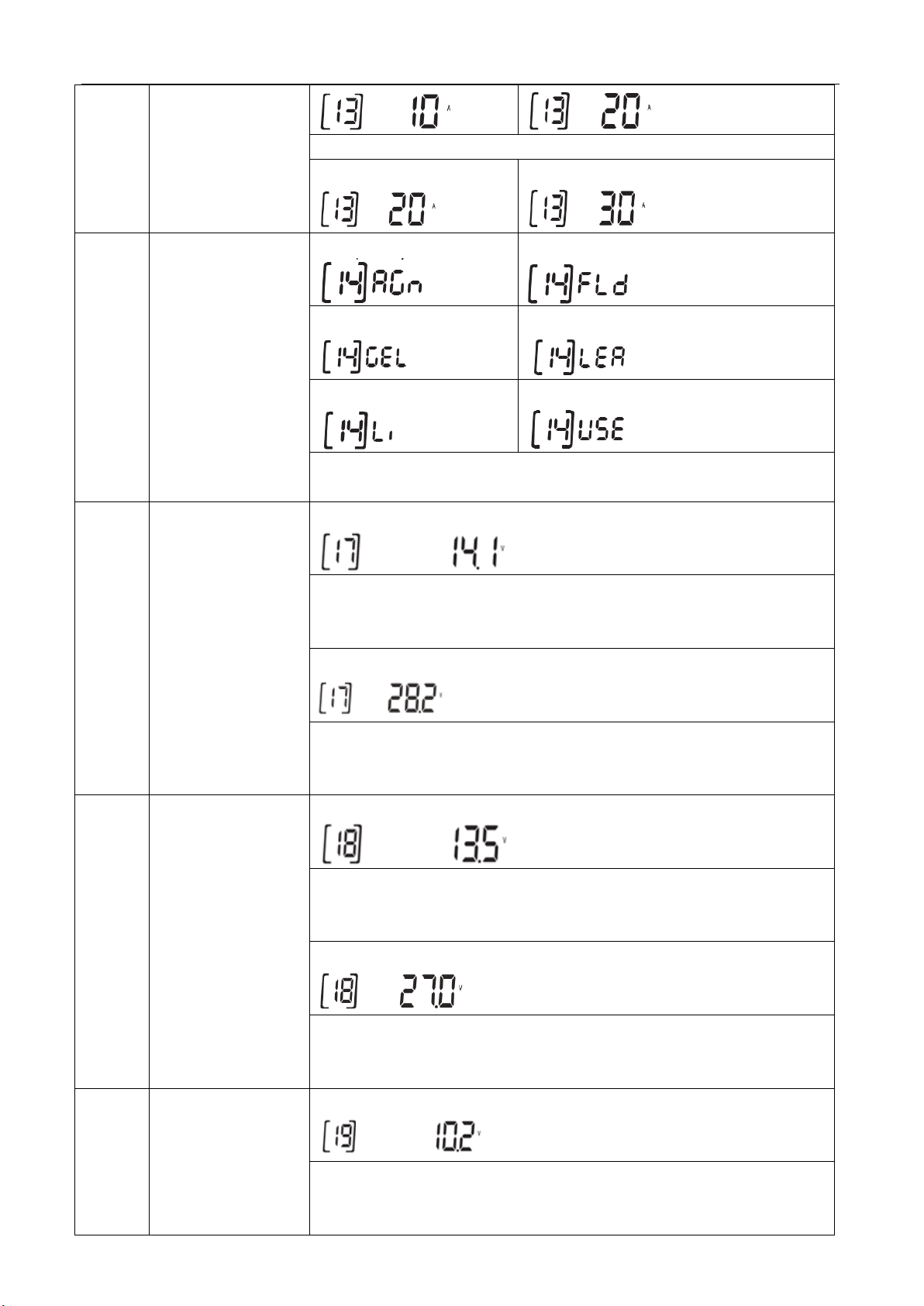

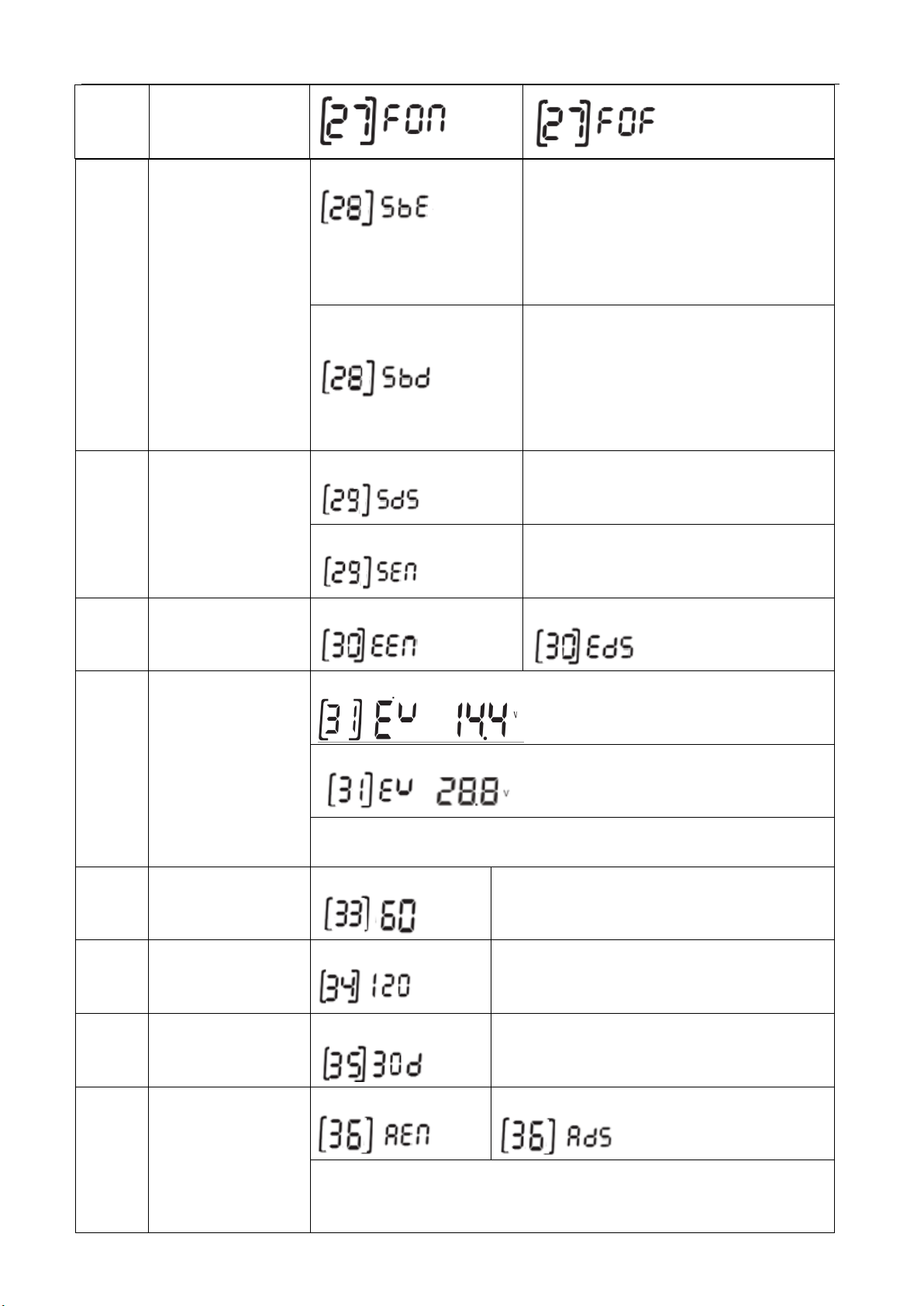

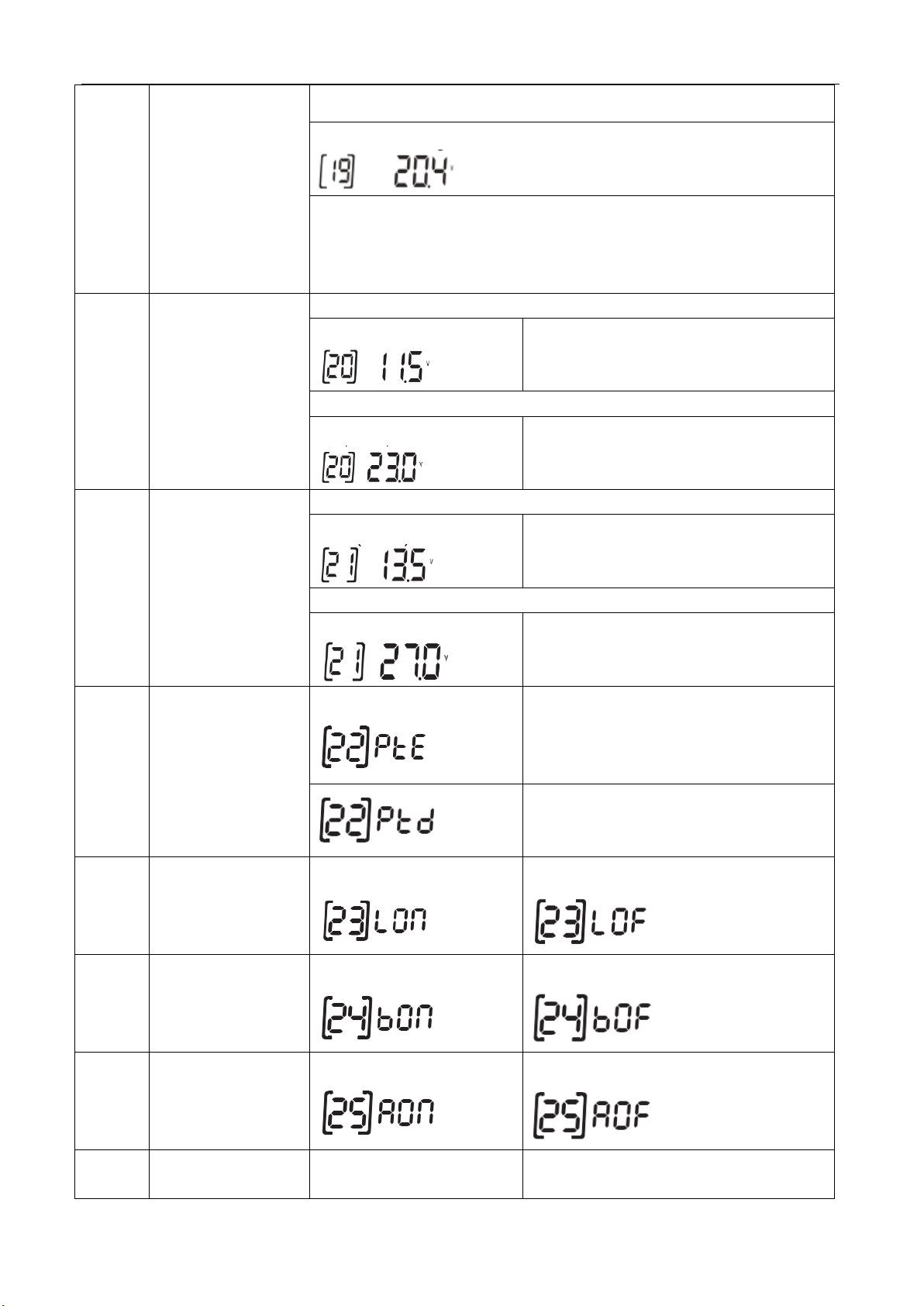

Setting Programs:

Program

Description

Selectable option

Exit setting mode

Escape

Output source

priority selection

Solar energy provides power to the loads as

first priority.

If battery voltage has been higher than the

setting point in program 21 for 5 minutes, the

inverter will turn to battery mode, solar and

battery will provide power to the load at the

same time.

When the battery voltage drops to the setting

point in program 20, the inverter will turn to

bypass mode, utility provides power to the

load only, and the solar will charge the

battery at the same time.

Solar energy provides power to the loads as

first priority.

If battery voltage has been higher than the

setting point in program 21 for 5 minutes,

and the solar energy has been available for 5

minutes too, the inverter will turn to battery

mode, solar and battery will provide power to

the load at the same time.

When the battery voltage drops to the setting

point in program 20, the inverter will turn to

bypass mode, utility provides power to the

load only, and the solar will charge the

battery at the same time.

(default)

Utility will provide power to the loads as first

priority. Solar and battery energy will provide

power to the loads only when utility power is

not available.

AC input voltage

range

Appliances (default)

If selected, acceptable AC input voltage

range will be within 90-280VAC.

UPS

If selected, acceptable AC input voltage

range will be within 170-280VAC.

VDE

If selected, acceptable AC input voltage

range will conform to

VDE4105(184VAC-253VAC)

GEN

When the user uses the device to connect the

generator，select the generator mode.

Output voltage

Set the output voltage

amplitude,(220VAC-240VAC)

Output frequency

50HZ(default)

60HZ

Solar supply priority

Solar energy provides power to charge

battery as first priority

(default)

Solar energy provides power to the loads as

first priority

Overload bypass:

When enabled, the

unit will transfer to

line mode if overload

occurs in battery

mode.

Bypass disable

Bypass enable

(default)

Auto restart when

overload occurs

Restart disable

(default)

Restart enable

Auto restart when

over temperature

occurs

Restart disable

(default)

Restart enable

Charger source

priority: To configure

charger source

priority

If this inverter/charger is working in Line, Standby or Fault mode, charger

source can be programmed as below:

Solar first

Solar energy will charge battery as first

priority. Utility will charge battery only when

solar energy is not available.

Solar and Utility (default)

Solar energy and utility will charge battery at

the same time.

Only Solar

Solar energy will be the only charger source

no matter utility is available or not.

If this inverter/charger is working in Battery mode or Power saving mode,

only solar energy can charge battery. Solar energy will charge battery if it's

available and sufficient.

Maximum charging

current: To configure

total charging current

for solar and utility

chargers.(Max.

charging

current=utility

charging current +solar

charging current)

1KW

60A (default)

Setting range is from 1 A to 70A.
