Quantum™ Pro
User Manual
Revision C

June 2022
Copyright Pregis LLC ii
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
Table of Contents
Introduction..................................................................................1
General Safety ..............................................................................2
Assembly and Inspection ...............................................................3
Understanding the Controls ...........................................................3
Head Assembly Controls ........................................................4
Operation .....................................................................................4
Manual Mode: .......................................................................5
Manual Feed-to-Length (FTL) Mode ........................................6
Auto Feed-to-Length (A-FTL) Mode ........................................7
Quantum Magazine Loading (Fanfold Paper)...................................9
Quantum Pro Stand Height Adjustment ........................................11
Maintenance ...............................................................................12
Error Descriptions ....................................................................... 13
Troubleshooting..........................................................................14
Machine Specifications ................................................................15
Revision Table ............................................................................ 18
LANGUAGES OF OPERATION DISCLAIMER
The original version of this manual is in English and denoted “Original Instructions” in the top center header.
All translated versions are denoted “Translation of Original Instructions” in the same location.

June 2022
Copyright Pregis LLC iii
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
Property of Pregis LLC
227 W Monroe St
Suite 4100
Chicago, IL 60606
United States of America
Authorized CE Representative
ACC –Services Contact
1877 Kirby Lane
Kyle, Texas 78640
United States of America

June 2022
Copyright Pregis LLC 1
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
Introduction
The Quantum Pro dispenses recycled paper void fill both on demand and at predetermined lengths, as
needed. These user-friendly systems save storage space and reduce packaging material waste while
providing unmatched safety, reliability and enhanced ergonomic features that increase operator
productivity.
QUANTUM PRO Paper Void Fill Material:
Item #
Formulation
Bundle Width
Bundle Length
4068969
30#
30-in
1,690-ft
4068622
30#
15-in
1,690-ft
4077694
45#
15-in
1,340-ft
4079017
50-gsm
750-mm
515-m
4079015
50-gsm
375-mm
515-m
4079016
70-gsm
375-mm
408-m
4074239
52-gsm
375-mm
515-m

June 2022
Copyright Pregis LLC 2
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
1General Safety
Operator safety and the safety of others in the work area depend on the operator using good judgment
and reasonable care while utilizing the machine. This user manual and the warning labels affixed to the
machine provide notification of specific potential hazards. Please read and understand the manual including
all of the danger, warnings, and caution statements. If after reading the manual you have questions,
contact your supervisor or your Pregis service technician to get answers before working with the machine.
1. Only authorized personnel may use the equipment.
2. Only trained authorized persons will carry out any adjustments, repairs, maintenance or cleaning
with the equipment isolated from power supply and no longer in motion.
3. Never deface or remove factory installed warning decals. If a decal ever becomes lost, damaged,
or illegible, report this condition to a supervisor and obtain a replacement decal from Pregis.
4. Keep the work area clean and uncluttered. Walking surfaces should always be free of packing
material and debris to prevent a slipping or tripping hazard.
5. Ensure that all covers, guards and other safety devices are in place. NEVER defeat a safety device
for any reason.
6. Follow the recommended procedures in this manual.
7. Never leave the equipment unattended while operating. Shut the machine off if you must leave the
work area.
8. Keep body parts and clothing away from moving components. NEVER reach into the machine for
any reason while it is in motion.
9. Understand proper material path and safe loading procedures.
10. Understand which adjustments are operator adjustments; contact maintenance person for all other
adjustments.
11. DO NOT operate equipment if you are under the influence of alcohol, drugs or medications that
can make you less alert or affect your judgment.

June 2022
Copyright Pregis LLC 3
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
2Assembly and Inspection
Parts to be assembled and inspected by Pregis technicians.
If machine requires maintenance or repair, contact Pregis Tech Service Hotline
3Understanding the Controls

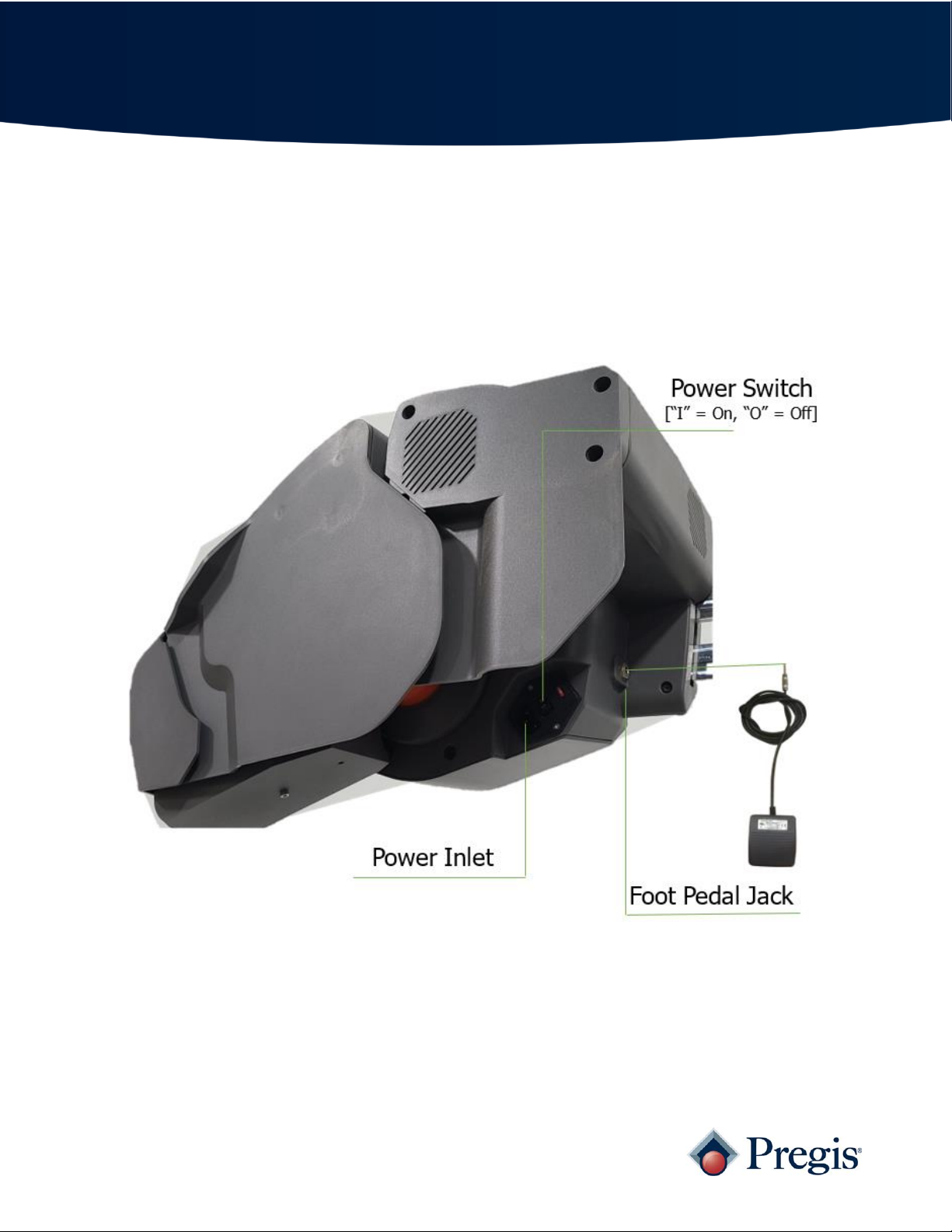

The Power Switch for the Quantum Series is used to turn the electrical power “ON” or “OFF” and is located
on the right side of the head assembly, next to the power inlet.
When operating the Quantum Pro with a foot pedal, its functions include:
•Starting and stopping the machine (i.e. dispensing material)
•Manual Feed to Length (MFTL), Feed to Length (FTL), Auto-Feed to Length (A-FTL) functions
•Override for all modes of operation

June 2022
Copyright Pregis LLC 4
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
3.1 Head Assembly Controls
4Operation
1. DO NOT attempt to defeat any safety feature.
2. DO NOT place any part of your person or foreign object into the drive.
3. DO NOT operate the machine if any part of your body becomes fatigued.
4. DO NOT operate the machine if you are under the influence of alcohol, drugs or medications that
can make you less alert or affect your judgment.
Operating Modes:
•Manual Mode
•Manual Feed-to-Length (FTL) Mode
•Auto Feed-to-Length (A-FTL) Mode

June 2022
Copyright Pregis LLC 5
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions

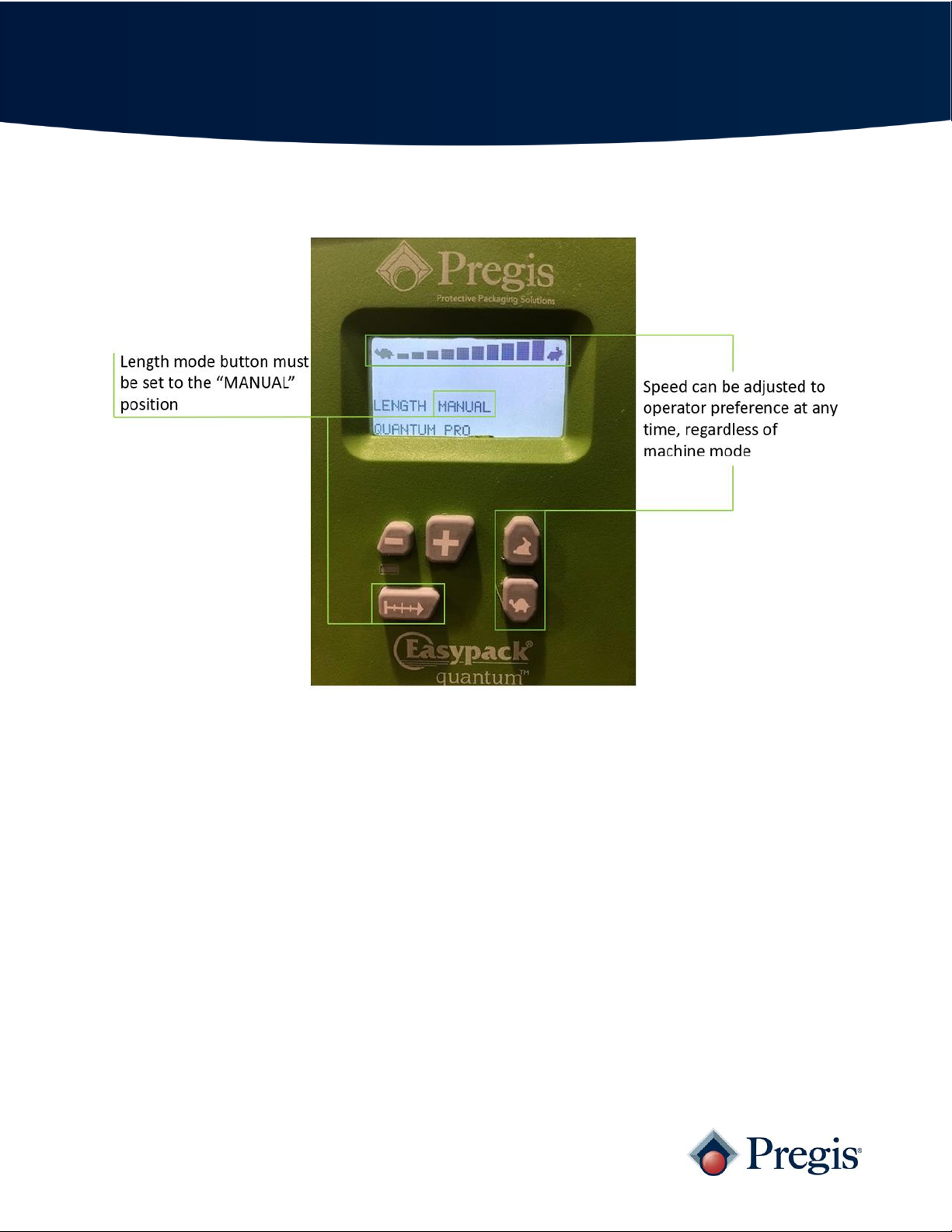

4.1 Manual Mode:
The manual setting allows the operator to dispense material using the foot pedal only. In this mode,
machine speed can be adjusted to user preference as needed.

June 2022
Copyright Pregis LLC 6
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
4.2 Manual Feed-to-Length (FTL) Mode
The manual feed-to-length (FTL) setting allows the operator to dispense a preset length of material by
activating the foot pedal briefly (i.e. “tapping” the foot pedal). Once the foot pedal is “tapped” (activated
briefly) the machine will dispense a preset length of material. The operator must repeat the process to
receive additional, preset lengths of material. In this mode, the foot pedal also acts as an override. To
receive a length of material greater than the preset length, press and hold the foot pedal until the desired
length is received. The preset length can be adjusted (using the add/subtract buttons on head assembly)
as needed.

June 2022
Copyright Pregis LLC 7
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
4.3 Auto Feed-to-Length (A-FTL) Mode
The auto feed-to-length (A-FTL) setting allows the operator to dispense a preset length of material. Once
the paper has been removed, the machine will automatically dispense and tear another preset length of
material. This process will continue as long as the feature is active. The foot pedal also acts as an override
in this mode. To receive a length of material greater than the preset length, press and hold the foot pedal
until the desired length is received. The preset length can be adjusted (using the add/subtract buttons on
head assembly) as needed.

June 2022
Copyright Pregis LLC 8
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions

June 2022
Copyright Pregis LLC 9
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
5Quantum Magazine Loading (Fanfold Paper)

June 2022
Copyright Pregis LLC 10
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions

June 2022
Copyright Pregis LLC 11
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions

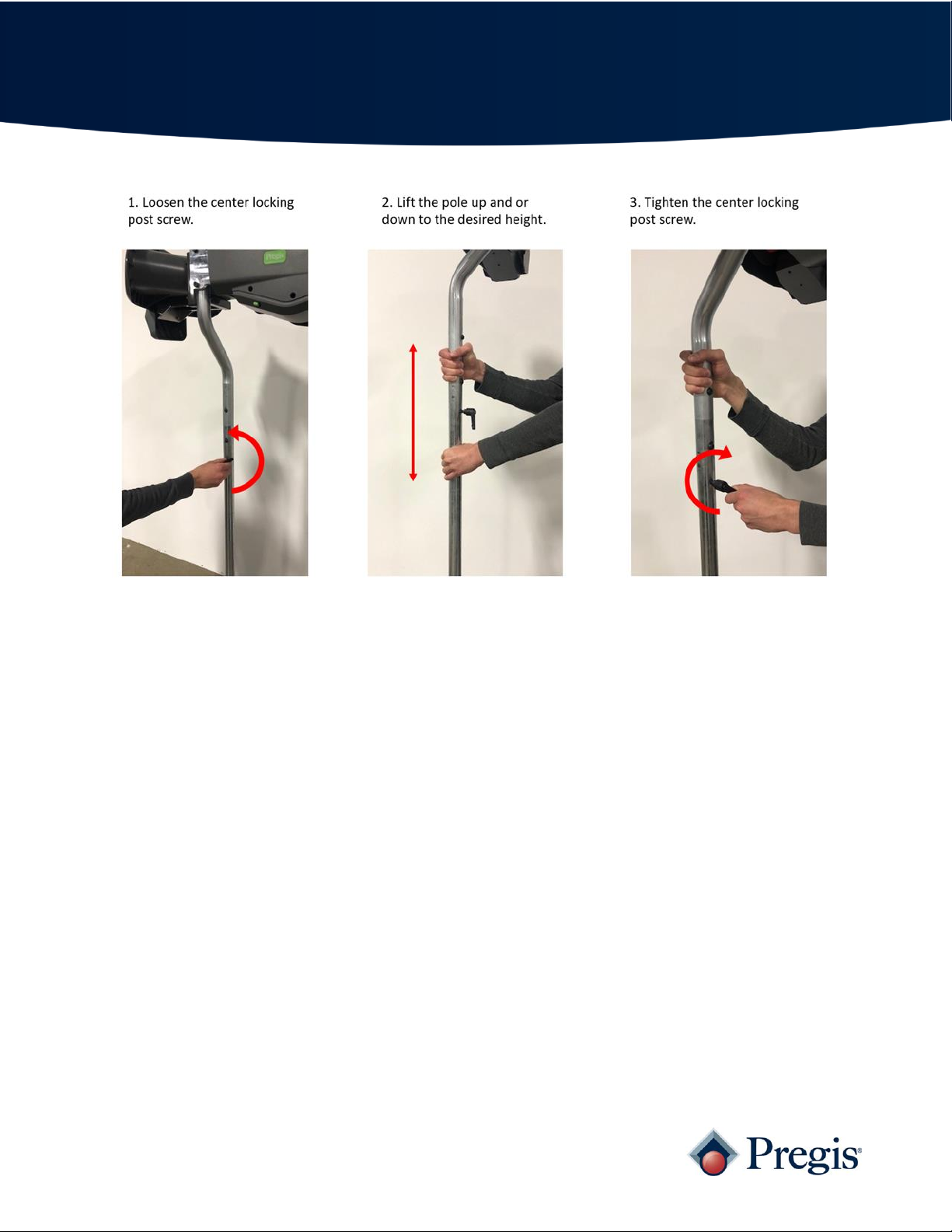

6Quantum Pro Stand Height Adjustment

June 2022
Copyright Pregis LLC 12
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
7Maintenance
The Quantum Pro is designed to require little to no maintenance. The following recommended maintenance
items will help keep the Quantum Pro operating correctly and minimize any down time on your packaging
line. If there are any questions regarding the maintenance of the Quantum Pro, please contact your local
Pregis Service Technician for assistance.
Disconnect the power cord before performing ANY maintenance to the machine other than inspections.
Monthly Maintenance:
1. Machine should be cleaned periodically to maintain a clean work environment.
2. Verify all components are working properly. If there are any issues, please contact your Pregis
Service Technician.

June 2022
Copyright Pregis LLC 13
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions

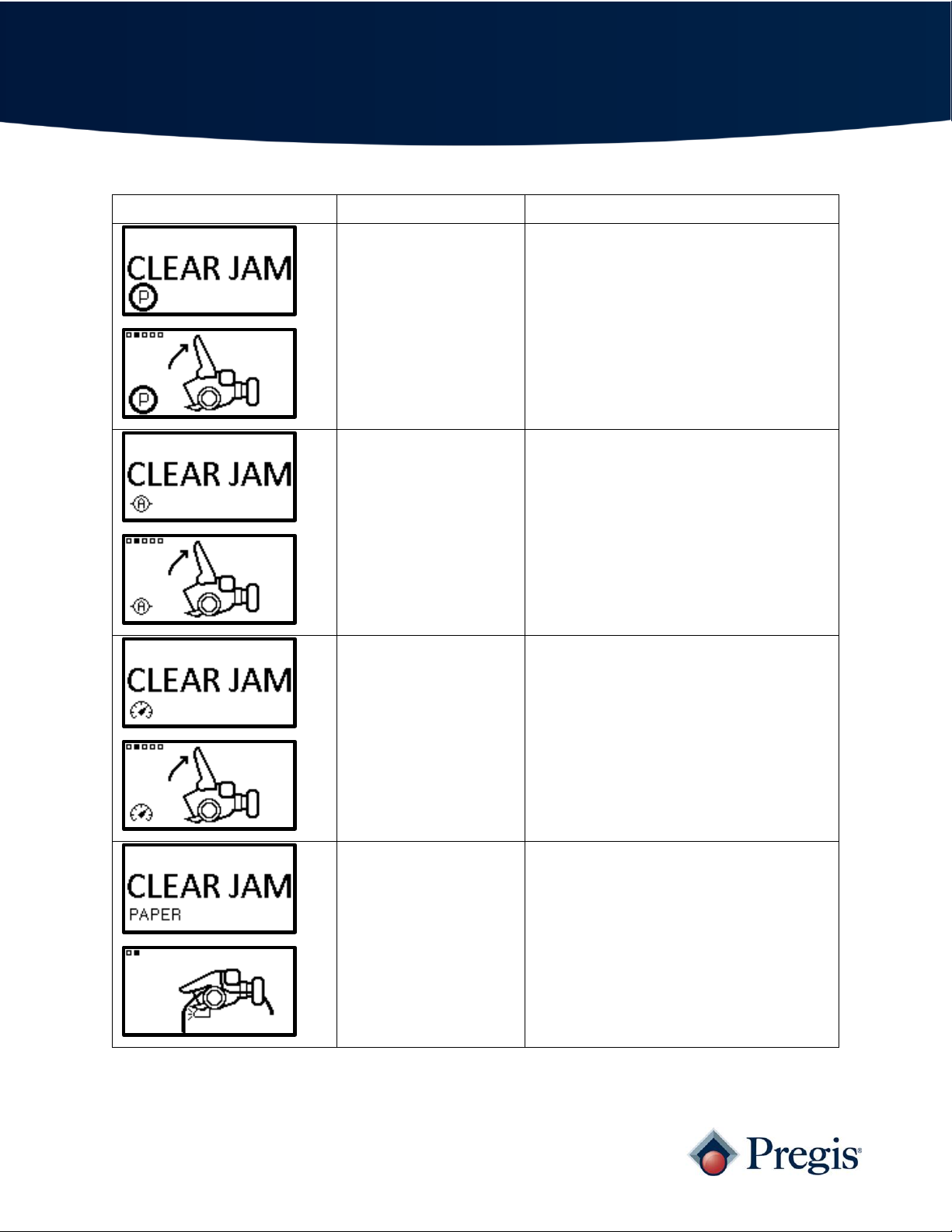

8Error Descriptions
Error Screen
Description
Troubleshooting
Clear Jam –Paddle
Occurs when the paddle
does not reach the
expected position.
Clear Paper
While machine is off, open and close the
front paddle, then power cycle machine
Clear Jam –Overcurrent
Occurs when the machine
draws too much current
over a specified time
period.
Open and close duckbill
Power machine off, unplug and replug in the
power cord, power on the machine
Clear Jam –Odometer
Occurs when the orange
drive roller does not spin.
While the machine is off, open the duckbill,
manually rotate the orange drive roller, close
the duckbill, power on the machine
Clear Jam –Paper
Occurs when the paper
sensor does not detect
paper during the dispense
cycle.
•Clear any paper that is obstructing the
paper sensor located on the front of the
machine, below the paddle
•Switch operating mode to FTL mode,
switch back to AFTL
This error only occurs when operating in
AFTL mode
*Open and close duckbill to clear error messages. If errors persist, call Pregis Tech Service Hotline

June 2022
Copyright Pregis LLC 14
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
9Troubleshooting
Problem
Cause
Solution
Machine will not power on
Loose or broken connection to
the power inlet module
Breaker has been tripped
Blown Fuse
Re-plug in power cord and
ensure there are no nicks in the
wire
Reset facility circuit breaker;
confirm no other equipment is
running on the same line
Call Pregis Service
Machine is powered but will not
run
Foot pedal cables are not
connected properly
Sensor is covered by paper
Verify cable connections
Ensure sensors are unobstructed
Call Pregis Service
Paper not tearing
Maintenance required.
Call Pregis Service
Upper roller assembly keeps
popping up while running
material
Magnet block assembly not
properly adjusted
Call Pregis Service
If problems persist, call Pregis Tech Service Hotline

June 2022
Copyright Pregis LLC 15
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
10 Machine Specifications
Machine Weight: 44 lbs (20.41 kg)
Machine and Floor Stand: 69 lbs (31.75 kg)
Magazine Weight (Un-loaded): 95 lbs (43.09 kg)
Power Requirements: 120/230 VAC, 60/50 Hz, 3.3/1.3 A
Sounds Pressure Level Leq: 73.5 dB(A)
30” Magazine Overall Dimensions
Front Side Profile
Overhead Opened

June 2022
Copyright Pregis LLC 16
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions
30” Tray Overall Dimensions
Front Side Profile
Overhead Opened

June 2022
Copyright Pregis LLC 17
All Rights Reserved
EasyPack®Quantum™Pro User Manual
Tech Service Hotline: [phone] (US), [phone] (Italy),
00800 888 888 44 (All other European Countries)
Original Instructions

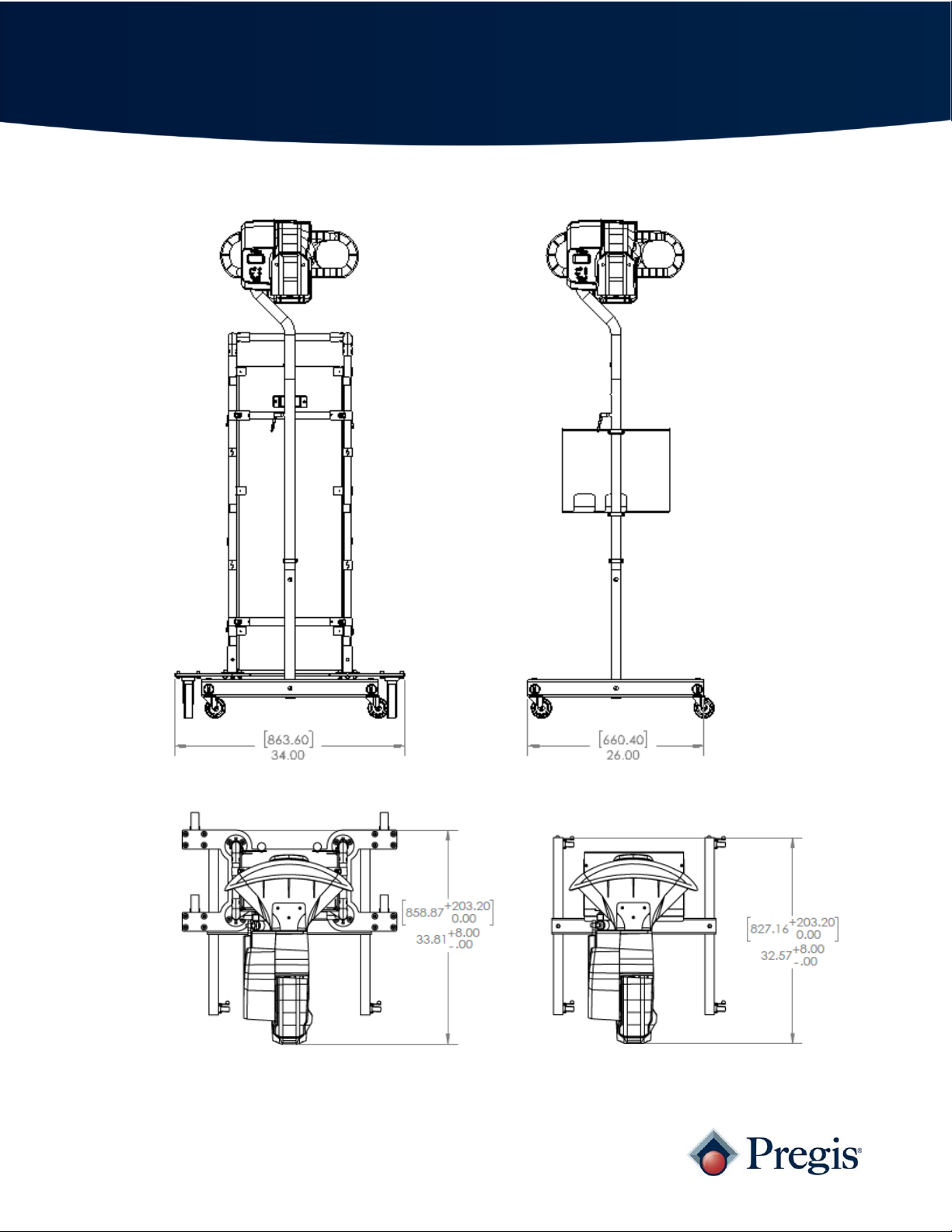

15” Magazine and Tray Reference Dimensions
Front Front
Top Top
