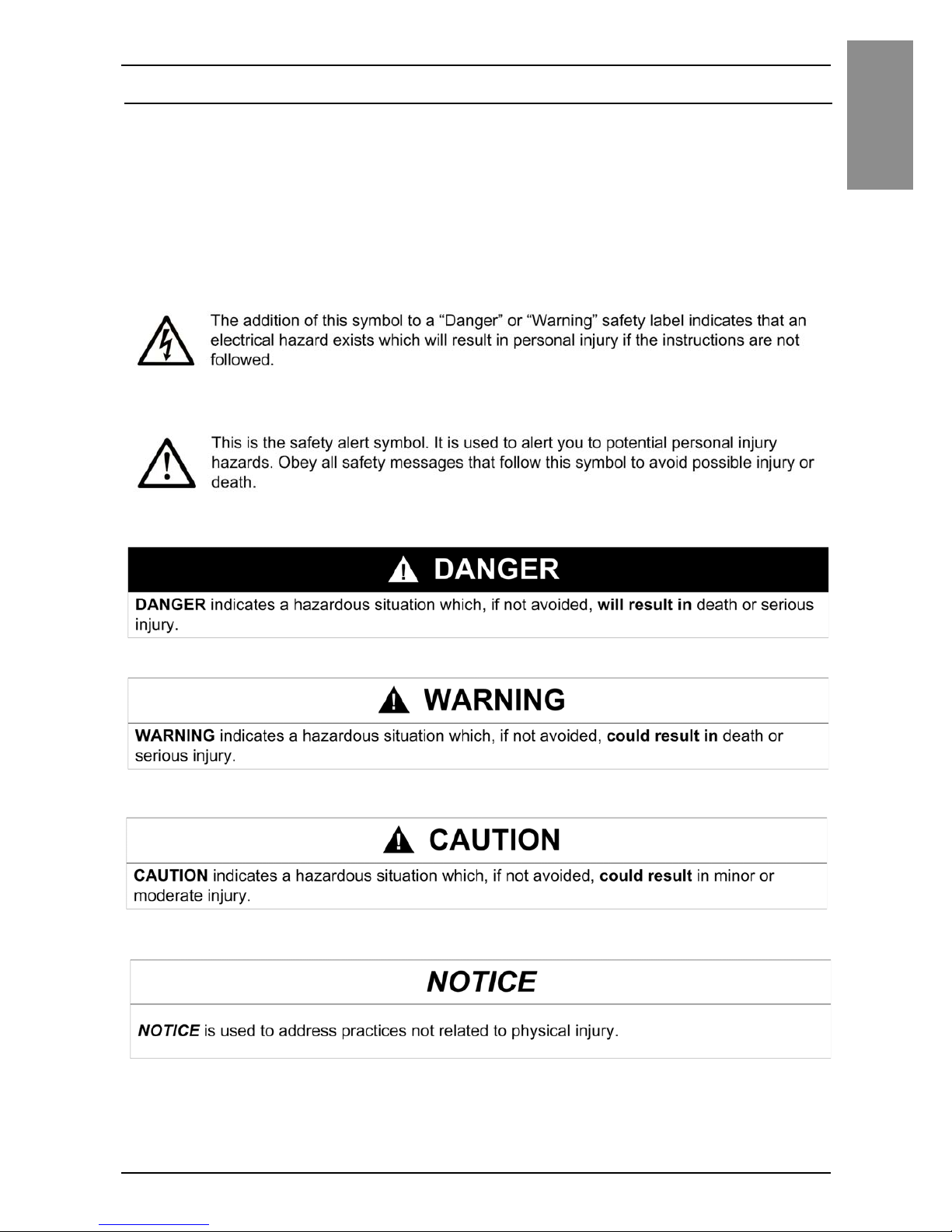

Safety Information
Important Information
Notice
Read these instructions carefully, and look at the equipment to become
familiar with the device before trying to install, operate, or maintain it. The
following special messages may appear throughout this documentation or on
the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.

6
English
Safety Information
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained
only by qualified personnel. No responsibility is assumed by Schneider Electric
or any of its affiliates or subsidiaries (hereinafter, referred to as Schneider
Electric) for any consequences arising out of the use of this material.
A qualified person is one who has skills and knowledge related to the
construction and operation of electrical equipment and its installation, and has
received safety training to recognize and avoid the hazards involved.
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Be aware of the following:
• This product is not designed for outdoor use. UL certification obtained is for
indoor use only.

7
English
Model Numbers
Model Numbers
*1 Includes models with additional alphanumeric characters at the end of the model
number.
Global Code
A global code is assigned to every Pro-face product as a universal model
number.
For more information on product models and their matching global codes,
please refer to the following URL.
http://www.pro-face.com/trans/en/manual/1003.html
Series Model name Model number*1 Description
GP4000H
Series GP-4311HT
PFXGP4311HTAD
Without any stop
switch and a key
switch
PFXGP4311HTADER With an emergency
stop switch
PFXGP4311HTADERK
With an emergency
stop switch and a key
switch
PFXGP4311HTADEYK With a stop switch
and a key switch
PFXGP4311HTADEGK

8
English
Overview
Package Contents
The following items are included in the package. Before using this product,
please confirm that all items listed here are present.
1GP4000H Series (this product): 1
2Stop Switch Guard: 1, Attachment Screws: 3
(Only models equipped with an emergency stop switch or a stop switch)
3Key: 2 (Only models equipped with a key switch)
4Hand Strap: 1
5Touch Pen: 1 (attached to this product)
6Function Switch Sheet (2 piece/set): 1 set (attached to this product), 5 sets
(for replacement)
7Connector Cover: 1 (attached to this product)
8GP4000H Series Installation Guide (this guide): 1
9Warning/Caution Information: 1
10 Emergency Stop Switch Instruction Sheet: 1
This product has been carefully packed, with special attention to quality.
However, should you find anything damaged or missing, please contact your
local distributor immediately.
About the Manual
In addition to this guide, for the detailed information on this product, refer to
the GP4000H Series Hardware Manual. You can download the manual from
our website at
http://www.pro-face.com/trans/en/manual/1001.html.
NOTE: The original document is in English, the documents in the other languages are
translations from the English.
12 543
6

9
English

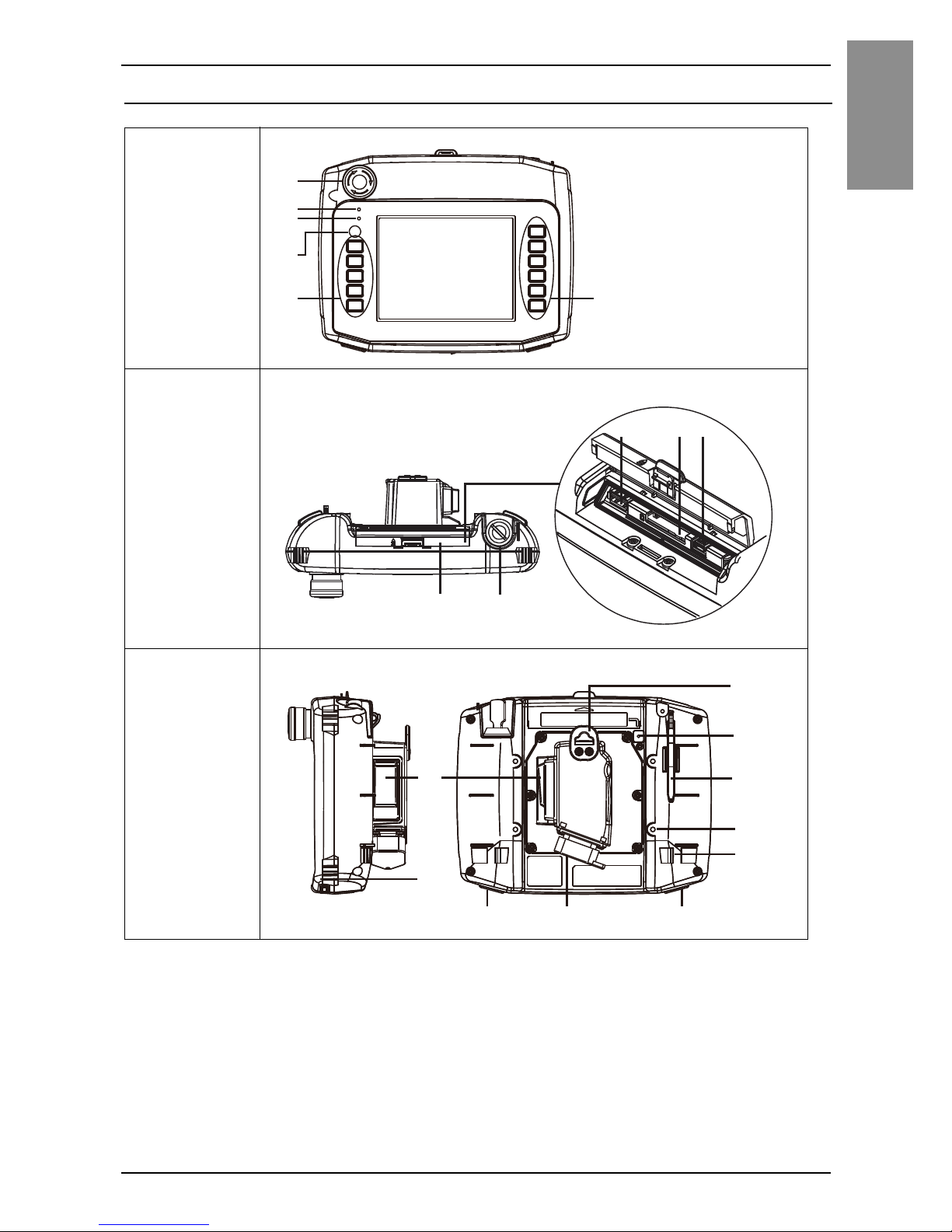

Part Numbers and Functions
Part Numbers and Functions
A: Emergency stop switch / stop switch (see page 16)
B: Status LED (POWER) (see page 11)
C: Operation LED (O.P.) (see page 11)
D: Operation switch
When the operation switch function is enabled in the screen editing
software, accepts inputs from the touch panel or function keys only while
the operation switch is pressed. For details, refer to manual of your screen
editing software.
Front view
Top v iew
Side view
Rear view
A
B
C
D
EE
FG
HIJ
N
O
P
Q
RS
K
L
M
R

10
English
Part Numbers and Functions
E: Function switches
Use your screen editing software to set up operations associated with
switches. For details, refer to the manual of your screen editing software.
F: Maintenance cover
G: Key switch (see page 16)
H: USB (Type A) interface
I: SD card slot
J: USB (mini-B) interface
K: 3-position enable switch (see page 16)
L: Neck strap attachment slot
M: Hanger
A hanger for temporarily hanging this product on a wall. We recommend
using the panel, hooks and screws defined below with the Hanger.
*1 Even if the installation wall thickness is within the recommended range,
depending on wall’s material, size, and installation location of this product
and other devices, the installation wall could warp. To prevent warping, the
installation surface may need to be strengthened.
N: SD card access LED (see page 11)
O: Touch pen
P: Wall adapter attachment slots
By attaching a Wall Mount Adapter (sold separately), you can secure this
product to a panel or commercially available arm.
Q: Hand strap attachment slots
R: Insertion hole (with cover) for function switch sheet
S: Interface for direct-connect cable (with connector cover)
Panel Panel thickness: 1 to 1.6 mm (0.04 to 0.06 in)*1
Panel width: 14 mm (0.55 in) or more.
Hook Diameter 7 mm (0.27 in) or less, rod-shaped or S-shaped
hook.
Screw M4 pan-head machine screw, which head diameter is
7 mm (0.27 in) or less.

11
Part Numbers and Functions
English
LED Indications
Status LED
*1 Make sure your screen editing software supports the function.
Operation LED
SD card Access LED
Color Indicator HMI operation Logic program operation*1
Green ON Offline –
In operation RUN
Flashing In operation STOP
LED fade*1 Backlight OFF (Standby Mode)
Orange Flashing Software starting up.
Red ON Power is turned ON.
Flashing In operation Major error
– OFF Power is turned OFF.
Color Indicator Description
Green ON Indicates the Operation Switch is ON.
– OFF Indicates the Operation Switch is OFF.
Color Indicator Description
Green ON The SD Card is inserted.
– OFF The SD Card is not inserted or is not being
accessed.

12
English
Specifications
Electrical Specifications
Environmental Specifications
Power supply
Rated input voltage 24 Vdc
Input voltage limits 19.2...28.8 Vdc
Voltage drop 10 ms or less
Power consumption
Maximum power
consumption 12 W or less
When power is
not supplied to
external devices 8Worless
In-rush current 35 A or less
Voltage endurance 500 Vac, 20 mA for 1 minute
(between charging and FG terminals)
Insulation resistance 500 Vdc, 10 MΩor more
(between charging and FG terminals)
Physical environment
Surrounding air
temperature
0...40 °C (32...104 °F)
Storage temperature -20...60 C (-4...140 F)
Surrounding air and
storage humidity
10...90% RH (non-condensing, wet bulb
temperature 39 C [102.2 F] or less)
Dust 0.1 mg/m3(10-7 oz/ft3) or less (non-conductive
levels)
Pollution degree For use in Pollution Degree 2 environment
Corrosive gases Free of corrosive gases
Atmospheric
pressure (operating
altitude)
800...1,114 hPa (2,000 m [6,561 ft] or lower)

13
Specifications
English
Interface
Interface for direct-connect cable
Description Signal name
Key switch output b-contact KEY_NC
a-contact KEY_NO
3-position enable
switch output
a-contact ENB0A
a-contact ENB0B
a-contact ENB1A
a-contact ENB1B
Emergency stop switch
/ stop switch output
a-contact EMG0A
a-contact EMG0B
b-contact EMG1A
b-contact EMG1B
b-contact EMG2A
b-contact EMG2B
Serial signal (When the RS-
232C is used)
CD
(When the RS-422 or
RS-485 is used)
RDA
RD(RXD) RDB
SD(TXD) SDA
RS(RTS) SDB
SG SG
ER(DTR) ERA
CI(RI)/VCC ERB
CS(CTS) CSA
DR(DSR) CSB
Ethernet signal TX+
TX-
RX+
RX-
Power input DC24V
0V
Frame ground (common with SG) FG

14
English
Connection
Connection with Peripheral Equipment
A direct-connect cable (sold separately) is required to connect to external
devices for communication, power, or wiring of switches.
A conversion adapter (model number: AGP3000H-ADPCOM-01) is required to
build a system with an external output interface, such as DOUT.
NOTE:
• Use SELV (Safety Extra-Low Voltage) circuit and LIM (Limited Energy circuit) for DC power.
• Use only the SELV (Safety Extra-Low Voltage) circuit to connect the COM, USB, and LAN
interfaces.
Accessories for connecting the external devices to this
product directly
Prepare one of the following direct-connect cables (no connector). For cable
specifications and wiring, refer to the corresponding cable installation guide or
the GP4000H Series Hardware Manual.
Accessories for connecting Conversion Adapter to this
product
Prepare the conversion adapter or one of the following direct-connect cables
(with connector). For conversion adapter specifications and wiring, refer to the
conversion adapter installation guide.
NOTE: UL certification has been achieved for this product with the conversion adapter, and
with the following direct-connect cables.
.
Model number Description
GP3000H-CBLH-10M Hard-type cable. Heavy-duty type. Equipped with
common mode filter.
GP3000H-CBLS-3M Soft-type cable. Standard type. Equipped with
common mode filter.
GP3000H-CBLS-5M
GP3000H-CBLS-10M
Model number Description
GP3000H-CBLHD-10M Hard-type cable. Heavy-duty type.
GP3000H-CBLSD-3M Soft-type cable. Standard type.
GP3000H-CBLSD-5M
GP3000H-CBLSD-10M

15
Connection
English
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
• Remove all power from the device before removing any covers or elements
of the system, and prior to installing or removing any accessories,
hardware, or cables.
• Unplug the power cable from both this product and the power supply.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace and secure all covers or elements of the system before applying
power to this product.
• Use only the specified voltage when operating this product. This product is
designed to use 24 Vdc. Always check whether this product is DC powered
before applying power.
Failure to follow these instructions will result in death or serious injury.
DANGER
ELECTRIC SHOCK AND FIRE
When using the SG terminal to connect an external device to this product:
• Verify that a short-circuit loop is not created when you set up the system.
• Connect the SG terminal to remote equipment when the external device is not
isolated.
• Connect the SG terminal to a known reliable ground connection to reduce the
risk of damaging the circuit.
Failure to follow these instructions will result in death or serious injury.
CAUTION
EQUIPMENT DAMAGE
• To prevent damage, do not allow the cable's connector to drop or hit against
anything hard.
• Connect peripheral equipment first, and connect this product last. Otherwise,
the RS-232C/RS-422/RS-485 circuit may become inoperable.
• Properly terminate unused wires to help avoid short-circuits by other signals or
metal parts.
• After cable length adjustment, connect the shield on the cable to the FG
terminal.
Failure to follow these instructions can result in injury or equipment
damage.

16
English
Connection
Switch
Emergency Stop Switch / Stop Switch
With this product incorporating an emergency stop switch or a stop switch, the
switch activates the contact output, when the switch is enabled. To reset the
stop status (lock status), pull the button forward, or turn the button in the
direction indicated by the arrow.
When the switch is pressed, ON/OFF status are as follows:
NOTE: When using a model without an emergency stop switch or without a stop switch,
disconnect (NC) these signal lines.
3-Position Enable Switch
The 3-position enable switch has three positions: 1) Not pressed (released
position), 2) Pressed to the intermediate position, 3) Pressed to the innermost
position (fully closed).
When the switch is set at each position, ON/OFF status are as follows:
NOTE: The contact is OFF when the switch is pressed to the innermost position then
returned to the not pressed position.
Key Switch
Turning the key turns this product’s power supply ON or OFF.
NOTE:
• When the key is not turned to ON or OFF, either the “KEY_NO” or the “KEY_NC” signal
is ON. These signals will not simultaneously turn OFF.
• These signal lines must be disconnected (NC) when the model without a key switch is
used.
Signal name Sop reset Stop
EMG0 0 (OFF) 1 (ON)
EMG1 1 (ON) 0 (OFF)
EMG2 1 (ON) 0 (OFF)
Signal name Not pressed Pressed to the
intermediate position
Pressed to the
innermost position
ENB0 0 (OFF) 1 (ON) 0 (OFF)
ENB1 0 (OFF) 1 (ON) 0 (OFF)
Signal name Turn OFF this product Turn ON this product
KEY_NO 0 (OFF) 1 (ON)
KEY_NC 1 (ON) 0 (OFF)

17
Connection
English

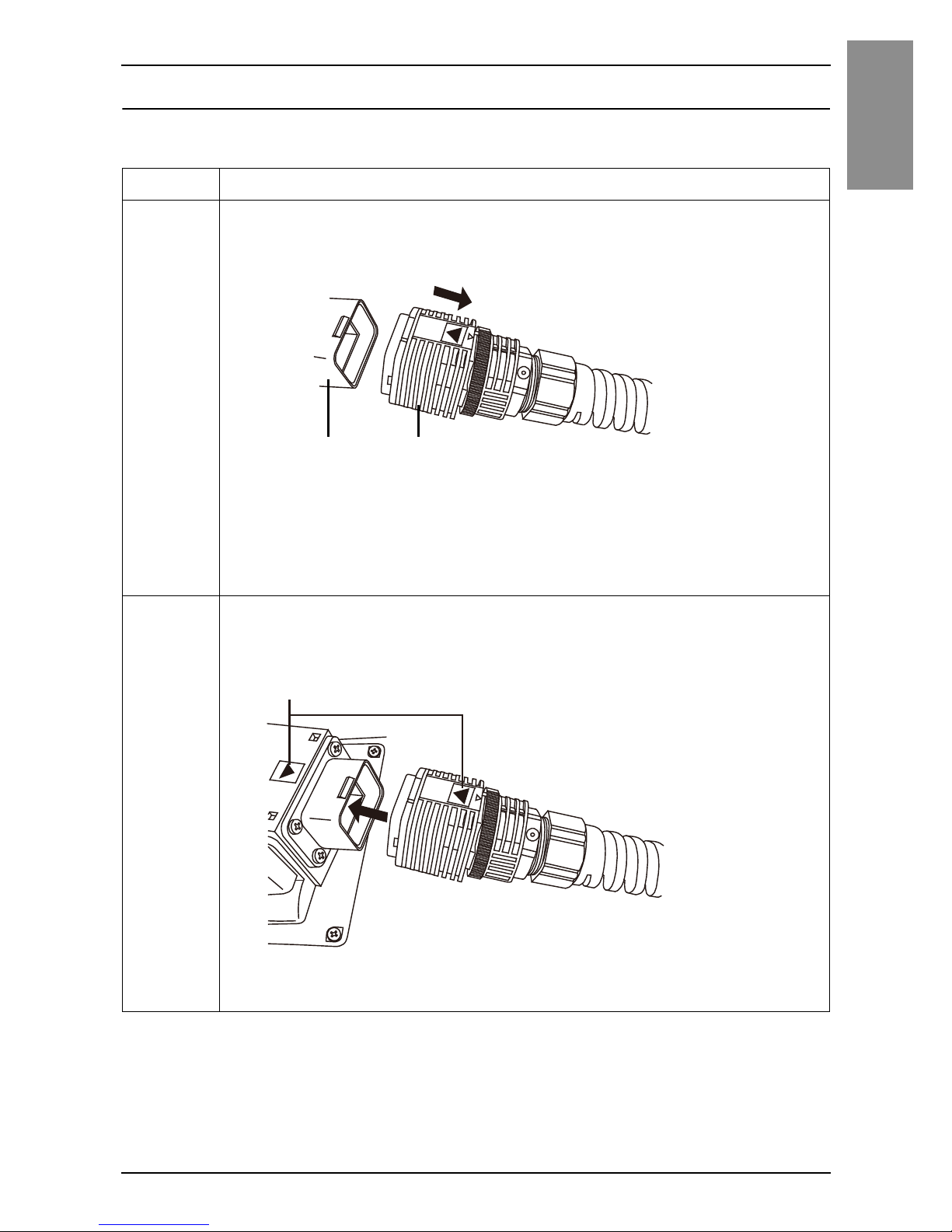

Attaching the Cable
Connect the direct-connect cable to this product.
Step Action
1 Before connection, remove the cable's connector cap and this
product’s connector cover. To remove the cable's connector cap,
pull out the cable by holding the cable connector.
1 Cable’s connector cap
2 Cable connector
NOTE: To disconnect this cable from the connector cap, be sure to hold the
cable connector and pull it out. If you hold other parts of this cable (lock ring,
etc.), the cable cannot be disconnected.
2 As illustrated, line up the arrow on this product with the arrow on
the cable. Insert the cable connector into the product connector
until you hear it click.
1Arrows
NOTE: Be sure to insert the cable connector as shown.
1 2
1

18
English
Connection
Removing the Cable
NOTE: Whenever the cable is removed, you cover the connector with a connector cover.
3 Turn the cable connector lock ring to lock the connector, so that
the small arrow (for LOCK) on the lock ring is aligned with the
small arrow on the cable connector.
1 Lock ring
2Smallarrows
Step Action
1 Turn the lock ring so that the small arrow on the lock ring is
displaced from the small arrow on the cable connector. Then, pull
out the cable by holding the cable connector.
(1) Turn the lock ring
(2) Pull out the cable
NOTE: To disconnect the cable, be sure to hold the cable connector and pull
it out. If you hold other parts of the cable (lock ring, etc.), the cable cannot be
disconnected.
1
2
(1)
(2)

19
English
Installation
Installation
Attaching the Hand Strap
CAUTION
EQUIPMENT DAMAGE
• Use this product attached properly to a hand strap, neck strap (sold
separately), or a wall hanging adapter (sold separately).
• Do not operate or wire this product while it is hung on the wall with the
Hanger, attached to the rear.
Failure to follow these instructions can result in injury or equipment
damage.
Step Action
1 Insert the hand strap into the hand strap mounting slots of this
product, as shown.
2 Insert both ends of the hand strap into the buckles as shown, and
fasten them securely.

20
English
Installation
Attaching the Stop Switch Guard
NOTE: When the stop switch guard is attached, the emergency stop switch or the stop
switch is not conformable to safety standards (EC Machinery Directive IEC60204-1, etc.).
If conforming to the safety standards is required, do not use the stop switch guard (included
in this product).
Step Action
1 Prepare the stop switch guard and 3 installation screws, included
with this product.
2 Remove the stop switch guard hole covers at two places beside
the emergency stop switch (or the stop switch).
1 Stop switch guard hole covers
3 Align the three screw holes of the stop switch guard with the
screw holes of this product. And fasten the two points in the front,
and the one point in the rear of this product with screws. The
necessary torque is 0.5 N•m (4.4 lb-in).
NOTICE
BROKEN ENCLOSURE
Do not exert more than 0.5 N•m (4.4 lb-in) of torque when tightening the
screws.
Failure to follow these instructions can result in equipment damage.
1

21
English
Maintenance
Cleaning this product
When this product gets dirty, soak a soft cloth in water with a neutral detergent,
wring the cloth tightly and wipe this product.
NOTICE
EQUIPMENT DAMAGE
• Power off this product before cleaning it.
• Do not use hard or pointed objects to operate the touch panel as you may
damage the panel surface.
• Do not use paint thinner, organic solvents, or a strong acid compound to clean
the unit.
Failure to follow these instructions can result in equipment damage.
