Puretec Hybrid-M1 User manual
For correct operation & installation it is essential to observe these instructions.
JAN2019
AS/NZS 3497
Certicate No. WM 74617
Australian Certication Services
FP10M-2 Filter Housing
User Guide
Filtration & Ultraviolet All-in-One Undersink Unit
Hybrid-M1
†
†
2
Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Puretec Customer Service
Thank you for purchasing a Puretec Hybrid-M1 Whole House UV Water Treatment
System. Your system is a proven performer manufactured from quality materials and
components and will give years of ‘spring like’ water, free of impurities, if maintained
and installed properly (refer installation requirements pg.5).
What's Inside
Product Information
Distributor
Installer
Phone
Date Installed
What's Inside
Puretec Customer Service ................................................................................................. 2
Introduction................................................................................................................................. 3
Positioning Your System ...................................................................................................... 3
Preparing Your System ......................................................................................................... 4
Installation Requirements................................................................................................... 5
Initial Installation Procedure.............................................................................................. 6
Operation...................................................................................................................................... 7
Replacement Parts Guide.................................................................................................... 7
UV Lamp Installation / Replacement ............................................................................ 8
Cartridge Installation / Replacement ............................................................................ 8
Cleaning Quartz Sleeve ........................................................................................................ 9
Quartz Sleeve Maintenance Procedure........................................................................ 9
Warranty .................................................................................................................................... 10
3
HYBRID M1 | Filtration & Ultraviolet All-in-One Undersink Unit
Introduction
Introduction
from the UV light.
existing water quality.
The system is designed for mains and rainwater supply but can be used in other
situations. For other types of water supply please contact your local Puretec stockist or
call our Puretec Customer Service Helpline at 1300 140 140 (Australia) or
0800 130 140 (New Zealand).
The Puretec Hybrid-M1 system cartridges and lamp need replacing regularly to maintain
optimum performance. This is a simple procedure when following instructions. For
replacements contact your nearest Puretec stockist.
Positioning Your System
spillage will not cause damage. Location should not be in direct sunlight.
An isolation valve may be installed prior to the Hybrid-M1 system to isolate the unit for
changing the cartridges, lamps and sleeve.
4
Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Preparing The System
Forcorrect operation & installation it is essential to observe these instructions.
JUN2018
ATS5200.103
LicenceNo. WM 74593
Australian Certication
Services
User Guide
Filtration & Ultraviolet All in One Unit with Weather Cover
Hybrid-G
UV LAMP
SPANNER USER GUIDE

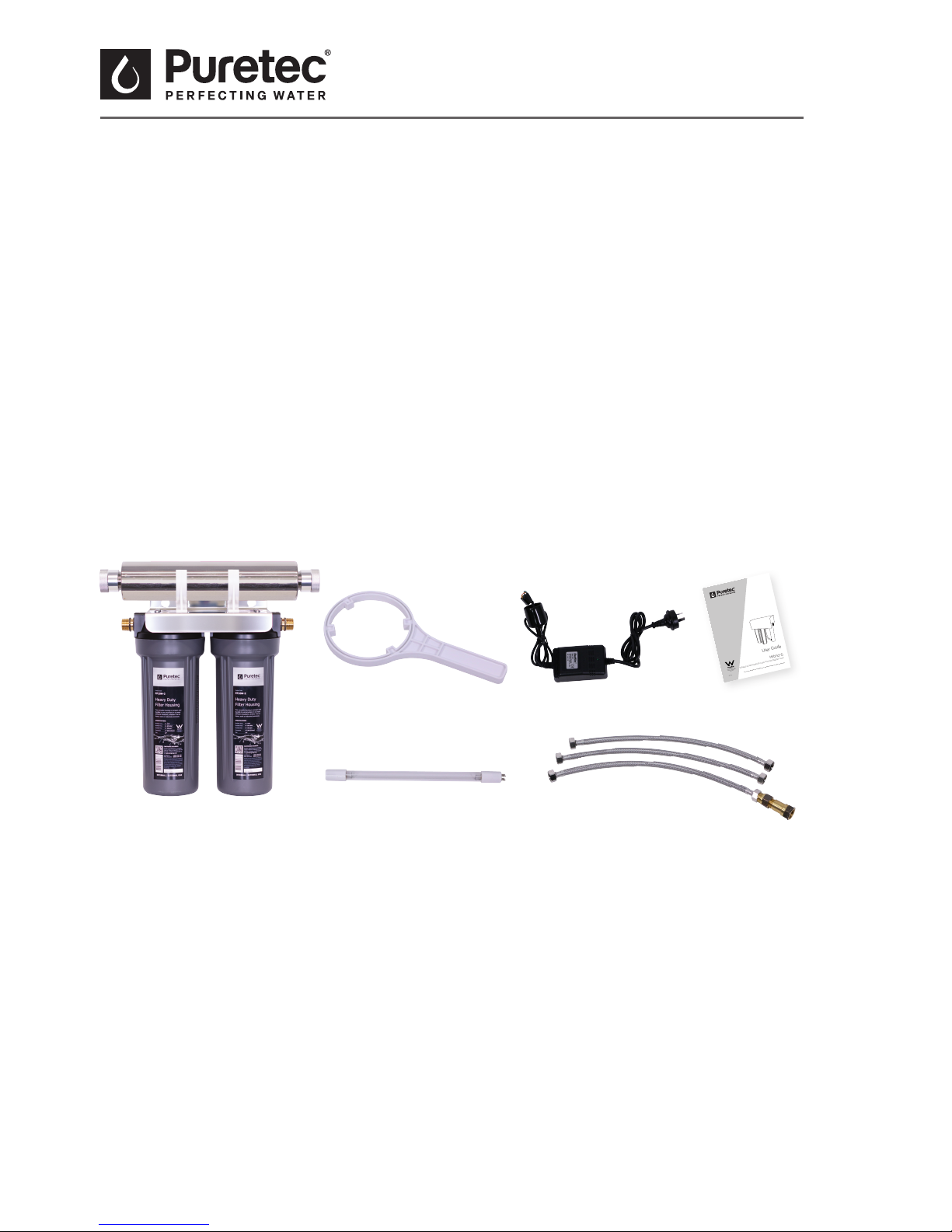

1. Hybrid-M1 Filter System
2. UV Lamp (in cardboard tube)
3. Bag containing Spanner, Braided Hoses, Power Cord and User Guide
BRAIDED HOSES
POWER CORD
Preparing Your System
Puretec systems are designed to run economically for many years, dependent on the
initial installation and periodical maintenance.
Please read all instructions carefully as failures caused by incorrect installation or
operation are not covered by warranty.
On removing your Hybrid-M1 system from its carton you should check all the
components (especially the lamp), to ensure all are present and have not been damaged
in transportation. You should have:
5
HYBRID M1 | Filtration & Ultraviolet All-in-One Undersink Unit
Installation Guide
Installation Requirements
• Cold water line only.
• Power supply: AC 240V | 50Hz
• Supply pressure: 300-875 kPa. Install pressure limiting valve if pressure exceeds
500 kPa.
Note: For point of entry installations an approved dual check backow
prevention device must be installed.
• Supply temperature 0° - 52°C (protect from freezing).
•
15 mm threads.
Note: Only use thread seal tape. Do not use liquid sealant.
•
Hybrid system.
•
other appliances that may be connected to the circuit and ensuring it is surge
• Where the water being treated contains unusually high levels of dissolved solids
particularly hard water, iron, manganese or biological organisms, a deposit build up
on the quartz sleeve may occur over time. Maximum recommended parameters are
as follows:
Iron: less than 0.3 mg/L
less than 0.05 mg/L
Suspended Solids: less than 10mg/L
Manganese: less than 0.05 mg/L
Hardness: less than 110mg/L
• Caution: Do not use with water that is microbiologically unsafe or of unknown
Application warning: minimum water characteristics must be met before
installation of Radre™ to ensure proper operation and continuous protection.
6
Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Installation Requirements
Initial Installation Procedure
1. Before attempting installation check the unit to ensure the quartz sleeve is intact
2. Locate a suitable position for the Hybrid-M1 system remembering to allow 50 mm
under the unit and 350 mm clearance to the side of the unit for lamp changes
(lamp exit and entry point can be determined by installer). A power outlet is
required.
3. The Hybrid-M1 unit has 2 mounting key holes at the rear of the bracket. Mark the
system securely to the wall.
7. Connect inlet and outlet hoses to the Hybrid-M1 unit.
8. Unclip and remove the lamp from the bracket.
9. Slowly insert UV lamp into chamber through the hole of the aluminium nut end.
Connect the lamp connector to the pins on the lamp. Do not let go of the lamp until
the lamp is connected to the socket.
Never touch the quartz (glass) and lamp surface as marks or ngerprints may
interfere with UV transmission. If lamp is soiled, please clean lamp with an alcohol
based cleaner.
10. Put safety cap on the aluminium nut end. Connect the ground wire to the chamber.
Plug in power connector.
the unit for 1-2 minutes. Then check the system thoroughly for leaks.
Note: For initial use, wait 3-5 minutes to allow water to pass through the whole
unit. Turn on a downstream tap to let water ow through the unit for 2-3 minutes to
release air and impurities from the system.
13. Turn the power on and ensure that the lamp is operating. Make sure that the GREEN
LED is illuminated (refer Lamp Replacement Procedure on pg.14).
7
HYBRID M1 | Filtration & Ultraviolet All-in-One Undersink Unit
Installation Requirements
Operation
• On a new installation where no other form of sterilisation has been in use, we
pipework for at least an hour and preferably overnight.
The sanitising solution can be added into the water tank or if necessary added as a
through the piping. If added as a shock dose the system and pipework should be
rinsed thoroughly by opening a downstream tap.
Replacement Parts Guide
(dependent on water quality and usage).
You can obtain replacement cartridges from your local Puretec dealer. To maintain
performance, warranty and Australian Standards use genuine Puretec replacements.
Replacement Parts: HYBRID M1
Stage 1 Cartridge PL051
Stage 2 Cartridge MC011-S
Stage 3 UV Lamp RL2
Quartz Sleeve RQS2
Replace cartridges every 6-12 months.
Fig. 1
8
Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Operation
Cartridge Installation / Replacement
2. Relieve water pressure by operating faucet lever.
3. Unscrew Filter Housing using the spanner wrench and discard cartridges. When
removing housings place a container underneath to catch any spillage.
4. Cleanse the inside of the housing using hot water and detergent. Check O-Ring
and lubricate with food grade silicone lubricant (or similar). Replace O-Ring if
kinked or damaged.
UV Lamp Installation / Replacement
• Prior to performing any work on the UV steriliser system, always disconnect the
power supply and allow unit to cool.
Warning: Do not look directly into ultraviolet rays emitted from the UV lamp as
they will cause serious burns to unprotected eyes.
UV lamp emits heat to kill bacteria. When turning on a tap, let the water run for a
short time to purge any warm water.
Aluminium
Nut
Water Outlet
O-RingLamp
Power
Connector
Quartz
SleeveUV Lamp
Aluminium
NutCap
Ballast
Stainless Steel
Chamber
O-Ring
Water Inlet
Fig. 2
9
HYBRID M1 | Filtration & Ultraviolet All-in-One Undersink Unit
Operation
5. Install new cartridges and replace housing screwing them up HAND TIGHT ONLY.
6. Restore water supply & check for leaks, rectifying them, if any, before leaving the
unit.
Cleaning Quartz Sleeve
To ensure high sterilising rate with best water quality, check sleeve regularly (about
every 3 months depending on quality of water source). To see whether there is dirt or
substances gathered. Clean with alcohol based cleaner if necessary.
Quartz Sleeve Maintenance Procedure
1 Unplug the power supply. Remove UV lamp before taking out the quartz sleeve
and pour out water. Turn counterclockwise the aluminium nut both sides of the
chamber and extremely gently to remove the quartz sleeve.
2 Soak a piece of cloth in vinegar or citric acid to clean the quartz sleeve.
3 Put the quartz sleeve back into the stainless steel chamber and make equal
distance at both sides of the chamber.
4 Dampen the seal O-Ring and end of the quartz sleeve then turn clockwise the
aluminium nuts with hands tightly.
5 Check all connections to prevent leakage.
6 Insert UV lamp into stainless steel chamber and put on the rubber cap to complete
the cleaning.
10
Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Warranty
Any claim under this warranty must be made within 3 years of the date of purchase of
the product. This product is warranted to be free of defect of material and workmanship
for 3 years from date of purchase. 3 year warranty is 1 parts and labour, plus 2 years
parts only. Excludes Cartridges. To make a claim under the warranty, take the product
and proof of purchase to place where you purchased the product, and they will lodge a
Warranty Request with Puretec.
Puretec will pay your reasonable, direct expenses of claiming under this warranty.
You may submit details and proof of your expense claim to place of purchase for
consideration.
The warranty only applies if the product was used and/or installed in accordance with
the user guide and/or installation instructions. This warranty is given in lieu of all other
express or implied warranties and manufacturer shall in no circumstance be held liable
for damages consequential or otherwise or delays caused or faulty manufacturing
except as excluded by law.
Applicable to all above, is that the warranties need to be approved by Puretec to ensure
product was not incorrectly used, installed or claimed. False and incorrect claims will
be pursued at Puretec’s discretion, including chargeable inspection and labour costs
incurred.
Warranty/Australia
This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road,
This warranty is provided in addition to other rights and remedies you have under
law: Our goods come with guarantees which cannot be excluded under the Australian
Consumer Law. You are entitled to replacement or refund for a major failure and to
compensation for other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Warranty/New Zealand
This warranty is given by Puretec Ltd, Reg. No 4464398, Level 2, 40 Onehunga Mall,
This warranty is provided in addition to other rights and remedies you have under
law: Our goods come with guarantees which cannot be excluded under the Consumer
Guarantees Act. You are entitled to replacement or refund for a major failure and to
compensation for other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Warranty
11
HYBRID M1 | Filtration & Ultraviolet All-in-One Undersink Unit
Table of contents
Other Puretec Water Filtration System manuals
Puretec
Puretec FilterWall IM2 Series User manual
Puretec
Puretec Puremix X6 User manual
Puretec
Puretec Hybrid-R Triple Series User manual
Puretec
Puretec 2CI-C User manual
Puretec
Puretec MaxiPlus MPB202B User manual
Puretec
Puretec IMB Series User manual
Puretec
Puretec MPB202 User manual
Puretec
Puretec Z1-MW-K User manual
Puretec
Puretec RI-EPAS User manual
Puretec
Puretec IF Series User manual
Puretec
Puretec FP Series User manual
Puretec
Puretec IL-UB Series User manual
Puretec
Puretec HybridPlus Series User manual
Puretec
Puretec UFC Series User manual
Puretec
Puretec NTR-E3 Series User manual
Puretec
Puretec RI-HF19 User manual
Puretec
Puretec TSI Series User manual
Puretec
Puretec Z1-RW-K User manual
Puretec
Puretec MaxiPlus MP Series User manual
Puretec
Puretec WTV7550 User manual
Popular Water Filtration System manuals by other brands
Canature
Canature 475 Pro Series Installation & operation manual
LifeSource
LifeSource Premier Series owner's guide
Millipore
Millipore milli-q user manual
Acqua Brevetti
Acqua Brevetti BravoMAX M Installation and operating manual
Westfalia
Westfalia 15 36 27 instruction manual
Pentair
Pentair EVERPURE EZ-RO 200/2G Installation & operation guide
