Qfx Fx-755 User manual

INSTRUCTION MANUAL

FX-755

VOL+

VOL-

2/ INT 3/ RPT

4/ RDM 5 -10

DIR-

6+10

DIR+

DISPEQ

MODE

BAND AMS

SEL

FX-755 FRONT

FRONT PANEL

1. Internal mic, remote sensor

2. Rewind or previous track

3. Return to Main Menu

4. Forward or next track

5. Power ON/OFF and volume

6. TF card slot for MP3 music play

7. AUX input and Reset

8. USB port

9. Touchscreen

PANEL FRONTAL

1. Micrófono interno, sensor remoto

2. Rebobinar o pista anterior

3. Volver al menú principal

4. Adelante o siguiente pista

5. Encendido/apagado y volumen

6. Ranura para tarjeta TF para reproducción

de música MP3

7. Entrada auxiliar y reinicio

8. Puerto USB

9. Pantalla táctil

PANNEAU AVANT

1. Micro interne, capteur à distance

2. Rembobiner ou piste précédente

3. Retour au menu principal

4. Avancer ou piste suivante

5. Marche/Arrêt et volume

6. Fente pour carte TF pour la lecture de

musique MP3

7. Entrée AUX et réinitialisation

8. Prise USB

9. Écran tactile

FX-755 GUIDE

• The unit operates using speakers from 4 to

8 ohms.

• Connect the black wire to ground or the

metal part of the car body.

• Connect the yellow power memory wire to

+12VDC power then other cable

connections. Then connect the red wire to

ACC.

• Connect radio antenna, audio and video

connections.

• Make sure all wire connections are correct

before powering unit on to assure no wires

are short-circuiting or grounding.

• Improper wiring may cause damage to the

unit.

• La unidad funciona con altavoces de 4 a 8

ohmios.

• Conecte el cable negro a tierra oa la parte

metálica de la carrocería del automóvil.

• Conecte el cable amarillo de la memoria de

alimentación a una alimentación de +12 V

CC y luego a otras conexiones de cable.

Luego conecte el cable rojo a ACC.

• Conectar las conexiones de antena de radio,

audio y video.

• Asegúrese de que todas las conexiones de

cables sean correctas antes de encender la

unidad para asegurarse de que no haya

cables en cortocircuito o conectados a

tierra.

• El cableado inadecuado puede causar daños

a la unidad.

• L'appareil fonctionne avec des haut-parleurs

de 4 à 8 ohms.

• Connectez le fil noir à la masse ou à la partie

métallique de la carrosserie de la voiture.

• Connectez le fil jaune de la mémoire

d'alimentation à l'alimentation +12VDC puis

aux autres connexions de câble. Connectez

ensuite le fil rouge à ACC.

• Connectez l'antenne radio, les connexions

audio et vidéo.

• Assurez-vous que toutes les connexions de

fils sont correctes avant de mettre l'appareil

sous tension pour vous assurer qu'aucun fil

n'est court-circuité ou mis à la terre.

• Un câblage incorrect peut endommager

l'appareil.

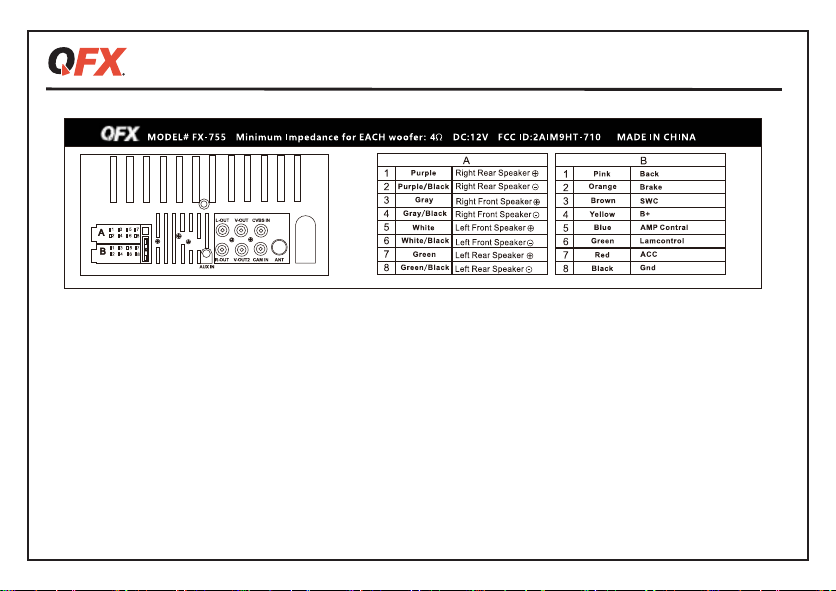

AUDIO/VIDEO/POWER/ANTENNA CONNECTIONS

FX-755 GUIDE

The unit can be operated from the intuitive

touchscreen interface or via remote control.

Here are basic functions and operations.

MAIN MENU SCREEN

Press to select the desired function or swipe

right to see more choices (Explorer, Blueooth,

AUX, Settings, FM, Music, Movie and Photo

modes):

Select AM/FM modes, stereo/mono audio and

station scanning methods. When using the front

panel buttons or remote control, While FM radio

is selected, short-press >>> or <<< for station

auto-search. Press and hold for manual station

search.

Select preset EQ modes, loud boost on/off,

treble, bass and left/right/front/back sound


Under SETTINGS from MAIN MENU, Select

General to select radio region, display output

format, parking setting, background music and

updates.

Select Time to set clock. Select on-screen

language, wallpaper background and steering

settings

Questions? Comments? Contact Us Anytime

Preguntas? Comentarios? Contáctenos en cualquier momento

Des questions? Commentaires? Contactez-nous à tout moment

1-800-864-CLUB (2582)

Mon-Fri 9AM - 5PM (PST)

[email protected]

Mon-Fri 9AM - 5PM (PST)

FX-755 GUIDE

To connect via Bluetooth, pair your

Bluetooth-enabled device to the “QFX_FX-755”

pairing name. Control calls, music and more

from your device.

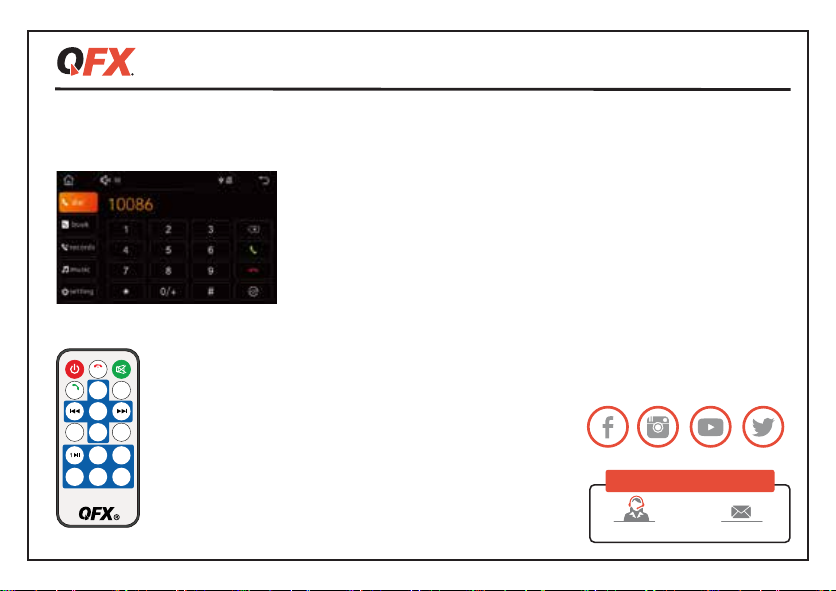

REMOTE CONTROL

MIRROR LINK

Touch the Mirror Link icon to enter phone link

function for Android and iOS mobile phones. Use

a USB charging cable, connecting the mobile

phone and device. Then connect the phone to

Bluetooth before playing content. After

connecting, you can play movies, music and

operate the phone. You can operate the phone

from the screen display or operate the screen

display from the mobile phone.

General operation for Android phones. Go to

Developer settings option to find the mobile

phone “Build number version”. Select that 6-7

times to activate the “Developer option” and open

“USB debugging”. Operation may vary based on

device.

General operation for iOS phones. Connect the

device using a USB cable. Go to the mobile

phone settings page and click “Trust” to connect

the device. Once connected, all iOS content can

be displayed on screen. Operation may vary

based on device.

STEERING WHEEL CONTROLS (SWC)

Connect all unit cables first. Then, press the Reset

icon to clear memory. Next, long-press the

steering wheel function icon and choose the

relative button on the steering wheel. Then the

choice will light up.

VOL+

VOL-

2 / INT 3 /RPT

4 /RDM 5 -10

DIR-

6+10

DIR+

DISPEQ

MODE

BAND

AMS

SEL
