re:3D Gigabot User manual

think big,
print huge
side panel
installation

THANK YOU FOR PURCHASING THE SIDE PANEL RETROFIT KIT
FROM re:3D Inc.®!
REFERENCES & HELPFUL DOCUMENTS :
VIDEO INSTRUCTIONS :
This upgrade will let you install side panels for your Gigabot®. You will find that this is
especially helpful in restricting access to the Z-axis Acme screws, the bed, and other moving
parts during operation. The full side panel kit will include extra panels to fully cover the left
and right sides.
Some external resources may be helpful during the assembly process. For example,
knowing the correct names for dierent parts on the Gigabot®, or proper use of certain
tools. Resources that we thought may be helpful have been linked to at the end of this
guide.
If you prefer a video guide, please search for “re3D Tech” on YouTube and find our “Side
Panel Installation” video.
introduction

READ INSTRUCTIONS : All the safety and operating instructions should be read before the printer is
operated.
RETAIN INSTRUCTIONS : The safety and operating instructions should be retained for future reference.
HEED WARNINGS : All warnings on the product and in the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS : All operating and use instructions should be followed.
CLEANING : Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners.
ATTACHMENTS : Do not use attachments or enhancements not recommended by the product
manufacturer as they may cause hazards.
WATER AND MOISTURE : Do not use Gigabot near water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
PLACEMENT : Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only
with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting
accessory recommended by the manufacturer.
VENTILATION : Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
POWER SOURCES : This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home consult your appliance
dealer or local power company. For products intended to operate from battery power, or other sources,
refer to the operating instructions.
GROUNDING OR POLARIZATION : This product may be equipped with either a polarized 2-wire AC
line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having
a third (grounding) pin. The 2-wire polarized plug will outlet, try reversing the plug. If the plug still fails
to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
polarized plug. The 3-wire grounding type plug will fit into a grounding type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
POWER-CORD PROTECTION : Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from the product.
LIGHTNING : For added protection for this product during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and power-line surges.
OVERLOADING : Do not overload wall outlets, extension cords, or integral convenience receptacles as
this can result in a risk of fire or electric shock. A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination
to overturn.
OBJECT AND LIQUID ENTRY : Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
legalese

table of contents
OVERVIEW 1
LEGEND 2
BEFORE YOU BUILD 3
BUILD GUIDE 5
BILL OF MATERIALS -
PARTIAL SIDE PANELS 5
BILL OF MATERIALS - FULL SIDE PANELS 6
TOOLS YOU’LL NEED 6
A : INSTALLATION 7

OVERVIEW
Side Panel Installationre:3D Inc.® 1
*Full Gigabot® rendering is for illustrative purposes only and may not reflect the final
construction of your Gigabot®
Partial side panels -
26 9/16” x 12”
Full side panels -
26 9/16” x 12”
Full side panels -
26 9/16” x 8 3/4”
Full side panels -
26 9/16” x 12 1/4”

Side Panel Installation re:3D Inc.®2
Objects of importance are
highlighted in yellow
LEGEND
LOCATE
fasten/screw align
place remove
insert

Side Panel Installationre:3D Inc.® 3
BEFORE YOU BUILD
it’s hip to be square!
the uses of grease
When assembling the
Gigabot®, it is essential to
work on a flat surface and to
carefully square perpendicular
parts as much as possible.
This is especially important
while assembling the side
plates, Z-axis uprights and
vertical common rails, bed
frame, upper and lower cross
rails, and bridge assembly.
Use large clamps to help
square up frames if needed.
Make good use of grease
during assembly. These
will help hold the eccentric
spacers when installing the
V-groove wheels and also
keep them from damaging
the side plates or end trucks
during adjustment. Likewise,
it will ensure smooth, quiet
operation when applied the
the Z-axis ACME threaded
rods.

Side Panel Installation re:3D Inc.®4
t-nuts, how do they work?
Measuring and marking
T-nuts are an essential part
of assembling the Gigabot®.
These are inserted into the
aluminum extrusion in order
to fasten parts to the frame.
Post assembly T-nuts are
also used. These hold their
positions well without sliding
around, and are useful when
installing retrofits.
There are parts of the
instructions that suggest
marking spots on the
Gigabot® to properly place
parts. When marking, be sure
to only use a pencil--using a
permanent marker will leave
unsightly marks on the metal!

Side Panel Installationre:3D Inc.® 5
BILL OF MATERIALS - PARTIAL SIDE PANELS
BUILD GUIDE
Post assembly T-nuts M5x8mm BHCS
26 9/16” x 12” side panels
12 12
2

Side Panel Installation re:3D Inc.®6
BILL OF MATERIALS - FULL SIDE PANELS
Post assembly T-nuts M5x8mm BHCS
26 9/16” x 12” side panels26 9/16” x 8 3/4” side panels
26 9/16” x 12 1/4” side panels
36 36
22
2
TOOLS YOU’LL NEED
• 3MM ALLEN KEy

A : INSTALLATION

Side Panel Installation re:3D Inc.®8

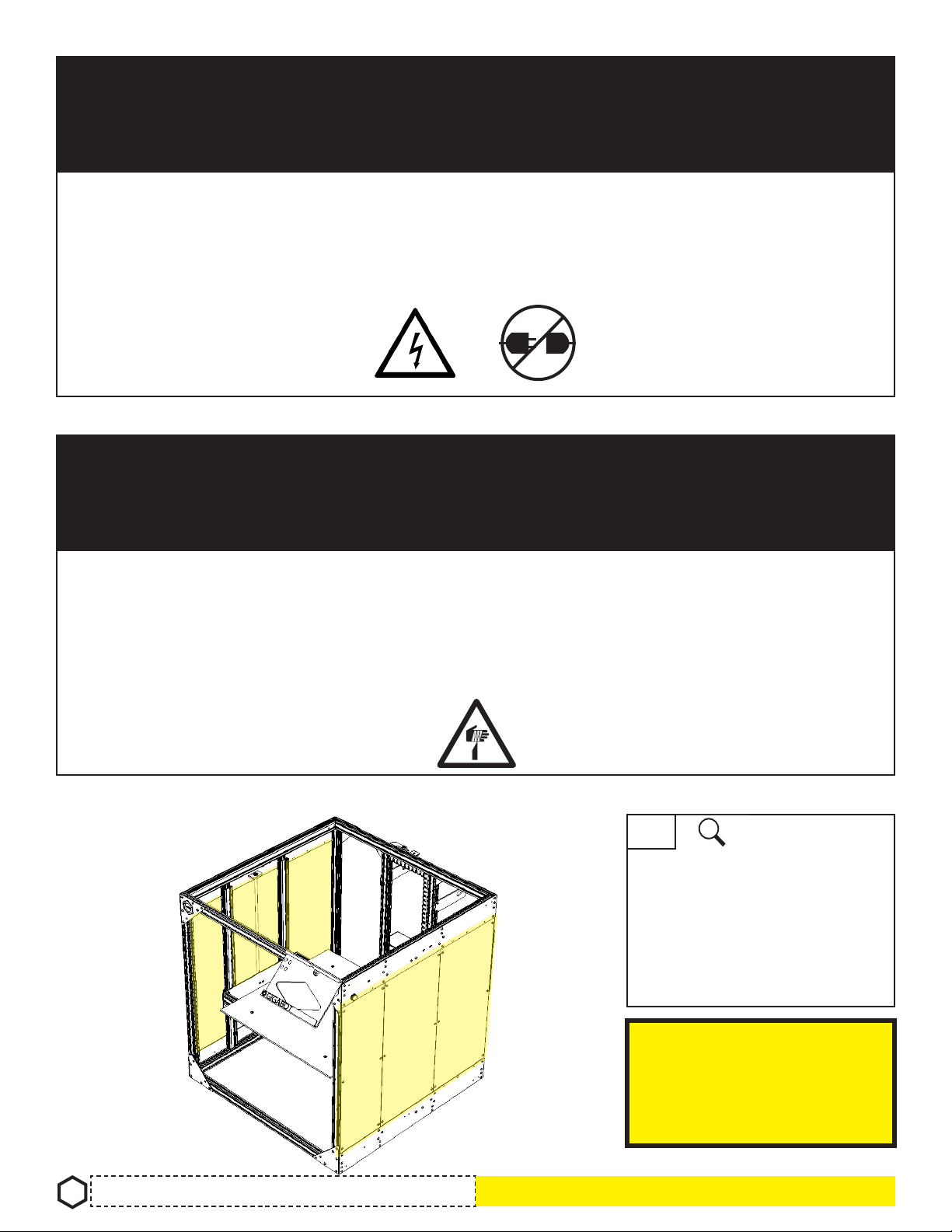

Refer to overview for
placement if needed
Without removing
protective film on panels,
identify the location of each
panel
A3
WARNING
PLEASE be sure that you have turned o and
unplugged your Gigabot before attempting any
modifications!
WARNING
There may be sharp edges on panels after
cutting process. Observe accordingly and wear
protective gloves as needed.

Side Panel Installationre:3D Inc.® 9
Use each panel to
approximate the location of
each T-nut
Insert T-nuts inside rail
6 T-nuts for each panel
Remove film from panel
A4
A5
A6

Side Panel Installation re:3D Inc.®10
Place panel in
corresponding location
Fasten 1 or 2 x M5x8mm
BHCS to loosely hold panel
Align the rest of the T-nuts
to the panel holes
A7
A8
A9

Side Panel Installationre:3D Inc.® 11
Fasten the rest of the
M5x8mm BHCS with a 3mm
Allen key
Repeat for all remaining
panels
A10
A11
Please look over your completed kit and make sure everything has been assembled
correctly. If you have further questions, please refer to the video instructions (search
“re3D Tech” on YouTube and find “Side Panel Installation” video) or contact us through
the channels listed in the conclusion.
DOUBLE-CHECK YOUR WORK :

Side Panel Installation re:3D Inc.®12
now is a good stopping point...
Acquire beverage of
your choice
Actuate pull tab
Consume

CONGRATULATIONS! YOU HAVE NOW COMPLETED THE SIDE
PANEL RETROFIT ON YOUR GIGABOT®.
We are confident that you will find this upgrade very helpful in your every day use of the
Gigabot®, but please do not hesitate to contact us for any further issues or questions.
Feedback on assembly instructions, support, and other aspects of your experience are
welcome. Reach out to us at:
CONCLUSION
WIKI : wiki.re3d.org
EMAIL : [email protected]
PHONE : [phone]
Happy printing!
think big, print huge!
From the re:3D Inc.® team

GIGABOT® PARTS KIT
OPENING GUIDE :
http://wiki.re3d.org/images/1/13/Parts_Kit_Box_
Opening_Guide_v1.pdf
SIDE PANEL
INSTALLATION
MANUAL PDF :
http://wiki.re3d.org
re:3D Inc.® YouTube
CHANNEL :
https://www.youtube.com/user/GigaBot3D
REFERENCES & DOCUMENTS
