Record R62 User manual

User manual service display
record R62
automatic door systems - this is record!
Translation of the original manual

Table of contents
BAL_SD_R62_EN_2V2_BLA_121
-006454377 2/
17
Table of contents
Table of revision...............................................................................................
3
1
Instructions.......................................................................................................
4
1.1
Connecting the Service Display .....................................................................................................
4
1.2
Connection to the column on the entrance door entrance side .....................................................
4
2
Operating modes..............................................................................................
5
2.1
General presentation......................................................................................................................
5
2.2
Commissioning the record Service Display....................................................................................
6
2.3
Enter the access code....................................................................................................................
7
3
Parameter display ............................................................................................
8
4
Parameter overview..........................................................................................
9

Table of revision
BAL_SD_R62_EN_2V2_BLA_121
-006454377 3/
17
Table of revision
I
Instructions
General changes........................................................... 4
P
Parameter overview
General changes........................................................... 9

Instructions
1
BAL_SD_R62_EN_2V2_BLA_121
-006454377 4/
17
Instructions
Connecting the Service Display
Connect the Service Display to one of the sockets in the door or in the optional socket on the inside
column (secure side).
IMPORTANT
Please ensure that the “ON / OFF” switch is in the OFF position before connect-
ing and/or disconnecting the Service Display.
CAUTION
If the display is on (switch in the ON position) while being connected / discon-
nected
•this can lead to destruction of the control interface
Place switch in the OFF position
Connection to the column on the entrance door entrance side
Remove the protective cap and plug the Service
Display into the 9-pin socket (see picture).
1
1.1
1.2

Operating modes
2
BAL_SD_R62_EN_2V2_BLA_121
-006454377 5/
17
Operating modes
General presentation

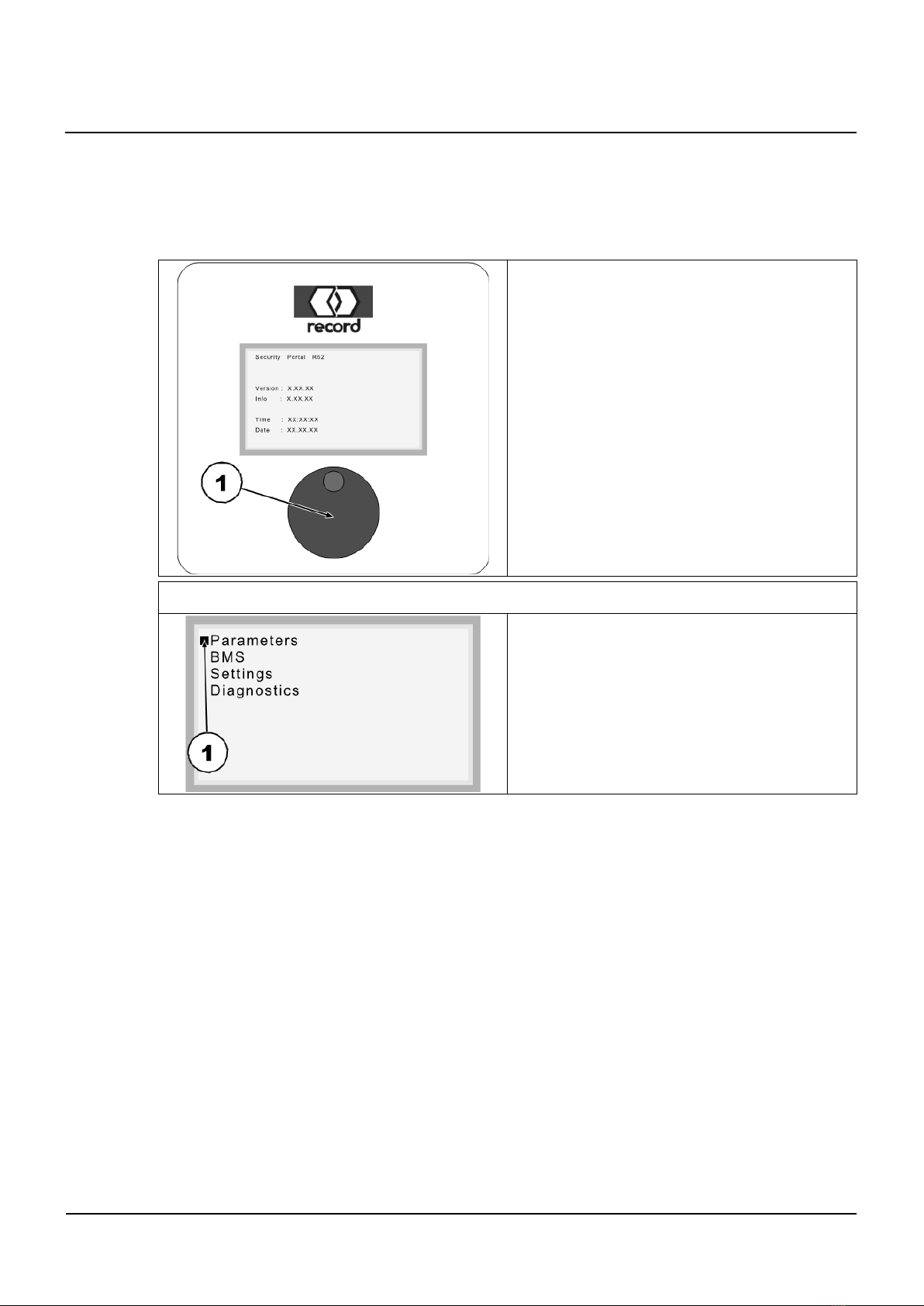

The individual parameters and adjustable timer values are shown individually on the service display.
Access to the menus is via the blue rotary switch on the front of the Service Display as shown below.
▪Scroll through the menu by turning the Rotary
encoder
(1).
▪Confirm your selection by briefly pressing the
rotary switch
(1)
.
▪Press and hold the Rotary encoder
(1)
to re-
turn to the previous menu.
Access logic to the menus:
The cursor
(1)
indicates the current position in
the menu.
▪Turn the Rotary encoder to scroll through the
menu.
2
2.1

Operating modes
2
BAL_SD_R62_EN_2V2_BLA_121
-006454377 6/
17
Commissioning the record Service Display
Before using the record Service Display, it has to be configured in order to communicate with the PLC
(Programmable Logic Control).
Accessing the “SETUP” menu on the screen:
Connect the plug while keeping the rotary dial pressed.
Setting the communication speed:
Scroll down to “Set Baudate” and confirm
Set to “9600” and confirm
Return to the previous menu
Selecting the communication mode:
Select “Set Serial Mode” and confirm
Select “RS485 FTP” and confirm
2.2

Operating modes
2
BAL_SD_R62_EN_2V2_BLA_121
-006454377 7/
17
Choice of address:
“01” to add local address and confirm
“02” to add technician’s info and confirm
Change the address screen:
Return to the communication mode”
Exit “Serial Mode” menu
And exit the “Setup” menu
Enter the access code
Access tot he menu is protected by a code which restricts modification oft he parameter settings to
qualified and authorized personnel only.
No code is required to view the settings. Simply confirm to proceed tot he next menu.
Contact your record partner to obtain your access code.
2.3

Parameter display
3
BAL_SD_R62_EN_2V2_BLA_121
-006454377 8/
17
Parameter display
page layout
The following information is displayed:
▪Current program details
▪Software Version
▪Information message (current operating
mode, maintenance required, etc.)
▪Date and time of the system
3

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 9/
17
Parameter overview
PARAMETERS
FACTORY
SETTINGS
DESCRIPTION
→
CUSTOMER
→ Customer
0
Parameter to select special customer functions:
0
= Standard
1
= Toronto
→
SENSOR
→ PSensorType
2
Select the type of sensor:
0
= no sensor
1
= contact mat
2
= IEE 3D – Tailgaiting sensor
3
= external approval
→
OPERATING MODES
→ LOCKED
→ PDetection
OFF
Protection against confinement in the LOCKED
operating mode:
ON
: detection in the portal reopens the last
opened door
OFF
: doors close and lock (danger of confine-
ment)
→ SLUICE MODE
→ TPubOpenDelay
5
(ds) Delay time to open the door "public side" in sluice
mode
→ TSecOpenDelay
5
(ds) Delay time to open the door "secure side" in
sluice mode
→ TLedInterval
5
(ds) Traffic lights interval in sluice mode
→ TPubWaitIN
40
(ds) Time waiting for a person to go into the sluice
from the public side before the door closes again
→ TSecWaitIN
40
(ds) Time waiting for a person to go into the sluice
form the secure side before the door closes again
→ TDelayIdle
10
(ds) Delay time to check is door is empty
→ TTimeDecision
10
(sec) Timeout waiting for verification (this could be an
external selection, finger print, contact mat sensor
etc.)
4

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 10/
17
→ MAINTENANCE
→ PArea
PUB
Select from which side maintenance can be done:
PUB
= public side
SEC
= secure side
→ TLedIntervall
10
(ds) Traffic lights blinking interval during maintenance
mode
→ Override
OFF
Switch on maintenance mode via Service Display
(in any operating mode)
→ CLEANING
→ TDuration
10
(min.) Time allotted for cleaning mode
→ TWarningExit
50
(ds) Warning signal (buzzer or optional voice mes-
sage), to exit the door as the cleaning time has
expired
→ PANIC
→ TPubOpenDelay
5
(ds) Delay time to open the door "public side" in panic
mode
→ TSecOpenDelay
5
(ds) Delay time to open the door "secure side" in panic
mode
→
TRAFFIC LIGHTS
→ PTrafficeLEDIdle
gn
(green)
Color of traffic lights when the security portal is
empty:
gn
= green
red
= red
→
LOCK-DOWN
→ PExitWay
PUB
Select which door will open as exit way when the
lock-down button is pressed. First the opposite
door will close for security reason.
PUB
= public side
SEC
= secure side
→
DOOR LOCKING
→ Safety locking
OFF
Locking function that always locks the opposite
door when one door isn't closed.

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 11/
17
→
ALARMING
→ General
→ PAutoReset
ON
Selection to switch automatic reset ON or OFF
when alarm is no longer active
→ TTechAlarmDelay
30
(sec) Delay time to active alarming in case of a tech-
nical alarm
→ TLedIntervall
1
(ds) Traffic lights blinking interval during alarm
→ TMatAlarmDelay
60
(sec) Delay time when alarm is from door drives or
faulty sensor
→ PEntranceFlash
0
Flashing light on the entrance indicates the type
of alarm:
0
= all alarms
1
= intrusion
2
= tailgaiting
3
= technical alarm
4
= sabotage
→ TPubOpenDelayTech
5
(ds) Delay time opening public door in case of tech-
nical alarm
→ TSecOpenDelayTech
5
(ds) Delay time opening secure door in case of tech-
nical alarm
→ Buzzer
→ TTechAlarm
10
(min.) Time between repeating signaling with the buzzer
when technical alarm is still active
→ TOnTime
5
(ds) Time the buzzer is on
→ Public door
→TWrongPos
30
(sec) Delay time alarming public door does not open or
close
→ TNotOpNotCl
10
(sec) Delay time alarming while public door is between
open and closed position
→ TForcedOpen
10
(ds) Delay time for alarming when the public door is
closed and is no longer sending an opening im-
pulse to the PLC
→ Secure door
→TwrongPos
30
(sec) Delay time alarming secure door does not open or
close

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 12/
17
→ TNotOpNotCl
10
(sec) Delay time alarming while secure door is between
open and closed position
→ TForcedOpen
10
(ds) Delay time alarming when the secure door is
closed and is no longer sending an opening im-
pulse to the PLC
→
LIGHT
→ PPowerSave
ON
Power save mode activated ON or deactivated
OFF
→ TPowerSave
30
(min.) Delay time before light is switched off when door
is not used
→ TOffDelay
20
(ds) Delay time to switch off the lights (when changing
the operating mode)
→
VOICE OUTPUT
→ PEnableMsg1
ON
enable / disable the voice message 1
→ PEnableMsg2
ON
enable / disable the voice message 2
→ PEnableMsg3
ON
enable / disable the voice message 3
→ PEnableMsg4
ON
enable / disable the voice message 4
→ PEnableMsg5
ON
enable / disable the voice message 5
→ PEnableMsg6
ON
enable / disable the voice message 6
→ PEnableMsg7
ON
enable / disable the voice message 7
→ PEnableMsg8
ON
enable / disable the voice message 8
→ PEnableMsg9
ON
enable / disable the voice message 9
→ PEnableMsg10
ON
enable / disable the voice message 10
→ PEnableMsg11
ON
enable / disable the voice message 11
→ PEnableMsg12
ON
enable / disable the voice message 12
→ PEnableMsg13
ON
enable / disable the voice message 13
→ PEnableMsg14
ON
enable / disable the voice message 14
→ PEnableMsg15
ON
enable / disable the voice message 15
→ TBewtweenMsg
3
(min.) Delay time to repeat the voice message when the
same function/message is still triggered
→
INPUTS
→ AUX01_IN
0
0
= no function
1
= maintenance mode
2
= cleaning mode from secure side
→ AUX02_IN
0
→ AUX11_IN
0

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 13/
17
→ AUX12_IN
0
3
= cleaning mode from public side
4
= Tailgaiting sensor off (permanent deactiva-
tion)
→ AUX21_IN
0
→ AUX22_IN
0
→
OUTPUTS
→ AUX11_OUT
0
0
= no function
1
= Person passage from public side
2
= Person passage from secured side
→ AUX12_OUT
0
→ AUX21_OUT
0
→ AUX22_OUT
0
→ AUX23_OUT
0
BMS – (Building Management Sys-
tem)
FACTORY
SETTINGS
DESCRIPTION
→ BMS Invert logic
→ BMS1
→ PLogicRL1
NORM
Output logic of the relay contact:
NORM:
enabled when message is active
INV:
enabled when message is inactive
LOCK:
Status message when door is locked
CLOS:
Status message when door is closed
→ PLogicRL2
NORM
→ PLogicRL3
NORM
→ PLogicRL4
NORM
→ PLogicRL5
NORM
→ PLogicRL6
NORM
→ PLogicRL7
NORM
→ PLockedClosedRL7
LOCK
→ PLogicRL8
NORM
→ PLockedClosedRL8
LOCK
→ BMS2
→ PLogicRL1
NORM
Output logic of the relay contact:
NORM:
enabled when message is active
INV:
enabled when message is inactive
→ PLogicRL2
NORM
→ PLogicRL3
NORM
→ PLogicRL4
NORM
→ PLogicRL5
NORM
→ PLogicRL6
NORM
→ PLogicRL7
NORM
→ PLogicRL8
NORM

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 14/
17
SETTINGS
FACTORY
SETTINGS
DESCRIPTION
→
DATE AND TIME
→ GetTimeDate
OFF
Read time from PLC
→ SetTimeDate
OFF
Write time to PLC
→ Hour
0 .. 23
(Integer)
Hour value
→ Minute
0 .. 59
(Integer)
Minute value
→ Day
1 .. 31
(Integer)
Day value
→ Month
1 ..12
(Integer)
Wert Monat
→ Year
2015 ..
2099
(Integer)
Year value
→ TCP / IP
→ Get settings
OFF
Read TCP/IP settings from the PLC
→ Set settings
OFF
Write TCP/IP settings to the PLC
→IP0
10
(Integer)
IP-Adress byte 0
→ IP1
17
(Integer)
IP-Adress byte 1
→ IP2
15
(Integer)
IP-Adress byte 2
→ IP3
30
(Integer)
IP-Adress byte 3
→ Subnet0
255
(Integ
er) Subnet Mask byte 0
→ Subnet1
255
(Integer)
Subnet Mask byte 1
→ Subnet2
255
(Integer)
Subnet Mask byte 2
→ Subnet3
0
(Integer)
Subnet Mask byte 3
→ Gateway0
0
(Integer)
Gateway byte 0
→ Gateway1
0
(Integer)
Gateway byte 1
→ Gateway2
0
(Inte
ger) Gateway byte 2
→ Gateway3
0
(Integer)
Gateway byte 3
DIAGNOSTICS
FACTORY
SETTINGS
DESCRIPTION
→
INPUTS 0..15
→ DoorSecClosed
OFF
(read only)
Secure door closed
→ DoorSecOpen
OFF
(read only)
Secure door open
→DoorSecLocked
OFF
(read only)
Secure door locked
→ DoorPubClosed
OFF
(read only)
Public door closed

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 15/
17
DIAGNOSTICS
FACTORY
SETTINGS
DESCRIPTION
→ DoorPubOpen
OFF
(read only)
Public door open
→ DoorPubLocked
OFF
(read only)
Public door locked
→DCPowerOK
OFF
(read only)
Monitoring power supply (DC power
ok)
→ EmergClosing
OFF
(read only)
Contact emergency closing
→ TotalOpening
OFF
(read only)
Contact total opening
→ PanicButton
OFF
(read only)
Contact panic button
→ AlarmStgSec
OFF
(read only)
Alarm door drive secure side
→ AlarmStgPub
OFF
(read only)
Alarm door drive public side
→ AUX01_IN
OFF
(read only)
Programmable input AUX01_IN
→ AUX02_IN
OFF
(read only)
Programmable input AUX02_IN
→ AUX11_IN
OFF
(read only)
Programmable input AUX11_IN
→ AUX21_IN
OFF
(read only)
Programmable input AUX21_IN
→
INPUTS 16..31
→ BdeS1
OFF
(read only)
BDE-S contact 1
→ BdeS2
OFF
(read only)
BDE-S contact 2
→ BdeS3
OFF
(read only)
BDE-S contact 3
→ AUX12_IN
OFF
(read only)
Programmable input AUX12_IN
→ SwDoorPubOut
OFF
(read only)
Contact public door outside (push
button, code card reader etc.)
→ SwDoorPubIn
OFF
(read only)
Contact public door inside (push but-
ton, code card reader etc.)
→ SwDoorSecOut
OFF
(read only)
Contact secure door outside (push
button, code card reader etc.)
→ SwDoorSecIn
OFF
(read onl
y) Contact secure door inside (push but-
ton, code card reader etc.)
→ SuperUserSec
OFF
(read only)
Contact for temporary deactivation of
the sensor (contact mat, tailgaiting etc.) to pass
through from the secure side to the public side
→ SuperUserPub
OFF
(read only)
Contact for temporary deactivation of
the sensor (contact mat, tailgaiting etc.) to pass
through from the public side to the secure side
→ SensorC1
OFF
(read only)
Contact status sensor "room empty"

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 16/
17
DIAGNOSTICS
FACTORY
SETTINGS
DESCRIPTION
→ SensorC2
OFF
(read only)
Contact status sensor "decision YES“
→ SensorC3
OFF
(read only)
Contact status sensor "decision NO"
→ SwTraps
OFF
(read only)
Service flap is open
→ Voice1Busy
OFF
(read only)
Output of the voice card when busy
→ AUX22_IN
OFF
(read only)
Programmable input AUX22_IN
→
OUTPUTS 32..47
→ StgSecSurV
OFF
(read only)
Command lock secure door
→ StgSecSSK
OFF
(read only)
Command open secure door
→ StgPubSurV
OFF
(read only)
Command lock public door
→ StgPubSSK
OFF
(read only)
Command open public door
→ Light
OFF
(read only)
Lighting
→ Buzzer
OFF
(read only)
Buzzer
→ RedSecOut
OFF
(read only)
Red traffic light secure door outside
→ GreenSecOut
OFF
(read only)
Green traffic light secure door outside
→ RedPubOut
OFF
(read only)
Red traffic light public door outside
→ GreenPubOut
OFF
(read only)
Green traffic light public door outside
→ RedSecIn
OFF
(read only)
Red traffic light secure door inside
→ GreenSecIn
OFF
(read only)
Green traffic light secure door inside
→ RedPubIn
OFF
(read only)
Red traffic light public door inside
→ GreenPubIn
OFF
(read only)
Green traffic light public door inside
→ AUX11_OUT
OFF
(read only)
Programmable output AUX11_OUT
→ AUC21_OUT
OFF
(read only)
Programmable output AUX21_OUT
→
OUTPUTS 48..63
→ Voice1In1
OFF
(read only)
Outputs for voice card. Messages are
selected by the binary code of the 4 output signals
→ Voice1In2
OFF
→ Voice1In3
OFF
→ Voice1In4
OFF
→ Voice1Start
OFF
(read only)
Start signal for the selected voice
message
→ AUX22_OUT
OFF
(rea
d only) Programmable output AUX22_OUT
→ AUX23_OUT
OFF
(read only)
Programmable output AUX23_OUT

Parameter overview
4
BAL_SD_R62_EN_2V
2_BLA_121-006454377 17/
17
DIAGNOSTICS
FACTORY
SETTINGS
DESCRIPTION
→ AUX12_OUT
OFF
(read only)
Programmable output AUX12_OUT
→ Flash
OFF
(read only)
Flashing lights outside the door
→ ReverseOUT1
OFF
(read only)
Not in use
→ ReverseOUT2
OFF
(read only)
Not in use
→ ReverseOUT3
OFF
(read only)
Not in use
→ ReverseOUT4
OFF
(read only)
Not in use
→ ReverseOUT5
OFF
(read only)
Not in use
→ ReverseOUT6
OFF
(read only)
Not in use
→ ReverseOUT7
OFF
(read only)
Not in use
→
OUTPUTS 64..79
→ BMS1.RL8
OFF
(read only)
Status BMS relay
→ BMS1.RL7
OFF
(read only)
Status BMS relay
→ BMS1.RL6
OFF
(read only)
Status BMS relay
→ BMS1.RL5
OFF
(read only)
Status BMS relay
→ BMS1.RL4
OFF
(read only)
Status BMS relay
→ BMS1.RL3
OFF
(read only)
Status BMS relay
→ BMS1.RL2
OFF
(read only)
Status BMS relay
→ BMS1.RL1
OFF
(read only)
Status BMS relay
→ BMS2.RL8
OFF
(read only)
Status BMS relay
→ BMS2.RL7
OFF
(read only)
Status BMS relay
→ BMS2.RL6
OFF
(read only)
Status BMS relay
→ BMS2.RL5
OFF
(read only)
Status BMS relay
→ BMS2.RL4
OFF
(read only)
Status BMS relay
→ BMS2.RL3
OFF
(read only)
Status BMS relay
→ BMS2.RL2
OFF
(read only)
Status BMS relay
→ BMS2.RL1
OFF
(read only)
Status BMS relay

Contact
Subject to technical modifications - Copyright © agtatec ag
n° 121-006454377 - Manufacturer: agtatec ag - Allmendstrasse 24 - 8320 Fehraltorf - Switzerland
➔ record UK limited
Head Office: Unit D, 9 Watt Place - Hamilton International Park - Blantyre - G72 0AH - UK
Central Office: Batley Business Centre - Unit 40 - Annexe 2 - Technology Drive - Batley - Wf17 6ER - UK
Southern Office: 17 Invincible Road - Farnborough - Gu14 7QU - UK
tel.: [phone] - fax: [phone] - - [email protected] www.recorduk.co.uk
➔ record global export
agtatec ltd - Allmendstrasse 24 - 8320 Fehraltorf - Switzerland
tel.: [phone] - e-mail: - [email protected] www.record.global
➔ Headquarters
agtatec ltd - Allmendstrasse 24 - 8320 Fehraltorf - Switzerland
tel.: [phone] - e-mail: - [email protected] www.record.group
