Record HA8-SP Service manual

Record HA8-SP Low Energy
Record FA8-SP Full Energy
Swing Operator
Installation & Instruction Manual
A
www.recorddoors.com

READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY!
FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE!
•Install only on a properly operating and balanced door. A door that is operating improperly could cause severe
injury. Before installing the operator, have qualified service personnel make repairs to cables, and other hardware.
•Before installing the operator, remove or make inoperative, all locks (unless mechanically and/or electrically
interlocked to the power unit), all activation units and accessories that may be connected to the door.
•A commercial/industrial door operator that has exposed moving parts capable of causing injury to persons or
employs a motor deemed indirectly accessible by virtue of its location above the floor shall include:
- Install the door operator at least 2.4 m (8ft) or more above the floor, and/or
-If the operator must be installed less than 2.4 m (8ft) above the floor, then exposed moving parts must be
protected by covers or guarding provided by the operator manufacturer.
•The control unit MUST be located: (1) within the sight of the door, and (2) at a minimum height of 1.5 m (5ft) above
the floors, landings, steps, or any other adjacent walking surface and (3) away from all moving parts of the door.
•Install the Entrapment Warning Placard next to the control station in a prominent location if applicable.
•To reduce the risk of injury to persons - Use this system only with pedestrian doors.
•Do not connect the operator to a power supply until instructed to do so. Connection of the high voltage supply
should be done by a qualified professional and within the guidelines of the enforced local electrical codes.
•HIGH VOLTAGE (INCOMING 115 VAC) WIRES AND LOW VOLTAGE WIRES CANNOT SHARE THE SAME
ACCESS HOLE. HIGH VOLTAGE WIRES MUST BE ROUTED AND SECURED AWAY FROM ALL LOW
VOLTAGE WIRES.
Complies with applicable sections of NFPA 101 and the IBC Life Safety Codes for Manually Operated Pedestrian Doors.
Copyright 2022 ©ASSA ABLOY, Part of ASSA ABLOY. All rights reserved. Reproduction in whole or in part without the
express written permission of Record is prohibited.
HA8-SP Manual V. 7.0

Revisions
The following pages have been revised:
Page
Revision
ALL
Arm hardware changed from imperial to metric
ALL Record redranding
REVISIONS
Pg. 3
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

8.0 ADA ADJUSTMENTS
63
9.0 INSTALLATION WRAP UP
64
10.0 MANUFACTURER INFORMATION 69
Table of Contents
1.1 Replacement Parts
1.2 General Information
1.3 Technical Specifications
1.4 Door Handings
1.5 Consideration of Surroundings
1.6 Electrical
2.1 Pre-Mounting Header Box Instructions
2.2 Operator Layout and Handing - Push and Pull
2.3 Double Egress Header
2.4 Gearbox Installation
2.5 Control Board Installation
2.6 Connect Motor Wire Leads
3.1 Push Arm
3.2 Pull (Z-arm)
3.3 Universal Arm - Pull and Push
3.4 Center Spindle (Concealed)
3.5 Center Hung
4.1 Operator Tuning
4.2 How it Works
4.3 Back Check and Latch Adjustment
4.4 Spring Tension Adjustment
5.1 Basic Operation
5.2 Operation Switch
6.1 Digital Board Specification (Single Board)
6.2 Connection Diagram - Low Energy (ANSI A156.19)
6.3 Connection Diagram - Fully Automatic (ANSI 156.10)
6.4 Programing Specification
6.5 Programming - Trouble Shooting
6.6 Safety Monitoring
6.7 Safety Sensor Connection - BEA Bodyguard
6.8 Safety Sensor Connection - BEA Superscan
6.9 Safety Sensor Connection - Optex OA-FLEX
7.0 DUAL DOOR PROGRAMMING 57
`
7.1 Dual Door Digital Board Specification (FA8 only)
7.2 Wiring Diagram
7.3 Programming Specification
7.4 Programming - Trouble Shooting
9.1 Additional Components:
Sensor(s) / Knowing Act Devices
9.2 Header Cover
9.3 Safety Decals
6.0 DIGITAL BOARD & PROGRAMMING 45
1.0 BEFORE INSTALLATION
7
5.0 DOOR OPERATING MODE
44
4.0 OPERATOR TUNING
35
3.0 ARM INSTALLATION
22
2.0 OPERATOR INSTALLATION
13
Pg. 4
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

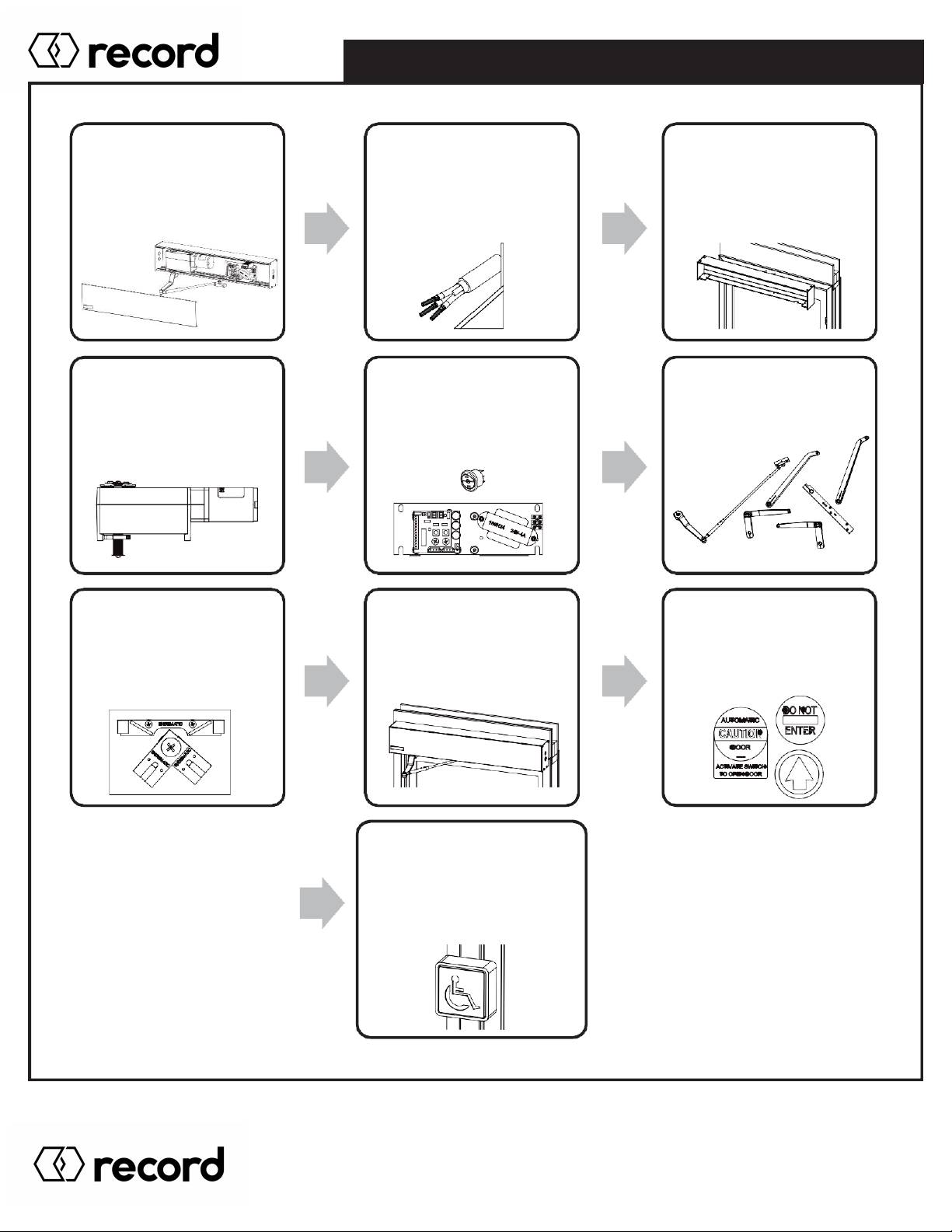

Step 1: Remove
Header Cover
(Section 2.1)
Step 2: Locate
& Drill Power
(Section 2.1)
Step 3: Mount
Header
(Section 2.1 - 2.3)
Step 4: Install
Operator
(Section 2.4)
Step 5: Place
Control Board
(Section 2.5 - 2.6)
Step 6: Install Arm
(Section 3.0)
Step 7: Electronics
Tuning
(Section 4.0 - 8.0)
Step 8: Clean/close
Header
(Section 9.0)
Step 9: Place
ANSI Stickers
(Section 9.0)
Step 10:
Install Sensor(s) /
Knowing Act Devices
(Section 9.0)
INSTALLATION OVERVIEW
Pg. 5
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

Completed/Typical Automatic Door Installation
HA8-SP
OPERATOR
BACKING MATERIAL
(REINFORCEMENT) HEADER BODY
CONTROL BOARD
ARM
DOOR MOUNTED
SENSORS HERE
(IF REQUIRED)
HEADER
COVER ANSI STICKERS
KNOWING ACT
DEVICE INSIDE
AND OUTSIDE
(FOR HA8 LOW
ENERGY ONLY)
STRIKE SIDE
HINGE SIDE
SWING DOOR
DOOR FRAME
INSTALLATION OVERVIEW
Pg. 6
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

1.1 Replacement Parts
11 4 3 1
2
12
7b
7a
5 8
10
6
9
13 14 15
1.0 BEFORE INSTALLATION
Pg. 7
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

Replacement Parts
Item
Category
Part No.
Description
1
Operator
W7-105L
LH 1/8 hp Operator
W7-105R
RH 1/8 hp Operator
W7-106L
LH 1/8 hp Push & Go
Operator
W7-106R
RH 1/8 hp Push & Go
Operator
2
Header Cap
W5-557
Header Plastic Cap
3
Control Board
W7-130-1
HA Digital Control Board
W7-135-1
FA Digital Control Board
W7-180
Dual Digital Control Board
(FA8 only)
4
HA8 Fuse
W5-422
3AMP Fuse
FA8 Fuse
W5-430
4AMP Fuse
5
Push Arm
W7-200
Complete Push Arm-Clear
(with 17.5” rod)
W7-205
Complete Push Arm-Bronze
(with 17.5” rod)
W5-502C
Cast portion only - Clear
W5-502B
Cast portion only - Bronze
W5-500C
Extended Rod (22”) - Clear
W5-500B
Extended Rod (22”) - Bronze
6
Z-Arm (Pull)
W5-506C
Z-Arm RH - Clear
W5-505C
Z-Arm LH - Clear
W5-506B
Z-Arm RH - Bronze
W5-505B
Z-Arm LH - Bronze
W5-508C
Extended Z-Arm RH - Clear
W5-508B
Extended Z-Arm RH - Black
W5-507C
Extended Z-Arm LH - Clear
W5-507B
Extended Z-Arm LH - Black
Replacement Parts
Item
Category
Part No.
Description
7a
Pull Arm Track
- Short
(for Z-arm)
W5-550
Pull Track Assembly-Clear
W5-555
Pull Track Assembly-Bronze
7b
Pull Arm Track
-Long
(for Universal Arm/
Center Spindle)
W5-551
Pull Track Assembly Long
- Clear
W5-556
Pull Track Assembly Long
- Bronze
8
Universal Arm
W5-512C
Universal Arm - Clear
W5-512B
Universal Arm - Bronze
9
Center Hung
Arm
W5-520
Center Hung Arm 2 ¾”
W5-521
Center Hung Arm 3 ¾”
10
Center Spindle
Arm
W5-511C
Center Spindle LH - Clear
W5-510C
Center Spindle RH - Clear
W5-511B
Center Spindle LH - Bronze
W5-510B
Center Spindle RH - Bronze
11
AUX Power
Supply Kit
(Optional)
WL-
PWRKIT
RS-25-24
Power Supply Kit
12
Rocker Switch
WL-
ROCKER
SWITCH
ON/OFF/HOLD OPEN
3 position switch
13
Magnets Sets
W5-416
Detects Back check and
Latch check phases
14
Reed Switch
W5-415
Communicates to Control
Board the position of door
15
Harness Cable
W5-415-2
Communicates to Control
Board the position of door
1.0 BEFORE INSTALLATION
Pg. 8
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

1.2 General Information
The HA8/FA8-SP Operator is a complete swinging door solution for push, pull, surface or concealed installations.
The header contains the Driving system (Motor), Torque production (Gearbox), and a Control system to interlink the two.
The HA8/FA8-SP Operator ensures all-around safety. It can be combined with the full range of safety units, such as
presence and motion sensors. It is easy to install for both new construction and retrofit applications.
•All wiring must conform to standard wiring practice in accordance with national and local wiring codes.
•Door must swing freely through the entire opening and closing cycle before beginning of installation.
Typically, doors are hung on hinges 5” (127mm) max. width or 3/4” (19mm) offset pivots.
•An incorrectly installed or improperly adjusted door operator can cause property damage or personal injury.
These instructions should be followed to avoid the possibility of misapplication or maladjustment.
•All dimensions are given in inches (millimeters), unless otherwise noted.
Door/ Frame Preparation
•Before installation, verify door frame is properly reinforced and is well anchored in the wall.
•Concealed electrical conduit, and concealed switch or sensor wires should be pulled to the frame before proceeding.
Suggested Fasteners for Frame
•#14 x 2-3/4” (70mm) long sheet metal screws.
Suggested Fasteners for Door
•#12, #14, Wood screws, Sheet Metal screws, Self-tapping screws of varying lengths depending on applications.
The fastener components listed above are merely suggestions. A technician should use their
best discretion to determine what components they’ll need to complete the job.
Shipping Inspection
Verify that the order was shipped complete and correct, including model number, door handing, color, and header width.
•The gearbox housing has the swing hand (L or R) labelled on the exterior housings.
•If any of the above items are not correct, do not attempt to install until all conditions are correct.
•Report any incorrect items to the general contractor immediately.
NO CLAIMS FOR SHORTAGES WILL BE ALLOWED UNLESS REPORTED
WITHIN 24 HOURS OF RECEIPT OF SHIPMENT.
Required Tools for installation:
•Allen Wrench Set •Screwdrivers: Flat, Philip, 5/16” Hex. Nut
•Power Drill and Drill Bits •Additional Fasteners Depending Surface
•Level •Shims
•Tape Measure •Hand Saw/ Power Saw
•Wire Stripper
1.0 BEFORE INSTALLATION
Pg. 9
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

1.0 BEFORE INSTALLATION
IMPORTANT SAFETY INSTRUCTIONS
• Do not climb or put weight on any door or header parts.
•Do not let children play with the operator, the electrical board, or door control. Keep remote controls away
from children.
• Keep all power off to the unit, when performing any work or maintenance.
• Personnel should keep away from a door in motion and keep the moving door in sight until it is completely
closed or opened. NO ONE SHOULD CROSS THE PATH OF A MOVING DOOR.
• Test the door’s safety features at least once a month. After adjusting either the force or the limit of travel,
retest the door operator’s safety features. Failure to adjust the operator properly may cause severe injury
or death.
•For products having a manual release, if possible, use the manual release only when the door is closed.
Use caution when using this release when the door is open. Weak or broken springs may cause the door
to fall rapidly, causing severe injury or death.
• KEEP DOORS PROPERLY OPERATING AND BALANCED, see AAADM owner’s manual. An
improperly operating or balanced door could cause severe injury or death. Have Record authorized
technician to make repair or maintenance.
To avoid bodily injury, material damage and malfunction of the product, the instructions contained in this manual must
be strictly observed during installation, adjustment, repairs and service etc. Training is needed to carry out
these tasks safely. Only Record-trained technicians should be allowed to carry out these operations.
It is the responsibility of the final installer and/or installation company, to certify that the final
completed operator is installed in accordance with local building codes and applicable laws.
1.3 Technical Specifications
Model
Record HA8-SP
Dimensions
4.5”W x 6.5”H
Weight
Approx. 45 lbs
Power Supply
115 ± 5VAC, 60Hz, 3A
Consumption
DC16V/ 3 AMP, DC24V/ 3 AMP
Motor
1/8 hp, 24VDC/16VDC, 3A (Standard),
Rated Operation
Continuous opening and closing cycles
Manual Opening/Closing Force -
during power failure
Opening Force: 15 lbs; Closing Force: 25lbs
Door Opening/Closing Speed & Force
Adjustable, see section 8.0 ADA ADJUSTMENTS
Operation - during power failure
Low manual resistance when opened by hand. Door closing by spring.
Hold Open
Pulsed Energy to Motor. No overheating. Continuous Hold Open
Operating Environment
Ambient temperature -4F to +120F (-20C to +50C) No condensation or icing
Ambient humidity 30% to 85% RH
(No hazardous materials must be present in the atmosphere)
Pg. 10
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

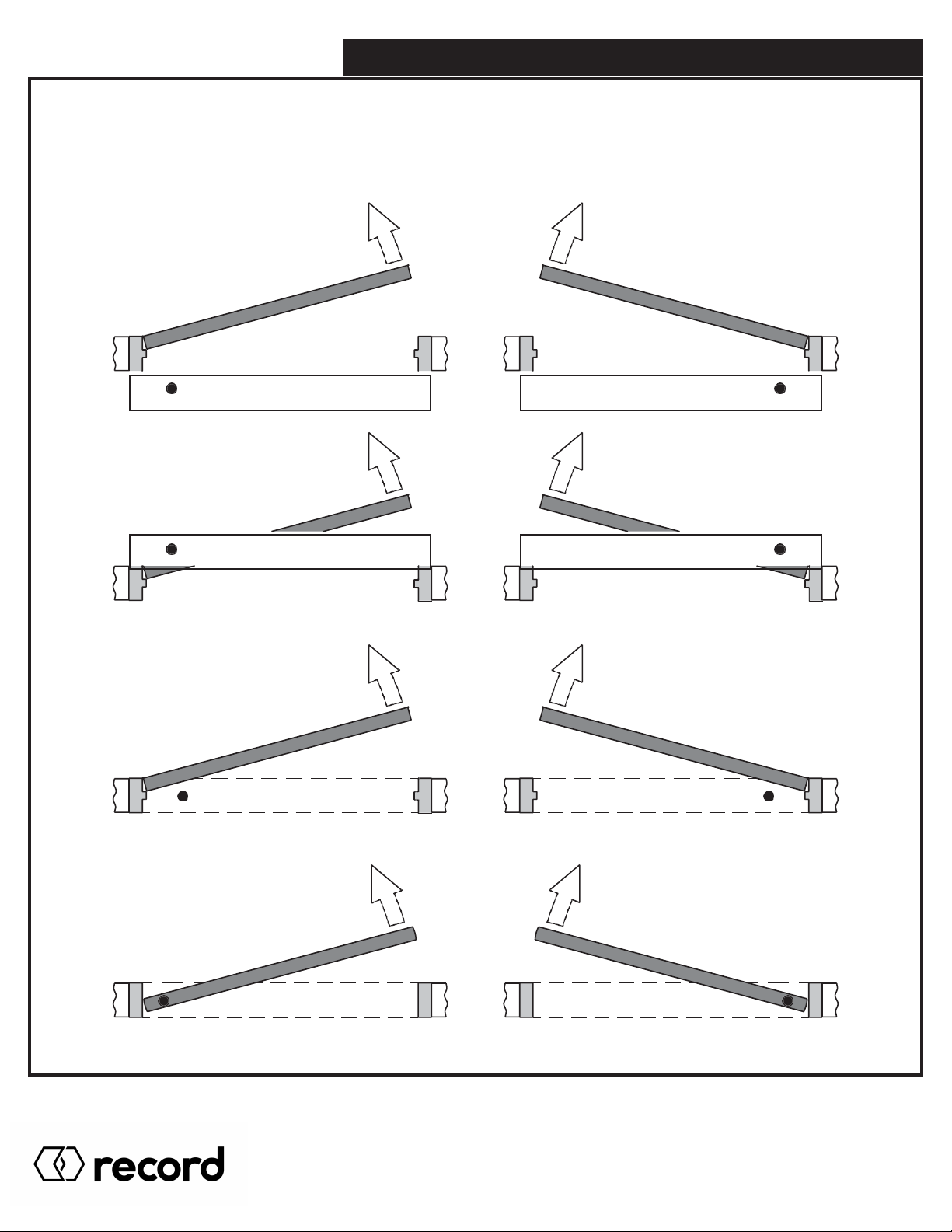

1.4 Door Handings
1.0 BEFORE INSTALLATION
The handing and types of each operator are shown in the figure below; the black dot indicates the spindle location.
The HA8-SP operator can be used for all applications.
Left Center - Spindle
Left Center - Hung
Right Center - Spindle
Right Center - Hung
Left Push - Surface
Right Push - Surface
Left Pull - Surface
Right Pull - Surface
Pg. 11
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

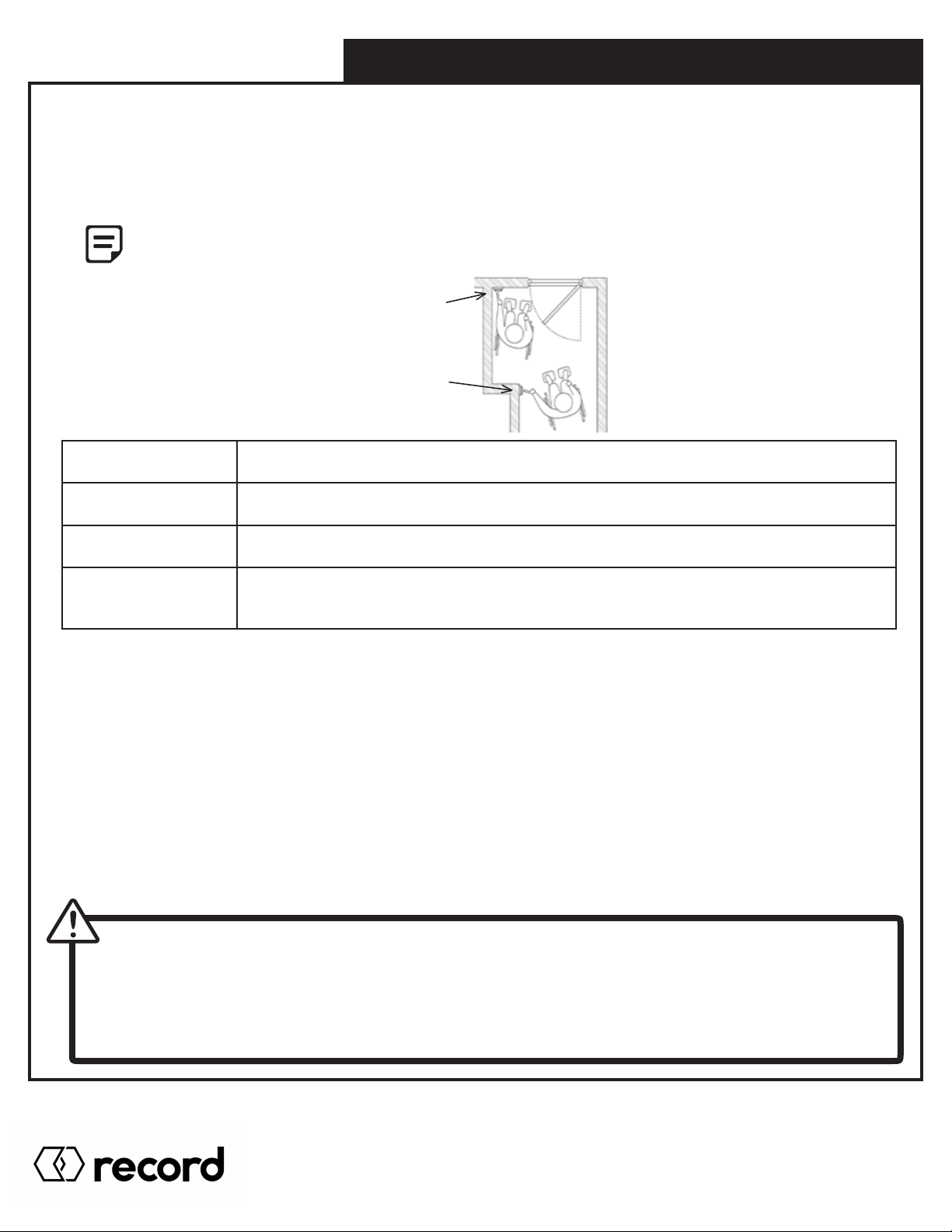

1.5 Consideration of Surroundings
Floor Space Requirements for Wheel Chair Maneuvering - Americans with Disabilities Act (ADA)
The owner may request the activation device location; however, the press switch must be in view of the door and not
directly on the door or frame. Please refer to ANSI 117.1 Safety Code for further guidelines on switch requirements.
Activation switches shall be at minimum height of 36” and maximum height of 48” from finished floors.*
Individual who uses wheelchair needs a minimum of 48” clearance to the door swing for doors in
sequence application.
Position# 1
Minimum Two Feet (2’)
from door latch
External and Internal Factors
Position# 2
Minimum Five Feet (5’)
from door face
Door Condition
Door must move easily open and close (latch) without excessive force; weather stripping and
threshold must not interfere with door movement.
Reveal
For out swing (Push) doors, the reveal must be within the range of 0” to 14”. For in swing (Pull)
doors, 0” to 4” for special reveals is allowed – for all others consult factory.
Wind
When installing on a door in a strong wind condition area, special adjustments should be made
to the arm and doorstop position, to increase the spring tension.
Power/Control Wires
Check that the electrical feed, all conduits, and electrical junction boxes (for push plates or
other activation devices, if required) are correctly located in accordance with final approved
shop drawings and within the guidelines of the enforced local electrical codes.
1.6 Electrical
The 115±5VAC supply lines are connected to the black primary wires coming from the transformer and the ground wire is
attached to the operator header box. Mount the ON/OFF/HOLD OPEN switch in the header end plates to the latch side of the
unit (or closest to the control board).
The control board settings have been pre-set prior to shipment. It will be necessary for the door operator to be functional while
adjustments and settings are made. A black push actuator is mounted on the upper left corner of the circuit board to ease
in the adjustment process. Power up the unit, push an activating device and check to make sure that the spline pinion drive
rotates in the correct direction. Keep all wires away from moving parts and sharp edges that may cut into the outer casing of
the wires.
THE GROUND WIRE FOR THE INCOMING 115±5VAC POWER AND THE SYSTEM GROUND WIRE
CANNOT SHARE THE SAME GROUNDING STUD. GROUND THE INCOMING 115±5VAC ACCORDINGLY.
•Installation of any extra wiring for controls or accessories into the header unit shall be secured and away from
any moving parts.
•If the motor is not plugged into the circuit board, there is no resistance against the spring when manually opening
the door. The door or arm will close very quickly if opened.
1.0 BEFORE INSTALLATION
*Check with local Authority
Having Jurisdiction
Pg. 12
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

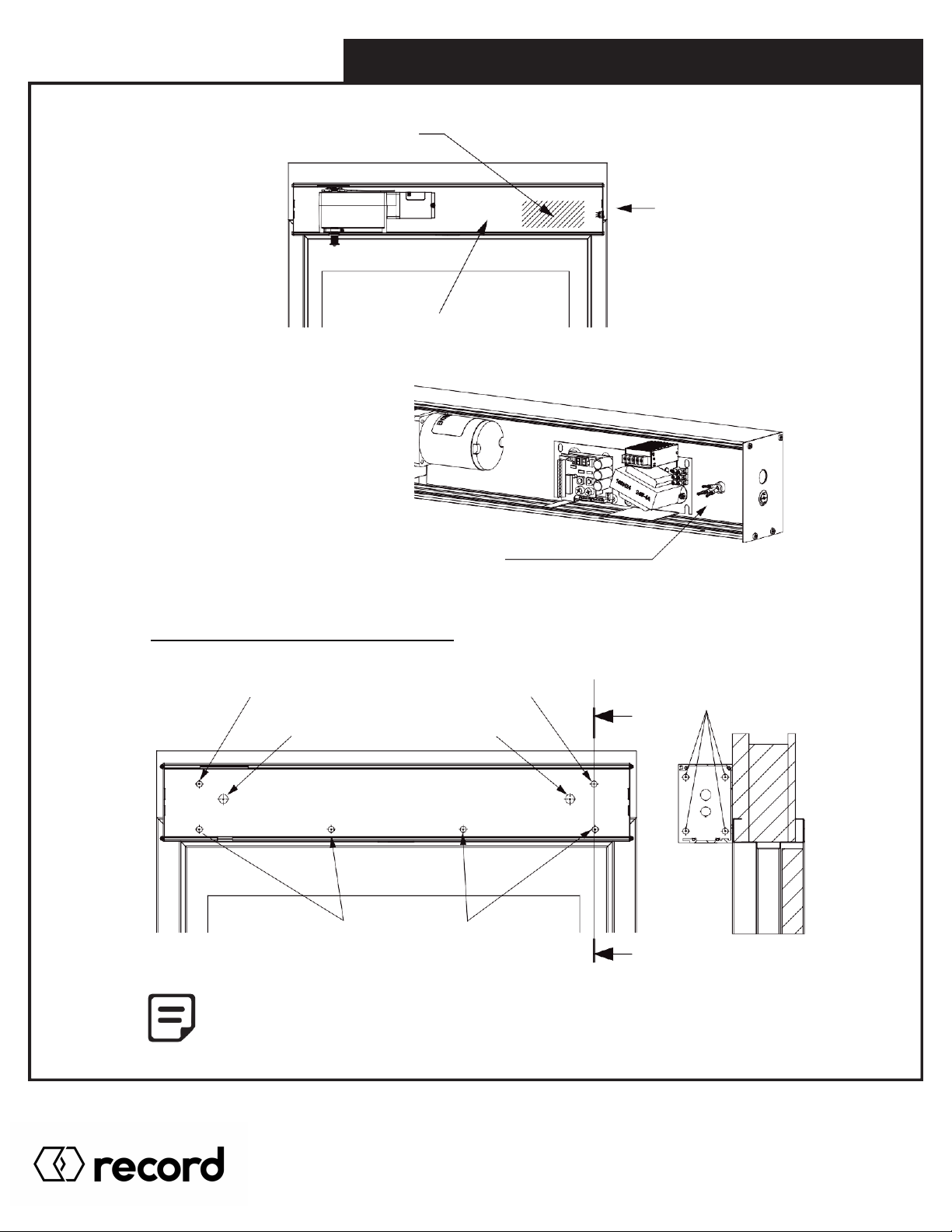

2.1 Pre-Mounting Header Box Instructions
Power supply may be pulled into the header at the same time the header assembly is positioned. Make sure all power is
turned off before handling the supply wires. This should be done by a certified electrician and within the guidelines of the
local electrical codes.
Be sure there is proper support in the wall to secure the header at the vertical jambs, and behind the header at intervals
between the vertical jambs. Secure the header to the top of the door frame with the appropriate fasteners as indicated below.

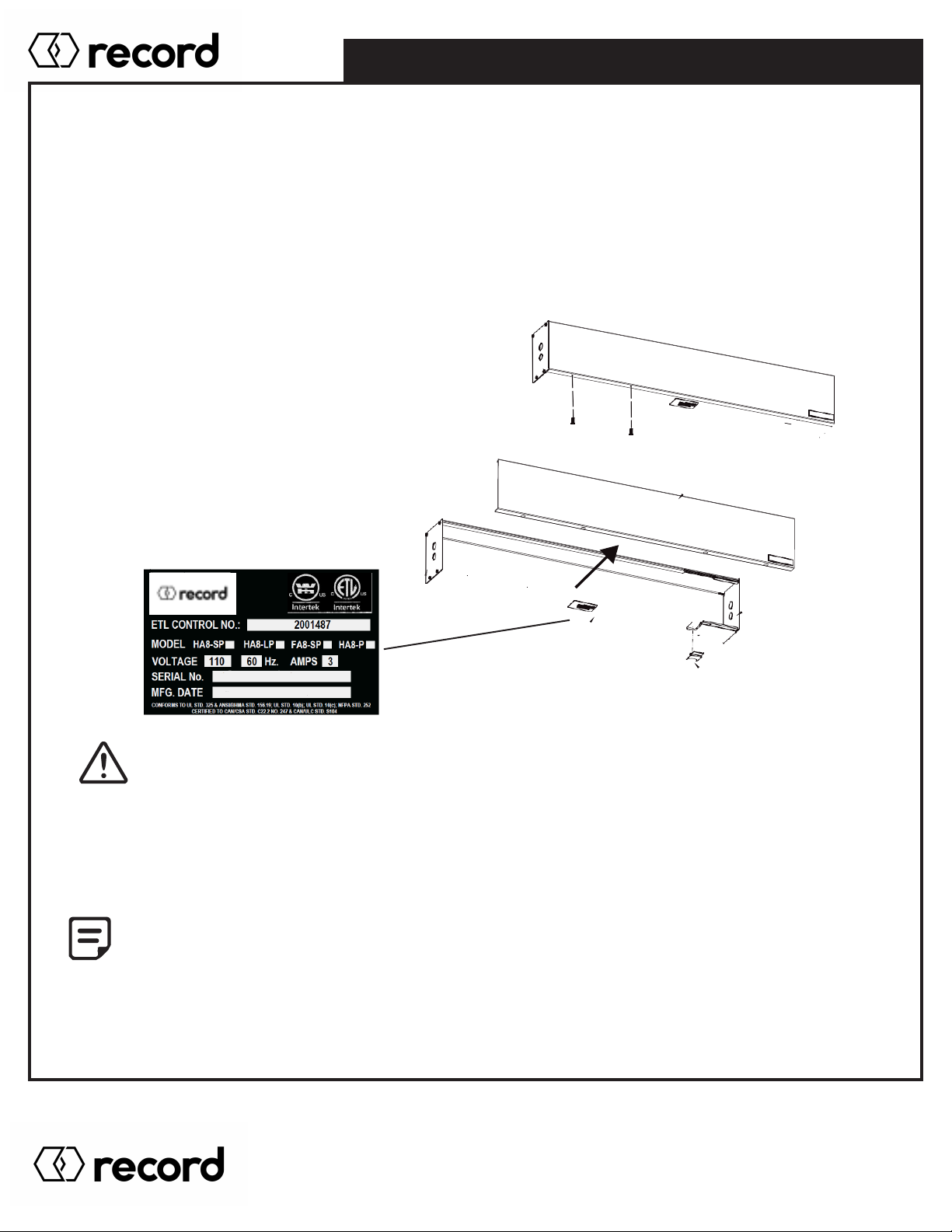

The header is a 2 piece box consisting of the body (portion anchored to the door frame) and the cover (removable portion
used during installation and service). Remove the header from its packaging and place it on a protective surface. To remove
the cover, please follow the steps below.
STEP 1
Remove 2 Machine Screws #1/4-20 x 3/4” anchoring the cover.
STEP 2
With the screws removed, the cover should be able to
be lifted up and outwards with minimal effort.
Carefully, set the cover in a location where it will not be
damaged. HEADER COVER
LH END PLATE RH END PLATE
HEADER BODY
HEADER PLASTIC CAP
(AT THE END OF
INSTALLATION)
•Under No Circumstances shall the Certification Label of the HA8 operator be tampered, modified
or removed!
•It is the responsibility of the final installer and/or installation company, to certify that the final
completed operator is installed in accordance with local building codes and applicable laws.
•All holes should have any sharp edges and burrs removed; ensure electrical bushing is used.
•If operator is installed on aluminum framing high and low voltage wiring can be routed through
vertical and horizontal tubes.
•Please reference the installation dimension 1.5 inches from the hinge side of the door.
2.0 OPERATOR INSTALLATION
Pg. 13
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

DRILL INCOMING WIRE ACCESS
HOLE ANYWHERE IN THIS AREA
(OPPOSITE TO HINGE SIDE)
KNOCK OUT TABS ARE
PROVIDED IN END CAPS
FOR INCOMING POWER
WIRE AND/OR SWITCH
HINGE SIDE ENSURE MOTOR HARNESS
WILL REACH CONTROL BOARD
WHEN PLACED IN THIS LOCATION
STRIKE SIDE
INSTALLATION OF L-16 CONNECTOR
FOR ARMOURED (BX) CABLE/ INCOMING
POWER (TO SECURE LINE TO HEADER)
IS RECOMMENDED
TYPICAL THROUGH-HOLE INSTALLATION
UPPER HEADER ANCHORING HOLES
INCOMING POWER WIRE HOLE
(TYPICALLY LATCH SIDE)
DOOR FRAME
HEADER ANCHORING HOLES
MOUNTING HOLES CAN
ALSO BE PLACED ON
END CAPS DEPENDING ON
SITE CONDITIONS
A
A SECTION A-A: SIDE VIEW
•Holes can be made anywhere in header to secure.
•All holes must be drilled into substantial support (studs, blocks, framing, etc.)
This may not reflect your installation.
2.0 OPERATOR INSTALLATION
Pg. 14
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

2.2 Operator Layout and Handing
A summary of Push and Pull operators is shown in the image below.
Holes can be made anywhere in Header to secure to the wall. All holes must be drilled into
substantial support (studs, blocks, framing, etc.). This may not reflect your installation.
Do Not use Drywall Screws or Hollow Wall Anchors to mount the Back Plate / Header.
HORIZONTAL SECTION
PUSH-STYLE OPERATOR
PULL-STYLE OPERATOR
SWING SIDE APPROACH SIDE
HINGE PIVOT
HINGE PIVOT
HEADER LENGTH = DOOR WIDTH
+ 3 in [76.2mm]
APPROACH SIDE
HEADER LENGTH = DOOR WIDTH
+ 3 in [76.2mm]
SWING SIDE
VERTICAL SECTION
FILLER PLATE REINFORCEMENT
FILLER PLATE
AS REQUIRED
BY OTHERS REINFORCEMENT
ASREQUIRED
BY OTHERS BYOTHERS BY OTHERS
OPERATOR
& HEADER
OVERHEAD AND/OR
DOOR MOUNTED SAFETY
SENSORS AS PER
SPECIFICATION
OPERATOR
& HEADER
MOTION
SENSOR
FLUSH OVERHEAD AND/OR DOOR MOUNTED SAFETY
SENSORS AS PER
SPECIFICATION
For Universal Arm application, please see section 3.3
2.0 OPERATOR INSTALLATION
Pg. 15
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

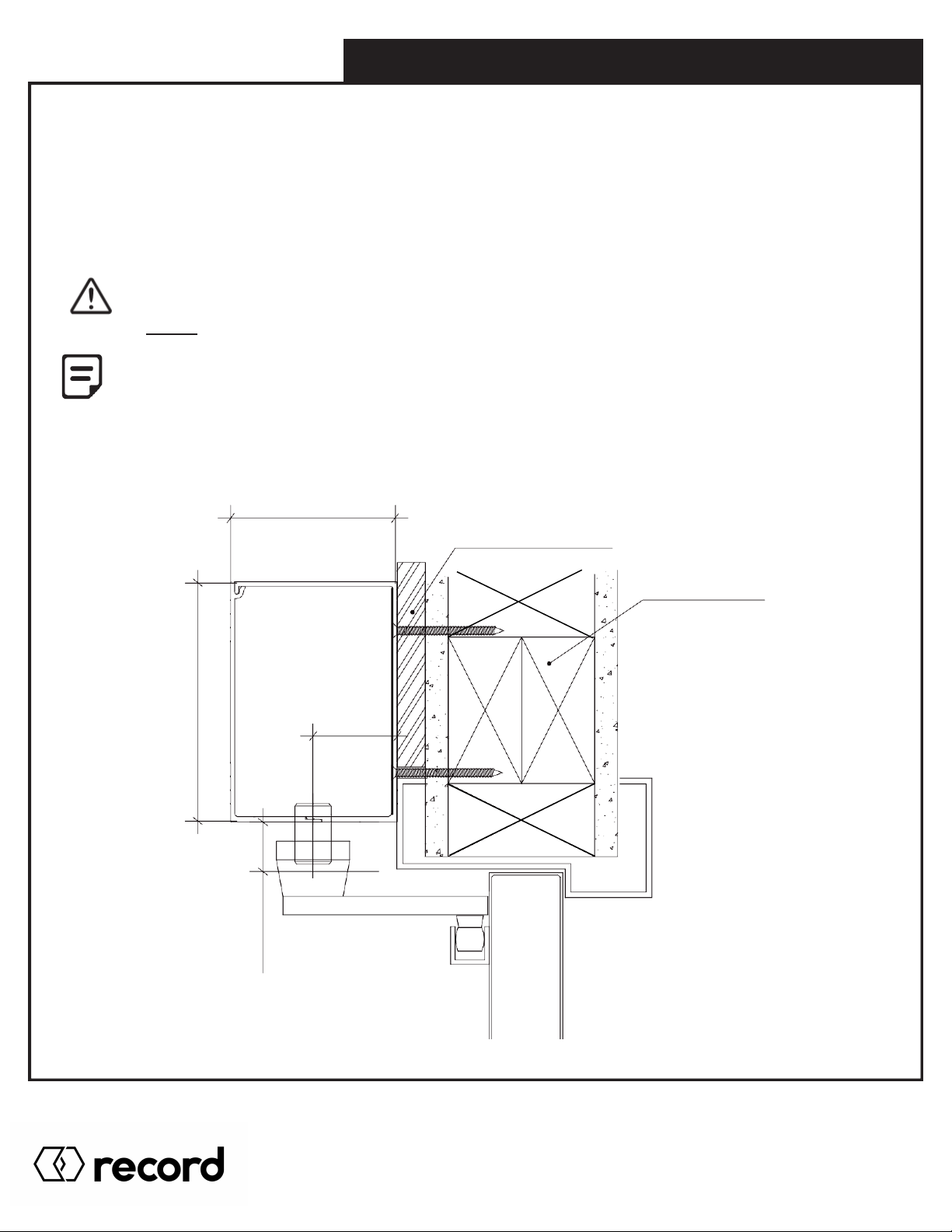

Push Header
The Header Box on push installations is mounted flush to the bottom of the doorjamb header. It may require solid backing
material to compensate for the thickness of the door frame. Before fastening header box to the door frame, ensure that
your access holes for high and low voltage wires match. Header box should be mounted to the hinge side of the door.
For most applications, the header is equal to door opening plus 3”. This allows for a 1½” space on either side of the
Header Box to anchor the header box properly to the frame. The header box should be anchored with a minimum of
(6) Six, #14 x 1” Pan Quad Type A screws (provided.)
•The locations of the screws on the header will be application dependent.
•Fasten the header body as application requires. The header must support 200lbs.
•Do Not use Drywall Screws or Hollow Wall Anchors to mount the Back Plate / Header.
•Header MUST be installed 1.5 inches from hinge side for all Push/ Pull installation, regardless of
whether header is sized appropriately to door opening.
•For Push application with standard arm, the reveal is up to 14”. For greater reveal, extended arm is
needed.
IDEAL APPLICATION SHOWN:
HEADER LENGTH = DOOR OPENING WIDTH + 3" [76mm]
1.5in
38mm IMPORTANT 1.5in
38mm
HINGE SIDE
DEPENDING ON OPTION
~2in or ~3in [~51mm or ~76mm]
14in
356mm
PUSH ARM DOOR SHOE
DOOR OPENING WIDTH
STRIKE SIDE
2.0 OPERATOR INSTALLATION
Pg. 16
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

Pull Header
Ensure before fastening header box to the door frame that your holes for high and low voltage wires match. Header box
should be referenced to the hinge side of the door and 1 3/8” above the bottom of the door frame (see figure below).
For most applications, the header is equal to the door opening plus 3”.
This allows for a 1.5 inch space on either side of the header box to anchor the header box properly to the frame.
For correct sized header, the header box should be anchored with a minimum of (6) six #14 x 1” Pan Quad Type A screws
(provided), but will also depends on what is being screwed into.
•The locations of the screws on the header will be application dependent.
•Fasten the header body as application requires. The header must support 200lbs.
•Do Not use Drywall Screws or Hollow Wall Anchors to mount the back plate / header.
•Header on pull applications must be mounted so the main drive pinion safety washer and machine screw
are above the top of the door. This is to ensure the spindle does not obstruct the swing path of the door.
•For Push application with standard arm, the reveal is up to 4”. For greater reveal, extended arm is
needed.
•For application with Universal Arm, Header will be installed differently. See section 3.3.
4 1/2 in
[ 114mm ]
FILLER PLATE AS
REQUIRED BY OTHERS
REINFORCEMENT
BY OTHERS
2 1/4 in
[ 57mm ]
2.0 OPERATOR INSTALLATION
6 1/2 in
[ 165mm ]
[ 1 3/8 in ]
35mm
Pg. 17
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

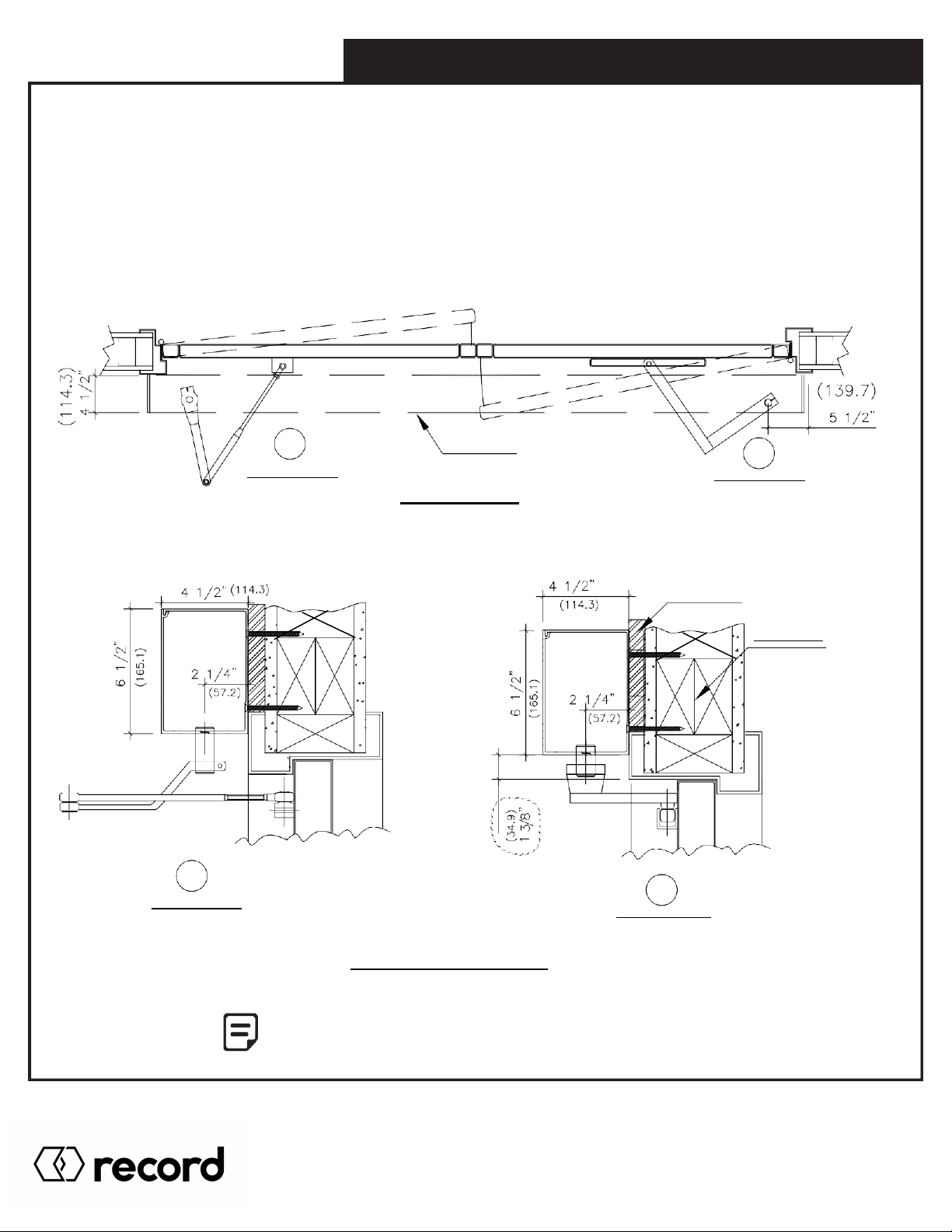

2.3 Double Egress Header
Double Egress operators have a Pull type and Push type operator in the same housing, the header must be mounted
1 3/8 inches above the door frame. For Push type operator, arm clearance issues may arise. To ensure the arm clears any
existing doorstops, mount the arm according to the diagram below marked PUSH CONFIG.
See Section 3.1 to change the Push arm configuration.
1
HEADER
2
PUSH CONFIG. PULL CONFIG.
PLAN VIEW
FA-8 PUSH
OPERATOR
& HEADER FA-8 PULL
OPERATOR
& HEADER
FILLER PLATE AS
REQUIRED BY OTHERS
REINFORCEMENT
BY OTHERS
ARM HT. IS SET REF. TO
INSWING OPERATOR
1
PUSH CONFIG.
2
PULL CONFIG.
VERTICAL SECTION
For Push application, the long spindle is provided.
2.0 OPERATOR INSTALLATION
Pg. 18
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

2.4 Gearbox Installation
STEP 1
Place the gearbox into the header, according to the handlings shown in Section 1.4. The output shaft of the gearbox
(spindle) must fit in the corresponding slot at the bottom of the header.
HEADER BODY IS NOTCHED
OUT TO PROTECT REED
SWITCH AND LIMIT SWITCHES
DURING INSERTION
STEP 2
ALIGN SPINDLE TO HOLE
While holding the operator, line up the (2) two furthest feet of the bottom housing of the cast gearbox, with the corresponding
holes in the header. These holes will secure the gearbox onto the header.
LINE UP GEARBOX FEET HOLES TO
HEADER HOLES AND SCREW IN (2)
1/4"-20 x 3/4" FLAT QUAD
MACHINE SCREWS (ZINC PLATED),
PROVIDED IN OPERATOR
SCREW PACK
STEP 3
Screw one (1) Flat Quad Zinc Plated machine screw #1/4-20x3/4” into each indicated holes from above, to secure the
gearbox onto the header.
2.0 OPERATOR INSTALLATION
Pg. 19
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com

2.5 Control Board Installation
Place the board in the header besides the motor of the gearbox. The control board will be on the opposite side of the
gearbox motor. For example, in a right hand (RH) operator, the control board is on the left of the gearbox motor. There
is no need to secure the board in place, due to the provided mounting bracket.
CONTROL BOARD IS ON THE LEFT OF THE MOTOR
(FOR A RIGHT HAND OPERATOR)
CONTROL BOARD MOUNTING
BRACKET CAN STAND UPRIGHT
(ON BOTH BOSSES), WITHOUT
SCREWS TO HEADER
CONTROL BOARD BRACKET
CAN STAND FREELY OR BE
MOUNTED TO THE WALL USING
ANY APPROPRIATE MEANS
(i.e. DOUBLE SIDED TAPE, SCREW, ETC.)
Grounding wire of the transformer will require a separate screw.
2.0 OPERATOR INSTALLATION
Pg. 20
HA8-SP Manual V. 7.0
Record Canada Inc.
Toll Free: 1-877-348-6837
[email protected]
www.recorddoors.ca
Record USA Inc.
Toll Free: 1-866-901-4284
[email protected]
www.recorddoors.com
