Reliable F1FR56-300 QREC Series User manual

Note: Not all versions of the product are shown.
Sprinkler Summary
Sprinkler
Model
K-Factor gpm/psi1/2
(lpm/bar1/2)Orientation Listings & Approvals Max. Working Pressure
psi (bar)
Sprinkler
Identication
Number (SIN)
F1FR56-300
QREC 5.6 (80)
Pendent cULus 300 (20.7) RA3045
Concealed Pendent cULus 300 (20.7) RA3045
Table A
Model F1FR56-300
QREC Pendent
Features
• Extended coverage quick-response sprinklers
• 300 psi (20.7 bar) rated
• Low prole, compact design
• Available in a wide variety of nishes
Product Description
Reliable Model F1FR56-300 QREC series sprinklers are quick-
response extended coverage standard spray automatic re
sprinklers utilizing a sensitive 3.0 mm glass bulb thermal element
for use in light hazard occupancies.
Pendent sprinklers may be installed exposed or surface mounted
using escutcheons such as the Reliable Models B, C, or HB
(reference Technical Bulletin 204). When installed recessed
or concealed, the Model F1FR56-300 QREC series sprinklers
are specically listed with and may only be installed with listed
Reliable escutcheons and cover plates. Refer to the technical
information on the following pages for specic listings for
recessed and concealed installations and refer to Figure 2 for
dimensional information.
Table A provides a summary of the approvals and availability of
specic Model F1FR56-300 QREC series sprinkler congurations.
Additional technical information for each sprinkler model is
provided on the following pages.
www.reliablesprinkler.com
K-factor 5.6 (80)
Model F1FR56-300 Series Quick-Response
Extended Coverage (QREC) Sprinkler
Bulletin 030 October 2022

Model F1FR56-300 Extended Coverage Pendent Sprinkler SIN RA3045
Technical Specications
Style:
Pendent
Recessed Pendent
Concealed Pendent
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure:
300 psi (20.7 bar)
Material Specications
Thermal Sensor: 3 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Quick response
Temperature Ratings
135°F (57°C)
155°F (68°C)
Recessed Escutcheons
Model F1
Model F2
Model FP
Cover Plate
Model CCP (135°F [57°C])
Sprinkler Wrenches
Model W2 (non-recessed)
Model W4 (recessed or concealed)
Listings and Approvals(1)
cULus Listed
Notes:
1. Listed for light hazard use only.
Model F1FR56-300 EC Pendent Sprinkler Components and Dimensions Figure 1
030PEND
Deflector
Glass Bulb
(3.0 mm)
Wrench Flat
Threads
2 1/4" [57mm]
1" [25mm]
Load Screw
Cap/Seal
Assembly
Note: Please refer to Figure 2 for recessed and concealed installation.
Coverage Area
ft x ft (m x m)
Flow
gpm (L/min)
Pressure
psi (bar)
16 x 16 (4.9 x 4.9) 26 (98.4) 21.6 (1.5)
18 x 18 (5.5 x 5.5) 33 (125.0) 34.7 (2.4)
20 x 20 (6.0 x 6.0) (1) 40 (151.4) 51.0 (3.5)
F1FR56-300 EC Pendent Required Minimum Flow and Pressure Table B
Note: For cULus Listing, limited to 135°F (57°C) temperature rating only.
Bulletin 030
October 2022
Page 2 of 5
www.reliablesprinkler.com

Models F1 & F1FR Pendent Sprinkler
with Model F1 Recessed Escutcheon
3/4" (19mm) Nominal Adjustment
2-7/8" (72 mm) Dia.
1-3/4"
(44 mm)
2-1/4"
(57 mm) Dia.
Hole in Ceiling
1-15/16"
(49 mm) Dia.
Minimum
Recess
Maximum
Recess
1"
(25 mm)
Face of Fitting
to Face of Ceiling
1-1/8" (29 mm) at
Max. Recess
3/8" (10 mm) at
Min. Recess
Models F1 & F1FR Pendent Sprinkler
with Model FP Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
1"
(25 mm)
2-5/16"
(59 mm) Dia.
Minimum
Recess Maximum
Recess
1/2"
(12 mm)
3-3/16" (78 mm) Dia.
Face of Fitting
to Face of Ceiling
1-1/2" (38 mm) at
Max. Recess
1" (25 mm) at
Min. Recess
2-7/8" (72 mm) Dia.
1-3/4"
(44 mm)
Minimum
Recess
Maximum
Recess
1-1/4"
(32 mm)
Face of Fitting
to Face of Ceiling
7/8" (22 mm) at
Max. Recess
3/8" (10 mm) at
Min. Recess
2-1/4"
(57 mm) Dia.
Hole in Ceiling
1-15/16"
(49 mm) Dia.
2-1/2"
(64 mm) Dia.
Hole in Ceiling
Models F1 & F1FR Pendent Sprinkler
with Model F2 Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
Reducing
Fitting
Reducing
Fitting
Reducing
Fitting
Note: Model FP recessed assemblies may not be used where the
pressure in the space above the ceiling is positive with respect to
the protected area. Ensure that the openings in the Model FP cup
are unobstructed following installation.
Vented Cup
Model F1FR56 CCP Conical Concealed Sprinkler
1/2" (13mm) Nominal Adjustment
(Nominal Cover Plate Projection is 1" (25 mm))
1"
(25 mm)
2-5/16"
(59 mm) Dia.
Minimum
Recess Maximum
Recess
1/2"
(12 mm)
3-5/16" (84 mm) Dia.
Face of Fitting
to Face of Ceiling
1-1/2" (38 mm) at
Max. Recess
1" (25 mm) at
Min. Recess
2-1/2"
(64 mm) Dia.
Hole in Ceiling
F1_REC_PEND_CCP
Reducing
Fitting
Note: Model CCP concealed assemblies may not be used where
the pressure in the space above the ceiling is positive with
respect to the protected area. Ensure that the openings in the
Model CCP cup are unobstructed following installation.
Vented Cup
Recessed and Concealed Installation: Pendent Sprinklers Figure 2
FP Escutcheon
F1 Escutcheon
(F2 Similar) CCP Cover Plate
Bulletin 030
October 2022
Page 3 of 5
www.reliablesprinkler.com

Installation
Model F1FR EC Series sprinklers must be installed in accordance
with NFPA13 and the requirements of all applicable authorities
having jurisdiction using the Reliable sprinkler installation wrench
identied in this bulletin. Any other wrench may damage the
sprinkler. The Models W2 and W4 wrenches have two sets of
jaws. Use the smallest set of jaws that t on the wrench flats of
the sprinkler. A leak tight sprinkler joint can be obtained with a
torque of 8 to 18 lb-ft (11 to 24 N.m). Do not tighten sprinklers over
the maximum recommended installation torque. Exceeding the
maximum recommended installation torque may cause leakage or
impairment of the sprinkler.
Glass bulb sprinklers have orange bulb protectors or protective
caps to minimize bulb damage during shipping, handling and
installation. Reliable sprinkler installation wrenches are designed
to install sprinklers with bulb protectors in place. Remove the bulb
protector at the time when the sprinkler system is placed in service
for re protection. Removal of the bulb protector before this time
may leave the bulb vulnerable to damage. Remove bulb protectors
by undoing the clasp by hand. Do not use tools to remove bulb
protectors.
Standard Finishes Special Application Finishes
Sprinkler F1, F2 and FP(2)
Escutcheons
CCP Cover
Plate(2) Sprinkler F1, F2 and FP(2) Escutcheons CCP Cover Plate(2)
Bronze Brass Chrome Electroless Nickel PTFE(3) Bright Brass Bright Brass
Chrome Chrome White Paint Bright Brass Satin Chrome Satin Chrome
White Polyester(3) White Polyester Satin Chrome Custom Color Polyester Custom Color Paint
Custom Color Polyester(3)
Notes:
1. Paint or any other coating applied over the factory nish will void all approvals and warranties.
2. Model FP escutcheons and Model CCP sprinklers utilize a galvanized steel cup with a nished trim ring or cover plate.
3. cULus Listed as corrosion resistant.
Finishes(1) Table B
Maintenance
Reliable Model F1FR EC series sprinklers should be inspected
and the sprinkler system maintained in accordance with NFPA
25, as well as the requirements of any Authorities Having
Jurisdiction.
Prior to installation, sprinklers should remain in the original
cartons and packaging until used. This will minimize the potential
for damage to sprinklers that could cause improper operation or
non-operation.
Do not clean sprinklers with soap and water, ammonia liquid or
any other cleaning fluids. Remove dust by gentle vacuuming
without touching the sprinkler.
Replace any sprinkler which has been painted (other than factory
applied). A stock of spare sprinklers should be maintained to
allow quick replacement of damaged or operated sprinklers.
Failure to properly maintain sprinklers may result in inadvertent
operation or non-operation during a re event.

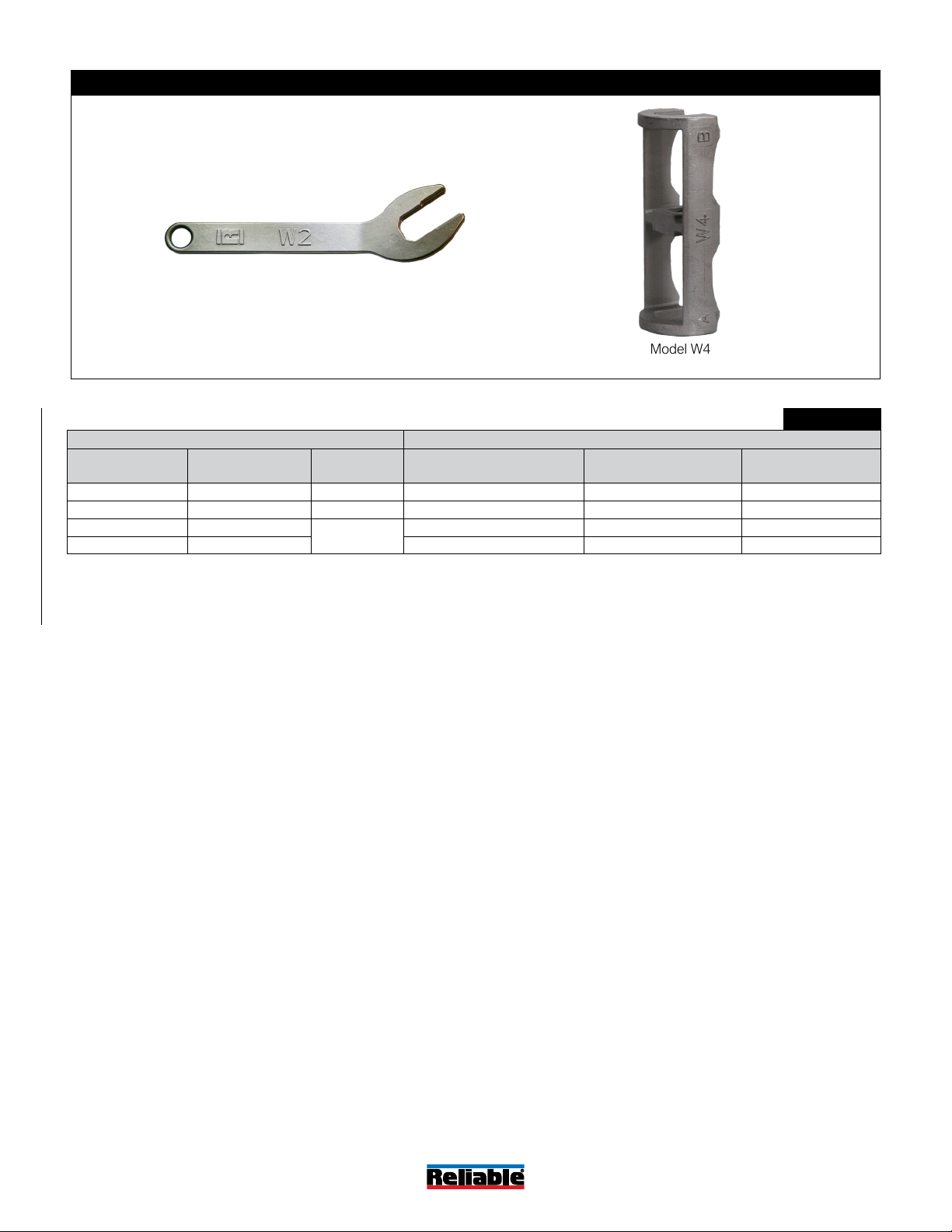

Wrenches
Model W2 (non-recessed) Model W4
(recessed, concealed pendent)
Bulletin 030
October 2022
Page 4 of 5
www.reliablesprinkler.com

P/N 99999XXXXX
Bulletin 030
October 2022
Page 5 of 5
www.reliablesprinkler.com
Guarantee
For the guarantee, terms, and conditions, visit www.
reliablesprinkler.com.
Ordering Information
Specify the following when ordering:
Model
• F1FR56-300 QREC
Deflector/Orientation
• Pendent
• CCP Concealed Pendent
Temperature Rating
• See sprinkler technical specications
Sprinkler Finish
• See Table B
Recessed Escutcheon
• F1
• F2
• FP
Escutcheon Finish
• See Table B
CCP Cover Plate Temperature Rating
• 135°F (57°C)
CCP Cover Plate Finish
• See Table B
Sprinkler Wrench
• Model W2 (non-recessed)
• Model W4 (recessed, concealed)
