ResMed Nasal Mask Mirage Micro User manual

Mirage Micro™
nasal mask
User Guide
English

1
English
Mirage Micro™
nasal mask
Thank you for choosing the Mirage Micro™.
Intended Use
The Mirage Micro channels airflow noninvasively to a patient from a positive
airway pressure device such as a continuous positive airway pressure (CPAP)
or bilevel system.
The Mirage Micro is:
to be used by adult patients (>66 lb/30 kg) for whom positive airway•
pressure has been prescribed
intended for single-patient re-use in the home environment and•
multipatient re-use in the hospital/institutional environment.
Before Using the Mask
WARNINGS
The vent holes must be kept clear.•
The mask should not be used unless the CPAP system is turned on and•
operating properly.
Follow all precautions when using supplemental oxygen.•
Oxygen flow must be turned off when the flow generator is not operating,•
so that unused oxygen does not accumulate within the flow generator
enclosure and create a risk of fire.
At a fixed flow rate of supplemental oxygen flow, the inhaled oxygen•
concentration varies, depending on the pressure settings, patient breathing
pattern, mask, point of application and leak rate.
The technical specifications of the mask are provided for your clinician to•
check that they are compatible with the flow generator. If used outside
specification or if used with incompatible devices, the seal and comfort of
the mask may not be effective, optimum therapy may not be achieved, and
leak, or variation in the rate of leak, may affect the flow generator function.
Discontinue using the Mirage Micro if you have ANY adverse reaction to•
the use of the mask, and consult your physician or sleep therapist.
Using a mask may cause tooth, gum or jaw soreness or aggravate an•
existing dental condition. If symptoms occur, consult your physician or
dentist.
As with all masks, some rebreathing may occur at low CPAP pressures.•
Rx Only

2
Parts of the Mask & Ordering Information
Complete system
S* 16333 M&L* 16334 LW&XL* 16335
Frame system (no headgear)
S* 16378 M* 16379 L* 16380 LW* 16381 XL* 16382
Frame assembly (no headgear, no cushion)
S* 16383 St* 16384
Elbow assembly (elbow, swivel)
16399
S* Small; M* Medium; L* Large; LW* Large-Wide; XL* Extra-Large; St* Standard
Refer to your flow generator manual for details on settings and operational•
information.
Flow Generator Settings
Select ‘Standard’ (or ‘Vista’ for VPAP Adapt SV™) as the mask option when
using the Mirage Micro with ResMed flow generators that have mask setting
options. For a full list of compatible devices for this mask, see the Mask/
Device Compatibility List on www.resmed.com on the Products page under
Service & Support. If you do not have internet access, please contact your
ResMed representative.
Forehead
support pad
Forehead support
16393
Dial
61289
Mask cushion
16388 (S*)
16389 (M*)
16390 (L*)
16391 (LW*)
16392 (XL*)
Ports cap
16570 (2)
16571 (10)
Elbow
16387
Swivel
16565
60123 (1)
60124 (10)
Mask frame
16395 (S*)
16394 (St*)
Headgear clip
16569 (2)
16734 (10)
Upper straps
Lower straps
Headgear
16118 (S*)
16117 (M)
16119 (L*)

3
12 3
654
87
English
Turn the dial, so that the
forehead support is fully
extended.
Hold the mask over your
nose and pull the headgear
over your head.
Bringing the lower straps
below your ears, connect
the headgear clip to the the
mask frame.
Unfasten the Velcro®,
pull the upper headgear
straps evenly until they are
comfortable and firm, and
reattach the Velcro.
Repeat step 4 with the
lower headgear straps.
Connect the main air
tubing to the swivel. Then
connect the free end of
the air tubing to your flow
generator and turn the flow
generator on.
Fitting the Mask
Lie down in your sleeping
position. Adjust the dial
until the mask is evenly
positioned on your face.
It should be comfortable,
with a satisfactory seal.
Adjust the headgear straps
if necessary.
The fitted mask is shown
above.
Removing the Mask
Disconnect one of the
headgear clips and pull the
mask and headgear up over
your head.

4
12 3
Disassembling the Mask
Detach the air tubing. Unclip the headgear clips
and unthread the upper
headgear straps. It is not
necessary to remove the
headgear clips from the
headgear.
Remove the elbow
assembly from the mask
frame by pivoting from the
bottom edge.
67 8
Remove the forehead
support pads from the
forehead support.
Remove the ports cap
from the mask frame.
Remove the cushion
from the mask frame.
4 5
(a)
(b)
Note the position on the dial for the next time you use
the mask. Unscrew and remove the dial (a) then pull the
forehead support (b) out of the mask frame.
Remove the swivel from
the elbow.

5
English
Cleaning the Mask at Home
Notes:
The mask and headgear should be cleaned by handwashing.
•
The headgear may be washed without removing the headgear clips.•
WARNING
Do not use aromatic-based solutions or scented oils (eg, eucalyptus or
essential oils), bleach, alcohol or products that smell strongly (eg, citrus)
to clean any of the mask components. Residual vapours from these
solutions can be inhaled if not rinsed thoroughly.They may also damage
the mask, causing cracks.
CAUTION
If any visible deterioration of a mask component is apparent (cracking,•
crazing, tears etc.), the mask component should be discarded and
replaced.
Avoid connecting flexible PVC products (eg, PVC tubing) directly•
to any part of this mask. Flexible PVC contains elements that can
be detrimental to the materials of the mask, and may cause the
components to crack or break.
Daily/After Each Use
To optimize the mask seal, facial oils should be removed from the cushion
before use.
Handwash the mask by gently rubbing in warm (86°F/30°C) water using mild
soap.
If the vent requires cleaning use a soft bristle brush.
Rinse all components well with drinking quality water and allow them to air
dry out of direct sunlight. Do not soak the mask.
Weekly
Handwash the headgear in warm (approx. 86°F/30°C) water using mild soap.
Reprocessing the Mask between Patients
This mask should be reprocessed when used between patients.
Cleaning, disinfection and sterilisation instructions are available from the
ResMed website, www.resmed.com/masks/sterilization/americas.
If you do not have Internet access, please contact your ResMed
representative.

6
45
31 2
6 7
(a)
(b)
(c)
Push the forehead pads
firmly into the forehead
support.
Insert the forehead support (a) into the mask frame and
screw (b) the dial clockwise onto the pole. Turn the dial
until it clicks (c). Ensure the dial sits flush against the
frame.
Insert the cushion into the
mask frame. Ensure that
the arrows at base of the
cushion and mask frame
are aligned.
Insert the ports cap.
Reattach the top headgear
straps by threading them
through the loops.
Insert the swivel into the
end of the elbow.
Insert the assembled
elbow into the mask frame.
Reassembling the Mask

7
English
Troubleshooting
Problem Possible reason Possible solution
Mask won’t seal
properly
or is uncomfortable
Mask may have been
fitted incorrectly or is
incorrectly adjusted.
Carefully follow instructions
in “Fitting the Mask”. Check
headgear and dial are not over-
tightened. Extend dial to apply
more force to upper lip. Shorten
dial to increase force at nose
bridge.
Mask is wrong size. Talk to your clinician.
Mask cushion is
skewed in mask frame.
Check insertion of cushion
and reinsert correctly
according to the instructions in
“Reassembling the Mask”.
Mask cushion is
misaligned or creased
on face.
Ensure cushion is properly
aligned according to the
instructions in “Reassembling
the Mask”. Make sure the
cushion has no creases in it:
undo headgear clip, check
cushion and reposition the mask
over your nose.
Mask cushion may be
dirty.
Clean cushion according to
instructions in “Cleaning the
Mask at Home”.
Mask is too noisy Mask is assembled
incorrectly.
Reassemble mask.
Vents are blocked or
partially blocked.
Clean vents according to
instructions in “Cleaning the
Mask at Home”.
Dial inserted into mask
frame before forehead
support
Misassembly. Push dial base onto a hard
surface until the dial comes out
of the frame.
Symbols
Caution, consult accompanying documents;
L O T
Lot number;
REF
Part
number; Temperature limitation; Humidity limitation; Does not
contain latex; Indicates a Warning or Caution and alerts you to a possible
injury or explains special measures for the safe and effective use of the device.

8
Limited Warranty
ResMed warrants that your ResMed mask system, including its components:
mask frame, cushion, headgear, tubing and other accessories (“Product”) shall
be free from defects in material and workmanship for a period of ninety (90)
days from the date of purchase by the initial consumer.
For further details refer to the Warranty.
Technical Specifications
Note: The mask system does not contain latex, PVC or DEHP materials.
Pressure–Flow
Curve
The mask contains passive venting to protect
against rebreathing. As a result of manufacturing
variations, the vent flow rate may vary.
0
5
10
15
20
25
30
35
40
45
50
468101214161820
Pressure
(cm H2O)
Flow
(L/min)
419
8 28
12 34
16 40
20 45
Vent Flow Rate (L/min)
Mask Pressure (cm H2O)
Dead Space
Information
The dead space of the mask varies according to cushion size. It is
128 mL for the Extra Large size.
Therapy Pressure 4 to 20 cm H2O
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.1 cm H2O
at 100 L/min: 0.7 cm H2O
Environmental
Conditions
Operating temperature: +41°F to 104°F (+5°C to +40°C)
Operating humidity: up to 95% non-condensing
Storage and transport temperature: -4°F to 140°F (-20°C to +60°C)
Storage and transport humidity: up to 95% non-condensing
Gross
dimensions
S: 140 mm (H) x 91 mm (W) x 93 mm (D)
M, L, LW, XL: 155 mm (H) x 91 mm (W) x 98 mm (D)
Mask fully assembled – no headgear.
Note: The manufacturer reserves the right to change these specifications
without notice.
Storage
Ensure that the mask is thoroughly clean and dry before storing it for any
length of time. Store the mask in a cool dry place out of direct sunlight.
Disposal
The Mirage Micro does not contain any hazardous substances and may be
disposed of with your normal household refuse.

ResMed Ltd (Manufacturer) 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia
ResMed Corp (US Designated Agent) 14040 Danielson Street Poway CA 92064-6857 USA
ResMed (UK) Ltd (EU Authorised Representative) 96 Milton Park Abingdon Oxfordshire OX14
4RY UK
ResMed Offices Australia, Austria, Belgium, Brazil, China, Finland, France, Germany, Greece,
Hong Kong, India, Ireland, Italy, Japan, Malaysia, Mexico, Netherlands, New Zealand, Norway,
Portugal, Singapore, South Africa, Spain, Sweden, Switzerland, UK, USA (see www.resmed.com
for contact details).
Mirage Micro Nasal Mask
Protected by patents: AU 710733, AU 741003, AU 766623, AU 775051, AU 777033, AU 785376,
CA 2261790, EP 0956069, EP 1187647, EP 1187648, EP 1187649, EP 1187650, EP 1314445, EP
1479406, HK 1057714, JP 3686609, NZ 513052, NZ 526165, NZ 526166, NZ 526167, NZ 526168,
US 6112746, US 6119693, US 6357441, US 6374826, US 6439230, US 6463931, US 6532961, US
6557556, US 6581594, US 6581602, US 6634358, US 6691708, US 6823865, US 6860269, US
6871649, US 6997188, US 7011090, US 7159587, US 7178527, US 7188620, US 7216647, US
7234466, US 7243651. Other patents pending.
Protected by design registrations: AU 304309, CN 200530117106.1, EP 366844, JP 1264474, NZ
406357, US D532512, US D547439, US D545960. Others pending.
AutoSet CS, Mirage and Mirage Micro are trademarks of ResMed Ltd. AutoSet CS and Mirage are
registered in U.S. Patent and Trademark Office.
Velcro is a registered trademark of Velcro Industries B.V.
© 2008 ResMed Ltd.

Global leaders in sleep and respiratory medicine www.resmed.com
618114-Eng/1 08 09

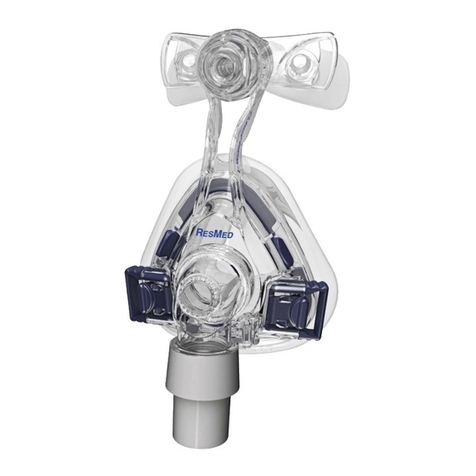

MIRAGE MICRO
USER
AMER MULTI
2
34
5 6
1
618114
