S8 Escape™ II
POSITIVE AIRWAY PRESSURE DEVICE
User Guide
English
© 2008 ResMed Ltd. 338518-Eng/1 08 02
338518 American Multi.book Page 1 Tuesday, February 5, 2008 2:07 PM

Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Contraindications 1
Adverse Effects 1
The S8 Escape II System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Masks 2
Humidifiers 2
ResScan Data Card 2
Using the S8 Escape II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Set Up the S8 Escape II 3
Start Treatment 4
Stop Treatment 4
How to Use the Control Panel 5
How to Change the Settings on your S8 Escape II 6
Using the Data Card to Collect data . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Daily 9
Weekly 9
Monthly 9
Replacing the Air Filter 9
Servicing 10
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
General Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
338518 American Multi.book Page 2 Tuesday, February 5, 2008 2:07 PM

1Introduction
English
Introduction
The S8 Escape II continuous positive airway pressure (CPAP) system is indicated
for the treatment of obstructive sleep apnea (OSA) in patients > 66lb (30 kg).
The S8 Escape II CPAP system is intended for home and hospital use.
!
CAUTION
In the US, Federal law restricts this device to sale by or on the order of a
physician.
Contraindications
The S8 Escape II is not a life support device and may stop operating during power
failure or certain fault conditions. It should not be used by patients who are
dependent on continuous therapy.
Positive airway pressure therapy may be contraindicated in some patients with
the following pre-existing conditions:
•severe bullous lung disease
•pneumothorax
•pathologically low blood pressure
•dehydration
•cerebrospinal fluid leak, recent cranial surgery, or trauma.
Adverse Effects
Patients should report unusual chest pain, severe headache, or increased
breathlessness to their prescribing physician. An acute upper respiratory tract
infection may require temporary discontinuation of treatment.
The following side effects may arise during the course of therapy with the CPAP
device:
•drying of the nose, mouth, or throat
•nosebleed
•bloating
•ear or sinus discomfort
•eye irritation
•skin rashes.
338518 American Multi.book Page 1 Tuesday, February 5, 2008 2:07 PM

2
The S8 Escape II System
Your S8 Escape II comprises:
•S8 Escape II positive airway pressure device
•2 m air tubing
•Power cord
•Carry bag.
Optional components include:
•ResScan™ Data Card
•3 m air tubing
•DC-12 converter.
Masks
For information on using masks, see your mask manual. Recommended masks
are available on www.resmed.com on the Products page under Service &
Support.
!
WARNING
Only ResMed mask systems are compatible for use with the S8 Escape II.
Please refer to “Adverse Effects” on page 1.
Humidifiers
A list of humidifiers compatible with ResMed devices can be found on
www.resmed.com, on the Products page under Service & Support.
ResScan Data Card
The ResScan Data Card may be used with the S8 Escape II either to help your
clinician to monitor your treatment or to provide you with updates to your device
settings.

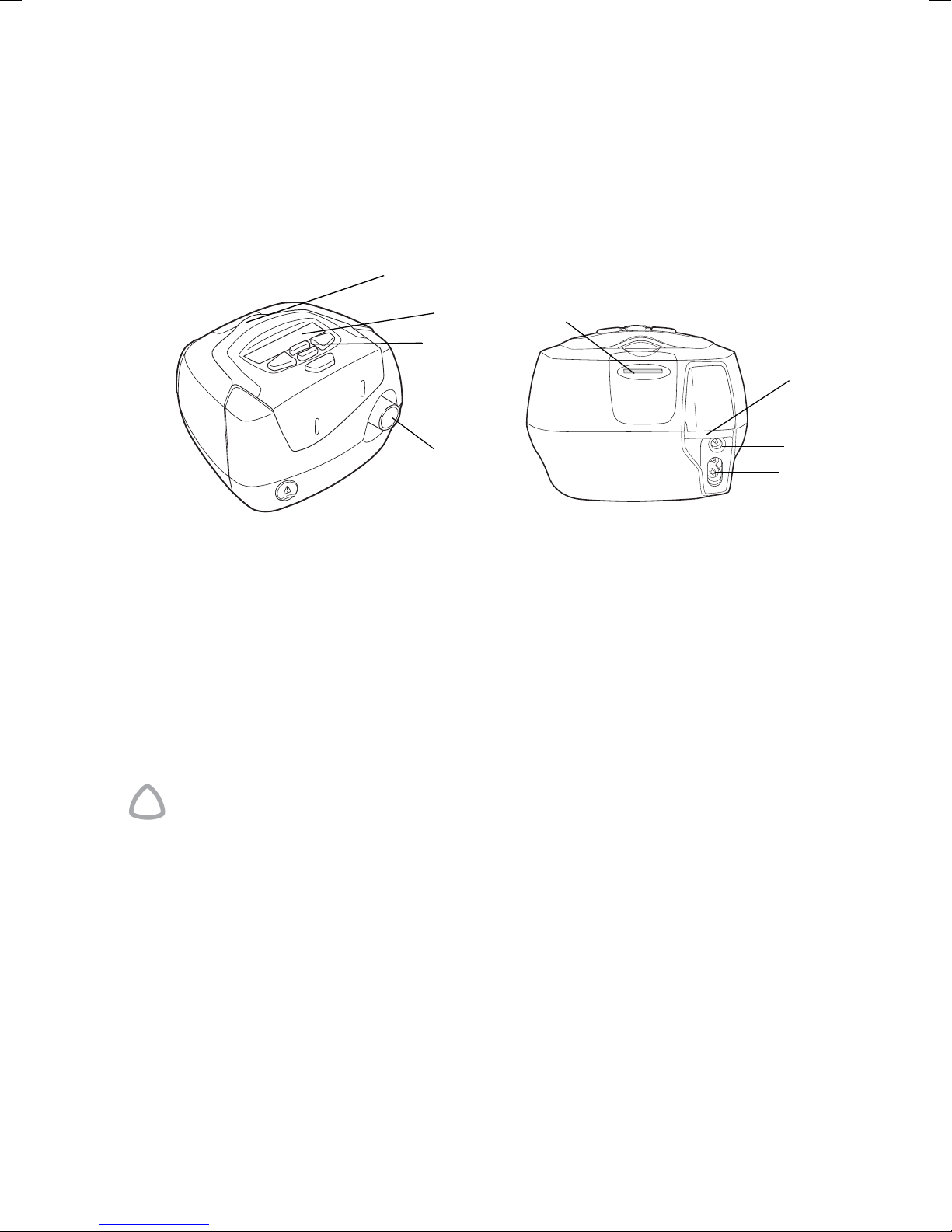

Carry handle
Screen
Keypad
Air outlet
Data
DC
AC
Card slot
Air inlet
338518 American Multi.book Page 2 Tuesday, February 5, 2008 2:07 PM

3Using the S8 Escape II
English
Using the S8 Escape II
!
WARNING
•Make sure the power cord and plug are in good condition and the
equipment is not damaged.
•Only ResMed air tubing should be used with the device. A different type
of air tubing may alter the pressure you actually receive, reducing the
effectiveness of your treatment.
•Blocking the hose and/or air inlet of the device while in operation could
lead to overheating of the device.
!
CAUTION
•Be careful not to place the device where it can be bumped or where
someone is likely to trip over the power cord.
•If you put the device on the floor, make sure the area is free from dust
and clear of bedding, clothes or other objects that could block the air
inlet.
•Make sure the area around the device is dry and clean.
Set Up the S8 Escape II
1Connect the power cord to the socket at the rear of the S8 Escape II.
2Plug the other end of the power cord into the power outlet.
3Connect one end of the air tubing firmly onto the air outlet.
4Connect the assembled mask system to the free end of air tubing.
For information on assembling your mask, see your mask manual.
1
2
34
338518 American Multi.book Page 3 Tuesday, February 5, 2008 2:07 PM

4
Start Treatment
1Make sure the power is on.
The product name is displayed briefly on the LCD screen, then the standby
(Ramp) screen appears. The key and LCD backlights also turn on.
2Lie down and arrange the air tubing so that it is free to move if you turn in your
sleep.
!
CAUTION
Do not leave long lengths of air tubing around the top of your bed. They
could twist around your head or neck while you are sleeping.
3Alter the ramp time if required (see “How to change the ramp time” on page 6).
4To start treatment, press .
5Fit your mask as described in the mask user instructions.
!
WARNING
A mask should not be used unless the S8 Escape II device is turned on and
operating properly.
When ramping begins the LCD will display the word "RAMPING", with the
current pressure indicated as dashes. Each dash is approximately equivalent to
2 cm H2O. For example, 6 dashes represents approximately 12 cm H2O
pressure.
Stop Treatment
To stop treatment at any time, remove your mask and press .

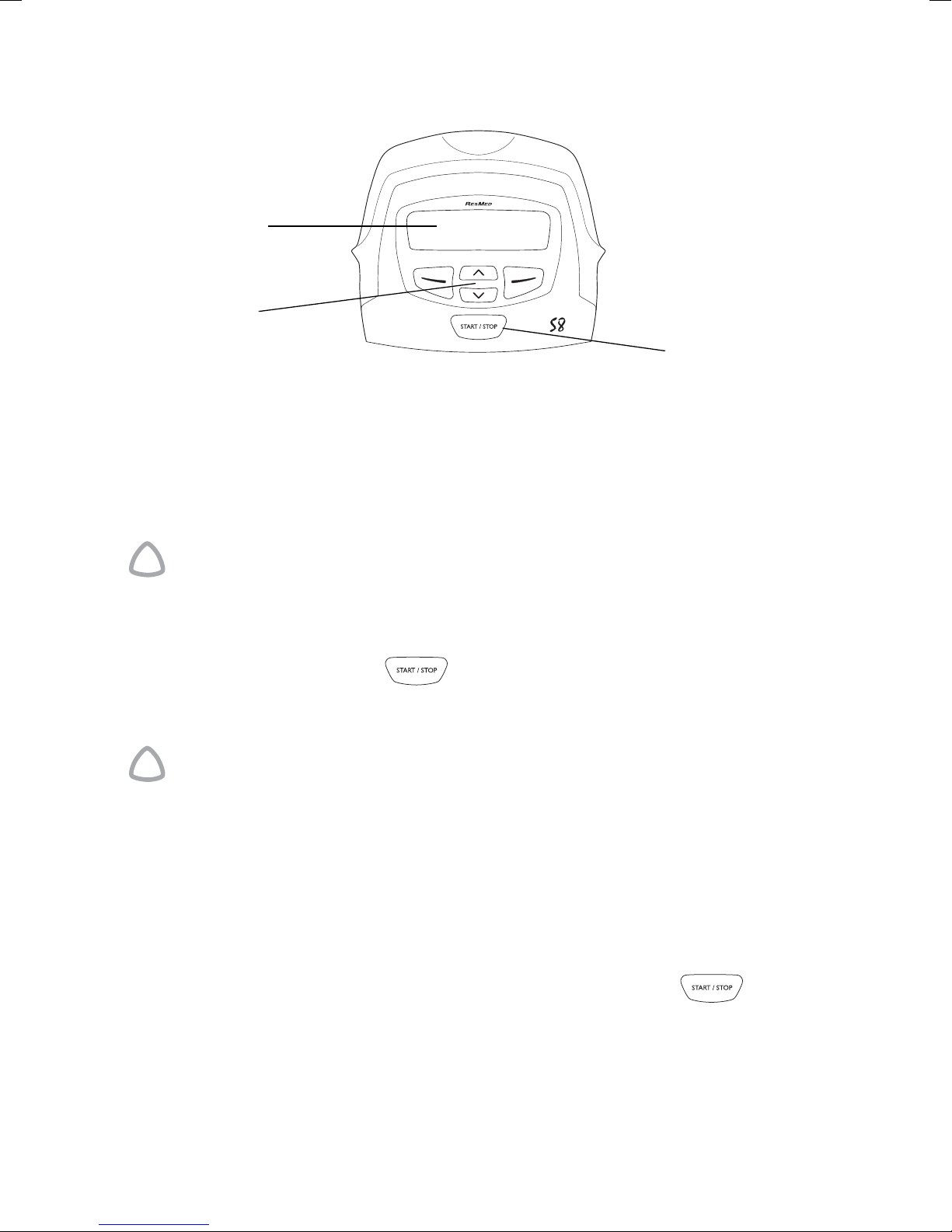

LCD screen
Start/Stop key
Keypad
338518 American Multi.book Page 4 Tuesday, February 5, 2008 2:07 PM

5Using the S8 Escape II
English
How to Use the Control Panel
The control panel of the S8 Escape II includes an LCD screen which displays the
menus and treatment screens as well as a keypad for navigating through the
menus and delivering treatment.
The S8 Escape II keypad has the following keys:
The keypad and LCD are equipped with backlights that come on when the device
is powered. The LCD backlight turns off after two minutes of inactivity, and
comes back on when you press a key. The keypad backlight is always on while
the S8 Escape II is on.
Key Function
Start/Stop Starts or stops treatment.
Up Allows you to increase settings options and scroll through the
S8 Escape II menu.
Down Allows you to decrease settings options and scroll through
the S8 Escape II menu.
Left Performs the function indicated by the guiding text displayed
above it on the LCD screen. Guiding text includes menu,
change, and apply.
Right Performs the function indicated by the guiding text displayed
above it on the LCD screen. Guiding text includes exit and
cancel.
338518 American Multi.book Page 5 Tuesday, February 5, 2008 2:07 PM

6
How to Change the Settings on your S8 Escape II
You can change settings (such as Ramp Time) on the S8 Escape II by using the
keypad and LCD. When the S8 Escape II is in standby mode you can display a
series of screens (a menu) on the LCD screen in order to view and change the
settings for a particular function.
Use the menu screens to change the ramp time and language. You can also view
details about the usage and software version of your S8 Escape II.
How to change the ramp time
During ramp time, the pressure increases from a low pressure to the prescribed
treatment pressure. You can set the ramp time in 5-minute intervals, from 0
minutes (OFF) up to a maximum ramp time set by your clinician. The standby
screen displays the current ramp time in the right corner.
1. Press or until the desired ramp time appears.
2. Once a ramp time is selected, begin therapy by pressing .
When ramping begins the LCD will display the word "RAMPING", with the
current pressure indicated as dashes. Each dash is approximately equivalent
to 2 cm H2O. For example, six dashes represents approximately 12 cm H2O
pressure.
How to change the EPR level
EPR can be used to help ease any discomfort you may experience when
breathing out during treatment. If your clinician has allowed access you can
change the EPR level. There are four settings: OFF; 1 (lowest EPR); 2; and 3
(highest EPR).
S8 CLASSIC
S8 CLASSIC
S8 ESCAPE II
PATIENT MENU
RAMP
10min
Menu

EPR LEVEL: 1
Change

Exit
USED HRS : 960

Exit
USAGE : 120/180

Exit
LANG : ENGLISH
Change

Exit
SW : SX123456789

Exit
Only displayed if
clinician enabled
