ResMed AirFit F30i User manual

English
Français
Español
Português
User guide
Device setting
Full face
USER GUIDE

English 1
ENGLISH
Thank you for choosing the AirFit™F30i full face mask. This mask uses a
cushion that seals under the nose and around the mouth, and a frame
with a tube connection above the head. To breathe fresh air, this mask
features vent holes in the cushion and elbow, and valves in the frame.
A
Elbow
4
Elbow ring
B
Frame
5
Anti-Asphyxia valve (inside the left
and right of frame connector)
C
Cushion
D
Headgear
6
Frame connector
1
Vent holes (cushion)
7
Magnetic clip
2
Vent holes (elbow)
8
Lower headgear strap
3
Side button
9
Upper headgear strap
Intended Use
The AirFit F30i mask is intended to be used by patients weighing more
than 66 lb (30 kg) who have been prescribed non-invasive positive airway
pressure (PAP) therapy such as CPAP or bi-level therapy. The mask is
intended for single patient re-use in the home and multi-patient re-use in
the hospital/institutional environment.

2
Contraindications
Use of masks with magnetic components is contraindicated in patients
with the following pre-existing conditions:
•a metallic hemostatic clip implanted in your head to repair an
aneurysm
•metallic splinters in one or both eyes.
Before using your mask
Remove all packaging and inspect each mask component for visible
deterioration.
Fitting your mask

English 3
1. Connect the air tubing from your device to the elbow.
2. Squeeze the side buttons on the elbow and pull from the frame. Put
the elbow and air tubing aside for now.
3. Twist and pull both magnetic clips away from the frame connectors.
4. Place the cushion under your nose and ensure it sits comfortably
against your face. With the ResMed logo on the headgear facing up,
pull the headgear and frame over your head.
5. Bring the lower headgear straps under your ears and attach the
magnetic clips to the frame connectors.
6. Undo the fastening tabs on the upper headgear straps and pull evenly.
Repeat with the lower headgear straps.
7. Attach the elbow to the top of the frame. Your mask should now be
positioned as shown.
Adjusting your mask
•With the device turned on and blowing air, adjust the position of the
cushion for the most comfortable seal under your nose. Ensure that
the cushion is not creased and the headgear is not twisted.
•To fix any mask leaks, adjust the upper or lower headgear straps.
Adjust only enough for a comfortable seal and do not overtighten.
Sizing the mask
Use the fitting template to assist in selecting the right size cushion.
If the mask frame falls back over your head or sits too close to your ears,
try a smaller frame size. If the mask falls forward on your head or sits too
close to your eyes, try a bigger frame size.

4
Disassembling your mask for cleaning
If your mask is connected to a device, disconnect the device air tubing
from the mask elbow.
1. Undo the fastening tabs on the upper headgear straps and pull from
the frame. Keep the magnetic clips attached to the lower headgear
straps.
2. Squeeze the side buttons on the elbow and detach from the frame.
3. Grip the frame connector and lift to unclip from the cushion. Repeat
on the other side.
Cleaning your mask
If there is any visible deterioration of a mask component (cracking,
crazing, tears etc.) the component should be discarded and replaced.
Daily/After each use: Cushion
Weekly: Headgear, frame and elbow
1. Soak the components in warm water with a mild liquid detergent.
2. Hand wash the components with a soft bristle brush. Pay particular
attention to the vent holes in both cushion and elbow.
3. Thoroughly rinse the components under running water.
4. Leave the components to air dry out of direct sunlight.
If the mask components are not visibly clean, repeat the cleaning steps.
Make sure that the vent holes and anti-asphyxia valves are clean and
clear.

English 5
Reassembling your mask
1. Align and insert the frame connector tab (a) into the cushion slot (b)
and press down until it clicks. Repeat on the other side.
2. Attach the elbow to the top of the frame until it clicks.
3. With the ResMed logo facing outwards and up, insert the upper
headgear straps into the frame from the inside and fold the fastening
tabs over to secure.
Note: If the elbow ring detaches, re-insert into the top of the frame.
WARNING
•
Magnets are used in the lower headgear straps and the frame of the mask. Ensure the
headgear and frame is kept at least 2" (50 mm) away from any active medical implant
(eg, pacemaker or defibrillator) to avoid possible effects from localized magnetic
fields. The magnetic field strength is less than 400 mT.
•The mask contains safety features, the exhaust vent holes and anti-asphyxia valves, to
enable normal breathing and exhaust exhaled breath. Occlusion of the exhaust vent
holes or anti-asphyxia valves needs to be prevented to avoid having an adverse effect
on the safety and quality of the therapy. Regularly inspect the vent holes and anti-
asphyxia valves to ensure they are kept clean, clear of blockages and are not
damaged.
•Only use compatible CPAP or bi-level therapy devices or accessories. The technical
specifications of the mask are provided for healthcare professionals to determine
compatible devices. Use in combination with incompatible medical devices can
decrease the safety or alter the performance of the mask.
•The mask is not suitable for patients requiring life support ventilation.
•Regularly clean your mask and its components to maintain the quality of your mask
and to prevent the growth of germs that can adversely affect your health.

6
WARNING
•The mask must be used under qualified supervision for patients who are unable to
remove the mask by themselves. The mask may not be suitable for those prone to
aspiration.
•The mask should not be used unless the device is turned on. Once the mask is fitted,
ensure the device is blowing air to reduce risk of rebreathing exhaled air.
•Discontinue using or replace this mask if the patient has ANY adverse reaction to the
use of the mask. Consult your physician or sleep therapist.
•The mask is not intended to be used simultaneously with nebulizer medications that
are in the air path of the mask/tube.
•If there is any visible deterioration of a mask component (cracking, crazing, tears etc.)
the component should be discarded and replaced.
CAUTION
•Always follow cleaning instructions and only use a mild liquid detergent. Some
cleaning products may damage the mask, its parts and their function, or leave harmful
residual vapours. Do not use a dish washer or washing machine to clean the mask.
•When fitting the mask, do not overtighten the headgear as this may lead to skin
redness or sores around the mask cushion.
•As with all masks, some rebreathing may occur at low pressures.
•Using a mask may cause tooth, gum or jaw soreness or aggravate an existing dental
condition. If symptoms occur, consult your physician or dentist.
•Do not iron the headgear as the material is heat sensitive and will be damaged.

English 7
Technical specifications
Mask setting options: For AirSense, AirCurve or S9: Select 'Full Face'.
Compatible devices: For a full list of compatible devices for this mask, see the
Mask/Device Compatibility List at ResMed.com/downloads/masks.
SmartStop may not operate effectively when using this mask with some CPAP or bi-level
devices.

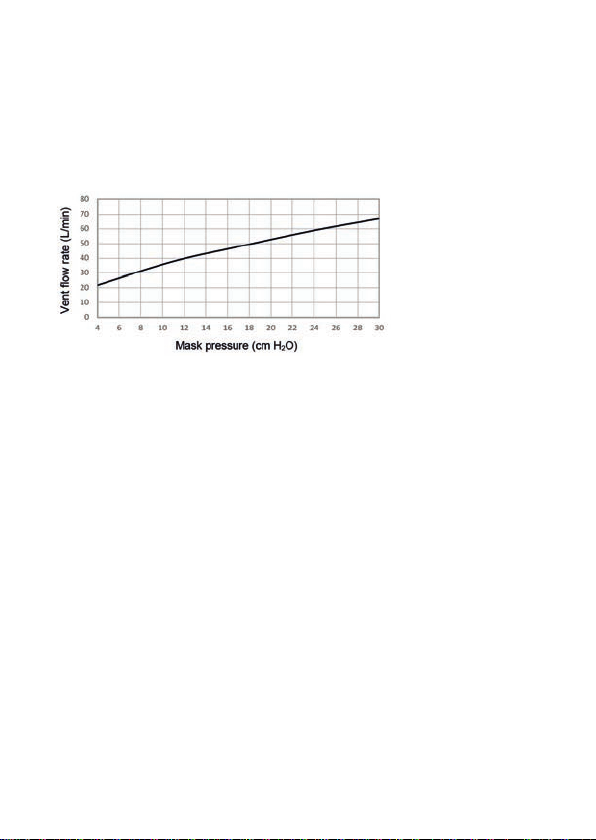

Pressure-flow curve
Pressure
(cm H2O)
Flow
(L/min)
4
22
11
38
17
48
24
59
30
67
Therapy pressure: 4 to 30 cm H20
Resistance with Anti Asphyxia Valve closed to atmosphere
Drop in pressure measured (nominal) at 50 L/min: 0.2 cm H2O
Drop in pressure measured (nominal) at 100 L/min: 1.0 cm H2O
Resistance with Anti Asphyxia Valve open to atmosphere
Inspiration at 50 L/min: 0.2 cm H2O
Expiration at 50 L/min: 0.4 cm H2O
Anti-Asphyxia Valve open-to-atmosphere pressure: <4 cm H2O
Anti-Asphyxia Valve closed-to-atmosphere pressure: <4 cm H2O
Sound: Declared dual-number noise emission values in accordance with ISO4871:1996
and ISO3744:2010. A-weighted sound power level is 25 dBA, with uncertainty of 3 dBA. A-
weighted pressure level at a distance of 1 m is 18 dBA, with uncertainly of 3 dBA.
Environmental conditions
Operating temperature: 41°F to 104°F (5°C to 40°C)
Operating humidity: 15% to 95% RH non-condensing
Storage and transport temperature: -4°F to 140°F (-20°C to +60°C)
Storage and transport humidity: up to 95% RH non-condensing
International Commission on Non-Ionizing Radiation Protection (ICNIRP)
Magnets used in this mask are within ICNIRP guidelines for general public use.
Service life: The service life of the mask system is dependent on the intensity of usage,
maintenance, and environmental conditions to which the mask is used or stored. As this
mask system and its components are modular in nature, it is recommended that the user
maintain and inspect it on a regular basis, and replace the mask system or any

8
components if deemed necessary or according to the instructions in the ‘Cleaning your
mask’ section of this guide.
Accessories: Soft sleeves are available as an accessory,
Storage
Ensure that the mask is thoroughly clean and dry before storing it for any length of time.
Store the mask in a dry place out of direct sunlight.
Disposal
This mask does not contain any hazardous substances and may be disposed of with your
normal household refuse.
Reprocessing the mask between patients
Only Sleep Lab Mask (SLM) variants of the mask system are intended for multi-patient re-
use. When using between patients, these masks must be reprocessed according to
instructions available on ResMed.com/downloads/masks.
Symbols
The following symbols may appear on your product or packaging:
Full face mask Device setting- Full face
Small frame Standard frame
Large frame Cushion size - small
Cushion size - medium Cushion size - small wide
Cushion size - wide
Caution, consult accompanying documents.
Prescription only (In the US, Federal law restricts these devices to sale by or on
the order of a physician.)
See symbols glossary at ResMed.com/symbols.

English 9
Limited warranty
ResMed Ltd (hereafter ’ResMed’) warrants that your ResMed mask system (including mask
frame, cushion, headgear and tubing) shall be free from defects in material and
workmanship from the date of purchase for the period of 90 days or in the case of
disposable masks the maximum use period. This warranty is only available to the initial
consumer. It is not transferable. If the product fails under conditions of normal use,
ResMed will repair or replace, at its option, the defective product or any of its
components. This limited warranty does not cover: a) any damage caused as a result of
improper use, abuse, modification or alteration of the product; b) repairs carried out by any
service organization that has not been expressly authorized by ResMed to perform such
repairs; and c) any damage or contamination due to cigarette, pipe, cigar or other smoke.
Warranty is void on product sold, or resold, outside the region of original purchase.
Warranty claims on defective product must be made by the initial consumer at the point of
purchase.
This warranty replaces all other expressed or implied warranties, including any implied
warranty of merchantability or fitness for a particular purpose. Some regions or states do
not allow limitations on how long an implied warranty lasts, so the above limitation may
not apply to you.
ResMed shall not be responsible for any incidental or consequential damages claimed to
have resulted from the sale, installation or use of any ResMed product. Some regions or
states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from region to region. For further
information on your warranty rights, contact your local ResMed dealer or ResMed office.
