Rf-t CRS60 User manual

www.rft.eu
en
Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel [phone] Fax [phone] [email protected]
0749
C16-EN- A 08/2022
CRS60
Circular EI60S fire damper for surface and remote mounting

2Table of content
Table of content
Declaration of performance 3
Product presentation CRS60 4
Range and dimensions CRS60 4
Evolution - kits 4
Storage and handling 6
Installation 6
Installation in a rigid wall - sealing with acrylic sealant 7
Installation in a rigid wall - sealing with stone wool 8
Installation in flexible wall (metal stud gypsum plasterboard wall) - sealing with acrylic sealant 9
Installation in flexible wall (metal stud gypsum plasterboard wall) - sealing with stone wool 10
Installation in shaft wall 11
Installation in rigid floor - sealing with acrylic sealant 12
Installation in rigid floor - sealing with stone wool 13
Installation remote from a rigid wall - sealing with acrylic sealant 14
Installation remote from a rigid wall - sealing with stone wool 15
Installation remote from a flexible wall - sealing with acrylic sealant 16
Installation remote from a flexible wall - sealing with stone wool 17
Installation remote from the shaft wall 18
Installation remote from a floor - sealing with acrylic sealant 19
Installation remote from a floor - sealing with stone wool 20
Operation and mechanisms 22
Electrical connection 25
Weights 26
Selection data 26
Correction factor ΔL 26
Sample order 26
Approvals and certificates 27
Explanation of the abbreviations and pictograms
Wn = nominal width
Hn = nominal height
Dn = nominal diameter
E = integrity
I = thermal insulation
S = smoke leakage
Pa = pascal
ve = vertical wall penetration
ho = horizontal floor penetration
o -> i = meets the criteria from the outside
(o) to the inside (i)
i <-> o = fire side not important
V AC = Volt alternating current
V DC = Volt direct current
E.TELE = power supply magnet
E.ALIM = power supply motor
V = volt
W = watt
Auto = automatic
Tele = remote controlled
Pnom = nominal capacity
Pmax = maximum capacity
GKB (type A) / GKF (type F): “GKB”
stands for standard plasterboards (type
A according to EN 520) while “GKF”
plasterboards offer a higher fire resistance
for a similar plate thickness (type F
according to EN 520)
Cal-Sil = calcium silicate
OP = option (delivered with the product)
KIT = kit (delivered separately for repair or
upgrade)
PG = connection flange to the duct
Sn = free air passage
ζ [-] = pressure loss coefficient
Q = airflow
∆P = static pressure drop
v = air speed in the duct
Lwa = A-weighted sound power level
Lw oct = sound power level per octave
midband
dB(A) = A-weighted decibel value
∆L = correction factor
optimal acoustic performance optimal free air passage and minimal pressure loss
EN 1751
C
air-tightness class C according to EN1751 suitable for installation remote from the wall

3
Declaration of performance
A-08/2022CE_DoP_Rf-t_C16_EN
DECLARATION OF PERFORMANCE Declarationofperformance CE_DoP_Rf-t_C16_EN A-08/2022
1. Unique identification code of the product-type: CRS60 2. Intended use/es: Circular re damper to be used in conjunction with partitions to maintain re compartments in heating, ventilating and air conditioning installations. 3. Manufacturer: Rf-Technologies NV, Lange Ambachtstraat 40, B-9860 Oosterzele 4. System/s of AVCP: System 1 5. Harmonised standard / European Assessment Document; notified body / European
Technical Assessment, Technical Assessment Body, notified body; certificate of constancy of performance:
EN 15650:2010, BCCA with identication number 0749; requested
6. Declared performance according to EN 15650:2010 (Fire resistance according to EN 1366-2 and classications according to EN 13501-3)
Essential characteristics Performance Range Wall type Wall Sealing Installation Classification
Ø 100-630 mm Rigid wall Aerated concrete ≥ 100 mm Fire resistant acrylic sealant 1 EI 60 (vei no) S - (300 Pa)
Fire resistant acrylic sealant 2 EI 60 (vei no) S - (300 Pa) Stone wool + coating with acrylic sealant 1 EI 60 (vei no) S - (300 Pa) Stone wool + coating with acrylic sealant 2 EI 60 (vei no) S - (300 Pa)
Rigid oor Aerated concrete ≥ 100 mm Fire resistant acrylic sealant 1 EI 60 (hoi no) S - (300 Pa)
Fire resistant acrylic sealant 2 EI 60 (hoi no) S - (300 Pa) Stone wool + coating with acrylic sealant 1 EI 60 (hoi no) S - (300 Pa) Stone wool + coating with acrylic sealant 2 EI 60 (hoi no) S - (300 Pa)
Flexible wall Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm Fire resistant acrylic sealant 1 EI 60 (vei no) S - (300 Pa)
Fire resistant acrylic sealant 2 EI 60 (vei no) S - (300 Pa) Stone wool + coating with acrylic sealant 1 EI 60 (vei no) S - (300 Pa) Stone wool + coating with acrylic sealant 2 EI 60 (vei no) S - (300 Pa)
Asymmetrical exible wall (shaft wall)
Metal studs gypsum plasterboard Type F (EN 520) ≥ 80 mm Fire resistant acrylic sealant 1 EI 60 (vei no) S - (300 Pa)
Fire resistant acrylic sealant 2 EI 60 (vei no) S - (300 Pa)
1 Type of installation: surface-mounted, 0-360° (300 Pa)
360°
2 Type of installation: remote from the wall, 0-360°
360°
Nominal activation conditions/sensitivity: Pass Response delay (response time): closure time Pass Operational reliability: cycling ONE - 10000 cycles; BFN(T) - 10000 cycles Durability of response delay: Pass Durability of operational reliability: Pass Protection against corrosion according to EN 60068-2-52: Pass Damper casing leakage according to EN 1751: ≥ class C
Harmonised standard
EN 15650:2010
The performance of the product identied above is in conformity with the set of declared performance/s.This declaration of performance is issued, in accordance with Regulation (EU) No 305/2011, under the sole responsibility of the manufacturer identi- ed above.
Signed for and on behalf of the manufacturer by:
Mathieu Steenland, Technical Manager
Oosterzele, 08/2022

4Product presentation CRS60
Product presentation CRS60
Circular fire damper with a fire resistance of up to 60 minutes. The damper collar and short damper tunnel guarantee quick and easy
mounting, both in surface and remote mounting. The optimised design of this fire damper ensures excellent aeraulic and acoustic
performance. Available in diameters 100-630 mm.
Fire dampers are installed where air ducts penetrate fire-resistant compartment walls. Their role is to restore the fire resistance grade
of the penetrated wall and to prevent smoke propagation. Fire dampers are distinguished by their degree of fire resistance, by their
aeraulic properties as well as by their installation ease. Rf-Technologies’ fire dampers are all CE marked. They can be equipped with
various types of mechanisms depending on the specific needs linked to the project or to the local regulations.
5easy to install
5optimal free air passage and minimal pressure loss
5optimal acoustic performance
5air-tightness class C according to EN1751
∎suitable for surface-mount in rigid wall and light wall (metal
stud gypsum plasterboard wall)
∎suitable for installation remote from the wall
∎tested according to EN 1366-2 up to 300 Pa
∎maintenance-free
∎for indoor use
∎operating temperature: max. 50°C
∎P-marking
EN 1751
C
1. casing in galvanised steel
2. damper blade
3. operating mechanism
4. rubber sealing ring
5. sealing ring for damper blade
6. collar
7. intumescent strip
1
2
5
7
4
6
4
3
Range and dimensions CRS60
ØDn [mm] 100 125 160 200 250 315 400 500 630
Exceeding blade: X = on the mechanism side, Y = on the wall side
58%
167
210
ØDn
YX
A
ØDn [mm] 100 125 160 200 250 315 400 500 630
x - - - - - 23 66 116 181
y - - 10 30 55 88 130 180 245
a 15 15 15 15 15 15 27 27 27
ONE BFN(T) BFL(T)
P140 125 121
Q136 98 80
Z75 50 40
ØDn P
ZQ
70

5
Evolution - kits
Evolution - kits
KITS ONE T 24 FDCU L Spring return actuator ONE 24V (with fusible link T) + unipolar beginning- and end-of-
range switch
KITS ONE T 230 FDCU L Spring return actuator ONE 230V (with fusible link T) + unipolar beginning- and end-
of-range switch
KITS BFLT24 Spring return actuator BFL 24V with thermo-electric fuse (T)
KITS BFLT230 Spring return actuator BFL 230V with thermo-electric fuse (T)
KITS BFNT24 Spring return actuator BFN 24V with thermo-electric fuse (T)
KITS BFNT230 Spring return actuator BFN 230V with thermo-electric fuse (T)
KITS ZBAT 72 Black spare part for thermo-electric fuse for BFLT/BFNT
FUS72 ONE L Fusible link 72°C

6Storage and handling
Storage and handling
As this product is a safety element, it should be stored and handled with care.
Avoid:
• any kind of impact or damage
• contact with water
• deformation of the casing
It is recommended:
• to unload in a dry area
• not to flip or roll the product to move it
• not to use the damper as a scaffold, working table, etc.
• not to store smaller dampers inside larger ones
Installation
General points
∎The installation must comply with the installation manual and the classification report.
∎Axis orientation: see the declaration of performance.
∎Avoid obstruction of adjoining ducts.
∎Product installation: always with closed damper blade.
∎Verify if the blade can move freely.
∎Please observe safety distances with respect to other construction elements. The operating mechanism must also remain
accessible: allow for a clearance of 200 mm around the housing.
∎The air tightness class will be maintained if the damper is installed according to the installation manual.
∎Rf-t fire dampers are always tested in standardised constructions according to EN 1366-2. The achieved results are valid for similar
supporting constructions with a fire resistance, thickness and density equal or superior to the supporting construction used
during the test.
∎The damper must remain accessible for inspection and maintenance.
∎Schedule at least 2 visual checks each year.
2021
2022
2023
2024
2025
TEST
 | 
 | 
 | 
 | 
 | 

7
Installation
Installation in a rigid wall - sealing with acrylic sealant
≤ Dn+10 mm
≥100
Fire resistant
acrylic sealant
M6
Fire resistant
acrylic sealant
1 2
3 4

8Installation
Installation in a rigid wall - sealing with stone wool
≤ Dn+50 mm
≥100
Fire resistant
acrylic sealant
M6
Stonewool
stuffed
Fire resistant
acrylic sealant
1 2
3 4

9
Installation

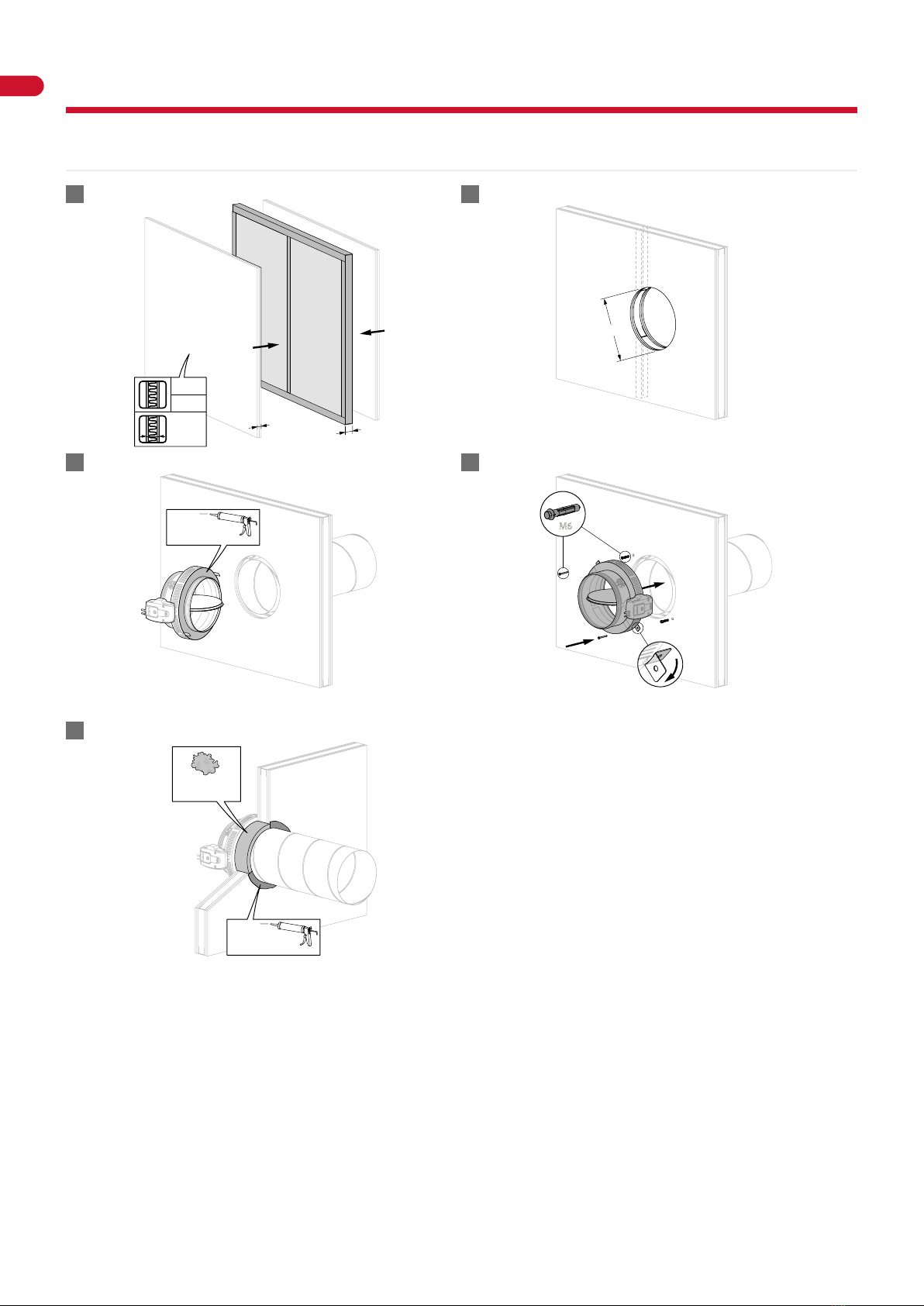

Installation in flexible wall (metal stud gypsum plasterboard wall) - sealing with acrylic sealant
50
2x12.5 /
1x25 mm
F (EN520)
A (EN520)
100 mm
≤ Dn+10 mm
Fire resistant
acrylic sealant
M6
Fire resistant
acrylic sealant
1 2
3 4
5

10 Installation
Installation in flexible wall (metal stud gypsum plasterboard wall) - sealing with stone wool
50
2x12.5 /
1x25 mm
F (EN520)
A (EN520)
100 mm
≤ Dn+50 mm
Fire resistant
acrylic sealant
M6
Stonewool
stuffed
Fire resistant
acrylic sealant
1 2
3 4
5

11
Installation
Installation in shaft wall
50
2x15 /
1x30 mm
F (EN520)
80 mm
≤ Dn+10 mm
Fire resistant
acrylic sealant
M6
1 2
3 4

12 Installation
Installation in rigid floor - sealing with acrylic sealant
≥100
≤ Dn+10 mm
Fire resistant
acrylic sealant M6
Fire resistant
acrylic sealant
1 2
3 4
5

13
Installation
Installation in rigid floor - sealing with stone wool
≥100
≤ Dn+50 mm
Fire resistant
acrylic sealant M6
Fire resistant
acrylic sealant
Stonewool
stuffed
1 2
3 4
5

14 Installation

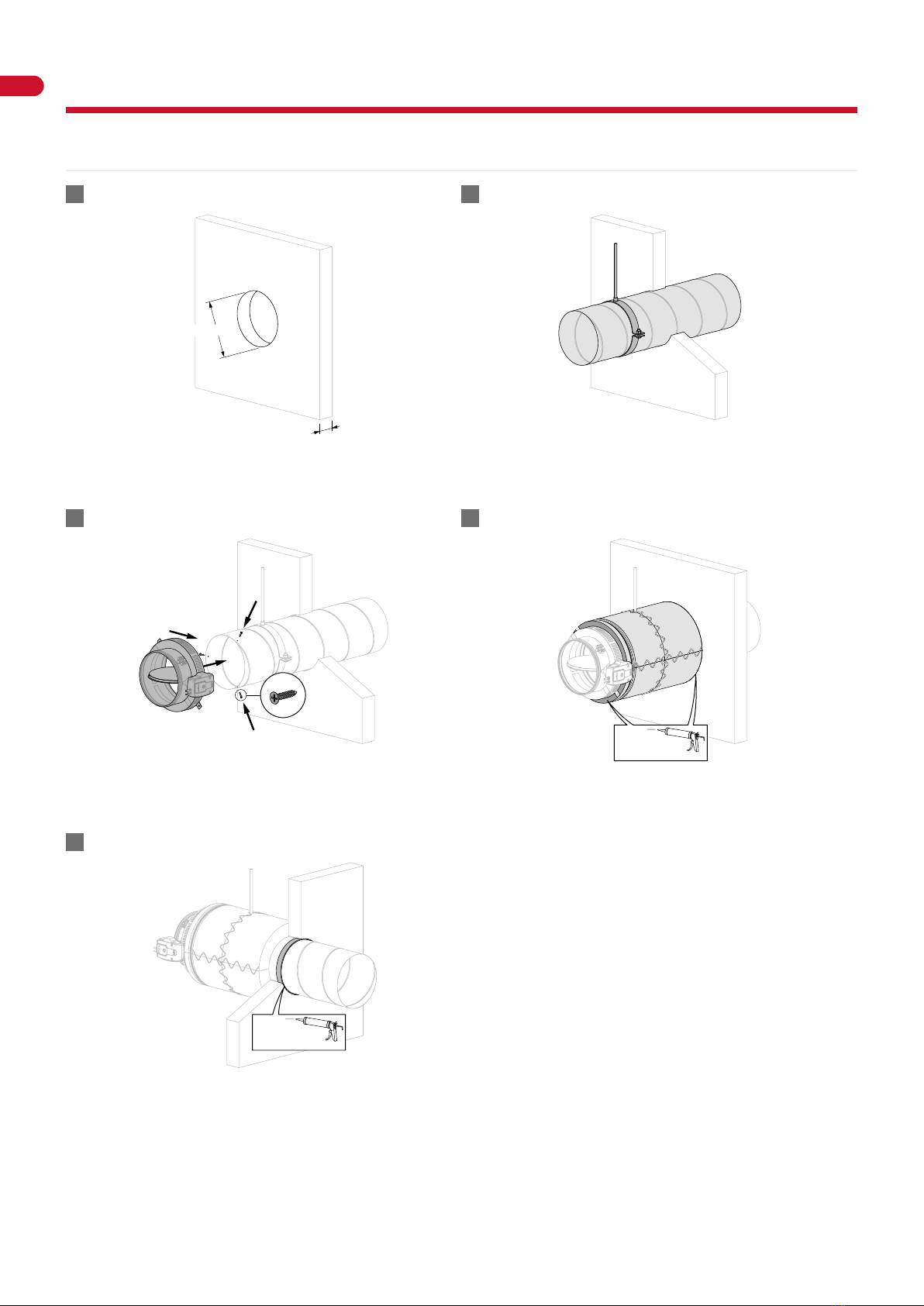

Installation remote from a rigid wall - sealing with acrylic sealant
≤ Dn+10 mm
≥100
2. Provide suspension where necessary in accordance with the
instructions of the duct manufacturer.
3. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
4. Apply the insulation in accordance with the manufacturer's
instructions.
Fire resistant
acrylic sealant
1 2
3 4
5

15
Installation
Installation remote from a rigid wall - sealing with stone wool
≥100
≤ Dn+50 mm
2. Provide suspension where necessary in accordance with the
instructions of the duct manufacturer.
3. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
4. Apply the insulation in accordance with the manufacturer's
instructions.
Fire resistant
acrylic sealant
Stonewool
stuffed
1 2
3 4
5

16 Installation
Installation remote from a flexible wall - sealing with acrylic sealant
50
F (EN520)
A (EN520)
100 mm
2x12.5 /
1x25 mm
≤ Dn+10 mm
3. Provide suspension where necessary in accordance with the
instructions of the duct manufacturer.
4. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
5. Apply the insulation in accordance with the manufacturer's
instructions.
Fire resistant
acrylic sealant
1 2
3 4
5 6

17
Installation
Installation remote from a flexible wall - sealing with stone wool
50
F (EN520)
A (EN520)
100 mm
2x12.5 /
1x25 mm
≤ Dn+50 mm
3. Provide suspension where necessary in accordance with the
instructions of the duct manufacturer.
4. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
5. Apply the insulation in accordance with the manufacturer's
instructions.
Fire resistant
acrylic sealant
Stonewool
stuffed
1 2
3 4
5 6

18 Installation
Installation remote from the shaft wall
50
2x15 /
1x30 mm
F (EN520)
80 mm
≤ Dn+10 mm
Fire resistant
acrylic sealant
3. Provide suspension where necessary in accordance with the
instructions of the duct manufacturer.
4. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
5. Apply the insulation in accordance with the manufacturer's
instructions.
1 2
3 4
5

19
Installation
Installation remote from a floor - sealing with acrylic sealant
≥100
≤ Dn+10 mm
4. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
Silicate
based adhesive
5. Apply the insulation in accordance with the manufacturer's
instructions.
Fire resistant
acrylic sealant
1 2
3 4
5 6

20 Installation
Installation remote from a floor - sealing with stone wool
≥100
≤ Dn+50 mm
4. Attention: Make sure that the movement of the damper
blade is not impeded by the screws.
Silicate
based adhesive
Silicate
based adhesive
5. Apply the insulation in accordance with the manufacturer's
instructions.
Fire resistant
acrylic sealant
Stonewool
stuffed
1 2
3 4
5 6
