Rf-t Cu2-15 User manual

www.rft.be

Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel +32 9 362 31 71 Fax +32 9 362 33 07 [email protected]

0749

C7-EN-J 11/2019

CU2-15

Rectangular re damper 120' at 1500 Pa

2Table of content

Table of content

Declaration of performance 3

Product presentation CU2-15 4

Range and dimensions CU2-15 4

Variant CU2-15L 5

Range and dimensions CU2-15L 5

Evolution - kits 6

Options - at the time of order 8

Flange types - at the time of order 9

Storage and handling 10

Installation 10

Installation at a minimal distance from another damper or from an adjacent supporting construction 10

Installation in rigid wall 11

Operation and mechanisms 12

Electrical connection 16

Weights 18

Selection graphs 20

Example 20

Selection data 21

Sample order 22

Approvals and certificates 22

Explanation of the abbreviations and pictograms

Wn = nominal width

Hn = nominal height

Dn = nominal diameter

E = integrity

I = thermal insulation

S = smoke leakage

Pa = pascal

ve = vertical wall penetration

ho = horizontal floor penetration

o -> i = meets the criteria from the outside

(o) to the inside (i)

i <-> o = fire side not important

V AC = Volt alternating current

V DC = Volt direct current

E.TELE = power supply magnet

E.ALIM = power supply motor

V = volt

W = watt

Auto = automatic

Tele = remote controlled

Pnom = nominal capacity

Pmax = maximum capacity

GKB (type A) / GKF (type F): "GKB"

stands for standard plasterboards (type

A according to EN 520) while "GKF"

plasterboards offer a higher fire resistance

for a similar plate thickness (type F

according to EN 520)

Cal-Sil = calcium silicate

OP = option (delivered with the product)

KIT = kit (delivered separately for repair or

upgrade)

PG = connection flange to the duct

Sn = free air passage

ζ [-] = pressure loss coefficient

Q = air flow

∆P = static pressure drop

v = air speed in the duct

Lwa = A-weighted sound power level

Lw oct = sound power level per octave

midband

dB(A) = A-weighted decibel value

∆L = correction factor

1500 Pa

fire resistance tested at a negative pressure of 1500 Pa suitable for built-in installation

intermediate dimensions on request

Declaration of performance

E-09/2018CE_DoP_Rf-t_C7_EN

DECLARATION OF PERFORMANCE

Declarationofperformance

CE_DoP_Rf-t_C7_EN

E-09/2018

1. Unique identication code of the product-type: CU2-15

2. Intended use/es: Rectangular re damper to be used in conjunction with partitions to maintain re compartments in heating, ventilating and air conditioning installations.

3. Manufacturer: Rf-Technologies NV, Lange Ambachtstraat 40, B-9860 Oosterzele

4. System/s of AVCP: System 1

5. Harmonised standard / European Assessment Document; notied body / European

Technical Assessment, Technical Assessment Body, notied body; certicate of

constancy of performance:

EN 15650:2010, BCCA with identication number 0749; BCCA-0749-CPR-BC1-606-0464-15650.04-0464; BCCA-0749-CPR-BC1-606-0464-15650.14-0464

6. Declared performance according to EN 15650:2010 (Fire resistance according to EN 1366-2 and classications according to EN 13501-3)

Essential characteristics Performance

Range Wall type Wall Sealing Installation Classication

200x200 mm ≤ CU2-15 ≤

1200x800 mm

Rigid wall Reinforced concrete ≥ 110 mm Mortar 1 EI 120 (vei no) S - (1500 Pa)

1 Type of installation: built-in 0/180°

Nominal activation conditions/sensitivity: Pass

Response delay (response time): closure time Pass

Operational reliability: cycling

CFTH - 50 cycles; MANO - 300 cycles; B(L)

F(T) - 10000 cycles; BFL(T) - 10000 cycles;

BFN(T) - 10000 cycles; ONE - 10000 cycles;

UNIQ - 10000 cycles

Durability of response delay: Pass

Durability of operational reliability: Pass

Protection against corrosion according to EN 60068-2-52: Pass

Damper casing leakage according to EN 1751: ≥ class B

Harmonised standard

EN 15650:2010

The performance of the product identied above is in conformity with the set of declared performance/s.This declaration of

performance is issued, in accordance with Regulation (EU) No 305/2011, under the sole responsibility of the manufacturer identi-

ed above.

Signed for and on behalf of the manufacturer by:

Mathieu Steenland, Technical Manager

Oosterzele, 09/2018

4Product presentation CU2-15

Product presentation CU2-15

Rectangular fire damper with a 120 minutes fire resistance in concrete walls with air pressure up to 1500 Pascal. Its refractory casing is

made of asbestos free panels, which are resistant to humidity.

Fire dampers are installed where air ducts penetrate fire-resistant compartment walls. Their role is to restore the fire resistance grade

of the penetrated wall and to prevent smoke propagation. Fire dampers are distinguished by their degree of fire resistance, by their

aeraulic properties as well as by their installation ease. Rf-Technologies' fire dampers are all CE marked. They can be equipped with

various types of mechanisms depending on the specific needs linked to the project or to the local regulations.

5fire resistance tested at a negative pressure of 1500 Pa

∎suitable for built-in installation

∎air tightness in accordance with EN 1751: class B (class C in

option )

∎tested in accordance with EN1366-2 up to 1500 Pa

∎operating mechanism outside the wall

∎maintenance-free

∎for indoor use

∎operating temperature: max. 50°C

∎intermediate dimensions on request

∎suitable for installation in rigid wall

1500 Pa

1. connection flange PG30

2. casing made of refractory material

3. damper blade

4. operating mechanism

5. sealing cold smoke

6. blade bumper

7. intumescent strip

8. transmission with locking (open/closed)

9. fusible link

10.product identification

Range and dimensions CU2-15

Wn/Hn per step of 50 mm; intermediate dimensions are subject to extra cost (heights between ≥ 275 and ≤ 299 mm are not

possible).

Exceeding blade: X = on the mechanism side, Y = on the wall side

400

65 H≥500

55 H<500

Y X

(Wn-6)x(Hn-6)

(Wn+28)x(Hn+28)

Hn [mm] 300 350 400 450 500 550 600 650 700 750 800

x - - - - - - 25 50 75 100 125

y 1 26 51 51 101 126 151 176 201 226 251

≥ ≤

(Wn x Hn)

mm 200x200 1200x800

Variant CU2-15L

Damper with a tunnel casing extension at one or both sides so that the damper blade does not exceed the tunnel. This version allows

to connect a grill or a bend directly on the damper flange or to use a circular connection.

Range and dimensions CU2-15L

Wn/Hn per step of 50 mm; intermediate dimensions are subject to extra cost (heights between ≥ 275 and ≤ 299 mm are not

possible).

Exceeding blade: X = on the mechanism side, Y = on the wall side

102,5+b

227,5+a

55/65

(Hn-6) x (Wn-6)

L=330+x+y

≥ ≤

(Wn x Hn)

mm 200x200 1200x800

Hn < 300 mm Hn ≥ 300 mm

Wn P

CFTH ONE BFL(T)

P78 104 96

Q180 191 110

Z62 47 74

CFTH ONE BFL(T) BFN(T)

P78 104 96 100

Q180 191 110 110

Z157 147 180 180

6Evolution - kits

Evolution - kits

KITS CFTH Automatic unlocking mechanism CFTH with FCU and without FTH 72

KITS BFL24 Spring return actuator BFL 24V

KITS BFL24-ST Spring return actuator BFL 24V with plug (ST)

KITS BFLT24 Spring return actuator BFL 24V with thermo-electric fuse (T)

KITS BFLT24-ST Spring return actuator BFL 24V with thermo-electric fuse (T) and plug (ST)

KITS BFL230 Spring return actuator BFL 230V

KITS BFLT230 Spring return actuator BFL 230V with thermo-electric fuse (T)

KITS BFN24 Spring return actuator BFN 24V (BFN kits must be used instead of BFL kits for fire dampers

produced before 1/7/2015)

KITS BFN24 Spring return actuator BFN 24V

Evolution - kits

KITS BFN24-ST Spring return actuator BFN 24V with plug (ST)

KITS BFNT24 Spring return actuator BFN 24V with thermo-electric fuse (T)

KITS BFNT24-ST Spring return actuator BFN 24V with thermo-electric fuse (T) and plug (ST)

KITS BFN230 Spring return actuator BFN 230V

KITS BFNT230 Spring return actuator BFN 230V with thermo-electric fuse (T)

KITS BF24 Spring return actuator BF 24V (BF kits must be used instead of BFN kits for fire dampers

produced before 1/7/2015)

KITS ONE T 24 FDCU Spring return actuator ONE 24V (with fusible link T) + unipolar beginning- and end-of-

range switch

KITS ONE T 24 FDCB Spring return actuator ONE 24V (with fusible link T) + bipolar beginning- and end-of-

range switch

KITS ONE T 230 FDCU Spring return actuator ONE 230V (with fusible link T) + unipolar beginning- and end-of-

range switch

8Options - at the time of order

KITS ONE T 230 FDCB Spring return actuator ONE 230V (with fusible link T) + bipolar beginning- and end-of-

range switch

KITS FDC CFTH 1 limit switch (FCU/DCU/FCB/DCB)

KITS SN2 BFL/BFN Auxiliary limit switch 'open/closed'

KITS FTH72 Fusible link FTH 72°C (for CFTH)

KITS ZBAT 72 Black spare part for thermo-electric fuse for BFLT/BFNT

FUS72 ONE Fusible link 72°C

MECT Testbox for mechanisms 24/48 V (magnet, motor, beginning and end of range switches)

Options - at the time of order

EN 1751

EN1751_C Air-tightness class C

Flange types - at the time of order

30 30

3333

400

HnxWn

(Hn-6)x(Wn-6)

PG30 Connection to ducts with 30 mm flanges (either by sliding profile,

or with bolts, or with clamps). Elliptical holes Ø 8,5 x 16 mm.

43 43

400

4040

HnxWn

(Hn-6)x(Wn-6)

PG40 Connection to ducts with 40 mm flanges.

Elliptical holes Ø 8,5 x 16 mm.

2020

400

23 23

HnxWn

(Hn-6)x(Wn-6)

PG20 Connection to ducts with 20 mm flanges.

Elliptical holes Ø 6,5 x 16 mm.

HnxWn

(Hn-6)x(Wn-6)

L-70

PM Connection to ducts by insertion. This type of frame is used in case

of lack of space for a standard PG30 frame.

(Hn-6)x(Wn-6)

+L-70

PP No connection. This type of frame is used on one side of a damper

that ends into a room.

Øn-2

e L

n+30

PRJ Circular connection with rubber sealing ring.

210

W+62

H+62

PPT Grill. Very well suited as protection grill on the end piece of a duct

system.

10 Storage and handling

Storage and handling

As this product is a safety element, it should be stored and handled with care.

Avoid:

• any kind of impact or damage

• contact with water

• deformation of the casing

It is recommended:

• to unload in a dry area

• not to flip or roll the product to move it

• not to use the damper as a scaffold, working table, etc.

• not to store smaller dampers inside larger ones

Installation

General points

∎The installation must comply with the installation manual delivered with the product and the classification report.

∎Axis orientation: see the declaration of performance.

∎Avoid obstruction of adjoining ducts.

∎Product installation: always with closed damper blade.

∎Verify if the blade can move freely.

∎Please observe safety distances with respect to other construction elements. The operating mechanism must also remain

accessible: allow for a clearance of 200 mm around the housing.

∎The air tightness class will be maintained if the damper is installed according to the installation manual.

∎Rf-t fire dampers are always tested in standardised constructions according to EN 1366-2. The achieved results are valid for similar

supporting constructions with a fire resistance, thickness and density equal or superior to the supporting construction used

during the test.

∎The damper must remain accessible for inspection and maintenance.

∎Schedule at least two running visual checks each year.

2017

2018

2019

2020

2021

TEST

 | 

 | 

 | 

Installation at a minimal distance from another damper or from an adjacent supporting construction

≥ 75 mm

≥ 200 mm

1. Principle

According to the European test standard, a fire damper must

be installed at a minimum distance of 75 mm from an adjacent

wall and 200 mm from another damper, unless the solution was

tested at a shorter distance.

Installation

Installation in rigid wall

The product was tested and approved in:

Range Wall type Sealing Classication

200x200 mm ≤ CU2-15 ≤ 1200x800 mm Rigid wall Reinforced concrete ≥ 110 mm Mortar EI 120 (vei no) S - (1500 Pa)

240

≥110

400

≥ Wn+100

≥ Hn+100

Mortar

TEST!

Maintenance

∎No specific maintenance required.

∎Schedule at least two running visual checks each year.

∎Remove dust and all other particles before start-up.

∎Follow the local maintenance regulations (i.e. BS9999 Annex V; NF S 61-933) and EN13306.

∎Read the maintenance instructions on our website: https://www.rft.be/assets//PIM/DOCUMENTS/BROCHURE%20KITS/BRO_K139_

MAINTENANCE_C.pdf

∎Use the damper at up to 95% humidity, non-condensing.

∎The fire damper can be cleaned with a dry or slightly damp cloth. It is forbidden to use abrasive cleaners or mechanical cleaning

techniques (brush).

1 2

12 Operation and mechanisms

Operation and mechanisms

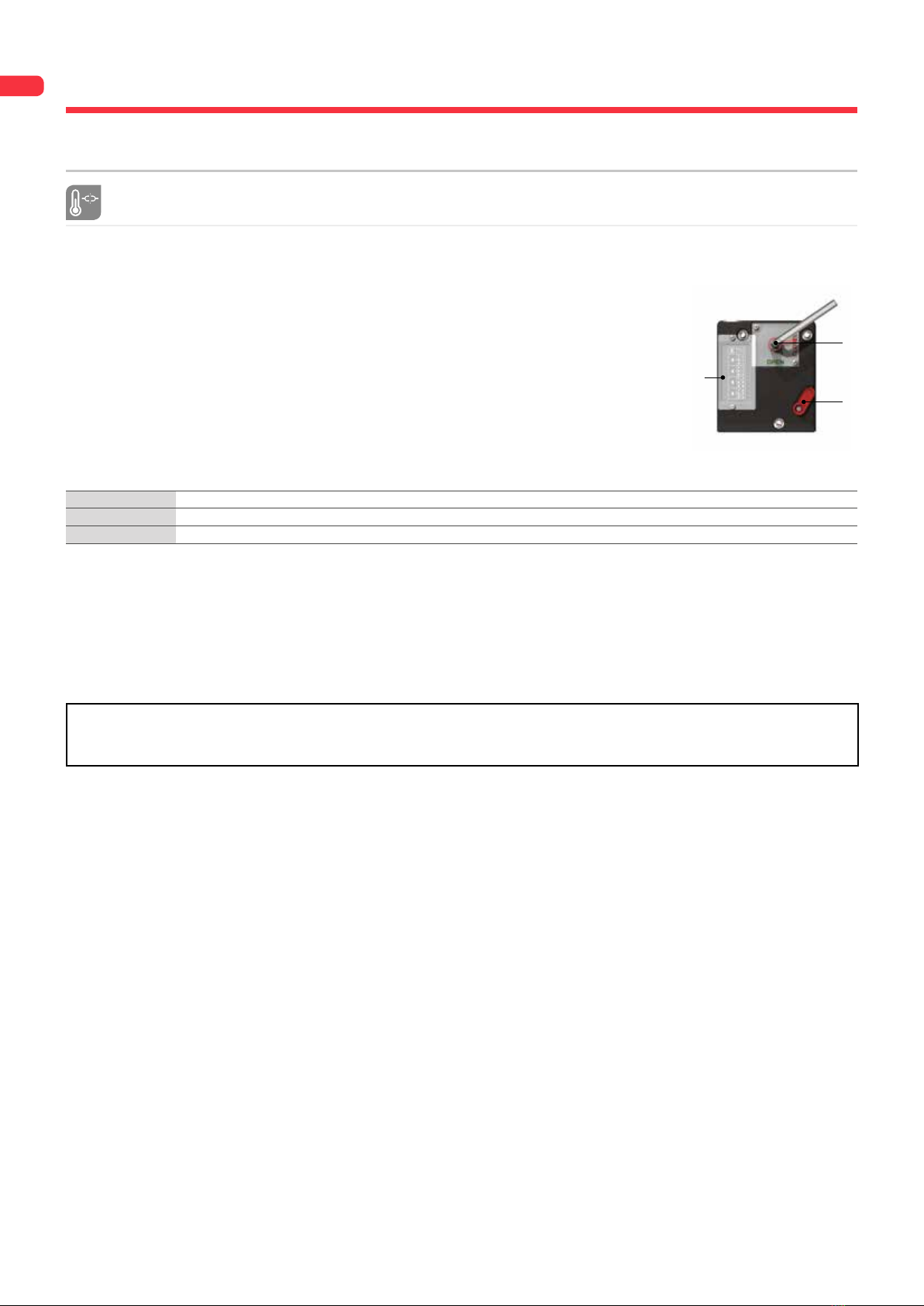

CFTH Mechanism with fusible link

The unlocking mechanism CFTH automatically unlatches the damper blade when the temperature in the duct rises above 72°C. The

damper can also be unlocked and reset manually.

1. unlocking button

2. resetting handle

3. cable entrance 1

Options - at the time of order

FCU Limit switch 'closed'

FDCU Unipolar limit switch 'open/closed'

FDCB Bipolar auxiliary limit switch 'open/closed'

Unlocking

∎manual unlocking: use the unlocking button (1).

∎automatic unlocking: when the fusible link melts at 72° C.

∎remote unlocking: n/a

Resetting

∎manual resetting: use the enclosed Hex key and turn clockwise(2).

∎motorised resetting: n/a

Caution:

The mechanism may never be tested on its own, without being attached to the damper. Such a test might damage the

mechanism or the operator might be injured.

Operation and mechanisms

ONE Spring return actuator for remote control

The spring-return actuator ONE is designed to easily operate Rf-t fire dampers of all sizes, automatically or remotely. Five models are

available, 24 or 230 volt, with FDCU or FDCB position switches; and 24 volt with plug (ST).

1. unlocking button

2. blade position indicator

3. LED

4. battery compartment to reset motor

5. plug (ST)

Options - at the time of order

IXI-R1 Universal field controller (Modbus, BACnet or analog connection), pre-mounted on the damper.

IXI-R2-24 Universal field controller (Modbus, BACnet), pre-mounted on the damper and with a connection for a second

damper.

IXI-R2-230 Universal field controller (Modbus, BACnet), pre-mounted on the damper and with a connection for a second

damper.

Unlocking

∎manual unlocking: shortly press the unlocking button (1) once.

∎automatic unlocking: the fusible link reacts as soon as the temperature in the duct reaches 72°C.

∎remote unlocking: by interrupting the power supply.

Resetting

∎manual resetting: open the battery compartment (4) and press a 9V battery against the contact springs. Hold this position until

the LED (3) emits a continuous light. Check whether the indicator (2) shows that the damper blade is in the open position. Remove

the battery, the LED fades away. Close the battery compartment.

∎motorised resetting: switch off the power supply for at least 5 sec. Power the actuator (respect the prescribed voltage) for at least

75 sec. The resetting stops automatically when the end of range is reached (damper open).

Caution:

If the LED (3) flickers fast (3x/sec.), the battery is discharged: use a new battery.

If the LED (3) flickers slowly (1x/sec), the resetting is in progress.

If the LED (3) is continuously on, the resetting is complete and the motor is powered.

If the actuator detects voltage on the power cable, a brief contact of the battery is enough to start the resetting process.

The power supply of this actuator cannot be individually replaced. If the cable is damaged, the whole unit must be discarded

and replaced.

The housing of the mechanism contains a temperature sensor. When the temperature in the housing exceeds 72°C, the

mechanism unlocks. The LED flashes twice per second. When the temperature drops below 72°C, the mechanism can only be

reset in a motorised manner after a manual reset (with a battery).

The end of range switches need 1 second after operation to adopt a stable position.

Make sure the thermal trigger device is present in the actuator. The actuator might not function properly if this is not the case.

prod. < 1/7/2015

prod. ≥ 1/7/2015

CR60(1s)

CR120

CU-LT

CU-LT-1s

CR2≤400

CU2≤1200

CR2>400

CU2>1200

CR60(1s)

CR120(1s)

CU-LT

CU-LT-1s

CR2≤400

CU2≤1200

CR2>400

CU2>1200

Kit ONE

      

14 Operation and mechanisms

BFL(T) Remotely controlled spring return actuator

The spring return actuator BFL(T) is specially designed to remotely control fire dampers. The BFL(T) model is intended for fire

dampers with smaller dimensions (ø ≤ 400 mm or W+H ≤ 1200 mm/1400 mm for CU-LT, CU-LT-1s).

1. locking button

2. plug (ST)

3. access for manual resetting

4. thermo-electric tripping device (T)

Options - at the time of order

SN2 BFL/BFN Auxiliary limit switch 'open/closed'

IXI-R1 Universal field controller (Modbus, BACnet or analog connection), pre-mounted on the damper.

IXI-R2-24 Universal field controller (Modbus, BACnet), pre-mounted on the damper and with a connection for a second

damper.

IXI-R2-230 Universal field controller (Modbus, BACnet), pre-mounted on the damper and with a connection for a second

damper.

Unlocking

∎manual unlocking: place the locking button on “unlock”. (In case of BFLT: the damper can alternatively be unlocked by pushing

the “test” button on the thermo-electric fuse)

∎automatic unlocking: the thermo-electric fuse reacts as soon as the temperature reaches 72°C (type BFLT).

∎remote unlocking: by interrupting the power supply.

Caution:

The thermo-electric fuse will not move the damper into its safety position (when the temperature reaches 72°C) if the motor

is not powered.

Resetting

∎manual resetting: turn the enclosed handle anti-clockwise. To block the motor, place the locking button on “lock”

∎motorised resetting: switch off the power supply for at least 10 seconds. Supply the actuator (respect the prescribed voltage) for

at least 75 seconds. The resetting stops automatically when the end of range is reached (damper open) - it takes about 60 seconds

to reset the damper - or when the power supply is interrupted.

Caution:

Do not use a drill or screwing machine.

Stop as soon as the motor is completely rearmed (end of range).

prod. < 1/7/2015

prod. ≥ 1/7/2015

CR60(1s)

CR120

CU-LT

CU-LT-1s

CR2≤400

CU2≤1200

CR2>400

CU2>1200

CR60(1s)

CR120 (1s)

CU-LT

CU-LT-1s

CR2≤400

CU2≤1200

CR2>400

CU2>1200

Kit BFL



Kit BFN



Kit BF



Operation and mechanisms

BFN(T) Remotely controlled spring return actuator

The spring return actuator BFN(T) is specially designed to remotely control fire dampers. The BFN(T) model is intended for fire

dampers with large dimensions (ø > 400 mm (CR2) or W+H > 1200 mm (CU2, CA2, CU2-15, CU4)) or for dampers CU-LT(-1s), CR60,

CR120 with a production date before 1 July 2015.

1. locking button

2. plug (ST)

3. access for manual resetting

4. thermo-electric tripping device (T)

Options - at the time of order

SN2 BFL/BFN Auxiliary limit switch 'open/closed'

IXI-R1 Universal field controller (Modbus, BACnet or analog connection), pre-mounted on the damper.

IXI-R2-24 Universal field controller (Modbus, BACnet), pre-mounted on the damper and with a connection for a second

damper.

IXI-R2-230 Universal field controller (Modbus, BACnet), pre-mounted on the damper and with a connection for a second

damper.

Unlocking

∎manual unlocking: place the locking button on “unlock”. (In case of BFNT: the damper can alternatively be unlocked by pushing

the “test” button on the thermo-electric fuse)

∎automatic unlocking: the thermo-electric fuse reacts as soon as the temperature reaches 72°C (type BFNT).

∎remote unlocking: by interrupting the power supply.

Caution:

The thermo-electric fuse will not move the damper into its safety position (when the temperature reaches 72°C) if the motor

is not powered.

Resetting

∎manual resetting: turn the enclosed handle anti-clockwise. To block the motor, place the locking button on “lock”

∎motorised resetting: switch off the power supply for at least 10 seconds. Supply the actuator (respect the prescribed voltage) for

at least 75 seconds. The resetting stops automatically when the end of range is reached (damper open) - it takes about 60 seconds

to reset the damper - or when the power supply is interrupted.

Caution:

Do not use a drill or screwing machine.

Stop as soon as the motor is completely rearmed (end of range).

Caution:

The mechanism may never be tested on its own, without being attached to the damper. Such a test might damage the

mechanism or the operator might be injured.

prod. < 1/7/2015

prod. ≥ 1/7/2015

CR60(1s)

CR120

CU-LT

CU-LT-1s

CR2≤400

CU2≤1200

CR2>400

CU2>1200

CR60(1s)

CR120 (1s)

CU-LT

CU-LT-1s

CR2≤400

CU2≤1200

CR2>400

CU2>1200

Kit BFL



Kit BFN



Kit BF



16 Electrical connection

Electrical connection

CFTH ONE BFL(T) BFN(T)

10987

5616151413

11 12

10987

5616151413

11 12

DCU FCU DCB FCB

DC : Switch open position re damper

FC : Switch closed position re damper

24VDC

24VAC

230VACN L

6543

DC : Switch open position re damper

FC : Switch closed position re damper

violet

red

white

orange

pink

grey

black

24VDC

24VAC

230VACN L

6543

DC : Switch open position re damper

FC : Switch closed position re damper

violet

red

white

orange

pink

grey

black

24VDC

24VAC

230VACN L

6543

DC : Switch open position re damper

FC : Switch closed position re damper

violet

red

white

orange

pink

grey

black

MEC Nominal voltage motor Nominal voltage magnet Power consumption

(stand-by)

Power consumption

(operating) Standard switches Resetting time motor Running time

spring

Noise level

motor

Noise level

spring Cable supply / control Cable auxiliary switch Protection

class

CFTH N/A N/A N/A N/A 1mA...6A, DC 5V...AC 250V N/A 1 s N/A N/A IP 42

ONE T 24 FDCU 24 V AC/DC (-10/+20%) N/A 0,28W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² 1 m, 6 x 0.75 mm² IP 54

ONE T 24 FDCB 24 V AC/DC (-10/+20%) N/A 0,28W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² (2x) 1 m, 6 x 0,75 mm² IP 54

ONE T 230 FDCU 230 V AC (-15/+15%) N/A 0,57W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² 1 m, 6 x 0.75 mm² IP 54

ONE T 230 FDCB 230 V AC (-15/+15%) N/A 0,57W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² (2x) 1 m, 6 x 0,75 mm² IP 54

ONE T 24 FDCU ST 24 V AC/DC (-10/+20%) N/A 0,28W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² 1 m, 6 x 0.75 mm² IP 54

BFL24 24 V AC/DC N/A 0,7W 2,5W 1mA...3A, AC 250V < 60 s 20 s < 43 dB (A) < 62 dB (A) 1 m, 2 x 0.34 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFL24-ST 24 V AC/DC N/A 0,7W 2,5W 1mA...3A, AC 250V < 60 s 20 s < 43 dB (A) < 62 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFLT24 24 V AC/DC N/A 0,8W 2,5W 1mA...3A, AC 250V < 60 s 20 s < 43 dB (A) < 62 dB (A) 1 m, 2 x 0.34 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFLT24-ST 24 V AC/DC N/A 0,8W 2,5W 1mA...3A, AC 250V < 60 s 20 s < 43 dB (A) < 62 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFL230 230 V AC N/A 1,1W 3,5W 1mA...3A, AC 250V < 60 s 20 s < 43 dB (A) < 62 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFLT230 230 V AC N/A 1,4W 4W 1mA...3A, AC 250V < 60 s 20 s < 43 dB (A) < 62 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFN24 24 V AC/DC N/A 1W 4W 1mA...3A, AC 250V < 60 s 20 s ≤ 55 dB (A) ca. 70 dB (A) 1 m, 2 x 0.34 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFN24-ST 24 V AC/DC N/A 1W 4W 1mA...3A, AC 250V < 60 s 20 s ≤ 55 dB (A) ca. 70 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFNT24 24 V AC/DC N/A 1,1W 4W 1mA...3A, AC 250V < 60 s 20 s ≤ 55 dB (A) ca. 70 dB (A) 1 m, 2 x 0.34 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFNT24-ST 24 V AC/DC N/A 1,1W 4W 1mA...3A, AC 250V < 60 s 20 s ≤ 55 dB (A) ca. 70 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFN230 230 V AC N/A 1,5W 5W 1mA...3A, AC 250V < 60 s 20 s ≤ 55 dB (A) ca. 70 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

BFNT230 230 V AC N/A 1,8W 5,5W 1mA...3A, AC 250V < 60 s 20 s ≤ 55 dB (A) ca. 70 dB (A) 1 m, 2 x 0.75 mm² (halogen-free) 1 m, 6 x 0.75 mm² (halogen-free) IP 54

Electrical connection

CFTH ONE BFL(T) BFN(T)

10987

5616151413

11 12

10987

5616151413

11 12

DCU FCU DCB FCB

DC : Switch open position re damper

FC : Switch closed position re damper

24VDC

24VAC

230VACN L

6543

DC : Switch open position re damper

FC : Switch closed position re damper

violet

red

white

orange

pink

grey

black

24VDC

24VAC

230VACN L

6543

DC : Switch open position re damper

FC : Switch closed position re damper

violet

red

white

orange

pink

grey

black

24VDC

24VAC

230VACN L

6543

DC : Switch open position re damper

FC : Switch closed position re damper

violet

red

white

orange

pink

grey

black

MEC Nominal voltage motor Nominal voltage magnet Power consumption

(stand-by)

Power consumption

(operating) Standard switches Resetting time motor Running time

spring

Noise level

motor

Noise level

spring Cable supply / control Cable auxiliary switch Protection

class

CFTH N/A N/A N/A N/A 1mA...6A, DC 5V...AC 250V N/A 1 s N/A N/A IP 42

ONE T 24 FDCU 24 V AC/DC (-10/+20%) N/A 0,12W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² 1 m, 6 x 0.75 mm² IP 54

ONE T 24 FDCB 24 V AC/DC (-10/+20%) N/A 0,12W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² (2x) 1 m, 6 x 0,75 mm² IP 54

ONE T 230 FDCU 230 V AC (-15/+15%) N/A 0,12W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² 1 m, 6 x 0.75 mm² IP 54

ONE T 230 FDCB 230 V AC (-15/+15%) N/A 0,12W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² (2x) 1 m, 6 x 0,75 mm² IP 54

ONE T 24 FDCU ST 24 V AC/DC (-10/+20%) N/A 0,12W 4,2W 1mA...1A 60V < 75 s (cabled) / <85 s (battery) < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm² 1 m, 6 x 0.75 mm² IP 54
