Ricoh Aficio MP 171 Quick start guide

Model Gim-P1a
Machine Code:
M171
Field Service Manual
September, 2014

Important Safety Notices
Important Safety Notices
Prevention of Physical Injury
1. Before disassembling or assembling parts of the main machine and peripherals, make sure that the
power cord of the main machine is unplugged.
2. The wall outlet should be near the machine and easily accessible.
3. Note that some components of the machine and the paper tray unit are supplied with electrical
voltage even if the main power switch is turned off.
4. If any adjustment or operation check has to be made with exterior covers off or open while the
main switch is turned on, keep hands away from electrified or mechanically driven components.
5. The inside and the metal parts of the fusing unit become extremely hot while the machine is
operating. Be careful to avoid touching those components with your bare hands.
• To prevent a fire or explosion, keep the machine away from flammable liquids, gases, and
aerosols.
Health Safety Conditions
1. Toner and developer is non-toxic, but if you get either of them in your eyes by accident, it may
cause temporary eye discomfort. Immediately wash eyes with plenty of water. If unsuccessful, get
medical attention.
2. This machine, which uses a high voltage power source, can generate ozone gas. High ozone
density is harmful to human health. Therefore, the machine must be installed in a well-ventilated
room.
Observance of Electrical Safety Standards
1. This machine and its peripherals must be serviced by a customer service representative who has
completed the training course on those models.
2. The NVRAM on the system control board has a lithium battery which can explode if replaced
incorrectly. Replace the NVRAM only with an identical one. The manufacturer recommends
replacing the entire NVRAM. Do not recharge or burn this battery. Used NVRAM must be handled
in accordance with local regulations.
1

Handling Toner
• Work carefully when removing paper jams or replacing toner bottles or cartridges to avoid spilling
toner on clothing or the hands.
• If toner is inhaled, immediately gargle with large amounts of cold water and move to a well
ventilated location. If there are signs of irritation or other problems, seek medical attention.
• If toner gets on the skin, wash immediately with soap and cold running water.
• If toner gets into the eyes, flush the eyes with cold running water or eye wash. If there are signs of
irritation or other problems, seek medical attention.
• If toner is swallowed, drink a large amount of cold water to dilute the ingested toner. If there are
signs of any problem, seek medical attention.
• If toner spills on clothing, wash the affected area immediately with soap and cold water. Never use
hot water! Hot water can cause toner to set and permanently stain fabric.
• Always store toner and developer supplies such as toner and developer packages, cartridges, and
bottles (including used toner and empty bottles and cartridges) out of the reach of children.
• Always store fresh toner supplies or empty bottles or cartridges in a cool, dry location that is not
exposed to direct sunlight.
• Do not use a vacuum cleaner to remove spilled toner (including used toner). Vacuumed toner may
cause a fire or explosion due to sparks or electrical contact inside the cleaner. However, it is
possible to use a cleaner designed to be dust explosion-proof. If toner is spilled over the floor,
sweep up spilled toner slowly and clean up any remaining toner with a wet cloth.
Safety and Ecological Notes for Disposal
1. Do not incinerate toner bottles or used toner. Toner dust may ignite suddenly when exposed to an
open flame.
2. Dispose of used toner, the maintenance unit which includes developer or the organic
photoconductor in accordance with local regulations. (These are non-toxic supplies.)
3. Dispose of replaced parts in accordance with local regulations.
4. When keeping used lithium batteries in order to dispose of them later, do not put more than 100
batteries per sealed box. Storing larger numbers or not sealing them apart may lead to chemical
reactions and heat build-up.
2

Symbols, Abbreviations and Trademarks
This manual uses several symbols and abbreviations. The meaning of those symbols and abbreviations
are as follows:
Spring
Clip ring
Screw
Connector
Clamp
E-ring
SEF Short Edge Feed
LEF Long Edge Feed
[A] Short Edge Feed (SEF)
[B] Long Edge Feed (LEF)
Trademarks
Adobe, Acrobat, PostScript, PostScript 3, and Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
Citrix, Citrix Presentation Server and Citrix XenApp are either registered trademarks or trademarks of
Citrix Systems, Inc.
Firefox® is a registered trademark of the Mozilla Foundation.
IPS is a trademark or registered trademark of Zoran Corporation and/or its subsidiaries in the United
States or other countries.
3

Java is a registered trademark of Oracle and/or its affiliates.
JAWS® is a registered trademark of Freedom Scientific, Inc., St. Petersburg, Florida and/or other
countries.
Macintosh, Mac OS, OS X, and Safari are trademarks of Apple Inc., registered in the United States and
other countries.
Microsoft, Windows, Windows Server, Windows Vista, and Internet Explorer are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Monotype is a registered trademark of Monotype Imaging Inc.
PCL® is a registered trademark of Hewlett-Packard Company.
UNIX is a registered trademark of the Open Group.
UPnPTM is a trademark of the UPnPTM Implementers Corporation.
The proper name of Internet Explorer 6 is Microsoft® Internet Explorer® 6.
The proper name of Internet Explorer 8 is Windows® Internet Explorer® 8.
The proper names of the Windows operating systems are as follows:
• The product names of Windows XP are as follows:
• Microsoft® Windows® XP Professional Edition
• Microsoft® Windows® XP Home Edition
• Microsoft® Windows® XP Media Center Edition
• Microsoft® Windows® XP Tablet PC Edition
• The product names of Windows Vista are as follows:
• Microsoft® Windows Vista® Ultimate
• Microsoft® Windows Vista® Business
• Microsoft® Windows Vista® Home Premium
• Microsoft® Windows Vista® Home Basic
• Microsoft® Windows Vista® Enterprise
• The product names of Windows 7 are as follows:
• Microsoft® Windows® 7 Home Premium
• Microsoft® Windows® 7 Professional
• Microsoft® Windows® 7 Ultimate
• Microsoft® Windows® 7 Enterprise
• The product names of Windows 8 are as follows:
• Microsoft® Windows® 8
• Microsoft® Windows® 8 Pro
• Microsoft® Windows® 8 Enterprise
4

• The product names of Windows 8.1 are as follows:
• Microsoft® Windows® 8.1
• Microsoft® Windows® 8.1 Pro
• Microsoft® Windows® 8.1 Enterprise
• The product names of Windows Server 2003 are as follows:
• Microsoft® Windows Server® 2003 Standard Edition
• Microsoft® Windows Server® 2003 Enterprise Edition
• The product names of Windows Server 2003 R2 are as follows:
• Microsoft® Windows Server® 2003 R2 Standard Edition
• Microsoft® Windows Server® 2003 R2 Enterprise Edition
• The product names of Windows Server 2008 are as follows:
• Microsoft® Windows Server® 2008 Standard
• Microsoft® Windows Server® 2008 Enterprise
• The product names of Windows Server 2008 R2 are as follows:
• Microsoft® Windows Server® 2008 R2 Standard
• Microsoft® Windows Server® 2008 R2 Enterprise
• The product names of Windows Server 2012 are as follows:
• Microsoft® Windows Server® 2012 Foundation
• Microsoft® Windows Server® 2012 Essentials
• Microsoft® Windows Server® 2012 Standard
• The product names of Windows Server 2012 R2 are as follows:
• Microsoft® Windows Server® 2012 R2 Foundation
• Microsoft® Windows Server® 2012 R2 Essentials
• Microsoft® Windows Server® 2012 R2 Standard
Other product names used herein are for identification purposes only and might be trademarks of their
respective companies. We disclaim any and all rights to those marks.
Microsoft product screen shots reprinted with permission from Microsoft Corporation.
5

TABLE OF CONTENTS
Important Safety Notices................................................................................................................................... 1
Important Safety Notices............................................................................................................................... 1
Prevention of Physical Injury................................................................................................................. 1
Health Safety Conditions...................................................................................................................... 1
Observance of Electrical Safety Standards.........................................................................................1
Handling Toner...................................................................................................................................... 2
Safety and Ecological Notes for Disposal................................................................................................... 2
Symbols, Abbreviations and Trademarks.........................................................................................................3
Trademarks..................................................................................................................................................... 3
1. Product Information
Product Overview.............................................................................................................................................13
Component Layout.......................................................................................................................................13

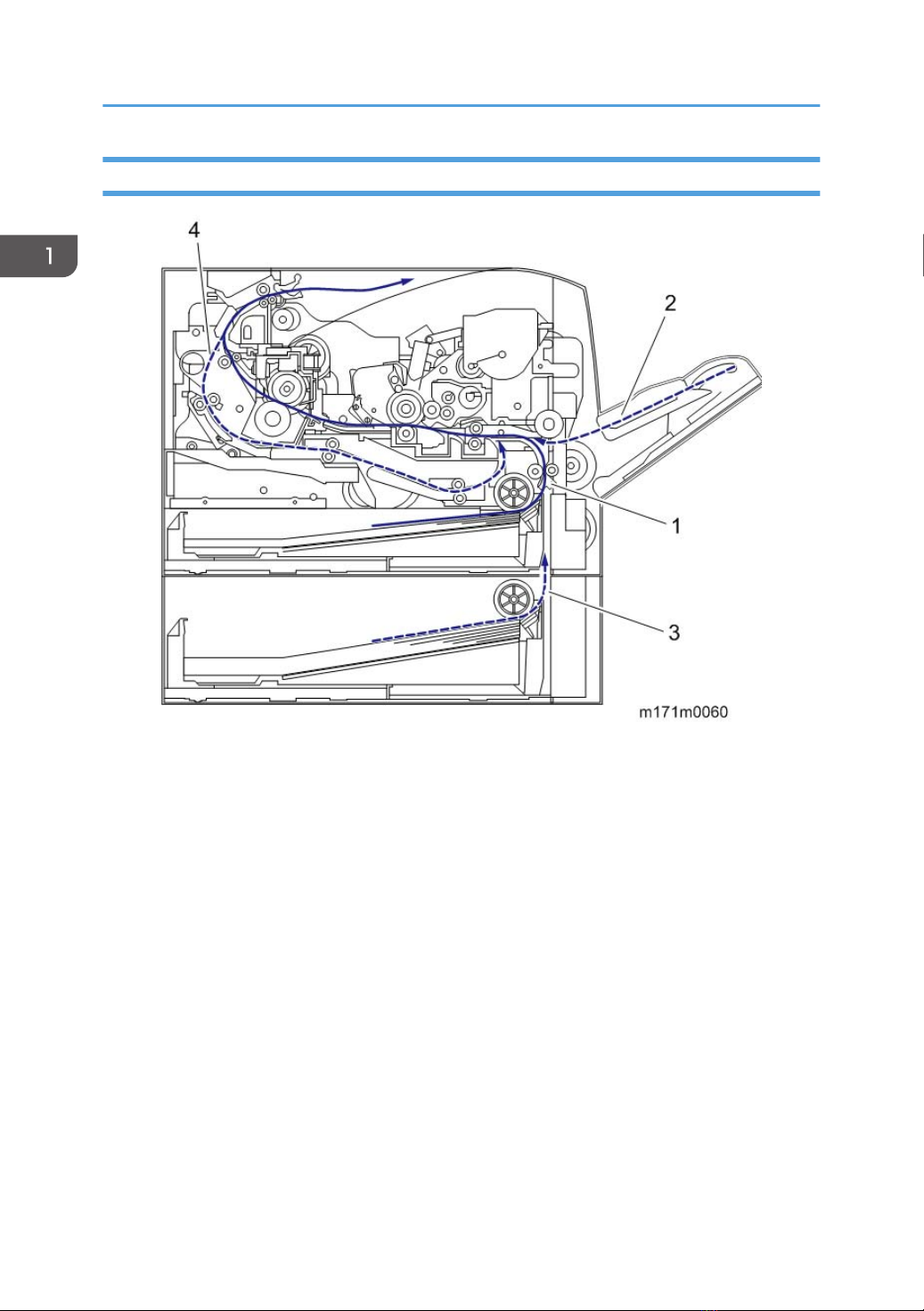

Paper Path.................................................................................................................................................... 14
Drive Layout..................................................................................................................................................15
Machine Codes and Peripheral Configuration............................................................................................. 16
Specifications....................................................................................................................................................18
2. Installation
Installation Requirements................................................................................................................................. 19
Environment..................................................................................................................................................19
Machine Space Requirements....................................................................................................................20
Machine Dimensions................................................................................................................................... 20
Power Requirements.................................................................................................................................... 20
Main Machine Installation...............................................................................................................................22
Accessory Check..........................................................................................................................................22
Instructions for the Customers......................................................................................................................22
Moving the Machine................................................................................................................................... 23
Security Settings........................................................................................................................................... 24
Changing an Administrator's Password.............................................................................................24
Configuring SSL/TLS...........................................................................................................................24
Settings for @Remote Service..........................................................................................................................25
Check points before making @Remote settings.........................................................................................25
Execute the @Remote Settings.................................................................................................................... 25
6

3. Preventive Maintenance
Preventive Maintenance Tables...................................................................................................................... 29
Image Quality Standards................................................................................................................................ 30
Paper Transfer Quality Standards.................................................................................................................. 31
4. Replacement and Adjustment
General Cautions.............................................................................................................................................33
Notes on the Main Power Switch...............................................................................................................33
Characteristics of the Push Switch (DC Switch).................................................................................33
Shutdown Method...............................................................................................................................34
Forced Shutdown................................................................................................................................ 34
Exterior Covers................................................................................................................................................. 35
Front Cover...................................................................................................................................................35
Left Cover......................................................................................................................................................37
Right Cover...................................................................................................................................................39
Rear Cover, Rear Lower Cover...................................................................................................................41
Upper Cover................................................................................................................................................ 43
Operation Panel...........................................................................................................................................45
LED Optics........................................................................................................................................................ 47
LED Unit........................................................................................................................................................ 47
How to Re-engage Disengaged Springs.......................................................................................... 51
PCDU.................................................................................................................................................................55
PCDU............................................................................................................................................................ 55
Toner Cartridge................................................................................................................................................ 56
Toner Cartridge............................................................................................................................................56
Image Transfer..................................................................................................................................................58
Image Transfer Roller...................................................................................................................................58
Drive Unit.......................................................................................................................................................... 59
Main Motor..................................................................................................................................................59
Toner Supply Clutch.................................................................................................................................... 59
Registration Clutch....................................................................................................................................... 60
Paper Feed Clutch........................................................................................................................................61
Drive Unit......................................................................................................................................................61
Gear Unit......................................................................................................................................................62
7

By-pass Feed Clutch.................................................................................................................................... 63
Relay Clutch................................................................................................................................................. 64
By-pass Bottom Plate Clutch........................................................................................................................65
Duplex Clutch...............................................................................................................................................65
Junction Gate Solenoid............................................................................................................................... 66
Fusing................................................................................................................................................................ 67
Fusing Unit.................................................................................................................................................... 67
Upper Fusing Unit, Lower Fusing Unit........................................................................................................ 68
Fusing Pressure Roller, Cleaning Roller......................................................................................................69
Fusing Lamp, Hot Roller...............................................................................................................................70
Thermostat.................................................................................................................................................... 72
Thermistor..................................................................................................................................................... 73
Hot Roller Stripper....................................................................................................................................... 76
Paper Feed........................................................................................................................................................77
Paper Feed Tray...........................................................................................................................................77
Paper Feed Roller........................................................................................................................................ 77
Friction Pad...................................................................................................................................................77
Paper End Sensor.........................................................................................................................................78
By-pass Feed Unit........................................................................................................................................ 79
By-pass Feed Roller..................................................................................................................................... 80
By-pass Friction Pad.................................................................................................................................... 82
By-pass Paper End Sensor.......................................................................................................................... 83
By-pass Bottom Plate HP Sensor.................................................................................................................84
Paper Size Detection Switch....................................................................................................................... 84
Paper Transport................................................................................................................................................ 86
Exit / Switchback Sensor............................................................................................................................ 86
Duplex Entrance Sensor.............................................................................................................................. 86
Exit / Switchback Roller, Duplex Exit Gear...............................................................................................87
Registration Roller (Driven)..........................................................................................................................89
Registration Roller (Drive)............................................................................................................................91
Registration Sensor...................................................................................................................................... 91
Electrical Components..................................................................................................................................... 93
Controller Box.............................................................................................................................................. 93
8

PSU................................................................................................................................................................93
Controller Board.......................................................................................................................................... 95
BCU...............................................................................................................................................................96
EEPROM on the BCU.................................................................................................................................. 97
Toner End Sensor.........................................................................................................................................97
HVPS............................................................................................................................................................. 98
HVPS with Bracket....................................................................................................................................... 98
Fusing Fan.....................................................................................................................................................99
PCDU Cooling Fan...................................................................................................................................... 99
PSU Cooling Fan....................................................................................................................................... 100
DC Switch.................................................................................................................................................. 100
Front Door Interlock Switch...................................................................................................................... 101
Rear Door Interlock Switch.......................................................................................................................102
Temp Humid Sensor.................................................................................................................................. 102
Rear Cover Switch.....................................................................................................................................102
5. System Maintenance
Service Program Mode.................................................................................................................................105
SP Tables....................................................................................................................................................105
Enabling and Disabling Service Program Mode....................................................................................105
Entering SP Mode.............................................................................................................................105
Exiting SP Mode............................................................................................................................... 106
Types of SP Modes....................................................................................................................................106
Updating the Firmware..................................................................................................................................107
Overview....................................................................................................................................................107
Environmental Requirements............................................................................................................107
Update Precautions.......................................................................................................................... 107
Items Required for Updating the Firmware.....................................................................................108
Update Procedure............................................................................................................................ 108
Update Error (Recovery Mode)...................................................................................................... 112
Debug Log......................................................................................................................................................115
Overview....................................................................................................................................................115
Operational procedure (USB connection)..............................................................................................116
Operational procedure (TCP/IP connection)......................................................................................... 117
9

6. Troubleshooting
Self-Diagnostic Mode................................................................................................................................... 119
Self-Diagnostic Mode at Power On.........................................................................................................119
Service Call.................................................................................................................................................... 120
Summary.................................................................................................................................................... 120
When a Level “D” SC code occurs.................................................................................................120
SC200 (LED Optics)................................................................................................................................. 121
SC300 (Image Processing – 1)............................................................................................................... 123
SC400 (Image Processing – 2)............................................................................................................... 124
SC500 (Paper Feed and Fusing)............................................................................................................. 125
SC600 (Device Communication).............................................................................................................133
SC700 (Peripherals)................................................................................................................................. 138
SC800 (Controller)................................................................................................................................... 138
SC900 (Others).........................................................................................................................................142
Jam Detection.................................................................................................................................................146
Jam Displays.............................................................................................................................................. 146
Sensor Position Layout.............................................................................................................................. 147
Jam Codes and Position Codes................................................................................................................147
Main Machine.................................................................................................................................. 148
Optional Bank...................................................................................................................................148
Troubleshooting............................................................................................................................................. 150
Test Sheet Printing......................................................................................................................................150
Image Position Adjustment........................................................................................................................150
Registration Adjustment.............................................................................................................................151
Print Area...........................................................................................................................................151
Adjustment Reference Values...........................................................................................................152
Adjustment Procedure.......................................................................................................................152
Problem at Regular Intervals.....................................................................................................................152
When Vertical Banding is Generated.............................................................................................154
When Black Spots are Generated on Print Image.........................................................................154
Paper Feed (Skew)....................................................................................................................................155
Recycled or Thin Paper Is Severely Curled after Printing.......................................................................156
10

7. Energy Save
Energy Save................................................................................................................................................... 157
Energy Saver Modes................................................................................................................................ 157
Sleep Mode Setting..........................................................................................................................157
Return to Stand-by Mode.................................................................................................................158
Recommendation..............................................................................................................................158
Paper Save.....................................................................................................................................................160
Effectiveness of Duplex/Combine Function............................................................................................ 160
1. Duplex:..........................................................................................................................................160
2. Combine mode:............................................................................................................................160
3. Duplex + Combine:...................................................................................................................... 161
Recommendation..............................................................................................................................161
11

12

1. Product Information
Product Overview
Component Layout
1. Exit / Switchback unit
2. Fusing unit
3. PCDU
4. LED head
5. Toner cartridge
6. By-pass feed tray
7. Paper feed unit
8. Duplex paper path
13

Paper Path
1. Main machine paper feed path
2. By-pass paper feed path
3. Optional tray paper feed path
4. Duplex paper feed path
1. Product Information
14

Drive Layout
1. Exit / Switchback gear
2. Fusing drive gear
3. Drum gear
4. Registration clutch
5. Toner supply clutch
6. By-pass feed clutch
7. By-pass bottom plate clutch
8. Relay clutch
9. Paper feed clutch
10. Main motor
11. Duplex clutch
Product Overview
15

Machine Codes and Peripheral Configuration
Main Frame
Item Machine Code Remarks
M171
M171-17 (NA)
M171-27 (EU/AP)
M171-21 (CHN)
NEW
External Options
No. Item Machine Code Remarks
1 Paper Feed Unit PB1070 M440-17 NEW
Paper Feed Unit PB1060 M441-17 NEW
Consumables
Item Machine Code Remarks Yield
Print Cartridge SP 4500A M902-17 NEW
6,000 pages
(ISO)
Print Cartridge SP 4500E M902-27 NEW
Print Cartridge SP 4500S M902-20 NEW
Print Cartridge SP 4500C M902-21 NEW
1. Product Information
16

Item Machine Code Remarks Yield
Print Cartridge SP 4500LA M903-17 NEW
3,000 pages
(ISO)
Print Cartridge SP 4500LE M903-27 NEW
Print Cartridge SP 4500LS M903-20 NEW
Print Cartridge SP 4500LC M903-21 NEW
Photo Conductor Unit SP 4500 M906-17(NA/EU/
AP)
M906-21 (CHN)
NEW 20,000 pages
(3P/J)
Maintenance Kit SP 3600 M909-17 (NA)
M909-27 (EU/AP/
CHN)
NEW -
• (ISO): The number of printable pages is based on pages that are compliant with ISO/IEC 19752
with the image density set as the factory default. ISO/IEC 19752 is an international standard for
measurement of printable pages, set by the International Organization for Standardization.
• (6%, 3P/J): A4/Letter 6% test chart, 3 pages/job
• (3P/J): A4/Letter, 3 pages/job
Machine Codes and Peripheral Configuration
17

Specifications
See "Appendices" for the following information:
• General Specifications
• Supported Paper Sizes
• Software Accessories
• Optional Equipment
1. Product Information
18
