HC-450/HC-300
Operator’s Manual
•Français – 13
•Castellano – pág. 27
WARNING!
Read this Operator’s Manual
carefully before using this
tool. Failure to understand
and follow the contents of
this manual may result in
electrical shock, fire and/or
serious personal injury.
Hole Cutting Tools

Table of Contents
Recording Form For Machine Serial Number .............................................................................................................1
Safety Symbols..............................................................................................................................................................2
General Safety Rules
Work Area ...................................................................................................................................................................2
Electrical Safety...........................................................................................................................................................2
Personal Safety ...........................................................................................................................................................3
Tool Use and Care ......................................................................................................................................................3
Service ........................................................................................................................................................................3
Hole Cutter Safety Warnings ........................................................................................................................................3
Model HC-450 Description, Specifications and Standard Equipment
Description ..................................................................................................................................................................4
Specifications ..............................................................................................................................................................4
Standard Equipment....................................................................................................................................................4
Model HC-300 Description, Specifications and Standard Equipment
Description ..................................................................................................................................................................5
Specifications ..............................................................................................................................................................5
Standard Equipment....................................................................................................................................................5
Icons ...............................................................................................................................................................................5
Pre-Operation Inspection..............................................................................................................................................6
Machine And Work Are Set-Up.....................................................................................................................................7
Mounting The Hole Cutting Tool On The Pipe
HC-450 ........................................................................................................................................................................7
HC-300 ........................................................................................................................................................................8
Powering the Hole Cutting Tool...................................................................................................................................9
Operating Instructions ................................................................................................................................................10
Maintenance Instructions
Cleaning ....................................................................................................................................................................11
Lubrication.................................................................................................................................................................11

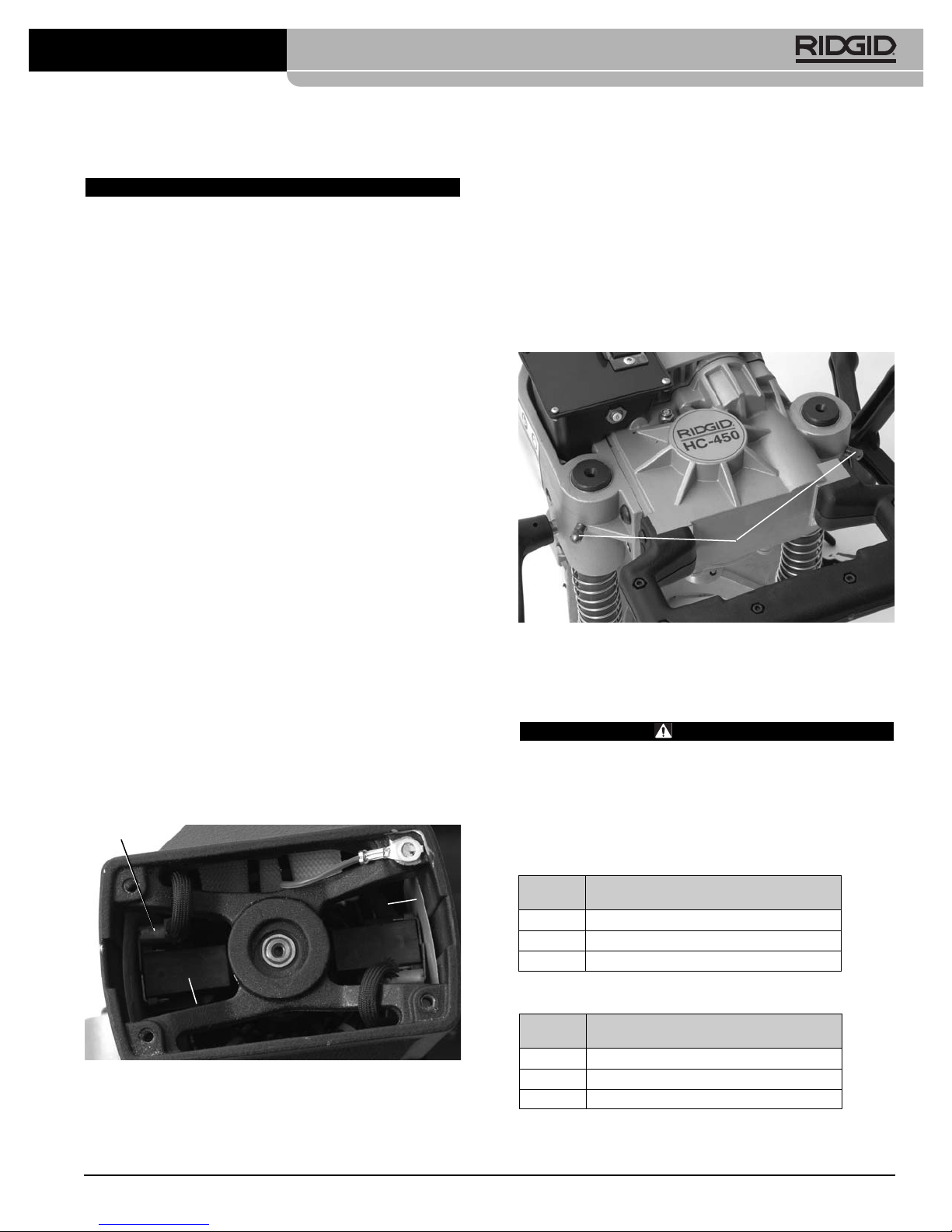

Changing brushes .....................................................................................................................................................11
Gib Screw Adjustment...............................................................................................................................................11
Accessories .................................................................................................................................................................11
Machine Storage..........................................................................................................................................................12
Service and Repair ......................................................................................................................................................12
Disposal........................................................................................................................................................................12
Lifetime Warranty..........................................................................................................................................Back Cover
*Original Instructions - English
ii
HC-450/HC-300 Hole Cutting Tools

HC-450/HC-300
Hole Cutting Tools
HC-450/HC-300 Hole Cutting Tools
Record Serial Number below and retain product serial number which is located on nameplate.
Serial
No.
HC-450
HC-300

2
HC-450/HC-300 Hole Cutting Tools
General Safety Rules*
WARNING
Read and understand all instructions. Failure to follow all in-
structions listed below may result in electric shock, fire,
and/or serious injury.
SAVE THESE INSTRUCTIONS!
Work Area
•Keep work area clean and well lit. Cluttered benches
and dark areas invite accidents.
•Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable li-
quids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
•Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
Electrical Safety
•Grounded tools must be plugged into an outlet
properly installed and grounded in accordance
with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do
not use any adapter plugs. Check with a qualified
electrician if you are in doubt as to whether the out-
let is properly grounded. If the tool should electrically
malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user.
•Avoid body contact with grounded surfaces such
as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
grounded.
•Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electric shock.
•Do not abuse the cord. Never use the cord to carry
the tool or pull the plug from an outlet. Keep cord
away from heat, oil, sharp edges or moving parts.
Replace damaged cords immediately. Damaged
cords increase the risk of electric shock.
•When operating a power tool outside, use an out-
door extension cord marked “W-A” or “W”. These
NOTICE
DANGER
WARNING
CAUTION
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety
information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains important
information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce
the risk of eye injury.
This symbol indicates the risk of fingers, hands, clothes and other objects catching on or between gears or other rotating parts
and causing crushing injuries.
This symbol indicates the risk of electrical shock.
This symbol means do not wear gloves while operating this machine to reduce the risk of entanglement.
This symbol indicates the risk of hands, fingers or other body parts being cut by the blade.
This symbol means wear a hard hat when working overhead to reduce the risk of head injury.
* The text used in the General Safety Rule section of this manual is verbatim, as required, from the applicable UL/CSA 745 1st edition standard. This section con-
tains general safety practices for many different types of power tools. Not every precaution applies to every tool, and some do not apply to this tool.

3
cords are rated for outdoor use and reduce the risk of
electric shock.
Personal Safety
•Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not
use a tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inat-
tention while operating power tools may result in seri-
ous personal injury.
•Dress properly. Do not wear loose clothing or jew-
elry. Contain long hair. Keep your hair, clothing and
gloves away from moving parts. Loose clothes,
jewelry or long hair can be caught in moving parts.
•Avoid accidental starting. Be sure switch is OFF be-
fore plugging in. Carrying power tools with your finger
on the switch or plugging in power tools that have the
switch ON invites accidents.
•Remove adjusting keys or wrenches before turning
the tool ON. A wrench or a key left attached to a rotat-
ing part of the power tool may result in personal injury.
•Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enables bet-
ter control of the tool in unexpected situations.
•Use safety equipment. Always wear eye protec-
tion. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
Tool Use and Care
•Use clamps or other practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable
and may lead to loss of control.
•Do not force the tool. Use the correct tool for your
application. The correct tool will do the job better
and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn
it ON and OFF. Any tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source be-
fore making any adjustments, changing accessor-
ies, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
•Store idle tools out of the reach of children and
other untrained persons. Tools are dangerous in
the hands of untrained users.
HC-450/HC-300 Hole Cutting Tools
•Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cutting
edges are less likely to bind and are easier to control.
•Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may
affect the tool’s operation. If damaged, have the
tool serviced before using. Many accidents are
caused by poorly maintained tools.
•Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool, may become hazardous when
used on another tool.
Service
•Tool service must be performed only by qualified
repair personnel. Service or maintenance performed
by unqualified personnel could result in a risk of injury.
•When servicing a tool, use only identical replace-
ment parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorized parts or
failure to follow Maintenance Instructions may create a
risk of electrical shock or injury.
Hole Cutter Safety Warnings
WARNING
This section contains important safety information
that is specific to this tool.
Read these precautions carefully before using this
Hole Cutting Tool to reduce the risk of electrical
shock or other serious personal injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
Keep this manual with the machine for use by the operator.
•Always wear appropriate eye protection. Cutting
tools can break or shatter. Cutting produces chips that
can be thrown or fall into eyes.
•Do not wear gloves or loose clothing when oper-
ating machine. Keep Sleeves and jackets buttoned.
Do not reach across machine. Clothing can be
caught by the machine resulting in entanglement.
•Keep fingers and hands away from rotating chuck
and saw. This reduces the risk of entanglement and
cutting injuries.
•Properly secure the Hole Cutting Tool to the pipe.
Improperly secured Hole Cutting Tools can fall and
cause striking and crushing injuries.
•Do not use for hot tapping. When cutting into an

4
HC-450/HC-300 Hole Cutting Tools
Model HC-450 Description,
Specifications And Standard
Equipment
Description
The RIDGID®Model HC-450 Hole Cutting Tool is de-
signed to cut holes up to 43/4" into steel pipe. The multiple
hole sizes allow the use of Mechanical T’s®, Hookers®, Vic-
O-Lets™, and other fittings for branching unpressurized
pipe lines.
The HC-450 has a 5/8" capacity drill chuck to accommodate
all sizes of hole saws and hole saw arbors. An integral
motor and gear reduction optimizes performance of large
diameter hole saws. The two feed handles allows the op-
erator to use the Hole Cutting Tool from either the left or
right side. A rotating leveling vial in the base allows re-
peated holes to line up. Only 13" high, the compact design,
allows the HC-450 to be used in tight quarters or above in-
stalled pipe close to ceilings.
NOTE! Mechanical T’s, Hookers, and Vic-O-Lets are
registered trademarks of Victaulic Tool Company
Specifications
Cutting Capacity............Up to 43/4" (120 mm)
Pipe Mounting
Capacity ........................11/4" - 8" (30mm-200 mm)
Drill Chuck Capacity......1/16" - 5/8" (2mm-16 mm)
Drill Chuck Speed..........110 RPM
Motor Horsepower.........1.2 HP
Current Draw Rating......12 Amps @ 115V
6 Amps @ 230V
12 Amps @ 100V
Dimensions
Height............................12.62" (29 cm)
Length ...........................17" (43 cm)
Width .............................17" (43 cm)
Weight ............................42 lbs. (19 Kg)
Standard Equipment
• Hole Cutting Tool
• Chuck Key
•5/8" Hole Saw Arbor w/Backing Plate and 1/4" Pilot Drill
existing system, the pipe must be drained and de-
pressurized prior to cutting. This reduces the risk of
electrical shock and other serious injury.
•Before using, test the Ground Fault Circuit Inter-
rupter (GFCI) provided with the power cord to in-
sure it is operating properly. GFCI reduces the risk
of electrical shock.
•When working overhead, all personnel should
wear hard hats and be clear of the area below the
tool. This reduces the risk of serious injury should
objects fall.
•Only use Hole Cutting Tools to cut holes in pipe as
directed in this manual. Do not use for other purposes
or modify. Other uses or modifying this tool for other
purposes may increase the risk of serious injury.
•Read and understand the instructions and warn-
ings for all equipment being used before operating
the Hole Cutting Tool. Failure to follow all instructions
and warnings may result in property damage or serious
personal injury.
Some dust created by power sanding,
sawing, grinding, drilling and other construction activities
contains chemicals known to cause cancer, birth de-
fects, or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead based paint
• Crystalline silica from bricks and cement and other
masonry products, and
• Arsenic and chromium from chemically treated lum-
ber
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those
dust masks that are specifically designed to filter out
microscopic particles.
The EC Declaration of Conformity (890-011-320.10) will
accompany this manual as a separate booklet when re-
quired.
If you have any question concerning this RIDGID®prod-
uct:
– Contact your local RIDGID distributor.
– Visit www.RIDGID.com or www.RIDGID.eu to find
your local RIDGID contact point.
– Contact RIDGID Technical Services Department at
[email protected], or in the U.S. and
Canada call [phone].
WARNING

Specifications
Cutting Capacity............Up to 3" (76mm)
Pipe Mounting
Capacity ........................11/4" - 8" (30mm-200mm)
Drill Chuck Capacity......1/16"-
1/2" (2mm-13mm)
Drill Chuck Speed..........360 RPM
Motor Horsepower.........1.2 HP
Current Draw Rating......11 Amps @ 115V
5.5 Amps @ 230V
12 Amps @ 100V
Dimensions
Height............................12.8" (32.5 cm)
Length ...........................11.9" (30.2 cm)
Width .............................13.2" (33.4 cm)
Total Weight ..................31 lbs. (14 kg)
Base ...........................10 lbs. (4.5 kg)
Motor Assembly..........21 lbs. (9.5 kg)
Standard Equipment
• Hole Cutting Tool (Base and Motor Assembly)
• Chuck Key
Figure 3 – Machine Serial Number
For both the HC-450 and HC-300 Hole Cutter Tool, the
serial number is located on the underside of the motor.
The last 4 digits indicates the month and year of the
manufacture. (03 = month, 10 = year).
Icons
Selection of appropriate materials and instal-
lation, joining and forming methods is the responsibility of
the system designer and/or installer. Selection of im-
proper materials and methods could cause system failure.
Stainless steel and other corrosion resistant materials
can be contaminated during installation, joining and form-
ing. This contamination could cause corrosion and pre-
Figure 1 – HC-450 with Standard Equipment
Model HC-300 Description,
Specifications And Standard
Equipment
Description
The RIDGID®Model HC-300 Hole Cutting Tool is de-
signed to cut holes up to 3" diameter into steel pipe. The
multiple hole size allows the use of Mechanical T’s®,
Hookers®, Vic-O-Lets™, Weld-O-Let™ and other fittings
for branching unpressurized pipelines.
The HC-300 features a 1/2" capacity chuck to accommo-
date all size of holes up to 3″diameter and standard
hole saw arbors up to 7/16" Hex (1/2" chuck size). An integral
motor and gear reduction optimizes the performance
and saw life in the capacity range. A single feed handle
and ON/OFF switch allows for easy operation. The com-
pact two-piece design allows the HC-300 to be used in
tight quarters and difficult-to-reach locations.
NOTE! Mechanical T’s, Hookers, and Vic-O-Lets are
registered trademarks of Victaulic Tool Company.
Figure 2 – Model HC-300 with Standard Equipment
5
HC-450/HC-300 Hole Cutting Tools
Date Code
Power ON
Power OFF
Chuck
ON/OFF Switch
Gib Screw
Feed
Handle
Swivel
Handle
Chain
Chuck Key
GFCI
Arbor
Chuck
Crank Screw
Assembly
Feed
Handle
Chain
Chuck Key
GFCI
ON/OFF
Switch
Warning
Label
NOTICE
Pilot Drill

mature failure. Careful evaluation of materials and meth-
ods for the specific service conditions, including chem-
ical and temperature, should be completed before any
installation is attempted.
Pre-Operation Inspection
WARNING
Before each use, inspect your Hole Cutting Tool
and correct any problems to reduce the risk of se-
rious injury from electric shock and other causes and
prevent tool damage.
1. Make sure that the Hole Cutting Tool is unplugged
and the ON/OFF switch is in the OFF position.
2. Clean any oil, grease or dirt from the tool, including
the handles and controls. This aids inspection and
helps prevent the tool or control from slipping from
your grip.
3. Inspect the Hole Cutting Tool for the following items:
• Inspect the power cord, Ground Fault Circuit Inter-
rupter (GFCI) and plug for damage or modification.
• Proper assembly and completeness.
• Broken, worn, missing, mis-aligned or binding parts.
Make sure that the motor assembly moves smooth-
ly and freely up and down the posts of the base as-
sembly. Confirm that the chain and swivel handle
move freely. On the HC-300, confirm that the plung-
er pin functions properly and retains the motor as-
sembly to the base assembly (Figure 7).
Figure 4A – HC-450 Warning Label
6
HC-450/HC-300 Hole Cutting Tools
Figure 4B – HC-300 Warning Labels
• Presence and readability of the warning labels (see
Figures 4A and 4B).
• Any other condition which may prevent safe and
normal operation.
If any problems are found, do not use the hole cutting
tool until the problems have been repaired.
4 Inspect the arbor, hole saw and drills to be used
with the Hole Cutting Tool for wear, deformation,
breakage or other issues. Do not use dull or damaged
cutting tools. Dull or damaged cutting tools increase
the amount of force required, produce poor quality
cuts and increase the risk of injury.
5. With dry hands, plug the cord in. Test the GFCI in the
electrical cord to insure that it is operating correctly.
When the test button is pushed in, the reset button
should pop out. Reactivate by pushing the reset but-
ton. If the GFCI is not functioning properly, unplug the
cord and do not use the hole cutting tool until the
GFCI has been repaired.
6. With the Hole Cutting Tool on a stable surface check
the Hole Cutting Tool for proper operation. Keep
clear of the chuck. Move the ON/OFF switch to the
ON position. The motor should start and the chuck
turn counter clockwise viewed from the chuck end.
Inspect the tool for misalignment, binding, odd noises
or other unusual conditions. Move the ON/OFF switch
to the OFF position. If any issues are found, do not
use the tool until it has been repaired.
7. After the inspection is complete, with dry hands un-
plug the tool.

Machine And Work Area Set-Up
WARNING
Set up the Hole Cutting Tool and work area ac-
cording to these procedures to reduce the risk of in-
jury from electrical shock, entanglement, crushing
and other causes and prevent tool damage.
Properly secure the Hole Cutting Tool to the pipe.
Improperly secured Hole Cutting Tools can slip and
fall and cause striking and crushing injuries.
Do not use for hot tapping. When cutting into an ex-
isting system, the pipe must be drained and de-
pressurized prior to cutting. This reduces the risk of
electrical shock and other serious injuries.
When working overhead, all personnel should wear
hard hats and be clear of the area below. This re-
duces the risk of serious injury should equipment or
other objects fall.
1. Check work area for:
• Adequate lighting.
• Flammable liquids, vapors or dust that may ignite. If
present, do not work in area until sources have
been identified and corrected. The hole cutter is
not explosion proof and can cause sparks.
• Clear, level, stable, dry location for all of the equip-
ment and operator.
• Properly grounded electrical outlet of the correct
voltage. A three prong or GFCI outlet may not be
properly grounded. If in doubt, have outlet inspected
by a licensed electrician.
• Clear path to electrical outlet that does not contain
any potential sources of damage for the power cord.
2. Inspect the work to be done. Determine the pipe type
and size, and clearance around the pipe. Determine
the size and location of the hole to be cut. Clearly
mark the cut location. If installing a fitting, follow the fit-
ting manufacturer’s instructions. Determine the correct
equipment for the job. See the Description and Speci-
fication sections for tool information.
Make sure that the pipe to be cut is well supported and
stable. The pipe must be able to handle the weight of
the Hole Cutting Tool and the forces applied during
cutting without moving.
If working on an existing system, make sure that the
system has been depressurized and drained. The
Hole Cutting Tools are not designed for hot tapping
purposes. Cutting into pressurized or systems with flu-
ids in them can cause spills, electrical shock and
other serious injury. Know the contents of the pipe and
any specific hazards associated with the contents.
3. Confirm that the equipment to be used has been pro-
perly inspected,
4. Select an appropriate hole saw for the work to be
performed. Make sure that the hole saw is properly as-
sembled per its instructions and is in good working
order. The use of a pilot drill is recommended. The
pilot drill should extend no more than 3/8" (10mm) past
the end of the hole saw, and should be securely
tightened.
5. With the Hole Cutting Tool on a stable surface, install
the hole saw into the chuck. Always make sure that
the ON/OFF switch is in the OFF position and the Hole
Cutting Tool is unplugged before installing or chang-
ing the hole saw or drill.
• Open the chuck wide enough for the shank of the
hole saw. If needed, the chuck key can be used to
open the chuck. Make sure that the shank and the
chuck jaws are clean.
• Fully insert the shank into the chuck. Make sure
that the hole saw is centered in the chuck and
firmly tighten the chuck by hand.
• Use the chuck key in all three chuck holes to se-
curely tighten the chuck onto the shank. Make
sure to remove the chuck key from the chuck be-
fore turning the tool ON.
Mounting The Hole Cutting Tool
On The Pipe
Hole Cutting Tools weigh up to approximately 42 pounds.
Use good lifting technique when placing on the pipe,
do not overreach, and keep good balance and footing at
all times. Depending on the circumstances, two people
may be necessary to mount the Hole Cutting Tool onto
the pipe.
Hole Cutting Tools can be used at any angle or orienta-
tion. If cutting a hole on the side or bottom of a pipe, it
may be easier to place the Hole Cutting Tool on the
top of the pipe to fasten the chain around the pipe and
then move the Hole Cutting Tool into final position.
HC-450
1. Make sure the chain is hanging freely and the swivel
handle is fully loosened.
2. Carefully lift the HC-450 Hole Cutting Tool and place
with the V-shaped guides squarely on the pipe near the
7
HC-450/HC-300 Hole Cutting Tools

8
location of the cut. Make sure the chain is not be-
tween the pipe and tool base.
3. Always keep at least one hand on the Hole Cutting
Tool to stabilize and guide it. Grasp the end of the
chain and pull it snugly around the pipe. Hook the
closest chain pin on the wear plate and firmly tighten
the swivel handle to hold the Hole Cutting Tool to the
pipe.
(See Figure 5)
Figure 5 – Hooking the HC-450 Chain
4. The base of the HC-450 Hole Cutting Tool includes a
level vial that can be used to align a series of holes.
When the Hole Cutting Tool is placed at the desired
angle, the vial can be rotated to the level position,
and subsequent holes can be made at the same
angle by leveling the Hole Cutting Tool with the vial.
(See Figure 6)
Figure 6 – HC-450 Hole Cutting Tool Level Vial
5. With one hand on the Hole Cutting Tool to stabilize and
guide it, slightly loosen the swivel handle to allow final
positioning of the tool. Align the pilot drill with the de-
sired cut location, and firmly tighten the swivel handle.
Do not remove your hands from the Hole Cutting Tool
until you have confirmed that it is securely attached to
the pipe. The Hole Cutting Tool must be securely and
squarely attached to the pipe to help reduce the risk of
hole saw jamming.
HC-300
The HC-300 can be mounted on the pipe either as a
complete unit (similar to the HC-450) or by separating the
base assembly from the tool, mounting the base to the
pipe, and then installing the motor assembly to the base
assembly.
1. With the HC-300 Hole Cutting Tool on a stable, secure
surface, pull the plunger on the back of the left post
(Figure 7) and lift the motor assembly off of the base
assembly.
Figure 7 – Separating the Base and Motor Assemblies
2. Make sure the chain is hanging freely and the swivel
handle is fully loosened on the base assembly.
3. Place the base assembly with the V-shaped guides
squarely on the pipe near the location of the cut.
Make sure the chain is not between the pipe and tool
base.
4. Always keep at least one hand on the base assembly
to stabilize and guide it. Grasp the end of the chain and
pull it snugly around the pipe. As you pull on the
chain, a spring is compressed at the attachment end of
the chain. Hook the closest chain pin on the chain hook
– the spring tension will help keep the chain engaged
with the chain hook. Firmly tighten the crank screw as-
sembly to hold the base assembly to the pipe. (See
Figure 8.)
HC-450/HC-300 Hole Cutting Tools
Chain
Wear Plate
Plunger Pin

9
Figure 8 – Hooking the Chain
5. Carefully lift the motor assembly and align the post
openings in the motor assembly with the posts of the
base assembly. Press the motor assembly on until
the plunger engages the post to retain the motor as-
sembly to the base. Confirm that the motor assembly
is securely attached to the base. See Figure 9.
6. The base of the HC-300 includes several machined
flats for use with levels for hole alignment. See Figure
10.
Figure 9 – Attaching the HC-300 Motor Assembly to the
Base Assembly
HC-450/HC-300 Hole Cutting Tools
Figure 10 – HC-300 Leveling
7. With one hand on the Hole Cutting Tool to stabilize
and guide it, slightly loosen the crank screw assembly
to allow final positioning of the tool. Align the pilot
drill with the desired cut location, and firmly tighten the
crank screw assembly. Do not remove your hands
from the Hole Cutting Tool until you have confirmed
that it is securely attached to the pipe. The Hole
Cutting Tool must be securely and squarely attached
to the pipe to help reduce the risk of hole saw jam-
ming.
To mount the HC-300 on the pipe as a complete unit, fol-
low the steps indicated in the HC-450 section, using
the information in the HC-300 section on chain hooking
and alignment.
Powering the Hole Cutting Tool
1. Confirm that the ON/OFF switch is in the OFF position.
2. Makes sure that the power cord is routed out the
back of the tool away from the chuck and work area.
Run the cord along the clear path to the outlet, and
with dry hand plug in. Keep all connections dry and off
the ground. If the power cord is not long enough, use
an extension cord that:
• Is in good condition
• Has a three prong plug similar to that on the tool.
• Is rated for outdoor use and contains a W or W-A in
the cord designation (i.e. SOW), or complies with
H05VV-F, H05RN-F types or IEC type design
(60227 IEC 53, 60245 IEC 57).
• Has sufficient wire size (16 AWG (1.5mm2) for 50'
(15.2m) or less, 14 AWG (2.5mm2) for 50' – 100'
(15.2m – 30.5m) long). Undersized wires can over-
heat, melting the insulation or causing a fire or other
damage.

10
HC-450/HC-300 Hole Cutting Tools
When using an extension cord, the GFCI on the
Hole Cutting Tool does not protect the extension
cord. If the outlet is not GFCI protected, it is advisable
to use a plug in type GFCI between the outlet and the
extension cord to reduce the risk of shock if there is a
fault in the extension cord.

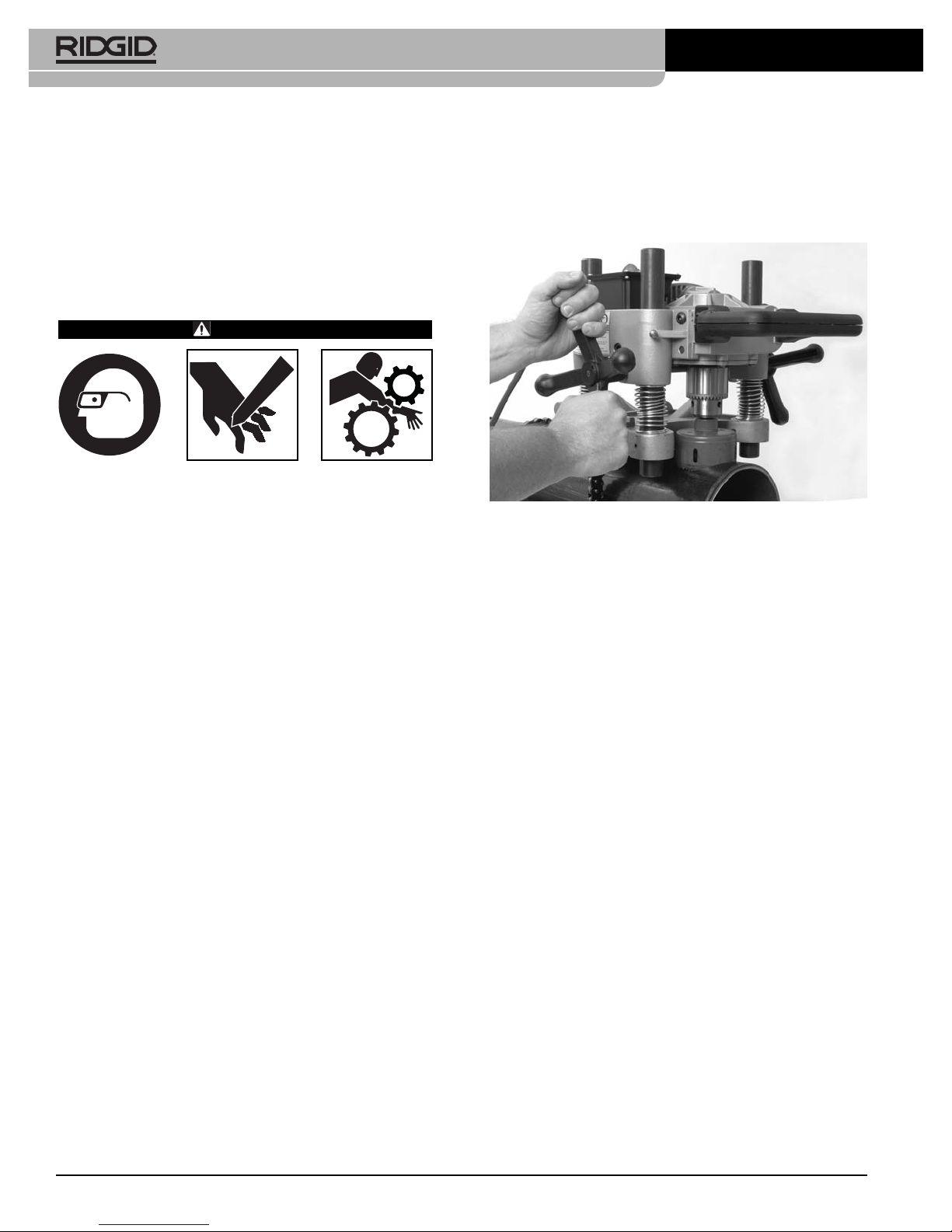

Operating Instructions
WARNING
Always wear appropriate eye protection. Cutting
tools can break or shatter. Cutting produces chips
that can be thrown or fall into eyes.
Do not use for hot tapping. When cutting into an
existing system, the pipe must be drained and
depressurized prior to cutting. This reduces the
risk of electrical shock and other serious injury.
Do not wear gloves or loose clothing when operat-
ing machine. Keep Sleeves and jackets buttoned.
Do not reach across machine. Clothing can be
caught by the machine resulting in entanglement.
Keep fingers and hands away from rotating chuck
and saw. This reduces the risk of entanglement
and cutting injuries.
Follow operating instructions to reduce the risk of
injury from electrical shock entanglement, crush-
ing and other causes and prevent Hole Cutter
damage.
1. Confirm that the Hole Cutting Tool and work area are
properly set up and that the work area is free of by-
standers and other distractions.
2. Assume a proper operating position that will allow:
• Control of the Hole Cutting Tool, including the ON/-
OFF switch and the feed handle. On the HC-300
you must be on the same side as the switch and the
feed handle. Do not turn the tool ON yet
• Good balance. Be sure that you do not have to over
reach.
3. Move the ON/OFF switch to the ON position. Observe
the rotation of the hole saw and pilot drill, making
sure it is running straight and true. If they wobble, or
any other issues are noted, move the switch to OFF
and unplug tool, fix any issues prior to using. Keep fin-
gers, hands and clothes away from the turning chuck
to help reduce the risk of entanglement.
4. Place both hands on the hand wheel and advance the
pilot drill into contact with the pipe. Apply firm pres-
sure, and start drilling the pilot hole. Do not force
the pilot drill/hole saw. This can overload the hole saw
and the tool motor and cause premature failure.
Figure 11 – Operating the Hole Cutting Tool
Once the hole saw is in contact with the pipe, con-
tinue to apply firm pressure. Depending on the size
and wall thickness of the pipe and the size of the hole
being cut, the hole saw may need to be retracted
slightly at times for chip removal.
If needed, the Hole Cutting Tool can be shut off and
a small amount of appropriate cutting lubricant applied
to the work piece. Do not apply lubricant while the tool
is running, this increases the risk of entanglement.
Take appropriate steps to prevent the lubricant from
dripping or being thrown during use.
As the hole saw moves through the pipe and as the
cut is completed, there will be an interrupted cut at
times. Decrease pressure as this occurs to help pre-
vent jamming of the hole saw.
5. Once the hole is complete, retract the hole saw from
the pipe and turn the ON/OFF switch OFF.
6. Reverse the mounting procedure to remove the Hole
Cutting Tool from the pipe. Make sure you have se-
cure grip on the Hole Cutting Tool prior to loosening
the chain or pulling the plunger on the HC-300.
7. If the pipe slug needs to be removed from the hole
saw, always make sure that the ON/OFF switch is in
the OFF position and the Hole Cutting Tool is un-
plugged before removing. Remove the slug with
care, the slug may be hot and edges can be sharp.

11
HC-450/HC-300 Hole Cutting Tools
Maintenance Instructions
WARNING
Make sure that the ON/OFF switch is in the OFF po-
sition and the tool is unplugged before performing
any maintenance or making any adjustments.
Maintain tool according to these procedures to re-
duce the risk of injury from electrical shock, entan-
glement and other causes.
Cleaning
After each use, wipe any chips or oil off with a soft,
clean, damp cloth, especially areas of relative motion
such as the posts. Clean any dust and debris from the
motor vents.
Lubrication
The Hole Cutting Tools gearboxes are designed as
sealed systems, and should not require any additional
grease unless significant leakage has occurred. In those
cases, the tools should be returned to a service center.
Do not lubricate the bearings that ride on the posts.
The bearings are not designed to be used with lubricants,
and lubricants will hold dirt and debris that could damage
the bearings.
As needed, the chain and screw assemblies can be lu-
bricated with a light lubricating oil. Wipe any excess oil
from exposed surfaces.
Changing Brushes
Check motor brushes every six months and replace
when worn to less than 1/2".
1. Remove four screws holding motor cover, remove
cover.
2. Using a pair of pliers, pull the motor brushes straight
out. Detach the connector. (See Figure 12)
Figure 12 – Brush Placement - Motor Cover Removed
3. Inspect the commutator for wear. If excessively worn,
have tool serviced.
4. Depress the brush into the holder and insert into the
motor housing. Inspect to make sure insulator sheets
are properly positioned between brush holder and
housing. Attach the connector and replace the motor
cover.
Gib Screw Adjustment
Gib screws are provided on the HC-450 to allow ad-
justment of the drag between the base and motor as-
semblies. Tighten or loosen the Gib screws to adjust as
desired. (See Figure 13)
Figure 13 – Adjusting Gib Screws
Accessories
WARNING
To reduce the risk of serious injury, only use ac-
cessories specifically designed and recommended
for use with the RIDGID Hole Cutting Tools, such as
those listed below. Other Accessories suitable for
use with other tools may be hazardous when used
with the RIDGID Hole Cutting Tools.
See RIDGID catalog for listing of Hole Saws.
Catalog
No. Description
16671 R2S Solid Shank Arbor
84427 HC-450/HC-300 Carrying Case
77017 Chuck Key
Model HC-300
Catalog
No. Description
84427 HC-450 Carry Case
59502 R4 5⁄8" Arbor only for Hole Saws
59132 Chuck Key
Model HC-450
Connector
Insulator
Sheet
Brush
Gib Screws

12
HC-450/HC-300 Hole Cutting Tools
Machine Storage
The Hole Cutting Tool must be kept in-
doors or well covered in rainy weather. Store the ma-
chine in a locked area that is out of reach of children
and people unfamiliar with hole cutting tool. This ma-
chine can cause serious injury in the hands of untrained
users.
Service and Repair
WARNING
Improper service or repair can make machine un-
safe to operate.
The “Maintenance Instructions” will take care of most of
the service needs of this machine. Any problems not ad-
dressed by this section should only be handled by an au-
thorized RIDGID service technician.
Tool should be taken to a RIDGID Independent Author-
ized Service Center or returned to the factory.
For information on your nearest RIDGID Independent
Service Center or any service or repair questions:
• Contact your local RIDGID distributor.
• Visit www.RIDGID.com or www.RIDGID.eu to find
your local Ridge Tool contact point.
• Contact RIDGID Technical Services Department at
[email protected], or in the U.S. and
Canada call [phone]
Disposal
Parts of the Hole Cutting Tool contain valuable materials
and can be recycled. There are companies that specialize
in recycling that may be found locally. Dispose of the
components in compliance with all applicable regula-
tions. Contact your local waste management authority
for more information.
For EC Countries: Do not dispose of elec-
trical equipment with household waste!
According to the European Guideline 2002/-
96/EC for Waste Electrical and Electronic
Equipment and its implementation into na-
tional legislation, electrical equipment that is
no longer usable must be collected separately and dis-
posed of in an environmentally correct manner.
WARNING

HC-450/HC-300
Scies à cloche
Scies à cloche HC-450 et HC-300
Notez ci-dessous le numéro de série indiqué sur la plaque signalétique de l’appareil pour future
référence.
Nº de
série
HC-450
HC-300
AVERTISSEMENT
Lisez ce manuel soigneusement
avant d’utiliser l’appareil. L’in-
compréhension ou le non respect
des consignes ci-devant pourrait
entraîner des chocs électriques,
des incendies et/ou de graves
blessures corporelles.

Table des matières
Fiche d’enregistrement du numéro de série de l’appareil.......................................................................................13
Symboles de sécurité..................................................................................................................................................15
Consignes générales de sécurité
Sécurité des lieux ......................................................................................................................................................15
Sécurité électrique.....................................................................................................................................................15
Sécurité individuelle ..................................................................................................................................................16
Utilisation et entretien de l’appareil ...........................................................................................................................16
Service après-vente ..................................................................................................................................................16
Consignes de sécurité visant les scies à cloche .....................................................................................................17
HC-450 : Description, caractéristiques techniques et équipements de base
Description ................................................................................................................................................................17
Caractéristiques ........................................................................................................................................................18
Equipements de base................................................................................................................................................18
HC-300 : Description, caractéristiques techniques et équipements de base
Description ................................................................................................................................................................18
Caractéristiques ........................................................................................................................................................18
Equipements de base................................................................................................................................................19
Icônes ...........................................................................................................................................................................19
Inspection préalable de l’appareil..............................................................................................................................19
Préparation de l’appareil et du chantier ....................................................................................................................20
Montage de la scie à cloche sur le tuyau
HC-450 ......................................................................................................................................................................21
HC-300 ......................................................................................................................................................................22
Entraînement de la scie à cloche ..............................................................................................................................23
Consignes d’utilisation ...............................................................................................................................................23
Consignes d’entretien
Nettoyage ..................................................................................................................................................................25
Lubrification ...............................................................................................................................................................25
Remplacement des balais .........................................................................................................................................25
Réglage des vis de calage ........................................................................................................................................25
Accessoires .................................................................................................................................................................25
Stockage de l’appareil.................................................................................................................................................25
Révisions et réparations.............................................................................................................................................26
Recyclage.....................................................................................................................................................................26
Garantie à vie............................................................................................................................................Page de garde
*Traduction de la notice originale
14
Scies à cloche HC-450 et HC-300

15
Scies à cloche HC-450 et HC-300
Consignes générales de sécurité*
AVERTISSEMENT
Familiarisez-vous avec l’ensemble du mode d’emploi. Le
non-respect des consignes d’utilisation et de sécurité ci-
après augmenterait les risques de choc électrique, d’in-
cendie et/ou de grave blessure corporelle.
CONSERVEZ CES INSTRUCTIONS !
Sécurité des lieux
•Assurez-vous de la propreté et du bon éclairage
des lieux. Les zones encombrées ou mal éclairées
sont une invitation aux accidents.
•N’utilisez pas ce matériel en présence de matières
explosives telles que liquides, gaz ou poussières
combustibles. Les appareils électriques produisent
des étincelles susceptibles d’enflammer les poussières
et émanations combustibles.
•Eloignez les enfants et les curieux lors de l’utili-
sation d’un appareil électrique. Les distractions
risquent de vous faire perdre le contrôle de l’appareil.
Sécurité électrique
•Tout appareil équipé d’une mise à la terre doit être
branché sur une prise de courant avec terre, cor-
rectement installée et raccordée selon les normes
en vigueur. Ne jamais éliminer la broche de mise à
la terre ou modifier la fiche d’une manière quel-
conque. En cas de doute sur la qualité de mise à la
terre de la prise, consultez un électricien. La mise à
la terre permet d’éloigner le courant de l’utilisateur en
cas d’anomalie électrique de l’appareil.
•Evitez tout contact physique avec les objets re-
liés à la terre tels que canalisations, radiateurs,
cuisinières et réfrigérateurs. Tout contact avec la
terre augmenterait les risques de choc électrique.
•N’exposez pas l’appareil à la pluie ou aux intem-
péries. Toute pénétration d’eau à l’intérieur de ce
matériel augmenterait les risques de choc électrique.
•Ne maltraitez pas le cordon d’alimentation de l’ap-
pareil. Ne jamais utiliser le cordon pour trans-
porter, tirer ou débrancher l’appareil. Éloignez le
AVIS IMPORTANT
DANGER
AVERTISSEMENT
ATTENTION
Symboles de sécurité
Des symboles et mots clés spécifiques, utilisés à la fois dans ce mode d’emploi et sur l’appareil lui-même, servent à signaler
d’importants risques de sécurité. Ce qui suit permettra de mieux comprendre la signification de ces mots clés et symboles.
Ce symbole sert à vous avertir aux dangers physiques potentiels. Le respect des consignes qui le suivent vous permettra d’éviter
les risques de blessures graves ou mortelles.
Le terme DANGER signifie une situation dangereuse potentielle qui, faute d’être évitée, provoquerait la mort ou de
graves blessures corporelles.
Le terme AVERTISSEMENT signifie une situation dangereuse potentielle qui, faute d’être évitée, serait sus-
ceptible d’entraîner la mort ou de graves blessures corporelles.
Le terme ATTENTION signifie une situation dangereuse potentielle qui, faute d’être évitée, serait susceptible d’en-
traîner des blessures corporelles légères ou modérées.
Le terme AVIS IMPORTANT signifie des informations concernant la protection des biens.
Ce symbole indique la nécessité de lire le manuel soigneusement avant d’utiliser le matériel. Le mode d’emploi renferme d’im-
portantes informations concernant la sécurité d’utilisation du matériel.
Ce symbole indique le port obligatoire de lunettes de sécurité intégrales lors de la manipulation ou utilisation du matériel.
Ce symbole indique un risque d’entraînement des doigts, des mains, des vêtements ou autres objets dans le mécanisme, et
les risques d’écrasement éventuels.
Ce symbole signale un risque de choc électrique.
Ce symbole veut dire qu’il ne faut pas porter de gants lors de l’utilisation de l’appareil afin de limiter les risques d’entraînement.
Ce symbole signale un risque de coupure des doigts, des mains et autres membres par la lame de l’appareil.
Ce symbole impose le port du casque lors des travaux en surélévation.
* Le texte utilisé dans la section Consignes générales de sécurité est conforme au chapitre applicable de la première édition de la norme ULCSA 745. Ce chapitre
renferme des consignes de sécurité générales applicables à de nombreux types d’appareils électriques. Toutes les consignes ne s’appliquent pas forcément
à l’ensemble de ces appareils, et certaines d’entre elles ne s’appliquent pas à l’appareil ci-présent.

16
Scies à cloche HC-450 et HC-300
cordon des sources de chaleur, des matières
huileuses, des objets tranchants et des mécan-
ismes. Les cordons d’alimentation endommagés ou
tortillés augmentent les risques de choc électrique.
•Lors des travaux à l’extérieur, prévoyez une ral-
longe électrique adaptée et portant la désignation
« W-A » ou « W ». Les rallonges prévues pour l’ex-
térieur limitent les risques de choc électrique.
Sécurité individuelle
•Soyez attentif, faites attention à ce que vous faites
et faites preuve de bon sens. N’utilisez pas ce
matériel lorsque vous êtes sous l’influence de
drogues, de l’alcool ou de médicaments. Lors de
l’utilisation de ce type d’appareil, un instant d’inattention
risque d’entraîner de graves lésions corporelles.
•Habillez-vous de manière appropriée. Ne portez
pas de vêtements trop amples ou de bijoux.
Contenez les cheveux longs. Eloignez vos cheveux,
vos vêtements et vos gants des mécanismes. Les
vêtements amples, les bijoux et les cheveux longs
risquent d’être entraînés dans le mécanisme.
•Evitez les démarrages accidentels. Assurez-vous
que l’interrupteur de l’appareil n’est pas en position
de marche avant de le brancher. Porter un appareil
électrique avec un doigt sur son interrupteur ou avoir l’in-
terrupteur en position de marche lors de son branche-
ment est une invitation aux accidents.
•Retirez d’éventuelles clés de réglage avant de met-
tre l’appareil en marche. Une clé laissée sur le mé-
canisme de l’appareil pourrait provoquer des blessures
corporelles.
•Ne vous mettez pas en porte-à-faux. Maintenez
une bonne position de travail et un bon équilibre à
tout moment. Cela vous permettra de mieux con-
trôler l’outil en cas d’imprévu.
•Prévoyez les équipements de protection individuelle
nécessaires. Portez systématiquement une pro-
tection oculaire. Le port d’un masque à poussière, de
chaussures de sécurité antidérapantes, d’un casque de
chantier ou de protecteurs d’oreilles s’impose lorsque les
conditions l’exigent.
Utilisation et entretien de l’appareil
•Servez-vous de serre-joints ou d’autres moyens
d’arrimer l’ouvrage sur une plate-forme stable. Le
fait de tenir un ouvrage à la main ou contre son corps
créerait une situation d’instabilité susceptible d’en-
traîner la perte de contrôle de l’ouvrage.
•Ne forcez pas les outils. Prévoyez l’outil appro-
prié en fonction des travaux envisagés. Le matériel
approprié fera le travail plus efficacement et avec un
plus grand niveau de sécurité lorsqu’il tourne au régime
prévu.
•N’utilisez pas de matériel électrique dont l’inter-
rupteur ne contrôle pas la mise en marche ou l’arrêt.
Tout appareil électrique qui ne peut pas être contrôlé par
son interrupteur est dangereux et doit être réparé.
•Débranchez l’appareil avant son réglage, change-
ment d’accessoires ou stockage. De telles mesures
préventives limiteront les risques de démarrage acci-
dentel de l’appareil.
•Rangez les outils non utilisés hors de la portée des
enfants et des individus qui n’ont pas été famil-
iarisés avec ce type de matériel ou son mode d’em-
ploi. Ce type d’outil peut s’avérer dangereux s’il tombe
entre les mains d’utilisateurs non initiés.
•Veillez à l’entretien quotidien des outils, notam-
ment en ce qui concerne leur affûtage et leur pro-
preté. Des outils correctement entretenus et affûtés
seront plus faciles à contrôler et moins susceptibles de
se gripper.
•Examinez l’appareil pour signes de mauvais aligne-
ment, détérioration ou grippage de ses mécan-
ismes, voire toute autre anomalie susceptible de
nuire à son bon fonctionnement. Le cas échéant, il
sera nécessaire de faire réparer l’appareil avant de
vous en servir. De nombreux accidents sont provoqués
par des appareils électriques mal entretenus.
•Utilisez exclusivement les accessoires prévus par
le fabricant pour votre type d’appareil particulier.
Toute tentative d’adaptation d’accessoires prévus pour
d’autres types d’appareil pourrait s’avérer dangereuse.
Révisions
•La révision de cet appareil doit être confiée à un ré-
parateur agréé. Toute intervention effectuée par du
personnel non qualifié augmenterait les risques de
blessure corporelle.
•N’utilisez que des pièces de rechanges d’origine
lors de la réparation de l’appareil. Respectez les
consignes de la section Entretien de cette notice.
L’utilisation de pièces ou de méthodes non prévues
augmenterait les risques de choc électrique et autres
blessures.

17
Scies à cloche HC-450 et HC-300
augmenterait les risques de graves blessures cor-
porelles.
•Familiarisez-vous avec les consignes d’utilisation
et de sécurité visant l’ensemble du matériel utilisé
avant de vous servir de la scie à cloche. Le non re-
spect des consignes d’utilisation et de sécurité pourrait
entraîner des dégâts matériels et de graves blessures
corporelles.
Certaines poussières produites
lors du sablage, du sciage, du meulage du perçage ou
autres opérations d’usinage contiennent des éléments
connus comme étant cancérogène, susceptibles de provo-
quer des déformations du fétus et autres atteintes du
système reproductif. Parmi ces éléments se trouvent :
• Le plomb issu des peintures à base de plomb
• La silice cristalline issue des briques, du ciment et
autres matériaux de construction
• L’arsenic et le chrome issus du bois traité.
Les risques d’exposition varient en fonction de la fréquence
de ce type d’intervention. Afin de limiter l’exposition à
ces matières, travaillez dans un local bien ventilé et
prévoyez les équipements de protection adéquats tels
que des masques à poussière spécialement conçus pour
filtrer les particules microscopiques.
Au besoin, une copie de la Déclaration de conformité
CE nº 890-011-320.10 accompagnera le présent manuel
sous forme de notice indépendante.
En cas de questions visant ce produit RIDGID®, veuillez :
– Consulter votre distributeur RIDGID
– Visiter le site www.RIDGID.com ou www.RIDGID.eu
pour localiser le conseiller le plus proche
– Consulter les services techniques de RIDGID à
[email protected] ou, à partir des
Etats-Unis ou du Canada, en composant le
[phone].
Modèle HC-450 : Description,
caractéristiques techniques et
équipements de base
Description
La scie à cloche RIDGID®HC-450 est prévue pour le
percement de trous d’un maximum de 43/4" de diamètre
dans les tuyaux en acier. Les différents diamètres de
percement qu’elle offre permettent d’utiliser des Mechanical
Ts®, Hookers®, Vic-O-LetsTM et autres raccords pour con-
duites non pressurisées.
La HC-450 est équipée d’un mandrin de 5/8" pouvant re-
cevoir toutes tailles de mèches de scie à cloche. Son ré-
ducteur incorporé assure un maximum de performance
lors de l’utilisation de mèches de grand diamètre. Ses
deux volants d’avancement permettent à l’utilisateur de tra-
Consignes de sécurité
spécifiquement liées à
l’utilisation de la scie à cloche
AVERTISSEMENT
Cette section renferme d’importantes consignes
de sécurité visant tout particulièrement l’utilisa-
tion de ce type d’appareil.
Afin de limiter les risques de choc électrique et
autres blessures potentielles, familiarisez-vous avec
l’ensemble de ces consignes avant d’utiliser la scie
à cloche.
CONSERVEZ L’ENSEMBLE DES CONSIGNES
CI-PRESENTES POUR FUTURE REFERENCE !
Gardez le présent manuel avec l’appareil afin qu’il soit à
portée de main de tout utilisateur éventuel.
•Portez systématiquement une protection oculaire
appropriée. Les outils de coupe peuvent se briser
ou éclater. Ce type d’usinage produit des copeaux
pouvant occasionner des lésions oculaires.
•Ne jamais porter de gants ou de vêtements amples
lors de l’utilisation de cet appareil. Boutonnez vos
manches et vos vestes. Ne jamais se pencher sur
l’appareil. Les vêtements risquent d’être entraînés
par le mécanisme de l’appareil.
•Eloignez vos doigts et vos mains du mandrin et de
la scie lorsqu’ils tournent. Cela limitera les risques
d’accident.
•Arrimez la scie à cloche au tuyau de manière ap-
propriée. Une scie à cloche mal arrimée risque de
tomber et provoquer des blessures contondantes ou
écrasantes.
•Ne pas utiliser cet appareil pour le perçage de
conduites en charge. La coupe doit toujours être ef-
fectuée après vidange et dépressurisation du conduit
afin de limiter les risques de choc électrique et autres
blessures graves.
•Avant d’utiliser l’appareil, assurez-vous du bon
fonctionnement du disjoncteur différentiel de son
cordon d’alimentation. Le disjoncteur différentiel de
l’appareil limite les risques de choc électrique.
•Lors des travaux en élévation, tout individu présent
doit porter le casque et ne pas se tenir à l’aplomb
de l’appareil. Cela réduira les risques de blessure
grave en cas de chute d’objets.
•N’utilisez la scie à cloche que pour la découpe
des tuyaux comme indiqué dans cette notice. Ne
pas modifier ou utiliser la scie à cloche à d’autres fins.
Toute autre utilisation ou modification de cet appareil
AVERTISSEMENT

18
Scies à cloche HC-450 et HC-300
Modèle HC-300 : Description,
caractéristiques techniques et
équipements de base
Description
La scie à cloche RIDGID®HC-300 est prévue pour le
percement de trous d’un maximum de 3" de diamètre
dans les tuyaux en acier. Les différents diamètres de
percement qu’elle offre permettent d’utiliser des
Mechanical T ®, Hooker®, Vic-O-LetTM, Weld-O-LetTM et
autres raccords pour conduites non pressurisées.
La HC-300 est équipée d’un mandrin de 1/2" pouvant re-
cevoir toutes tailles de mèches de scie à cloche allant
jusqu’à 3" de diamètre, et les porte-lames 6-pans allant
jusqu’à 7/16". Son réducteur incorporé assure un maxi-
mum de performance lors de l’utilisation de mèches de
grand diamètre. Son volant d’avancement unique et son
interrupteur marche/arrêt facilite la manipulation de l’ap-
pareil. Son petit gabarit permet à la HC-300 d’accéder aux
tuyaux difficiles d’accès.
NOTA ! Les raccords Mechanical T, Hooker et Vic-O-
Let sont des marques déposées de la société
Victualic Tool Company.
Figure 2 – Modèle HC-300 avec équipements de base
Caractéristiques techniques
Capacité de
coupe maxi....................76 mm (3")
Section de conduite.......Ø 30 à 200 mm (11/4" – 8")
Capacité du mandrin .....2 à 13 mm (1/16" – 1/2")
Vitesse de rotation
du mandrin ....................360 t/min
Puissance
développée....................1,2 CV
Courant (résistance)......11A à 115V, 5,5 à 230V,
12A à 100V
vailler soit du côté gauche, soit du côté droit de l’ap-
pareil. Un niveau à bulles rotatif incorporé dans l’em-
base permet d’aligner plusieurs percements successifs sur
le même plan. Son petit gabarit et sa faible hauteur (29
cm) permet à la HC-450 d’accéder aux tuyaux difficiles
d’accès, même en plafond.
NOTA ! Les raccords Mechanical T, Hooker et Vic-O-Let
sont des marques déposées de la société
Victualic Tool Company.
Caractéristiques techniques
Capacité de
coupe maxi....................120 mm (43/4")
Section de conduite.......Ø 30 à 200 mm (11/4" – 8")
Capacité du mandrin .....Ø 2 à 16 mm (1/16" – 5/8")
Vitesse de rotation
du mandrin ....................110 t/min
Puissance
développée....................1,2 CV
Courant (résistance)......12A à 115V, 6A à 230V,
12A à 100V
Dimensions
Hauteur..........................29 cm (12,62")
Longueur .......................43 cm (17")
Largeur..........................43 cm (17")
Poids .............................19 kg (42 livres)
Equipements de base
• Scie à cloche
• Clé de mandrin
• Support de lame Ø 5/8" avec platine et mèche pilote
de 1/4"
Figure 1 – HC-450 avec équipements de base
Mandrin
Interrupteur
Vis de calage
Volant
d’avancement
Levier
pivotant
Chaîne
Clé de mandrin
Disjoncteur
différentiel
Porte-lame
Mandrin
Poignée de
serrage
Volant
d’avancement
Chaîne
Clé de mandrin
Disjoncteur
différentiel
Interrupteur
Etiquette
d’avertissement
Mèche pilote
